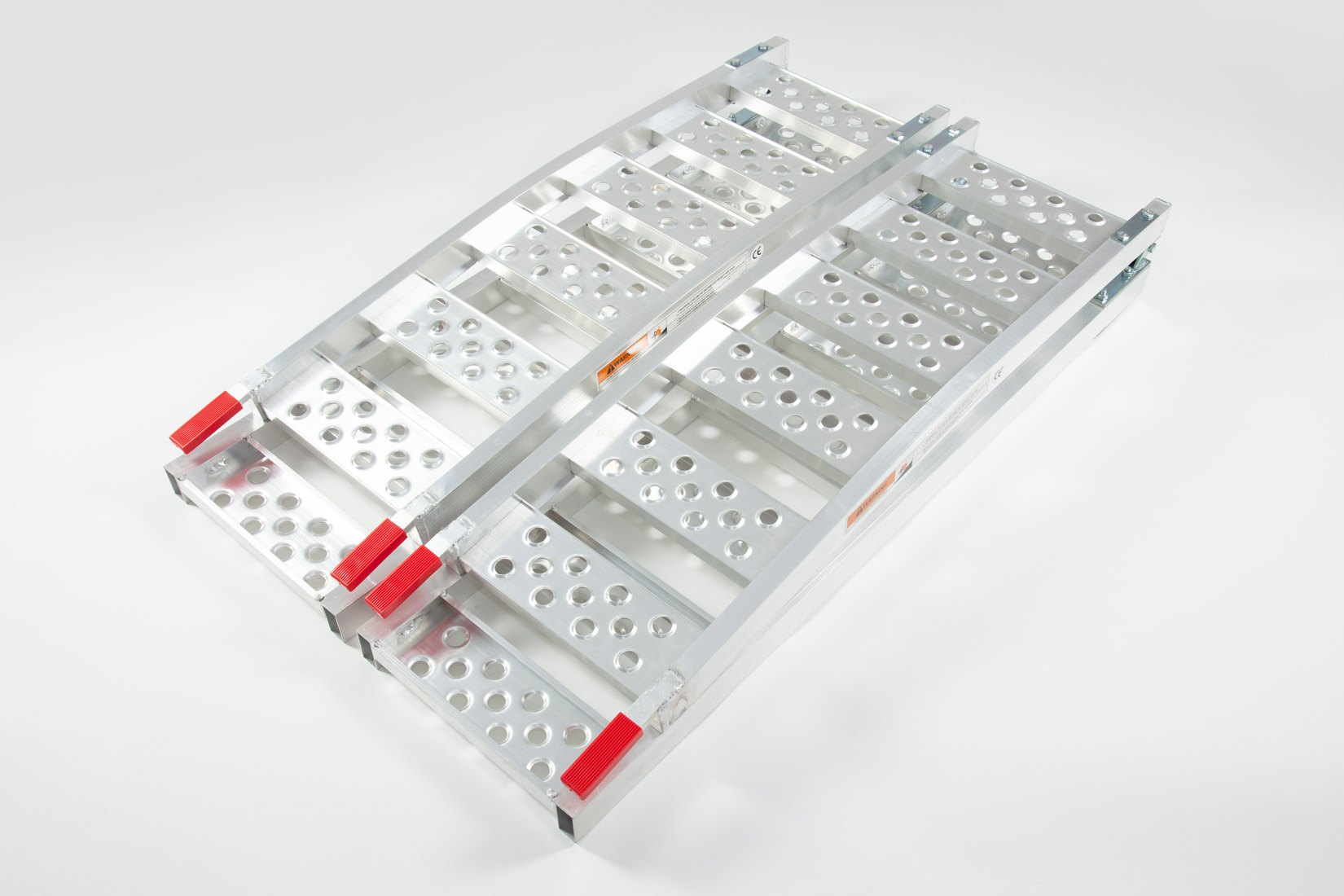

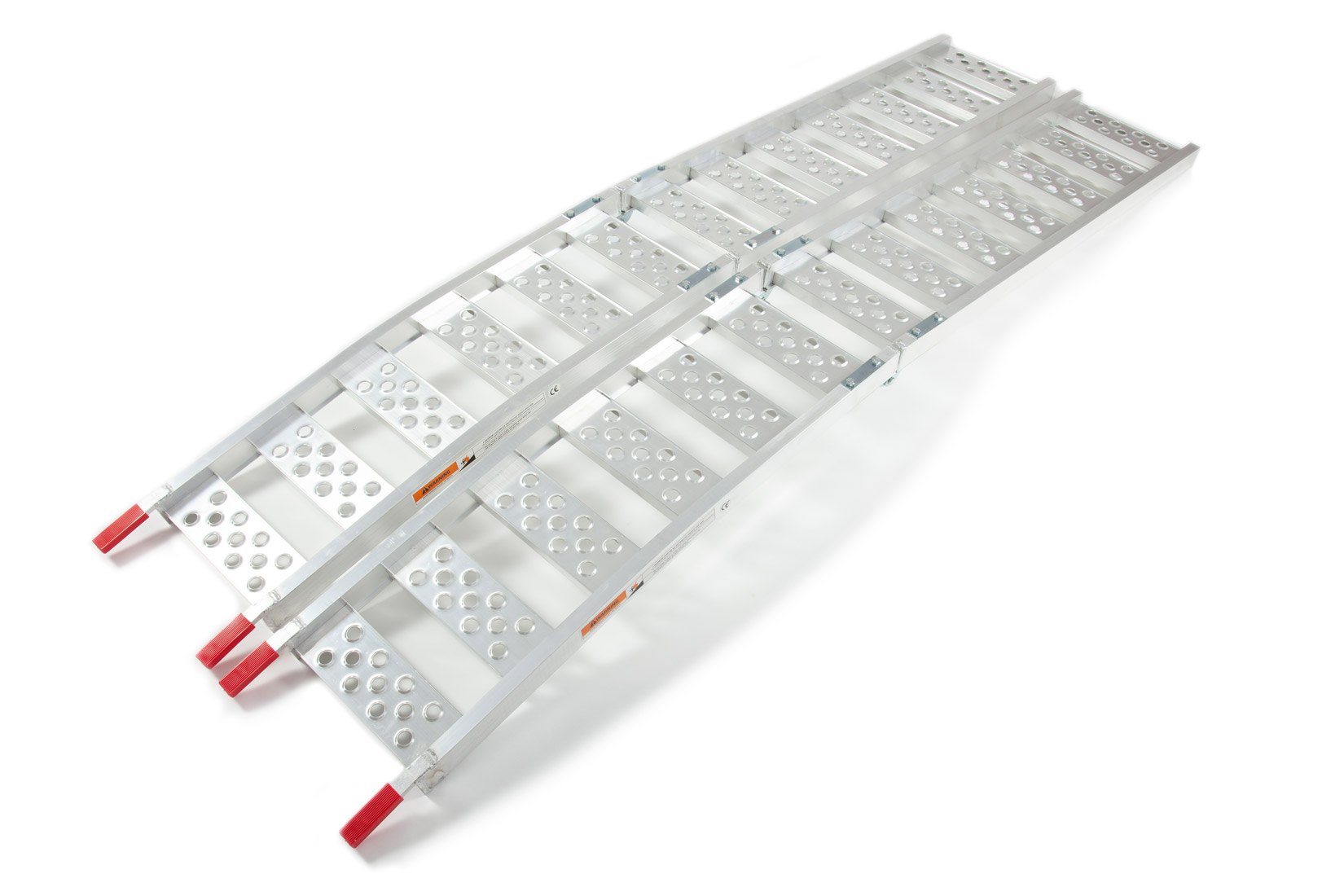

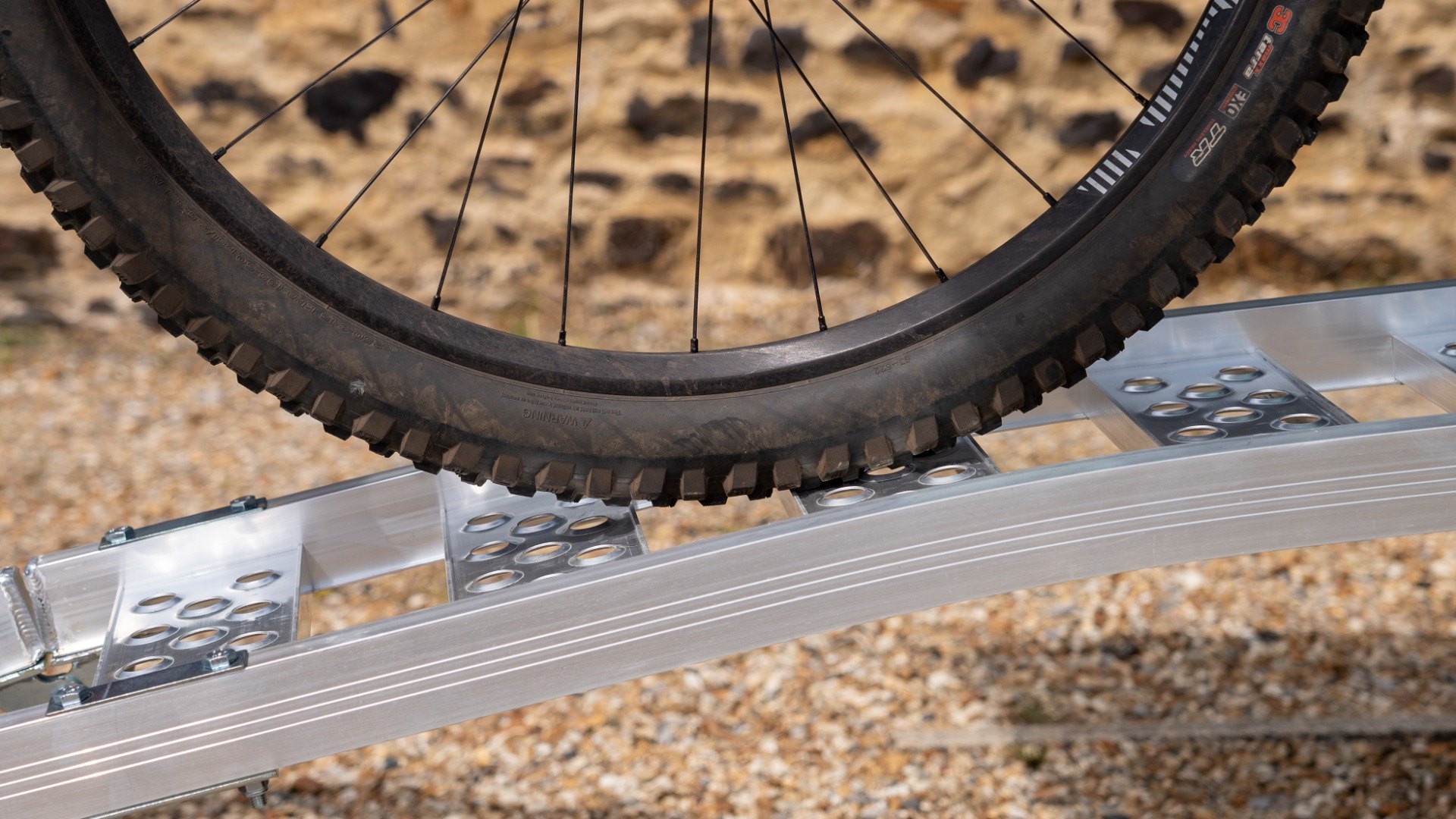

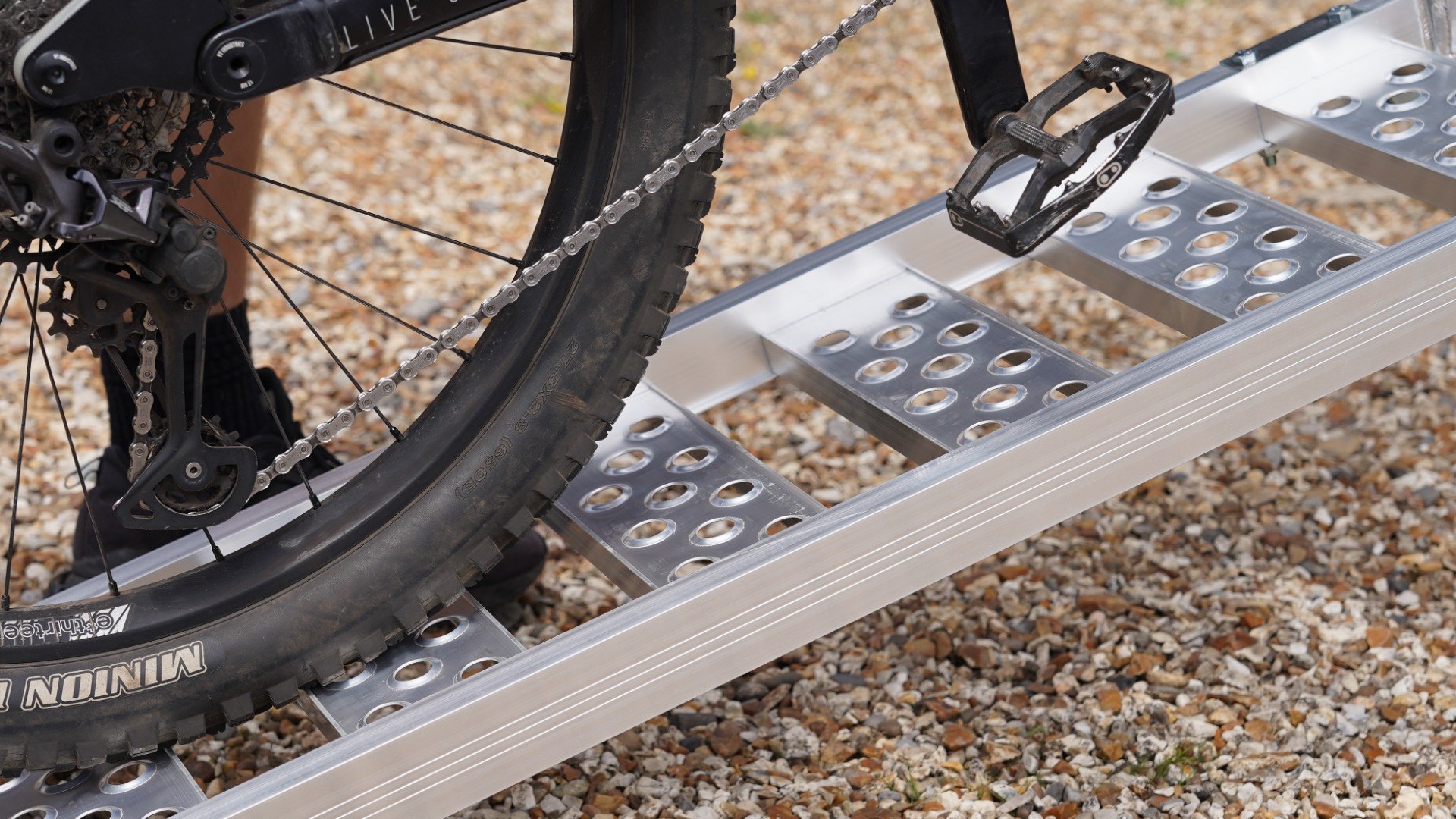

"The Aussie" lightweight aluminium folding loading ramps include a perforated grip system. With a capacity of 340kg per ramp, 680kg capacity across the pair, these ramps are suitable for motorcycles, ride-on lawn mowers, ATV/quad bikes and other wheeled garden machinery. The ramps are slightly curved for improved ground clearance.
Please note: These ramps are unsuitable for single axle machinery or vehicles. These ramps are not suitable for commercial/Industrial usage, for this use we would recommend a solution from our professional range.
Single
Length (mm)
2290
Width (mm)
330
Max Load Height (mm)
685
Weight per Ramp (kg)
7.4
Capacity (kg)
340
Pair
Length (mm)
2290
Width (mm)
330
Max Load Height (mm)
685
Weight per Ramp (kg)
7.4
Weight Per Pair (kg)
14.8
Capacity (kg)
680
Ramp Capacity, Length & Load Height
This guide should help you gauge how long a ramp you require, so if you're in any doubt read the details below. If you still have questions after reading, feel free to give us a call. The crucial thing to know is your load height.
Load Height: this is the vertical measurement from the ground to where you rest the ramp onto.
Guide to the maximum load height is shown in the product description/table, please note the minimum Load Height will be 5% below the maximum height stated on the ramp, to calculate use (maximum load height - 5% = minimum load height).
For vehicle ramps EU guidelines recommend that no ramps with a gradient greater than 30% or 1:3.3 should be used. Essentially the load heightx 3.3,gives you your ramp length. Furthermore no TUV Certified Ramp is designed to exceed this gradient. Going over this gradient is can cause accident, injury or death and may invalidate the warranty.
Please check the wheelbase measurement of the machine you are loading is suitable for the capacity the ramp can take based on the wheelbase measurement advised. To check your wheelbase, look at the vehicle from side view, the distance between the centre of front wheel and rear wheel (rim centre) is your wheelbase.
For machines with an unbalanced weight distribution such as, scissors lifts, paving machinery, steel tracked machinery and machines with low ground clearance we would advise you contact us first, so we can check and advise on the most suitable solution.
For loading cars and other vehicles with either a) Low ground clearance b) Front and/or Rear overhang a gentler gradient is recommended (this will vary depending upon the vehicle). Please also note that most forklifts and pallet trucks are not built to be used on slopes. Please check the manual for the gradient information.
Further information can be seen in this blog article here

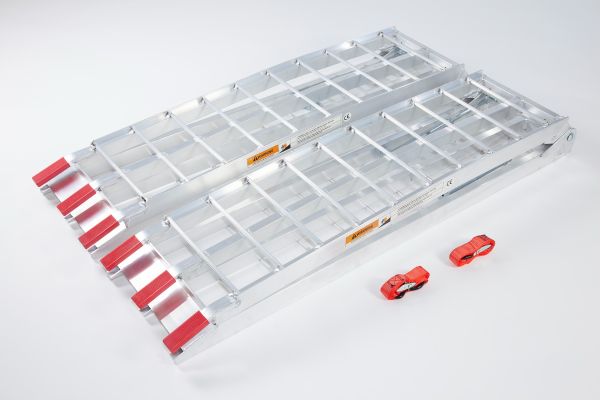

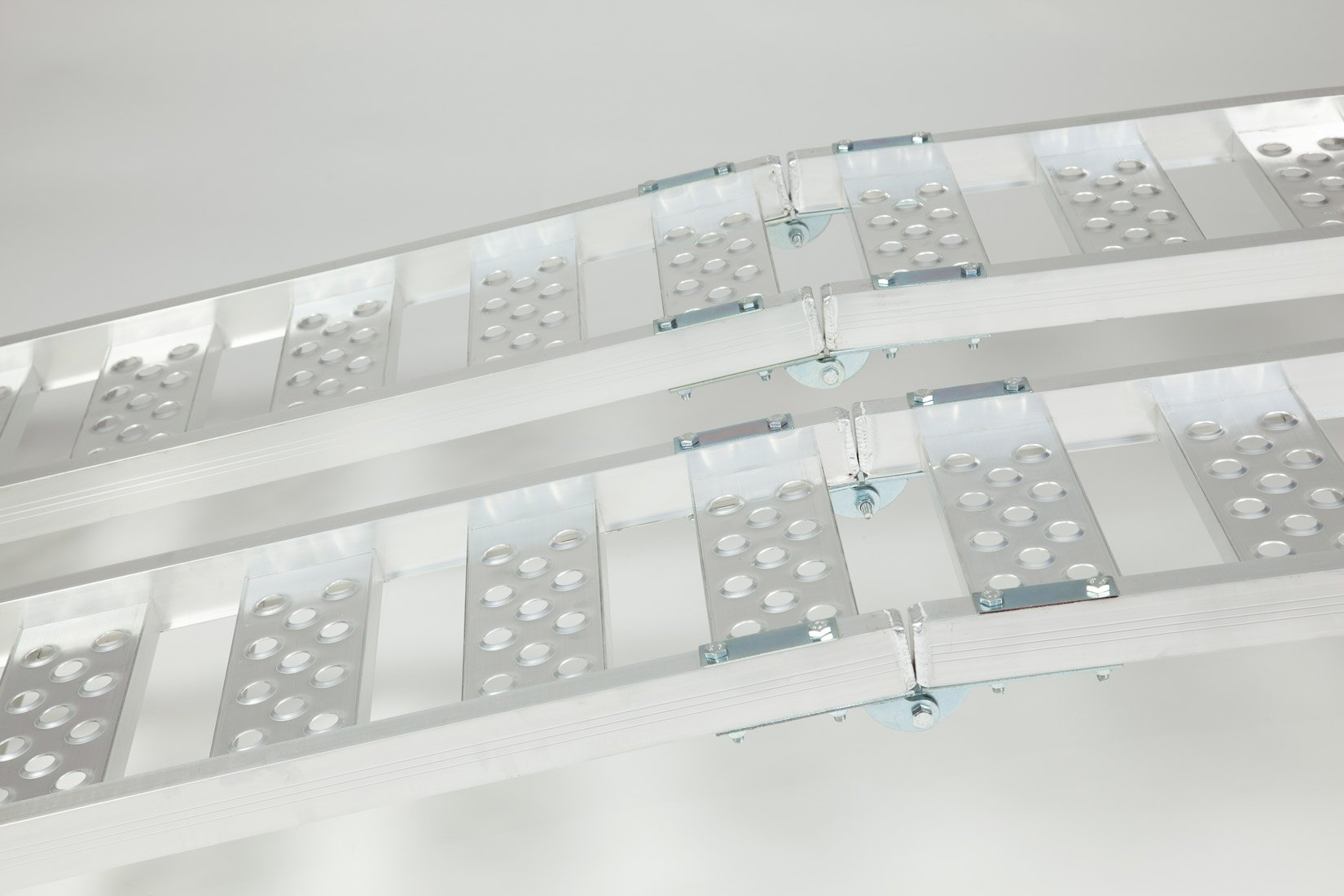

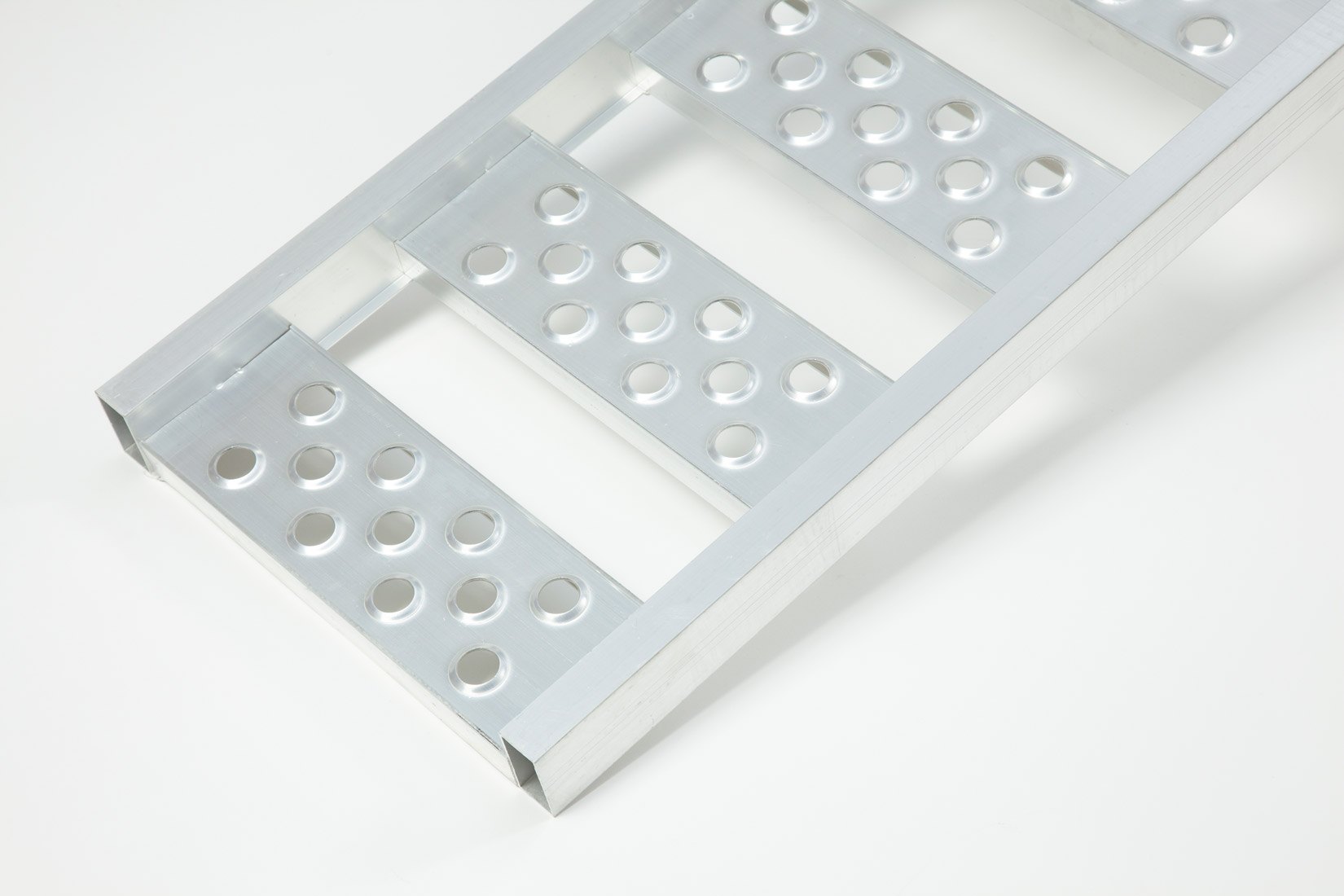

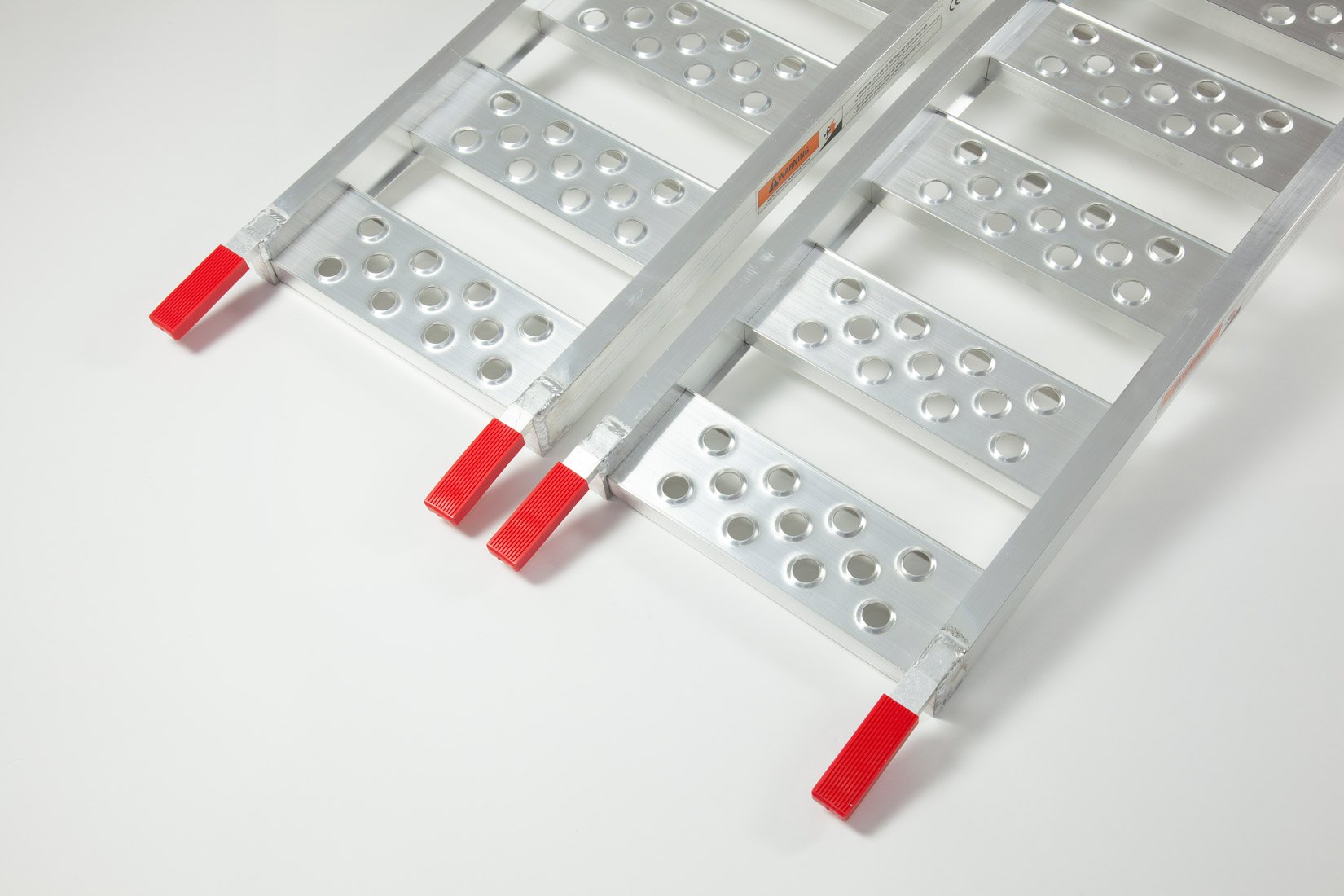

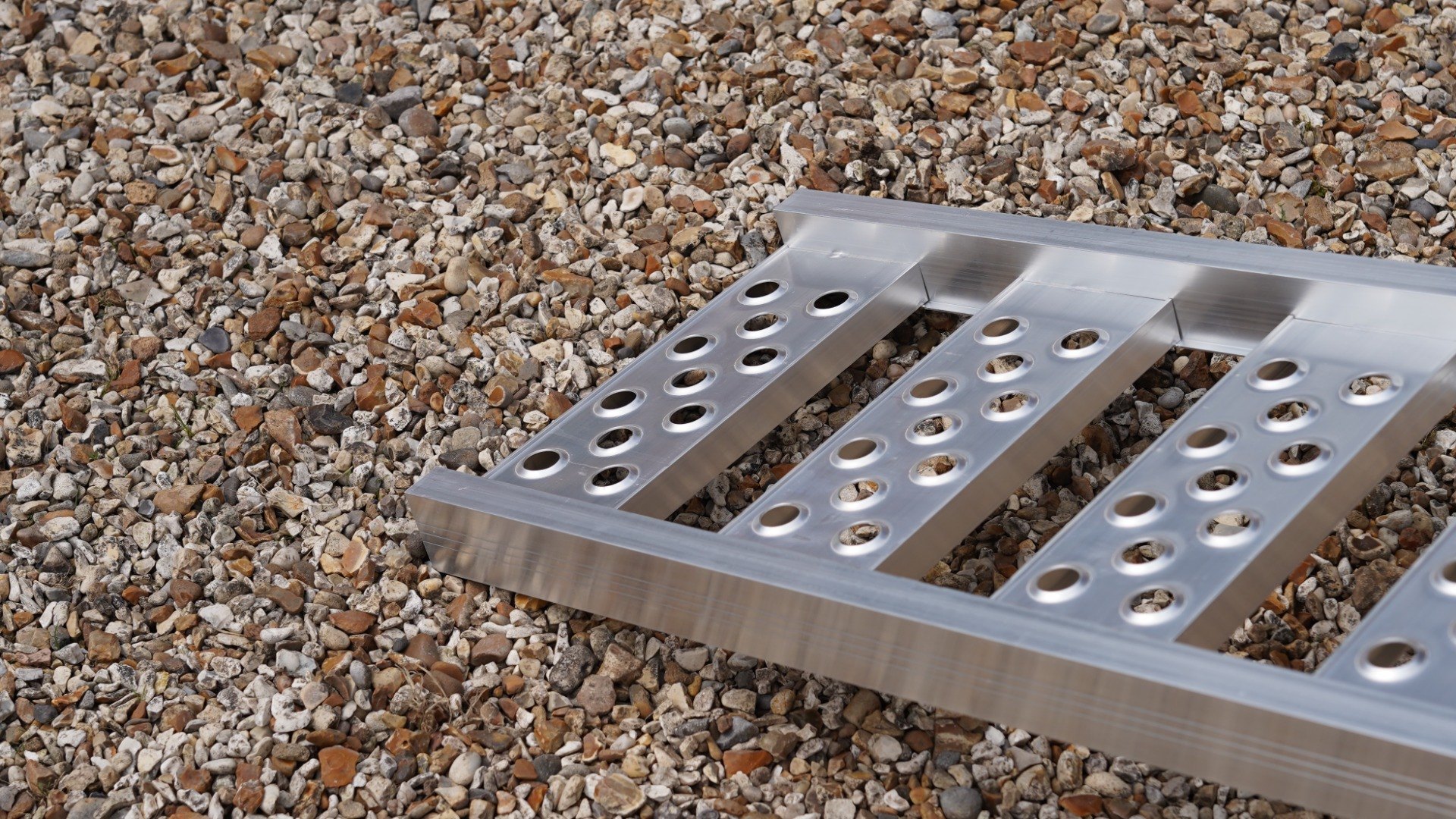

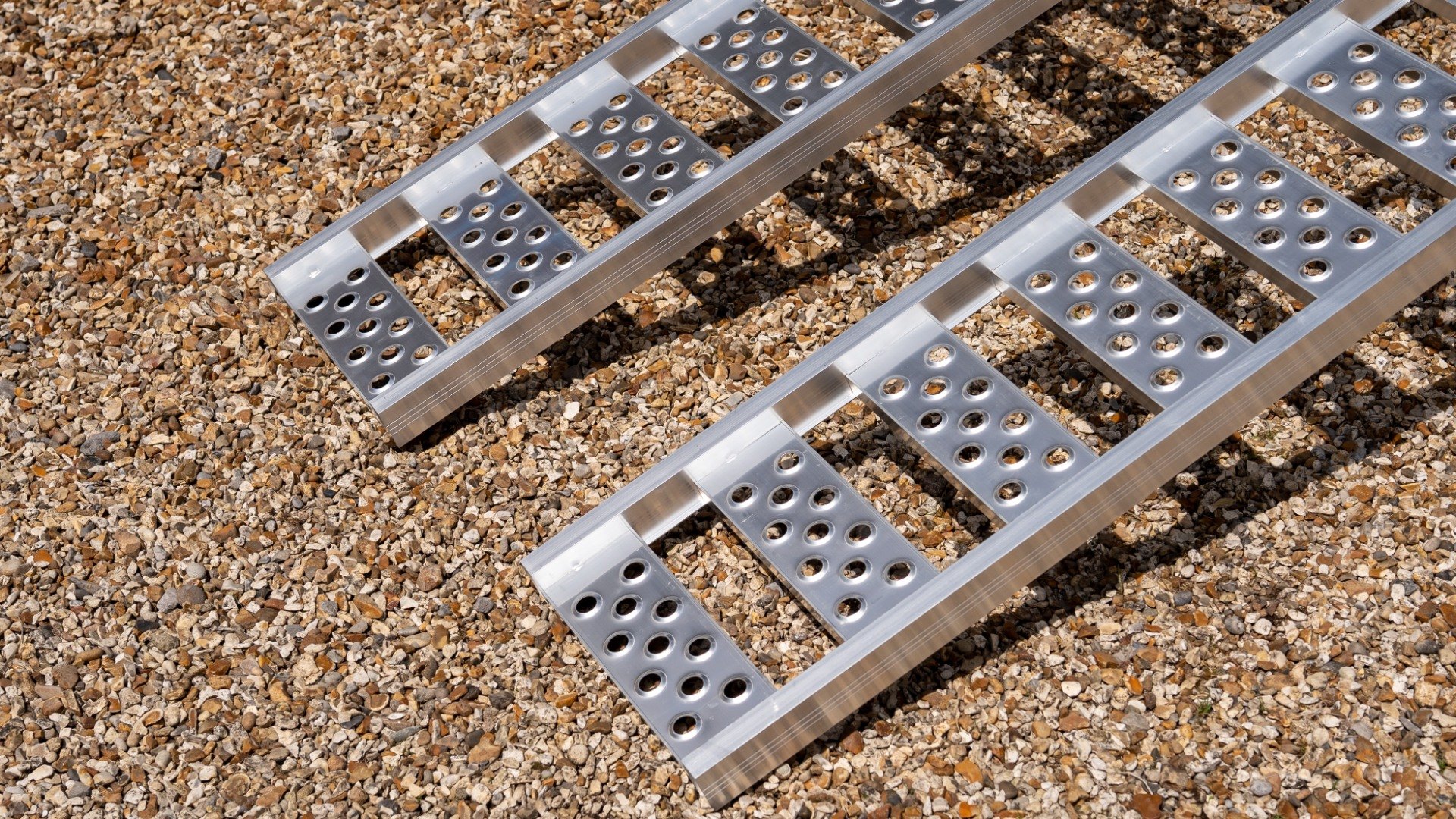

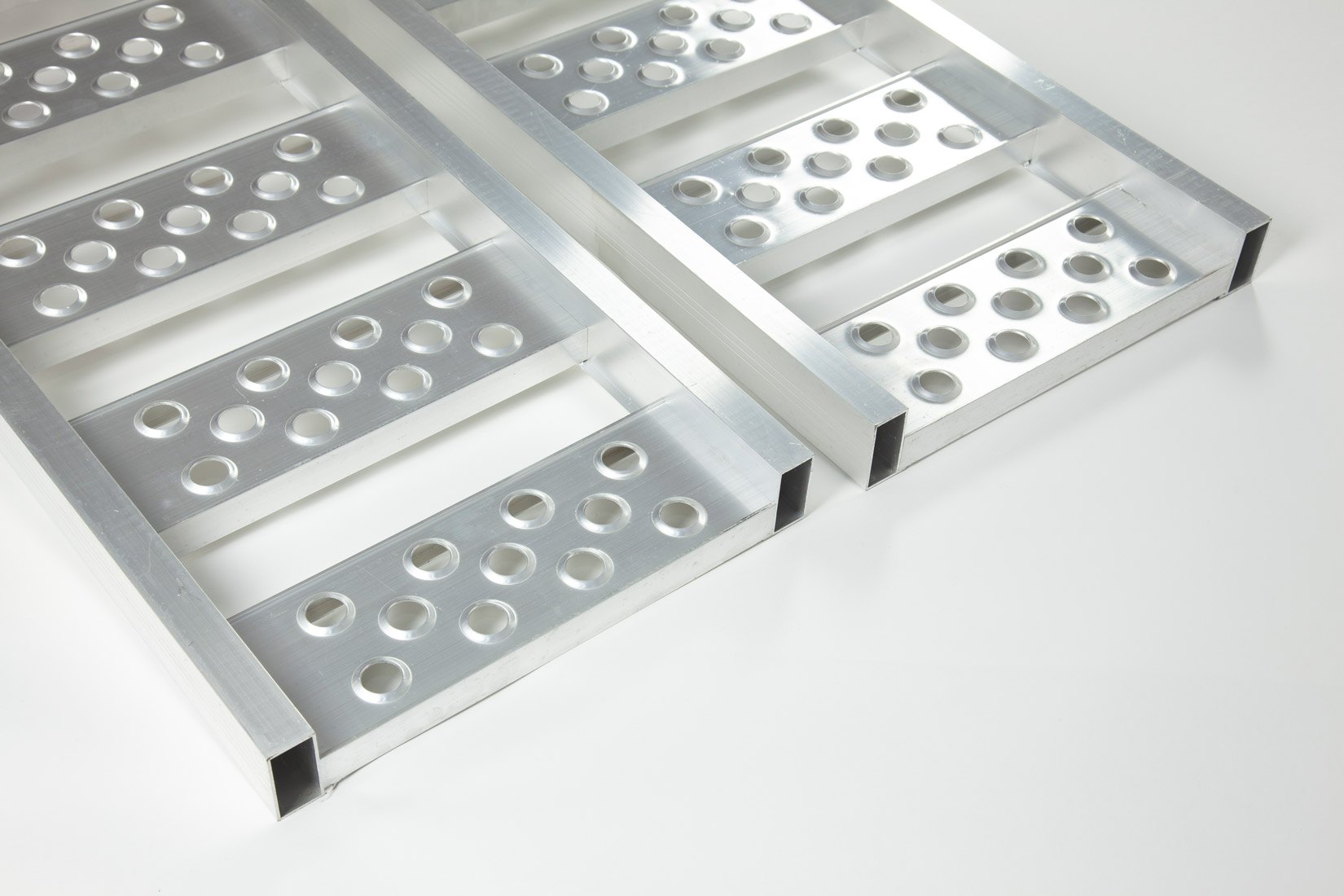

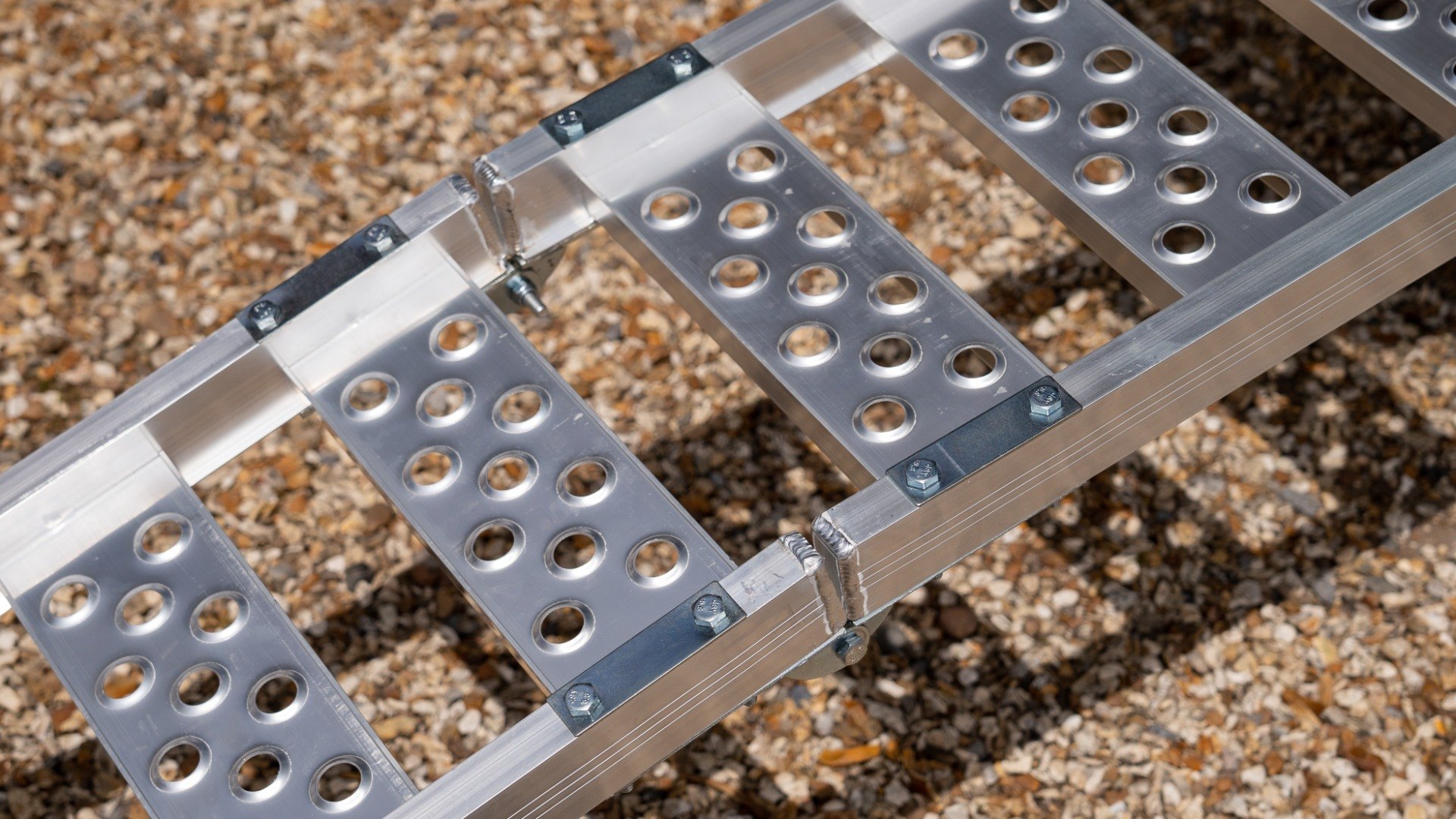

Lightweight aluminium folding loading ramp with perforated grip system

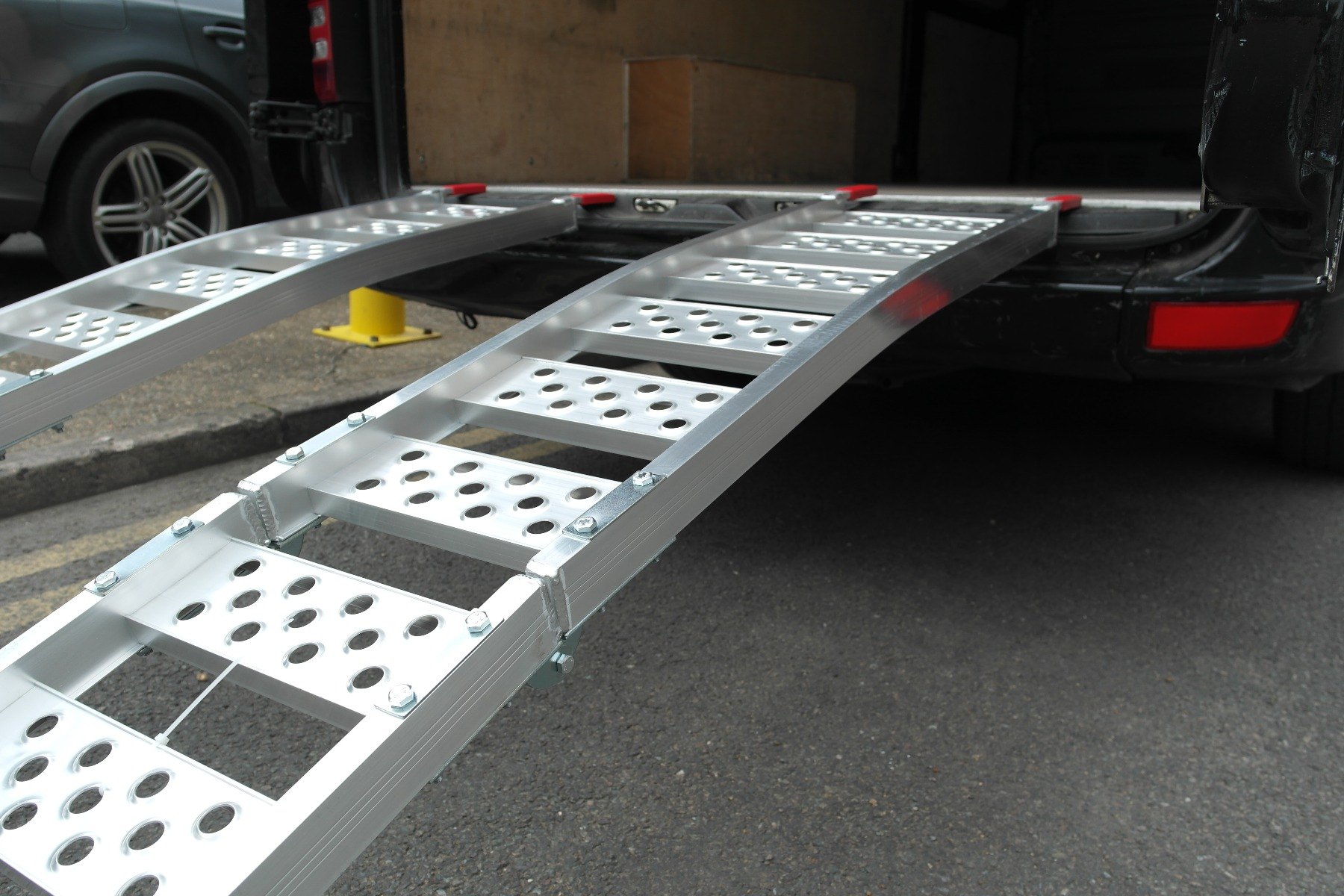

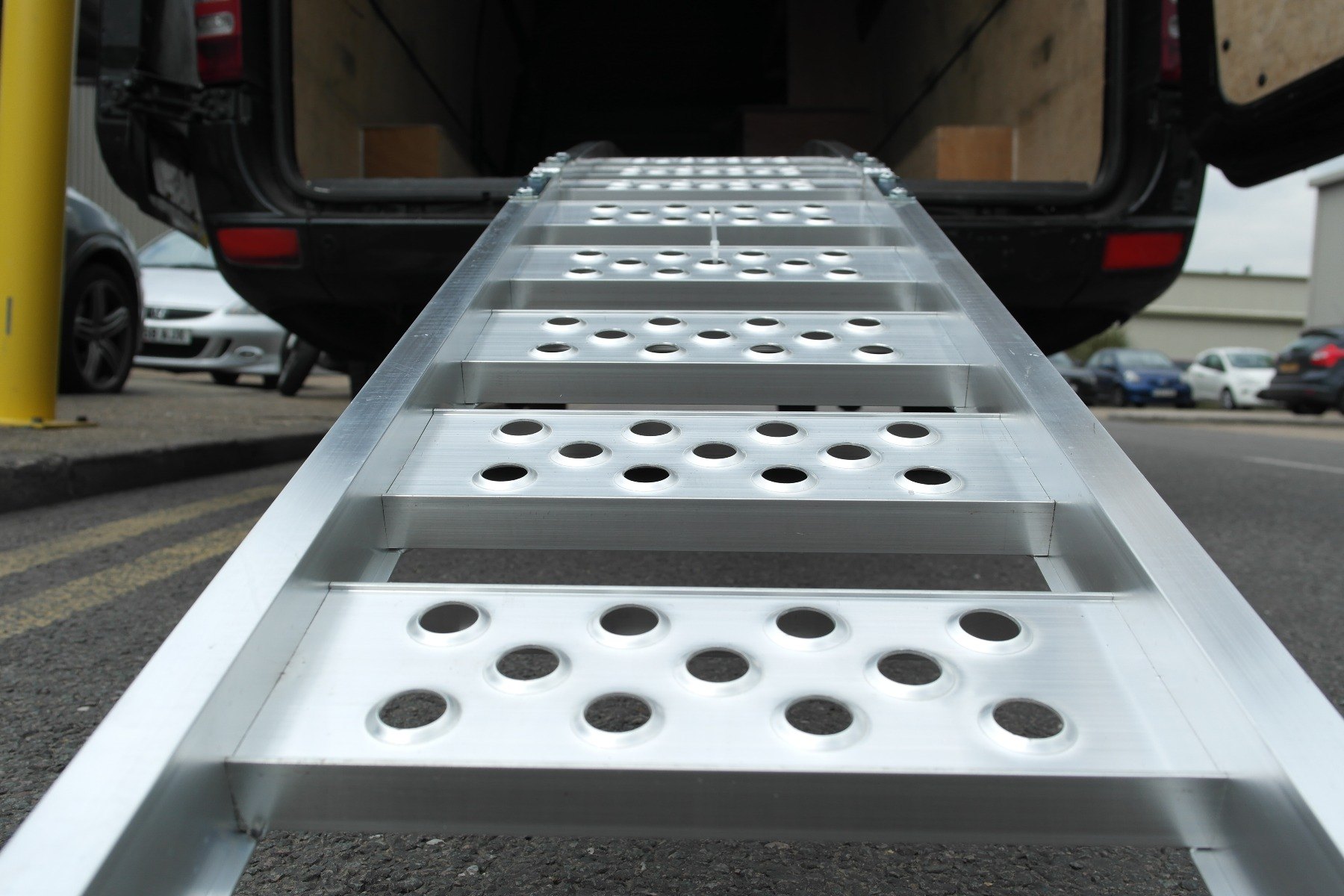

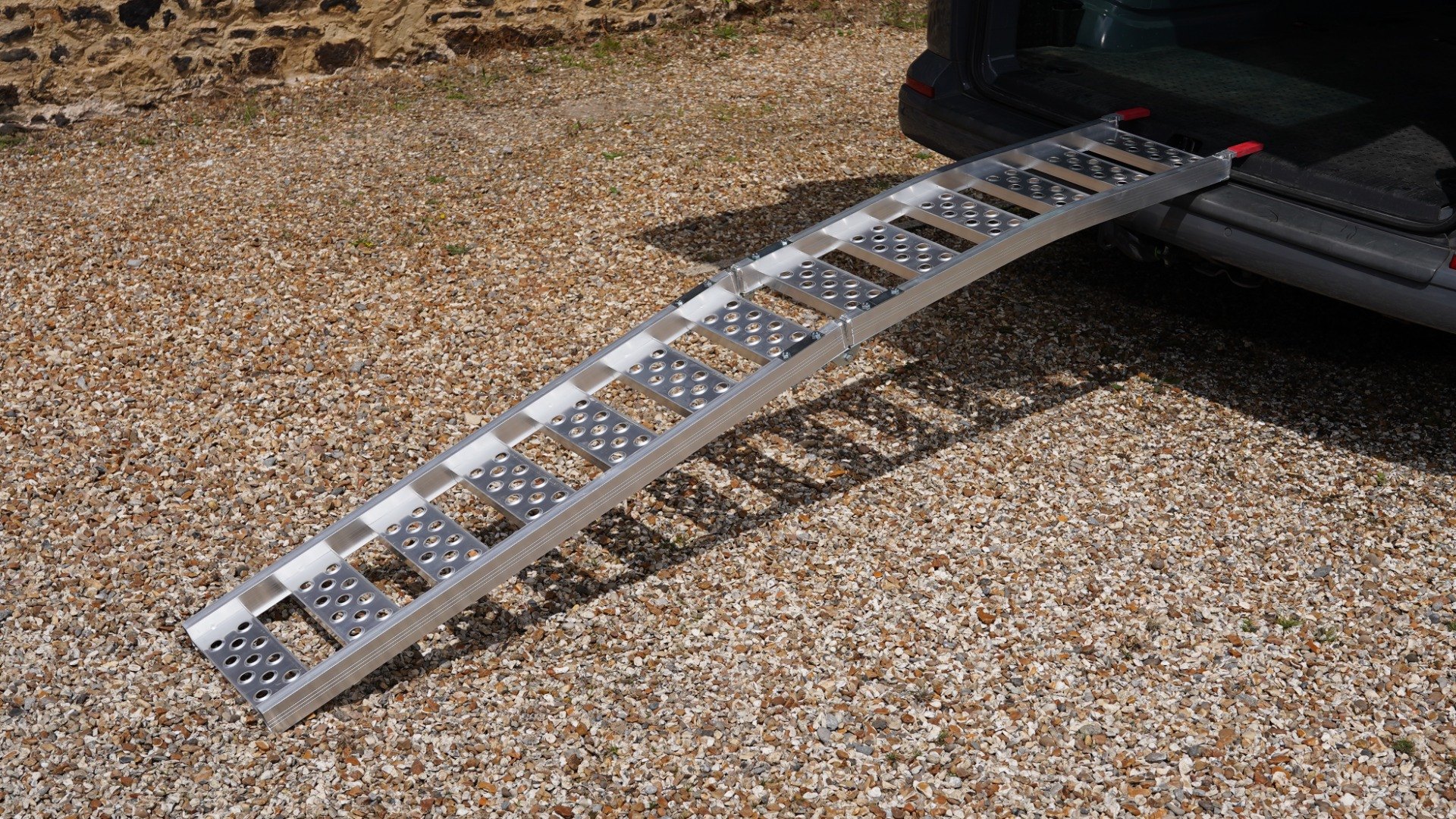

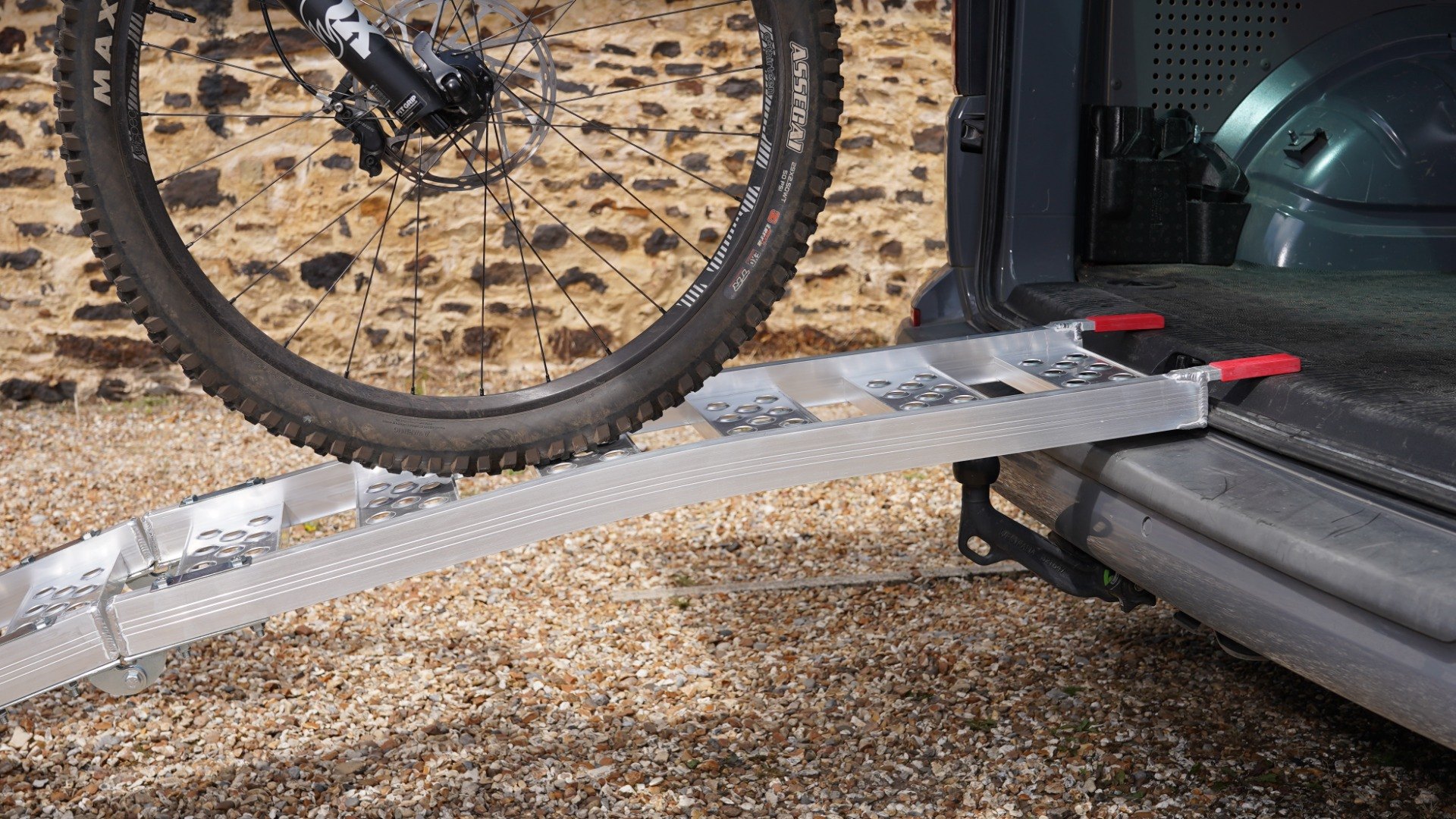

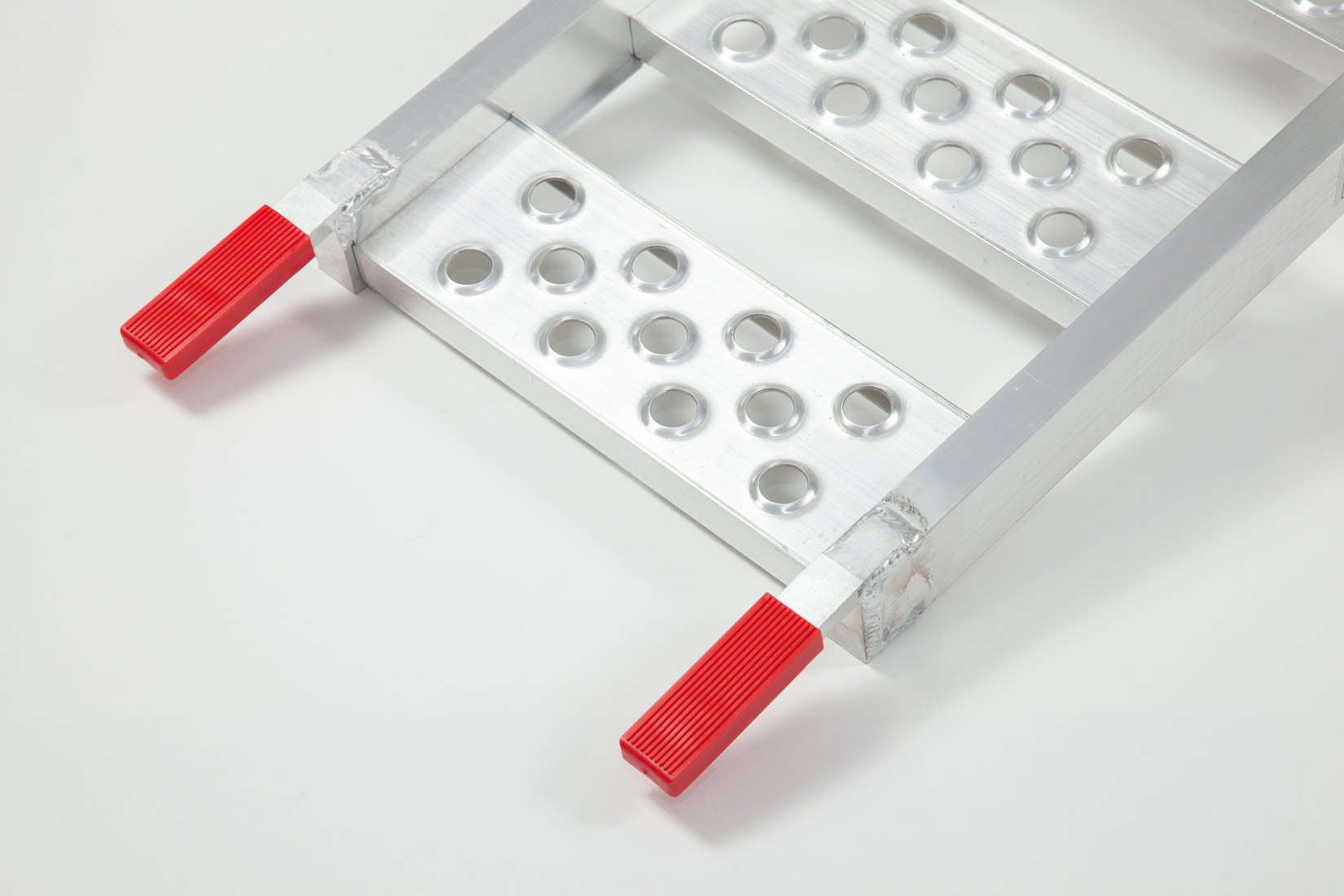

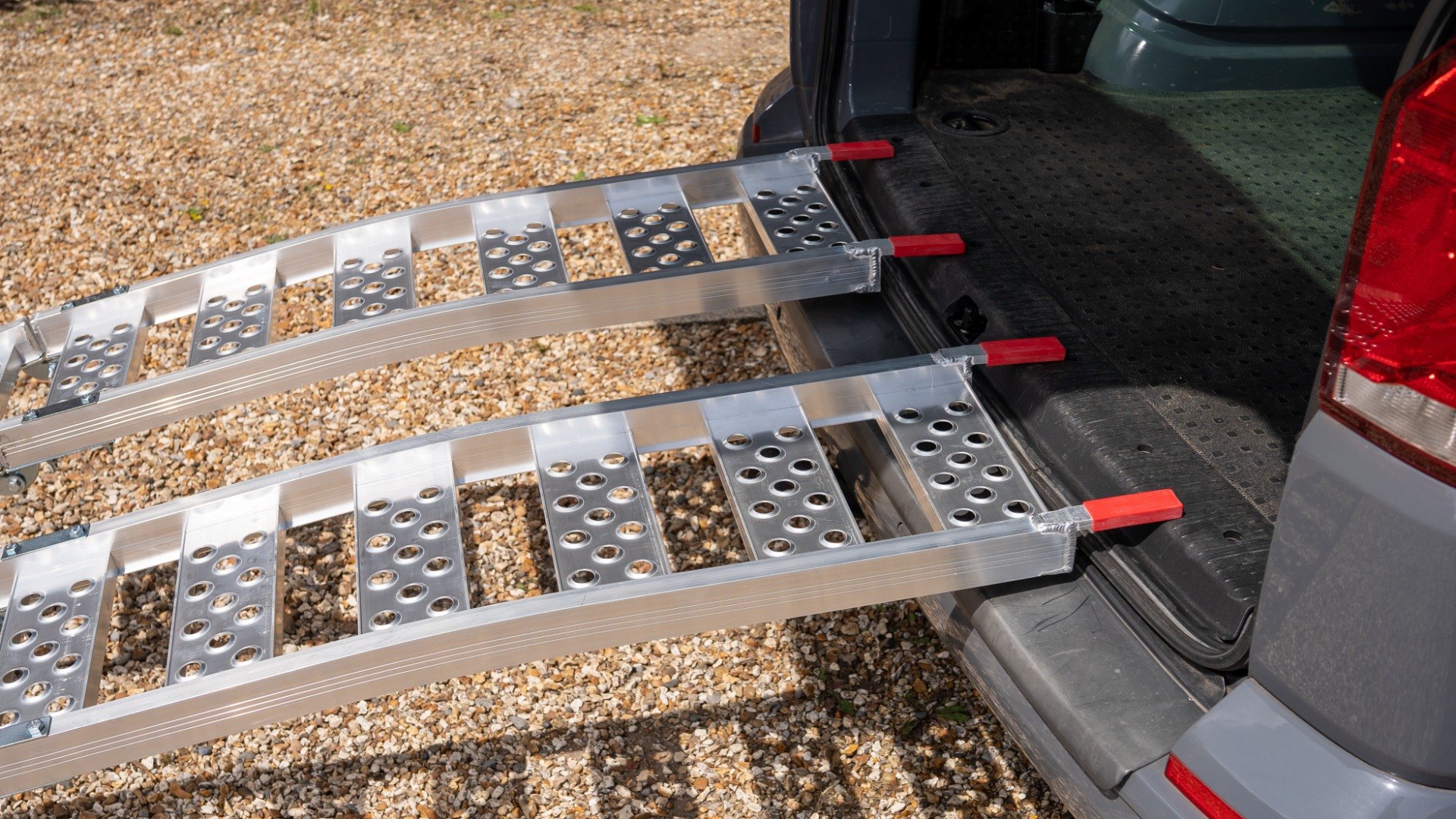

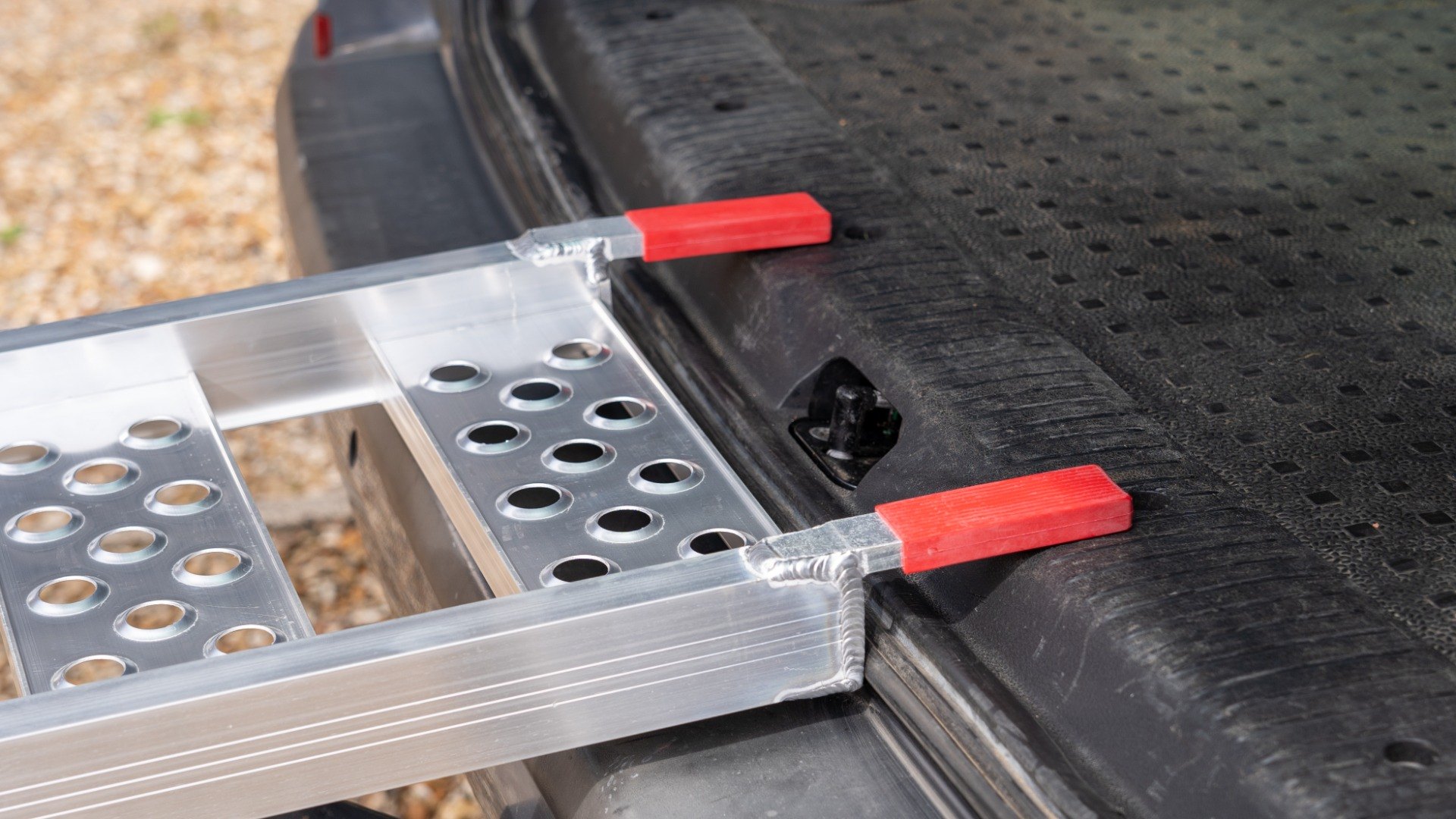

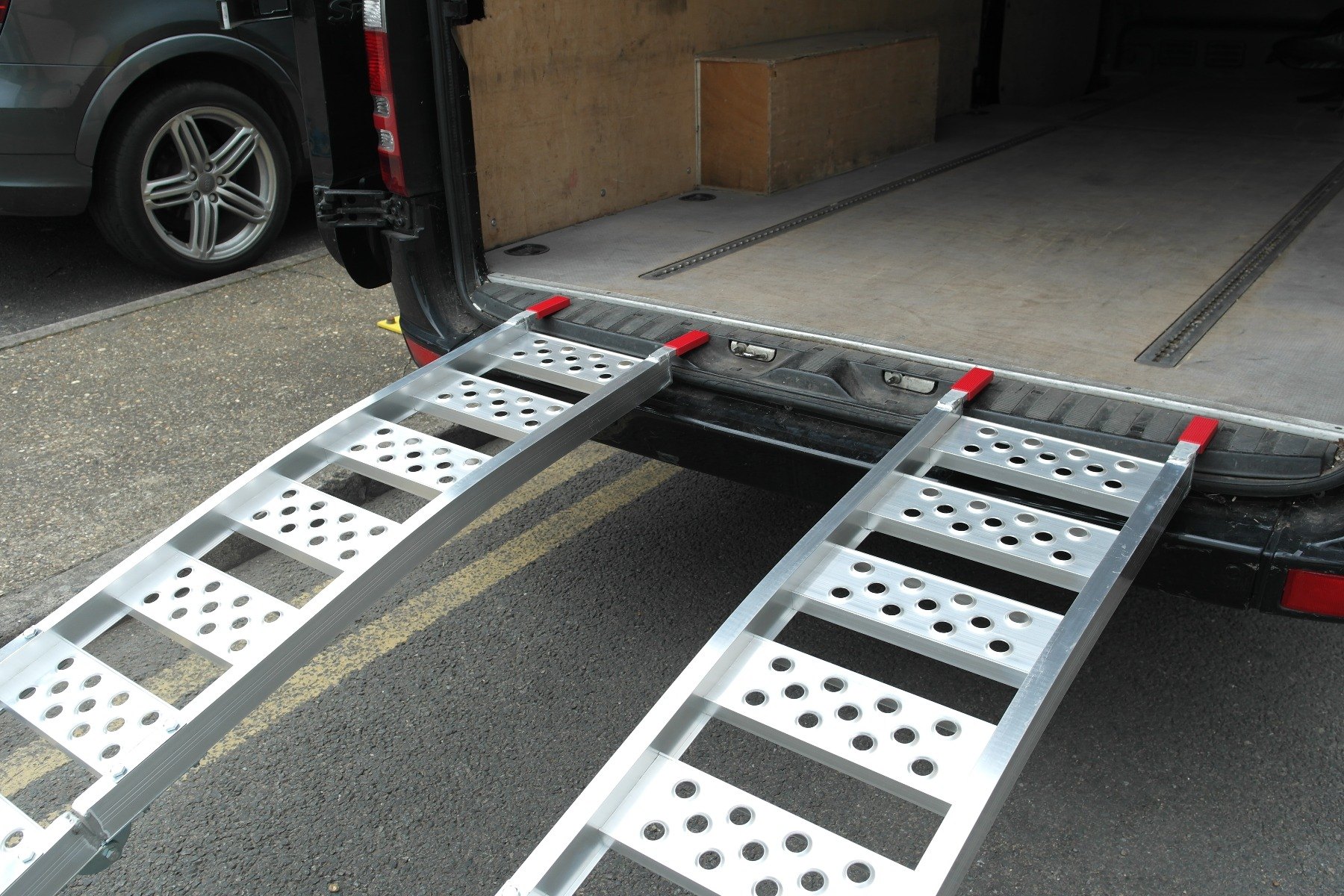

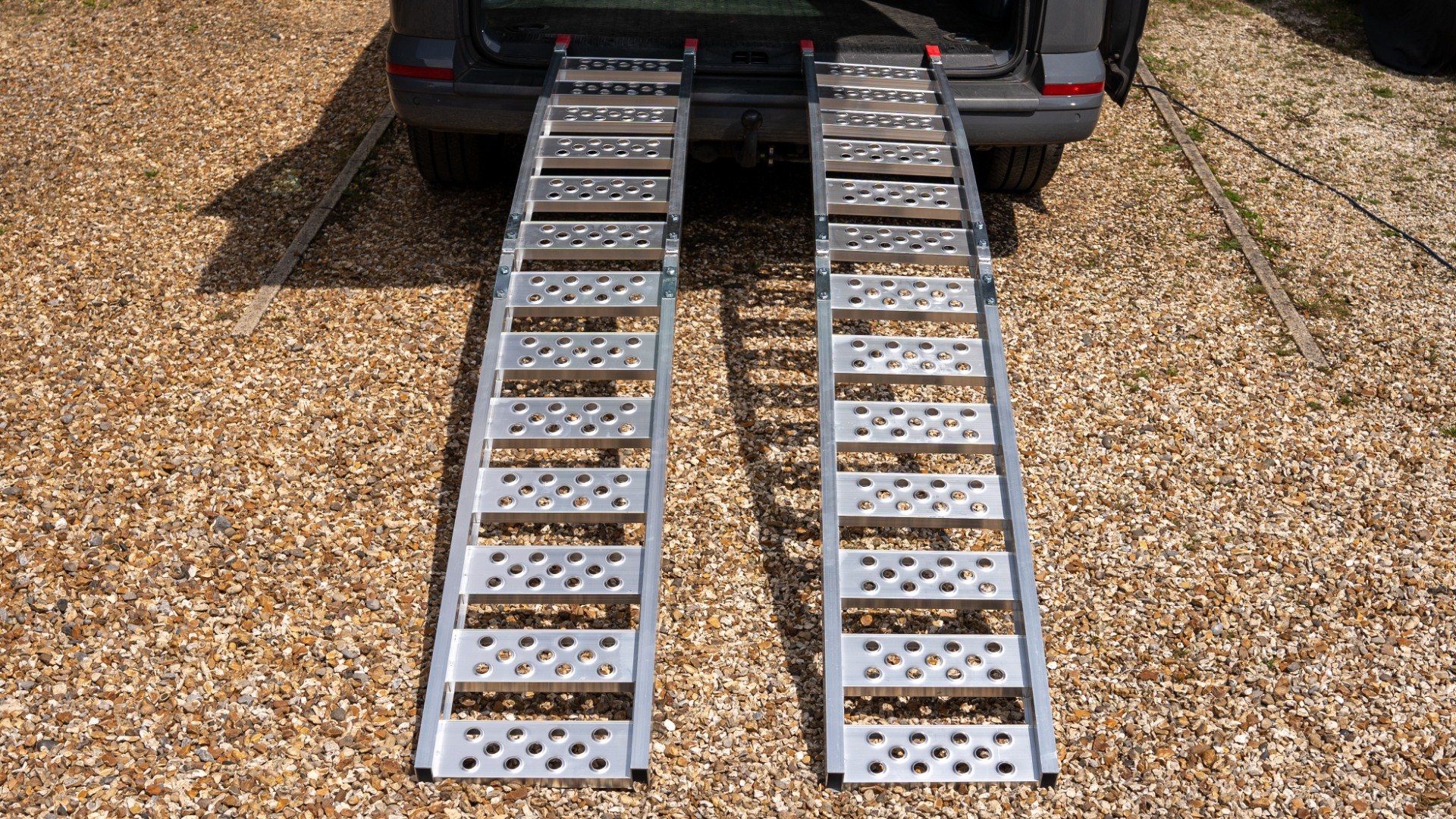

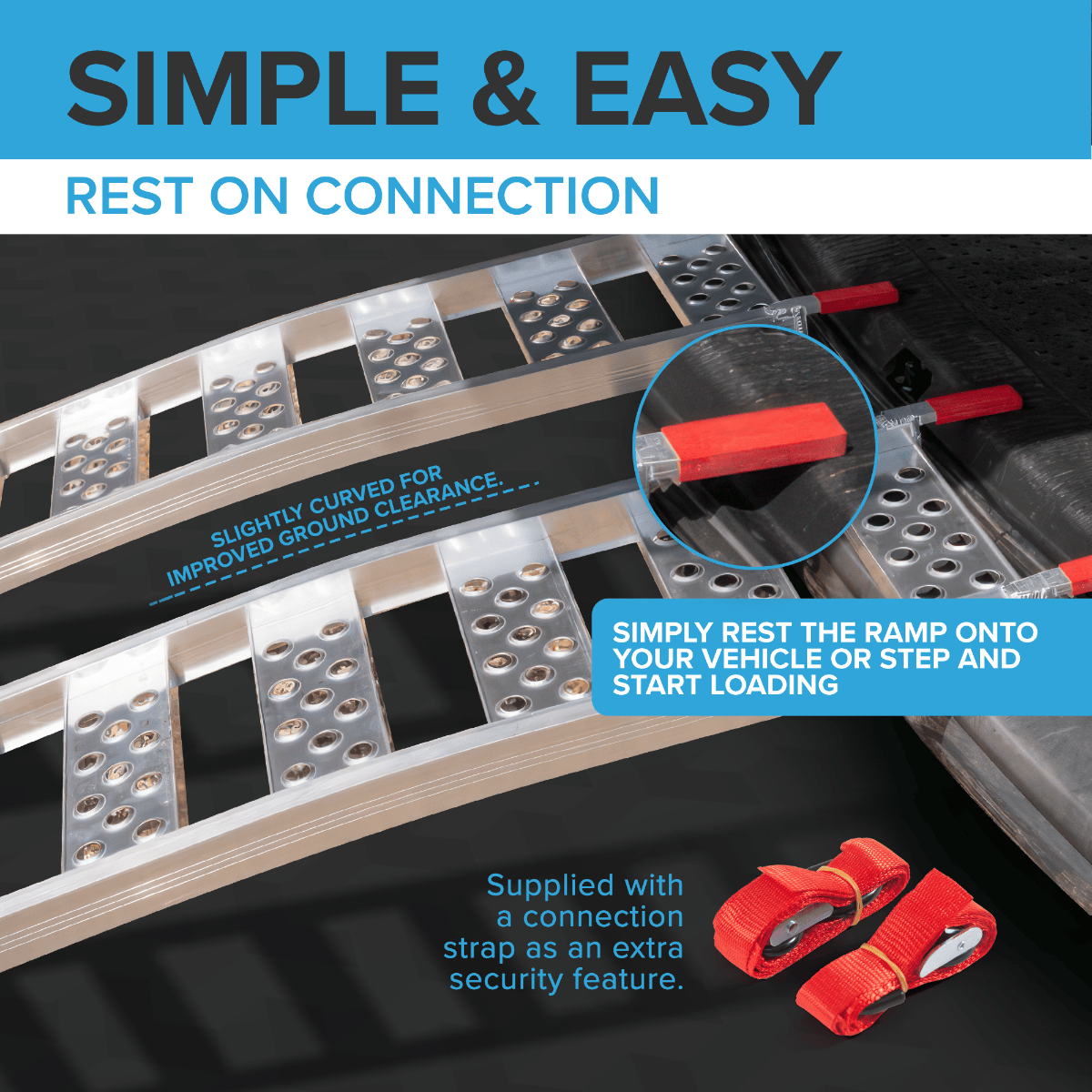

Rest on connection, simply rest onto your vehicle or step and start loading
Perfect for motorcycles, quad bikes and ride-on lawn mowers

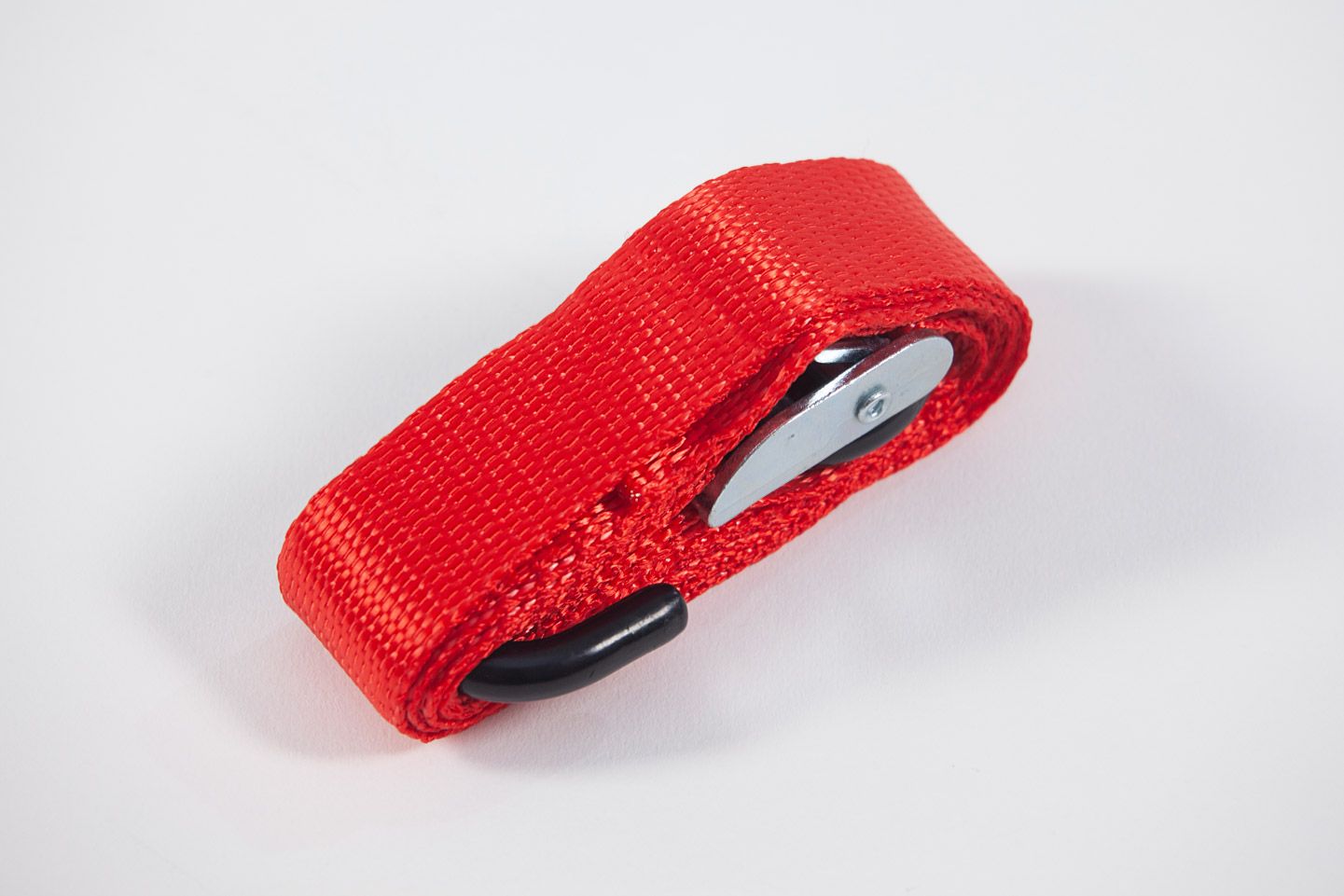

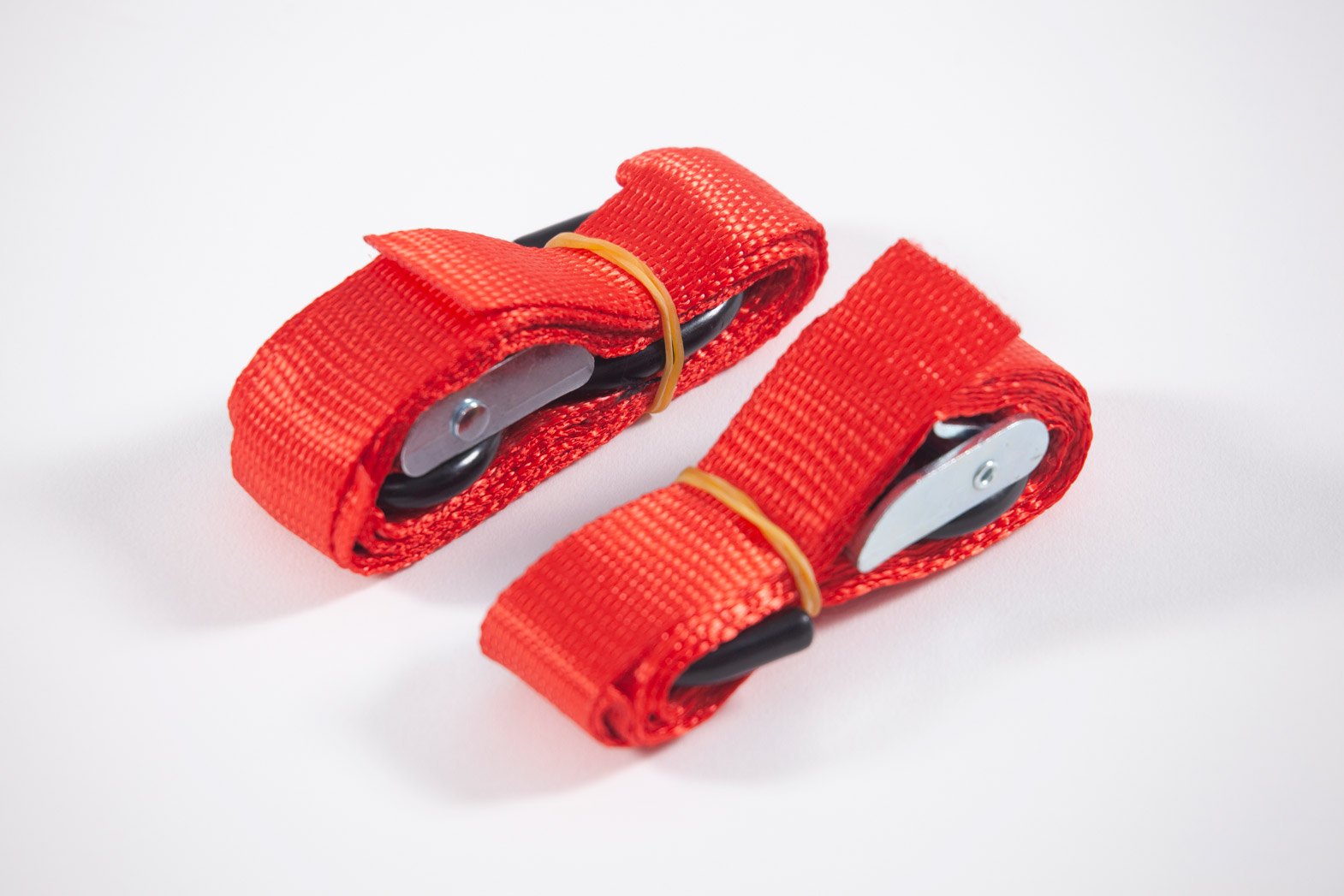

Supplied with a connection strap as an extra security feature
Capacity of 340kg per ramp, 680kg across the pair

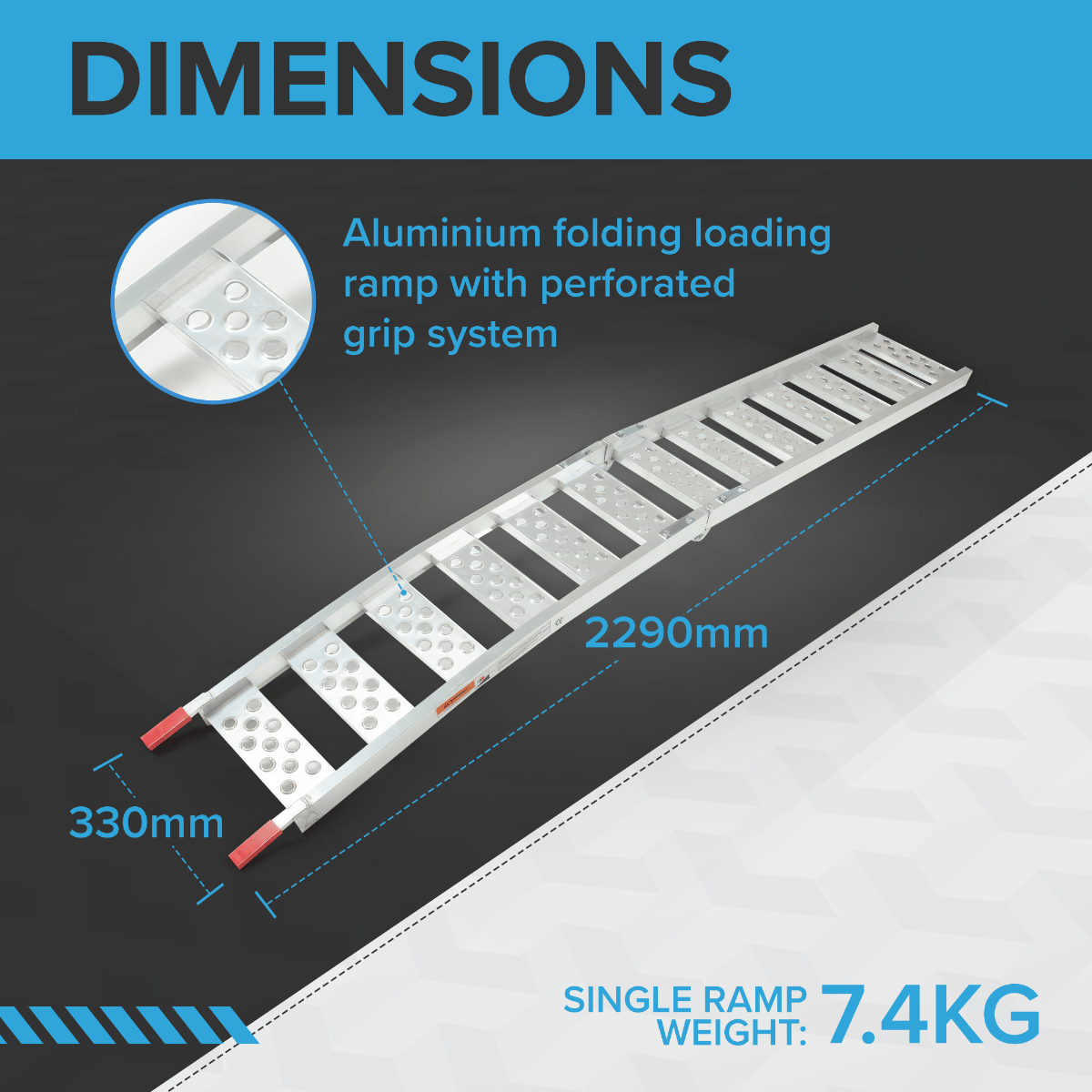

Each single ramp is 2290mm x 330mm with a weight of 7.4kg

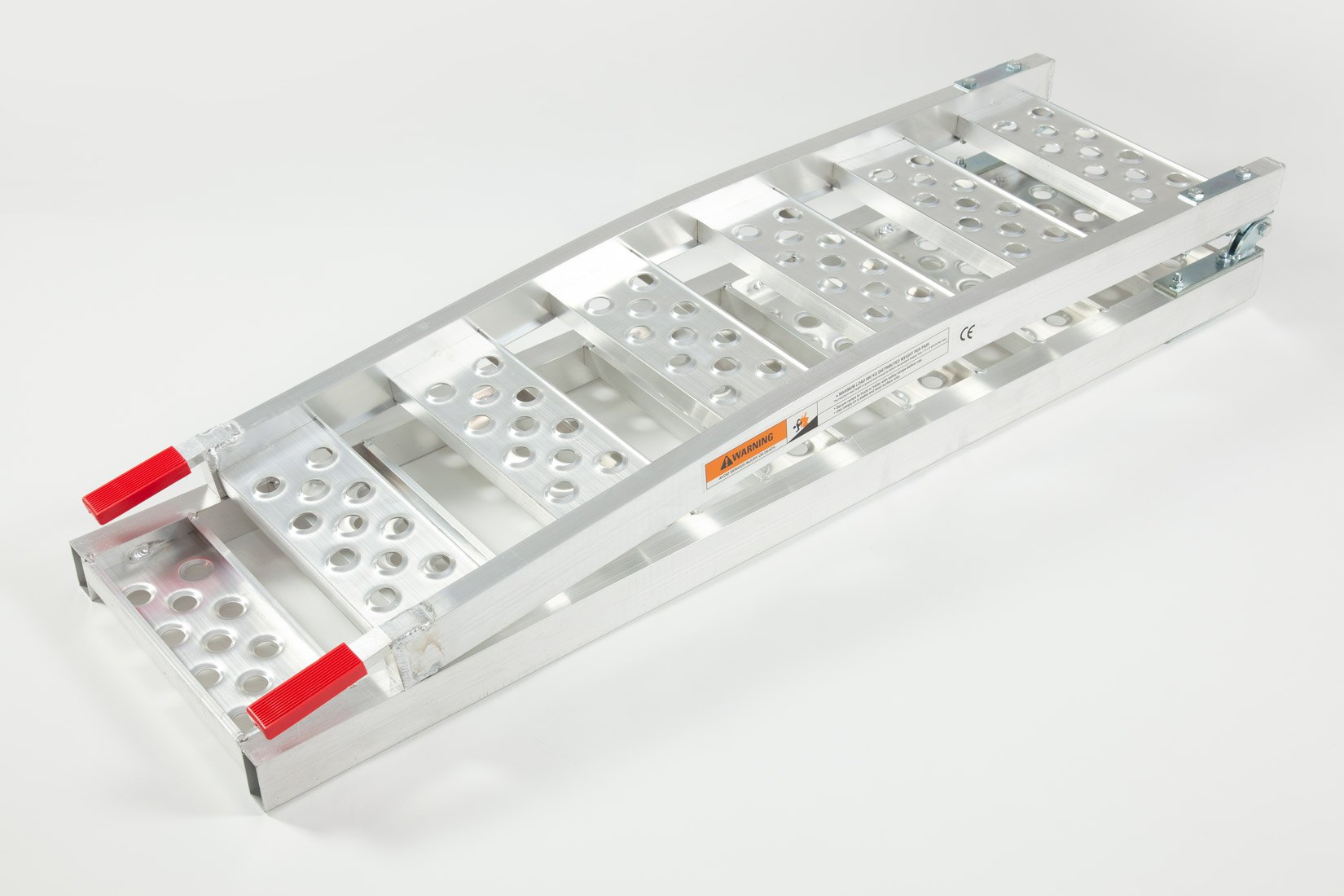

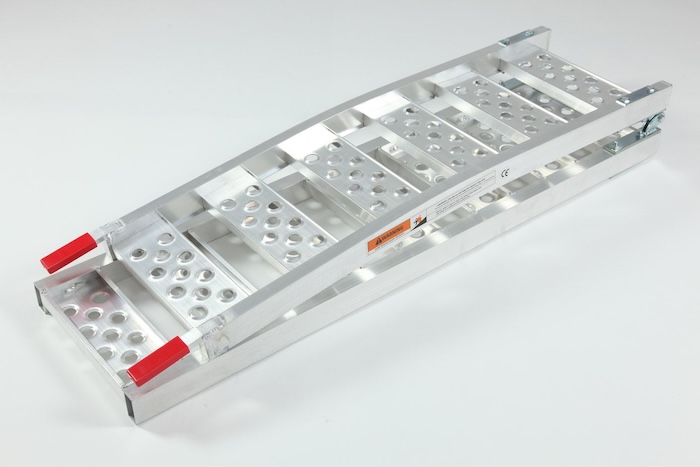

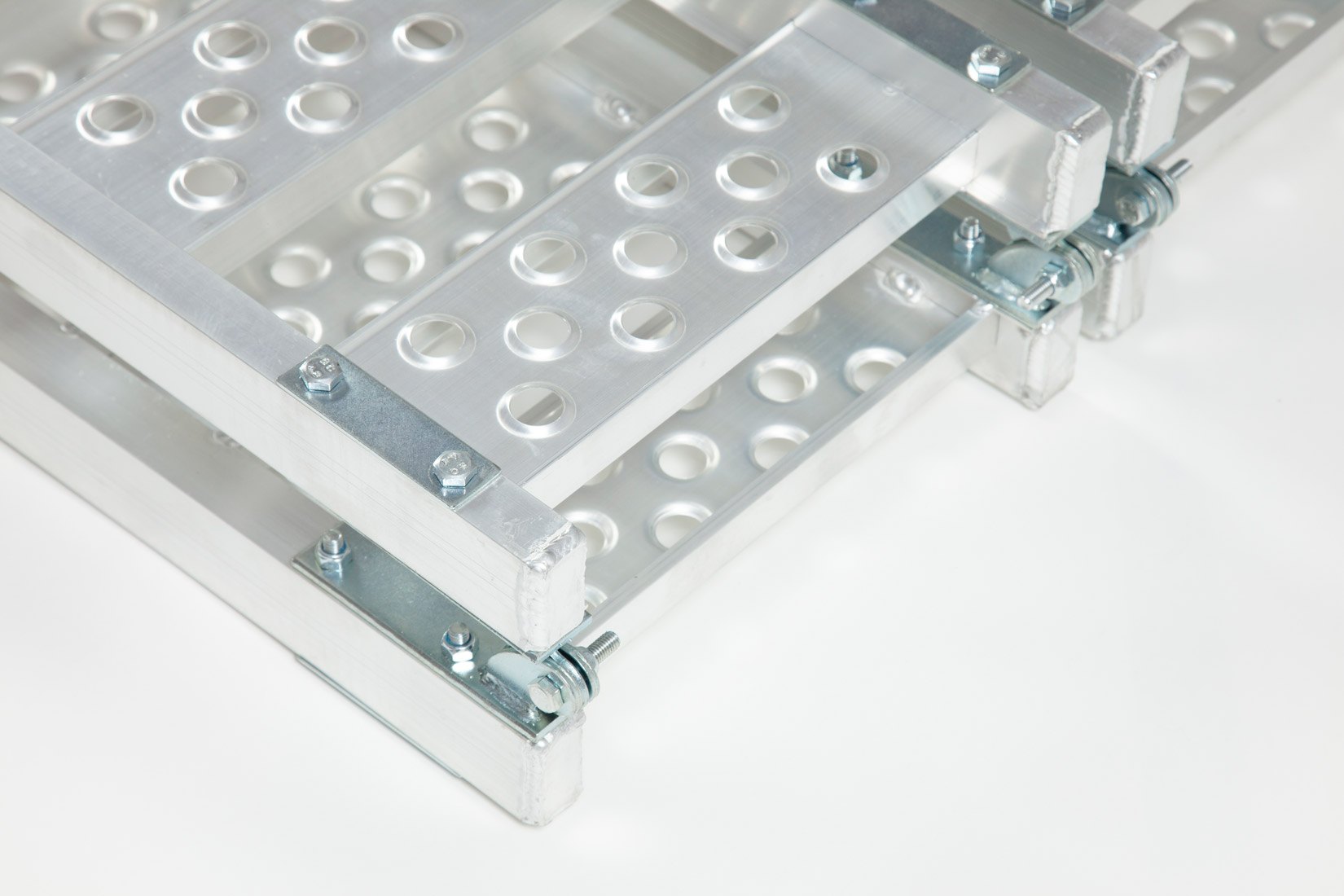

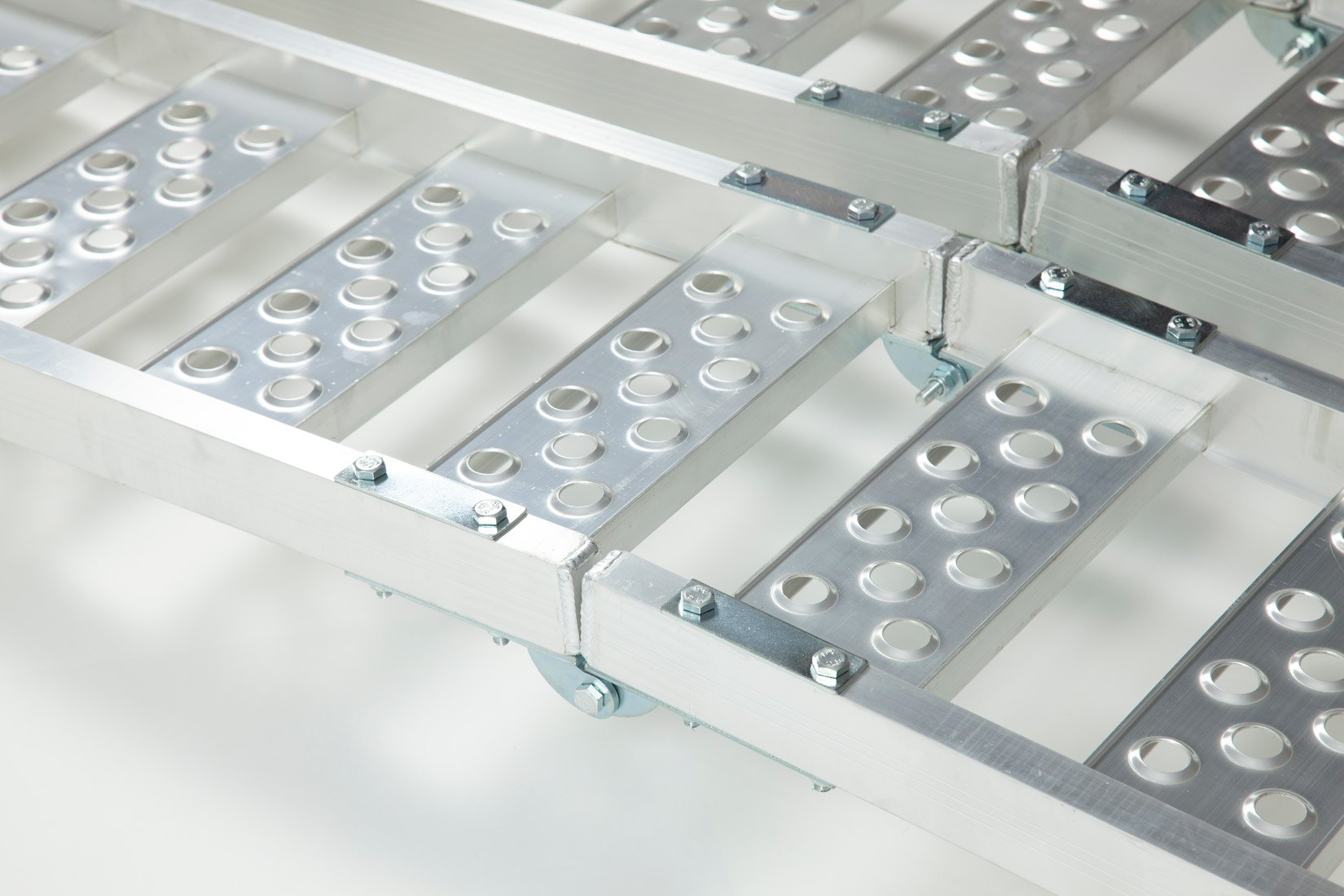

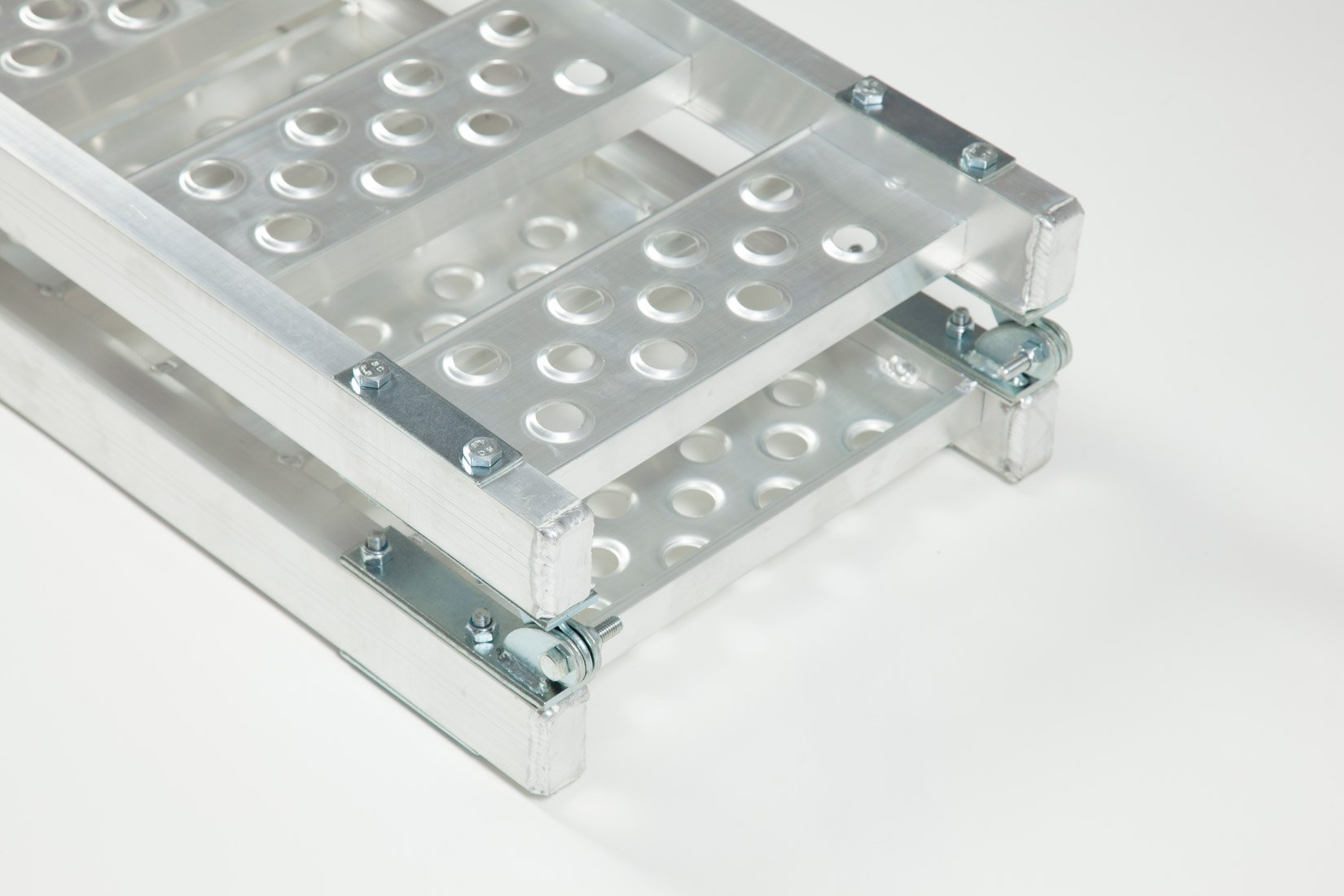

Folded Length 1145mm

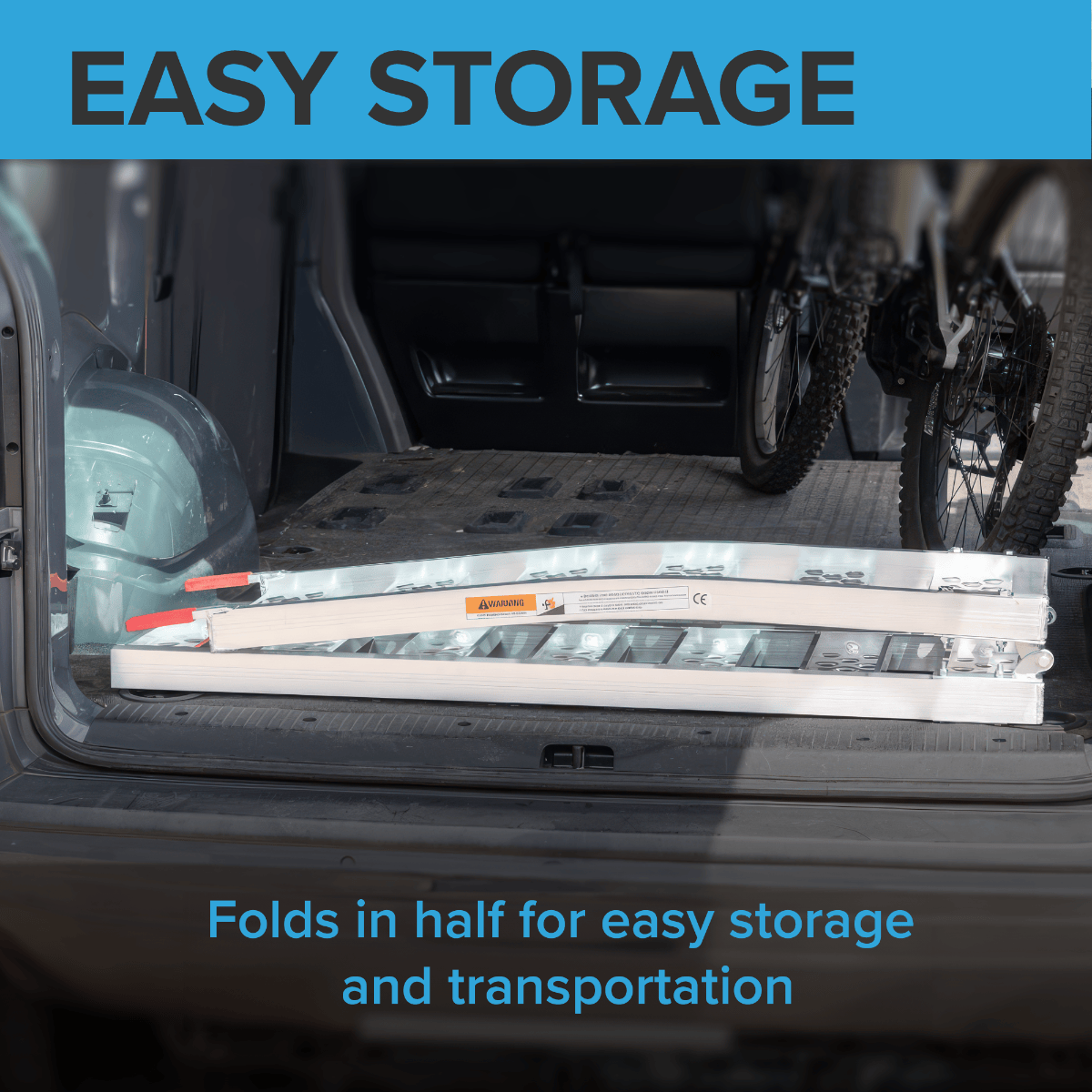

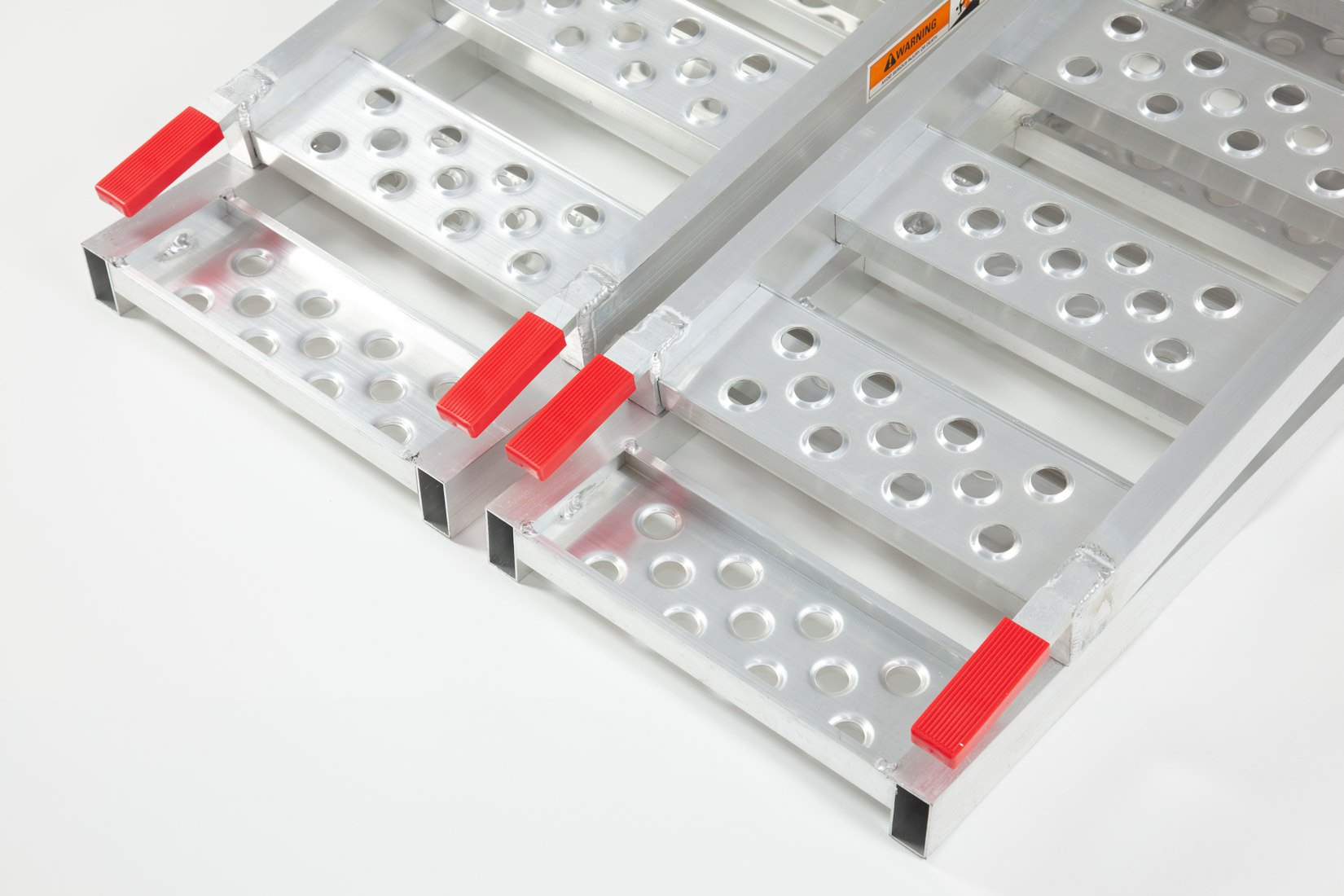

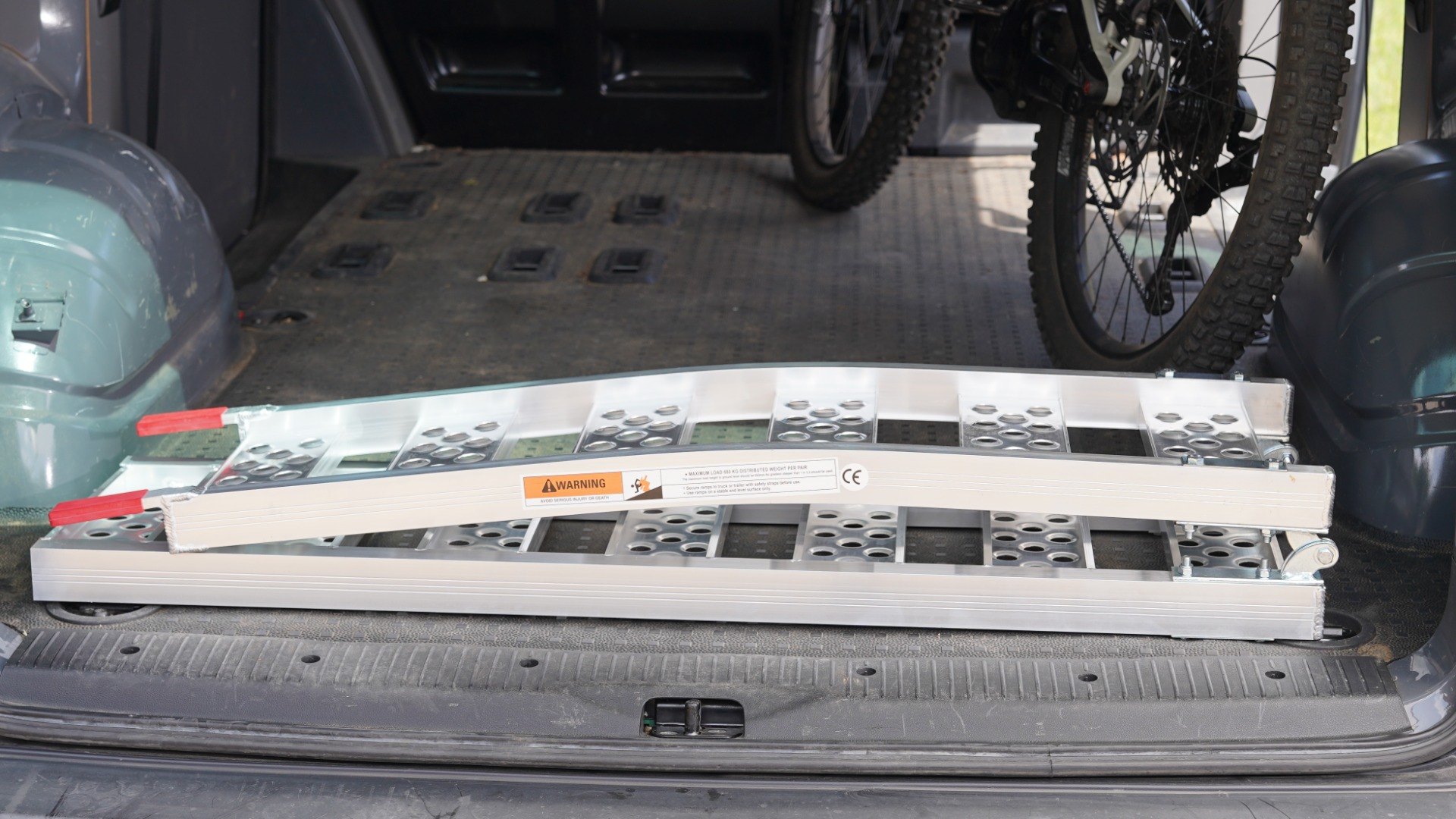

Designed for easy storage and transport

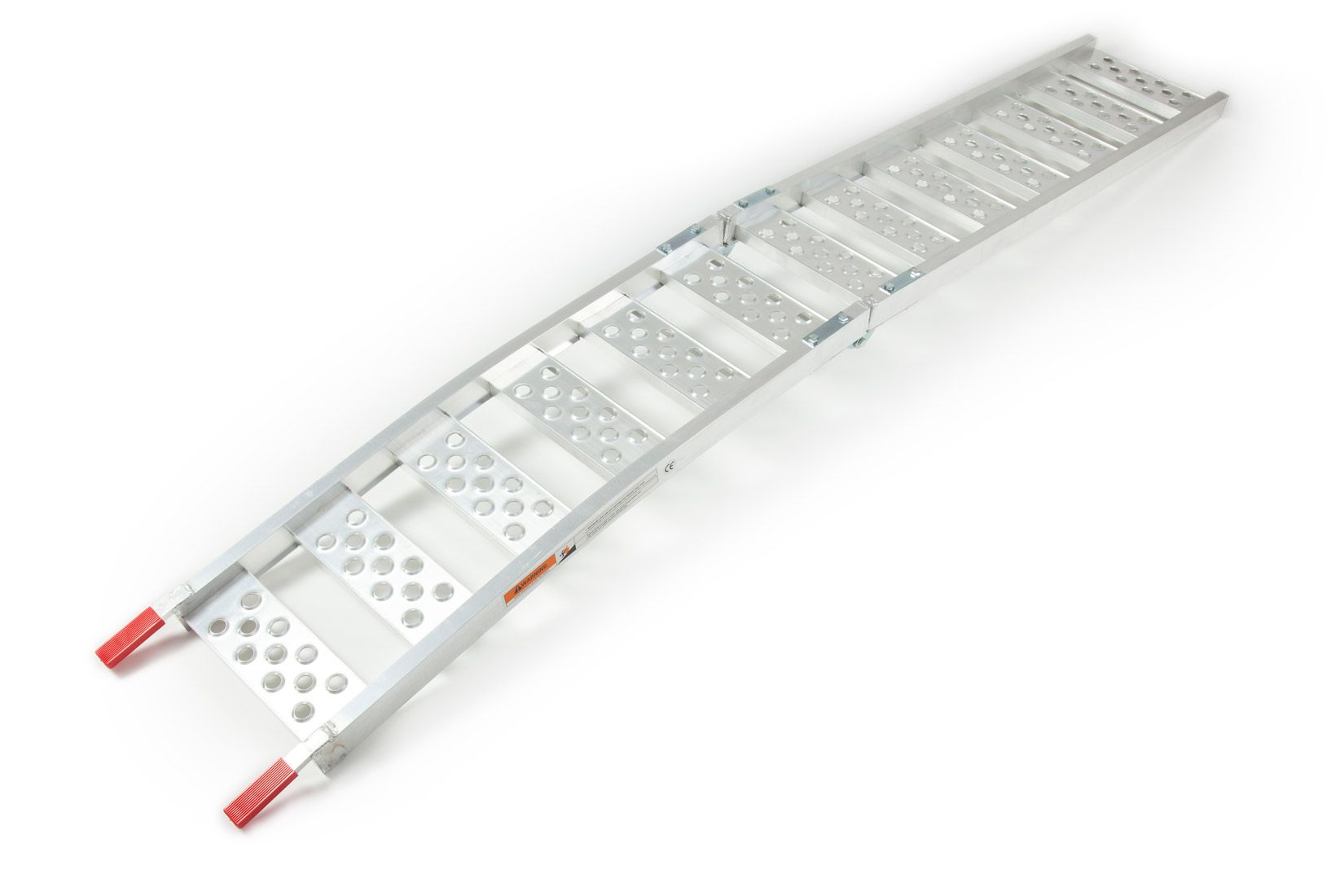

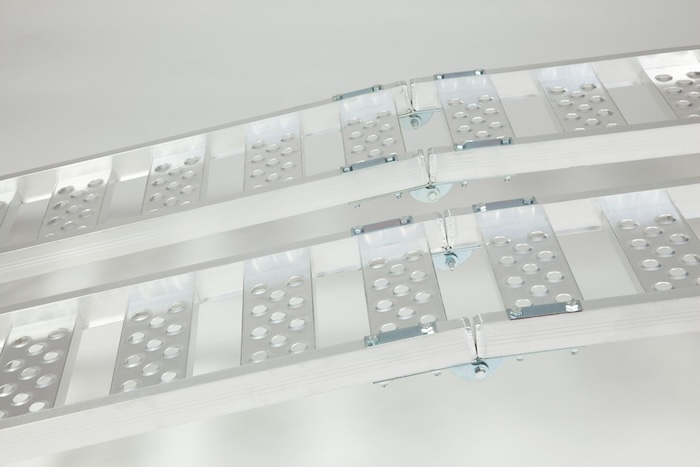

Slightly curved for improved ground clearance

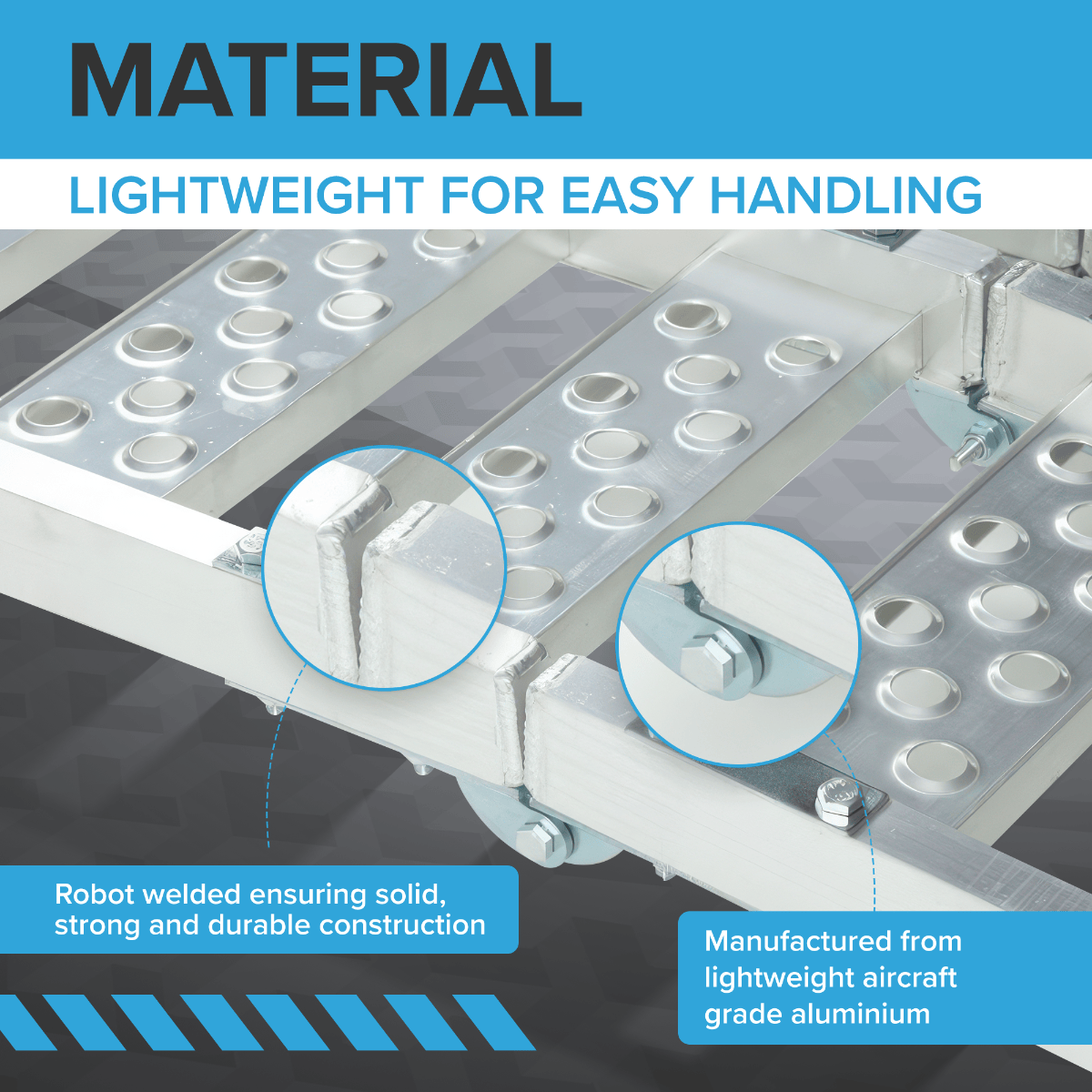

Manufactured from lightweight aircraft grade aluminium (type 6005A)
Robot welded for solid, strong and durable construction
Lightweight for easy handling

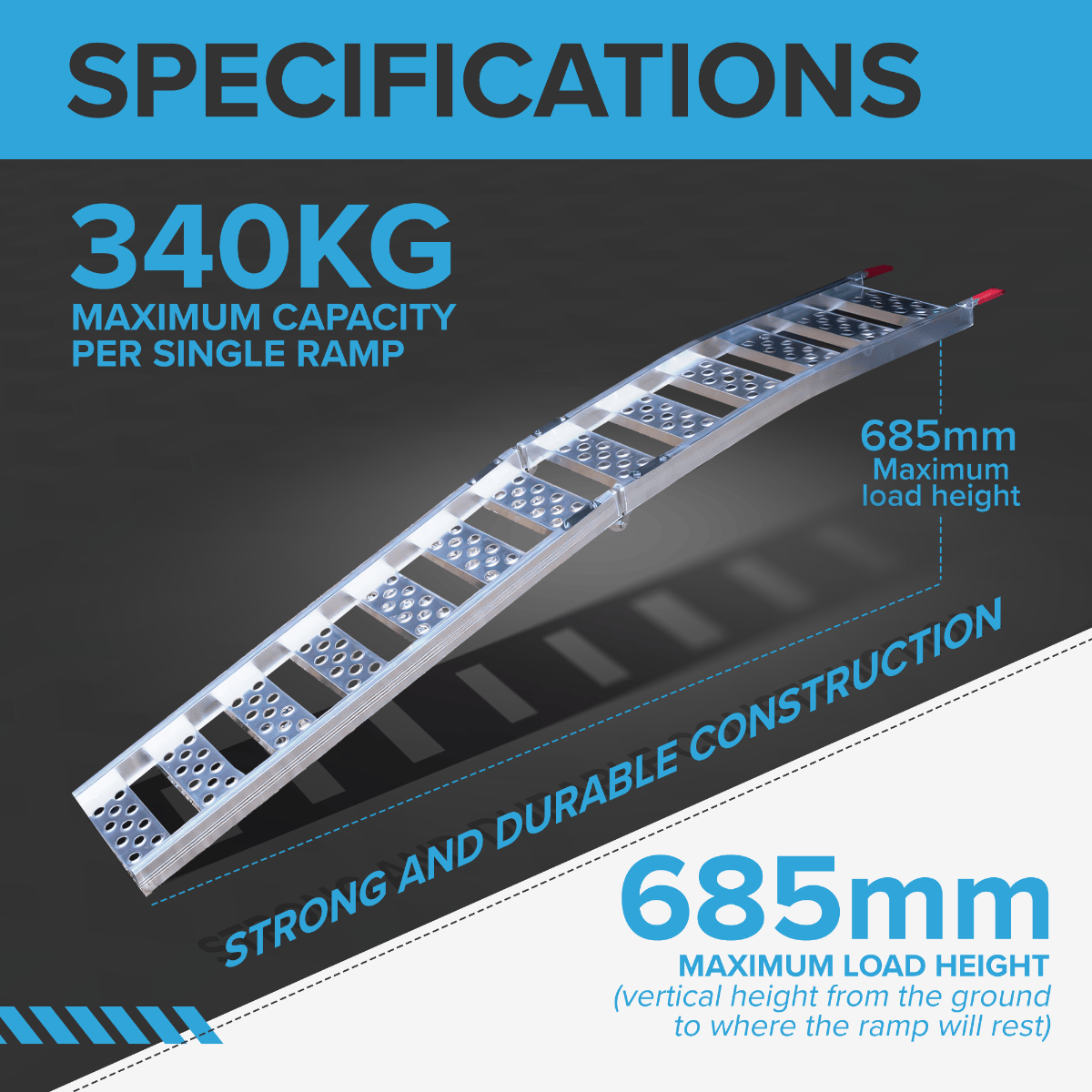

Maximum load height (vertical height from the ground to where the ramp will rest) 685mm, for higher heights please view our 2.7m loading ramps
For higher capacities, we suggest viewing our folding loading ramps with support legs which offer capacities up to 680kg per ramp, 1360kg across the pair
All pictures shown are for illustration purpose only. Actual product may vary due to product enhancement
Please note: These ramps are unsuitable for single axle machinery or vehicles. These ramps are not suitable for commercial/Industrial usage, for this use we would recommend a solution from our professional range.
