Car Ramps
| SKU | Capacity (kg) | Height (mm) | Height of Ramps Profile (mm) | Length (mm) | Max Load Height (mm) | Weight (kg) | Weight per Ramp (kg) | Weight Per Pair (kg) | Width (mm) | Price |
|---|---|---|---|---|---|---|---|---|---|---|
| TRP40315/15 | 2370 | 40 | 1500 | 225 | 10.5 | 21 | 315 | €421.28 €342.50 | ||
| TRP40315/20 | 2132 | 40 | 2000 | 300 | 13.5 | 27 | 315 | €467.40 €380.00 | ||
| TRP40415/15 | 2900 | 40 | 1500 | 225 | 13 | 26 | 415 | €528.90 €430.00 | ||
| TRP40315/25 | 1421 | 40 | 2500 | 375 | 16.5 | 33 | 315 | €528.90 €430.00 | ||
| TRP40415/20 | 2518 | 40 | 40 | 2000 | 300 | 33 | 16.5 | 33 | 415 | €590.40 €480.00 |
| TRP40615/15 | 2900 | 55 | 1500 | 225 | 20 | 40 | 615 | €645.75 €525.00 | ||
| TRP40315/30 | 1012 | 40 | 3000 | 450 | 19.5 | 39 | 315 | €645.75 €525.00 | ||
| TRP40415/25 | 1678 | 40 | 2500 | 375 | 20.5 | 41 | 415 | €664.20 €540.00 | ||
| TRP40315/35 | 767 | 40 | 3500 | 525 | 22.5 | 45 | 315 | €694.95 €565.00 | ||
| TRP40615/20 | 2900 | 55 | 2000 | 300 | 26 | 52 | 615 | €750.30 €610.00 | ||
| TRP40315/40 | 604 | 55 | 4000 | 600 | 25.5 | 51 | 315 | €774.90 €630.00 | ||
| TRP40415/30 | 1197 | 40 | 3000 | 450 | 24 | 48 | 415 | €781.05 €635.00 | ||
| TRP40615/25 | 2842 | 55 | 2500 | 375 | 32 | 64 | 615 | €879.45 €715.00 | ||
| TRP40415/35 | 907 | 40 | 3500 | 525 | 28 | 56 | 415 | €934.80 €760.00 | ||
| TRP40415/40 | 714 | 40 | 4000 | 600 | 31.5 | 63 | 415 | €1,020.90 €830.00 | ||
| TRP40615/30 | 2025 | 55 | 3000 | 450 | 38 | 76 | 615 | €1,051.65 €855.00 | ||
| TRP40615/35 | 1535 | 55 | 3500 | 625 | 44 | 88 | 615 | €1,150.05 €935.00 | ||
| TRP40615/40 | 1208 | 55 | 4000 | 600 | 50 | 100 | 615 | €1,273.05 €1,035.00 |

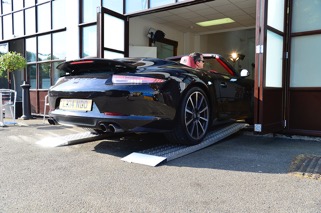

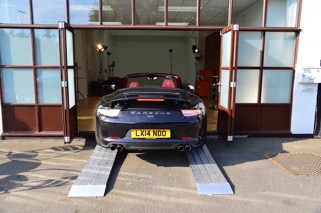

The TRP40 profile depth is 40mm and features a capacity of up to 2900kg with 4 different widths available: 215mm, 315mm, 415mm or 615mm. These loading ramps are ideally suited for use as car ramps, lightweight vehicle ramps or motorcycle ramps. In particular these ramps are very useful as car ramps for customers having difficulty getting their low slung vehicle up their driveway
The TRP40 Series is perfect for vehicles with low ground clearance, such as sports cars, and low load heights- no more than 600mm.
Not suitable for solid wheels found on road surfacing machines - for this type of machinery please see the industrial ramps for steel tracks.
Please be aware that if you request a hook end to your vehicle ramp, it may be slightly shorter than the advertised length. Our friendly sales team will be able to assist you with any queries regarding this.
Usage guidelines and safety information for this product can be found here.
