Ramp Capacity, Length & Load Height

Extra Wide Loading Ramp Pair (2750mm long x 280mm wide)
Extra long folding ramps, bar grip surface with a total length of 2750mm. Please note, these ramps are unsuitable for single axle or tracked machinery or vehicles. These ramps are not suitable for commercial/Industrial usage, for this use we would recommend a solution from our professional range.
Motorcycle and Folding Loading Ramps FAQ's
Length (mm) | 2750 |
---|---|
Width (mm) | 280 |
Height (mm) | 150 |
Max. Load Height (mm) | 835 |
Weight (kg) | 19 |
Weight Per Ramp (kg) | 9.5 |
Capacity (kg) | 540 |
4-10 business days delivery*. Items are shipped from the UK to Ireland on DAP Incoterms. This means we do not charge Irish VAT but Irish import VAT of 23%, import duty (on some products) and customs charges will be due. These fees will need to be paid to the courier before or after you receive the goods. Learn more.

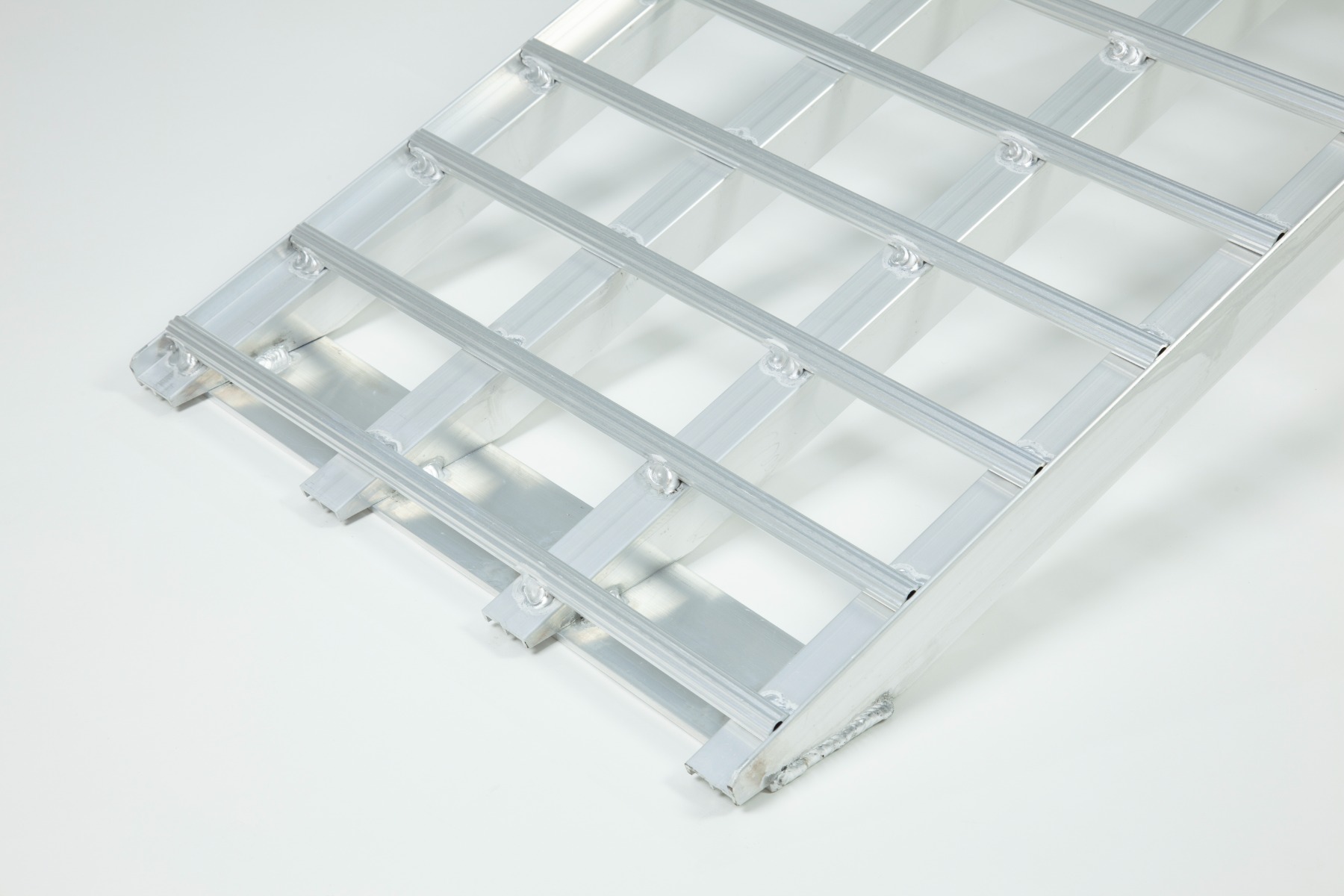

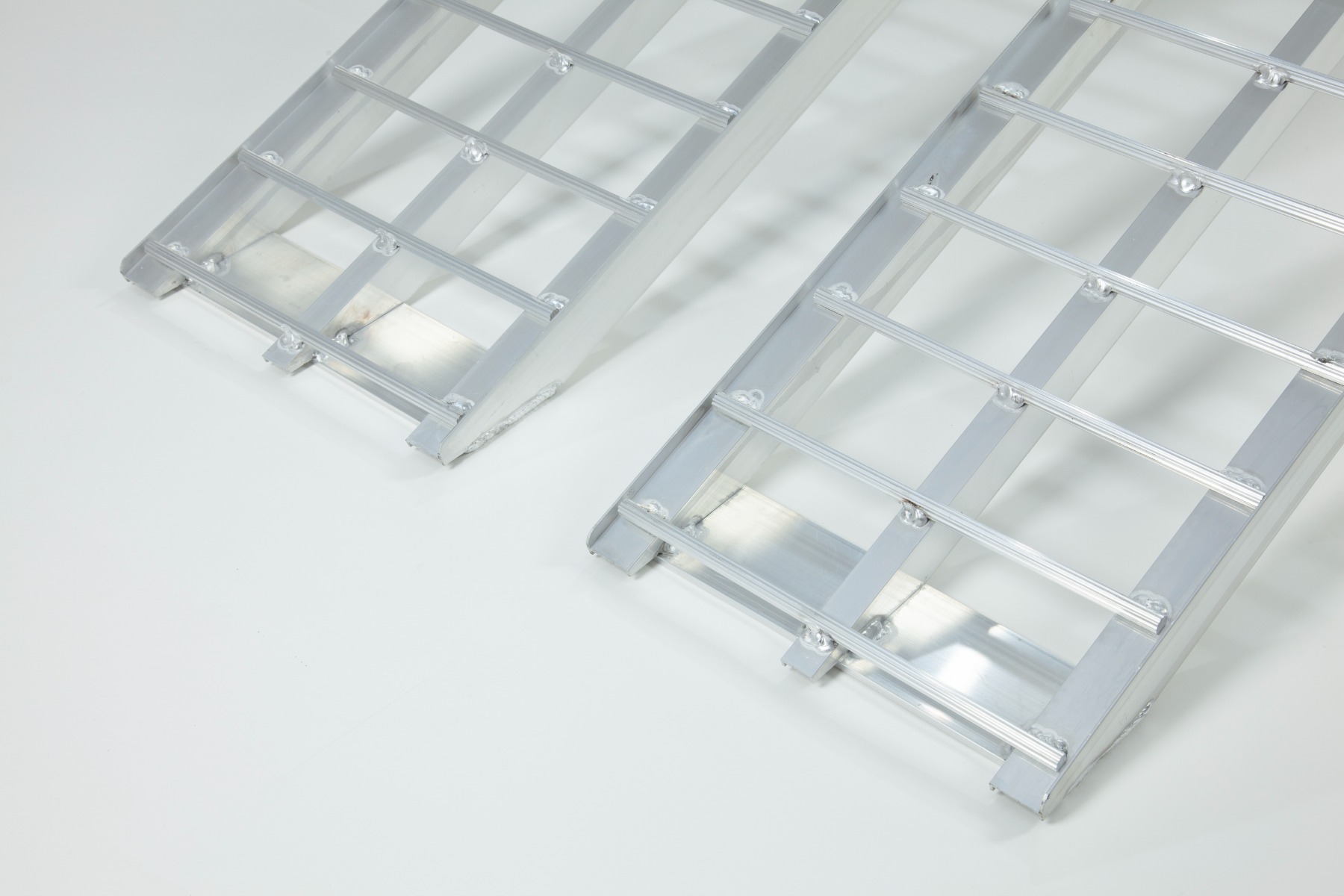

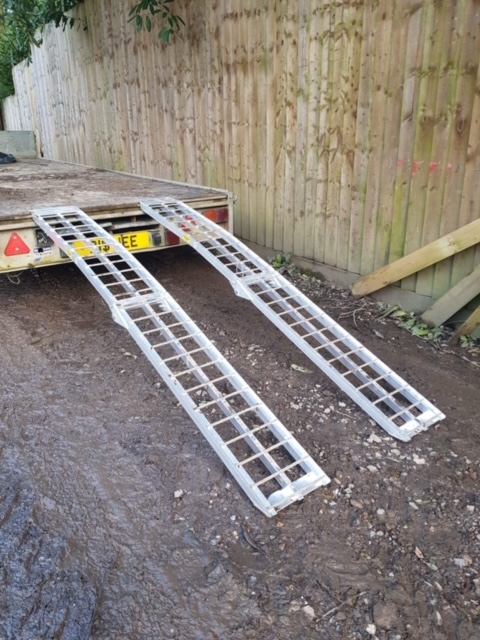

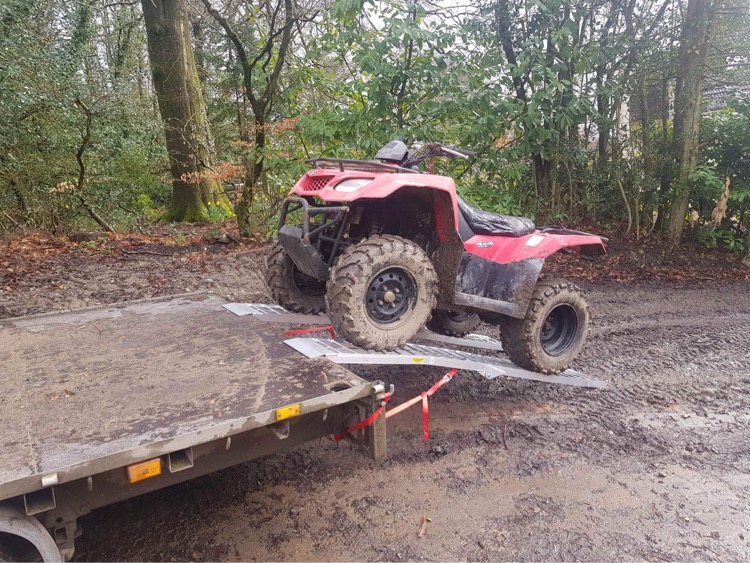

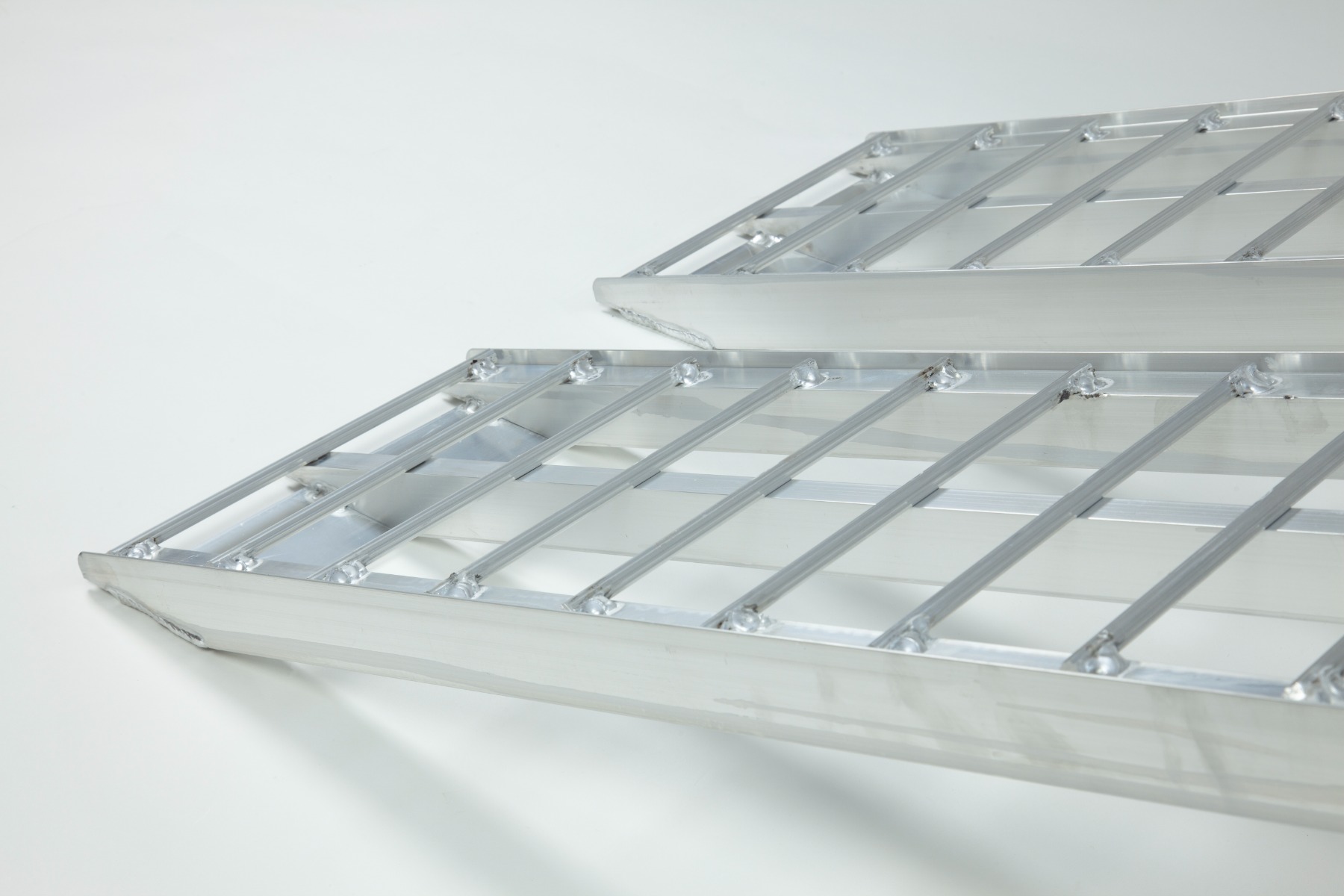

Pair of lightweight aluminium folding loading ramps with bar grip system. Suitable for ride-on lawn mowers, ATV/quad bikes and other wheeled garden machinery up to 540kg. Slightly curved for improved ground clearance and supplied with connection straps as an extra security feature.

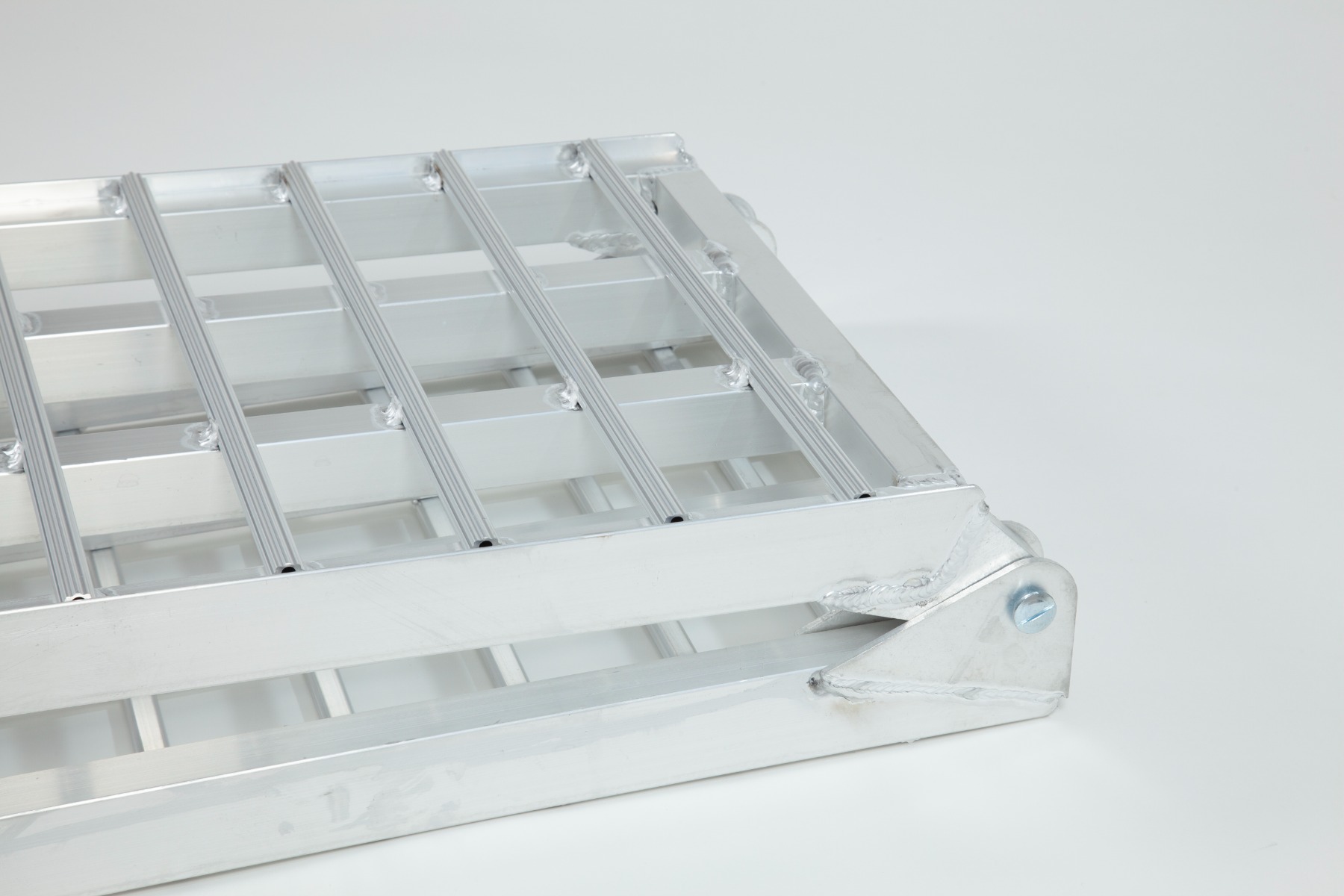

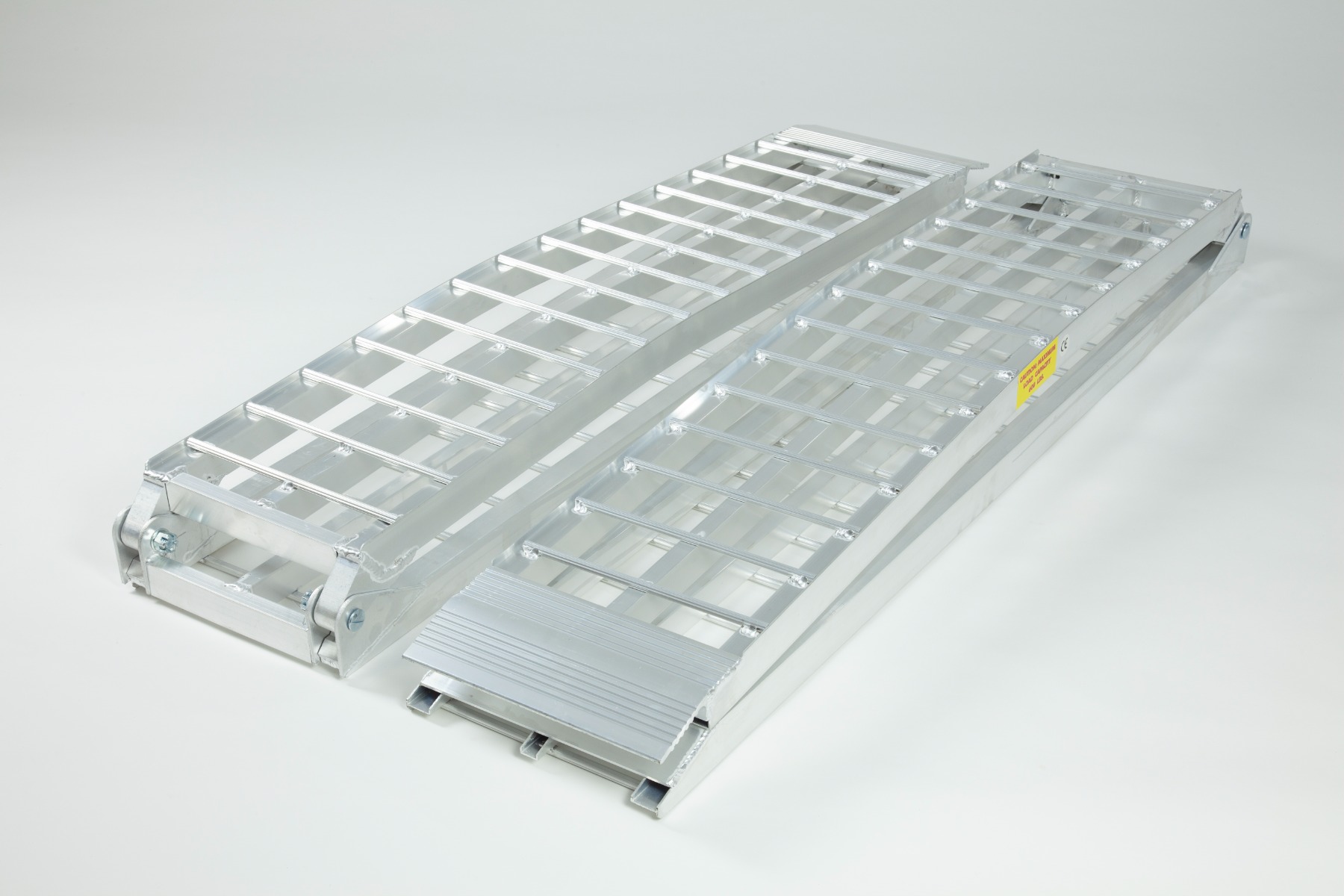

- Folding ramp design for easy storage and transport
- Ramps lay flat for easy storage when not being used
- Up to 540kg capacity
- 280mm Width
- Slightly curved for improved ground clearance
- Manufactured from lightweight aircraft grade aluminium (type 6005A)

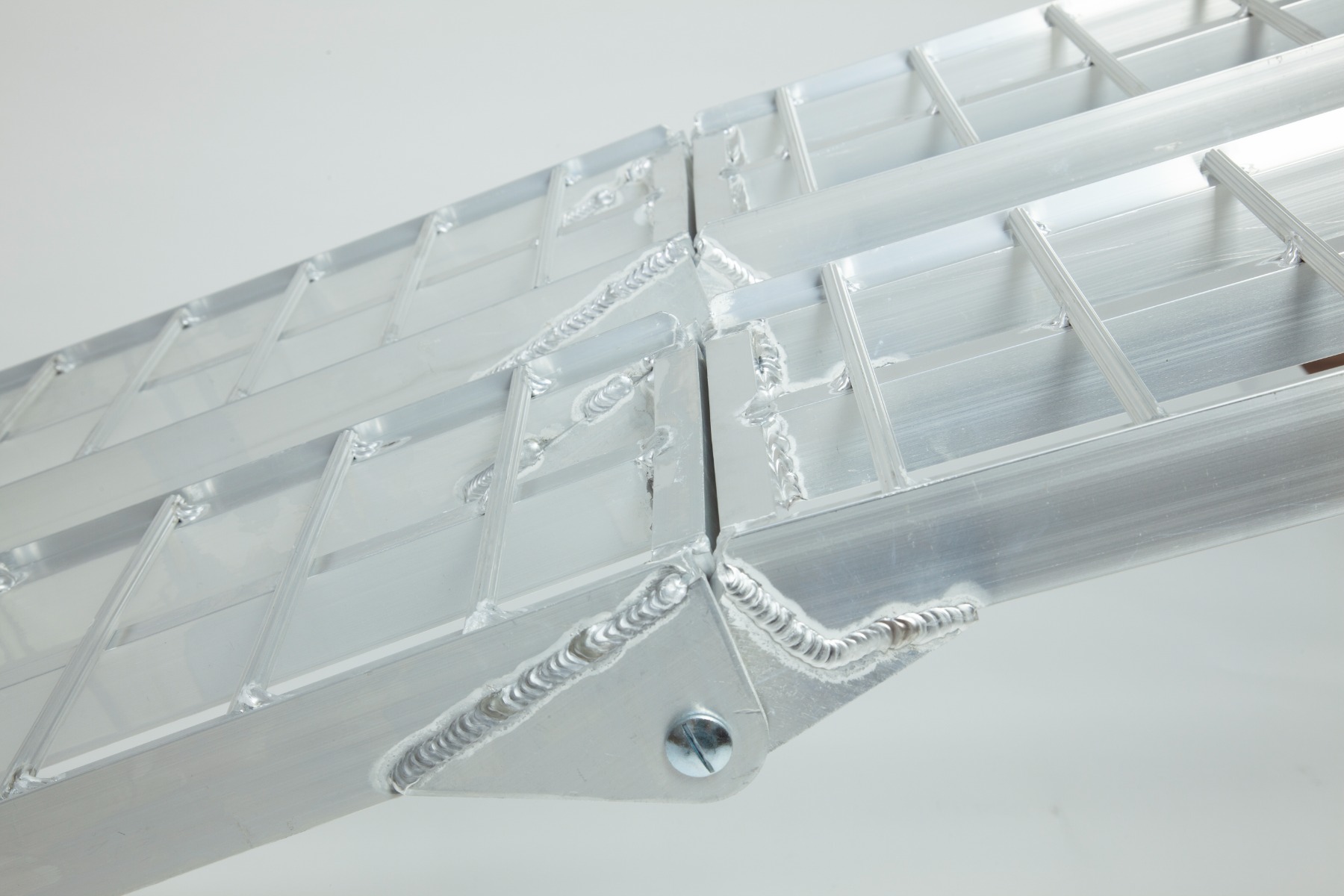

- Robot welded for solid, strong and durable construction

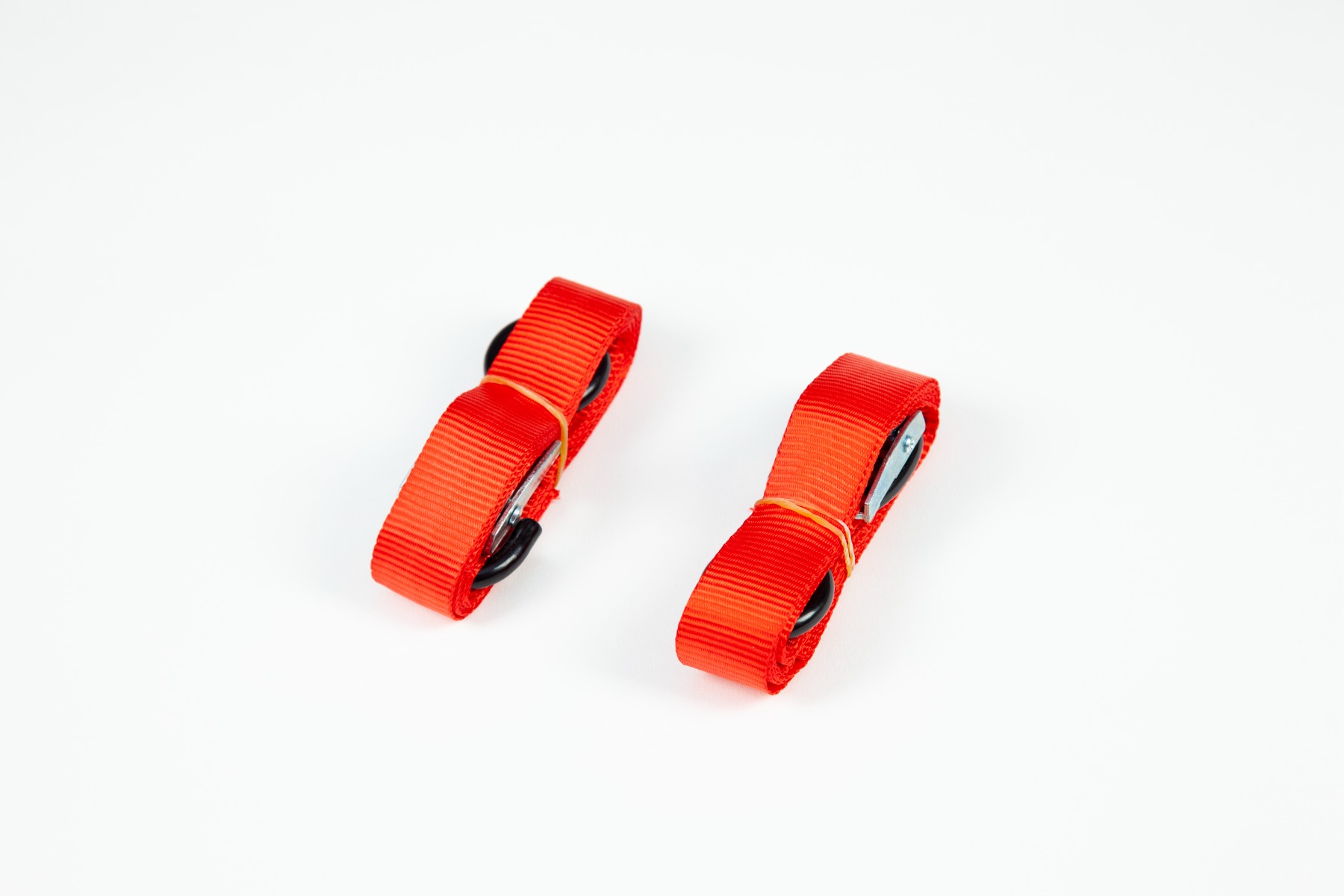

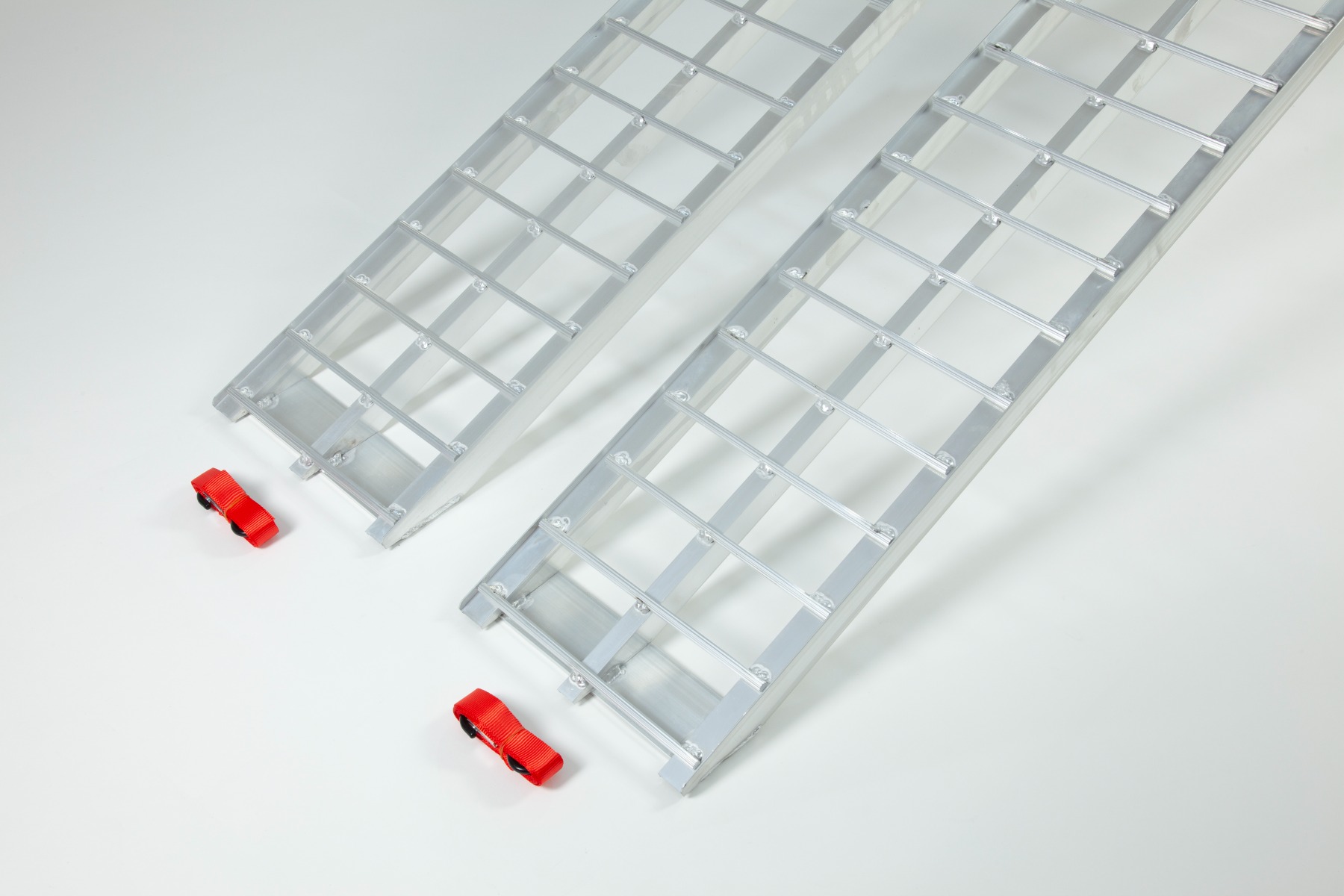

- Connection strap supplied with each ramp
- Lightweight for easy handling
- Complies with Health & Safety Guidelines

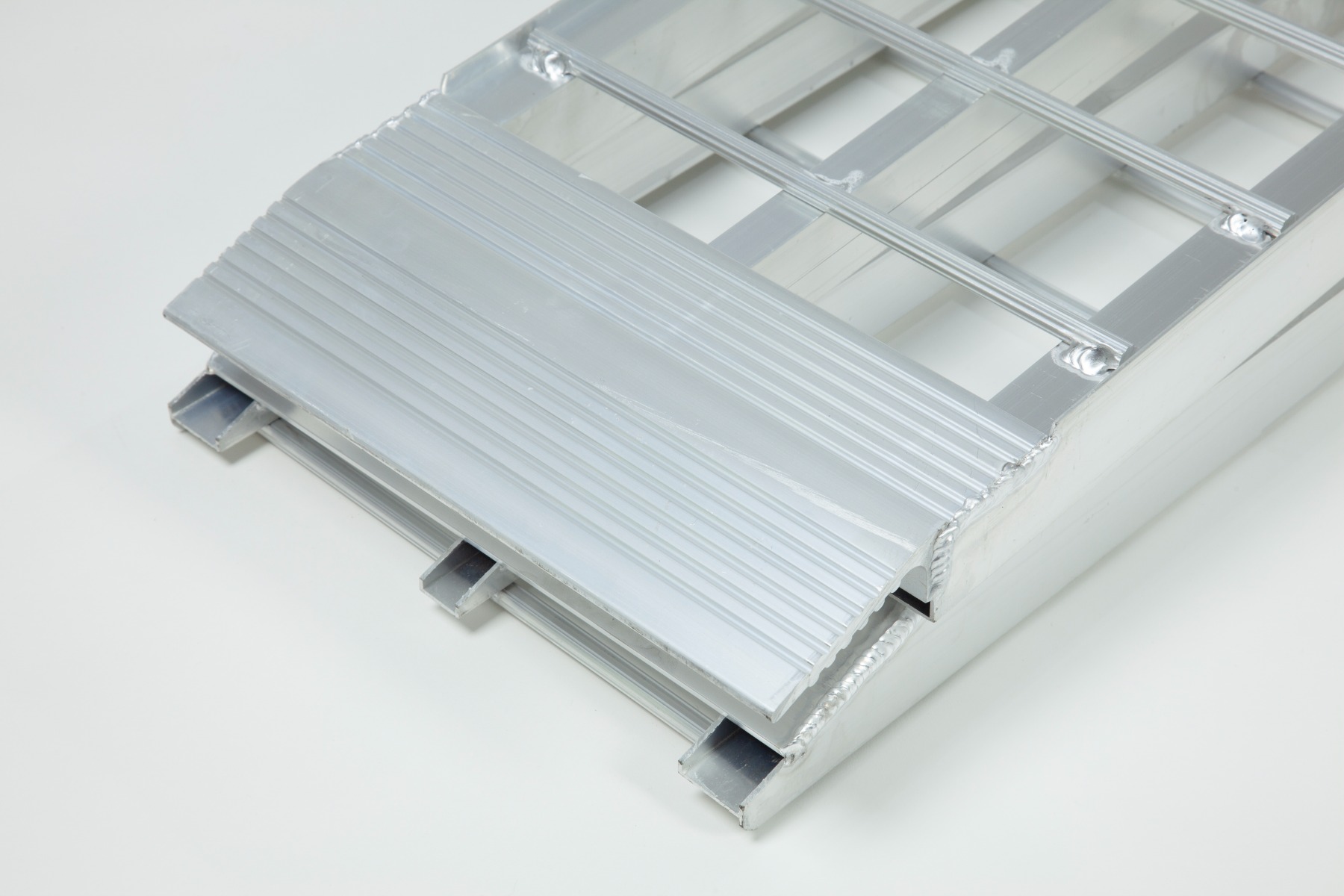

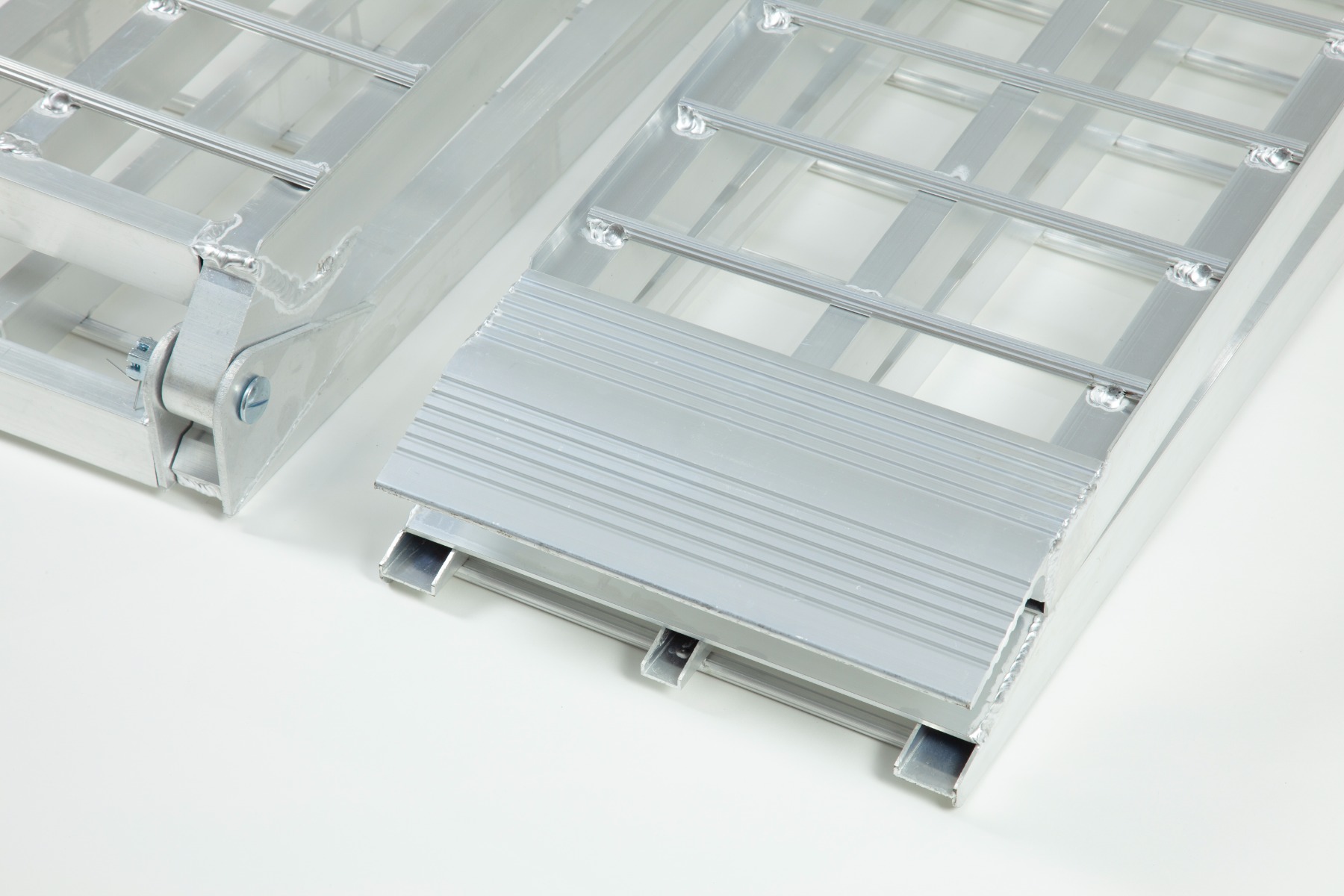

- Angled foot, this allows for smooth access onto the ramp
SKU | TRP615P |
---|---|
Capacity (kg) | 540 |
Folded Length (mm) | 1400 |
Height (mm) | 150 |
Length (mm) | 2750 |
Max Load Height | 835 |
Weight (kg) | 19 |
Weight per Ramp (kg) | 9.5 |
Width (mm) | 280 |
One Year Warranty | Yes |
Easy to Fit | Yes |
Ramp Capacity, Length & Load Height
This guide should help you gauge how long a ramp you require, so if you're in any doubt read the details below. If you still have questions after reading, feel free to give us a call. The crucial thing to know is your load height.
Load Height: this is the vertical measurement from the ground to where you rest the ramp onto.
Guide to the maximum load height is shown in the product description/table, please note the minimum Load Height will be 5% below the maximum height stated on the ramp, to calculate use (maximum load height - 5% = minimum load height).
For vehicle ramps EU guidelines recommend that no ramps with a gradient greater than 30% or 1:3.3 should be used. Essentially the load height x 3.3, gives you your ramp length. Furthermore no TUV Certified Ramp is designed to exceed this gradient. Going over this gradient is can cause accident, injury or death and may invalidate the warranty.
Please check the wheelbase measurement of the machine you are loading is suitable for the capacity the ramp can take based on the wheelbase measurement advised. To check your wheelbase, look at the vehicle from side view, the distance between the centre of front wheel and rear wheel (rim centre) is your wheelbase.
For machines with an unbalanced weight distribution such as, scissors lifts, paving machinery, steel tracked machinery and machines with low ground clearance we would advise you contact us first, so we can check and advise on the most suitable solution.
For loading cars and other vehicles with either a) Low ground clearance b) Front and/or Rear overhang a gentler gradient is recommended (this will vary depending upon the vehicle). Please also note that most forklifts and pallet trucks are not built to be used on slopes. Please check the manual for the gradient information.
Further information can be seen in this blog article here
