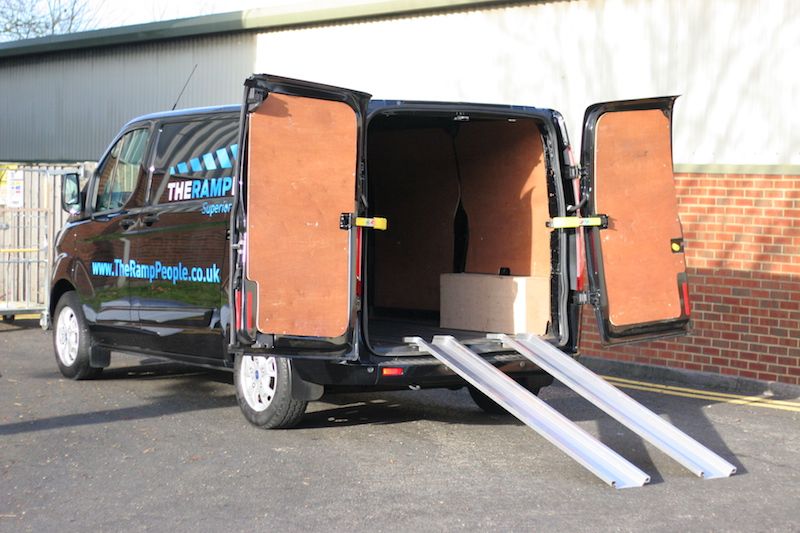

The Ramp People's Aluminium Channel Ramps, available in lengths from 1000mm to 3500mm. Core profile thickness is 50mm and feature a capacity of up to 1500kg. These channel ramps or cable ramps are ideally suited for safely loading and unloading large spools of electrical wire or plastic piping or even when using sack barrels.
Price is per PAIR.
1000mm
Length (mm)
1000
Width (mm)
246
Internal Width (mm)
155
Height (mm)
45
Max Load Height (mm)
300
Weight (kg)
9
Weight per Ramp (kg)
4.5
Weight Per Pair (kg)
9
Capacity (kg)
1500
1500mm
Length (mm)
1500
Width (mm)
246
Internal Width (mm)
155
Height (mm)
45
Min. Load Height (mm)
300
Max Load Height (mm)
450
Weight (kg)
13
Weight per Ramp (kg)
6.5
Weight Per Pair (kg)
13
Capacity (kg)
1500
2000mm
Length (mm)
2000
Width (mm)
246
Internal Width (mm)
155
Height (mm)
45
Min. Load Height (mm)
450
Max Load Height (mm)
600
Weight (kg)
17
Weight per Ramp (kg)
8.5
Weight Per Pair (kg)
17
Capacity (kg)
1479
2500mm
Length (mm)
2500
Width (mm)
246
Internal Width (mm)
155
Height (mm)
45
Min. Load Height (mm)
600
Max Load Height (mm)
750
Weight (kg)
19
Weight per Ramp (kg)
10
Weight Per Pair (kg)
20
Capacity (kg)
887
3000mm
Length (mm)
3000
Width (mm)
246
Internal Width (mm)
155
Height (mm)
45
Min. Load Height (mm)
750
Max Load Height (mm)
900
Weight (kg)
24
Weight per Ramp (kg)
12
Weight Per Pair (kg)
24
Capacity (kg)
628
3500mm
Length (mm)
3500
Width (mm)
246
Internal Width (mm)
155
Height (mm)
45
Min. Load Height (mm)
900
Max Load Height (mm)
1050
Weight (kg)
28
Weight per Ramp (kg)
14
Weight Per Pair (kg)
28
Capacity (kg)
485
Ramp Capacity, Length & Load Height
This guide should help you gauge how long a ramp you require, so if you're in any doubt read the details below. If you still have questions after reading, feel free to give us a call. The crucial thing to know is your load height.
Load Height: this is the vertical measurement from the ground to where you rest the ramp onto.
Guide to the maximum load height is shown in the product description/table, please note the minimum Load Height will be 5% below the maximum height stated on the ramp, to calculate use (maximum load height - 5% = minimum load height).
For vehicle ramps EU guidelines recommend that no ramps with a gradient greater than 30% or 1:3.3 should be used. Essentially the load heightx 3.3,gives you your ramp length. Furthermore no TUV Certified Ramp is designed to exceed this gradient. Going over this gradient is can cause accident, injury or death and may invalidate the warranty.
Please check the wheelbase measurement of the machine you are loading is suitable for the capacity the ramp can take based on the wheelbase measurement advised. To check your wheelbase, look at the vehicle from side view, the distance between the centre of front wheel and rear wheel (rim centre) is your wheelbase.
For machines with an unbalanced weight distribution such as, scissors lifts, paving machinery, steel tracked machinery and machines with low ground clearance we would advise you contact us first, so we can check and advise on the most suitable solution.
For loading cars and other vehicles with either a) Low ground clearance b) Front and/or Rear overhang a gentler gradient is recommended (this will vary depending upon the vehicle). Please also note that most forklifts and pallet trucks are not built to be used on slopes. Please check the manual for the gradient information.
