Pair of Domestic Lightweight Loading Ramps with capacities up to 1000kg. Ideal for use at home when loading or moving machines. Price and capacity stated is for the PAIR.
Please use gloves when handling those ramps.
2000mm - Straight
Length (mm)
2000
Total Width (mm)
315
Height (mm)
30
Min. Load Height (mm)
460
Max Load Height (mm)
600
Weight per Ramp (kg)
10.5
Weight Per Pair (kg)
21
Capacity (kg)
1000
2000mm - Curved
Length (mm)
2000
Total Width (mm)
315
Height (mm)
30
Min. Load Height (mm)
390
Max Load Height (mm)
520
Weight per Ramp (kg)
10.5
Weight Per Pair (kg)
21
Capacity (kg)
1000
2500mm - Curved
Length (mm)
2500
Total Width (mm)
315
Height (mm)
30
Min. Load Height (mm)
530
Max Load Height (mm)
650
Weight (kg)
26
Weight per Ramp (kg)
13
Capacity (kg)
850
2990mm - Curved
Length (mm)
2990
Total Width (mm)
315
Height (mm)
40
Min. Load Height (mm)
660
Max Load Height (mm)
800
Weight per Ramp (kg)
18
Weight Per Pair (kg)
36
Capacity (kg)
1000
1485mm - Straight
Length (mm)
1485
Total Width (mm)
315
Height (mm)
30
Min. Load Height (mm)
350
Max Load Height (mm)
450
Weight per Ramp (kg)
8
Weight Per Pair (kg)
16
Capacity (kg)
1000
1492mm - Curved
Length (mm)
1492
Total Width (mm)
215
Height (mm)
30
Min. Load Height (mm)
260
Max Load Height (mm)
380
Weight per Ramp (kg)
4
Weight Per Pair (kg)
8
Capacity (kg)
540
Ramp Length & Load Height
This guide should help you gauge how long a ramp you require, so if you're in any doubt read the details below. If you still have questions after reading, feel free to give us a call. The crucial thing to know is your load height.
Load Height: this is the vertical measurement from the ground to where you rest the ramp onto.
Guide to the maximum load height is shown in the product description/table, please note the minimum Load Height will be 5% below the maximum height stated on the ramp, to calculate use (maximum load height - 5% = minimum load height).
For vehicle ramps EU guidelines recommend that no ramps with a gradient greater than 30% or 1:3.3 should be used. Essentially the load heightx 3.3,gives you your ramp length. Furthermore no TUV Certified Ramp is designed to exceed this gradient. Going over this gradient is can cause accident, injury or death and may invalidate the warranty.
For loading vehicles with Low ground clearance and Front and/or Rear overhang a gentler gradient is recommended (this will vary depending upon the vehicle)
Capacity & Wheelbase Info
What is the wheelbase? - Wheelbase is the distance between the front and the back wheels.
Our loading ramps are usually safety tested and certified for three different length wheelbases. This is because the length of the wheelbase effects the spread of the weight applied to the ramps. The smaller the wheel base the more focused the load & therefore the less capacity the ramps can take.
The same applies with the width of the tyre or track which is why we list a ‘minimum track width’ within each product specification. We recommend reading the safety information supplied with the ramps before use to be sure the set supplied are suitable for your application.
Usage Guidelines and Safety Information for these ramps can be found here.
Connection Options
Customisable
European Made
Not for Solid Wheels
One Year Warranty
Description
Multi-purpose aluminium loading ramps designed for lightweight garden machinery and tractors up to a maximum weight up to 1000kg over the pair, for domestic use only. These ramps are TUV certified and comply with Health and Safety Legislation.
Single Piece Ramp Design, featuring zero welding
Manufactured from lightweight aircraft grade aluminium (type 6005A)
Lightweight for easy handling and compliance with Health & Safety Guidelines
Fully EU TUV Certified
Manufactured in the EU

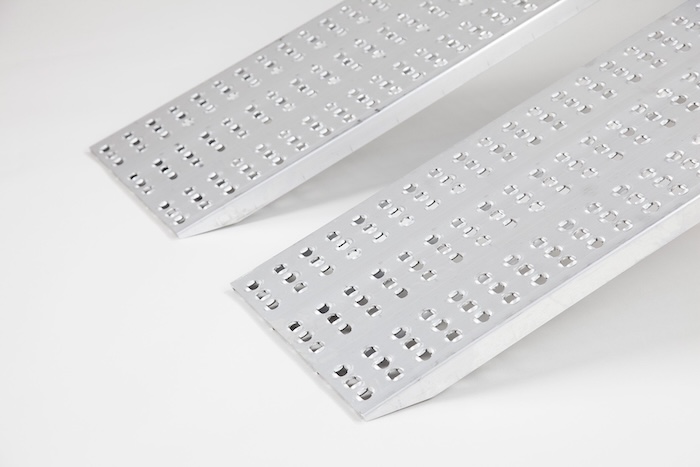

Angled foot, this allows for smooth access onto the ramp
Flat-top/no edge design gives greater flexibility of use

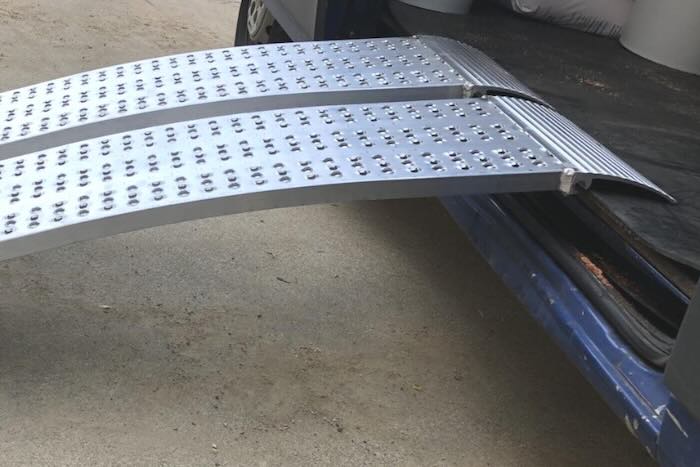

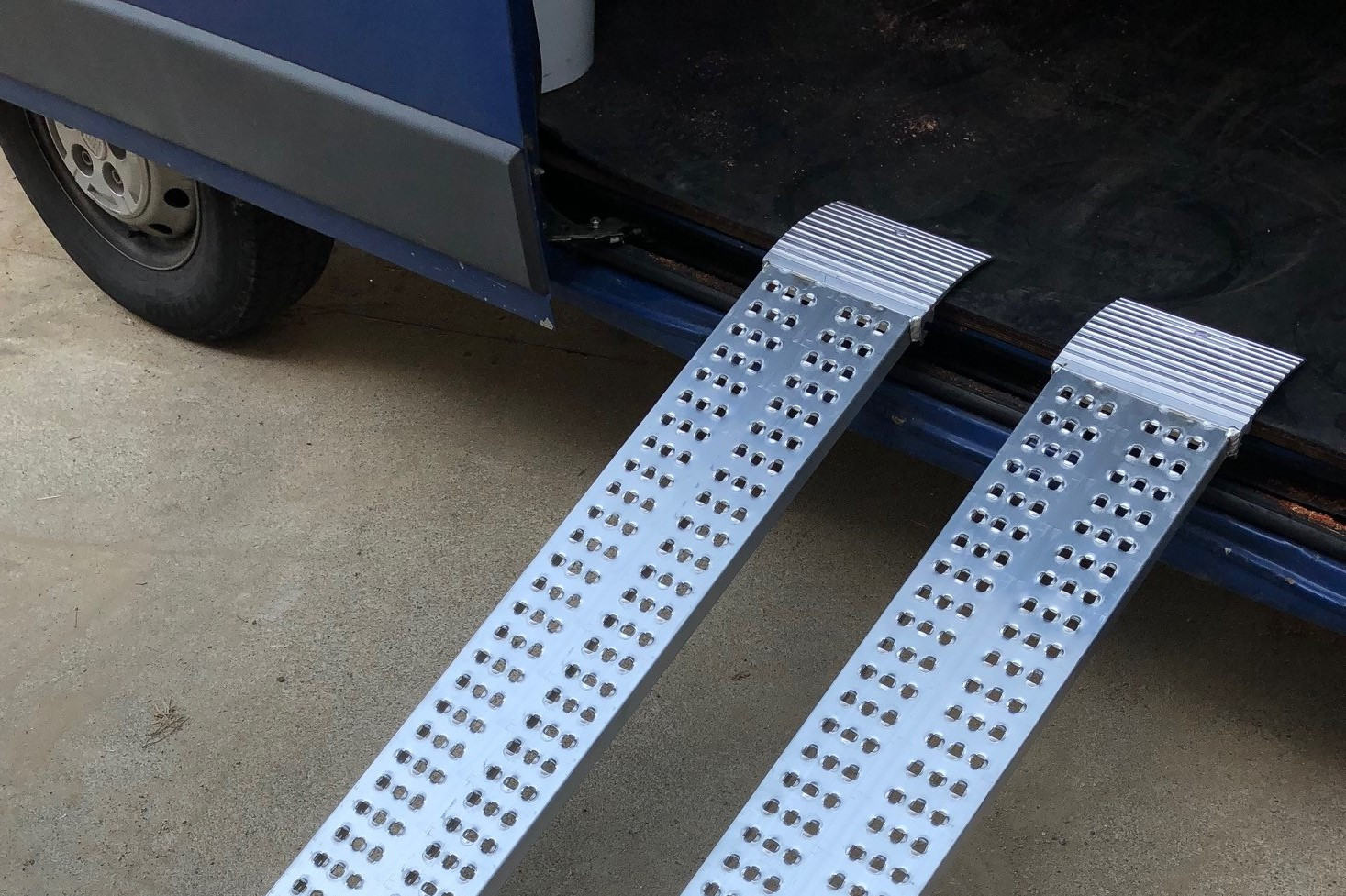

Rest on connection

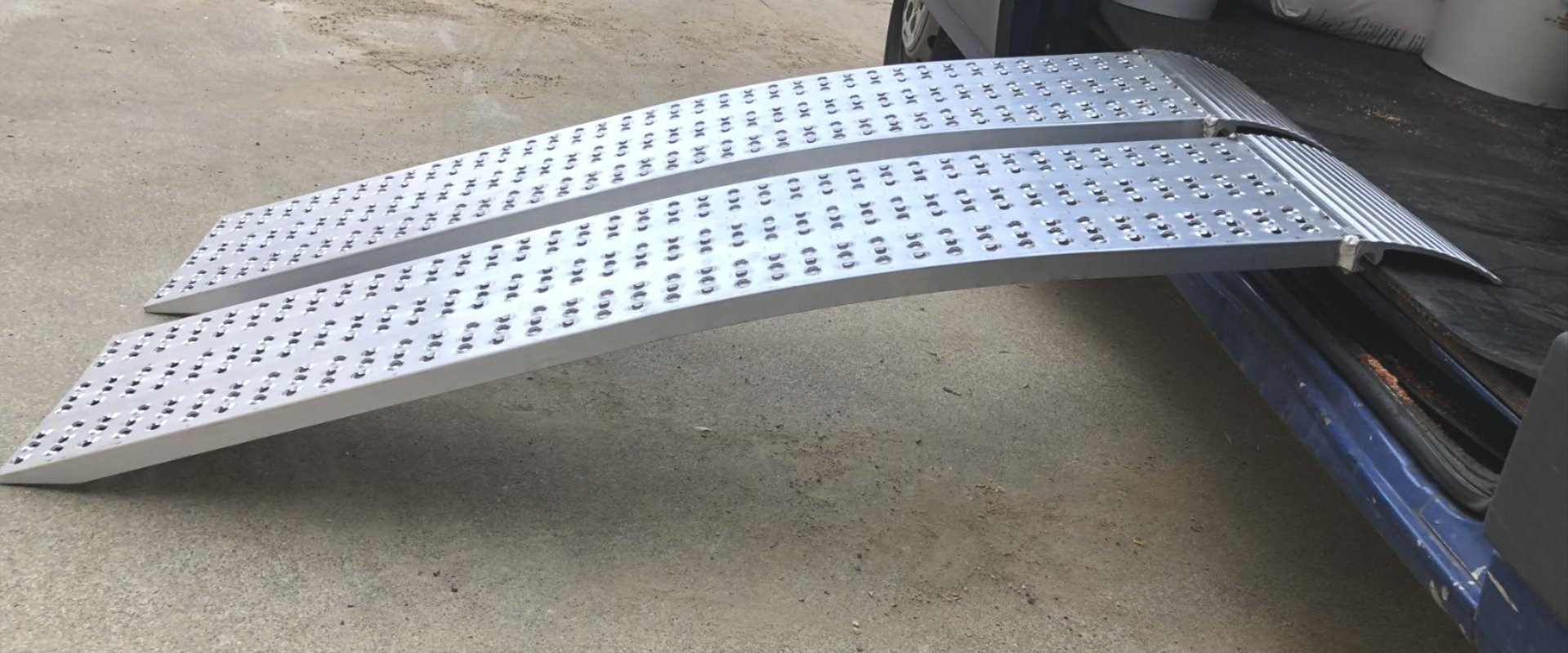

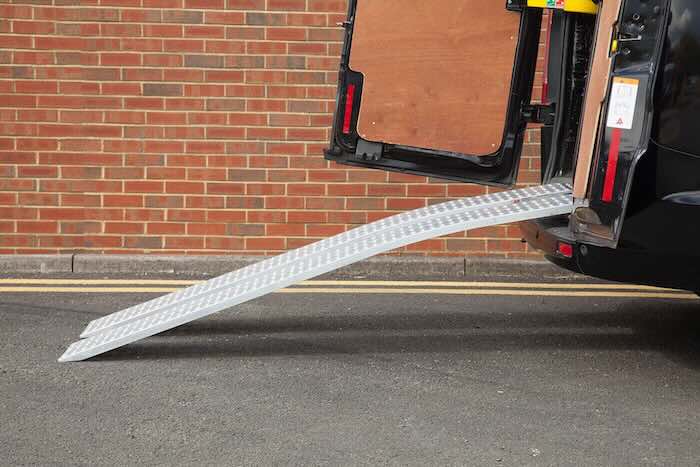

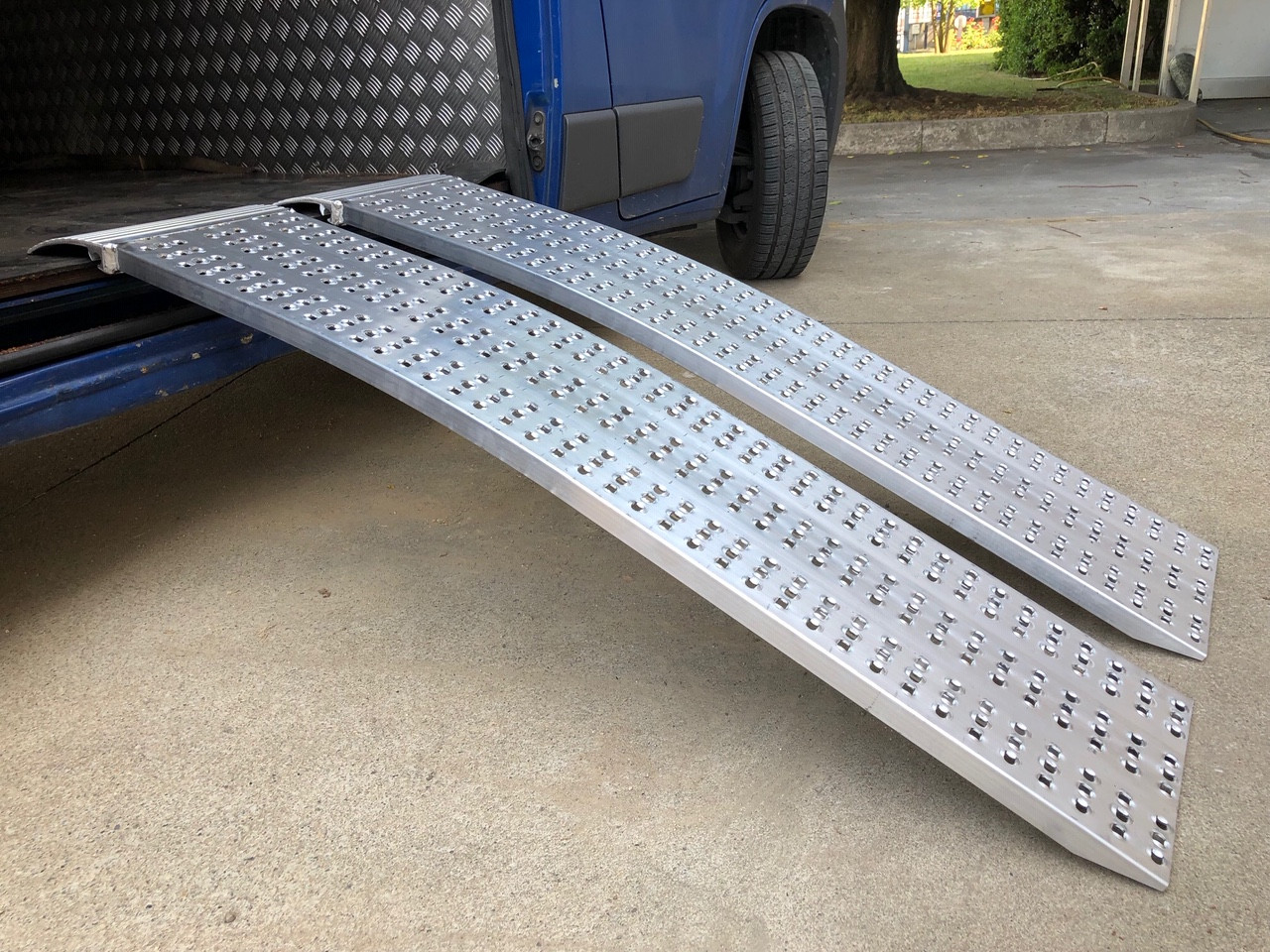

Curved options available for improved ground clearance
Not suitable for solid wheels
Please note these ramps are not suitable for tracked machinery, please see our TRP65 and TRP74 series when using tracked machinery.
1485mm - Straight TRP30HS/15
Length: 1485mm
Curved Design: No
Capacity Wheelbase 1250mm: 1000kg
Capacity Wheelbase 1000mm: 1000kg
Capacity Wheelbase 750mm: 1000kg
Load Height: 350mm - 450mm
Weight per ramp: 8kg
Weight per pair: 16kg
Width: 315mm
Height: 30mm
1492mm - Curved TRP30BHLS/15
Length: 1492mm
Curved Design: Yes
Capacity Wheelbase 1250mm: 540kg
Capacity Wheelbase 1000mm: 540kg
Capacity Wheelbase 750mm: 400kg
Load Height: 260mm - 380mm
Weight per ramp: 4kg
Weight per pair: 8kg
Width: 215mm
Height: 30mm
2000mm - Straight TRP30HS/20
Length: 2000mm
Curved Design: No
Capacity Wheelbase 1250mm: 1000kg
Capacity Wheelbase 1000mm: 1000kg
Capacity Wheelbase 750mm: 900kg
Load Height: 460mm - 600mm
Weight per ramp: 10,5kg
Weight per pair: 21kg
Width: 315mm
Height: 30mm
2000mm - Curved TRP30BH/20
Length: 2000mm
Curved Design: Yes
Capacity Wheelbase 1250mm: 1000kg
Capacity Wheelbase 1000mm: 900kg
Capacity Wheelbase 750mm: 720kg
Load Height: 390mm - 520mm
Weight per ramp: 10.5kg
Weight per pair: 21kg
Width: 315mm
Height: 30mm
2500mm - Curved TRP30BH/25
Length: 2500mm
Curved Design: Yes
Capacity Wheelbase 1250mm: 850kg
Capacity Wheelbase 1000mm: 720kg
Capacity Wheelbase 750mm: 560kg
Load Height: 530mm - 650mm
Weight per ramp: 13kg
Weight per pair: 26kg
Width: 315mm
Height: 30mm
2990mm - Curved TRP30BH/30
Length: 2990mm
Curved Design: Yes
Capacity Wheelbase 1250mm: 1000kg
Capacity Wheelbase 1000mm: 900kg
Capacity Wheelbase 750mm: 720kg
Load Height: 660mm - 800mm
Weight per ramp: 18kg
Weight per pair: 36kg
Width: 315mm
Height: 40mm
Please use gloves when handling those ramps.
Usage Guidelines and Safety Information for these ramps lightweight loading ramps can be found here.
Usage Guidelines and Safety Information for our loading ramps can be found here.

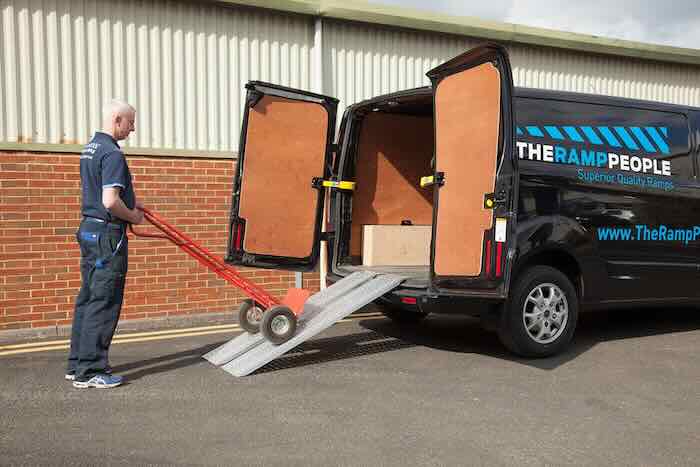

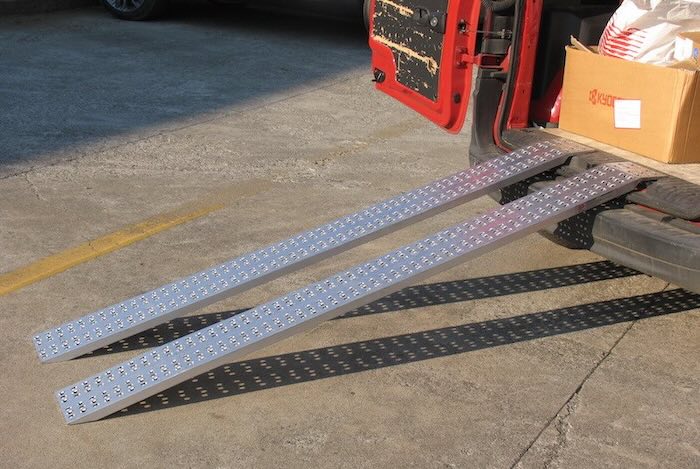

Our Lightweight Loading Ramps for Domestic Use are perfect for transporting garden machinery with capacities up to 1,000kg. Produced from lightweight aircraft grade aluminium, simply rest the ramps onto the back of the van and start loading. The ramps are perfect for loading ride on lawnmowers, quad bikes and more! Which length ramp do you need...
