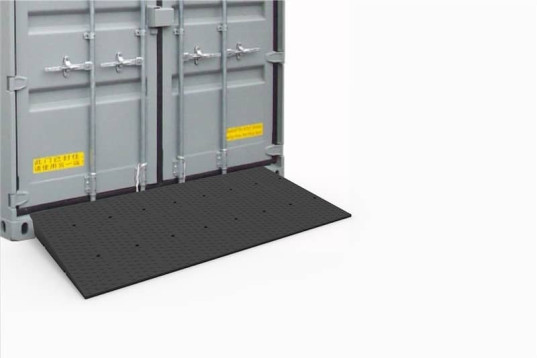

Ground Level Shipping Container Ramps - Options from 150mm up to 300mm High

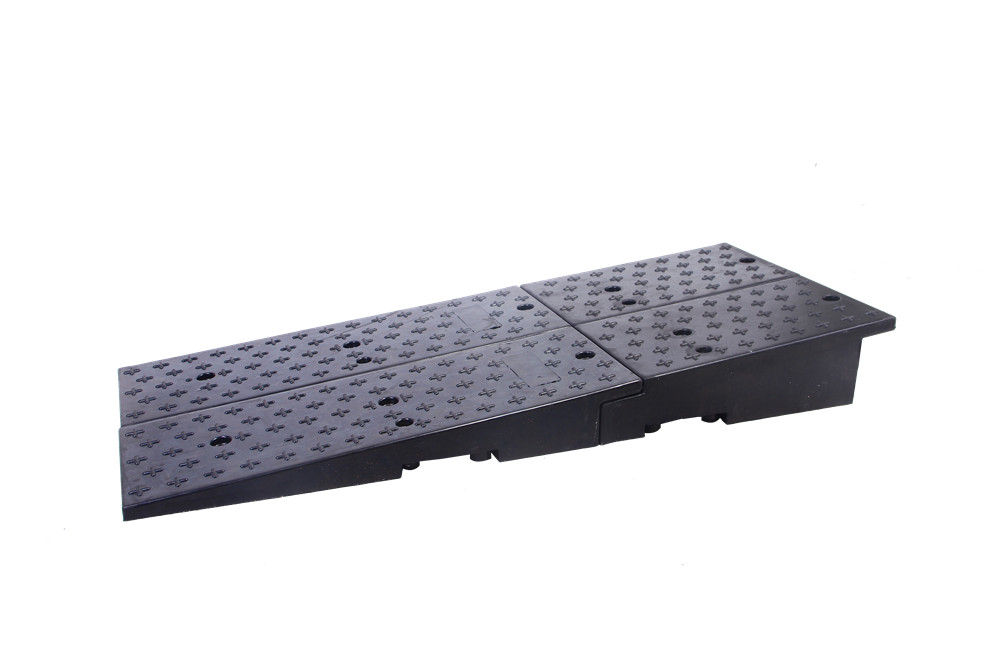

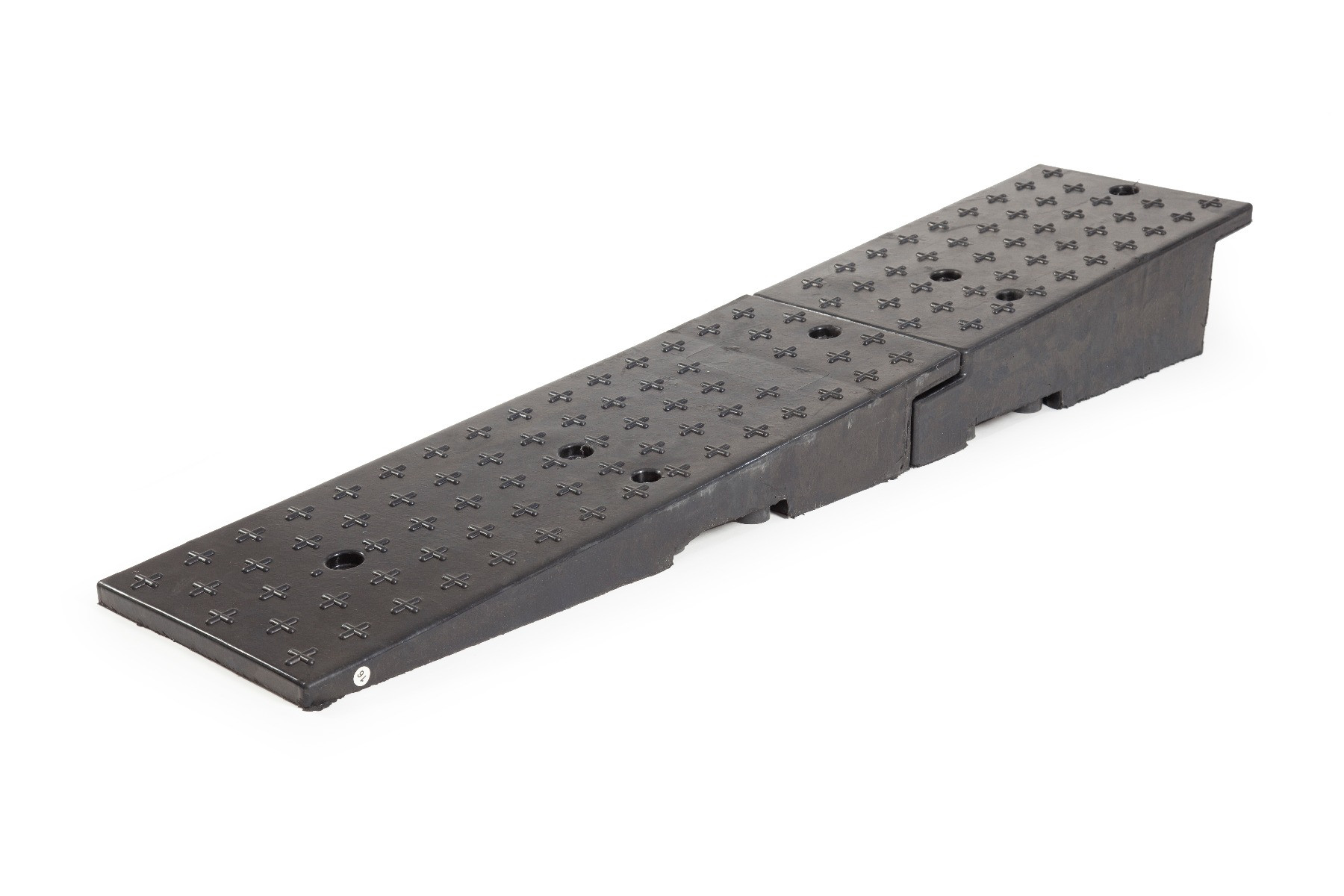

Heavy-duty rubber container ramp with a 10,000kg capacity. Easily load forklifts, pallet trucks and goods in and out of shipping containers. This container ramp is provided in modular pieces and available in heights between 150mm and 300mm. Higher heights are available on request, please contact our team for more details.
Ground Level Container Ramps
Main Features:

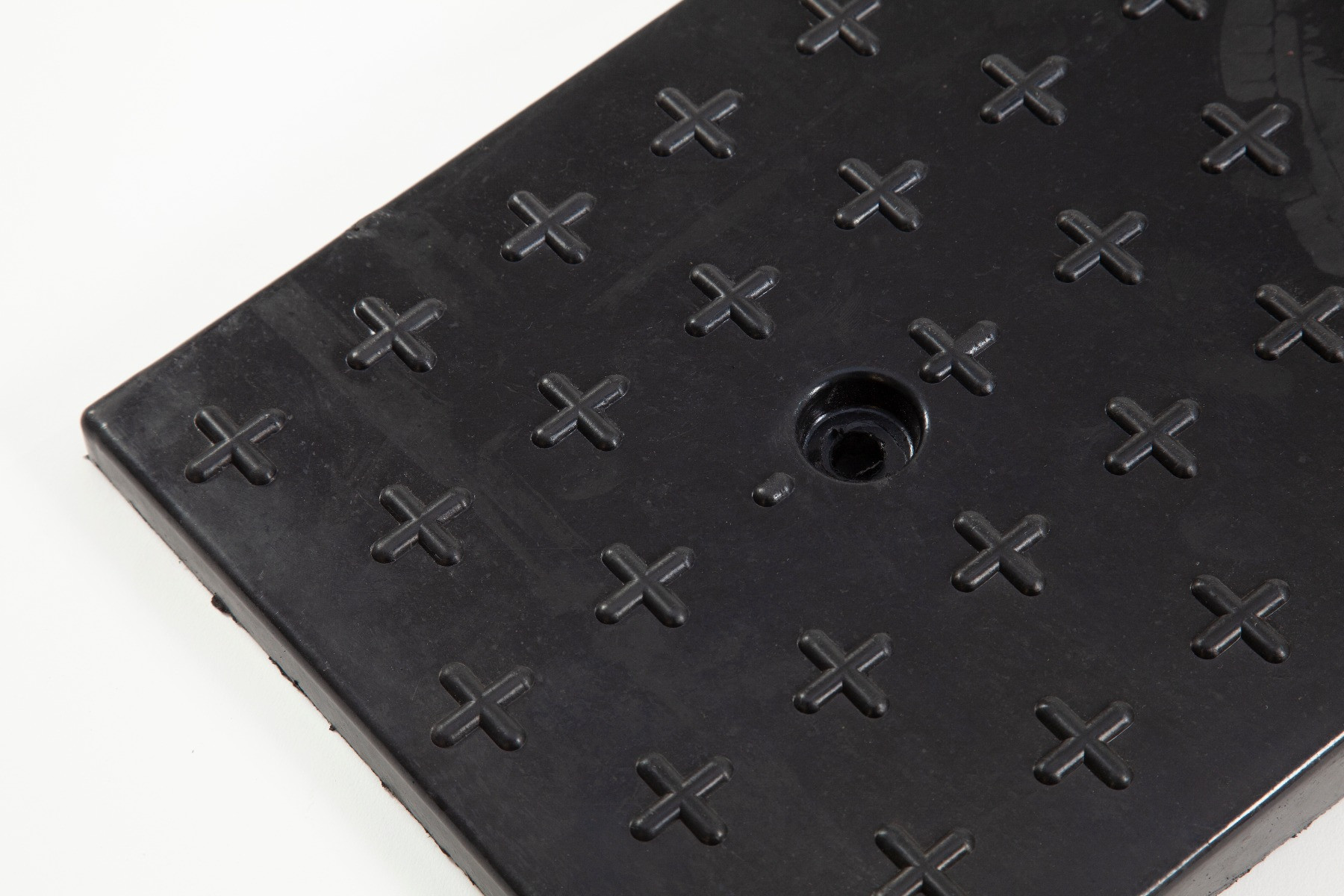

- Made of recycled tyre rubber

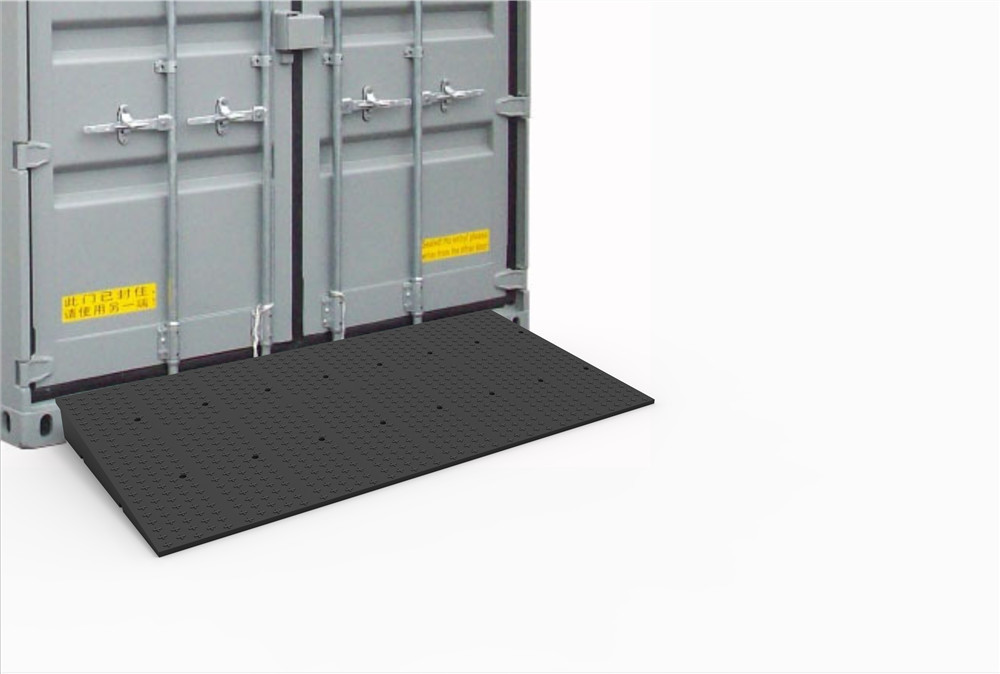

- Designed to allow access into standard shipping containers that are located at ground level
- Typically supplied in Max 10,000Kg capacities to suit your operations, though others are available on request

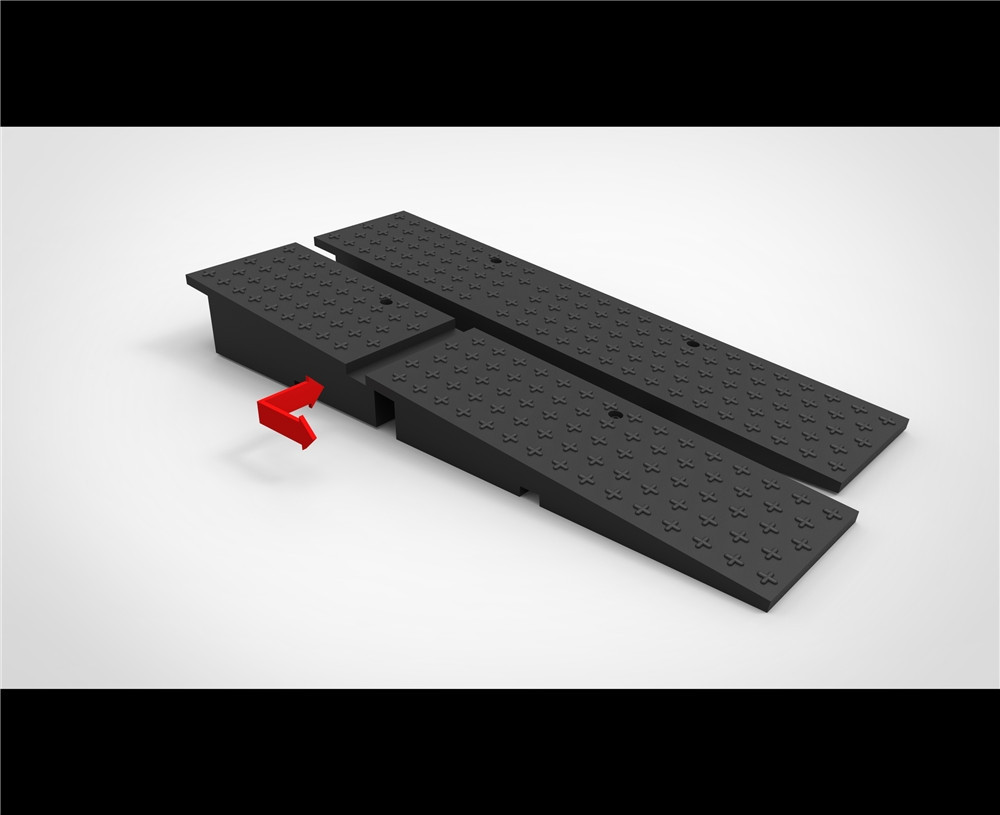

- Movement by one person allows the ramp to be quickly and easily assembled to the 220cm width
- 90% less noise when fork truck driver drives in and out of the container
- Please note most containers doors will not be able to close whilst the ramp is left in place
- Narrow widths are available to purchase on request, please contact our team
- All pictures shown are for illustration purpose only. Actual product may vary due to product enhancement

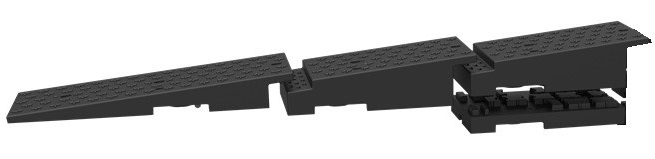

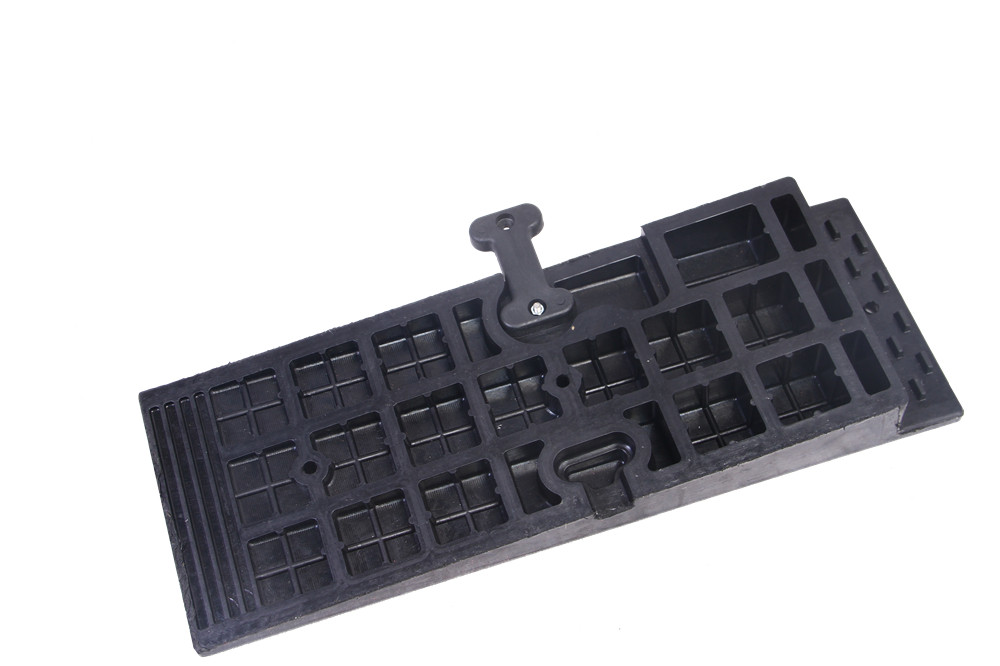

Ground Level Container Ramps parts specifications.

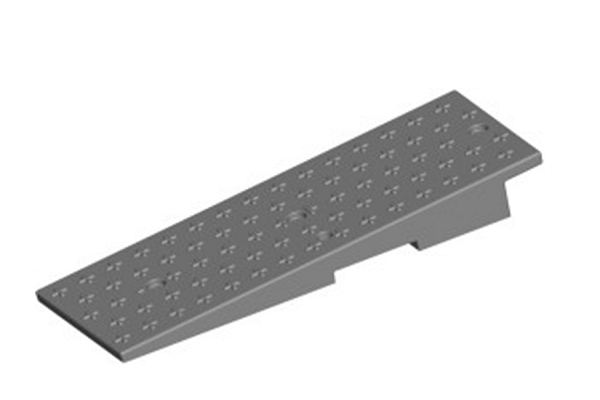

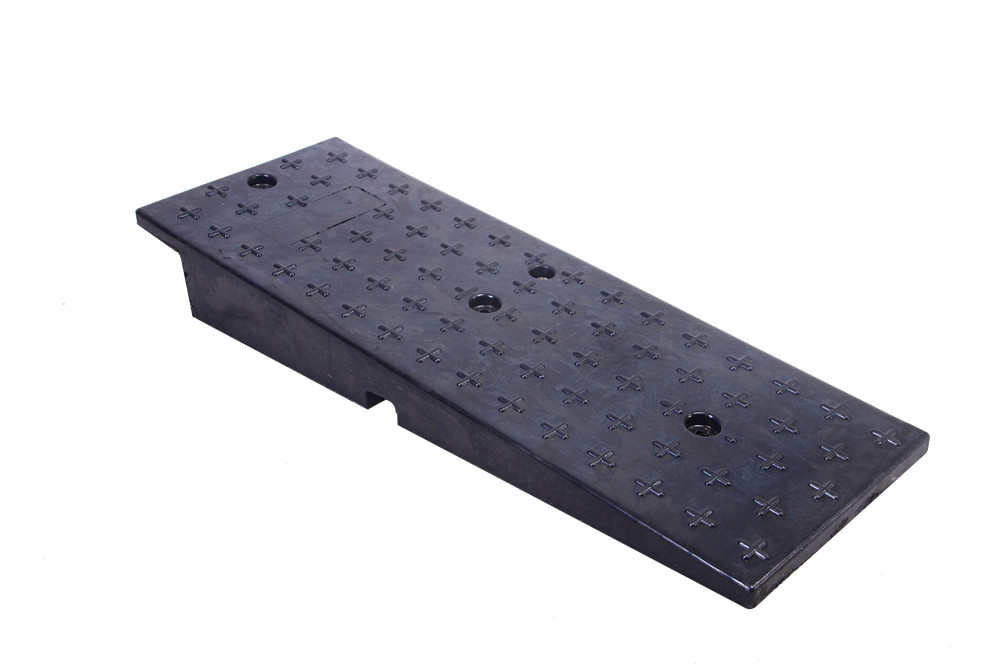

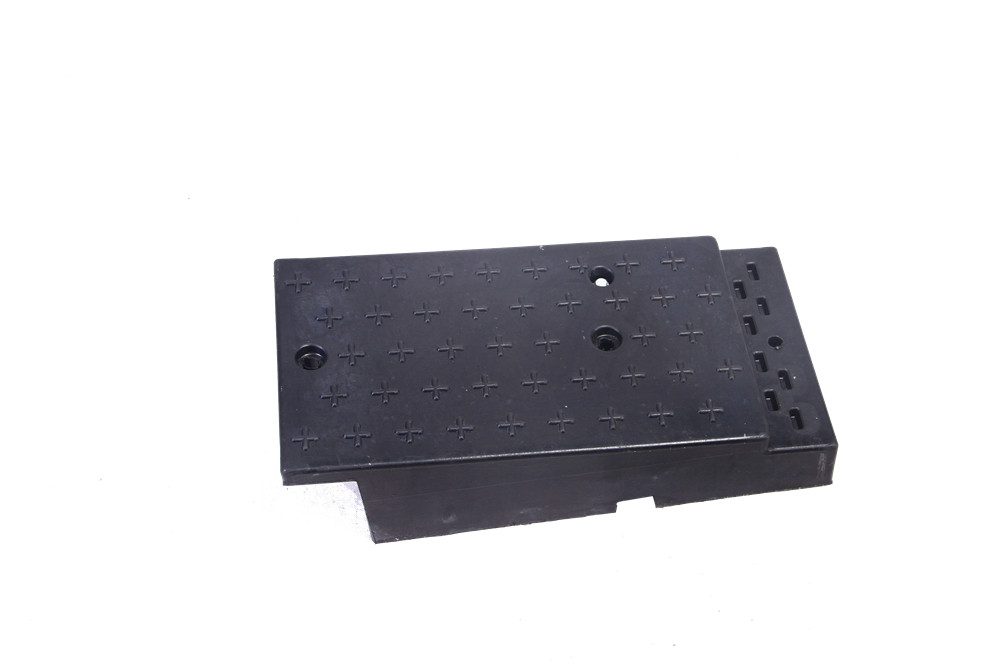

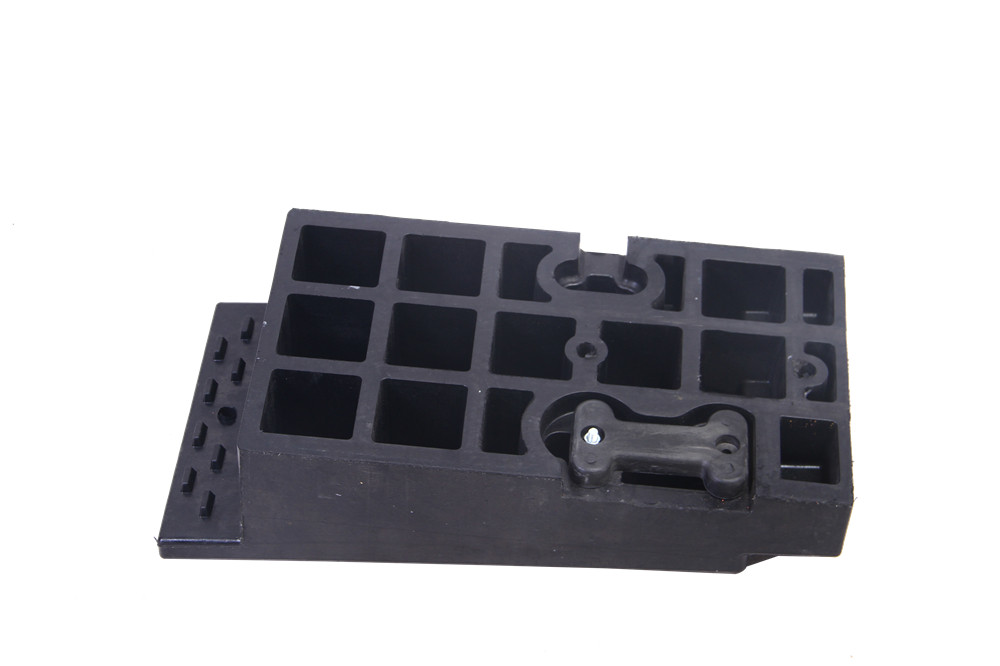

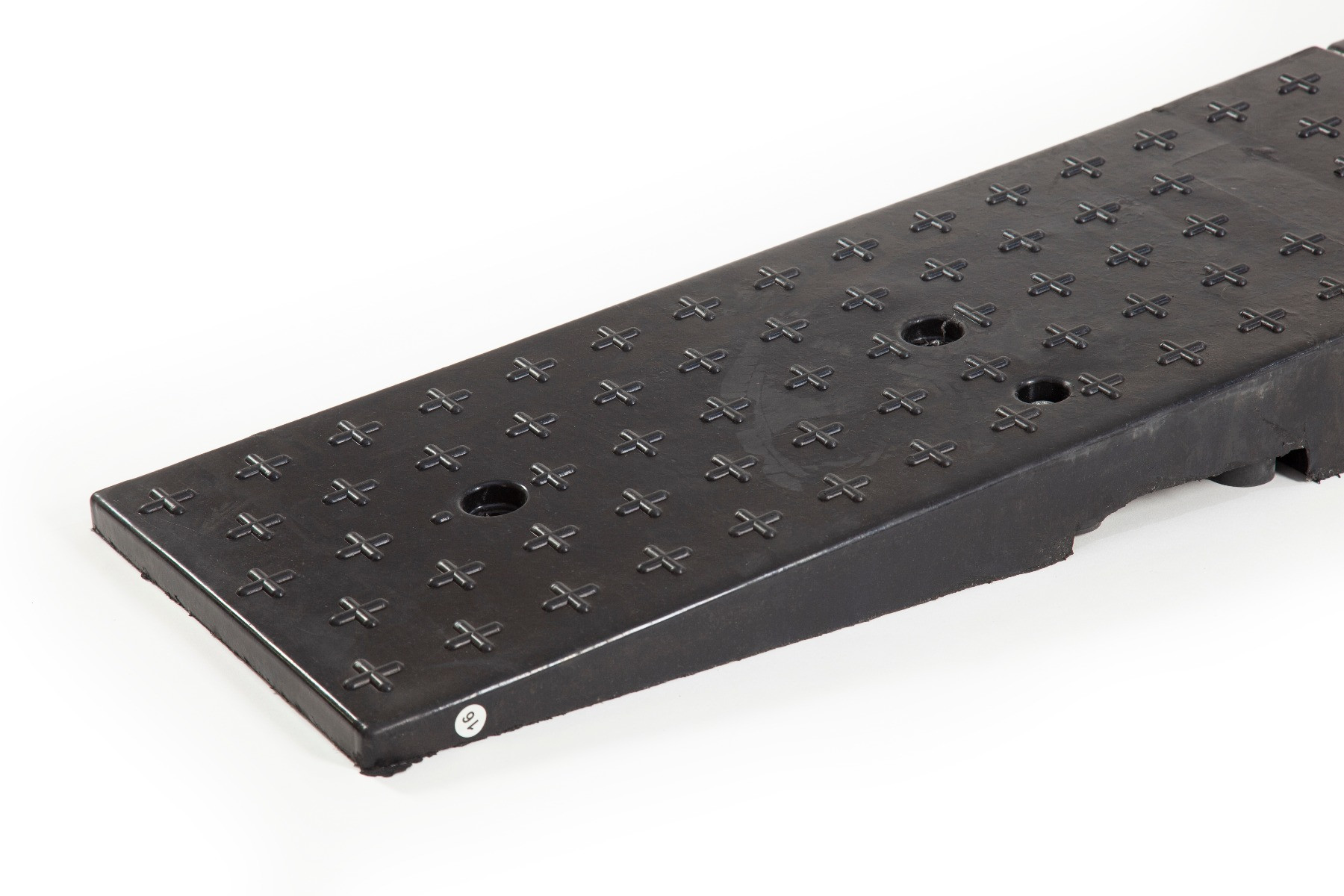

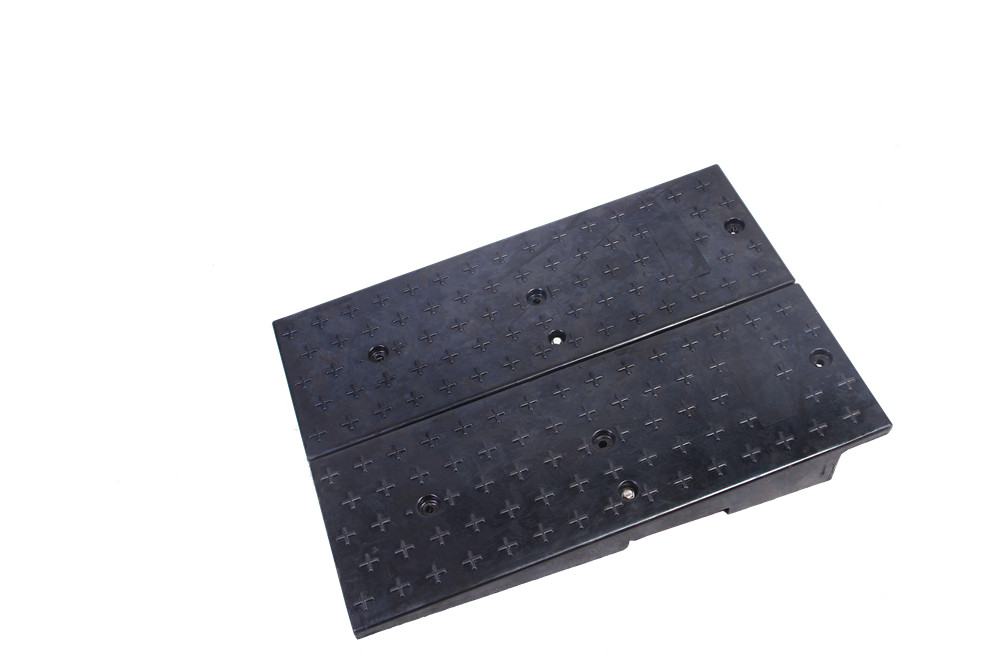

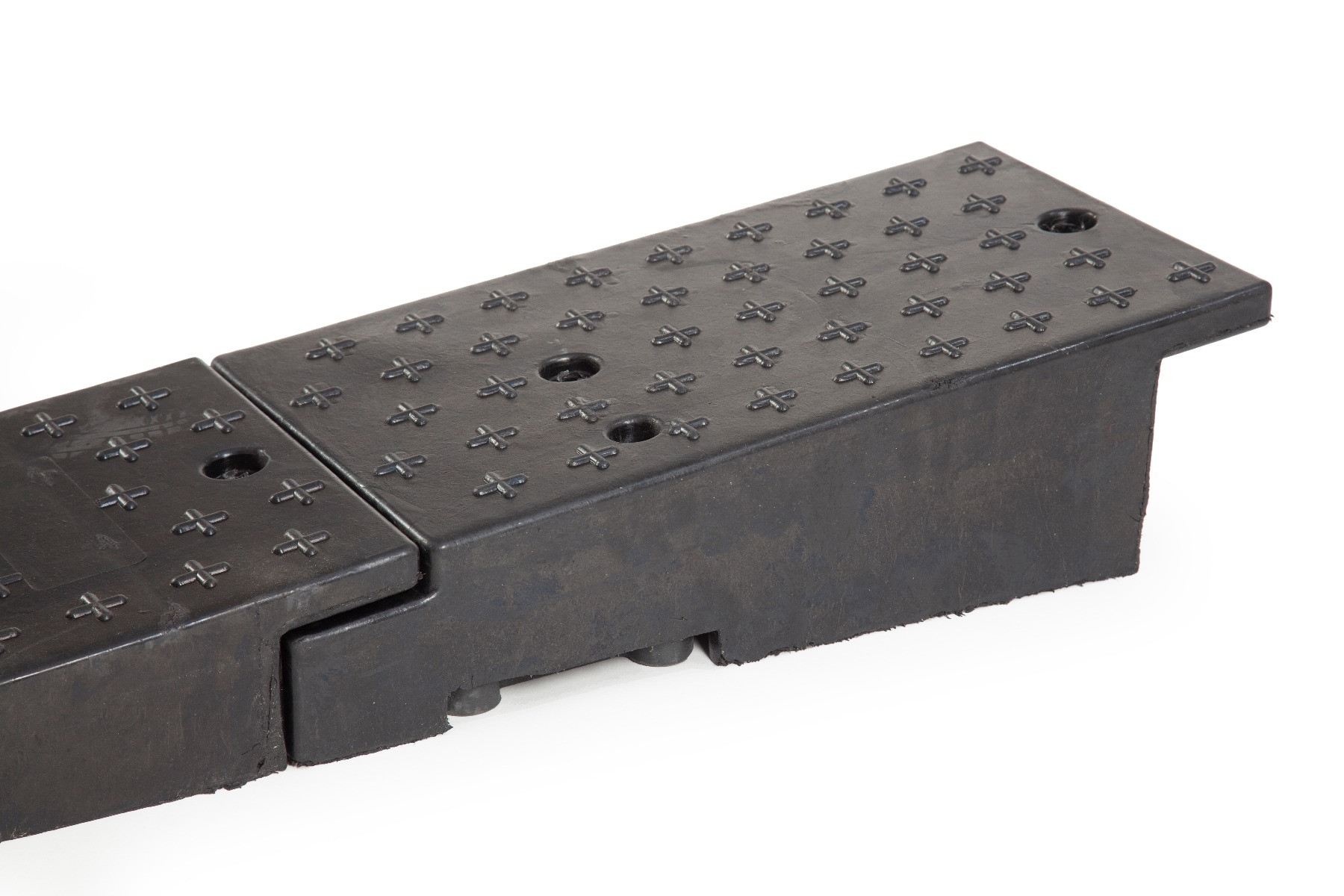

First ramp section: W 275mm x L 770mm

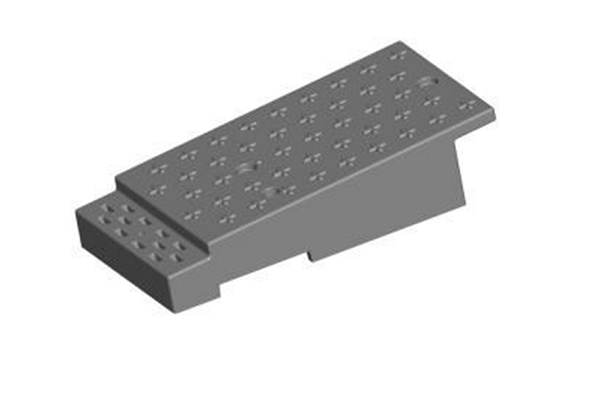

Second ramp section: W 275mm L x 480mm

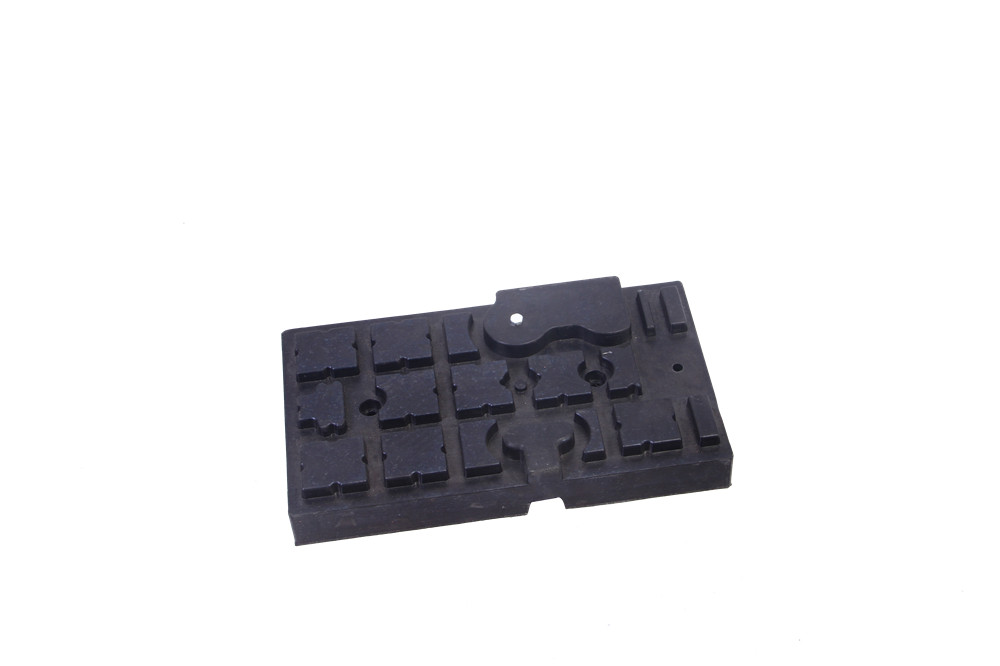

Level section: W 275mm x L 475mm
150mm TRP-DH-CUP-1

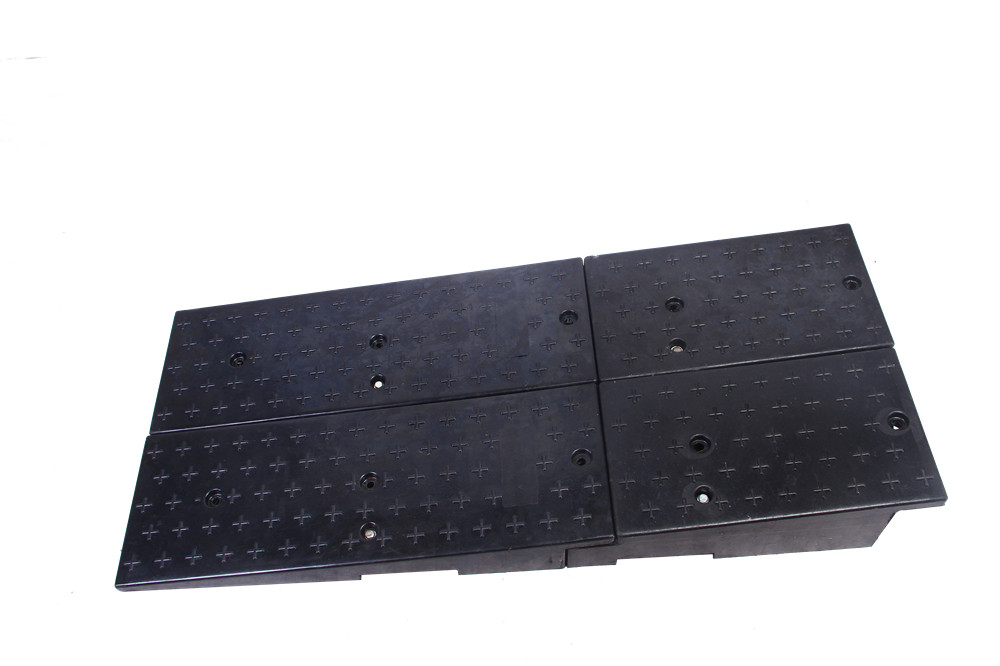

- Kit contains 8 units first ramp section and 8 units second ramp sections
- Dimensions - 1250mm length x 2200mm width x 150mm high
- Weight (kg)188
200mm TRP-CUP-20
- Kit contains 8 units first ramp sections, 16 units second ramp sections and 8 level sections
- Dimensions - 1750mm length x 2200mm width x 200mm high
- Weight (kg) 345
250mm TRP-CUP-25
- Kit contains 8 units first ramp sections, 24 units second ramp sections and 24 level sections
- Dimensions - 2250mm length x 2200mm width x 250mm high
- Weight (kg) 556
300mm TRP-CUP-30
- Kit contains 8 units first ramp sections, 32 units second ramp sections and 48 level sections
- Dimensions - 2750mm length x 2200mm width x 300mm high
- Weight (kg) 821
SKU | TRP-CUP |
---|---|
Delivery on Pallets* | Yes |
Capacity (kg) | 10000 |
Height (mm) | 150-300 |
Length (mm) | 1250-2750 |
Weight (kg) | 187-852 |
Width (mm) | 2200 |
One Year Warranty | Yes |
Bulk Prices Available | Yes |
Easy to Fit | Yes |
Leave Outside | Yes |
