Pallet truck on ramp
Pallet truck ramp loading into container Pallet truck on ramp Pallet Truck Container Ramp 1000mm Wide x 1000kg Capacity Pallet Truck Container Ramp 1000mm Wide x 1000kg Capacity Pallet Truck Container Ramp 1000mm Wide x 1000kg Capacity Pallet Truck Container Ramp 1000mm Wide x 1000kg Capacity Pallet Truck Container Ramp 1000mm Wide x 1000kg Capacity Rest on connection

4-10 business days delivery*. Items are shipped from the UK to Ireland on DAP Incoterms. This means we do not charge Irish VAT but Irish import VAT of 23%, import duty (on some products) and customs charges will be due. These fees will need to be paid to the courier before or after you receive the goods. Learn more.

Products are shipped from our UK Warehouse to Ireland on DDP Incoterms. The price displayed is the total price, with the shipping fee calculated at the checkout. There is no additional import, duty or customs charges. Learn more.

As low as €880.00
31 In stock at our warehouse

Pallet Truck Container Ramp 1000mm Wide x 1000kg Capacity

SKU
TRP-CON

A single piece heavy duty loading ramp 1000mm wide x 1000kg Capacity perfect for manual pallet truck loading into a container or over kerbs. Provided in lengths of 1800mm, 2000mm and 2400mm.

  • Connection Options
  • Customisable
  • Easy to Fit
  • European Made
  • Two Year Warranty
Description

Aluminium Pallet Truck Loading Ramp feature:

Available in the lengths 1800mm, 2000mm and 2400mm. The ramps have a capacity of 1000kg and are provided in a width of 1000mm. Those ramps are ideally suited for pallet trucks.

  • Rest on connection: to fit just rest on and start loading. Pre-drilled hole to allow the ramp to be secured during loading
  • Cut for a minimum load height of 150mm, maximum load height of 400mm
  • 1m wide, perfect for loading pallets with a pallet truck into a container or over kerbs. Also suitable for loading cages, trolleys and flightcases over steps, doorways and kerbs
  • Manufactured from lightweight aluminium
  • Robot welded for solid, strong and durable construction
  • Lightweight for easy handling
  • Angled foot, this allows for smooth access onto the ramp when using casters or wheels
  • No edges perfect for items with low clearance and for easier handling on the ramp
  • Lies flat for easy storage when not being used
  • Fully TUV Certified to 1000kg capacity as standard
  • R13 slip resistance, DGUV 108-003
  • Made in Europe
  • Custom solutions available including alternative sizes and capacities, please contact our team
  • All pictures shown are for illustration purpose only. Actual product may vary due to product enhancement
TUV Certification Image

Usage guidelines and safety information for our full vehicle ramp range can be found here.

Description

Manufactured in Italy, these pallet truck loading ramps are designed with the low clearance of pallet trucks in mind, making them ideal for safely loading pallet trucks, cages, and trolleys into containers and over steps in warehouses, commercial sites, and industrial units.

We recommend checking that the ramp length provides a suitable gradient or incline for your requirements before ordering, as this can vary depending on the item being loaded. For custom solutions or to check suitability, please contact our team.

Key Features

Smooth entry

Angled foot provides smooth entry onto the ramp, making loading easier.

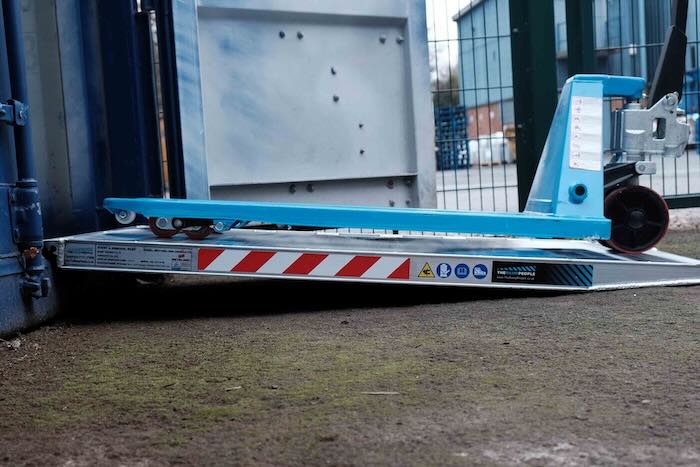

Pallet truck going up aluminium ramp into containerPallet truck going up aluminium ramp into container
No edges

Prevents items from catching on the ramp, making it ideal for safely loading low-clearance items.

Pallet truck ramp resting on containerPallet truck ramp resting on container
Slip resistance surface

R13 slip-resistance surface for optimum traction during loading.

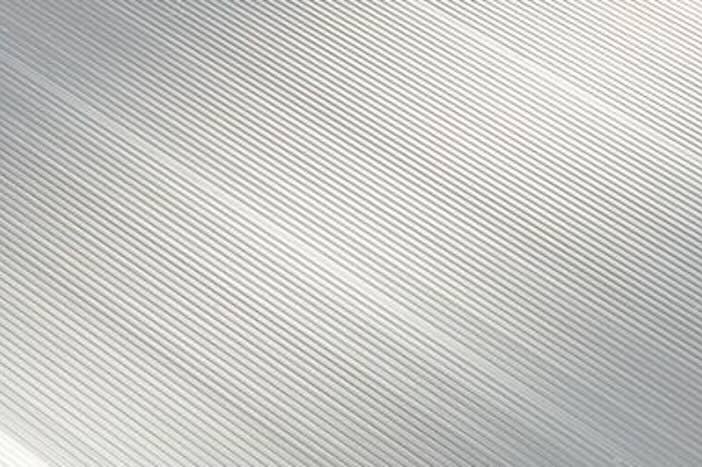

Anti-slip surfaceAnti-slip surface
Secure rest on connection

Rest-on connection with a pre-drilled hole and pin, secure in position during loading

Rest on connectionRest on connection
Show more +

Product Highlights

Built with safe loading mind

Built with safe loading in mind, the TÜV-certified loading ramp, which has been tested to a 1000kg capacity, offers a full-width R13 slip-resistance surface for optimum grip.

The curved rest-on connection and angled foot ensure the ramp remains securely in place during loading. The rest-on connection includes a pre-drilled hole, allowing the ramp to be secured in place whilst in use.

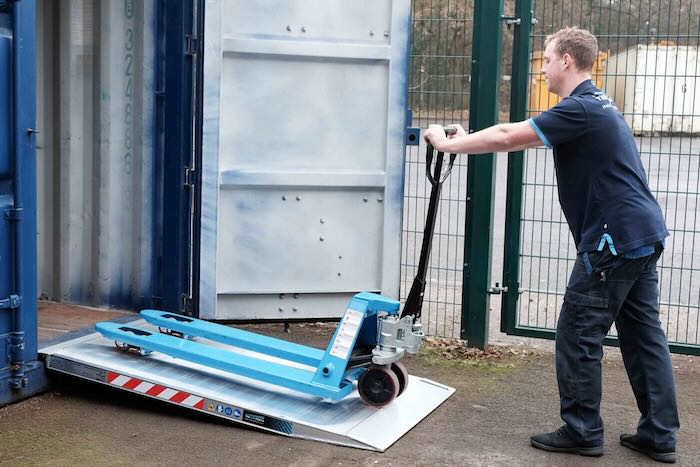

Man pushing pallet truck up ramp into a containerMan pushing pallet truck up ramp into a container

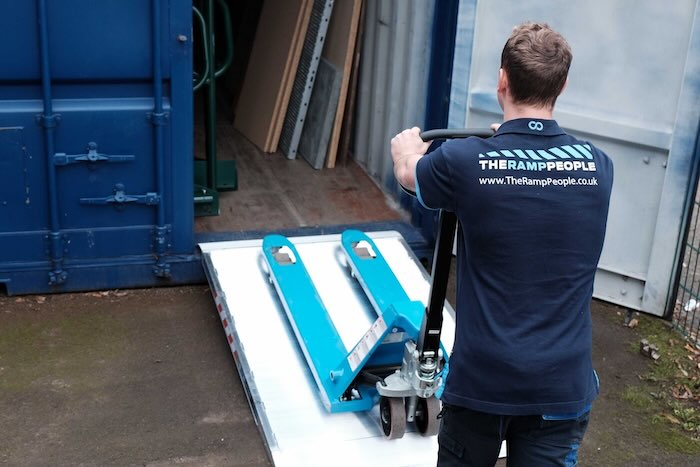

Man pushing pallet truck up ramp into a containerMan pushing pallet truck up ramp into a container
Designed for loading pallet trucks with ease

Designed for loading low-clearance items, the aluminium ramp features an angled foot for smooth entry and a shallow gradient for ease of loading.

It is provided with a flat-top, no-edge design to prevent items from catching on the sides of the ramp during loading.

At 1 m wide, it is perfect for loading pallet trucks and similar equipment into containers or over kerbs.

Portable design

Designed for regular use, the aluminium ramp can be easily moved into position when required. Suitable for loading at heights between 150mm and 400mm, the ramp can be used with a range of containers, kerbs, and lower steps.

When not in use, the ramp lies flat for storage.

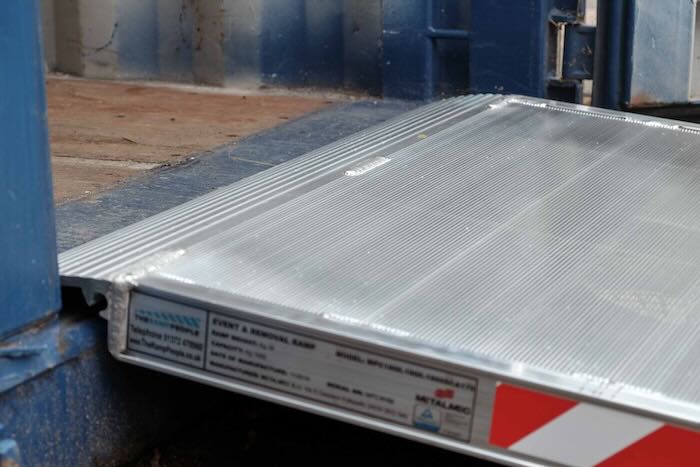

Pallet truck loading ramp resting on containerPallet truck loading ramp resting on container

Why Choose The Ramp People?

Manufactured in Italy, The Ramp People's pallet truck ramps have been tested to the higher standards. The ramps are TÜV-certified and offered with a R13 slip resistance surface.

For peace of mind the loading ramps are offered with a comprehensive 2-year warranty.

Bespoke solutions are available on request.

User Guide

Usage guidelines and safety information for our full vehicle ramp range can be found here.

Details
SKUTRP-CON
Default ConnectionRest On Connection
Capacity (kg)1000
Height (mm)70
Length (mm)1800 - 2400
Max Load Height (mm)400
Min. Load Height (mm)150
Weight (kg)34 - 45
Width (mm)1000
Two Year WarrantyYes
Connection Options AvailableYes
CustomisableYes
Easy to FitYes
European MadeYes
Product Questions
How does The Ramp People's Pallet Truck Ramp stay securely in place during loading?
The pallet truck ramp has a curved rest on connection with a pre-drilled hole to allow the ramp to securely stay on the step, kerb or container. The foot of the ramp is cut at an angle to ensure the ramp sits securely on the ground. The weight and angle of the ramp also ensures the ramp stays in place.
I am looking for a ramp to load trolleys and cages over a step, would this ramp be suitable?
As long as you are within the recommended load height and capacity, the pallet truck ramp is generally perfect for loading trolleys and cages as it offers a smooth gradient and slip resistance surface. Please check the gradient is suitable for the item you are loading.
I require a Pallet Truck Ramp, should I purchase the Pallet Truck Ramp Container Ramp or Wedge Ramp?
If you plan to use the ramp in a variety of locations the Pallet Truck Ramp Container Ramp would be preferable as it can be used at a wider range of heights, the wedge ramps can only be used at a specific height.
Can The Ramp People's Pallet Truck Ramp be used to load electric pallet trucks?
Yes however, as many electric pallet trucks have very low ground clearance, we recommend contacting us first with your load height and the data sheet of your pallet truck so we can confirm suitability or provide a custom solution.
Do The Ramp People offer pallet truck ramps suitable for loading at heights below 150mm?
Yes, we would suggest viewing our range of Aluminium Wedge Ramps which are suitable for heights from 10mm to 170mm.
