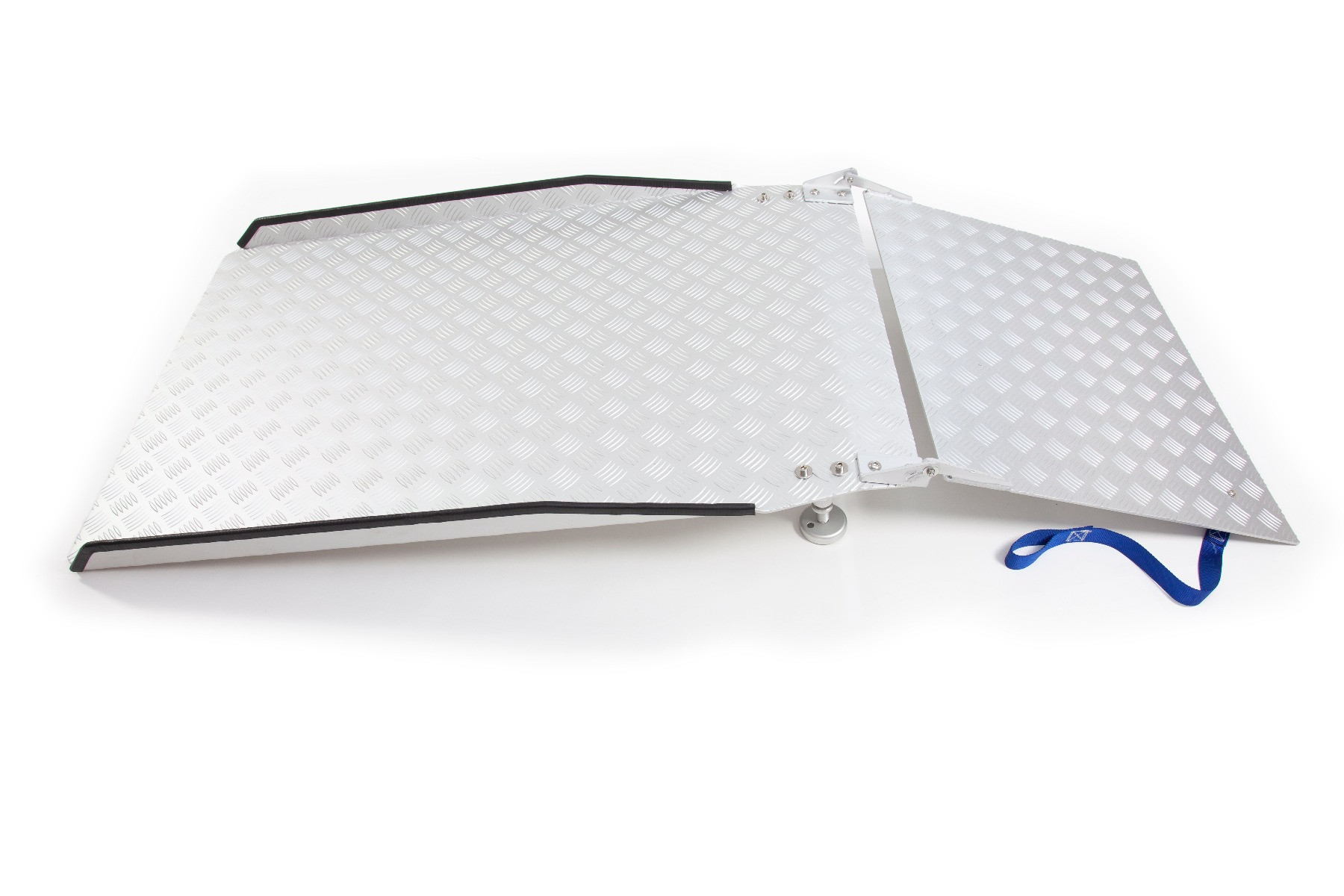

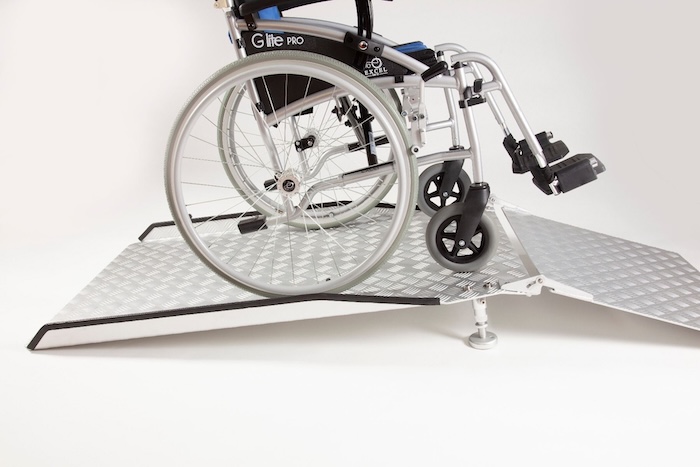

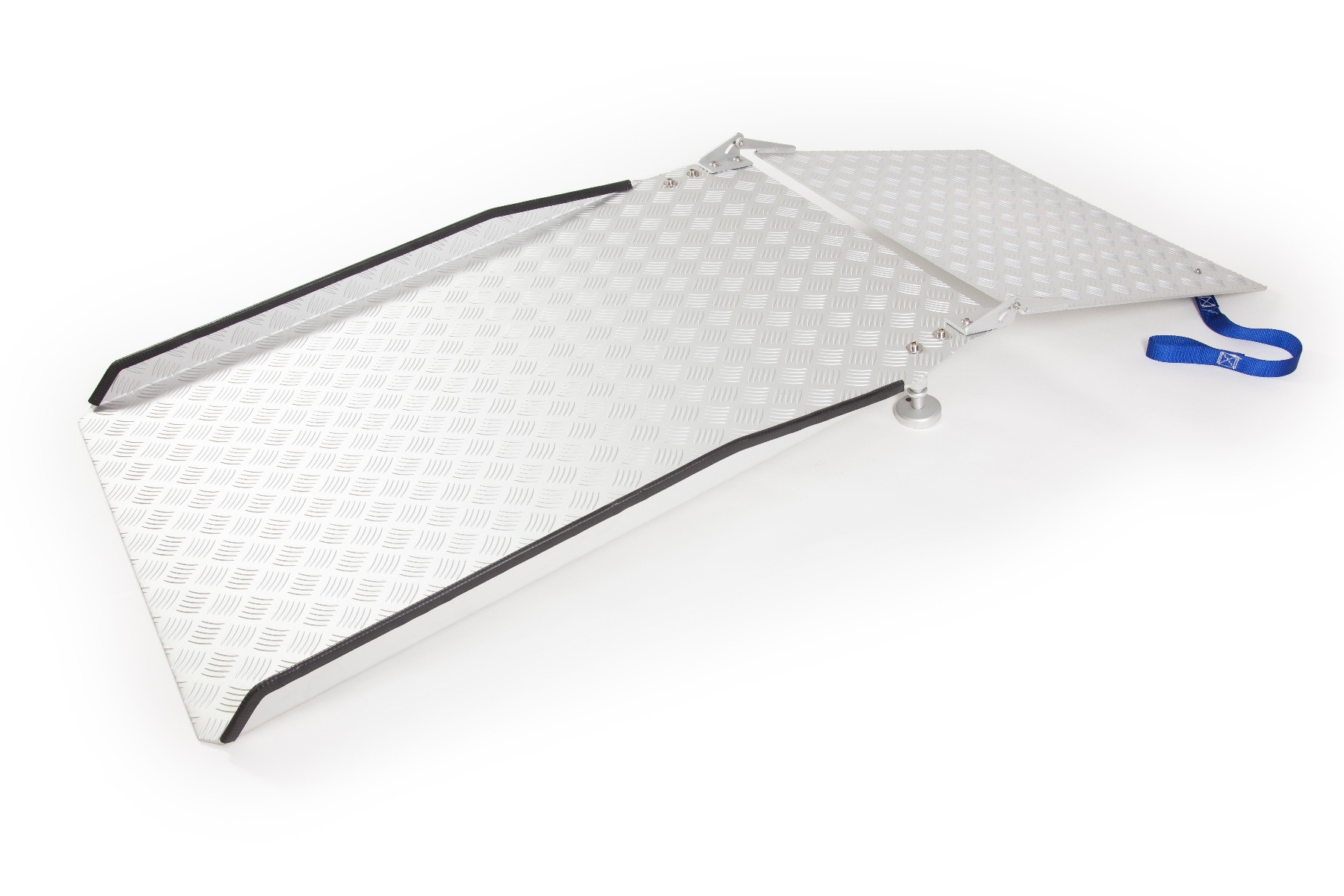

Fixed Anodised Aluminium Threshold Ramp for fixing on a step or a threshold supplied with a leg kit for height differences up to 70mm - 254mm (3" - 10") and a 300mm or 600mm long entry plate. Ramp available in the lengths from 2ft up to 8ft.

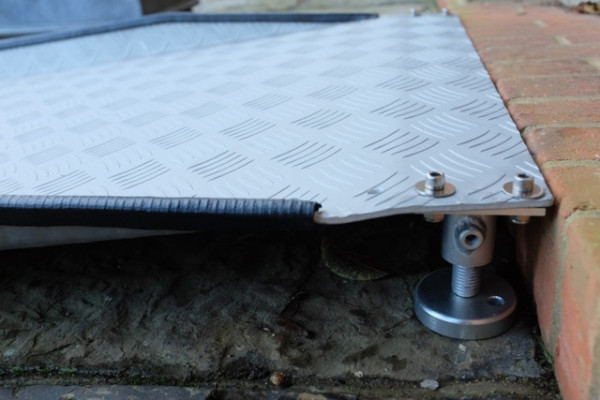

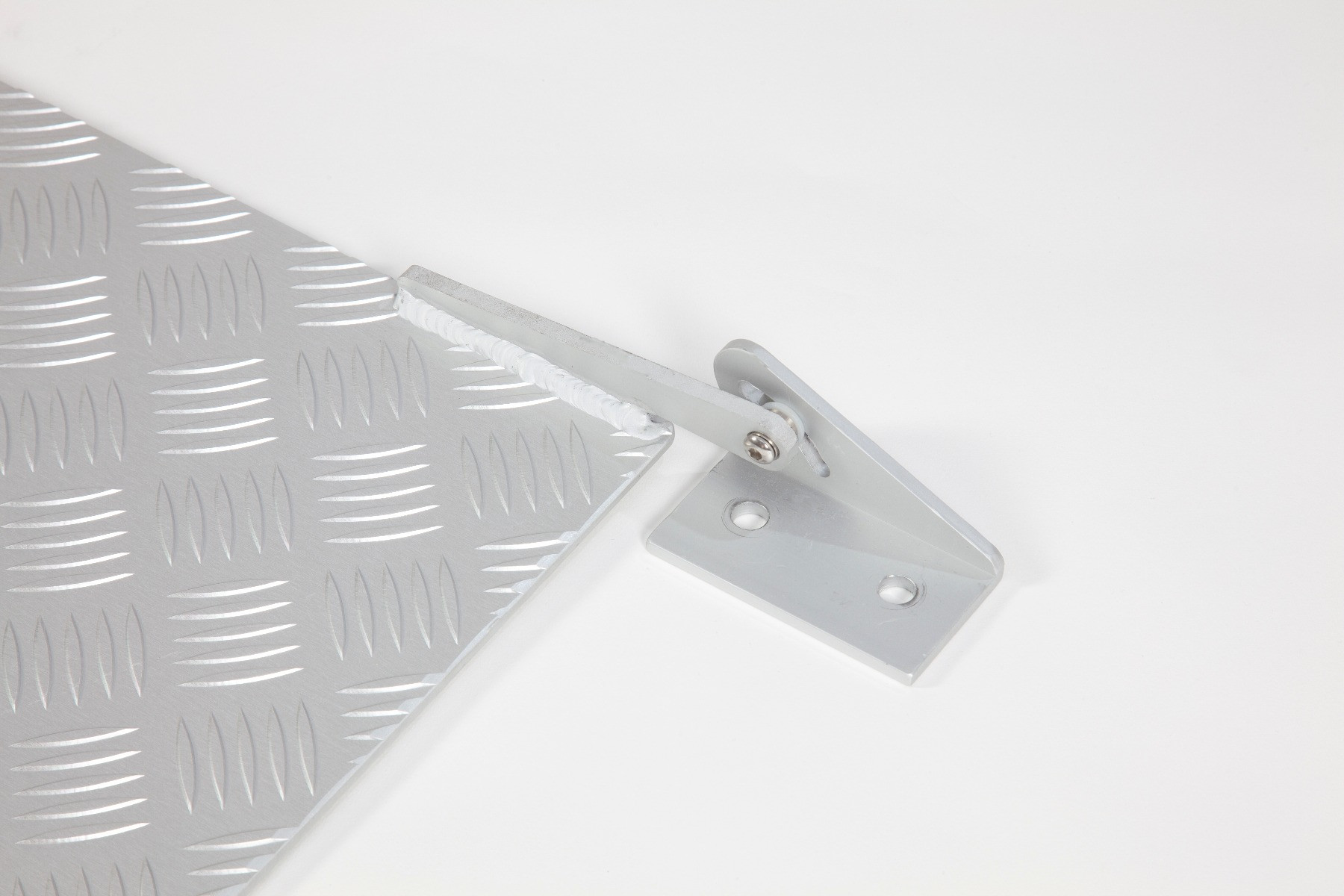

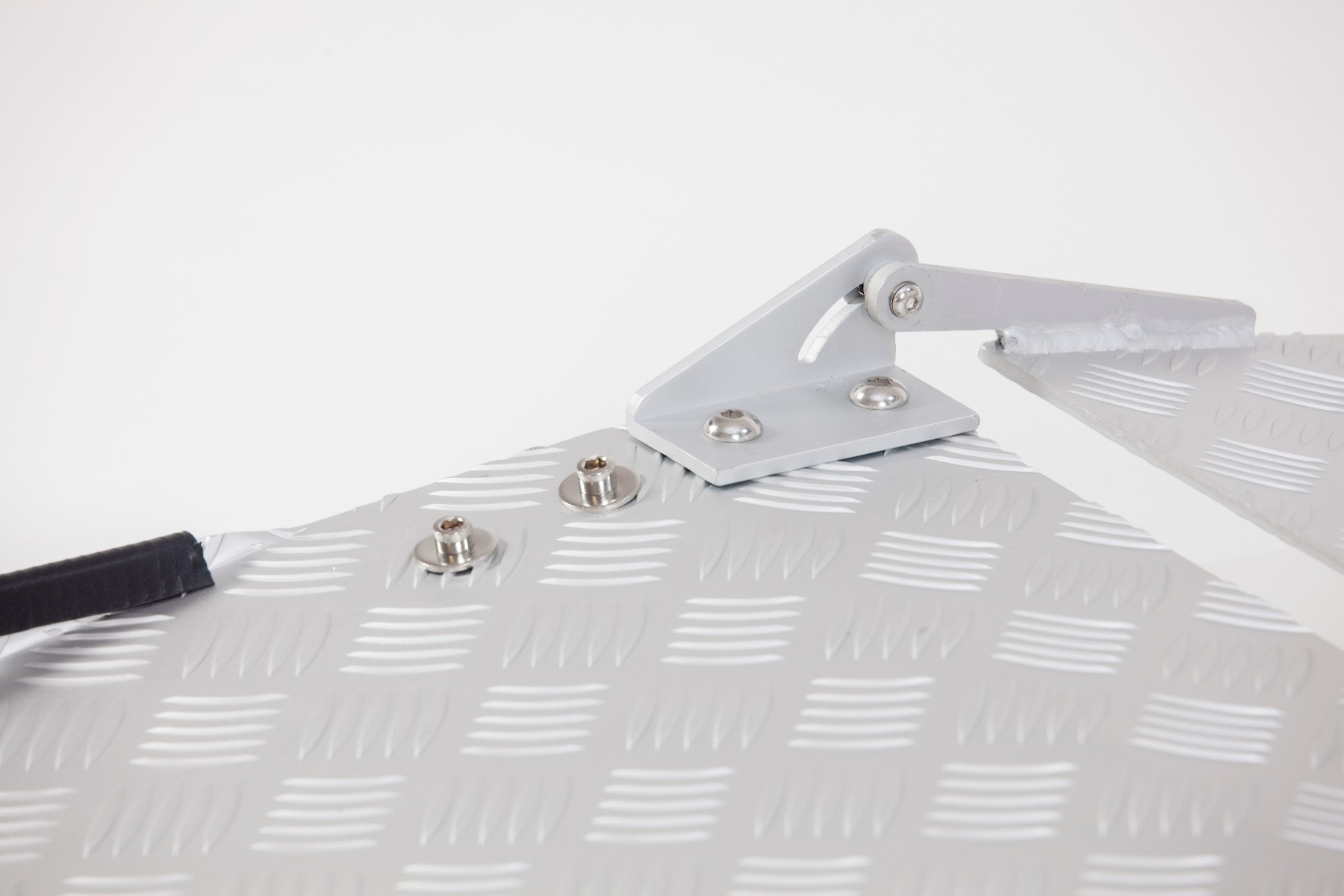

The leg kit allows the ramp to be put flush to the step, without putting any weight on the step. The hinged entry plate will allow easy entry over a threshold, through sliding doors and/or inward opening doors. Due to the safety edges this product might not work well on outwards opening doors.
Please note capacity of the entry plate is only 250kg, however capacity of the ramp section will be 400kg
The Internal entry plates will have a max height of 70mm for the 300mm long and 120mm for the 600mm long plate, the external max height will depend on the length of ramp selected.
Please note measure the height of the internal drop and the depth of your step to make sure the entry plate is long enough for the application.
Once the ramp length and entry plate length option are selected, price for the item will be displayed at the top right of the page.
Assembly required, instructions for the leg kit can be seen here. Instructions for assembling the plate can be found here.
300mm - 2ft
Length (ft)
2
Length (mm)
610
Internal Width (mm)
755
Total Width (mm)
790
Min. Load Height (mm)
50
Max Load Height (mm)
100
Weight (kg)
13
Capacity (kg)
400
300mm - 3ft
Length (ft)
3
Length (mm)
920
Internal Width (mm)
755
Total Width (mm)
790
Min. Load Height (mm)
50
Max Load Height (mm)
150
Weight (kg)
17
Capacity (kg)
400
300mm - 4ft
Length (ft)
4
Length (mm)
1220
Internal Width (mm)
755
Total Width (mm)
790
Min. Load Height (mm)
50
Min. Load Height (mm)
200
Weight (kg)
21
Capacity (kg)
400
300mm - 6ft
Length (ft)
6
Length (mm)
1830
Internal Width (mm)
755
Total Width (mm)
790
Min. Load Height (mm)
50
Max Load Height (mm)
254
Weight (kg)
29
Capacity (kg)
400
300mm - 8ft
Length (ft)
8
Length (mm)
2440
Total Width (mm)
790
Min. Load Height (mm)
50
Max Load Height (mm)
254
Weight (kg)
37
Capacity (kg)
400
600mm - 2ft
Length (ft)
2
Length (mm)
610
Internal Width (mm)
755
Total Width (mm)
790
Min. Load Height (mm)
100
Max Load Height (mm)
100
Weight (kg)
16
Capacity (kg)
400
600mm - 3ft
Length (ft)
3
Length (mm)
920
Internal Width (mm)
755
Total Width (mm)
790
Min. Load Height (mm)
100
Max Load Height (mm)
150
Weight (kg)
20
Capacity (kg)
400
600mm - 4ft
Length (ft)
4
Length (mm)
1220
Internal Width (mm)
755
Total Width (mm)
790
Min. Load Height (mm)
100
Max Load Height (mm)
200
Weight (kg)
24
Capacity (kg)
400
600mm - 6ft
Length (ft)
6
Length (mm)
1830
Width (mm)
790
Min. Load Height (mm)
100
Max Load Height (mm)
254
Weight (kg)
32
Capacity (kg)
400
600mm - 8ft
Length (ft)
8
Length (mm)
2440
Total Width (mm)
790
Min. Load Height (mm)
100
Max Load Height (mm)
254
Weight (kg)
40
Capacity (kg)
400
Ramp Length & Load Height
The load height is the most important information to determine the wheelchair ramp length.
Load Height: This is the vertical measurement from the ground to where you rest the ramp onto. The maximum load height is also stated in every product.
On this specific product you will also require the height of the internal drop and the depth of you step, this will allow you to confirm the entry plate will be long enough for the application. If your doors open outwards onto either of the ramps please carefully consider how this will work.
For the external ramps please use this guidelines:
Manual Wheelchairs: Minimum recommended gradient: 1:6 e.g. you have a load height of 100mm then you would need a minimum length of 600mm.
Mobility Scooters/Electric Wheelchairs: Minimum recommended gradient: 1:8 (Ramp needs to be longer due to the low ground clearance) e.g. you have a load height of 100mm then you would need a minimum length of 800mm.
This applies for all temporary wheelchair ramps. The rule of thumb is the longer the ramp, the smoother the gradient and the easier for the wheelchair user to use the ramp.
Should you have a question or need help with your choice for the best suitable wheelchair ramp, please contact our service team.
Certain goods and services for disabled people are zero-rated for VAT, including mobility aids, as long as the customer is eligible and the goods are for domestic or personal use. All of our wheelchair ramps classify as mobility aids and therefore those eligible can purchase these VAT exempt.
Who is eligible?
VAT relief is available for individuals with chronic illnesses and or disabilities. The wheelchair ramp must be for exclusive use by the disabled individual. VAT relief is also available to registered UK charities.
Who is not eligible?
Businesses are not eligible for VAT relief. VAT relief is also not available where the ramp is being purchased for a group of people to use, except for charities. In addition, those with temporary incapacities, such as broken bones, are required to pay the VAT.
How do I claim my VAT back?
At the checkout stage, prior to entering payment details, there is a VAT exemption box. Simply enter the full name of the person the ramp is for and their disability, or the charity name and number, and tick to confirm it is correct. The VAT will then automatically be removed from your purchase.
If you are in any doubt as to whether you are eligible to receive goods or services zero-rated for VAT, please contact our team, consult Notice 701/7 VAT Relief for Disabled People or contact the National Advice Service on 0845 010 9000.
Electric Wheelchair

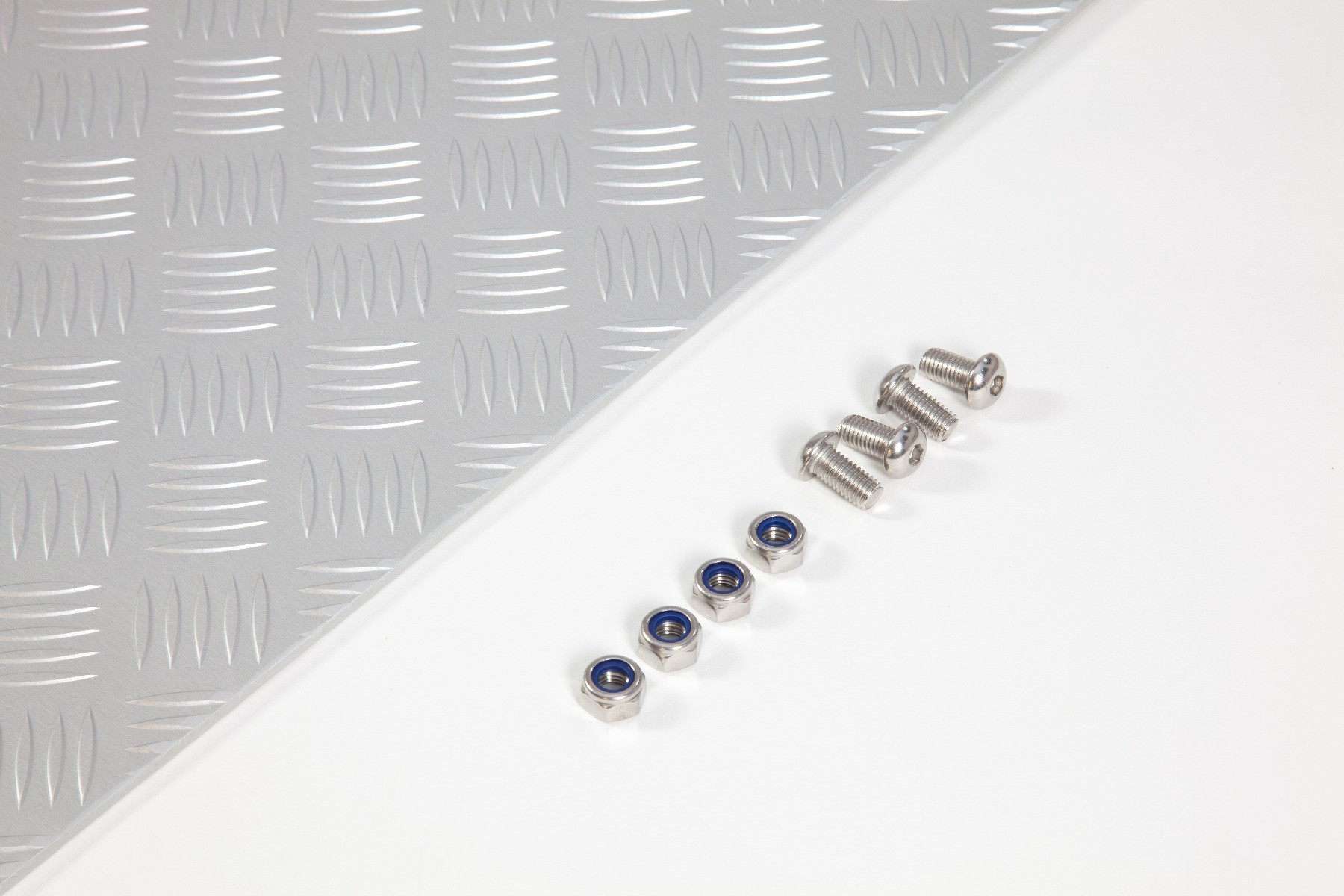

Fixings Included
Manual Wheelchair
Mobility Scooter
One Year Warranty
Leave Outside
Description

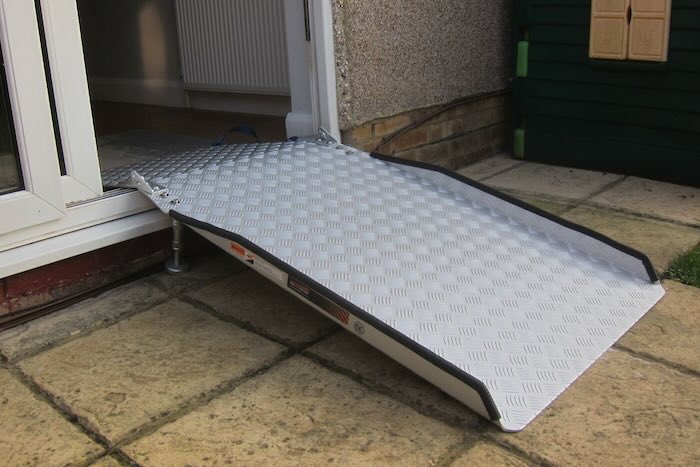

Overcome thresholds including uPVC doorways, wooden doorways and PVC thresholds

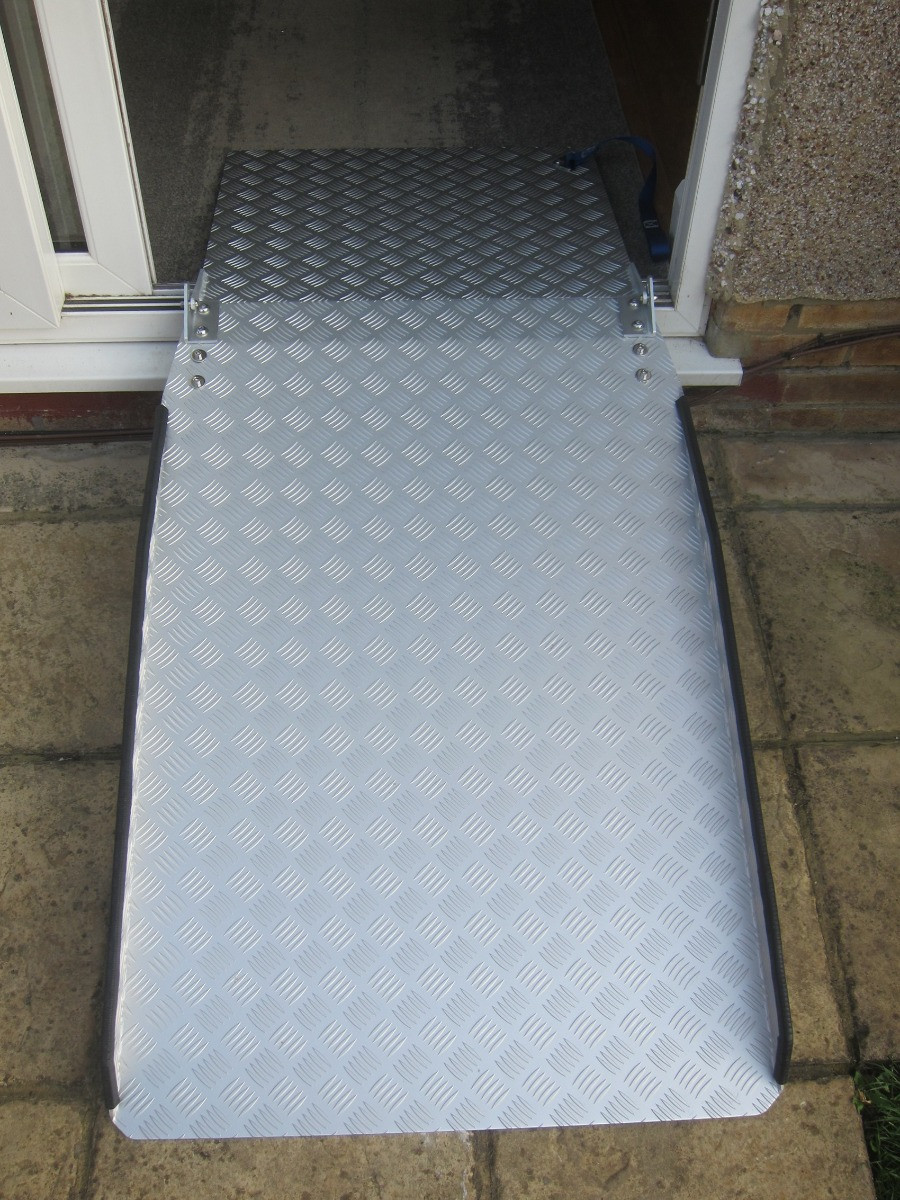

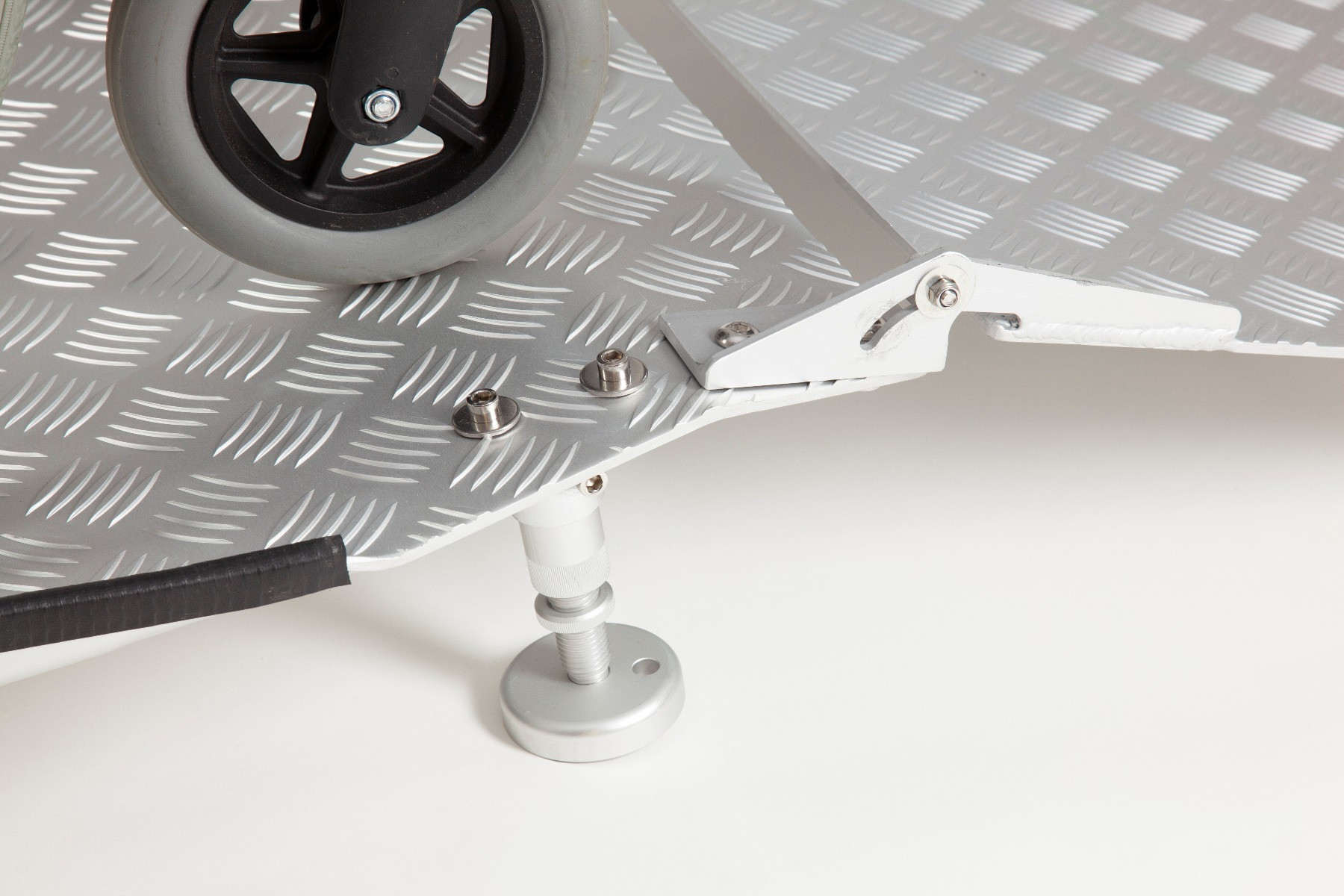

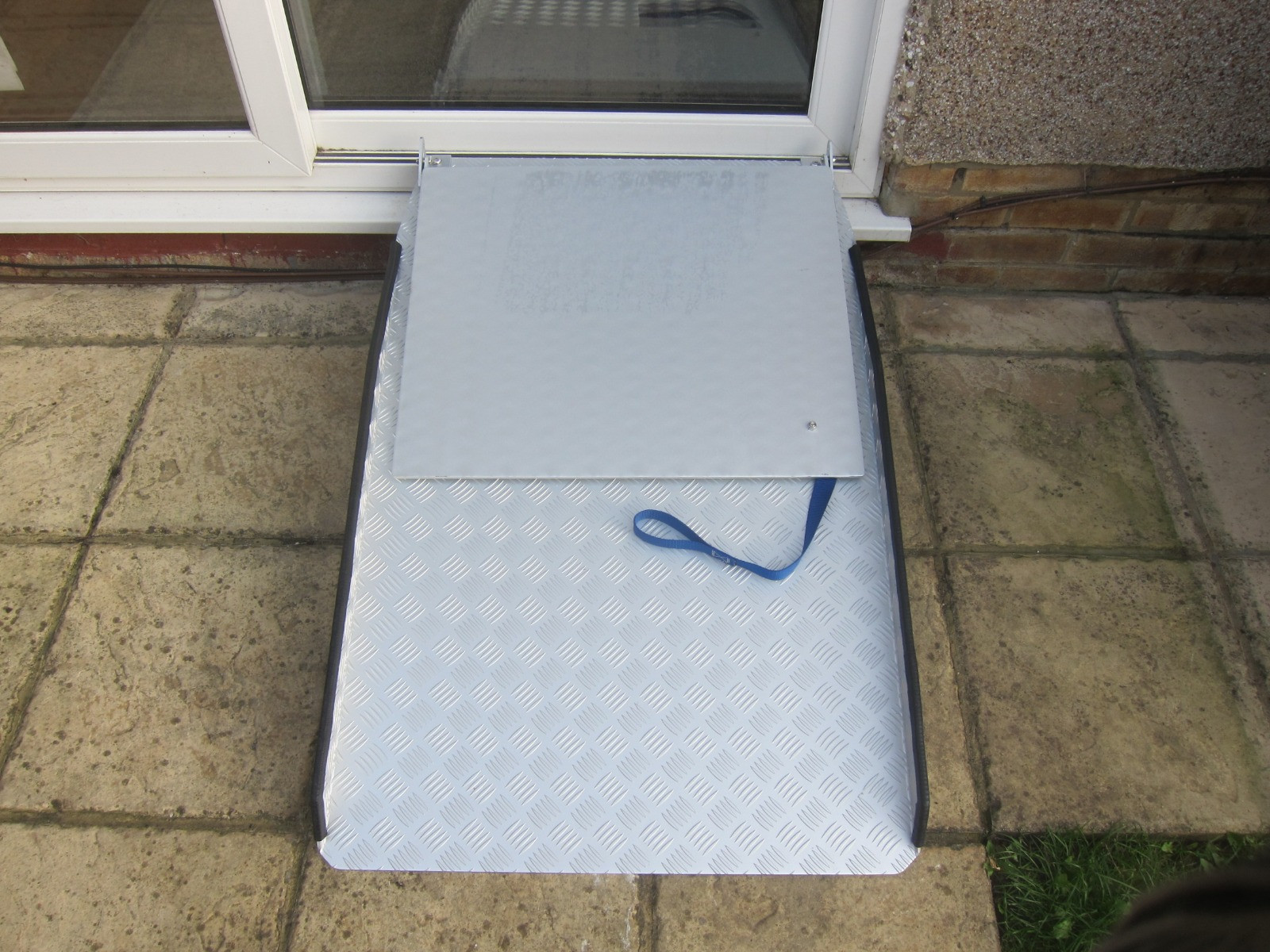

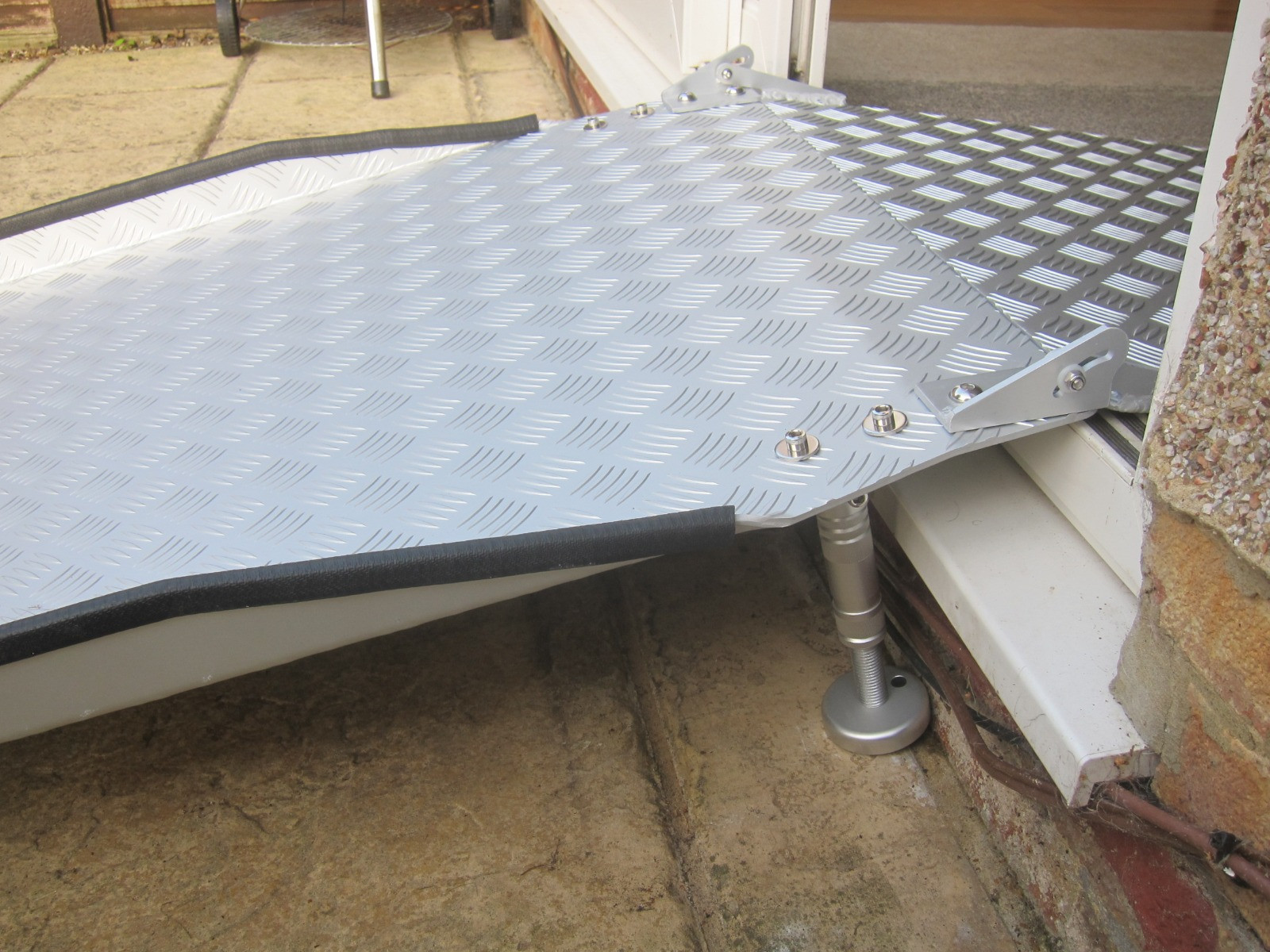

Simply flip the entry plate over the doorway when you wish to use the ramp, prior to closing the door flip the plate back onto the ramp

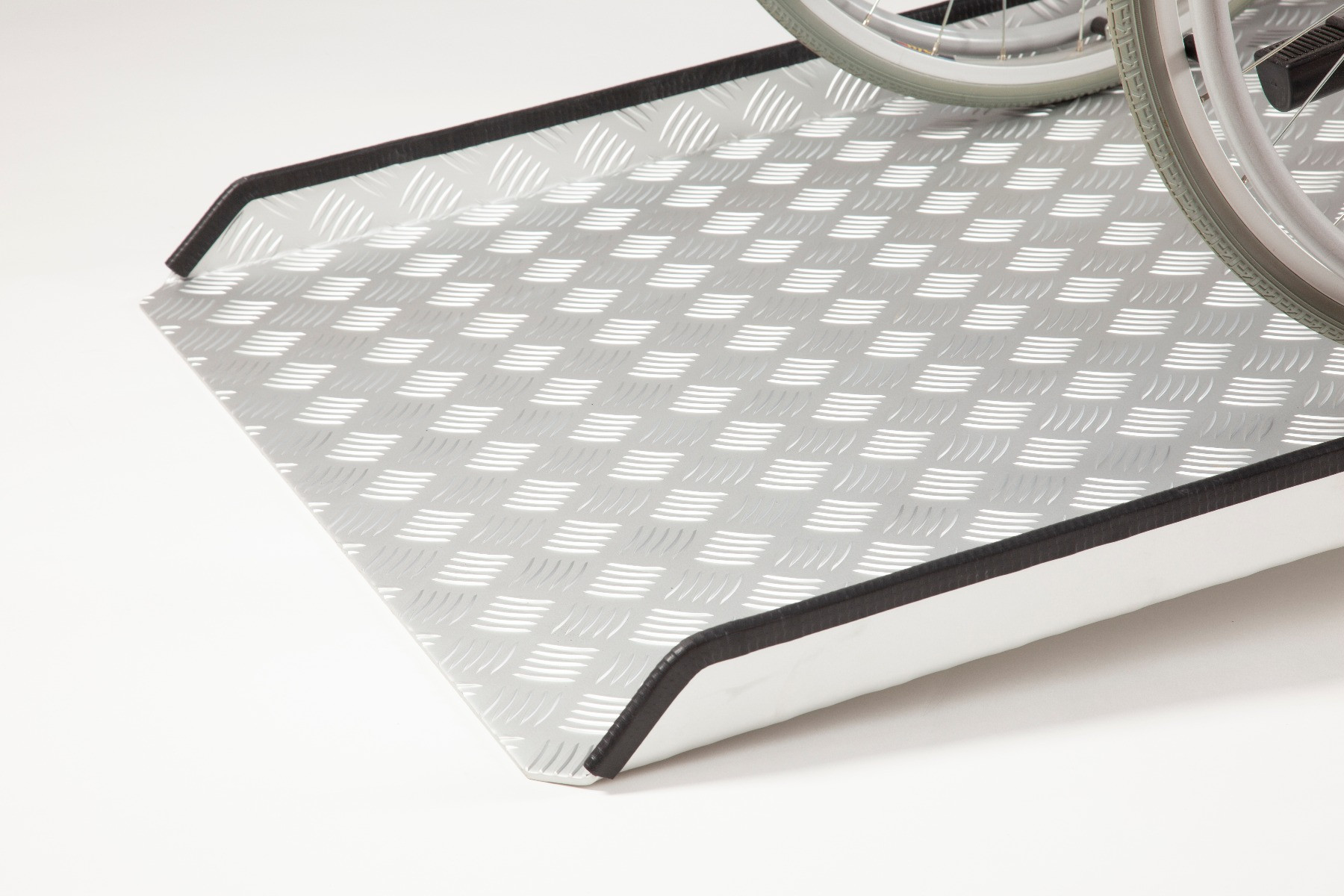

Chequered anti-slip surface for optimum traction during use
Use as a temporary or fixed semi-permanent solution

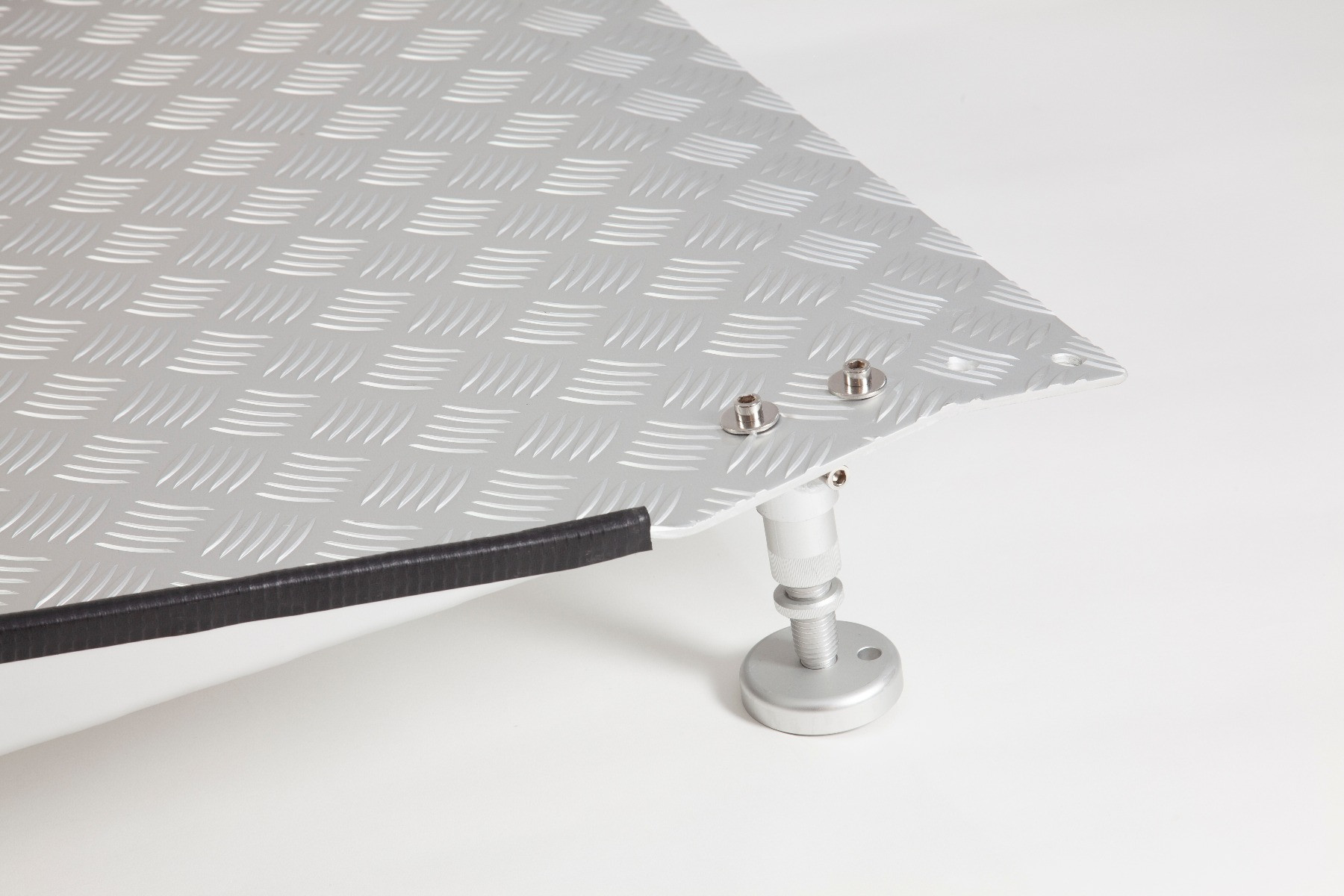

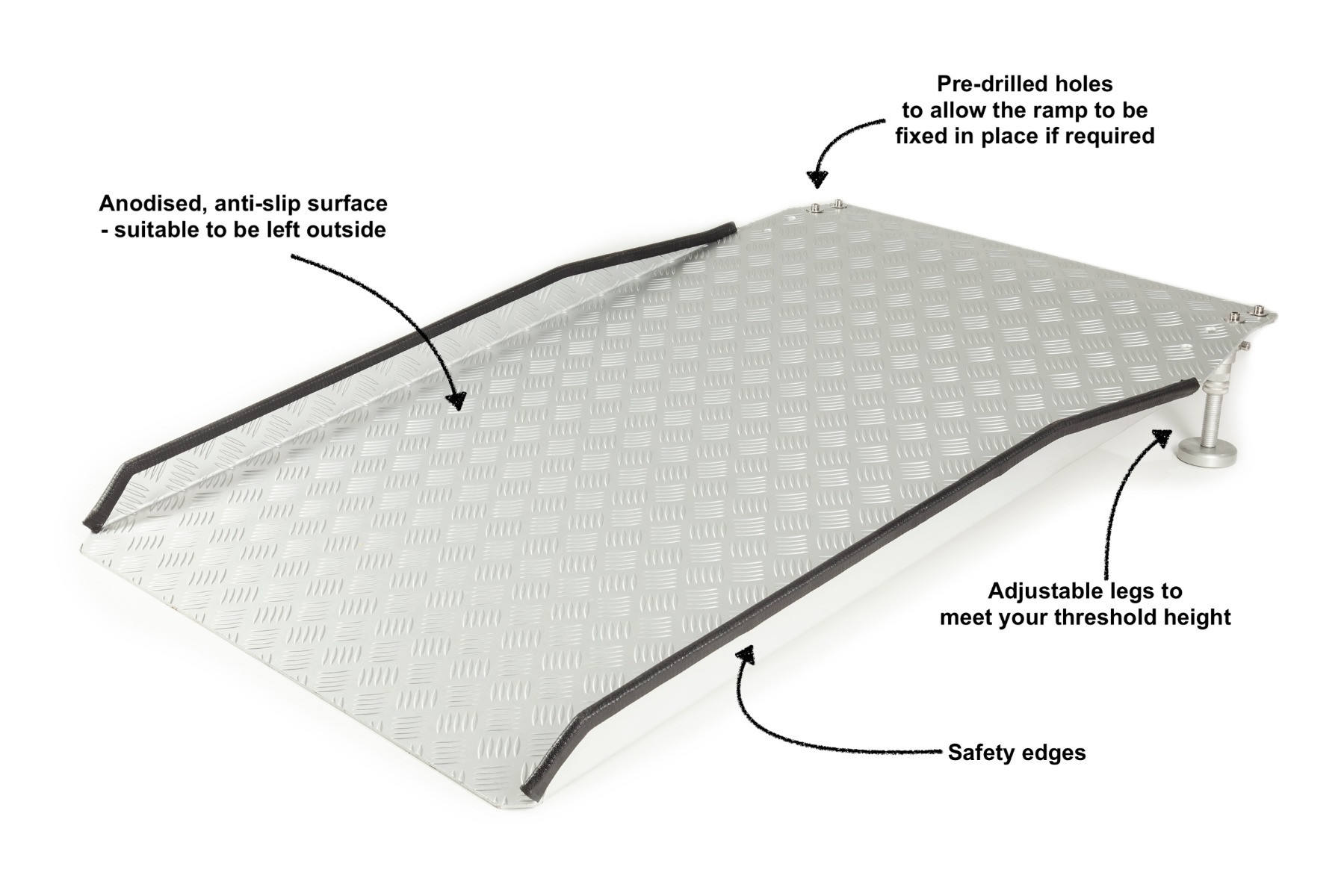

Fixing points in the legs of the ramp to allow the ramp to be secured to the ground (please note securing the ramp is optional)
Suitable for indoor and outdoor use, can be left outside
Quick and easy to install
Unique design enables incredible grip

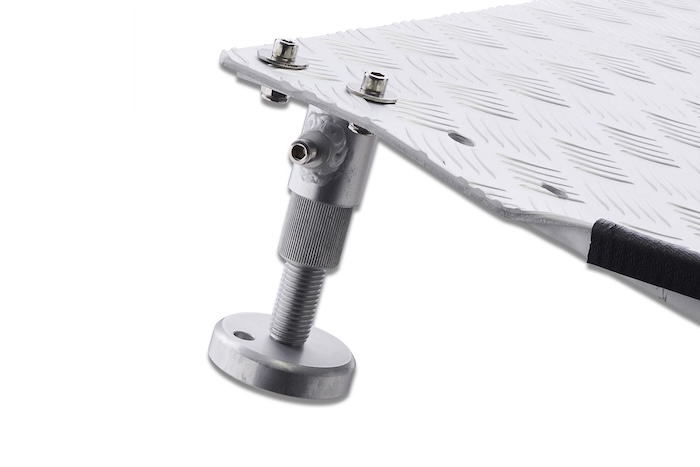

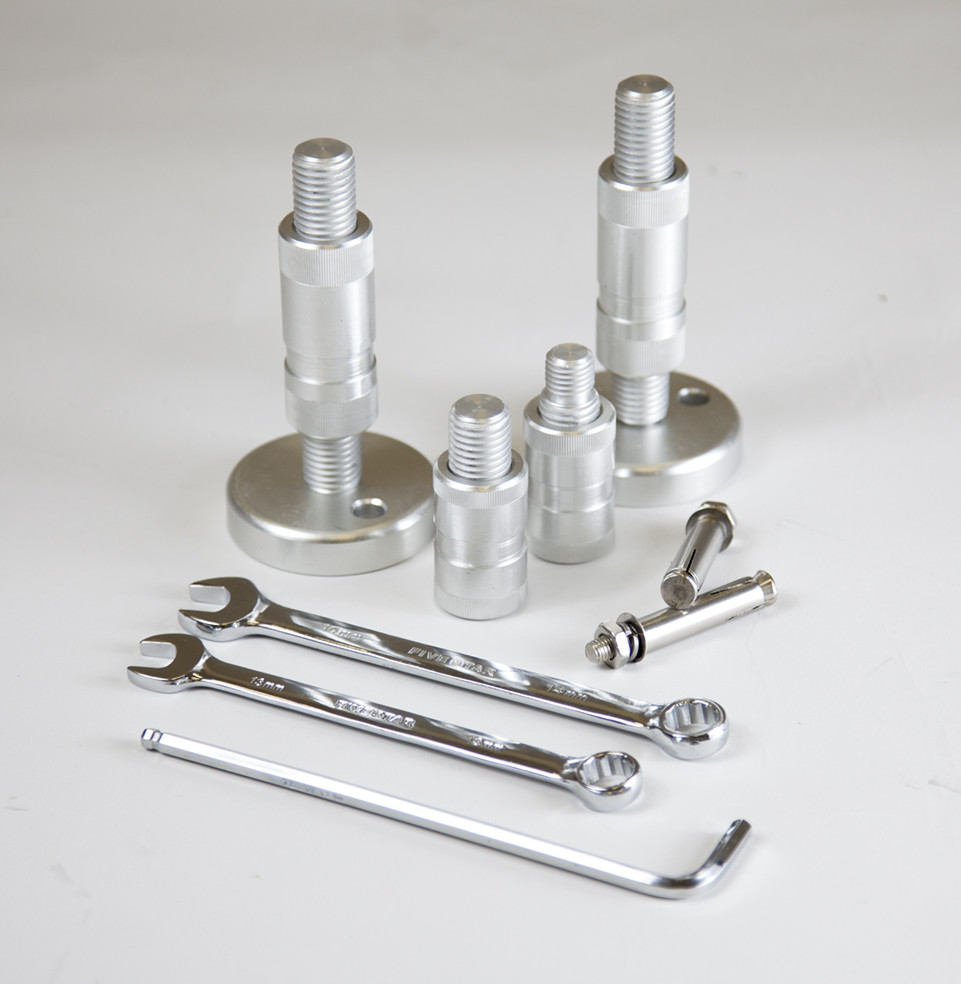

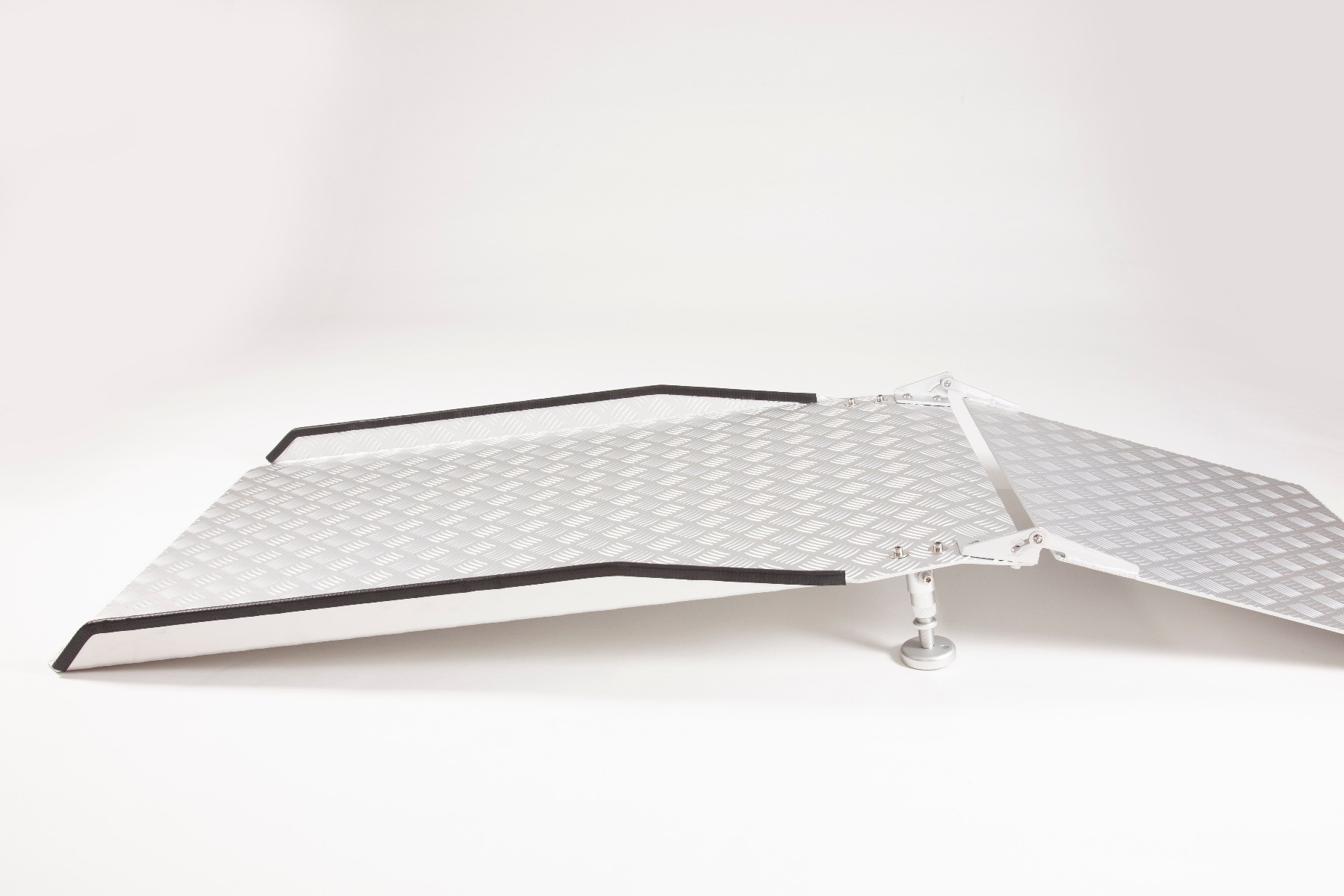

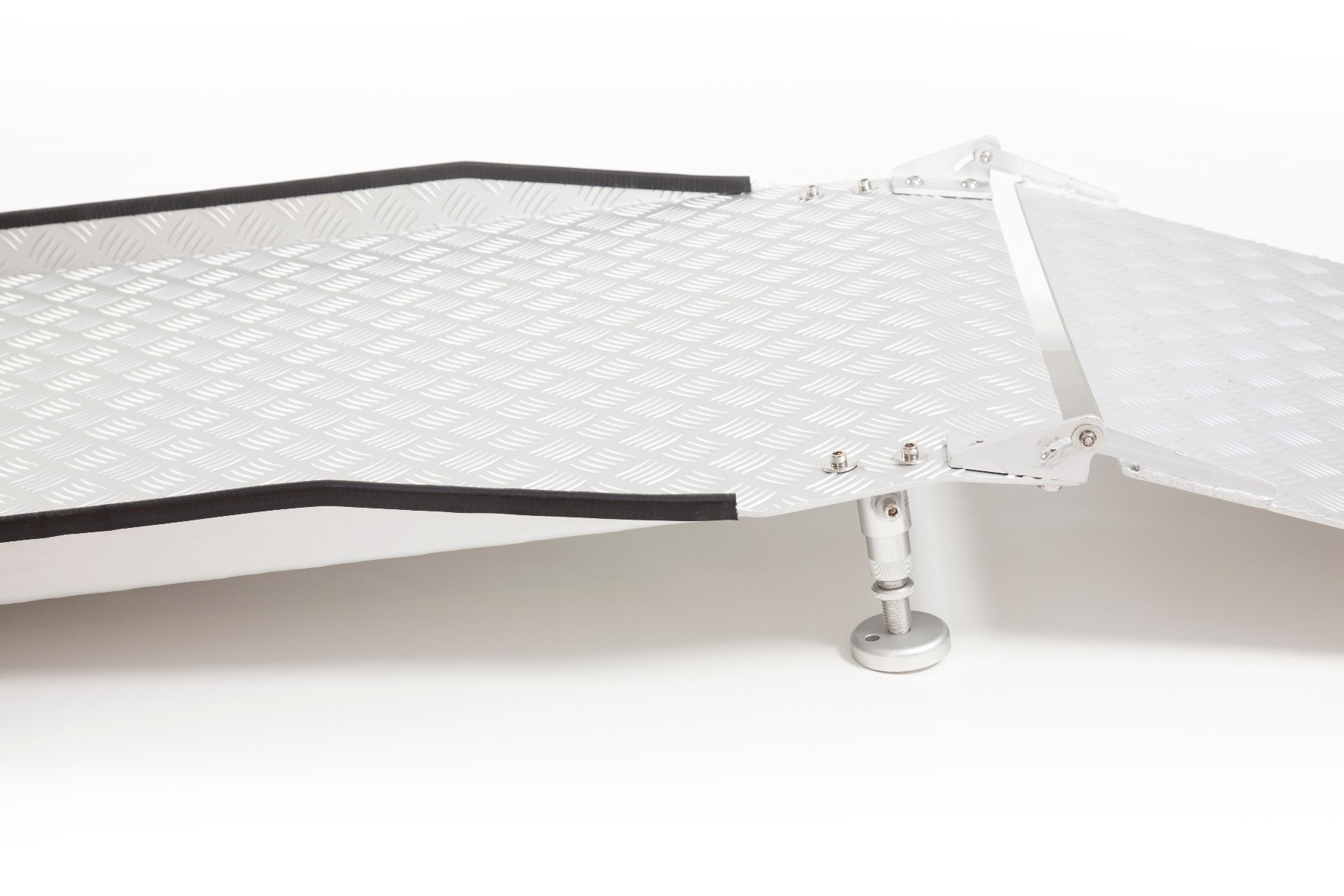

Easily positioned telescopic legs which are adjustable to heights between 70mm - 254mm (3" - 10") meaning the ramp can be adjusted to be used in various locations

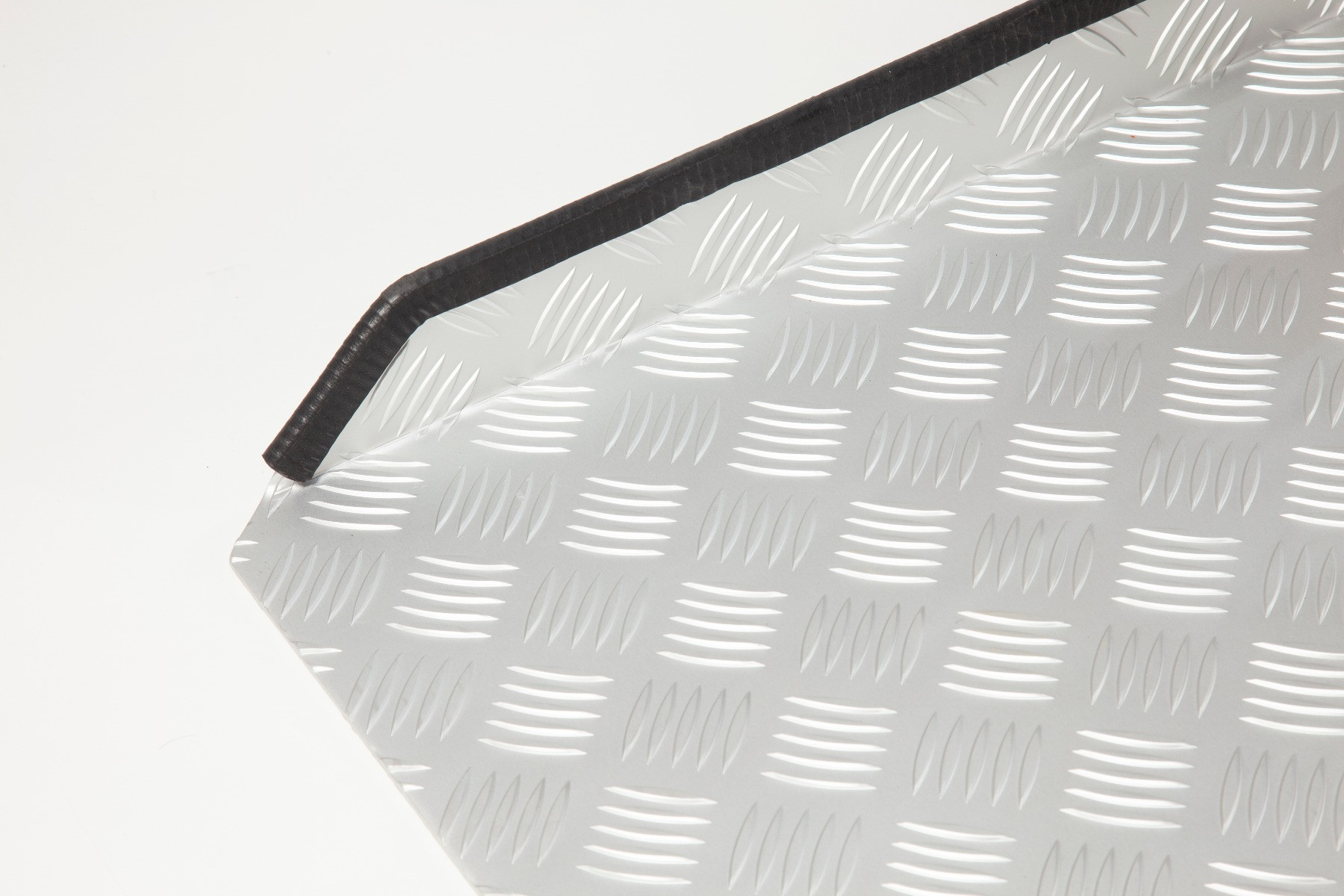

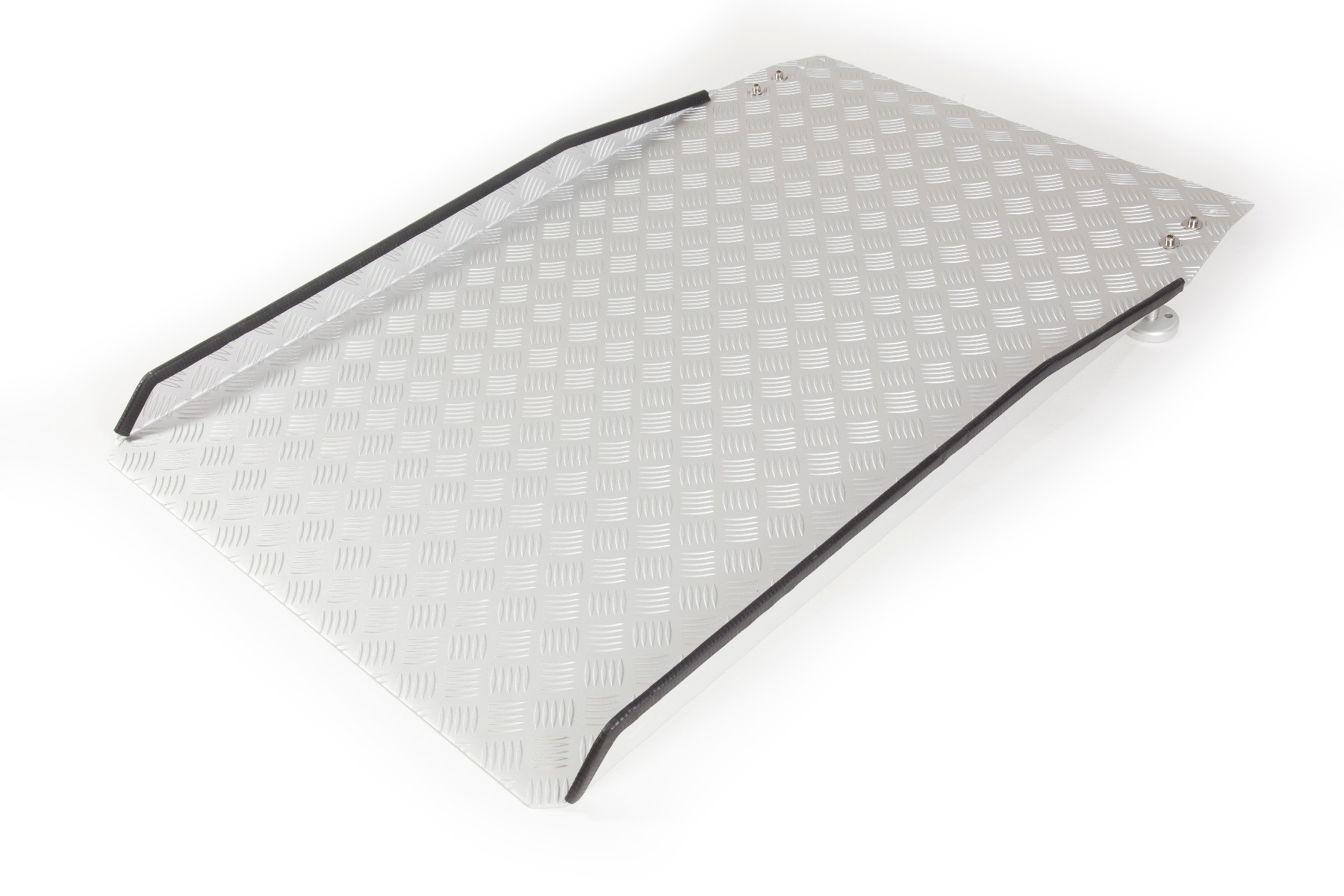

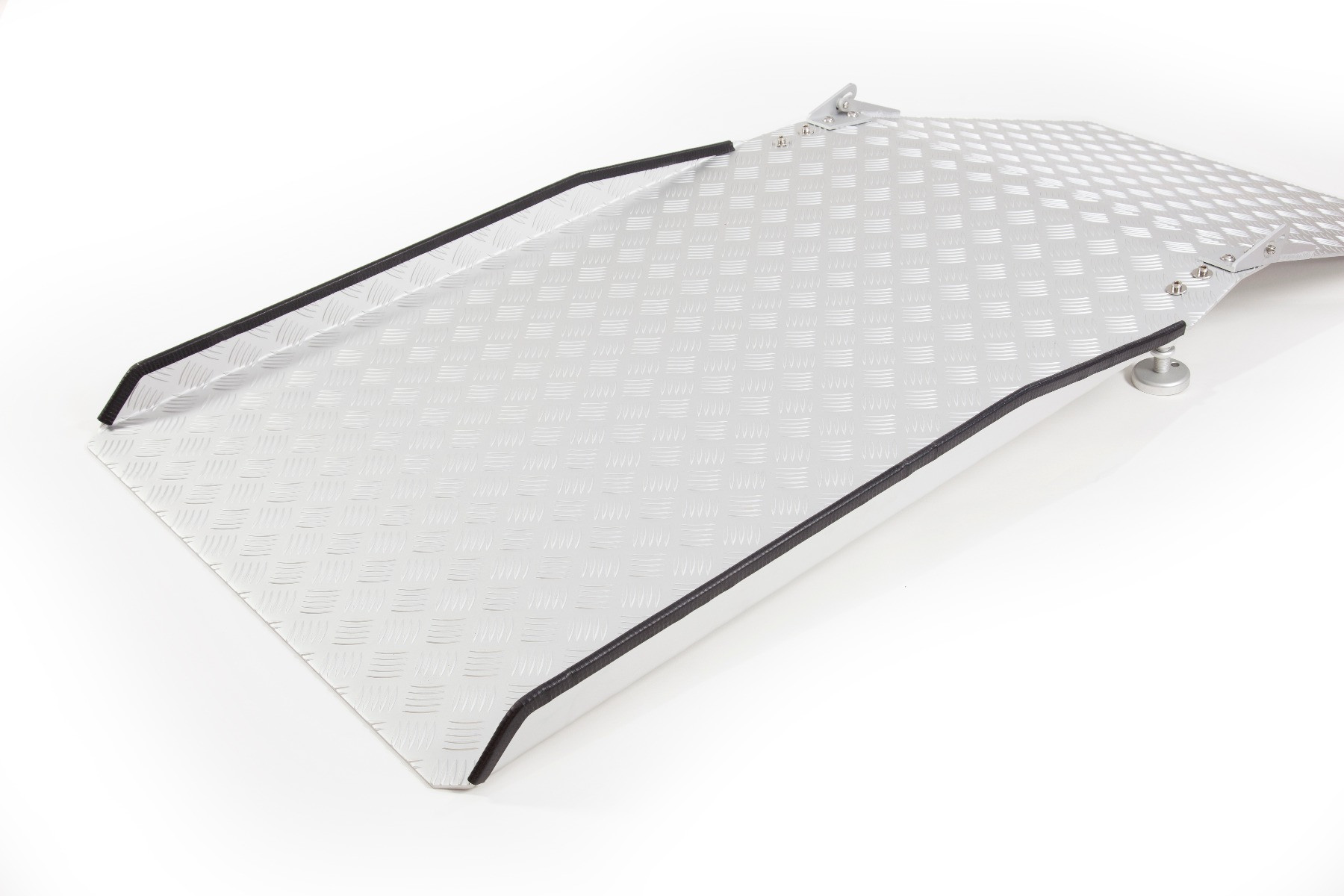

Lateral safety edges in a contrasting colour to prevent users coming off the ramp and reduce trip hazards

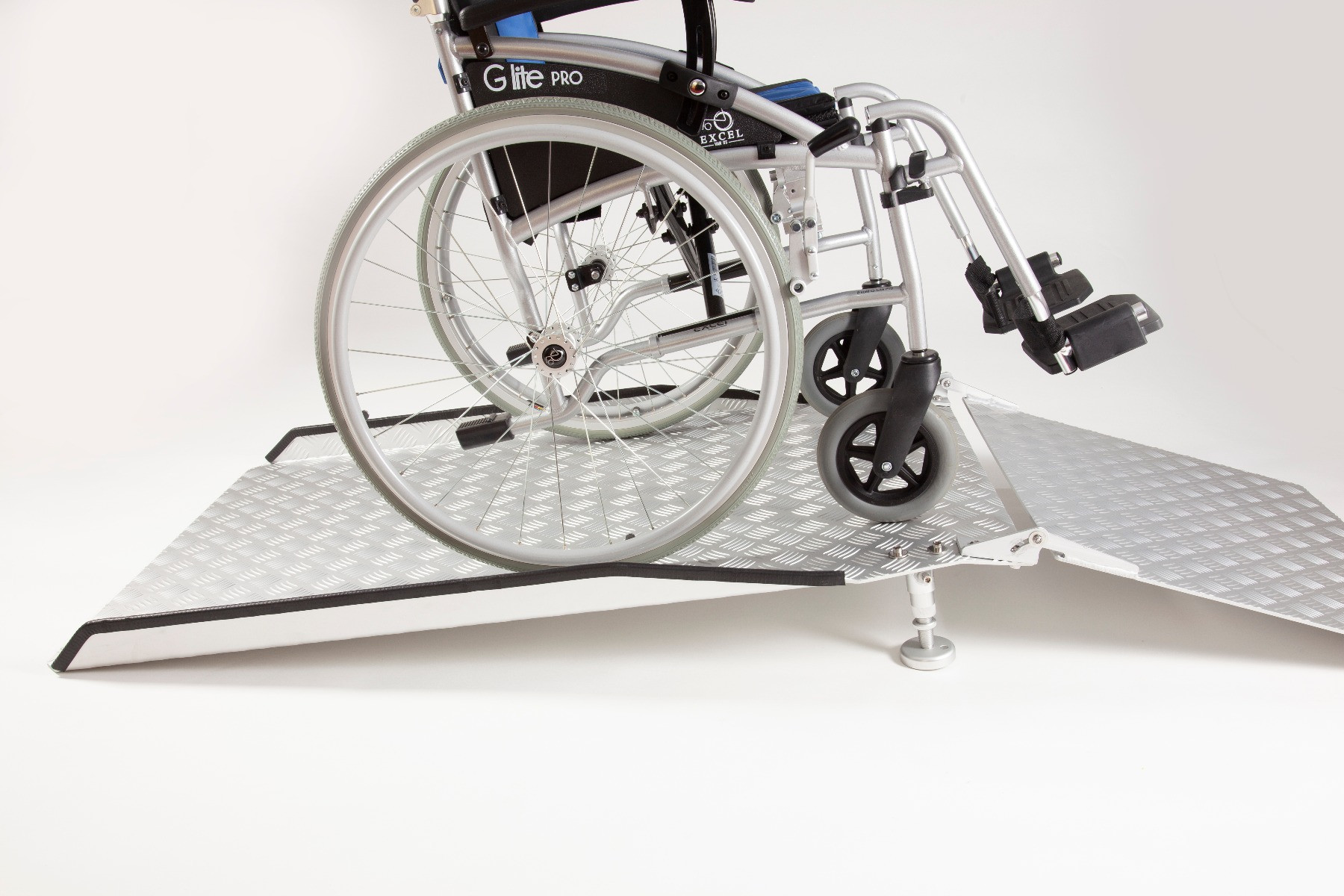

High capacity suitable for wheelchairs, scooters and walkers
Anodised finish prevents stains and corrosion
Easy wash surface for long life
Can be used with or without the entry plate
For help identifying the ramp length you require please use our ramp length calculator or contact our team
These ramps are only suitable for use as mobility aids. Due to the safety edges this product might not work well on outward opening doors.

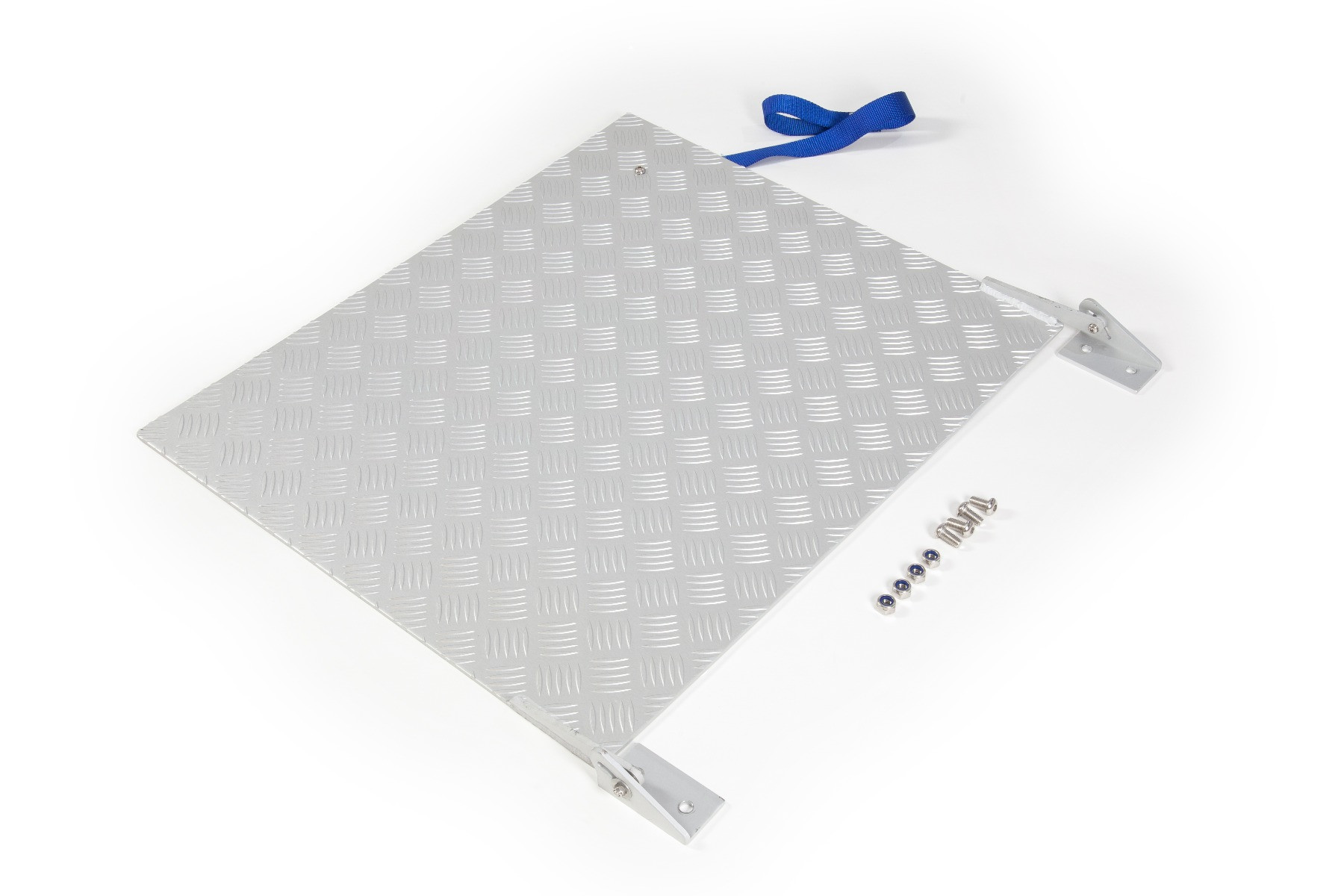

Instructions for assembling the leg kit can also be found here. Instructions for assembling the plate can be found here

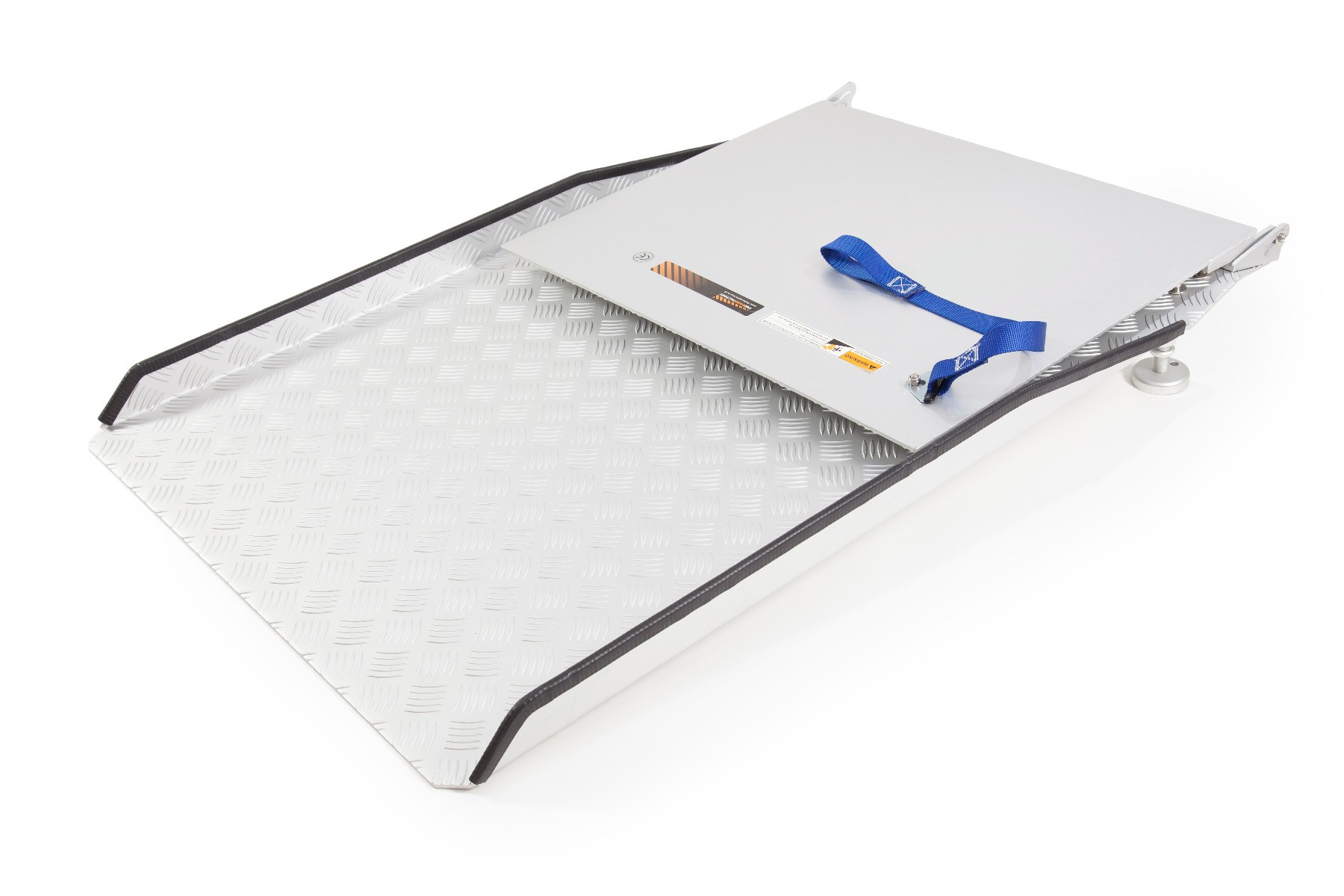

Adjustable Threshold Ramps with Entry Plate Kit
2ft / 61cm long kit
Length (mm): 610 + Plate
Ramp weight (kg): 10 + Plate
Capacity (kg): 400 on the ramp , 250 on the entry plate
Total ramp width (mm): 790
Internal ramp width (mm): 755
Width of entry plate (mm): 715
Max. load height of 2ft ramp (mm): 100
3ft / 92cm long kit
Length (mm): 920 + Plate
Ramp weight (kg): 14 + Plate
Capacity (kg): 400 on the ramp, 250 on the entry plate
Total ramp width (mm): 790
Internal ramp width (mm): 755
Width of entry plate (mm): 715
Max. load height of 3ft ramp (mm): 150
4ft / 122cm long kit
Length (mm): 1220 + Plate
Ramp weight (kg): 18 + Plate
Capacity (kg): 400 on the ramp, 250 on the entry plate
Total ramp width (mm): 790
Internal ramp width (mm): 755
Width of entry plate (mm): 715
Max. load height of 4ft ramp (mm): 200
6ft / 183cm long kit
Length (mm): 1830 + Plate
Ramp weight (kg): 26 + Plate
Capacity (kg): 400 on the ramp, 250 on the entry plate
Total ramp width (mm): 790
Internal ramp width (mm): 755
Width of entry plate (mm): 715
Max. load height of 6ft ramp (mm): 254
8ft / 244cm long kit
Length (mm): 2440 + Plate
Ramp weight (kg): 34 + Plate
Capacity (kg): 400 on the ramp , 250 on the entry plate
