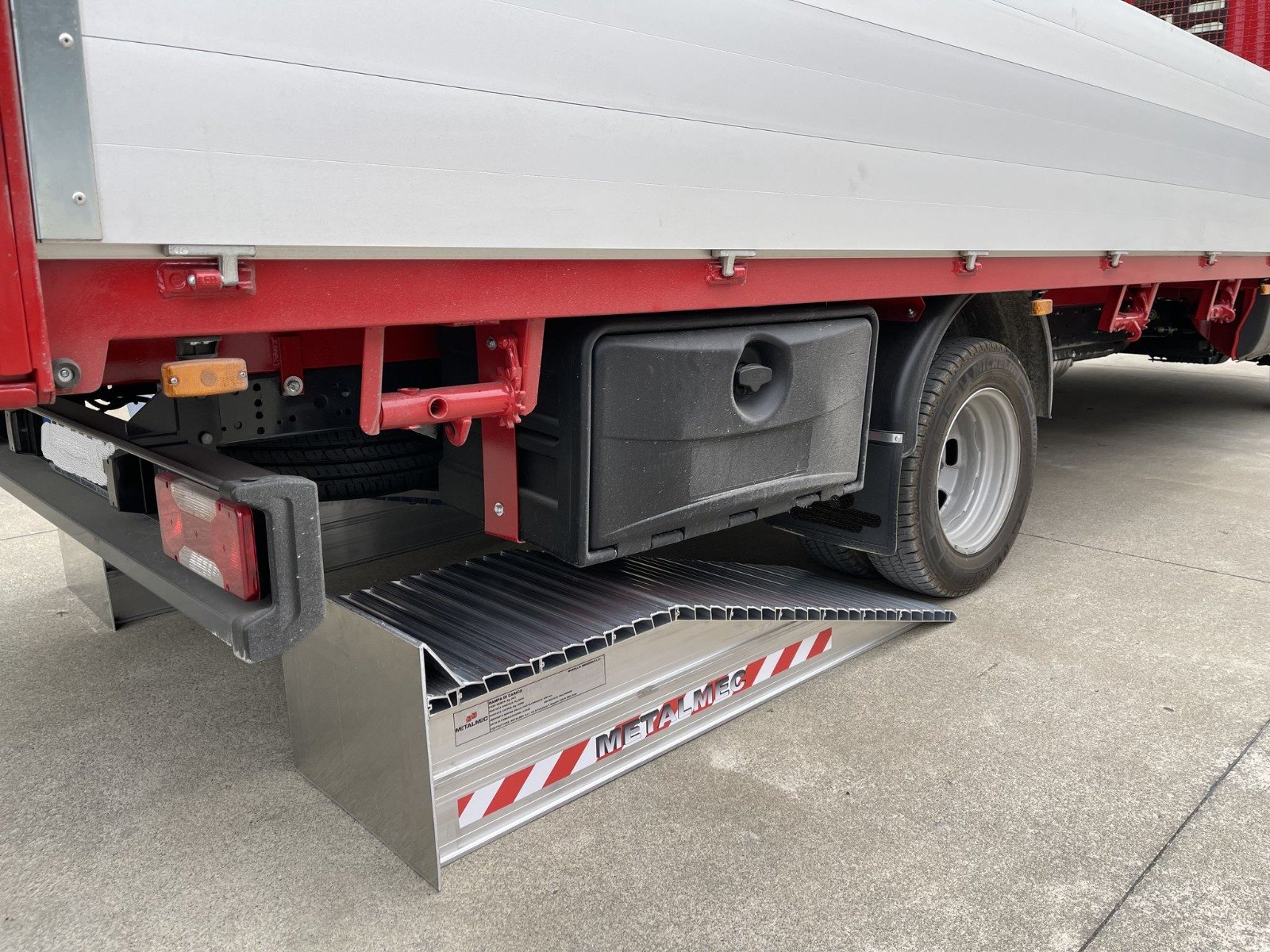

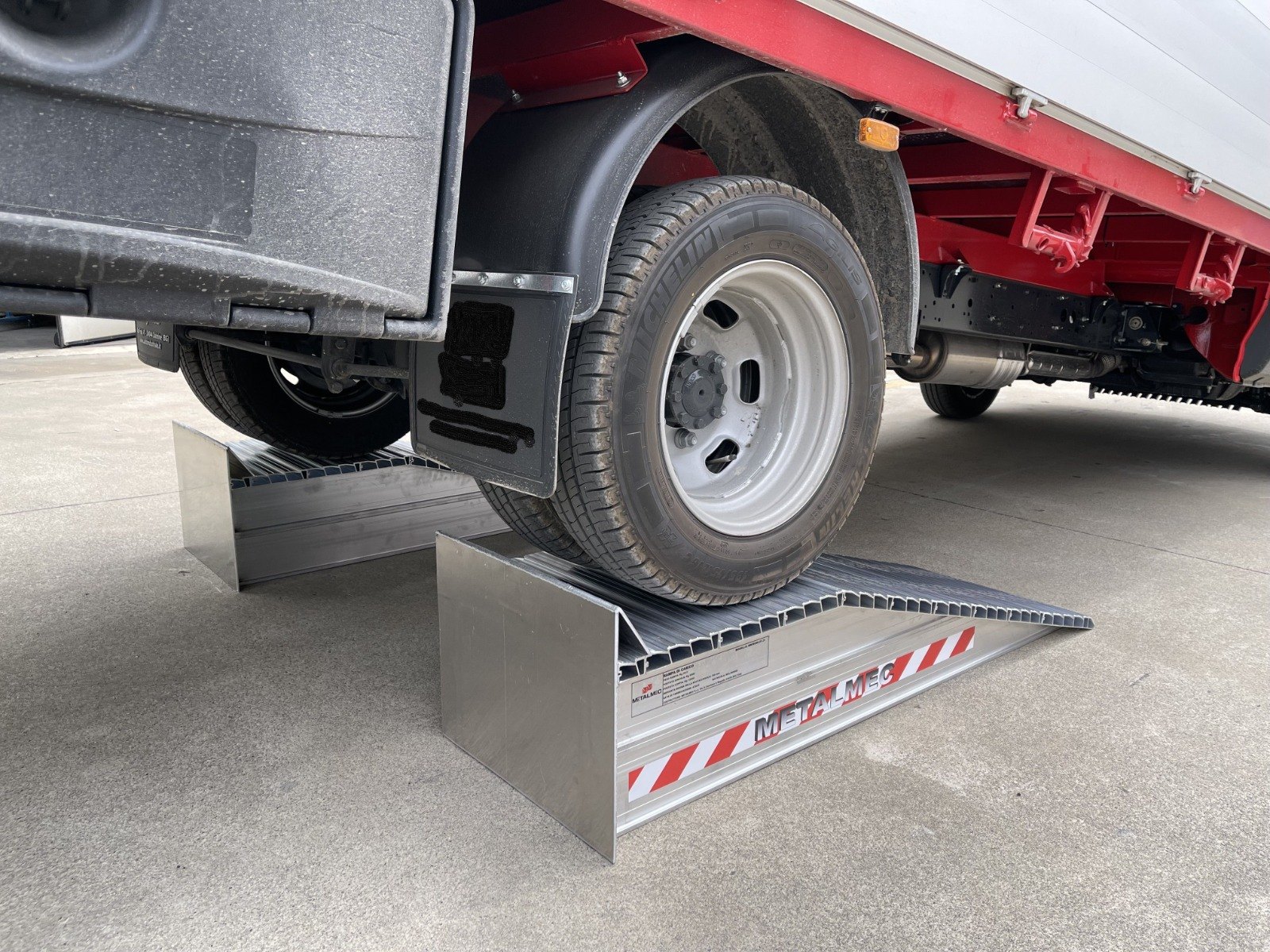

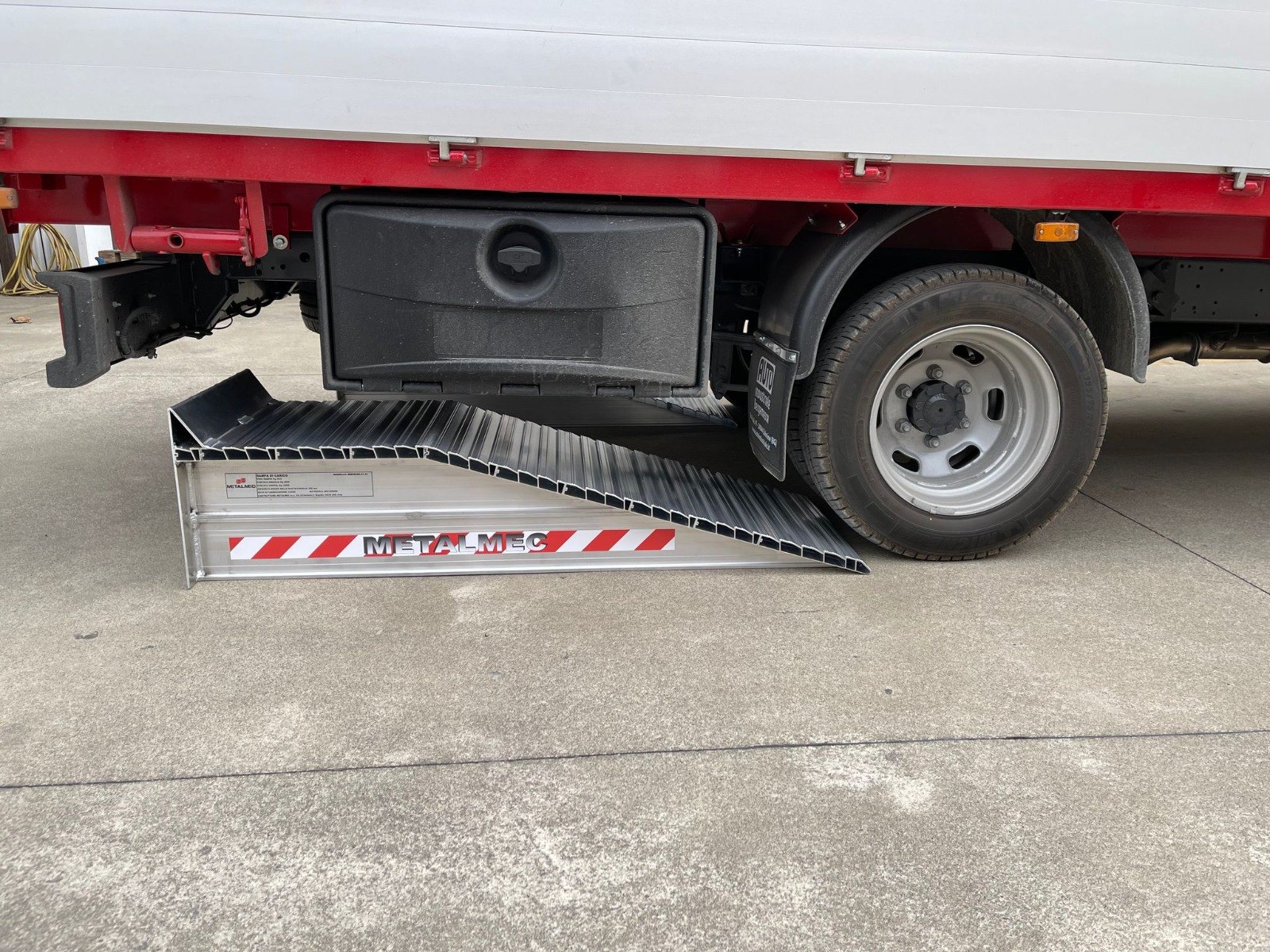

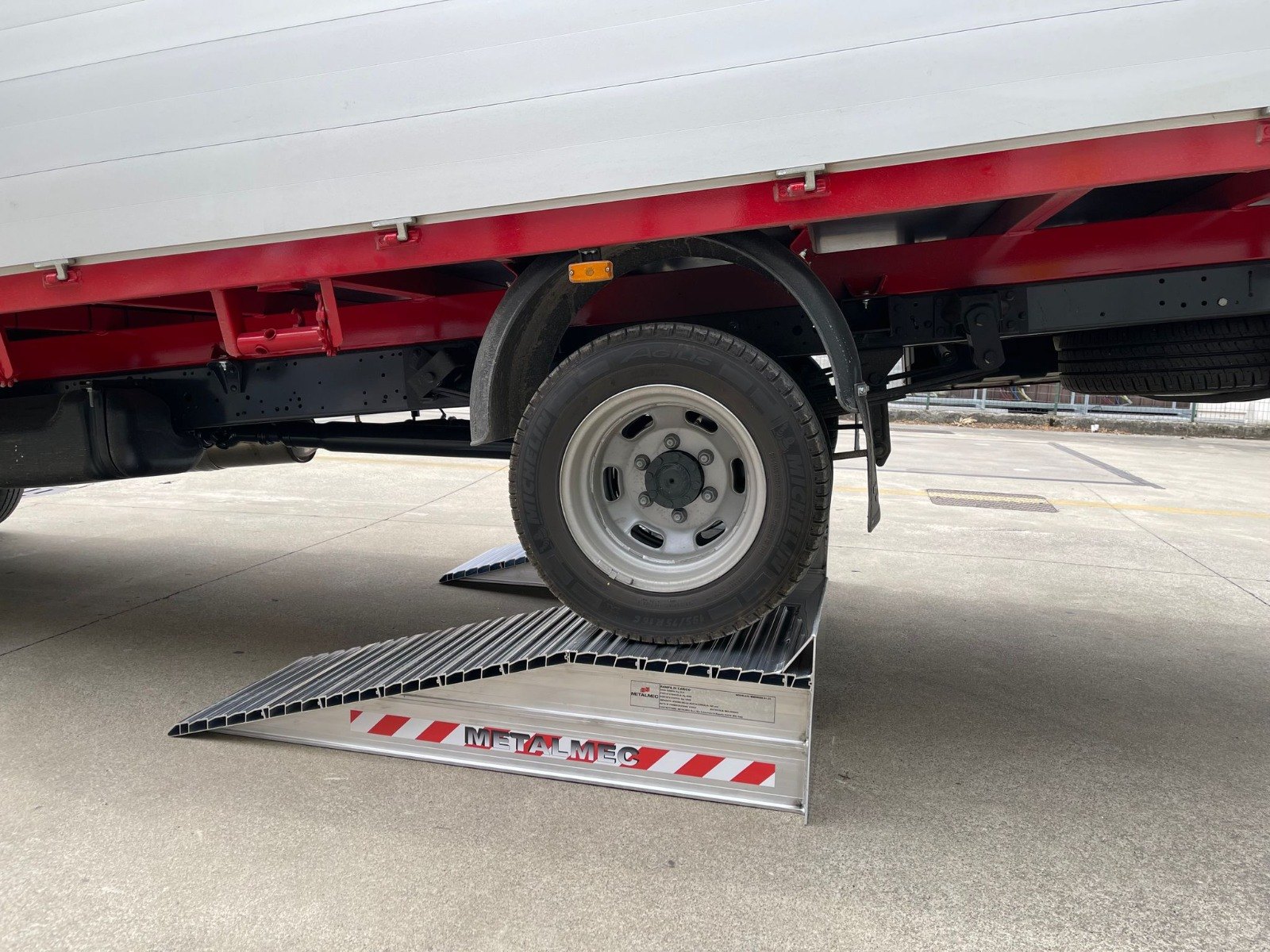

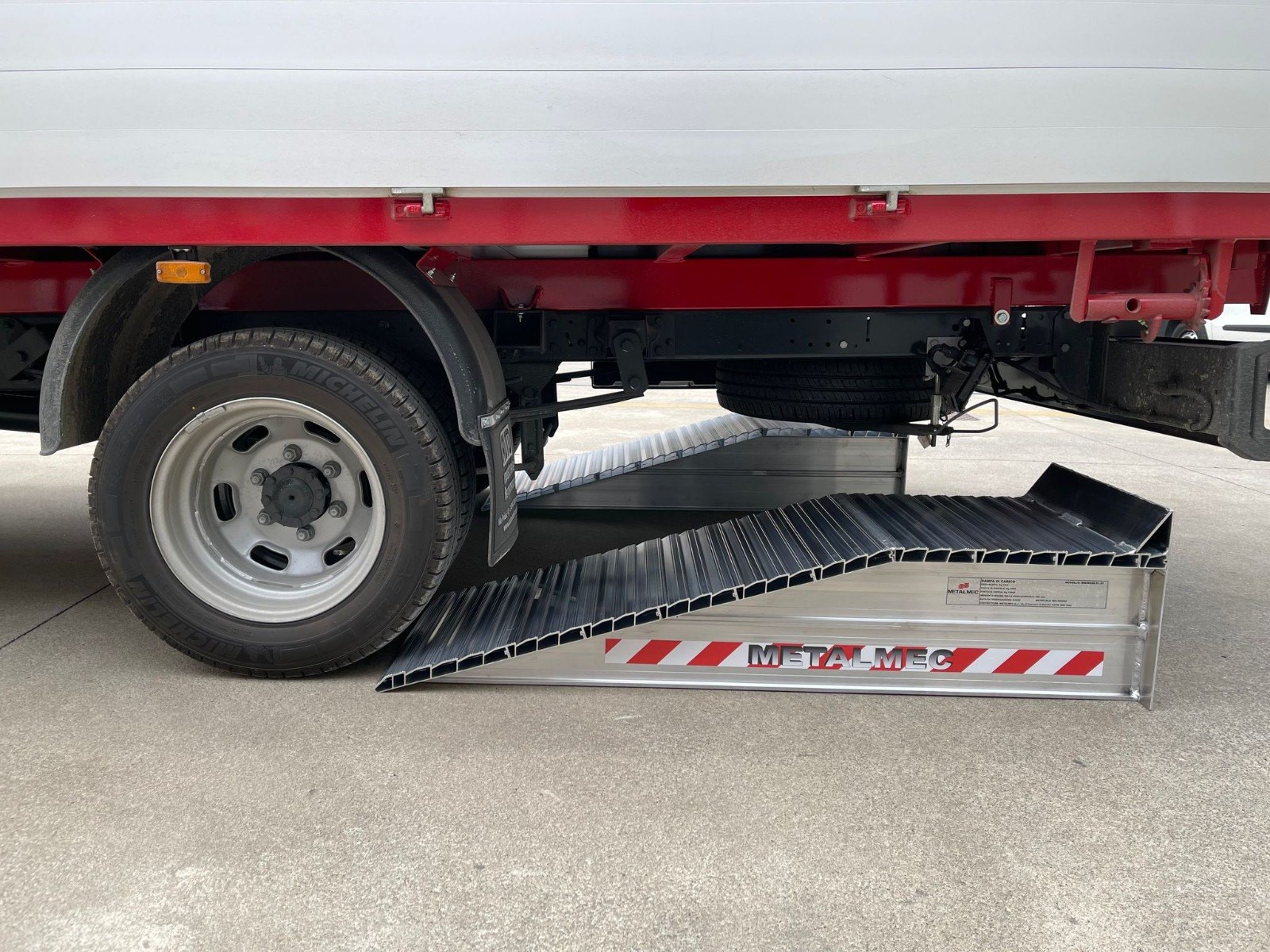

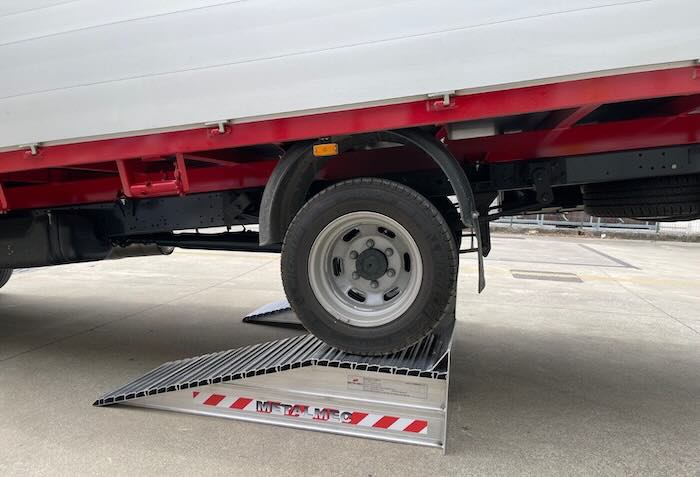

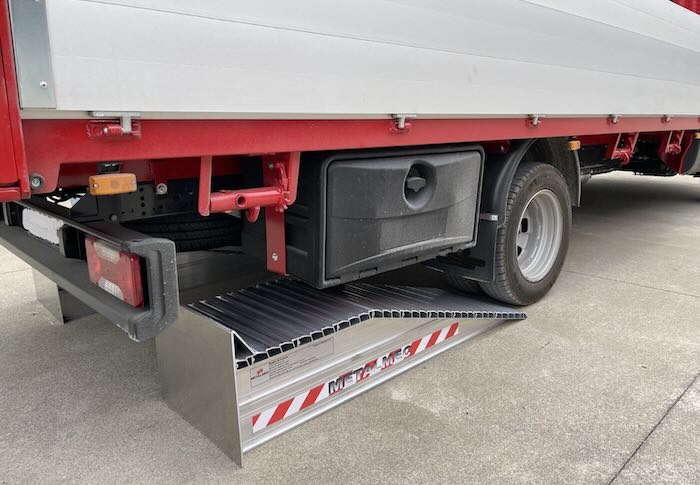

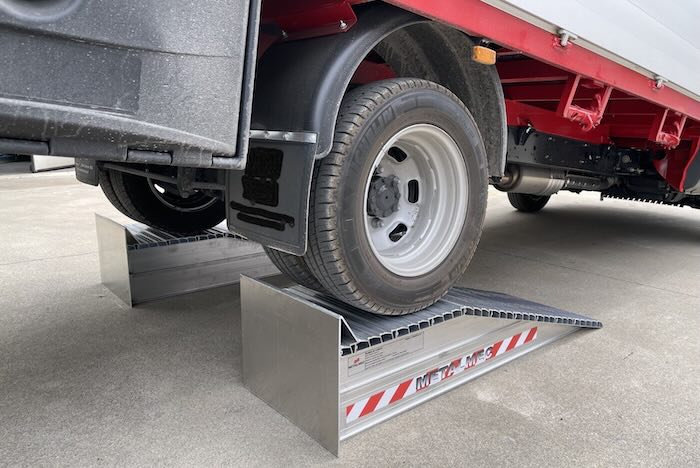

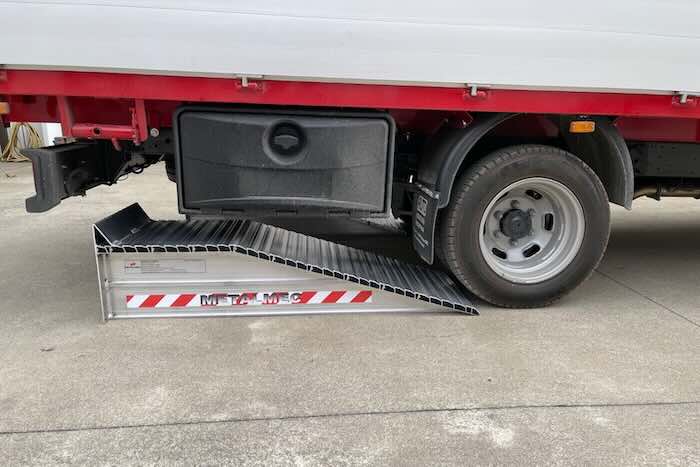

Pair of heavy-duty aluminium Wheel Risers with a 12,000kg capacity across the pair. These ramps are designed for loading vehicles up heights of up to 310mm where you wish to load the truck or van to the height of the docking bay or for undertaking vehicle maintenance.
Minimum width of the wheel or track 300mm.
Price stated is for a pair.
145mm
Length (mm)
1217
Total Width (mm)
510
Height (mm)
145
Weight per Ramp (kg)
17
Weight Per Pair (kg)
34
Capacity (kg)
12000
190mm
Length (mm)
1514
Total Width (mm)
510
Height (mm)
190
Weight per Ramp (kg)
24
Weight Per Pair (kg)
48
Capacity (kg)
12000
260mm
Length (mm)
1500
Total Width (mm)
510
Height (mm)
260
Weight per Ramp (kg)
30.5
Weight Per Pair (kg)
61
Capacity (kg)
12000
310mm
Length (mm)
1488
Total Width (mm)
510
Height (mm)
310
Weight per Ramp (kg)
28.5
Weight Per Pair (kg)
57
Capacity (kg)
12000
Ramp Length & Load Height
This guide should help you gauge how long a ramp you require, so if you're in any doubt read the details below. If you still have questions after reading, feel free to give us a call. The crucial thing to know is your load height.
Load Height: this is the vertical measurement from the ground to where you rest the ramp onto.
Guide to the maximum load height is shown in the product description/table, please note the minimum Load Height will be 5% below the maximum height stated on the ramp, to calculate use (maximum load height - 5% = minimum load height).
For vehicle ramps EU guidelines recommend that no ramps with a gradient greater than 30% or 1:3.3 should be used. Essentially the load heightx 3.3,gives you your ramp length. Furthermore no TUV Certified Ramp is designed to exceed this gradient. Going over this gradient is can cause accident, injury or death and may invalidate the warranty.
For loading vehicles with Low ground clearance and Front and/or Rear overhang a gentler gradient is recommended (this will vary depending upon the vehicle)
Capacity & Wheelbase Info
What is the wheelbase? - Wheelbase is the distance between the front and the back wheels.
Our loading ramps are usually safety tested and certified for three different length wheelbases. This is because the length of the wheelbase effects the spread of the weight applied to the ramps. The smaller the wheel base the more focused the load & therefore the less capacity the ramps can take.
The same applies with the width of the tyre or track which is why we list a ‘minimum track width’ within each product specification. We recommend reading the safety information supplied with the ramps before use to be sure the set supplied are suitable for your application.
Usage Guidelines and Safety Information for these ramps can be found here.
Ramp Length & Load Height
This guide should help you gauge how long a ramp you require, so if you're in any doubt read the details below. If you still have questions after reading, feel free to give us a call. The crucial thing to know is your load height.
Load Height: this is the vertical measurement from the ground to where you rest the ramp onto.
Guide to the maximum load height is shown in the product description/table, please note the minimum Load Height will be 5% below the maximum height stated on the ramp, to calculate use (maximum load height - 5% = minimum load height).
For vehicle ramps EU guidelines recommend that no ramps with a gradient greater than 30% or 1:3.3 should be used. Essentially the load heightx 3.3,gives you your ramp length. Furthermore no TUV Certified Ramp is designed to exceed this gradient. Going over this gradient is can cause accident, injury or death and may invalidate the warranty.
For loading vehicles with Low ground clearance and Front and/or Rear overhang a gentler gradient is recommended (this will vary depending upon the vehicle)
Capacity & Wheelbase Info
What is the wheelbase? - Wheelbase is the distance between the front and the back wheels.
Our loading ramps are usually safety tested and certified for three different length wheelbases. This is because the length of the wheelbase effects the spread of the weight applied to the ramps. The smaller the wheel base the more focused the load & therefore the less capacity the ramps can take.
The same applies with the width of the tyre or track which is why we list a ‘minimum track width’ within each product specification. We recommend reading the safety information supplied with the ramps before use to be sure the set supplied are suitable for your application.
Usage Guidelines and Safety Information for these ramps can be found here.
Customisable
Easy to Fit
European Made
One Year Warranty
Description
Heavy Duty Aluminium Wheel Risers feature:
Produced from high-resistant aluminium
12,000kg capacity across the pair
Includes a safety wheel catch
Custom solutions available
Made in Europe
Fully TUV Certified
Minimum width of wheel or track is 300mm
All pictures shown are for illustration purposes only. Actual product may vary due to product enhancement
Heavy Duty Aluminium Wheel Risers
145mm - TRP-MCR145
Height: 145mm
Length: 1217mm
Width: 510mm
Inclined length/approach length: 712mm
Horizontal length: 505mm
Weight per pair: 34kg
Capacity per pair: 12000kg
190mm - TRP-MCR190
Height: 190mm
Length: 1514mm
Width: 510mm
Inclined length/approach length: 1009mm
Horizontal length: 505mm
Weight per pair: 48kg
Capacity per pair: 12000kg
260mm - TRP-MCR260
Height: 260mm
Length: 1500mm
Width: 510mm
Inclined length/approach length: 995mm
Horizontal length: 505mm
Weight per pair: 61kg
Capacity per pair: 12000kg
310mm - TRP-MCR310
Height: 310mm
Length: 1488mm
Width: 510mm
Inclined length/approach length: 983mm
Horizontal length: 505mm
Weight per pair: 57kg
Capacity per pair: 12000kg
Usage guidelines and safety information for our full vehicle ramp range can be found here.
