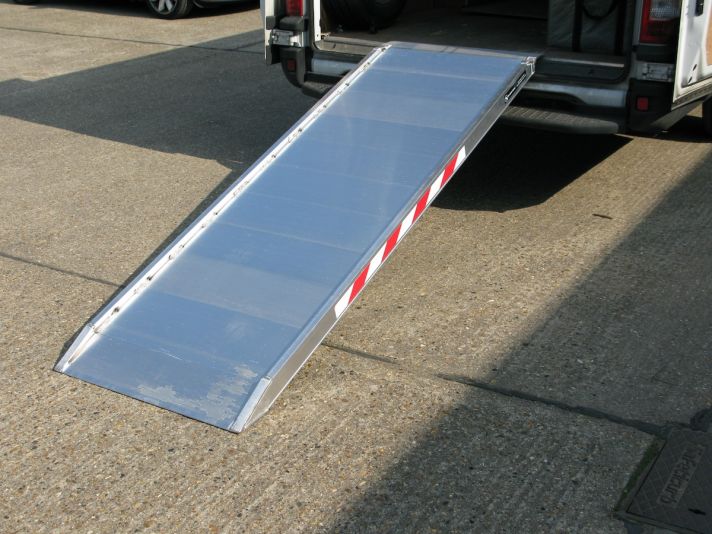

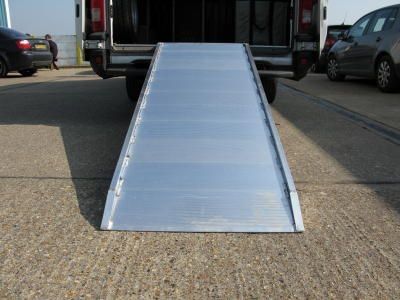

The Ramp People's Heavy Duty Van Ramp is a single piece aluminium loading ramp with a capacity of 1000kg. Available in two widths of 1000mm and 750mm, and lengths from 1800mm to 5000mm. No installation required, simply rest on the back of your vehicle and start loading.
Once the width and length is selected the price and availability will be displayed
750mm - 1800mm
Length (mm)
1800
Internal Width (mm)
690
Total Width (mm)
750
Min. Load Height (mm)
390
Max Load Height (mm)
540
Weight (kg)
21
Capacity (kg)
1000
750mm - 2000mm
Length (mm)
2000
Internal Width (mm)
690
Total Width (mm)
750
Min. Load Height (mm)
450
Max Load Height (mm)
600
Weight (kg)
24
Capacity (kg)
1000
750mm - 2400mm
Length (mm)
2400
Width (mm)
750
Internal Width (mm)
690
Total Width (mm)
750
Min. Load Height (mm)
570
Max Load Height (mm)
720
Weight (kg)
29
Capacity (kg)
1000
750mm - 2600mm
Length (mm)
2600
Internal Width (mm)
690
Total Width (mm)
750
Min. Load Height (mm)
630
Max Load Height (mm)
780
Weight (kg)
32
Capacity (kg)
1000
750mm - 3000mm
Length (mm)
3000
Internal Width (mm)
690
Total Width (mm)
750
Min. Load Height (mm)
750
Max Load Height (mm)
900
Weight (kg)
37
Capacity (kg)
1000
750mm - 3600mm
Length (mm)
3600
Internal Width (mm)
690
Total Width (mm)
750
Min. Load Height (mm)
900
Max Load Height (mm)
1050
Weight per Ramp (kg)
45
Capacity (kg)
1000
1000mm - 1800mm
Length (mm)
1800
Width (mm)
1000
Internal Width (mm)
940
Total Width (mm)
1000
Min. Load Height (mm)
390
Max Load Height (mm)
540
Weight (kg)
27
Capacity (kg)
1000
1000mm - 2000mm
Length (mm)
2000
Internal Width (mm)
940
Total Width (mm)
1000
Min. Load Height (mm)
450
Max Load Height (mm)
600
Weight (kg)
30
Capacity (kg)
1000
1000mm - 2400mm
Length (mm)
2400
Internal Width (mm)
940
Total Width (mm)
1000
Min. Load Height (mm)
570
Max Load Height (mm)
720
Weight (kg)
37
Capacity (kg)
1000
1000mm - 2600mm
Length (mm)
2600
Width (mm)
1000
Internal Width (mm)
940
Total Width (mm)
1000
Min. Load Height (mm)
630
Max Load Height (mm)
780
Weight (kg)
40
Capacity (kg)
1000
1000mm - 3000mm
Length (mm)
3000
Internal Width (mm)
940
Total Width (mm)
1000
Min. Load Height (mm)
750
Max Load Height (mm)
900
Weight (kg)
46
Capacity (kg)
1000
1000mm - 3600mm
Length (mm)
3600
Internal Width (mm)
940
Total Width (mm)
1000
Min. Load Height (mm)
900
Max Load Height (mm)
1050
Weight (kg)
56
Capacity (kg)
1000
1000mm - 4000mm
Length (mm)
4000
Internal Width (mm)
940
Total Width (mm)
1000
Min. Load Height (mm)
1050
Max Load Height (mm)
1200
Weight (kg)
66
Capacity (kg)
1000
1000mm - 4400mm
Length (mm)
4400
Internal Width (mm)
940
Total Width (mm)
1000
Min. Load Height (mm)
1150
Max Load Height (mm)
1300
Weight (kg)
72
Capacity (kg)
1000
1000mm - 5000mm
Length (mm)
5000
Internal Width (mm)
940
Total Width (mm)
1000
Min. Load Height (mm)
1350
Max Load Height (mm)
1500
Weight (kg)
85
Capacity (kg)
1000
Ramp Capacity, Length & Load Height
This guide should help you gauge how long a ramp you require, so if you're in any doubt read the details below. If you still have questions after reading, feel free to give us a call. The crucial thing to know is your load height.
Load Height: this is the vertical measurement from the ground to where you rest the ramp onto.
Guide to the maximum load height is shown in the product description/table, please note the minimum Load Height will be 5% below the maximum height stated on the ramp, to calculate use (maximum load height - 5% = minimum load height).
For vehicle ramps EU guidelines recommend that no ramps with a gradient greater than 30% or 1:3.3 should be used. Essentially the load heightx 3.3,gives you your ramp length. Furthermore no TUV Certified Ramp is designed to exceed this gradient. Going over this gradient is can cause accident, injury or death and may invalidate the warranty.
Please check the wheelbase measurement of the machine you are loading is suitable for the capacity the ramp can take based on the wheelbase measurement advised. To check your wheelbase, look at the vehicle from side view, the distance between the centre of front wheel and rear wheel (rim centre) is your wheelbase.
For machines with an unbalanced weight distribution such as, scissors lifts, paving machinery, steel tracked machinery and machines with low ground clearance we would advise you contact us first, so we can check and advise on the most suitable solution.
For loading cars and other vehicles with either a) Low ground clearance b) Front and/or Rear overhang a gentler gradient is recommended (this will vary depending upon the vehicle). Please also note that most forklifts and pallet trucks are not built to be used on slopes. Please check the manual for the gradient information.
Further information can be seen in this blog article here
Length options from 4000mm are only available in a 1000mm width.
No vehicle or van modification required

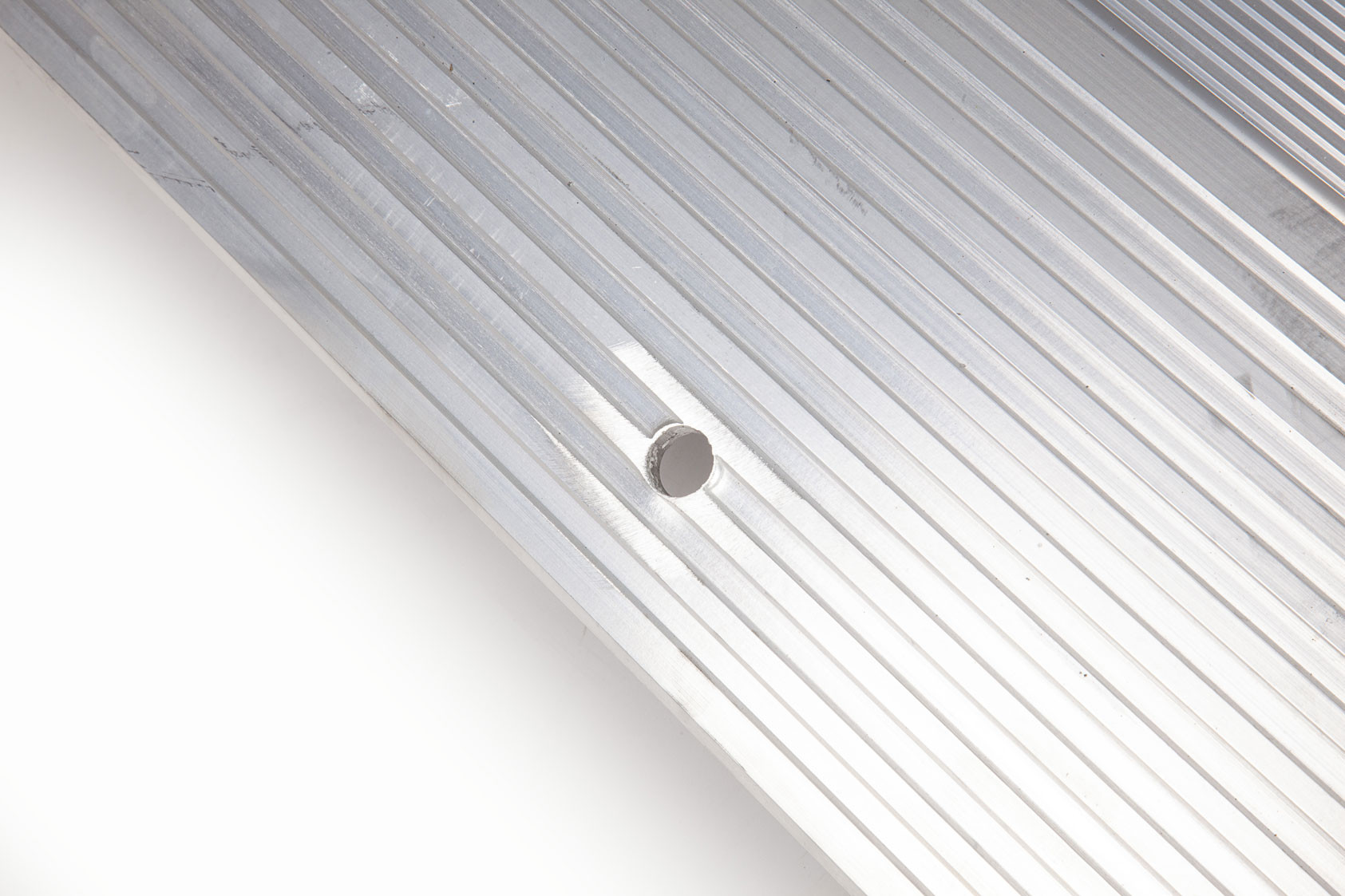

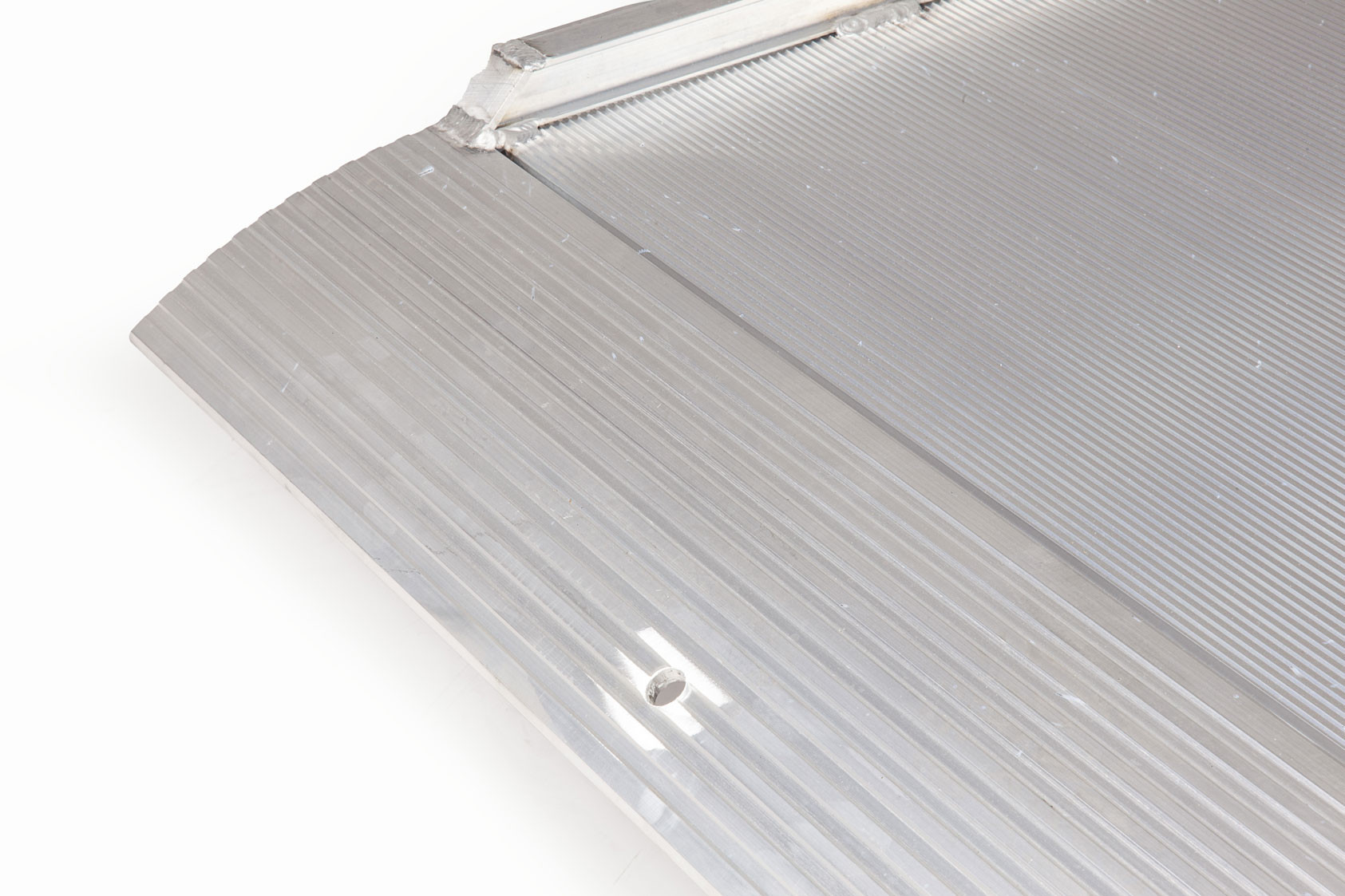

The rest on connection includes a predrilled hole if you wish to secure the ramp to the van during loading
The 750mm wide version has a usable width of 690mm, the 1000mm wide version has a usable width of 940mm

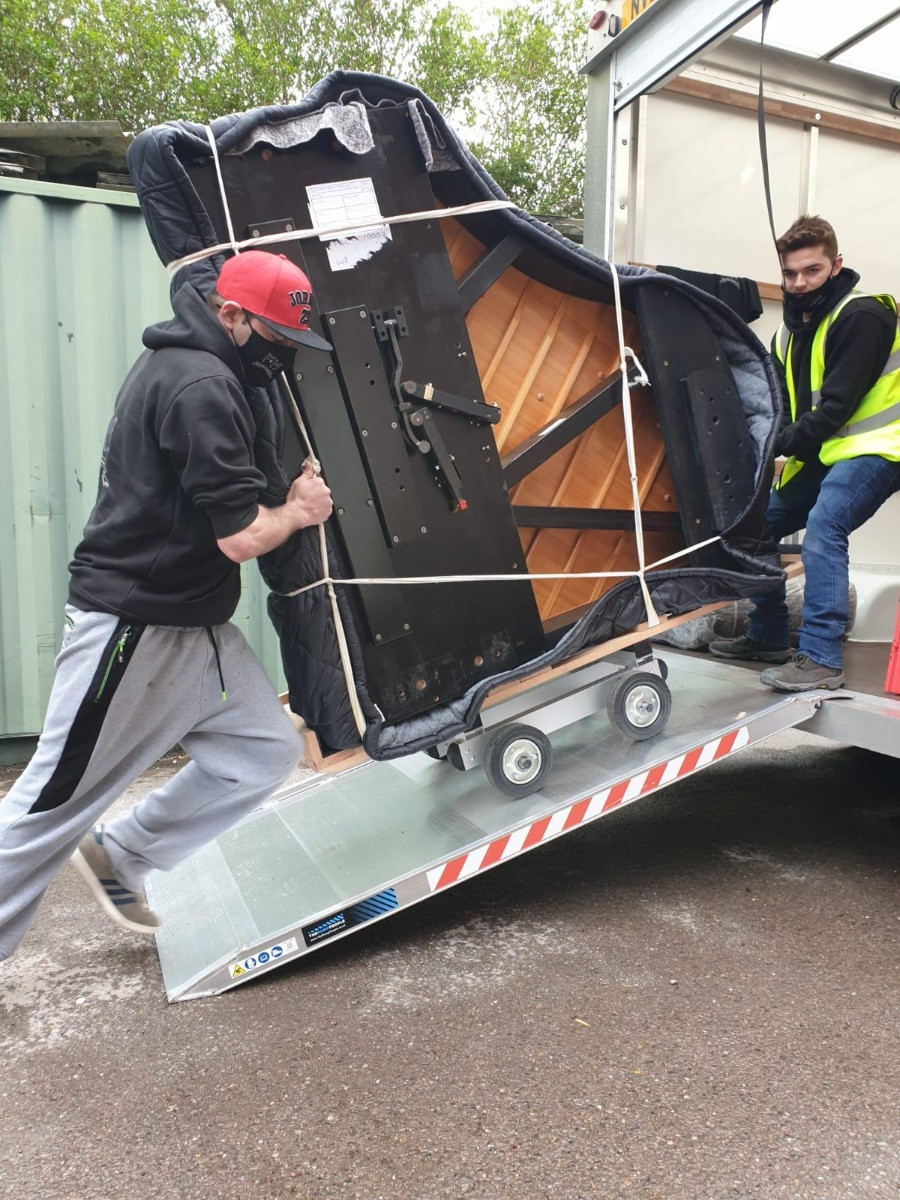

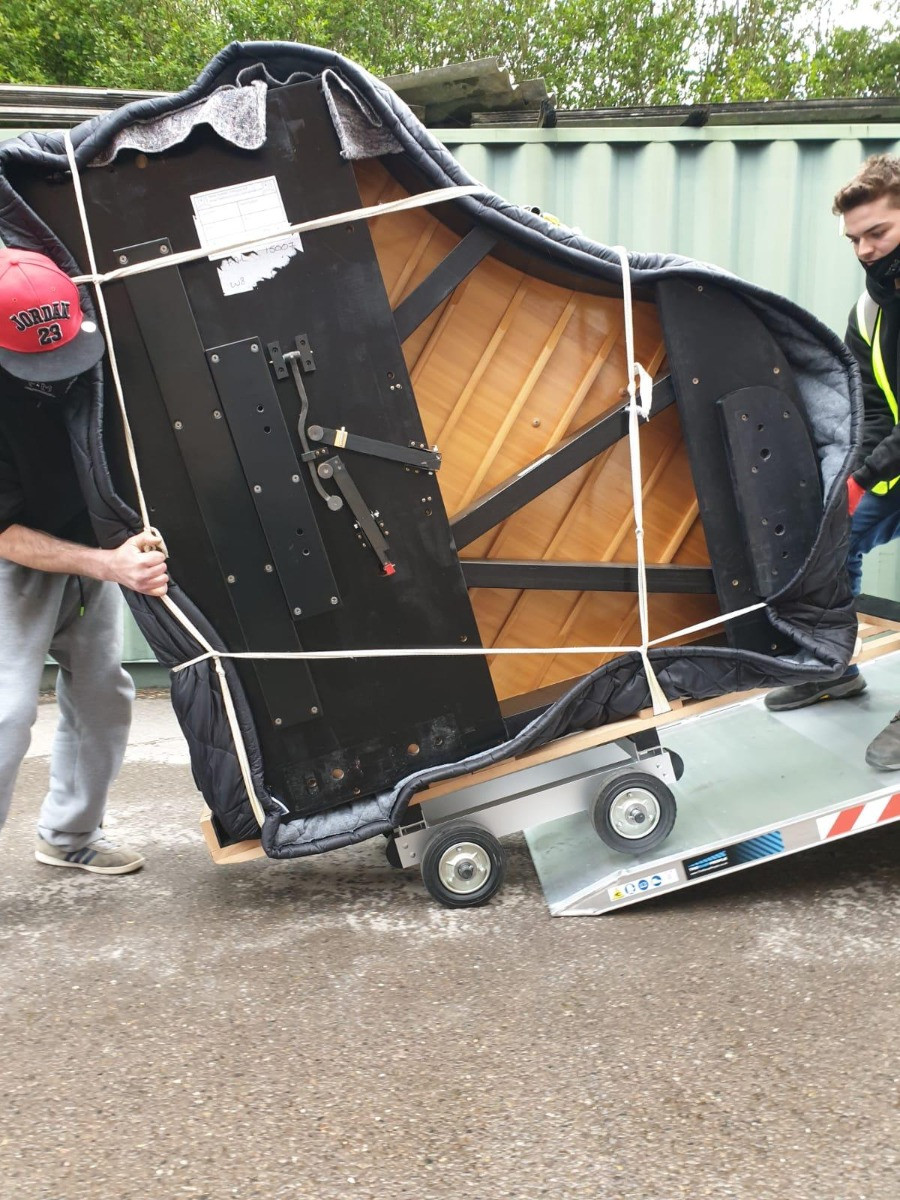

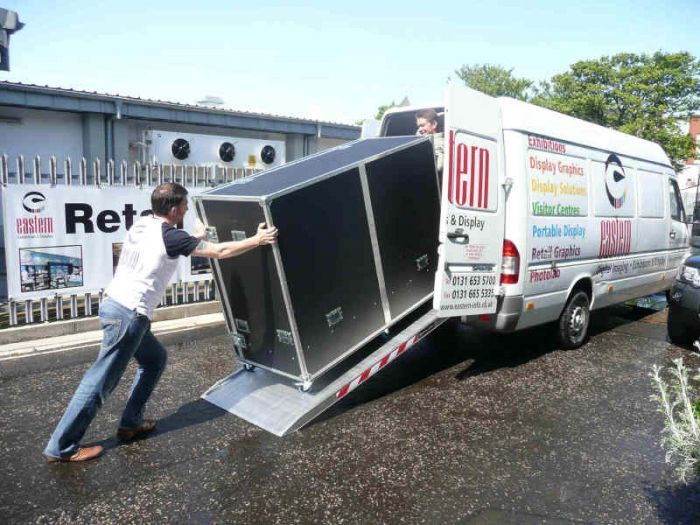

Perfect for flight cases, loading goods, trolleys and more
Lies flat for easy storage when not being used
Manufactured from lightweight aluminium (type 6005A)
Robot welded for solid, strong and durable construction
Fully TUV Certified to 1000kg capacity as standard

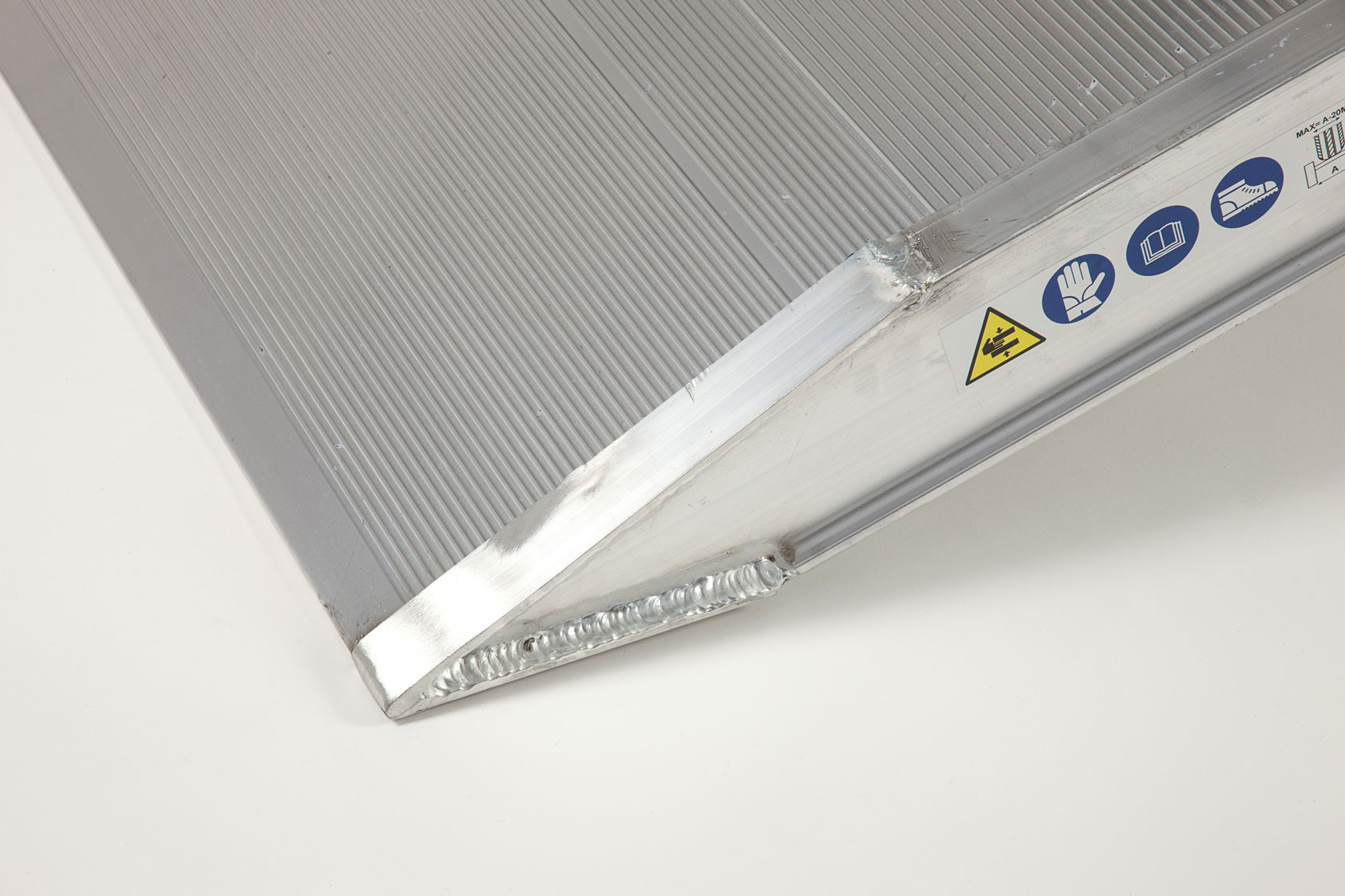

Angled foot, this allows for smooth access onto the van ramp when using casters or wheels.
Edges on each side of the van ramp to prevent accidentally wheeling off

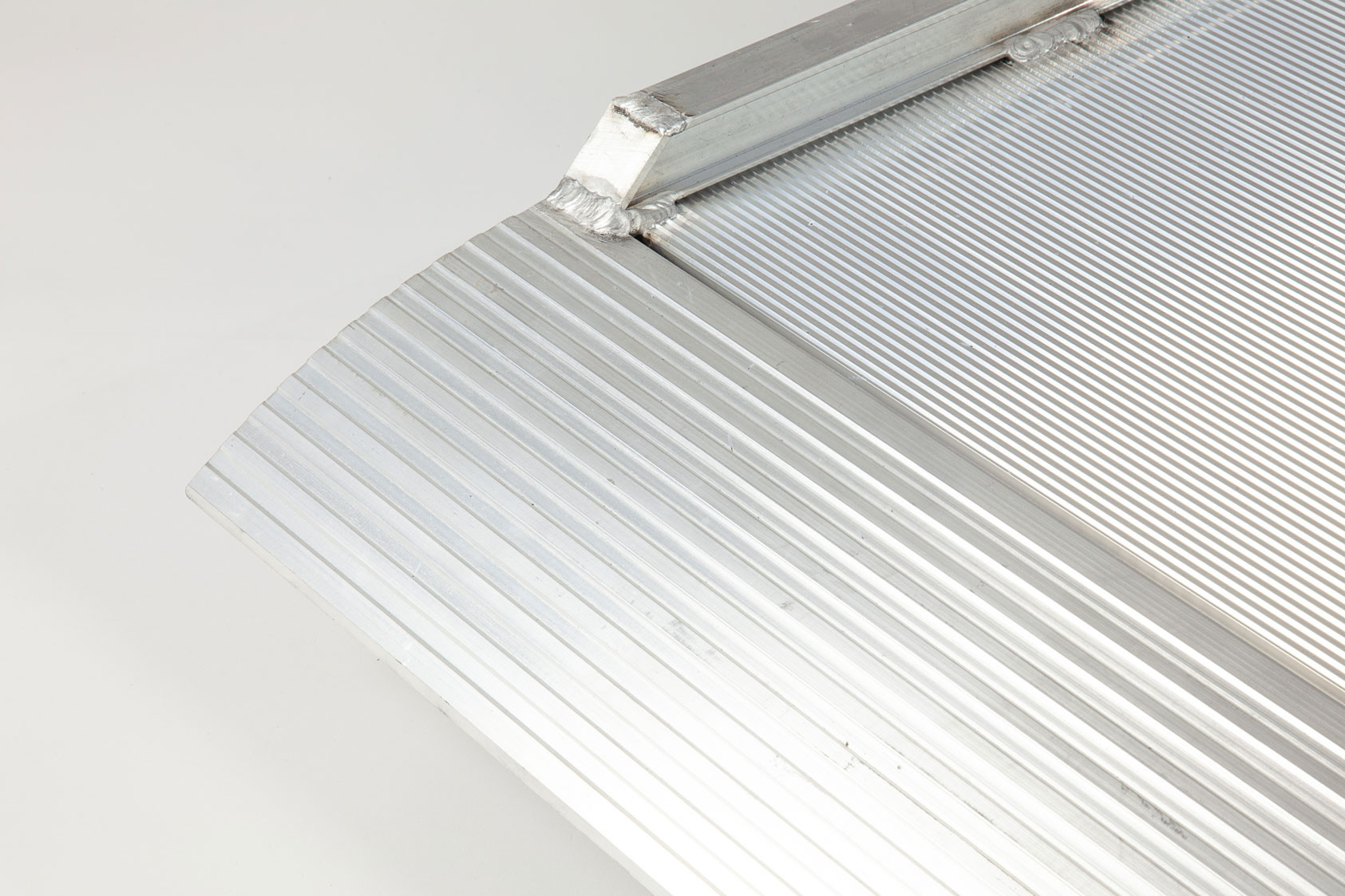

Four different connection options available. Please note the default connection is the rest on connection as shown in the images, please contact us for alternative connection options including a hook connection.
