Ramp Capacity, Length & Load Height

This guide should help you gauge how long a ramp you require, so if you're in any doubt read the details below. If you still have questions after reading, feel free to give us a call. The crucial thing to know is your load height.

Load Height: this is the vertical measurement from the ground to where you rest the ramp onto.

Guide to the maximum load height is shown in the product description/table, please note the minimum Load Height will be 5% below the maximum height stated on the ramp, to calculate  use (maximum load height - 5% = minimum load height).

For vehicle ramps EU guidelines recommend that no ramps with a gradient greater than 30%  or 1:3.3 should be used. Essentially the load height x 3.3, gives you your ramp length. Furthermore no TUV Certified Ramp is designed to exceed this gradient. Going over this gradient is can cause accident, injury or death and may invalidate the warranty.

Please check the wheelbase measurement of the machine you are loading is suitable for the capacity the ramp can take based on the wheelbase measurement advised. To check your wheelbase, look at the vehicle from side view, the distance between the centre of front wheel and rear wheel (rim centre) is your wheelbase. For machines with an unbalanced weight distribution such as, scissors lifts, paving machinery, steel tracked machinery and machines with low ground clearance we would advise you contact us first, so we can check and advise on the most suitable solution.

For loading cars and other vehicles with either a) Low ground clearance b) Front and/or Rear overhang a gentler gradient is recommended (this will vary depending upon the vehicle). Please also note that most forklifts and pallet trucks are not built to be used on slopes. Please check the manual for the gradient information.

Further information can be seen in this blog article here

What is a Mobile Yard Ramp?

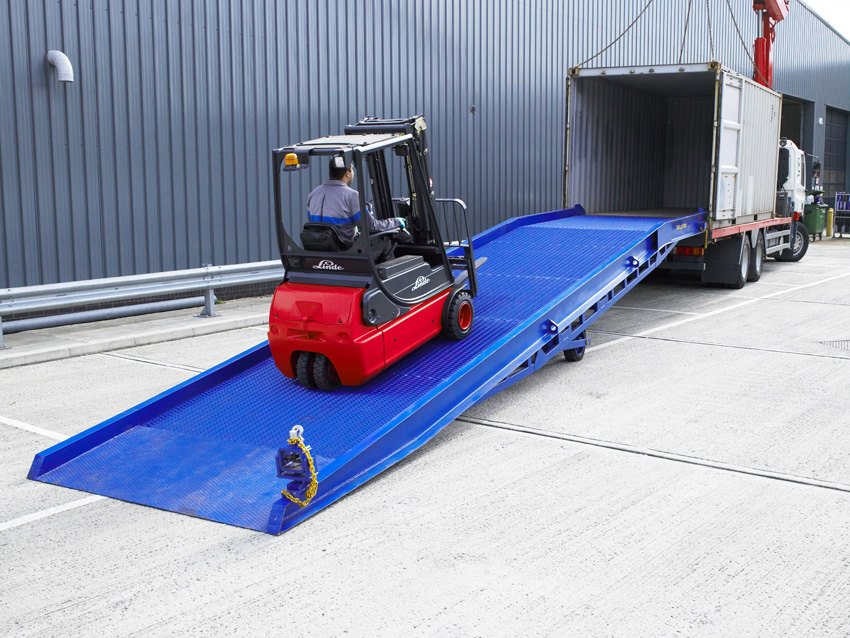

A mobile yard ramp is used to load and unload shipping containers without the use of a permanent docking bay. The ramp is placed and the back of the vehicle, allowing machines such as forklifts and plant machinery to gain access into the container to unload and load containers quickly and safely.

What is the capacity of a Yard Ramp?

We provide yard ramps with capacities up to 15,000kg, if you require a higher capacity please let us know as these can be customised to your specifications.

Are the Mobile Yard Ramps customisable?

Yes, the ramp can be customised in terms of length and width. The ramp can also be produced with handrails for increased safety.

Are the ramps certified?

Yes, our Yard Ramps are CE marked and produced in Europe to ensure optimal quality.

How easy is it to put the mobile yard ramp into place?

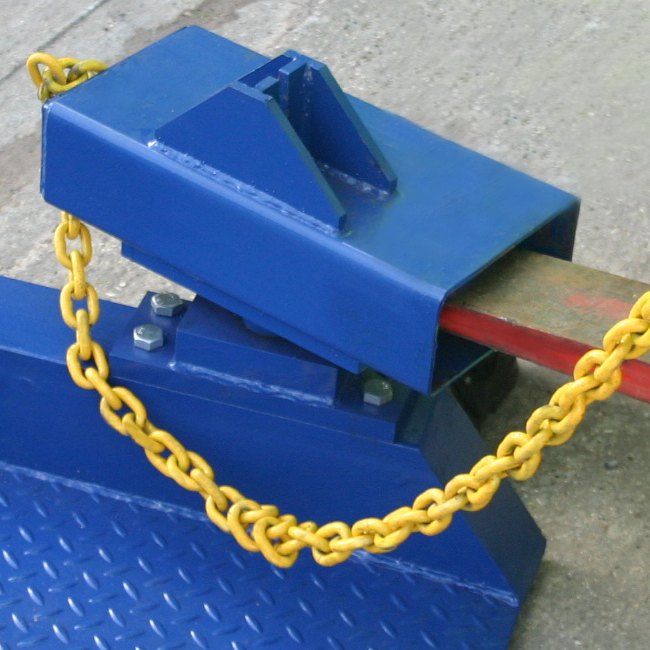

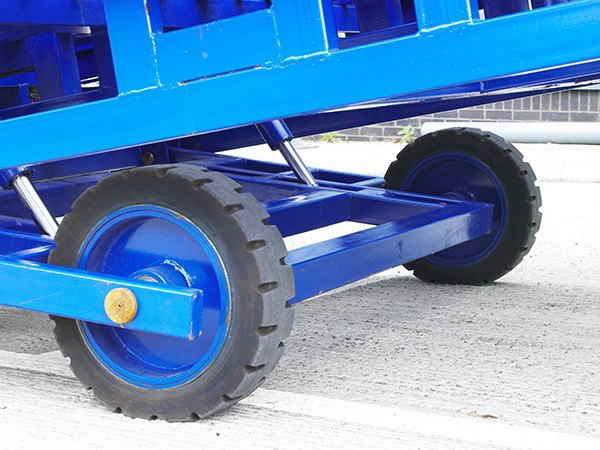

The Mobile Docking Yard Ramp can easily be moved as it has a fixed swivel clamp which allows a forklift to easily move the ramp into place. The ramp is provided on rubber tyres which helps allow it to turn with ease. The height of the ramp can easily be adjusted using the hydraulic pump. The ramp is delivered ready to use, simply unload the yard ramp off of the trailer using a forklift and start using your yard ramp!

What are the mobile yards made from?

The ramps are produced from steel, they have a mesh anti-slip surface to ensure optimal grip and safety. The ramps are suitable to be used in all weathers.

Are the ramps safe to use?

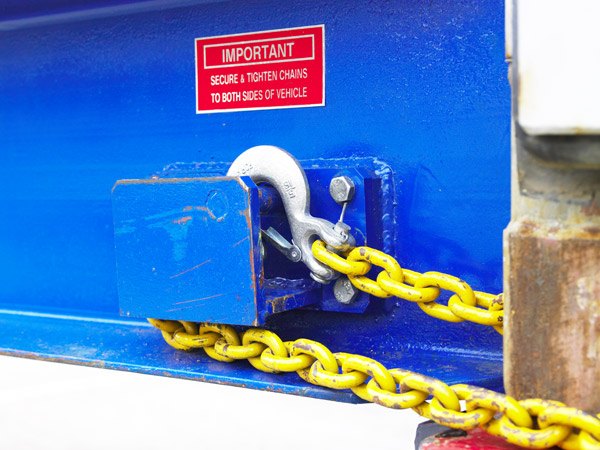

Yes the ramps are CE marked. The ramp is produced with a mesh surface to provide extra grip, the ramps are customisable and can include handrails to increase safety further if required. Steel safety chains are also provided, which include large hooks, to allow the ramp to be secured in place during use. The ramps are provided with a full user manual along with a 1 year warranty.

How long does it take to get a Yard Ramp?

The lead time on the Yard Ramps depends on availability. Our stock is live so some days we have these available for immediate dispatch whilst, in other instances the lead time is a 2-4 weeks. Please contact our team for an accurate lead time. Delivery is free across the Republic of Ireland.

Can the ramp be used on a slope?

That depends on the slope. If you are planning to use the ramp on uneven ground, please contact us before ordering.
