Vehicle ramp with handrails

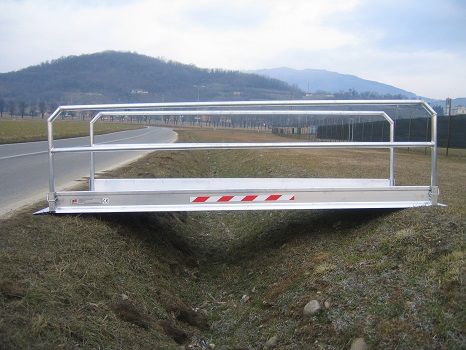

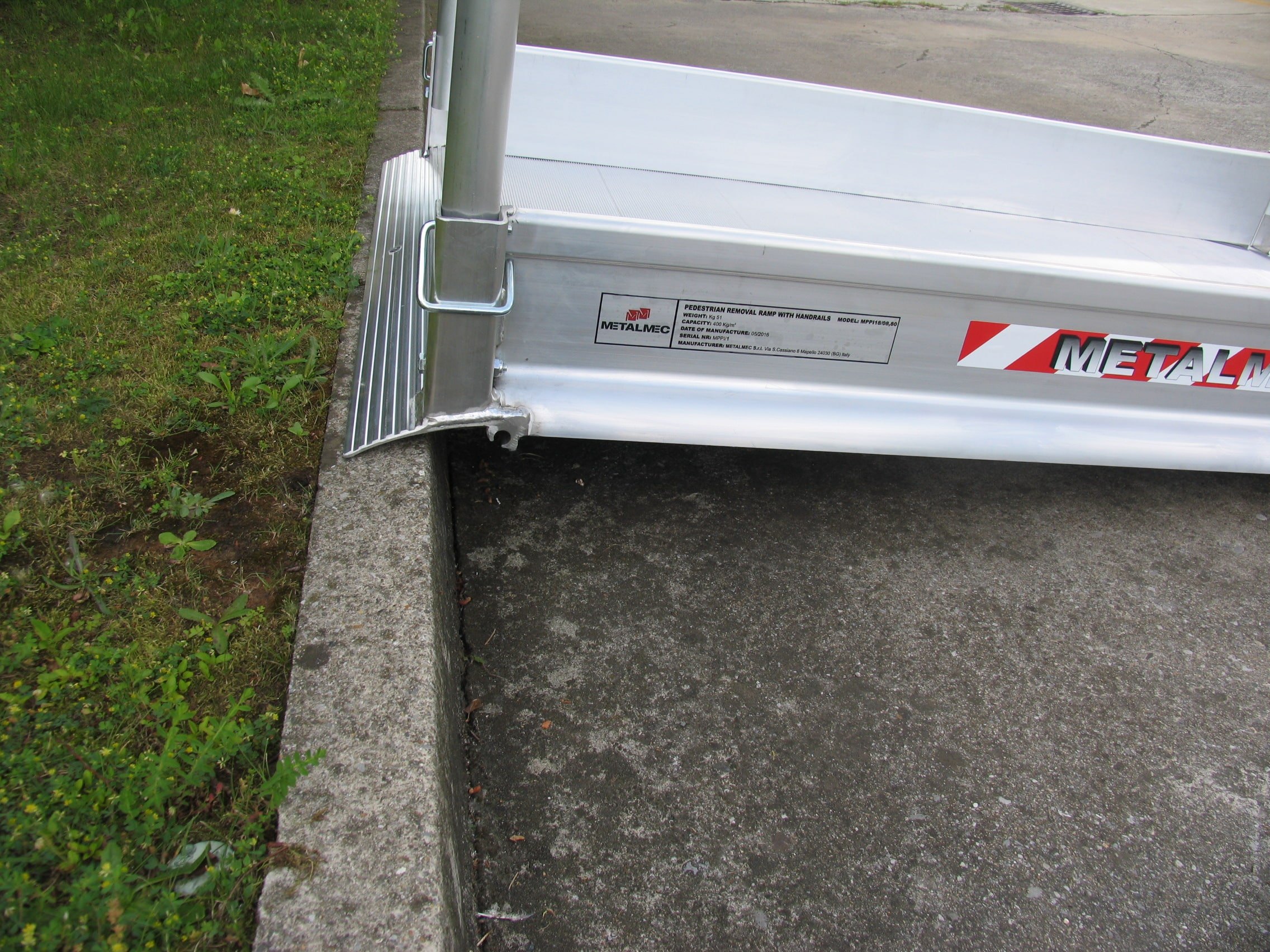

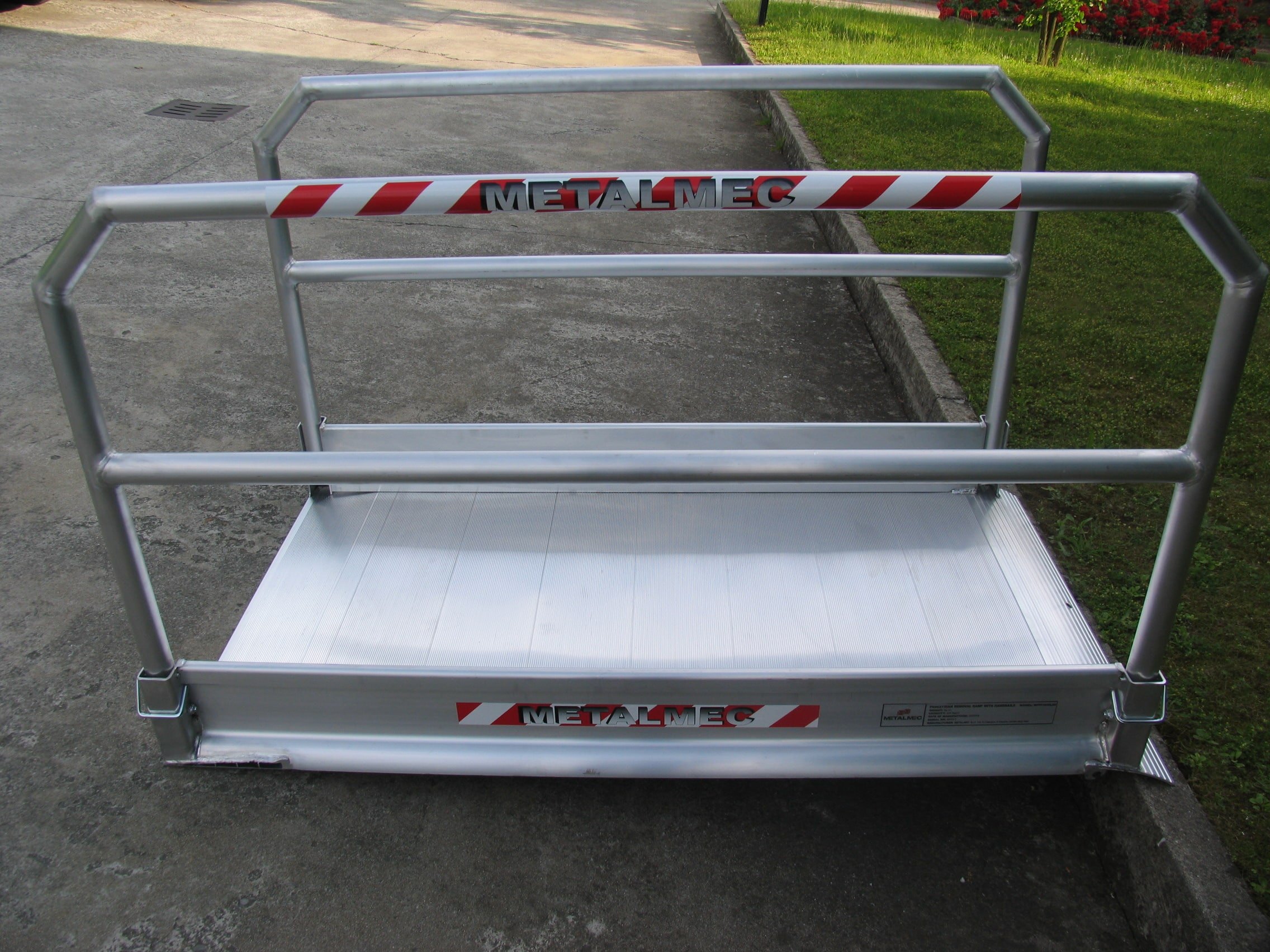

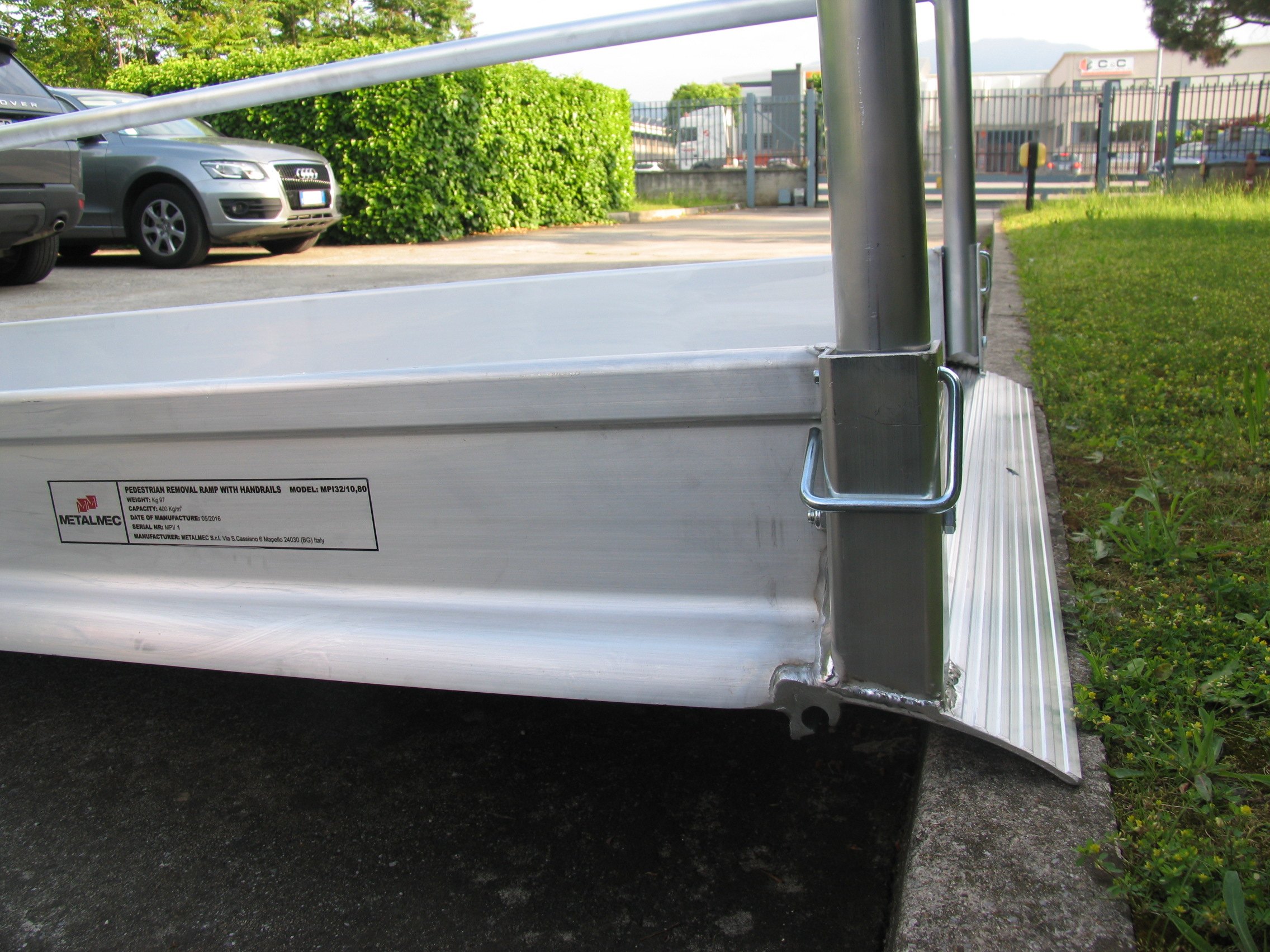

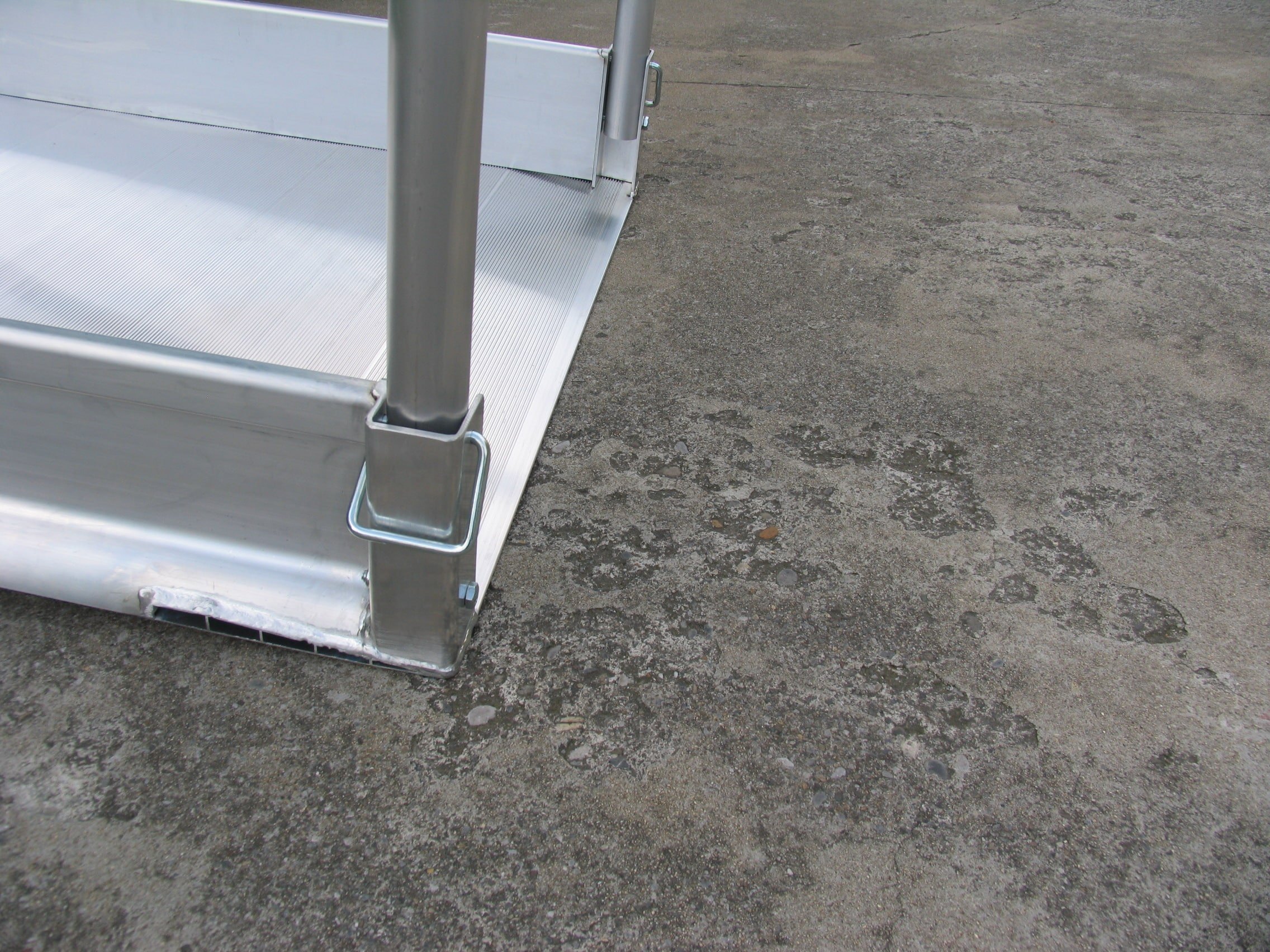

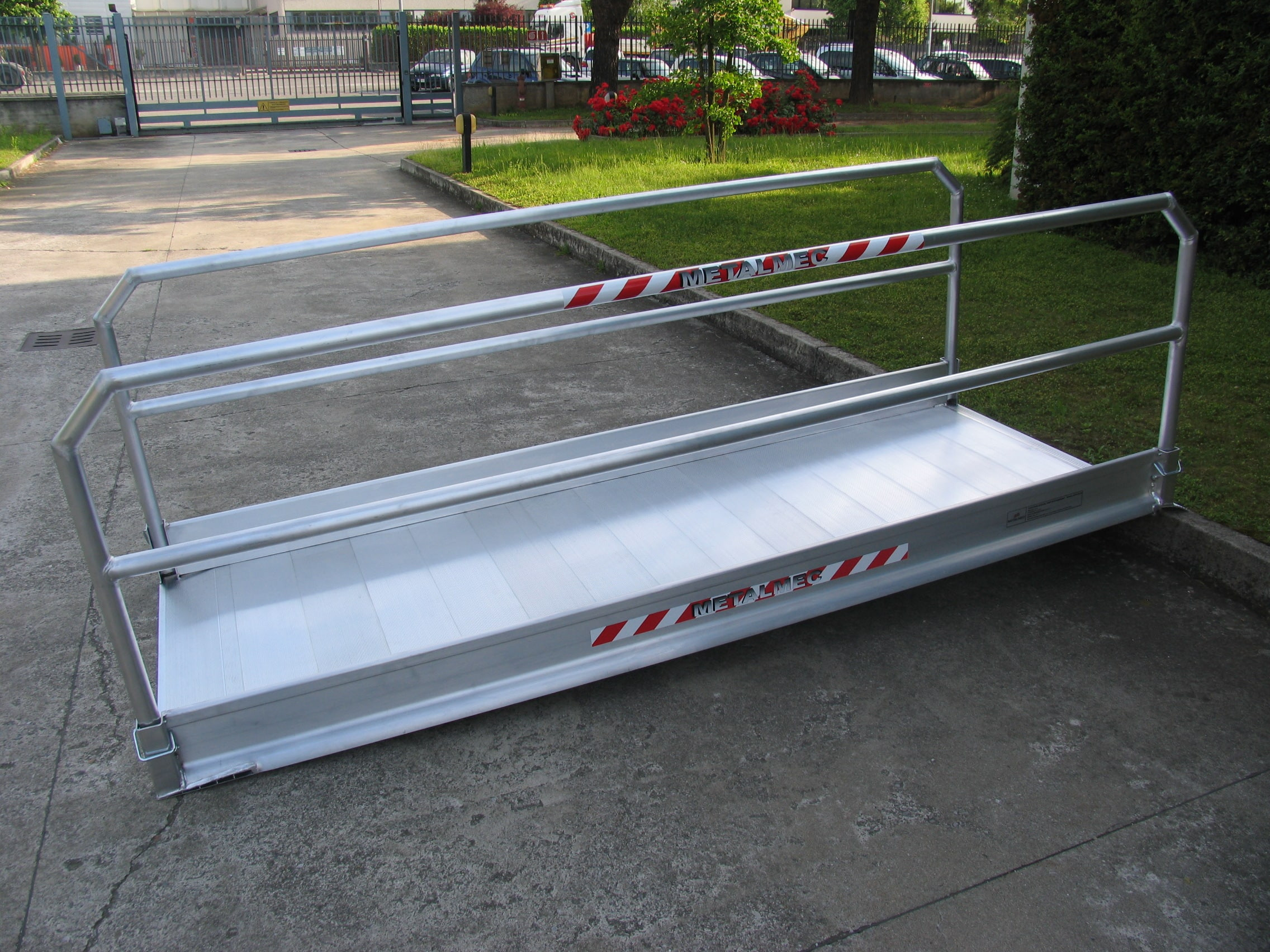

End of vehicle ramp with handrails Vehicle ramp with handrails rest on connection handrail fixing bracket on vehicle ramp with handrails Vehicle ramp with handrails fully assembled Vehicle ramp with handrails

4-10 business days delivery*. Items are shipped from the UK to Ireland on DAP Incoterms. This means we do not charge Irish VAT but Irish import VAT of 23%, import duty (on some products) and customs charges will be due. These fees will need to be paid to the courier before or after you receive the goods. Learn more.

4-10 business days delivery*. Items are shipped from the UK to Ireland on DAP Incoterms. This means we do not charge VAT at checkout. Once your order has been shipped, the courier will contact you regarding any import charges due, including 23% VAT, customs clearance fees, and any applicable import duties. These fees will need to be paid to the courier. Learn more.

Products are shipped from our UK Warehouse to Ireland on DDP Incoterms. The price displayed is the total price, with the shipping fee calculated at the checkout. There is no additional import, duty or customs charges. Learn more.

€2,013.00
Built to order / 4 - 7 weeks

Vehicle Accessible Ramps with Handrails 2990mm Long, 1000mm Internal Width

SKU
TRP-MPI30/10

Vehicle Accessible Ramps with Handrails 2990mm Long, Usable Width 1000mm and maximum capacity of 2700kg. Ideal for overcoming height differences caused by trenches or in construction sites.

  • Customisable
  • Easy to Fit
  • European Made
  • Two Year Warranty
  • Leave Outside
Description

TRP Vehicle Ramps with Folding Handrails features include:

  • Rest on connections - simply put ramp in place and start using it
  • Foot end allows various heights up to 240mm
  • Suitable for overcoming architectural barriers such as height differences due to trenches or public works
  • Non-slip transit surface
  • Maximum capacity 2700kg / sqm
  • Ergonomic handrails 1m high
  • All pictures shown are for illustration purpose only. Actual product may vary due to product enhancement

For safety remember the following:

  • Do not exceed a maximum gradient of 8%

Usage guidelines and safety information for our full vehicle ramp range can be foundhere.

Specifications
Units:
SKUTRP-MPI30/10 TRP-MPI30/10
Default ConnectionRest On Connection 110
Capacity (kg)2746 6054
Height (mm)1055 41.54
Internal Width (mm)1000 39.37
Length (mm)2990 117.72
Max Load Height (mm)240 9.45
Weight (kg)84 185.19
Two Year WarrantyYes 1
CustomisableYes 1
Easy to FitYes 1
European MadeYes 1
Leave OutsideYes 1
Capacity Wheelbase 750mm (kg)2746 6054
Capacity Wheelbase 1000mm (kg)2375 5236
External Width (mm)1120 44.09
Colour OptionBlack 710
Product Questions
How do The Ramp People's Vehicle Ramps stay securely in place during loading?
The Pedestrian Ramps have a curved rest on connection with a pre-drilled hole to allow them to be secured to the step or kerb. The foot of the ramp is angled to ensure the ramp sits securely on the ground. The weight and gradient also ensure the ramp stays securely in place.
Are The Ramp People's Vehicle Ramps suitable for providing pedestrian access?
Yes, these ramps are suitable for pedestrians. For security, the ramp is provided with double handrails and a R12 slip-resistant surface.
Can The Ramp People's Vehicle Ramps be used without handrails?
It is advised that the Vehicle Ramps are used with the handrails in place. When transporting the ramp the handrails can be folded for ease of transportation. Please view the images for more details.
