Vehicle Accessible Ramps with Handrails 1990mm Long, 1000mm Internal Width

Vehicle Accessible Ramps with Handrails 990mm Long, Usable Width 1000mm and maximum capacity of 4500kg. Ideal for overcoming height differences caused by trenches or in construction sites.
Length (mm)1990
Height (mm)1055
Max. Load Height (mm)160
Weight (kg)59
Capacity (kg)4500

Got a question?

Product: Vehicle Accessible Ramps with Handrails 1990mm Long, 1000mm Internal Width
SKU: TRP-MPI20/10

  • Easy to Fit
  • One Year Warranty
  • Leave Outside
€1,660.50 €1,350.00
Built to Order
TRP-MPI20/10
Talk to The Ramp People's sales team

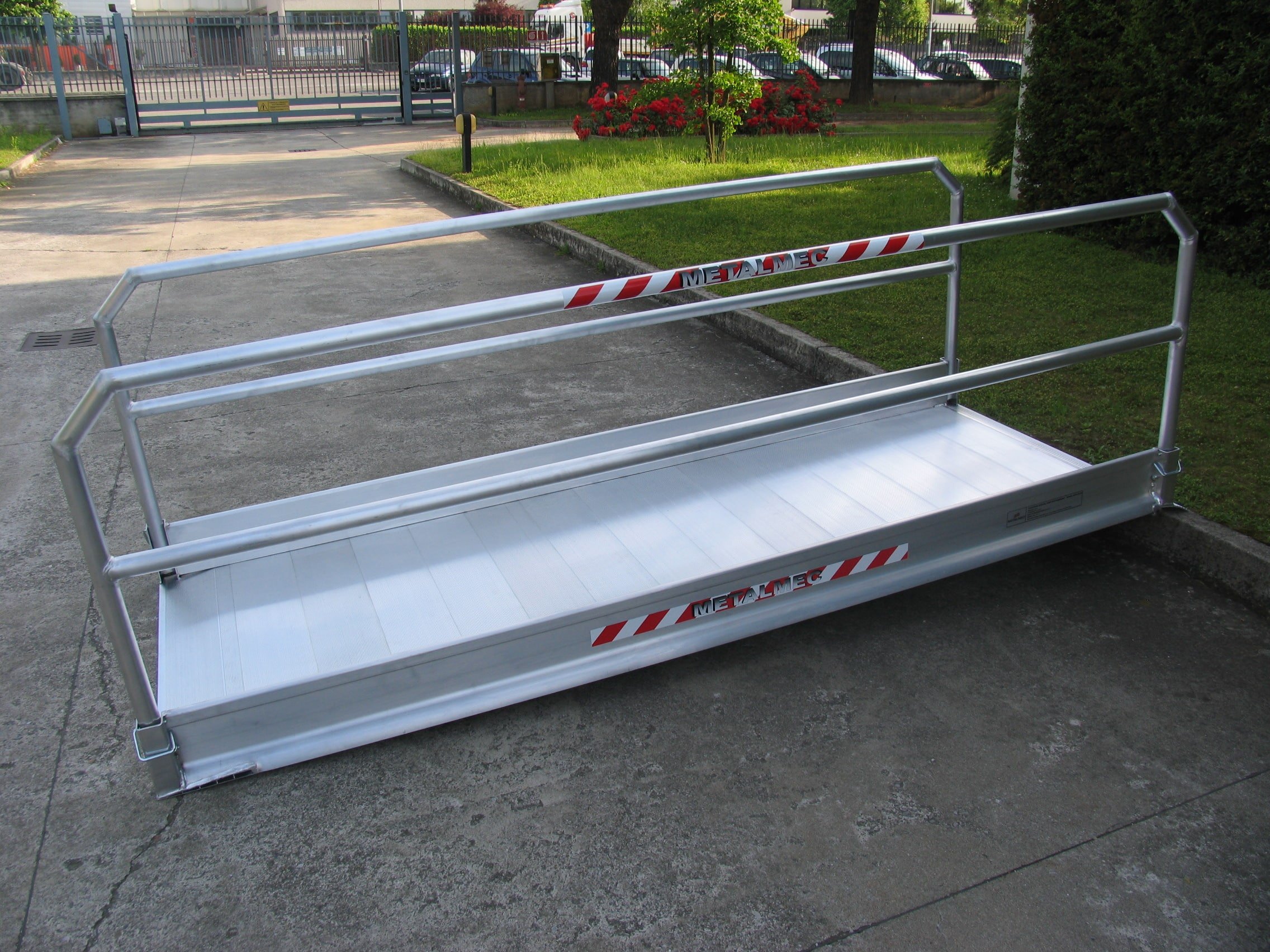

TRP Vehicle Ramps with Folding Handrails features include:

  • Rest on connections - simply put ramp in place and start using it

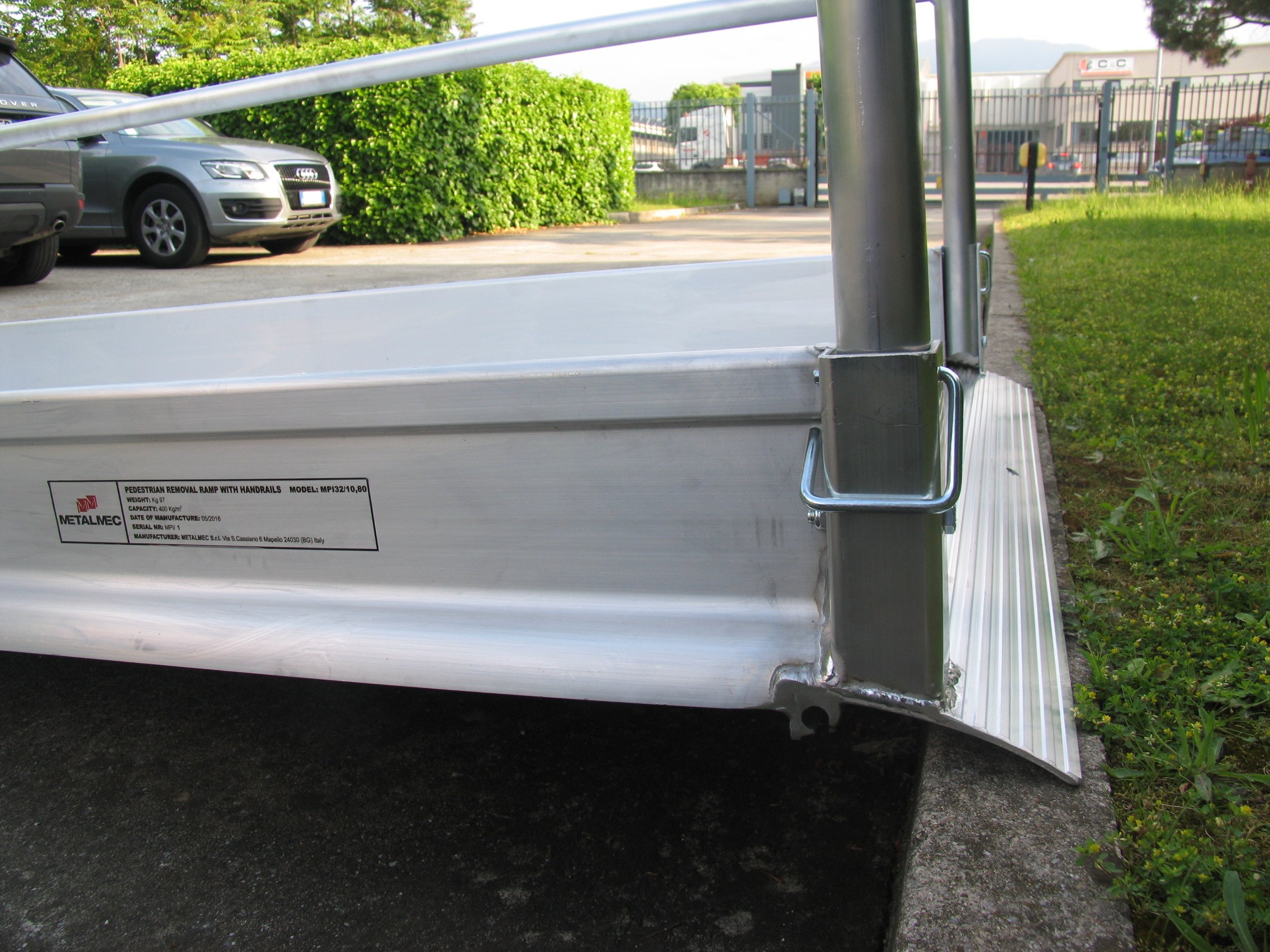

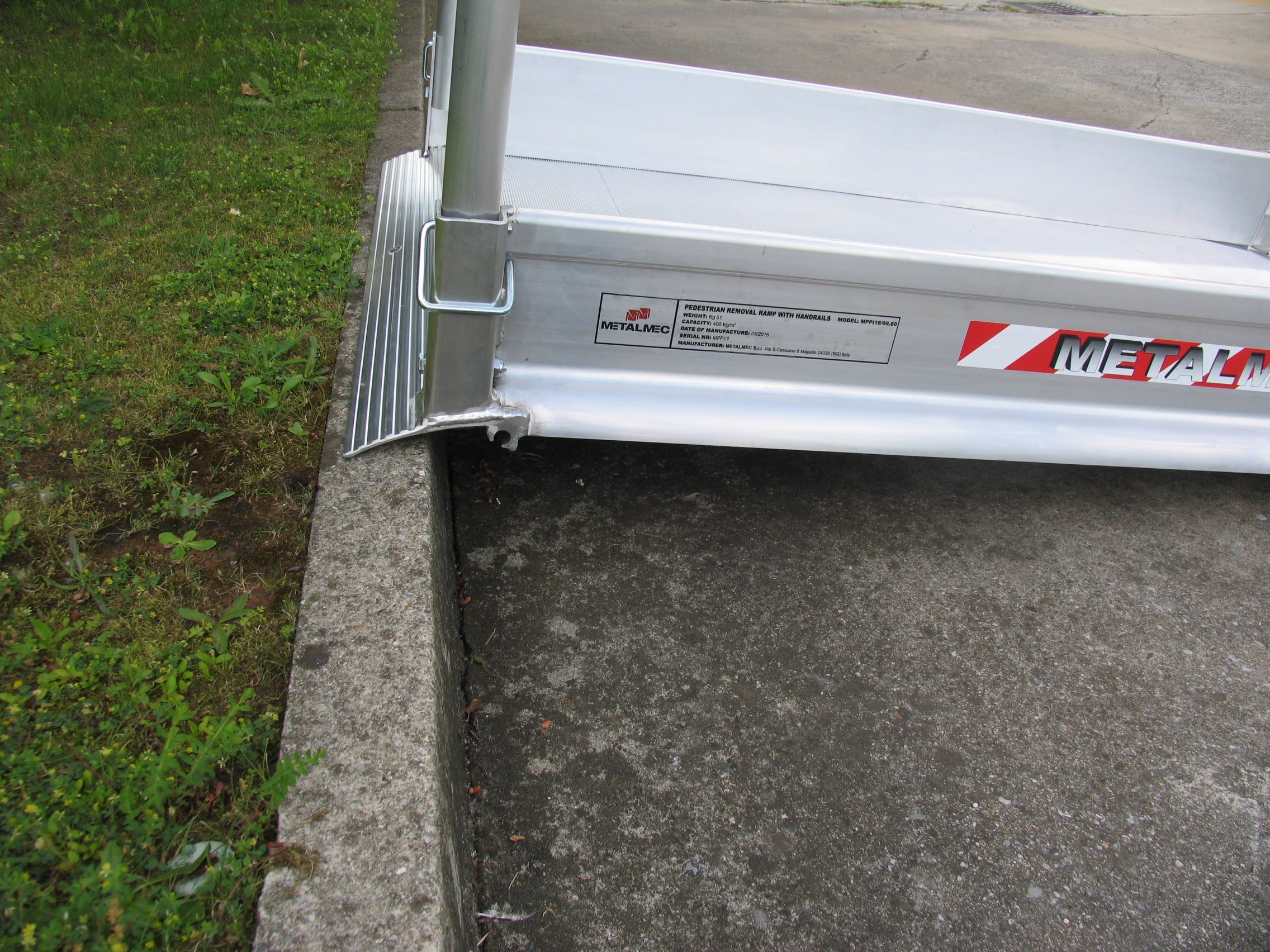

  • Foot End allows various heights up to 160mm.
  • Suitable for overcoming architectural barriers such as height differences due to trenches or public works
  • Non-slip transit surface
  • Maximum Capacity 4500kg / sqm

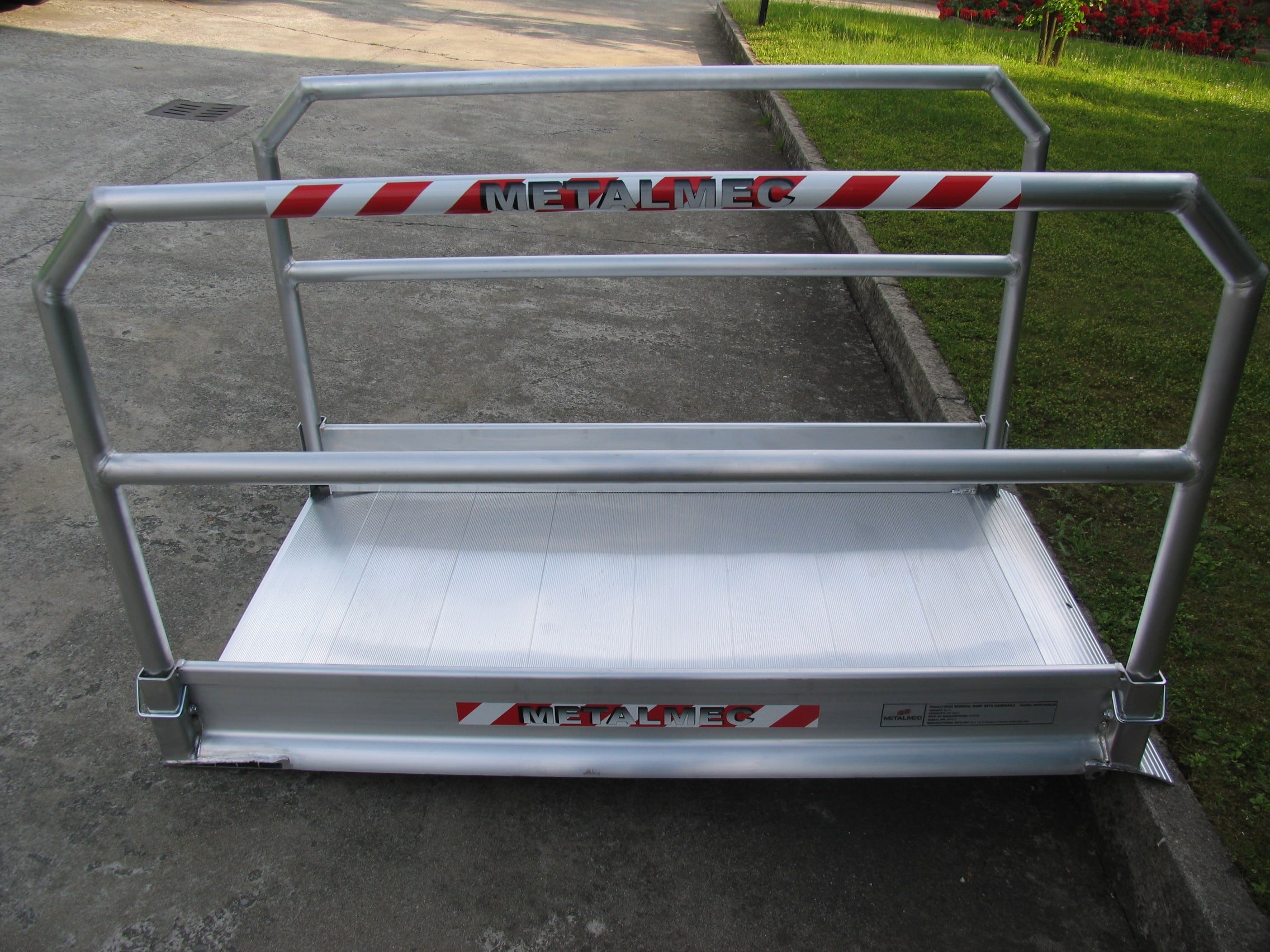

  • Ergonomic handrails 1m high
  • All pictures shown are for illustration purpose only. Actual product may vary due to product enhancement

For safety remember the following:

  • Do not exceed a maximum gradient of 8%

Further usage Guidelines and Safety Information for these ramps can be found here

SKU TRP-MPI20/10
Capacity (kg) 4500
Edge Height (mm) 200
Height (mm) 1055
Internal Width (mm) 1000
Length (mm) 1990
Weight (kg) 59
One Year Warranty Yes
Easy to Fit Yes
Leave Outside Yes
Capacity Wheelbase 750mm (kg) 4500
Capacity Wheelbase 1000mm (kg) 3000
External Width (mm) 1120
