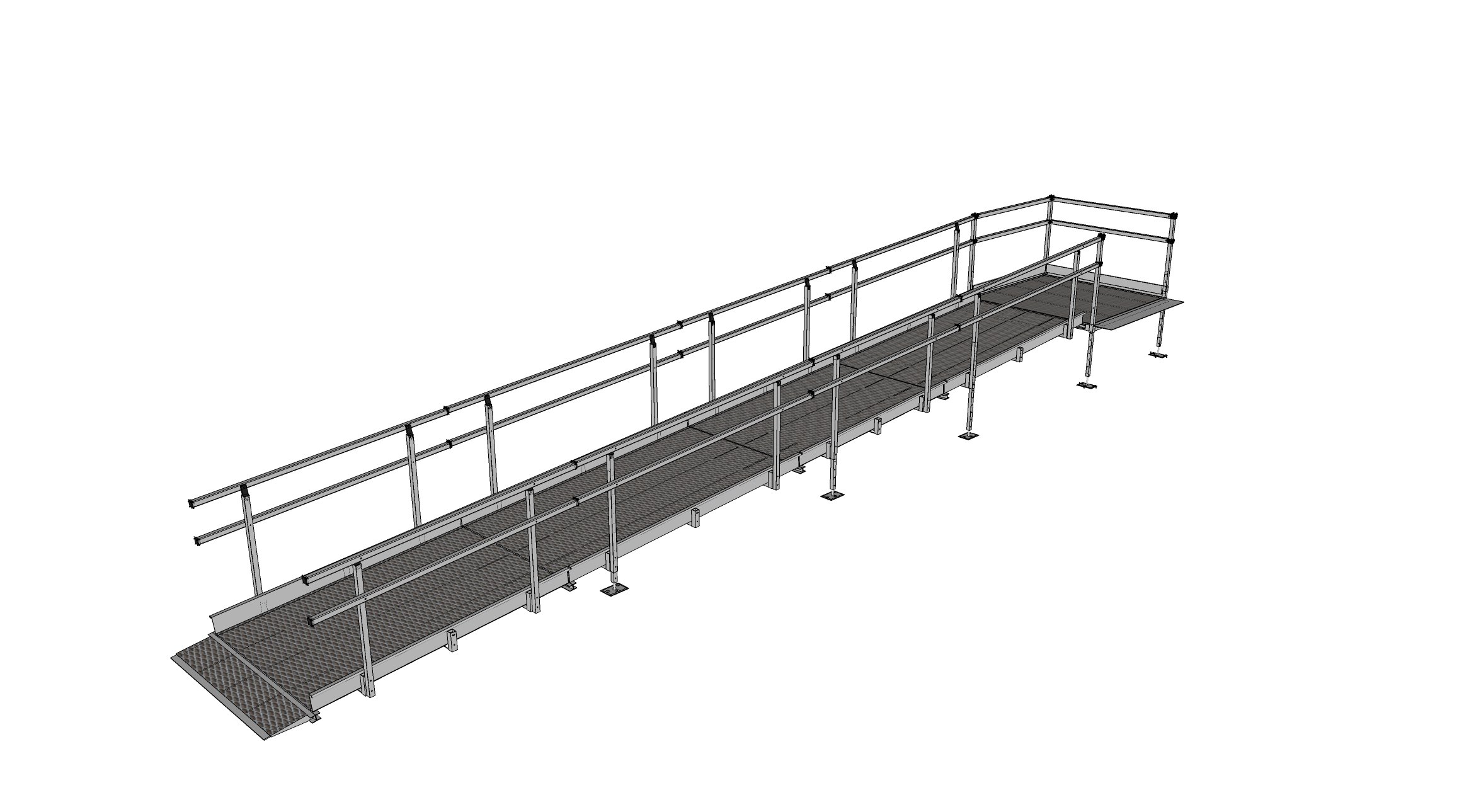

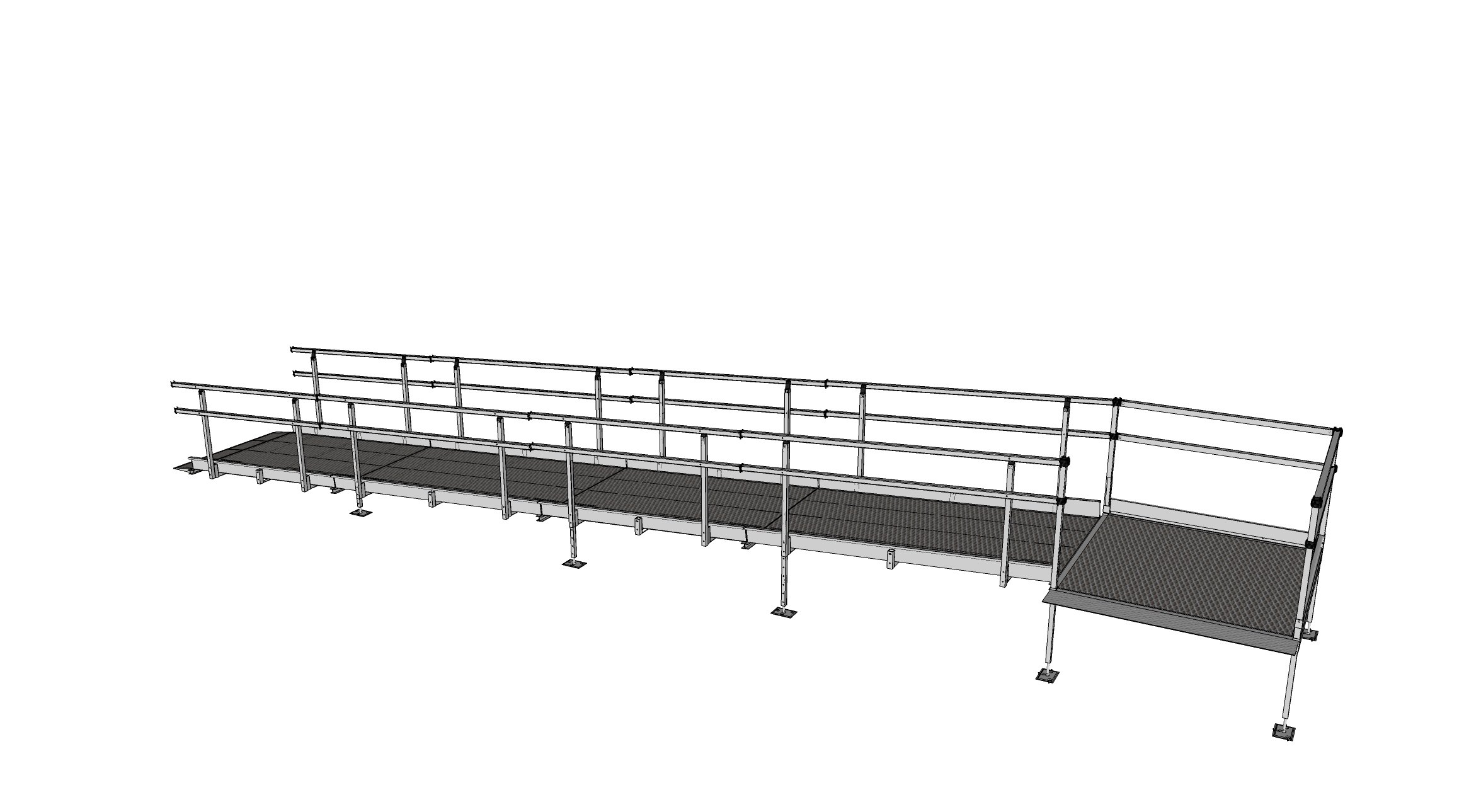

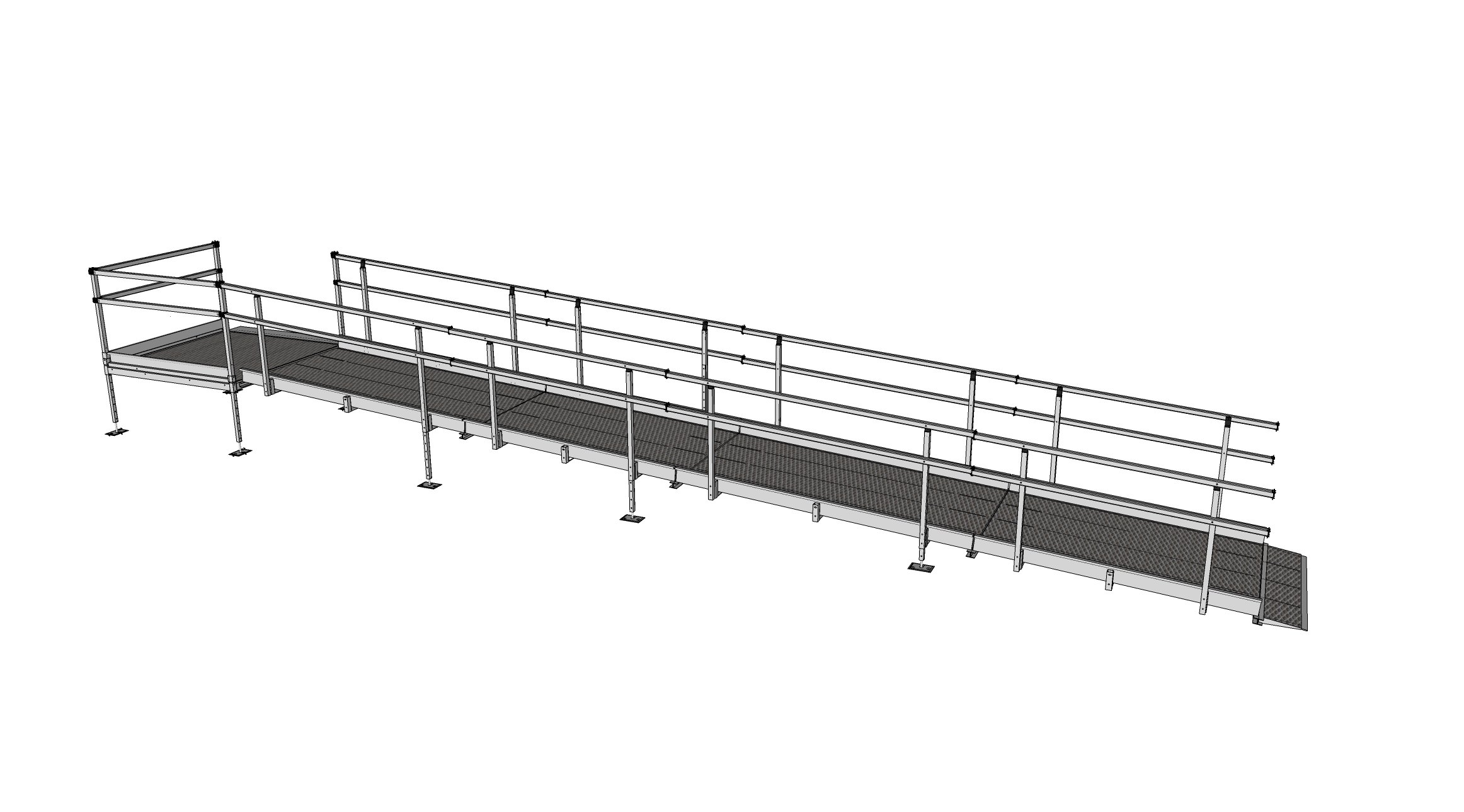

Modular Kit with Platform and Double Height Handrails (1500mm x 8400mm long)

Modular Ramp System, 8400mm long plus 300mm lead in ramp, 1500mm wide, internal width 1276mm, with double height handrails, platform and mesh anti-slip surface.
Capacity (kg)200kg / sq. meter
Product Inquiry
  • Customisable
  • Easy to Fit
  • Electric Wheelchair
  • European Made
  • Fixings Included
  • Manual Wheelchair
  • Mobility Scooter
  • Two Year Warranty
  • Leave Outside
€5,590.20 €4,620.00
Built to Order
Talk to The Ramp People's sales team

Modular Wheelchair Ramp Systems - Legal Compliance

These systems are both designed to be portable and temporary.

Modular Ramp Kit, 8400mm long, 1500mm wide, with double height handrails and mesh anti-slip surface.

Kit includes:

  • Lead In Ramp:300mm x 1300mm long
  • Ramp Module incl. Double Height Handrails: 8400mm long x 1500mm wide
  • Platform incl. 2x Double Height Handrails: 1500mm x 1500mm
  • Connection to step/threshold: 220mm deep x 1500mm long; can be ordered cut to size if required. The necessary door measurements can be found here.

All instructions and a video for assembling the system can be found here.

SKU TRP-MS1500-8400
Capacity (kg) 200kg / sq. meter
Two Year Warranty Yes
Customisable Yes
Easy to Fit Yes
Electric Wheelchair Yes
European Made Yes
Manual Wheelchair Yes
Mobility Scooter Friendly Yes
Leave Outside Yes
