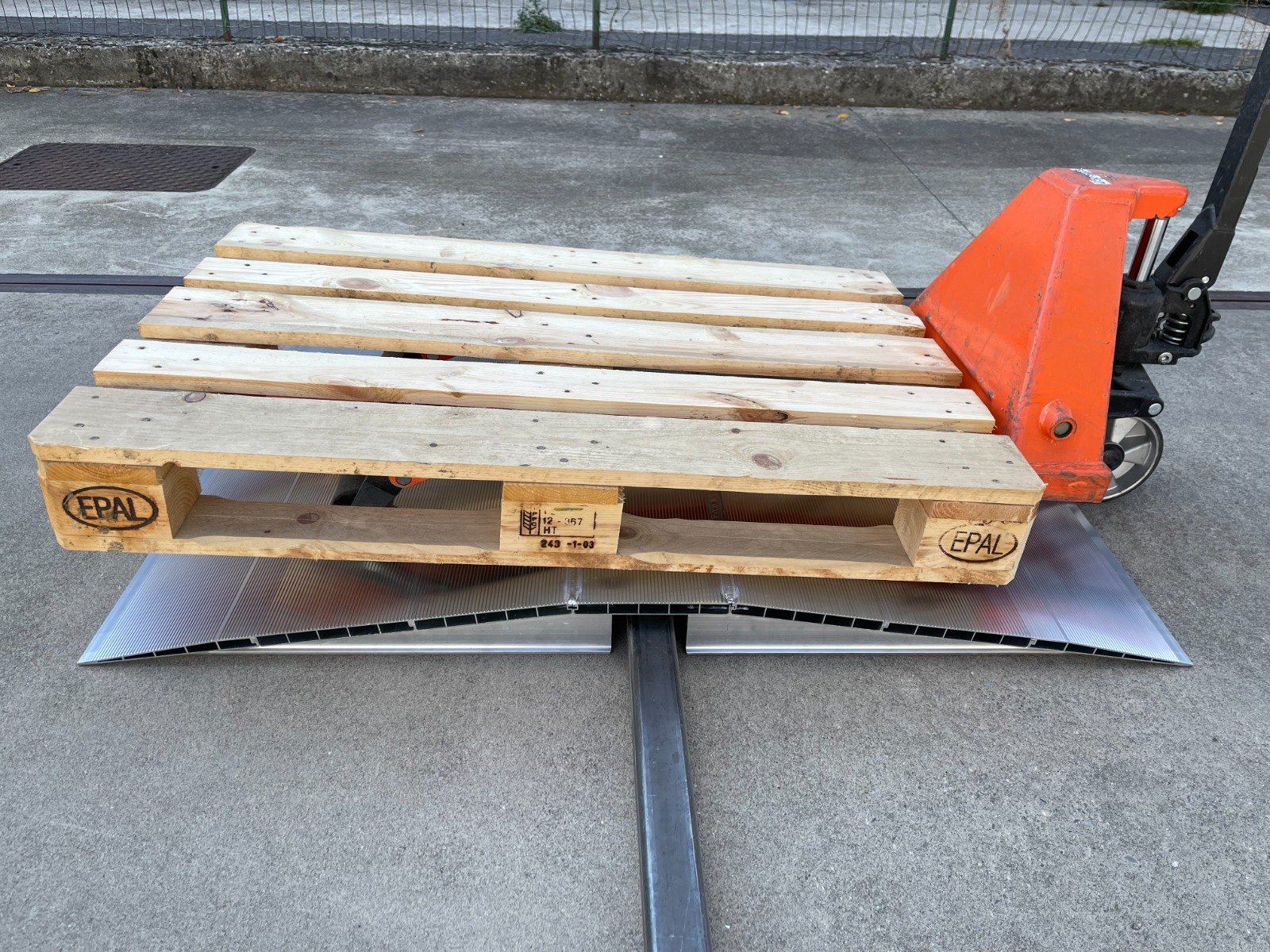

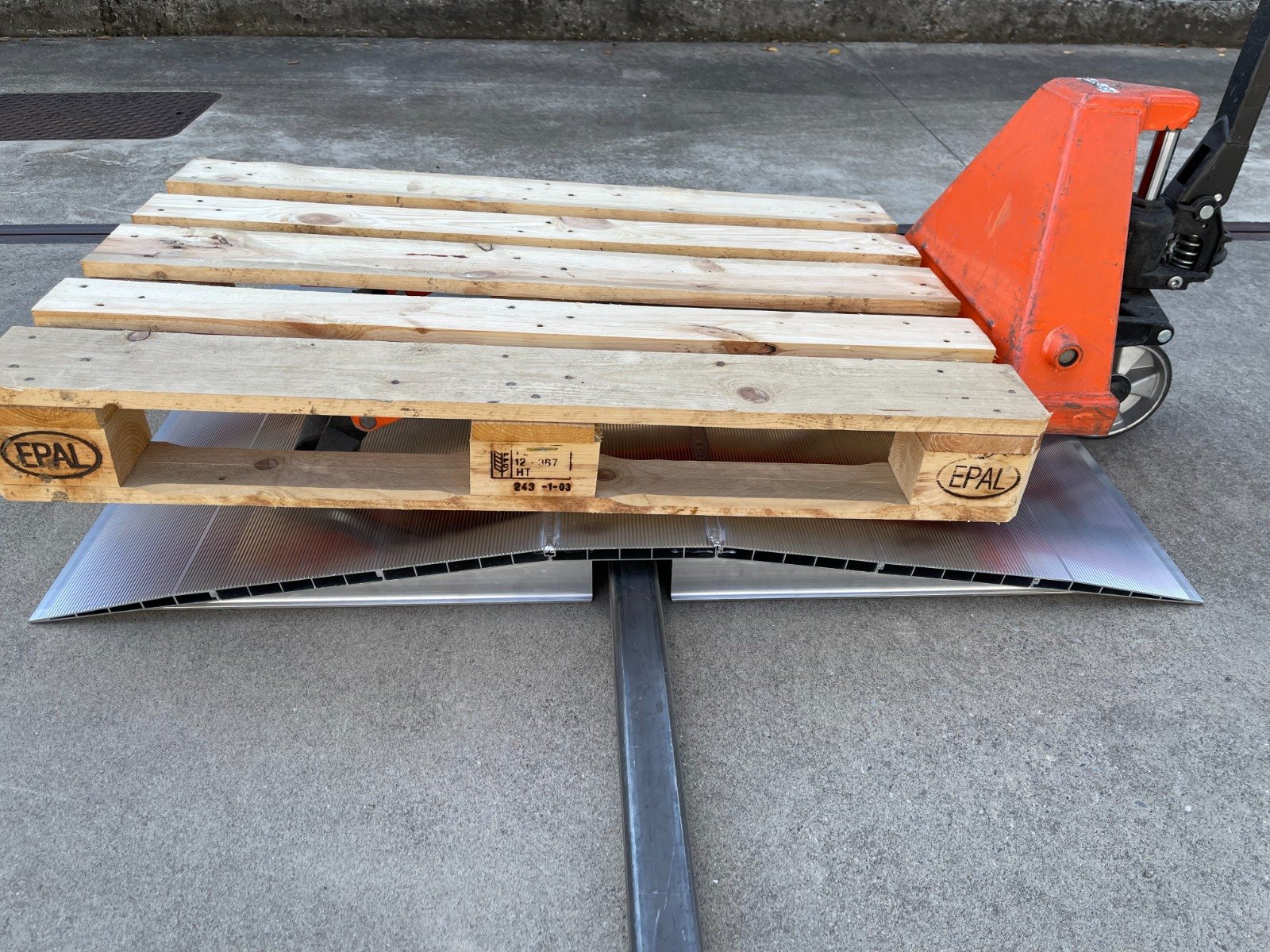

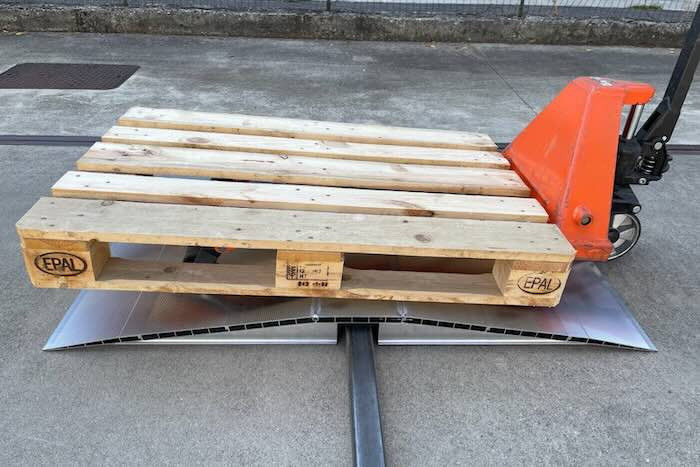

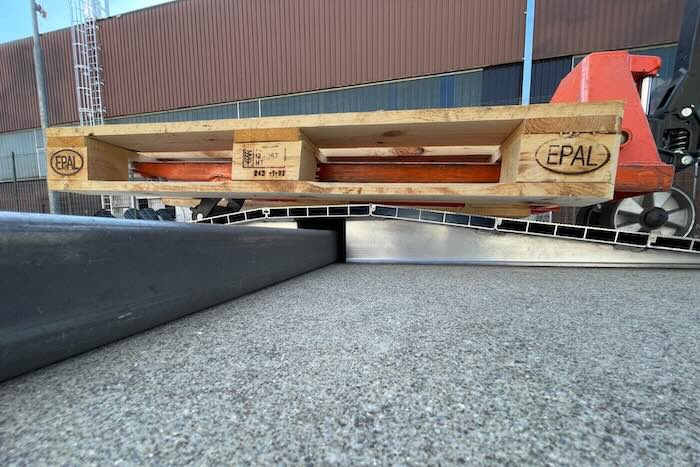

This aluminium bridge ramp is designed to allow trolleys and pallet trucks to easily overcome obstacles with heights up to 80mm. No installation is required, simply rest this bridge ramp in place and start loading. 1000kg capacity.
Loading Bridge Ramp
Length (mm)
1450
Width (mm)
950
Height (mm)
85
Weight (kg)
19
Capacity (kg)
1000
Ramp Length & Load Height
This guide should help you gauge how long a ramp you require, so if you're in any doubt read the details below. If you still have questions after reading, feel free to give us a call. The crucial thing to know is your load height.
Load Height: this is the vertical measurement from the ground to where you rest the ramp onto.
Guide to the maximum load height is shown in the product description/table, please note the minimum Load Height will be 5% below the maximum height stated on the ramp, to calculate use (maximum load height - 5% = minimum load height).
For vehicle ramps EU guidelines recommend that no ramps with a gradient greater than 30% or 1:3.3 should be used. Essentially the load heightx 3.3,gives you your ramp length. Furthermore no TUV Certified Ramp is designed to exceed this gradient. Going over this gradient is can cause accident, injury or death and may invalidate the warranty.
For loading vehicles with Low ground clearance and Front and/or Rear overhang a gentler gradient is recommended (this will vary depending upon the vehicle)
Capacity & Wheelbase Info
What is the wheelbase? - Wheelbase is the distance between the front and the back wheels.
Our loading ramps are usually safety tested and certified for three different length wheelbases. This is because the length of the wheelbase effects the spread of the weight applied to the ramps. The smaller the wheel base the more focused the load & therefore the less capacity the ramps can take.
The same applies with the width of the tyre or track which is why we list a ‘minimum track width’ within each product specification. We recommend reading the safety information supplied with the ramps before use to be sure the set supplied are suitable for your application.
Usage Guidelines and Safety Information for these ramps can be found here.
Customisable
Easy to Fit
European Made
One Year Warranty
Description

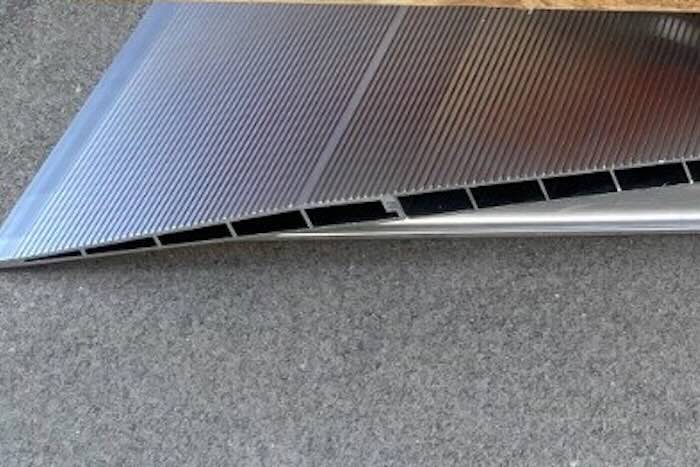

Non-slip aluminium surface
1450mm x 950mm x 85mm
The depth of the central section is 100mm
Lightweight, easily move when required
Portable, no installation required simply rest in place
Customisable to your requirements, for example, this can be customised to provide a 2000kg capacity or can be produced in different sizes

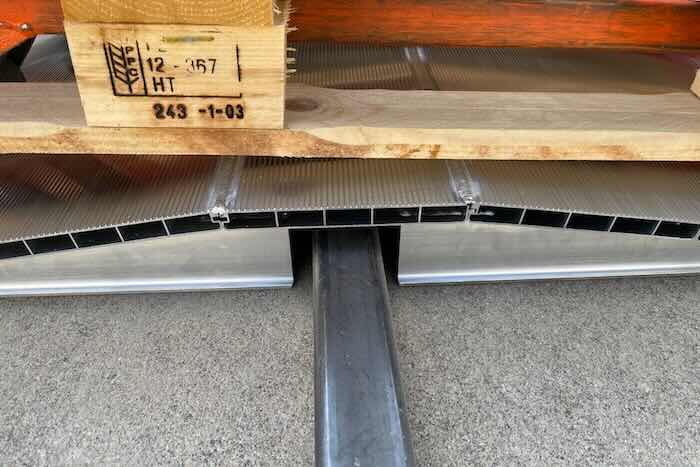

Suitable for allowing trolleys and pallet trucks to overcome obstacles such as pipes and cables on the floor
Perfect for use on commercial sites and in warehouses
