Hose Protector (850mm long x 300mm wide x 90mm high)

SKU
TRP-HR-3

Rubber Hose Protectors with the dimensions: 850mm long x 300mm width x 90mm high

  • Bulk Prices
  • Easy to Fit
  • High Visability
  • One Year Warranty
  • Leave Outside
Description

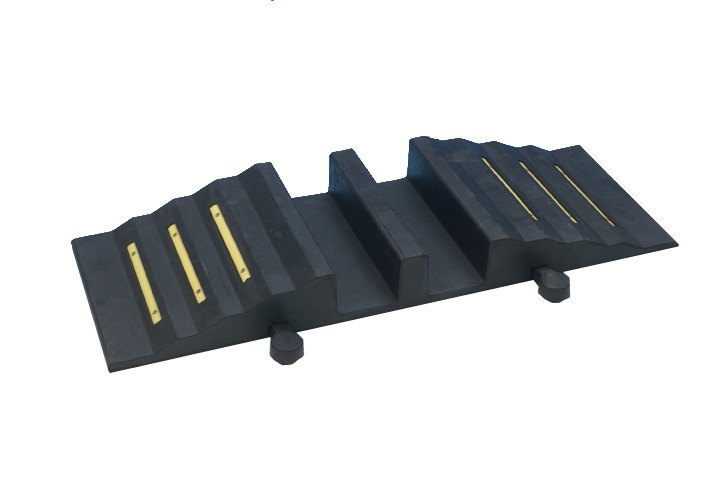

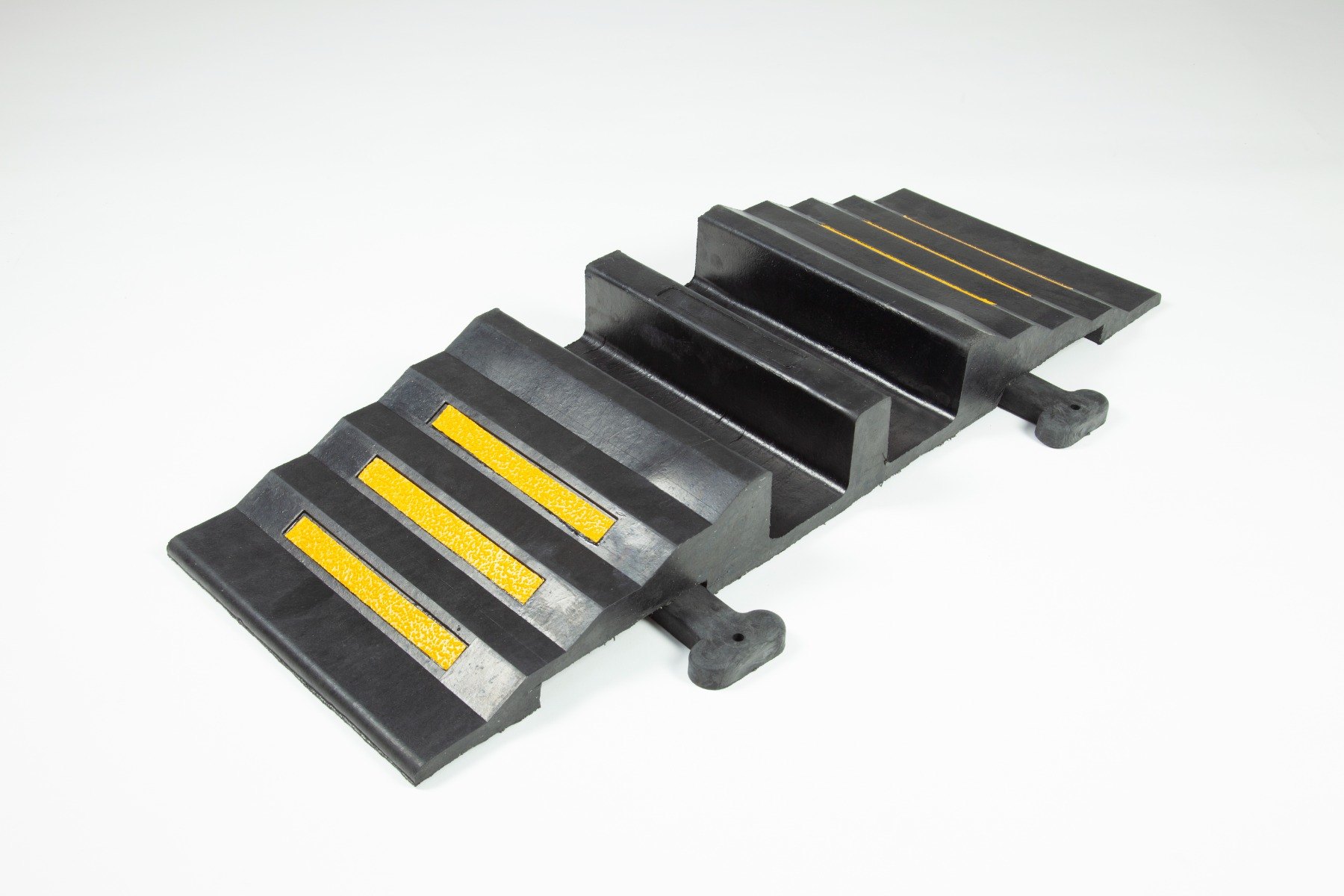

TRP-HR series hose ramps allow vehicles weighing up to 20,000kg per axle to safely and smoothly transition over two master stream or supply lines. The hose protector ramp directs vehicle tires over the hose line to a center support, then over the second hose line back to the road surface. Each hose ramp can be placed side by side and fixed together with the included connectors, perfect for protecting longer sections of hose. Includes integrated safety yellow reflective strips on both sides for either approach. Ideal for fire engines and fire protection vehicles with supply lines or master stream systems in high traffic areas.

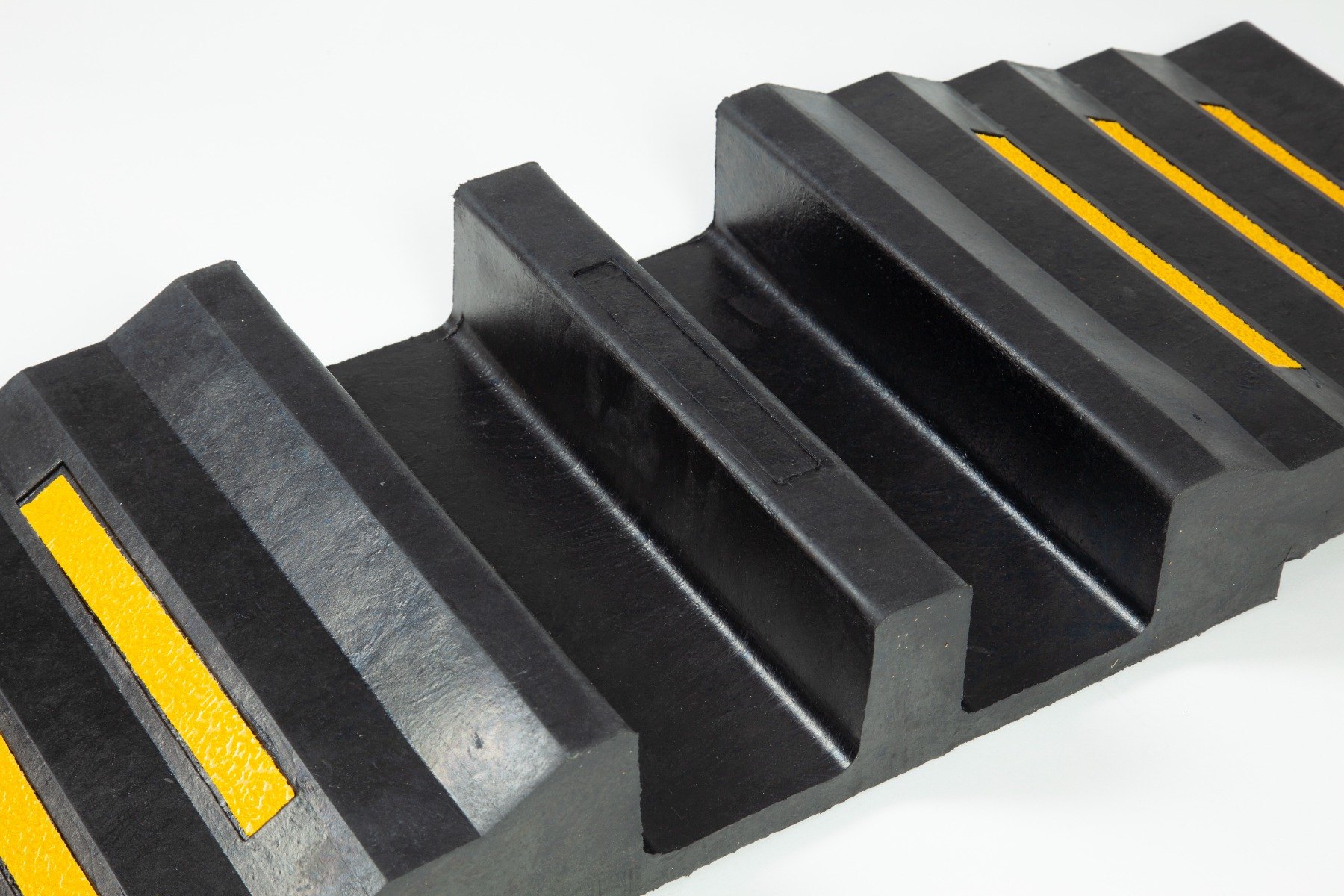

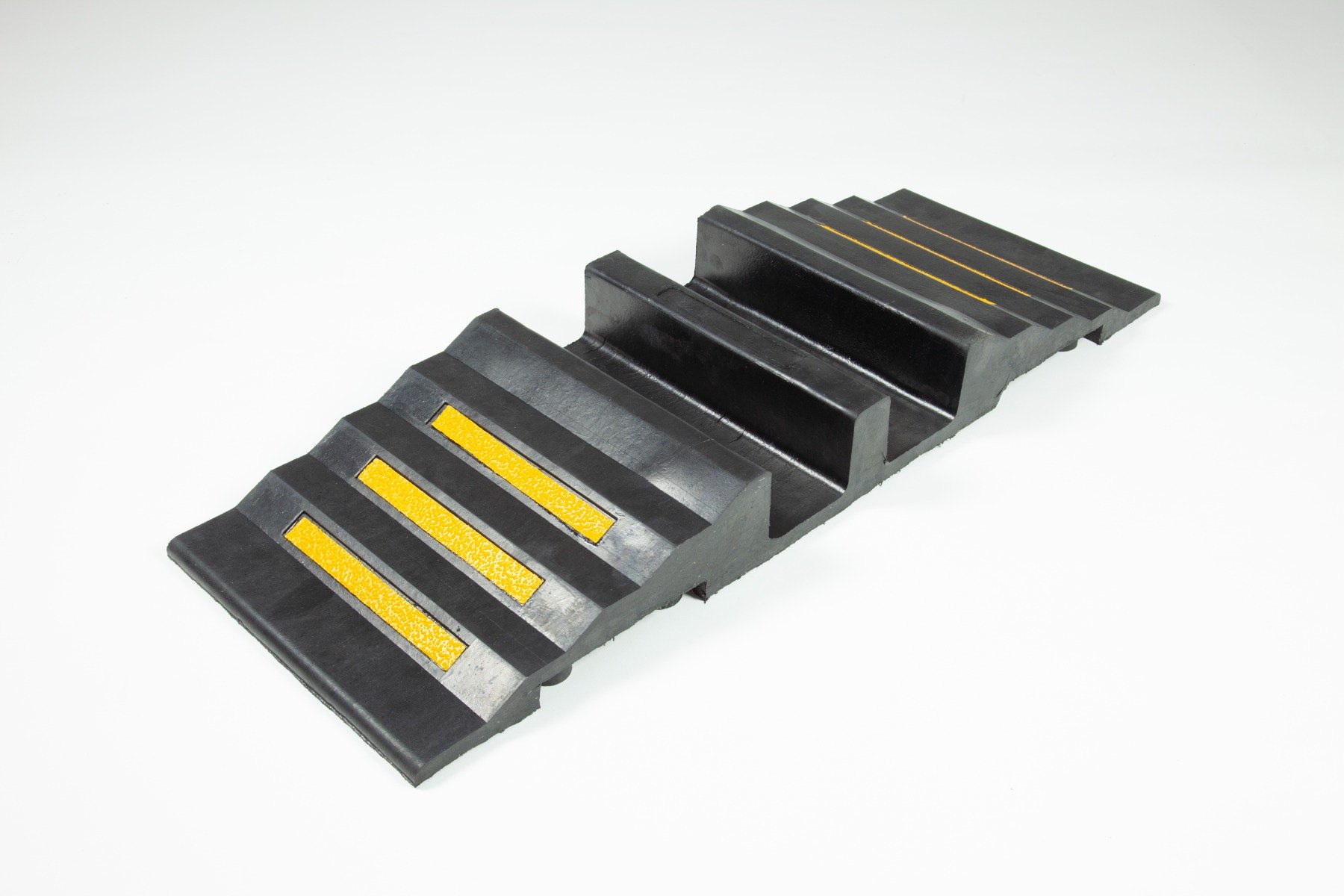

  • Dual supply line channels

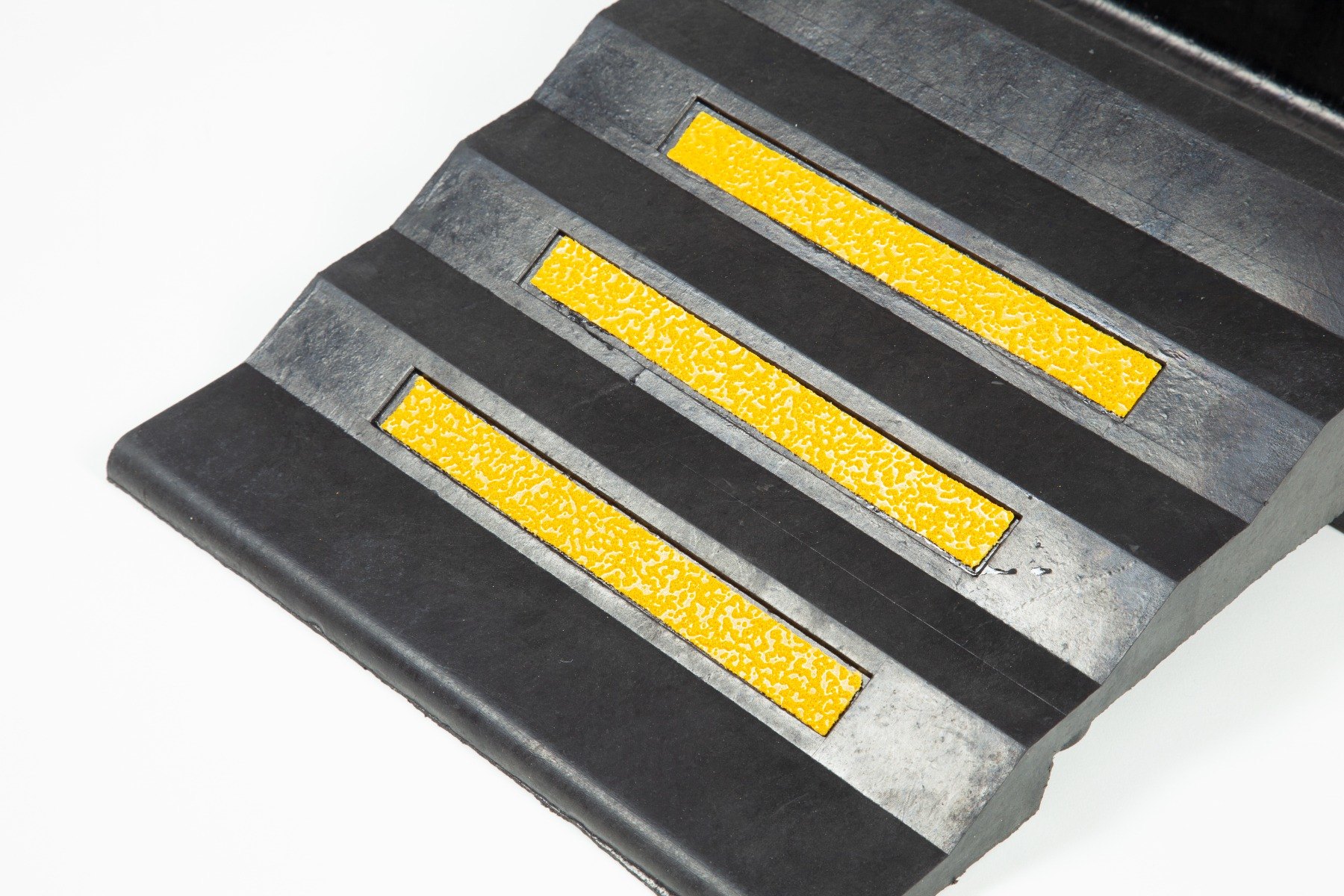

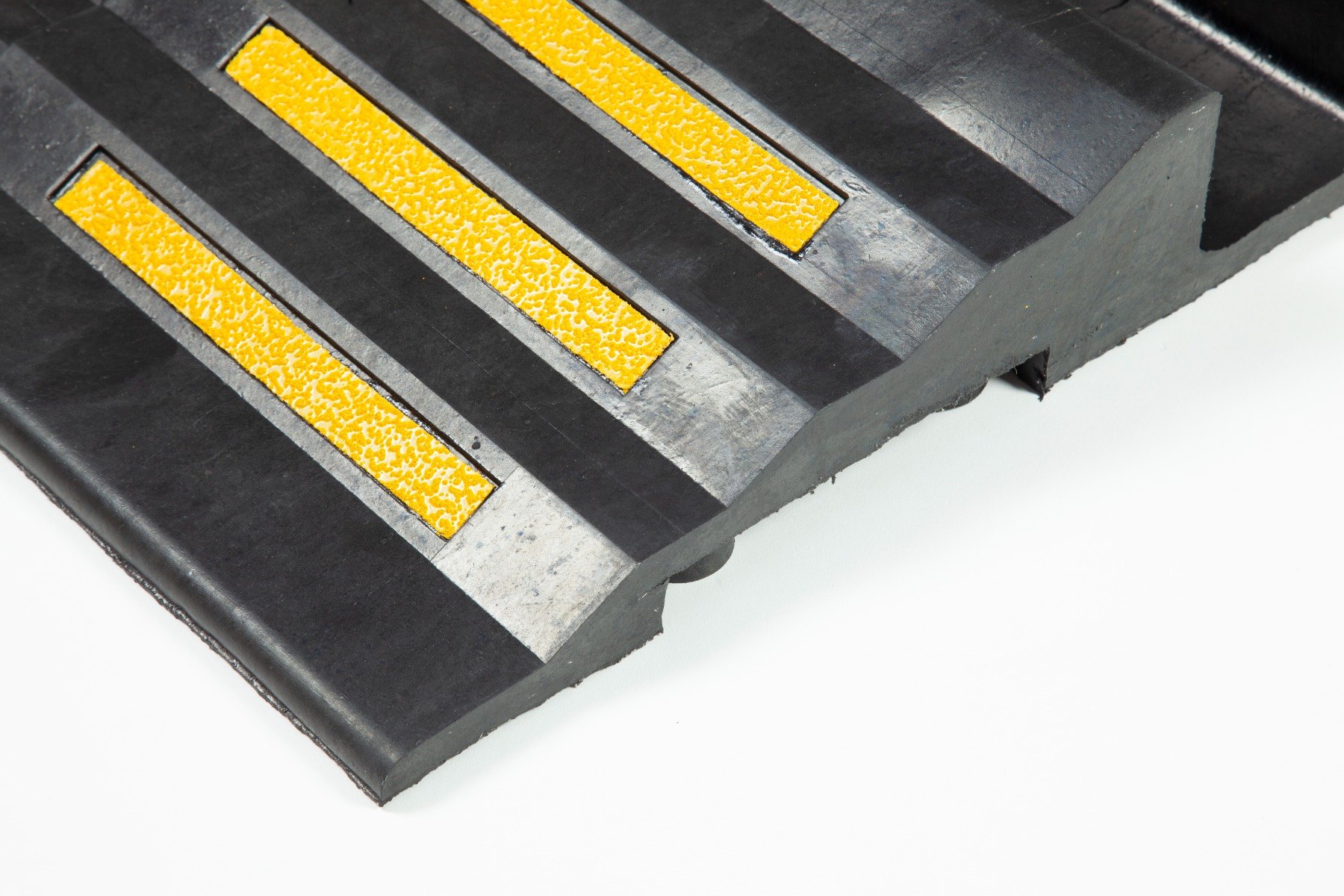

  • Integrated safety yellow reflective strips
  • Industrial strength thermoplastic rubber bridge design
  • Huge 20,000 kg per axle capacity is perfect for fire truck applications

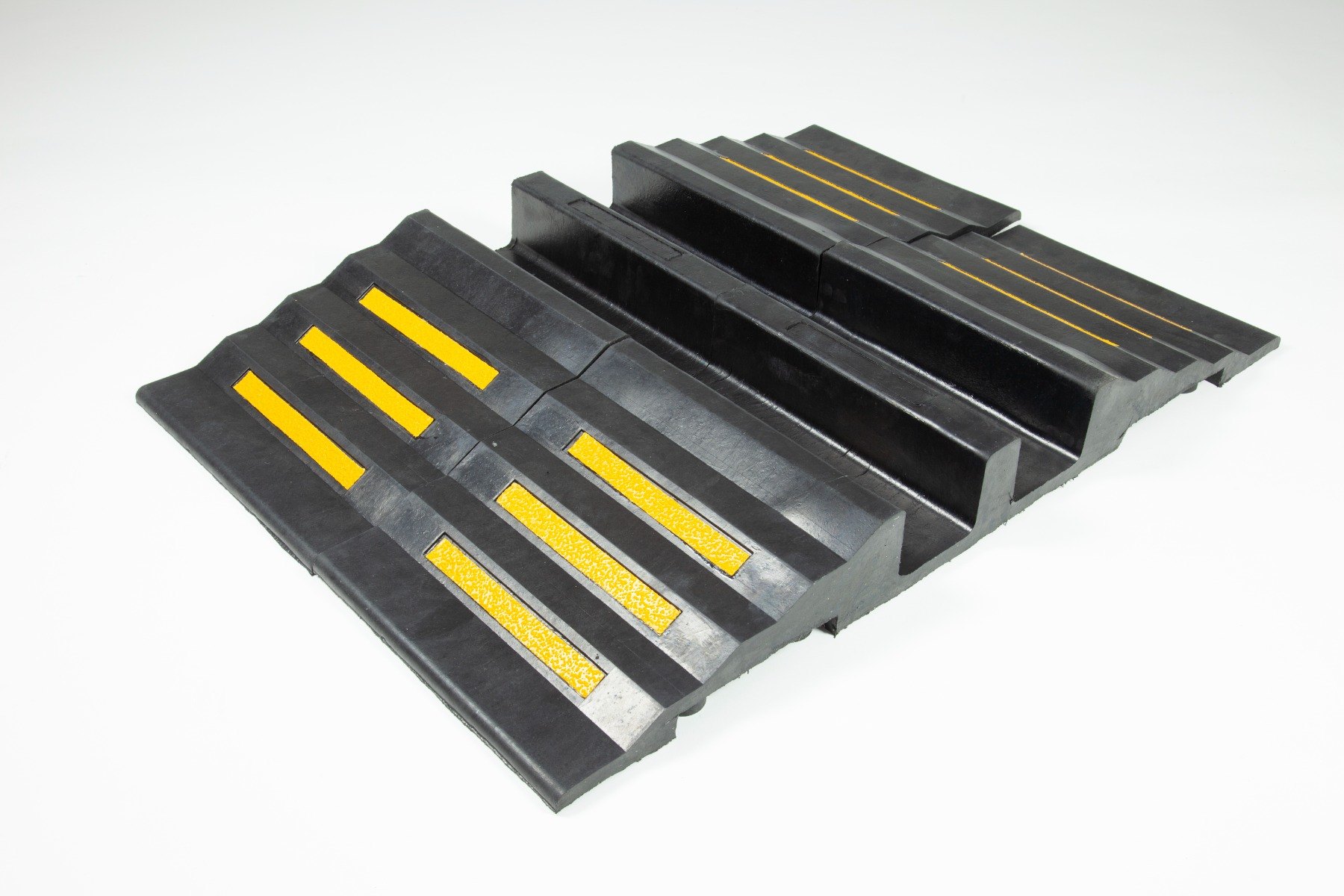

  • Place hose protector ramps side by side to protect wider lengths of hose
  • Ramp connectors have 2 pre-drilled holes for permanent mounting
  • Great for outdoor and indoor use
  • Maximum speed 8km/h / 5mph
  • Includes 2 connectors for securing multiple ramps together
  • All pictures shown are for illustration purpose only. Actual product may vary due to product enhancement

Please note, when specifying the required hose protector, we recommend selecting the lowest possible height to ensure maximum clearance for the greatest number of vehicles.

Specifications
Units:
SKUTRP-HR-3 TRP-HR-3
Capacity (kg)20,000 44,0
Height (mm)90 3.54
Length (mm)300 11.81
Weight (kg)12 26.46
Width (mm)850 33.46
One Year WarrantyYes 1
Bulk Prices AvailableYes 1
Easy to FitYes 1
High VisabilityYes 1
Leave OutsideYes 1
Channel Width (mm)90 3.54

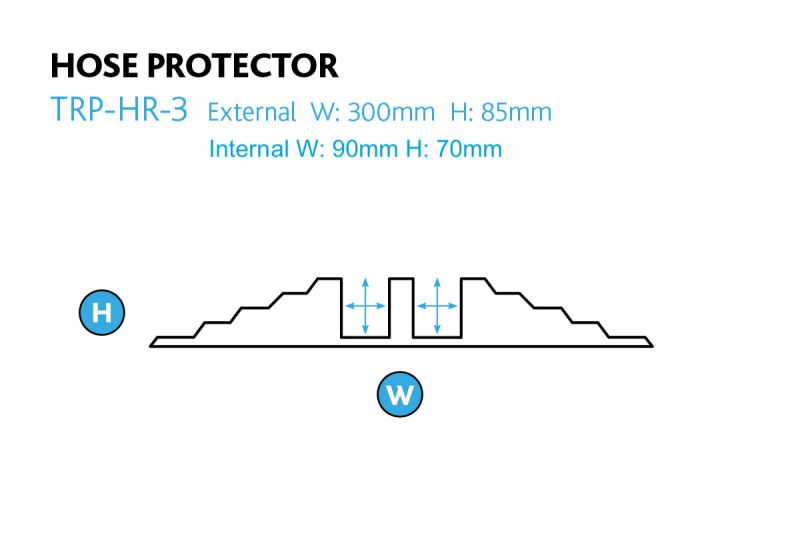

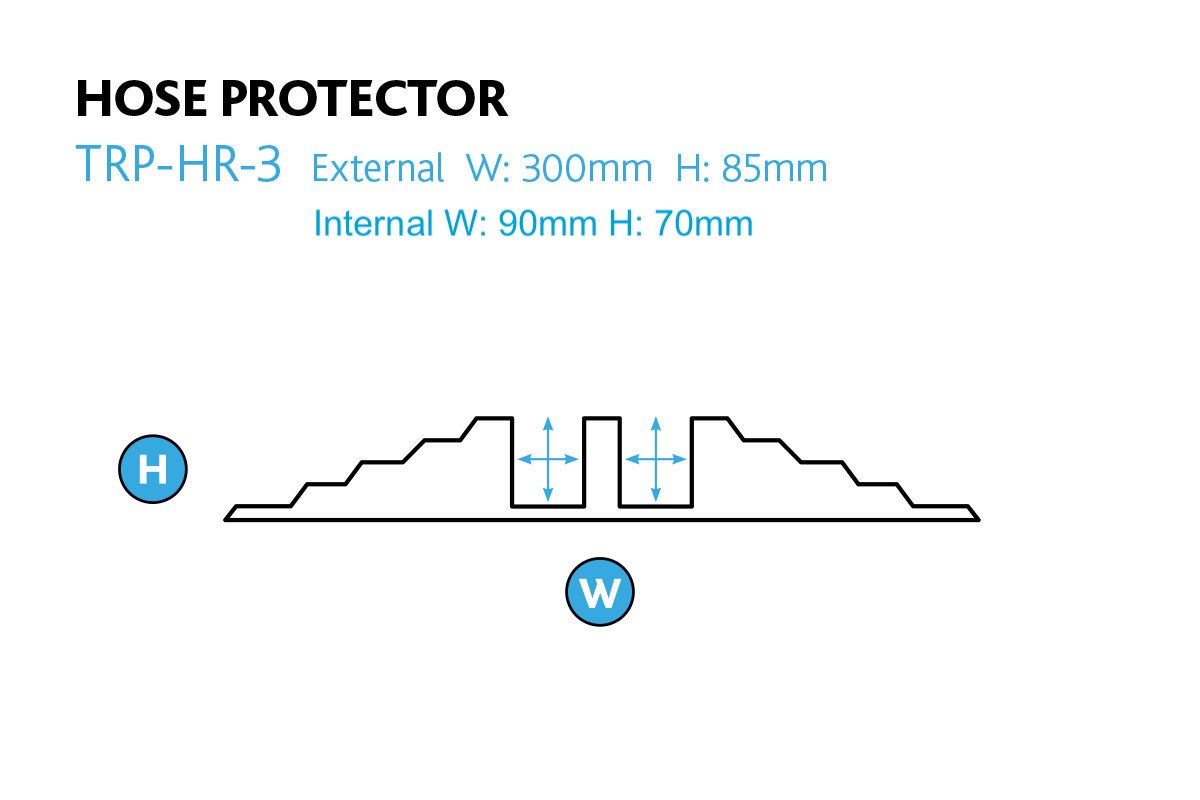

Channel Size (mm)70mm x 90mm 2.76 x 3.54
Channel Height (mm)70 2.76
No. Channels2 2
Capacity per Axle (kg)20000 20000
Colour OptionBlack 710
Product Questions
Do The Ramp People offer discounts for those ordering in bulk?
Yes, we can offer discounts for bulk orders. Please contact our team with your specific requirements for a customised quote.
Are The Ramp People's Hose Protectors suitable for HGV vehicles to pass over?
With a 20,000kg capacity the Hose Protectors are suitable for most HGVs travelling at a maximum speed of 5mph.
How do The Ramp People's Hose Protectors connect together?

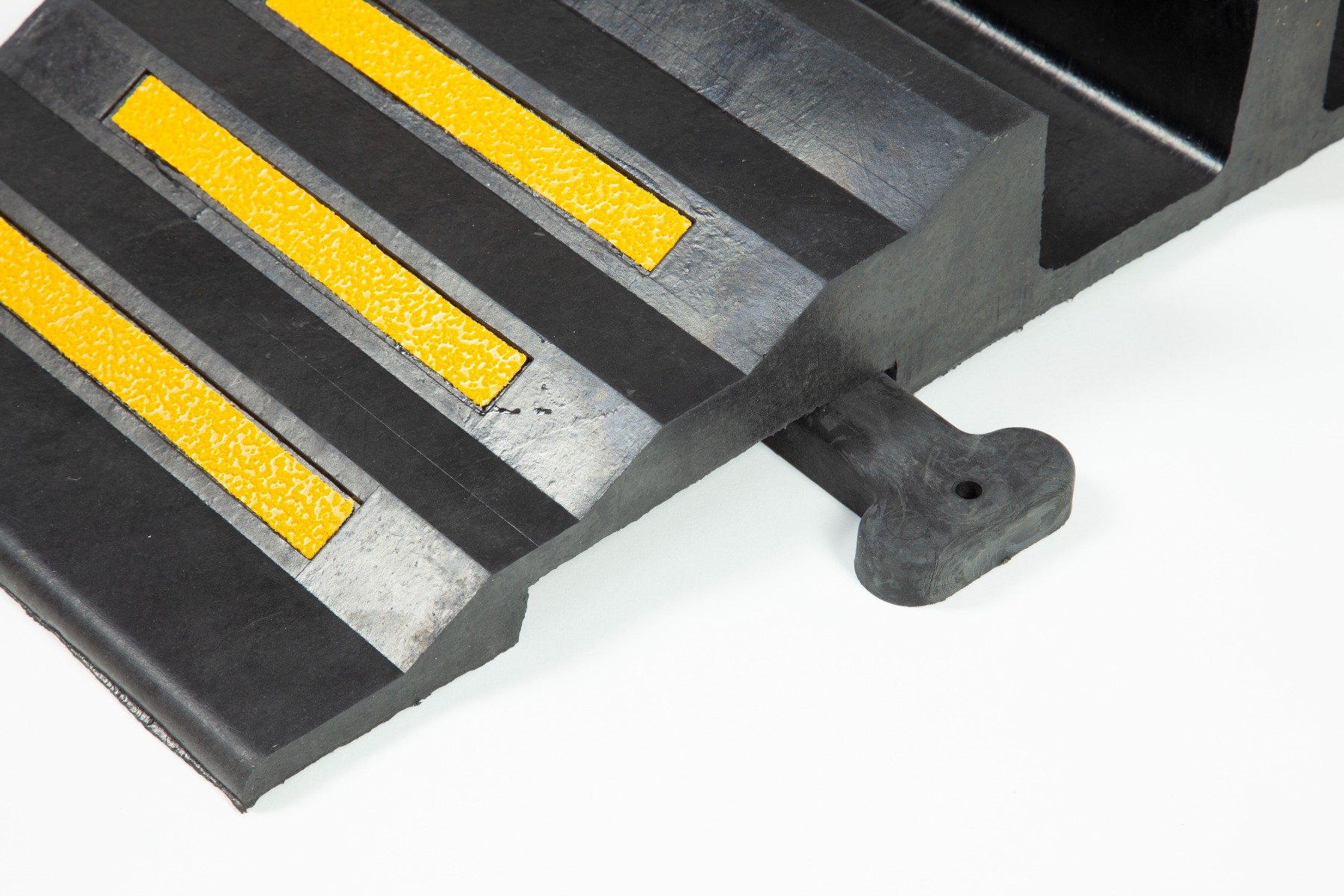

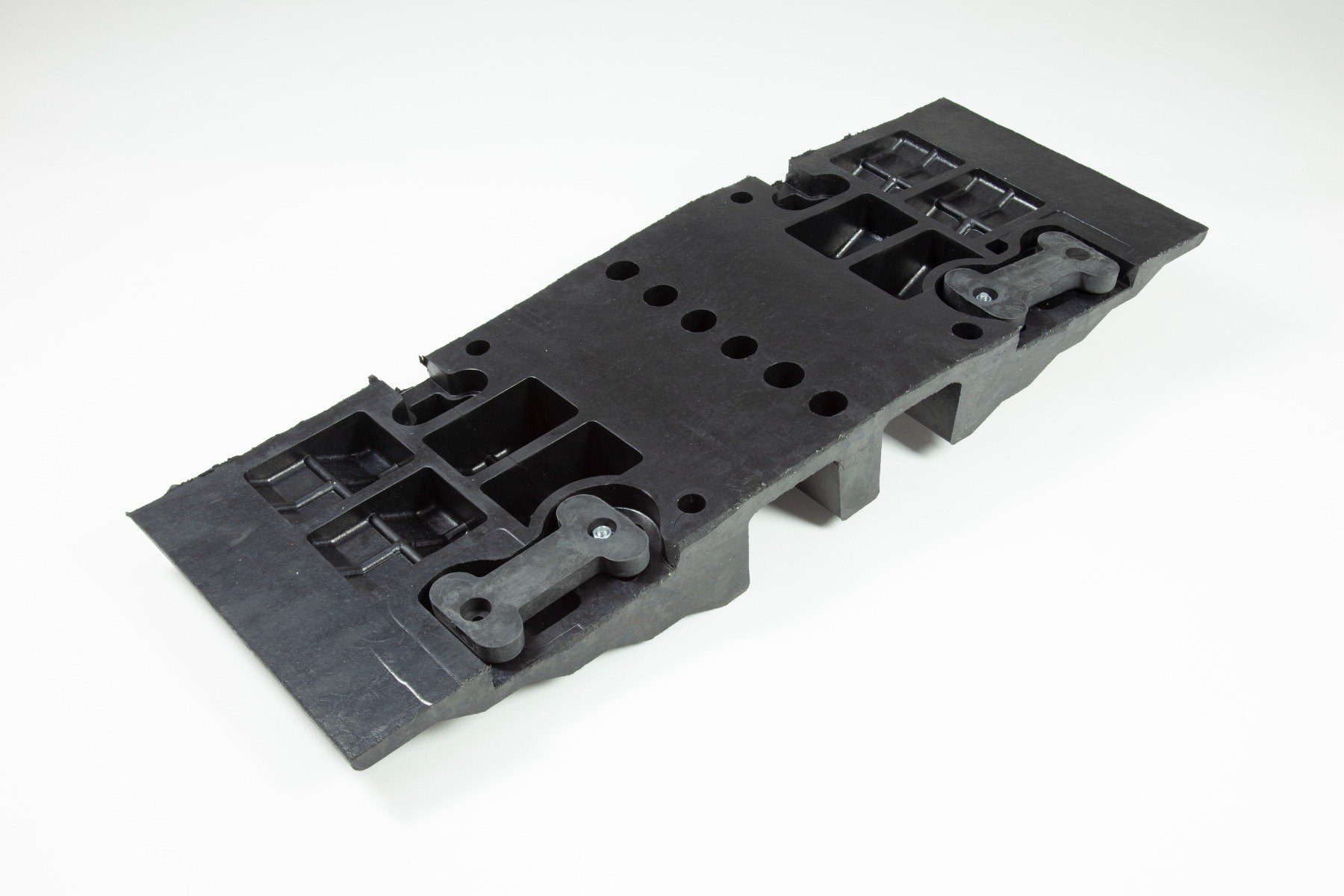

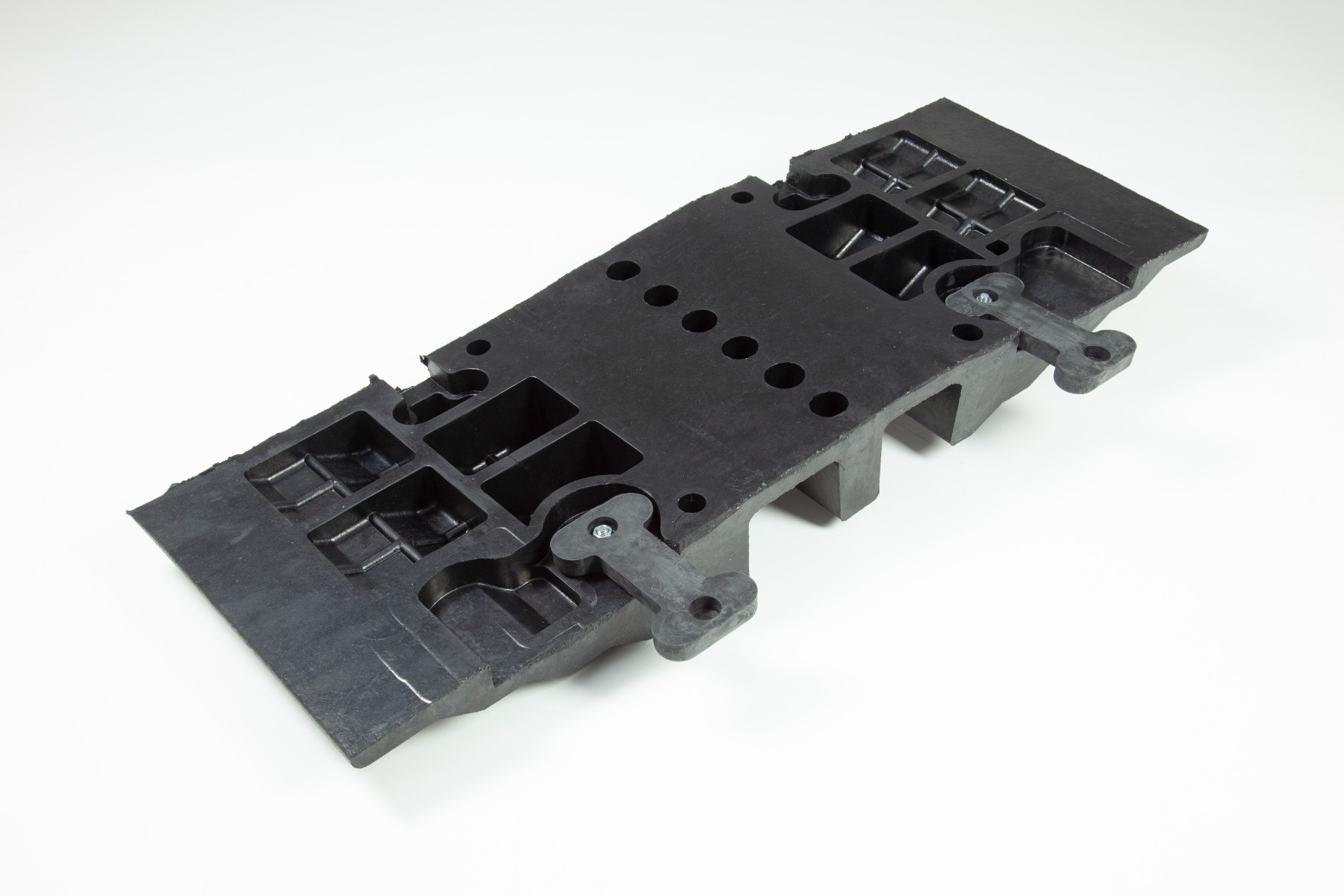

Bone connectors are provided to connect the Hose Protectors together. Please scroll through the images for further information.
Can The Ramp People's Hose Protectors be secured to the ground?
These hose protectors are designed as portable hose ramps so are not provided with fixing points to secure them to the ground. The weight of the hose ramps keep them securely in place.
