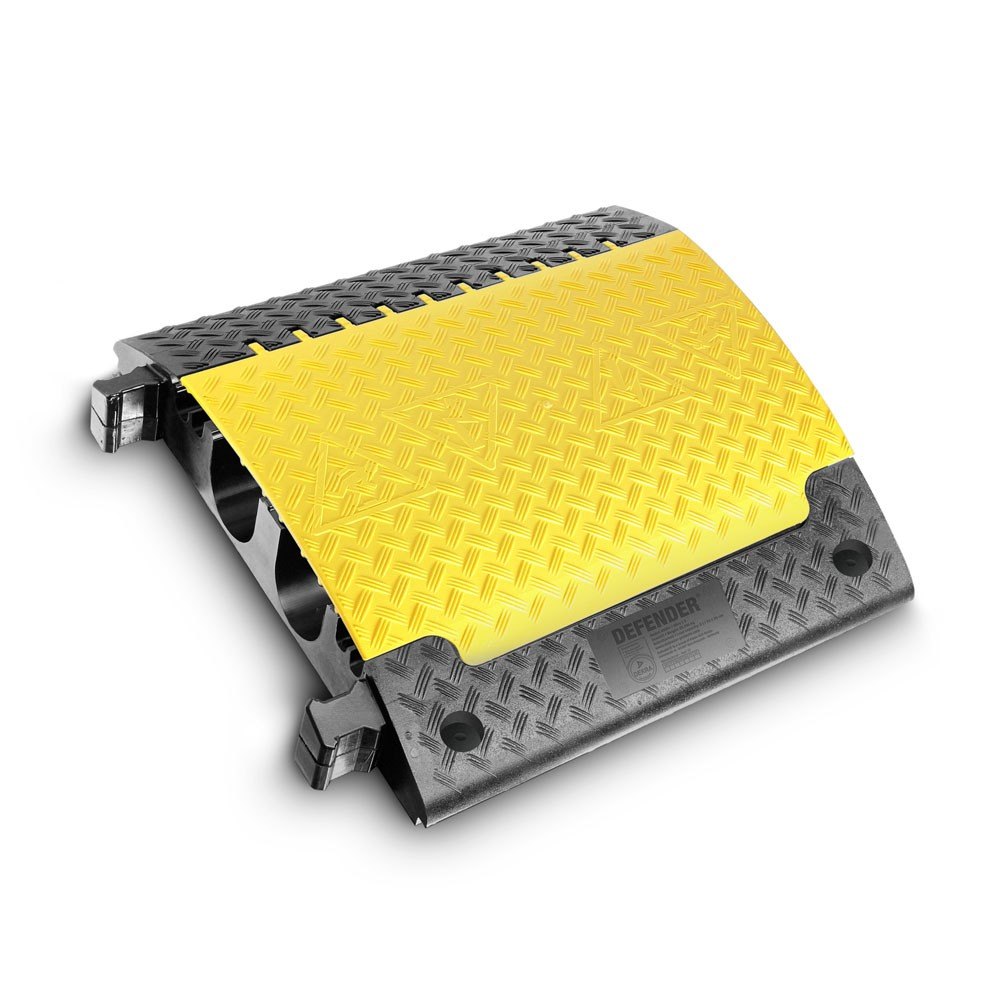

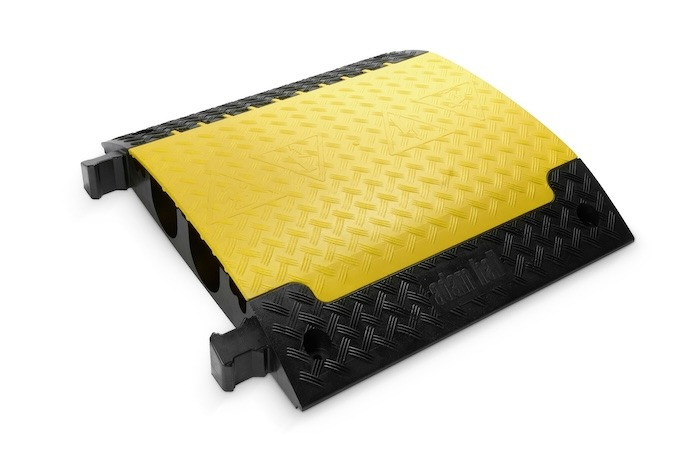

Defender Ultra L 2 Cable Protector

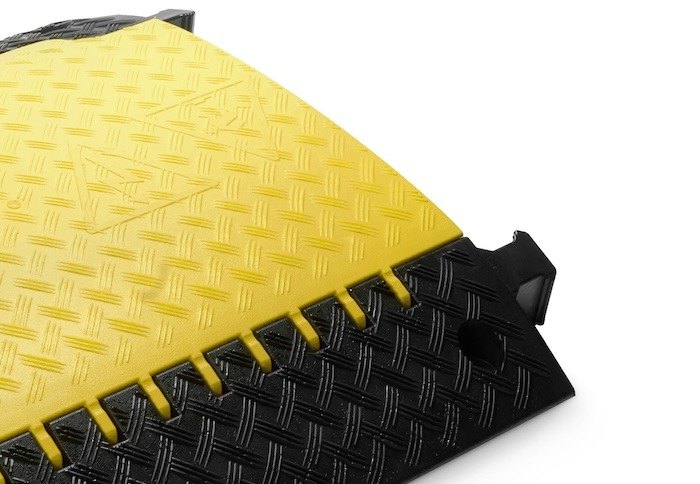

The heavy duty Defender Ultra L cable protector from Adam Hall includes two extra large cable channels for cable sizes of up to 108mm x 110mm. In addition the cable protector includes four channels with a diameter of 25mm. The cable protector has a capacity of 5 tons on a 20cm x 20cm surface and therefore suitable for pedestrian and vehicle use. The cable protector includes fixation holes to allow the cable protector to be secured to the street if required.

Length (mm)700
Width (mm)766
Height (mm)122
Weight (kg)27.13
Capacity (kg)5,000kg per 20cm x 20cm surface area
Product Inquiry
  • Bolt Down
  • Easy to Fit
  • One Year Warranty
  • Leave Outside
€474.32 €392.00
SKU
TRP-85601
5-9 working days
Talk to The Ramp People's sales team

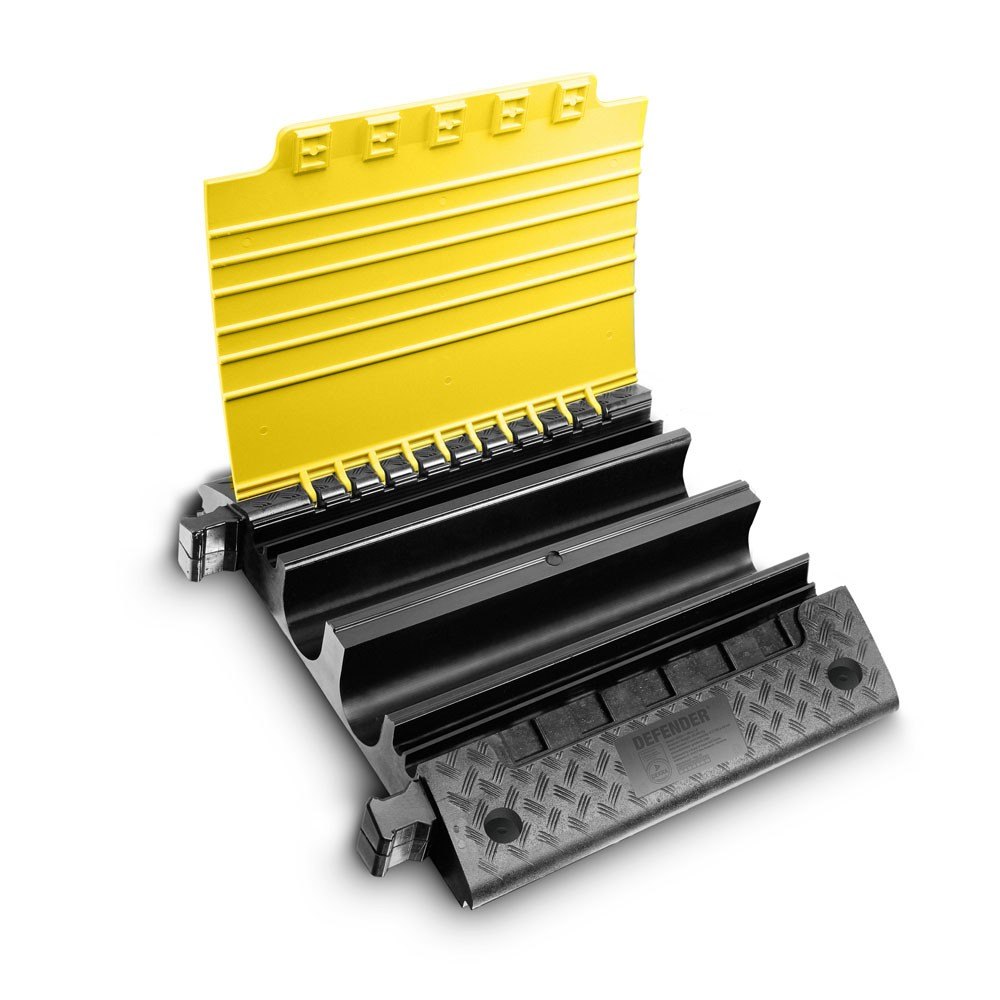

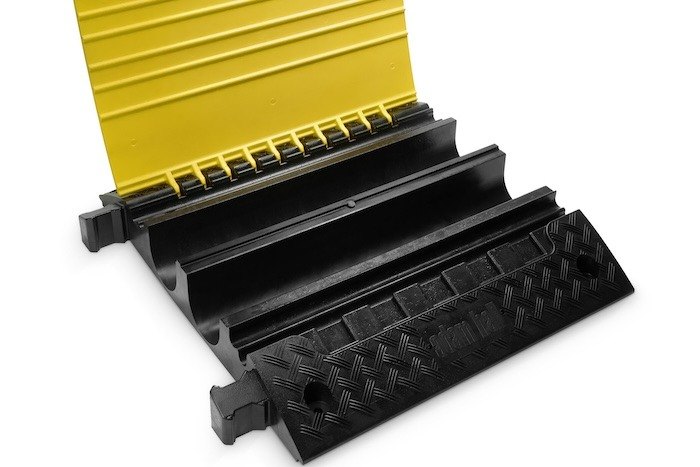

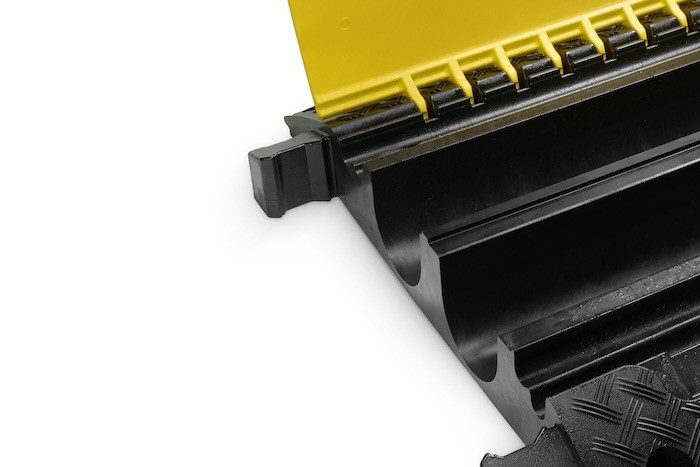

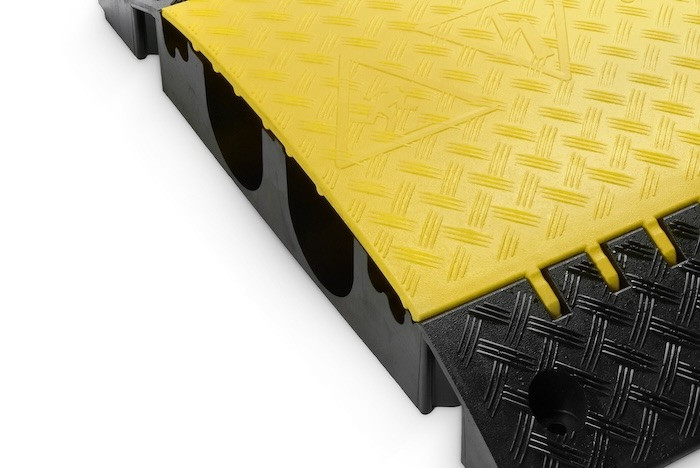

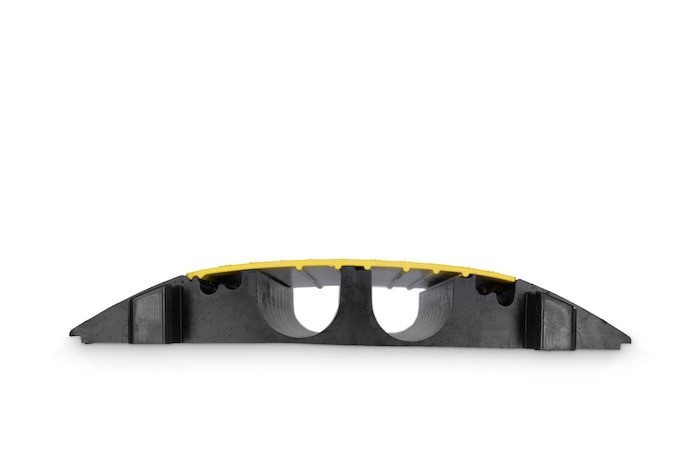

  • 6 channels: 2 channels 108mm x 110mm, 4 channels, 25mm in diameter

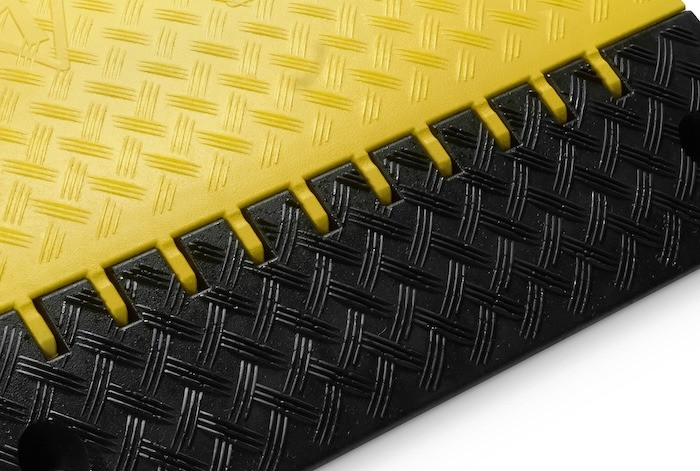

  • Self-cleaning, non-slip lidmaker hinge
  • Fire resistance class B2 (DIN 4102), DEKRA-certified (DIN 31000, EN 61537)
  • Resistant to oil, acids, solvents, and petrol
  • Suitable for internal and external use
  • 4 fixation holes for street mounting
  • Made from recyclable polyurethane
  • Two channels are suitable for A-suction hoses and multipin connectors
  • Suitable for vehicle and pedestrian traffic with a capacity of 20 ton on a 20cm x 20cm surface area
  • All pictures shown are for illustration purpose only. Actual product may vary due to product enhancement
SKU TRP-85601
Capacity (kg) 5,000kg per 20cm x 20cm surface area
Height (mm) 122
Length (mm) 700
Weight (kg) 27.13
Width (mm) 766
Safety Standard DEKRA certified (DIN 31000, EN 61537)
One Year Warranty Yes
Bolt Down Yes
Easy to Fit Yes
Leave Outside Yes
Channel Size (mm) Four channels: 25mm x 25mm Two channels: 108mm x 110mm
No. Channels 6
Operating Temperature (deg. F) -22 - 140
