Vehicle Gangway (2260mm long, 1000mm wide, 4500kg)

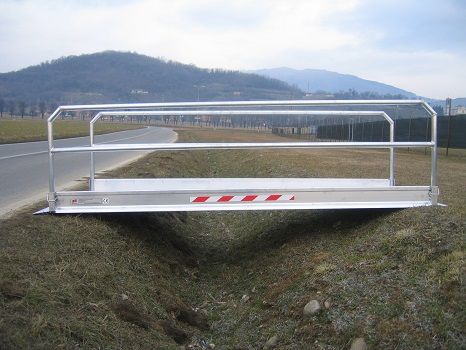

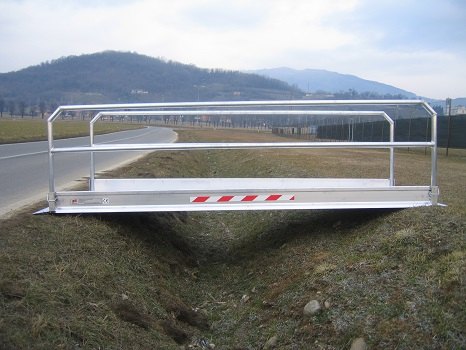

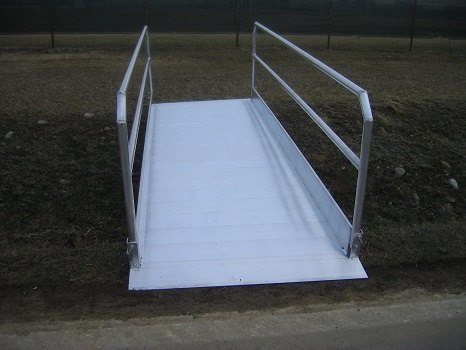

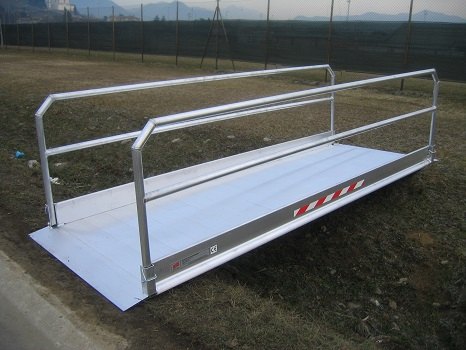

Aluminium vehicle gangway provided with a non-slip surface and handrails. The gangway provides a safe solution for pedestrians and vehicles, including tracked vehicles, to overcome architectural barriers, such as trenches and streams.
Length (mm)2260
Weight Per Ramp (kg)62
Capacity (kg)4500

Got a question?

Product: Vehicle Gangway (2260mm long, 1000mm wide, 4500kg)
SKU: TRP-VG22/10

  • Easy to Fit
  • One Year Warranty
  • Leave Outside
€1,291.50 €1,050.00
Built to Order
TRP-VG22/10
Talk to The Ramp People's sales team

TRP Vehicle Gangway features include:

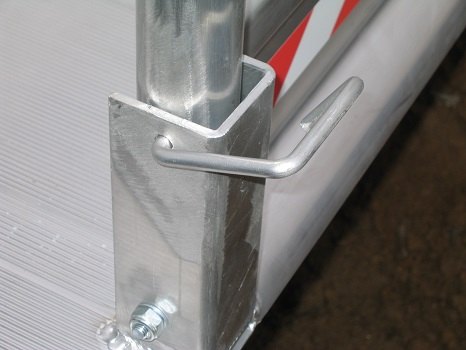

  • Rest on connections - simply put ramp in place and start using it

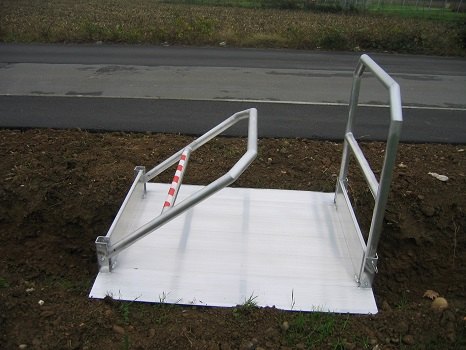

  • Foldable edges to reduce ramp size during transportation
  • 200mm high footstops
  • Ergonomic handrails 1018mm high

For safety remember:

  • Do not exceed a maximum gradient of 5%
  • There must be a minimum rest of 330mm on both sides of the walkway
  • Minimum rubber footprint 200mm x 200mm
  • Maximum distribution of load on vehicle axles should be between 40% and 60%

TUV Certification Image

Usage Guidelines and Safety Information for these ramps can be found here

SKU TRP-VG22/10
Capacity (kg) 4500
Capacity for Rubber Tyre Vehicle Width 900mm (kg) 4500
Capacity for Tracked Vehicle Width 750mm (kg) 3000
Internal Width (mm) 1000
Length (mm) 2260
Weight per Ramp (kg) 62
One Year Warranty Yes
Easy to Fit Yes
Leave Outside Yes
External Width (mm) 1120
