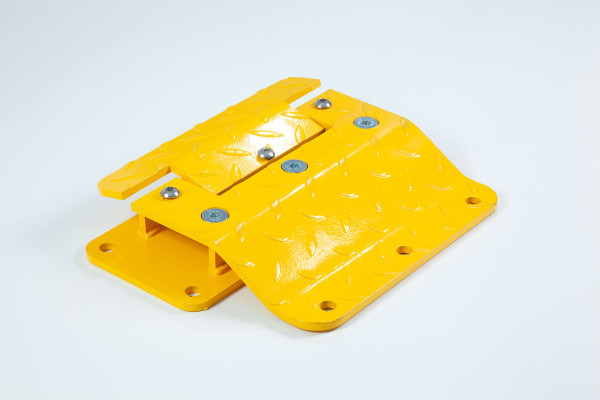

Heavy duty flow plate for one way traffic control

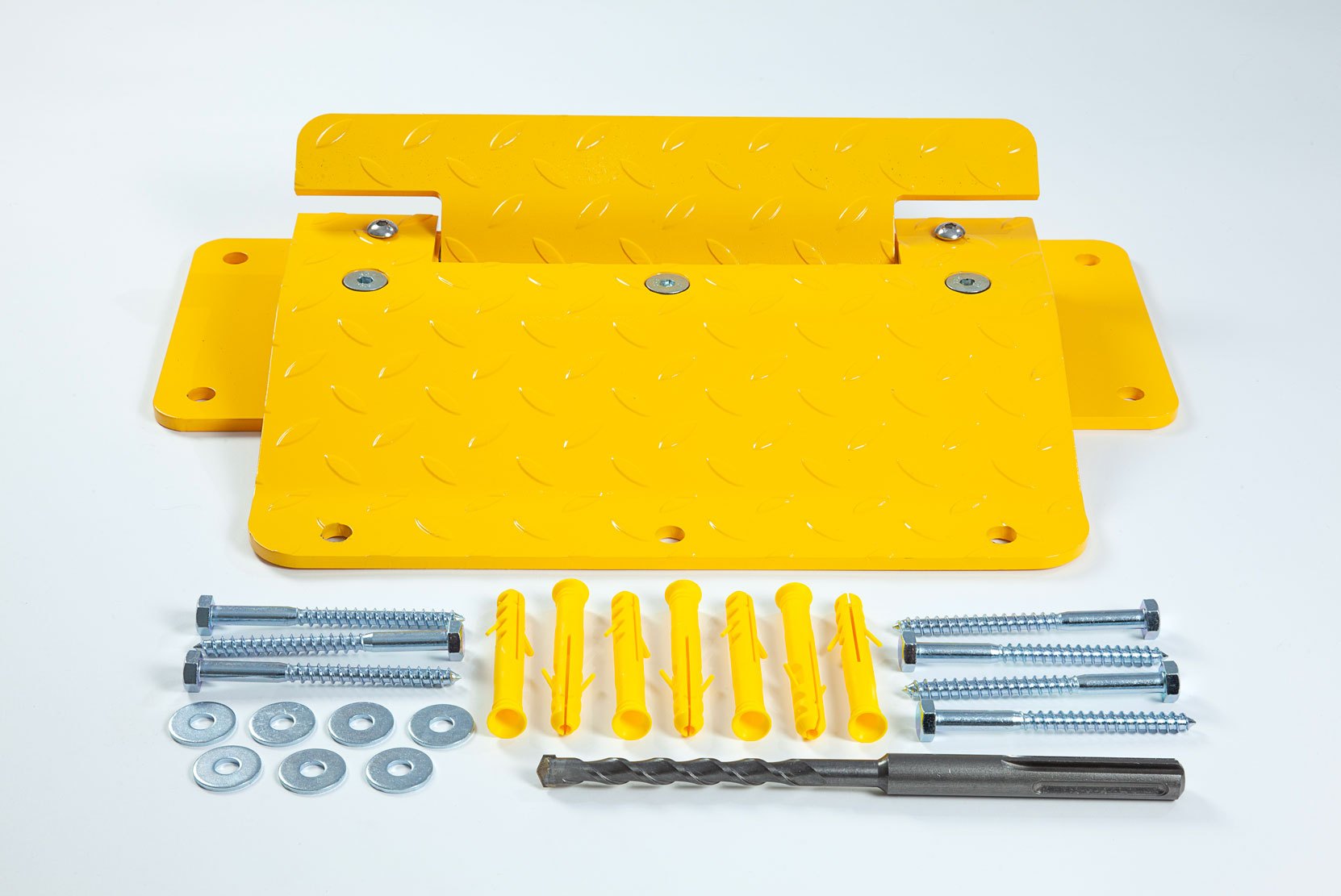

Heavy duty flow plate for one way traffic control Fixings for tarmac and concrete Heavy duty flow plate with fixings for tarmac and concrete and a drill bit One way traffic control plate Traffic management control plate yellow Heavy duty flow plate Heavy duty flow plate with fixing points yellow heavy duty flow plate to slow traffic Heavy duty flow plate speed ramp Heavy duty flow plate one way traffic control

4-10 business days delivery*. Items are shipped from the UK to Ireland on DAP Incoterms. This means we do not charge Irish VAT but Irish import VAT of 23%, import duty (on some products) and customs charges will be due. These fees will need to be paid to the courier before or after you receive the goods. Learn more.

Products are shipped from our UK Warehouse to Ireland on DDP Incoterms. The price displayed is the total price, with the shipping fee calculated at the checkout. There is no additional import, duty or customs charges. Learn more.

€260.00
77 In stock at our warehouse

Saturday Delivery ‐ AVAILABLE

Heavy Duty Flow Plates

SKU
TRP-MSH20

Our heavy-duty flow plates are suitable for all vehicle types, from cars to 30-ton HGVs, making them ideal for car parks and industrial estates. They are designed to promote the flow of one-way traffic, reduce vehicle speeds, and prevent drivers from entering restricted areas or exiting through entrances.

Installation is straightforward and fixings for tarmac and concrete are provided free of charge.



  • Bolt Down
  • Bulk Prices
  • Easy to Fit
  • Fixings Included
  • Free Drill Bit
  • High Visability
  • One Year Warranty
Description

Heavy Duty Flow Plate:

  • Suitable for cars and HGV vehicles up to 30,000kg, maximum of 15,000kg per axle
  • Slows vehicle speeds and promotes one-way traffic flow, maximum speed 5mph
  • Surface fixed, making it easy to install or relocate. Each plate requires 7 fixings.
  • Fixings for concrete and tarmac are provided free of charge along with a drill bit
  • Provided in yellow for high visibility
  • Chequered surface for optimum grip
  • Durable design produced from steel. Hot dip galvanised and powder-coated surface
  • The height of the flow plate is 105mm, when the locking bolt is used the height is 40mm
  • Suitable for use in multi-story buildings, as will not penetrate membrane
  • Should be used in conjunction with Speed Bumps and Warning Signs
  • Fixings for tarmac and concrete are provided

This flow plate is designed to be used at speeds of up to 5mph to encourage the traffic to flow in one direction. The plate is supplied with fixings to allow this to easily be bolted into concrete and/or tarmac. The plate should not be used in areas with pedestrian traffic and should be used in conjunction with speed bumps or other traffic calming products.

HGV flow plates are suitable for use in areas of high traffic flow and can be used by all types of vehicles from cars to 30 ton HGV’s. This product is manufactured from a heavy duty gauge chequer plate, high tensile springs, and the extra wide plate.

It is important that flow plates are driven over in a straight line, vehicles should not approach or drive over the flow plates at an angle.

Flow plates are not recommended to be used in pedestrian areas. For pedestrian and vehicle traffic we would instead recommend viewing our speed bump kits.

All pictures shown are for illustration purpose only. Actual product may vary due to product enhancement.

Description

Designed to slow vehicles to speeds of up to 5 mph and encourage one-way traffic flow, these heavy-duty steel flow plates help deter vehicles from travelling in the wrong direction or entering restricted areas. They are suitable for use in car parks, private roads, business parks, loading bays, and industrial estates.

Flow plates can enhance safety and reduce congestion by ensuring vehicles travel in the correct direction.

Flow plates should be used in conjunction with Speed Bumps and Warning Signs. Flow plates should not be installed on or close to a bend as they should be driven over in a straight line.

Flow plates are not recommended to be used in pedestrian areas. For pedestrian areas, we would instead recommend installing speed bumps.

Key Features

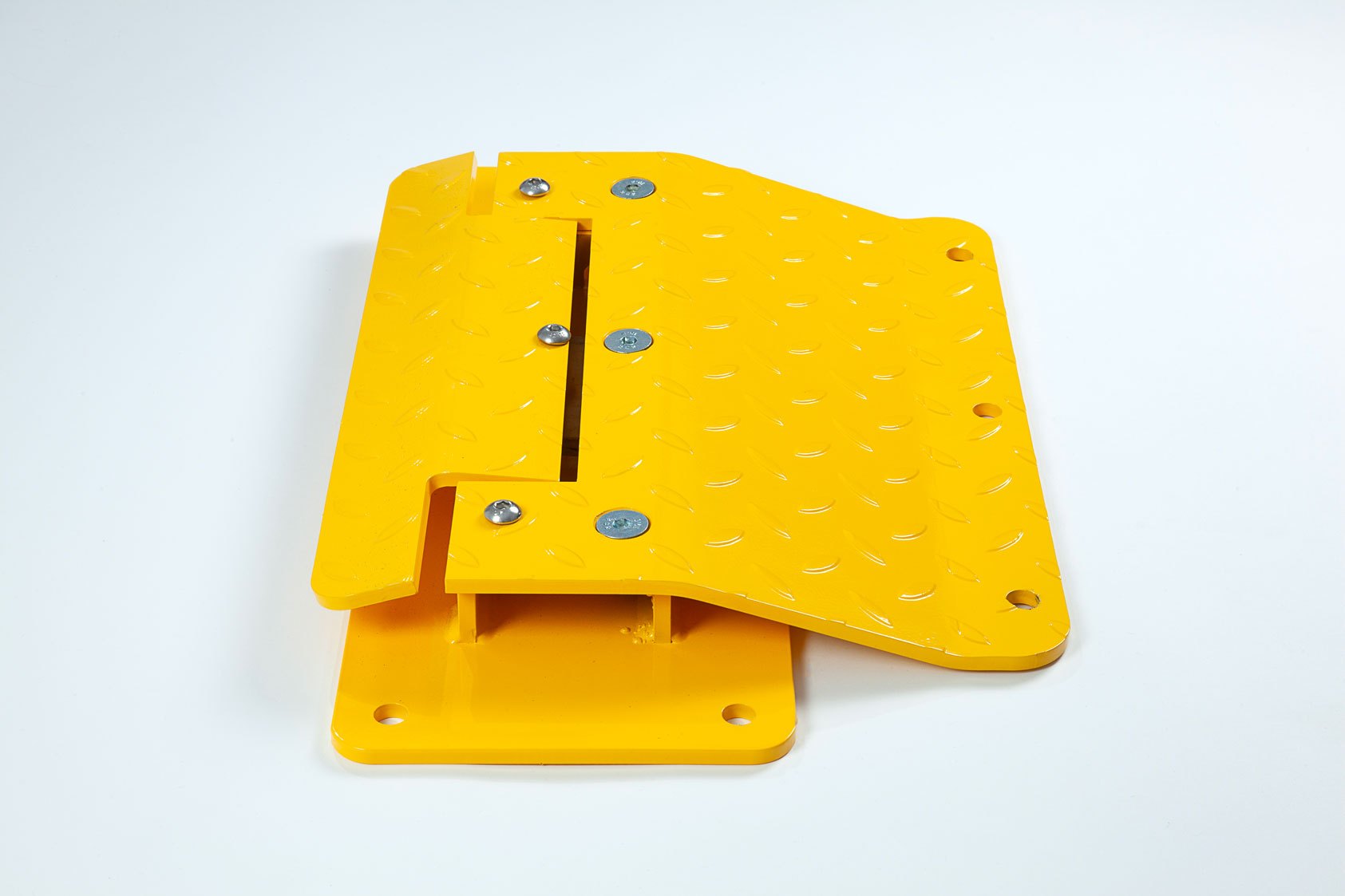

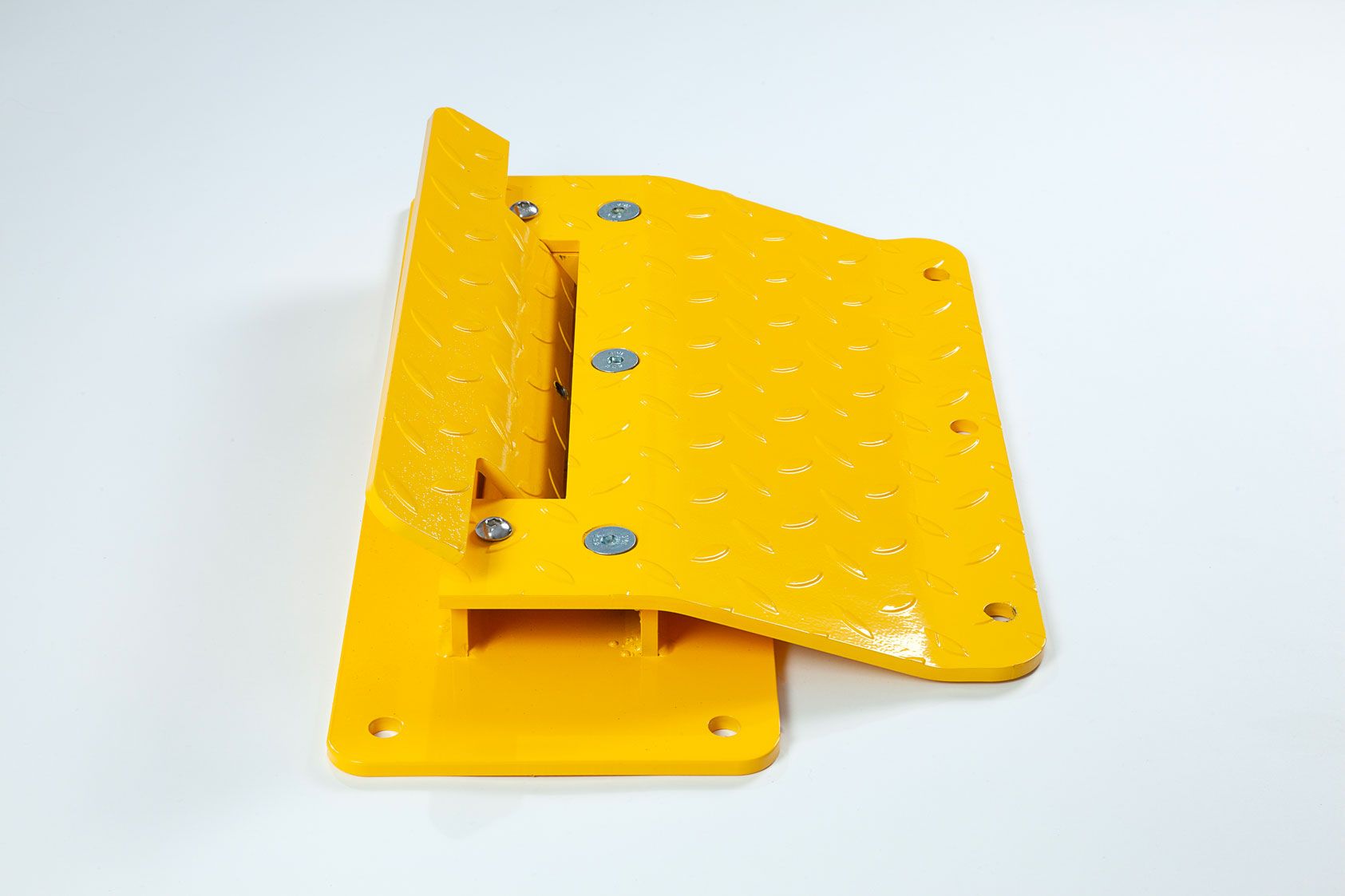

Spring mechanism

Keeps the flow plate upright, discourages drivers from passing in the wrong direction.

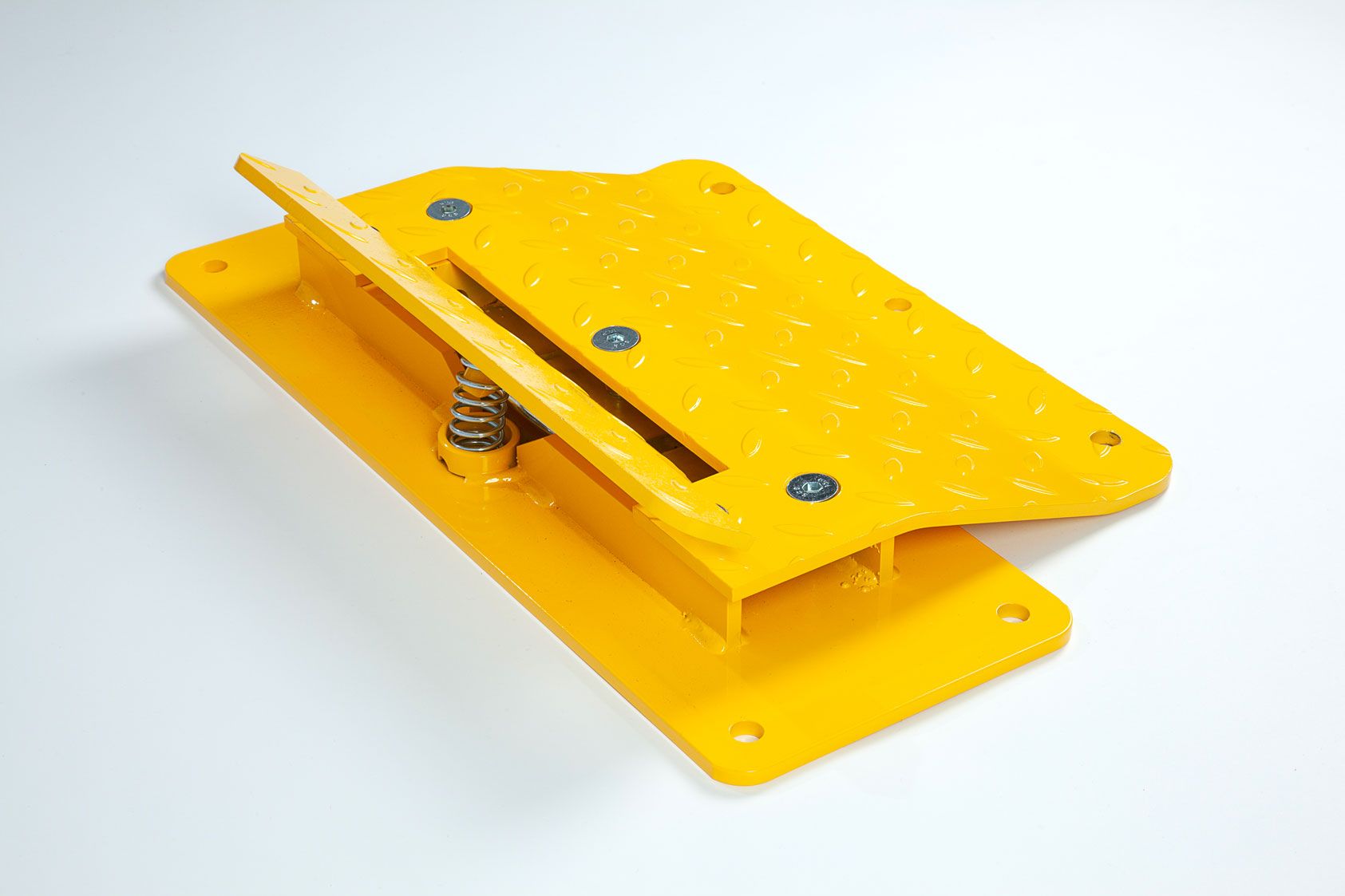

Yellow heavy duty flow plateYellow heavy duty flow plate
Chequered anti-slip surface

High-visibility powder-coated chequered surface to provide optimum grip when passing over the plates.

Yellow heavy duty flow plate with anti-slip surfaceYellow heavy duty flow plate with anti-slip surface

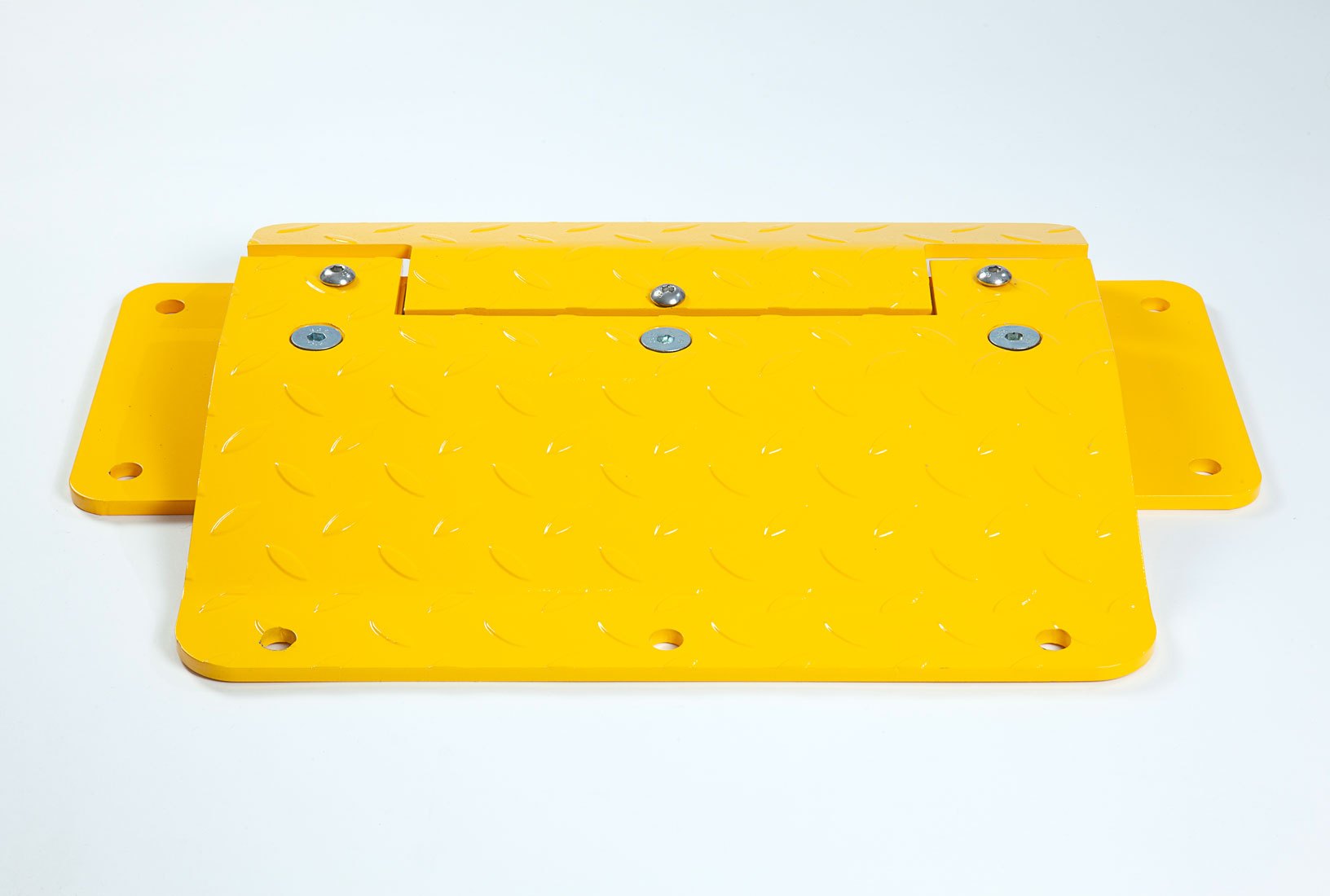

Locking bolt

Temporarily allow vehicles to drive over the flow plate in both directions when required.

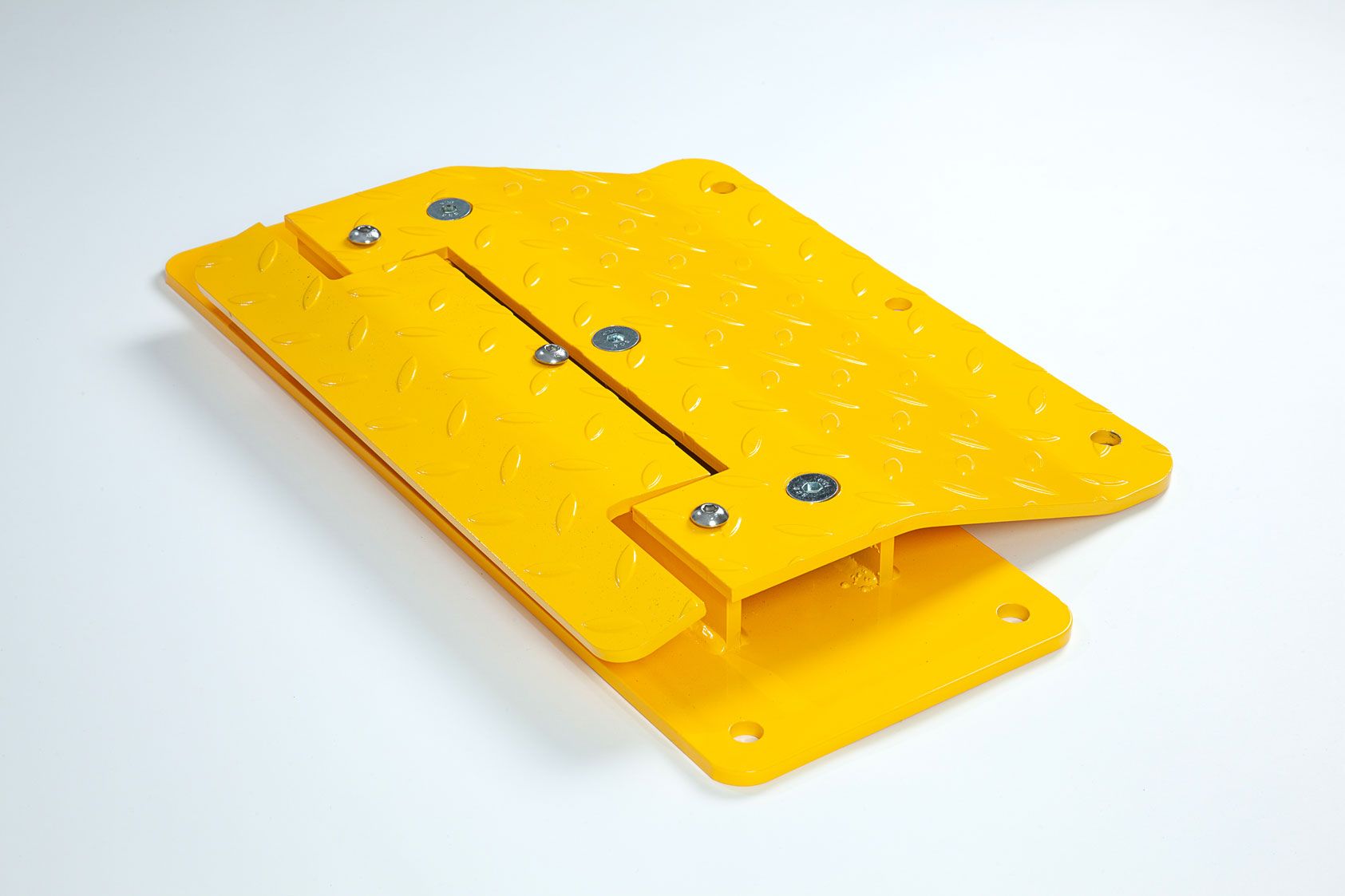

One-way flow plateOne-way flow plate
Easy to install

Supplied with pre-drilled fixing points and fixings for tarmac and concrete and an SDS Max drill bit.

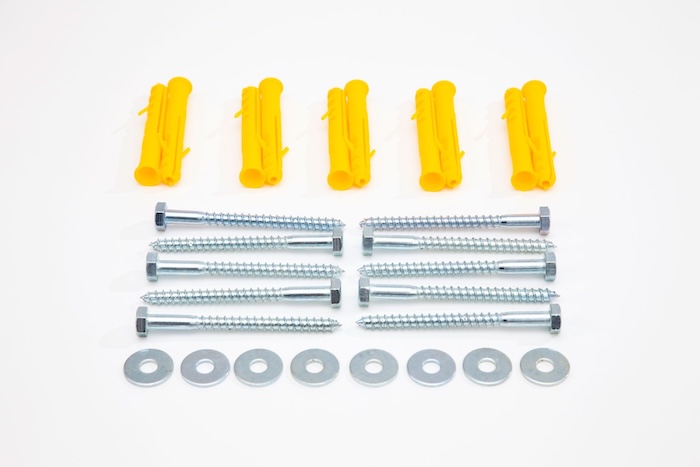

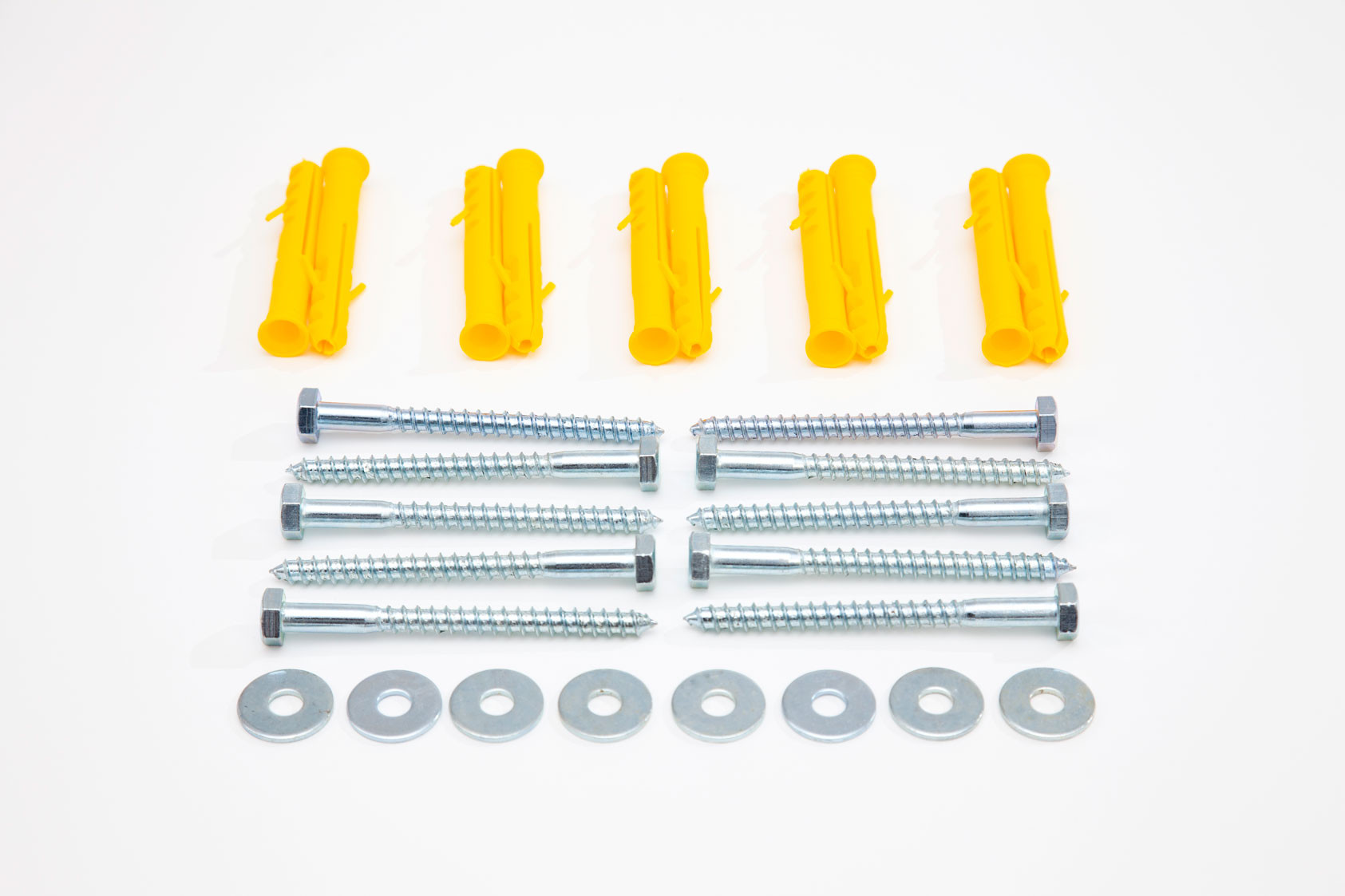

Fixings for tarmac and concrete Fixings for tarmac and concrete
Show more +

Product Highlights

Heavy duty design

Built for controlling the flow of vehicles in commercial areas, these heavy-duty steel flow plates offer a load capacity of up to 30,000 kg (15,000 kg per axle). Built for high-traffic areas, they are suitable for use by all vehicle types, including cars, vans, and HGVs.



Heavy duty flow plate with fixings Heavy duty flow plate with fixings
Easy to install

Designed for ease of installation, the flow plates are surface-fixed, allowing them to be quickly installed or relocated as required.

Each flow plate comes with 7 fixings for tarmac or concrete, along with an SDS Max drill bit, making it simple to secure them to the ground.

Their design also makes them suitable for use in multi-storey buildings, as they do not penetrate the membrane.

Adaptable to your road layout and requirements

Install the flow plates in the configuration that best suits your road layout, whether as a single straight line or two rows.

When needed, for example, due to maintenance works, the plates can allow two-way vehicle flow using the locking bolt. With the locking bolt engaged, the flow plate has a height of 40mm.

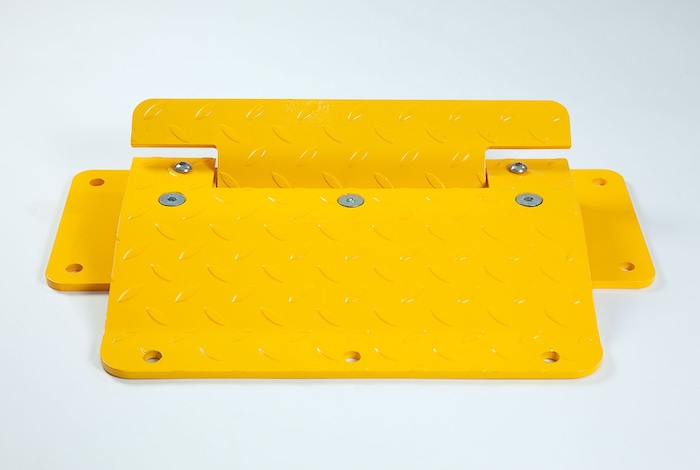

Yellow flow plate Yellow flow plate

Why Choose The Ramp People?

With over 20 years of experience, The Ramp People offers an extensive range of traffic calming solutions, including speed bumps, flow plates, speed cushions, and more.

As a trusted supplier, we supply to businesses and customers throughout the UK and Ireland. Renowned for excellent customer service and support, we have amassed over 8,000 5* TrustPilot reviews. Focused on quality, we are an ISO 9001 certified organisation.

All of the speed bumps and flow plates are provided with a comprehensive one-year warranty.

Safety and peace of mind

This is a FULL-WIDTH row. Lorem ipsum dolor sit amet, consectetur adipiscing elit. Etiam non pulvinar neque, blandit lobortis leo. Suspendisse ac consectetur magna. Integer vel diam aliquam, laoreet tortor a, commodo diam. Nulla vulputate scelerisque sagittis.

Sed molestie, lectus semper mollis eleifend, ante dui eleifend dui, nec vehicula risus mauris in turpis. Nullam euismod neque vel lectus sodales, nec placerat diam interdum.

Details
SKUTRP-MSH20
Capacity (kg)30,000
Folded Height (mm)40
Height (mm)105
Length (mm)390
Weight per Ramp (kg)20
Width (mm)400 (base) / 550 (plate)
One Year WarrantyYes
Bolt DownYes
Bulk Prices AvailableYes
Easy to FitYes
Fixings IncludedYes
Free Drill BitYes
High VisabilityYes
Colour OptionBlack
Product Questions
What fixings do The Ramp People provide with their flow plates?

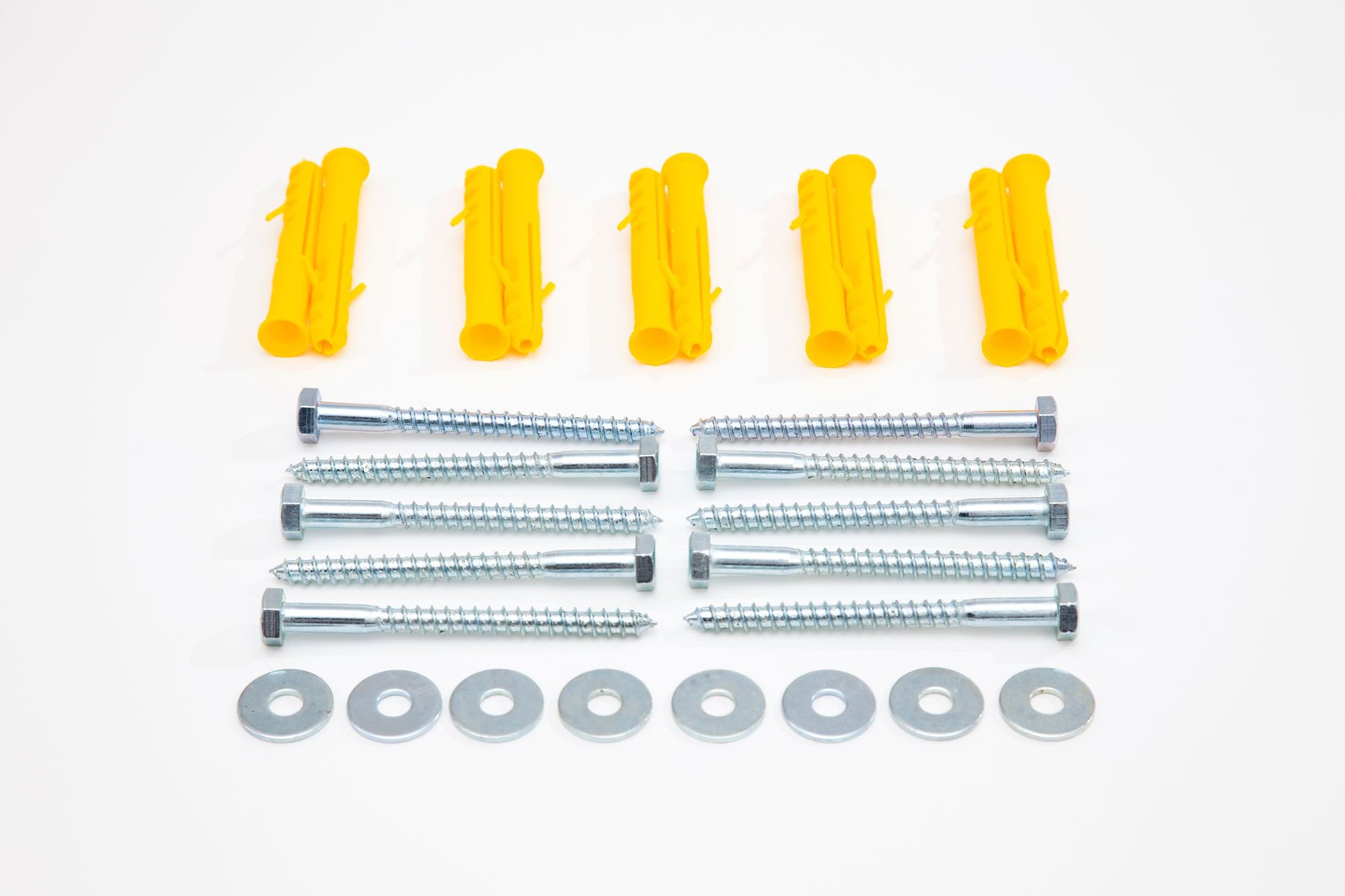

All of our flow plates are provided with fixings for tarmac and concrete and a SDS drill bit. The fixings are M10 x 120mm. The drill bit has a diameter of 14mm and 150mm drill length, total length 276mm.
Do The Ramp People install flow plates?
As an online business, we only supply flow plates, we do not offer installation services. They are provided with all of the necessary fixings so a general handyman or builder should be able to install them for you.
Can I purchase replacement parts for the Flow Plates from The Ramp People?
Yes, you can purchase additional fixings or replacement springs for The Ramp People's flow plates when required, please contact our team for a quote.
Do The Ramp People offer trade discounts?
We do not offer trade discounts but we can look at discounts on larger orders, please contact our team for a quote.
