4-10 business days delivery*. Items are shipped from the UK to Ireland on DAP Incoterms. This means we do not charge Irish VAT but Irish import VAT of 23%, import duty (on some products) and customs charges will be due. These fees will need to be paid to the courier before or after you receive the goods. Learn more.

€115.00
SKU
TRP-MSH20-Small
Built to Order

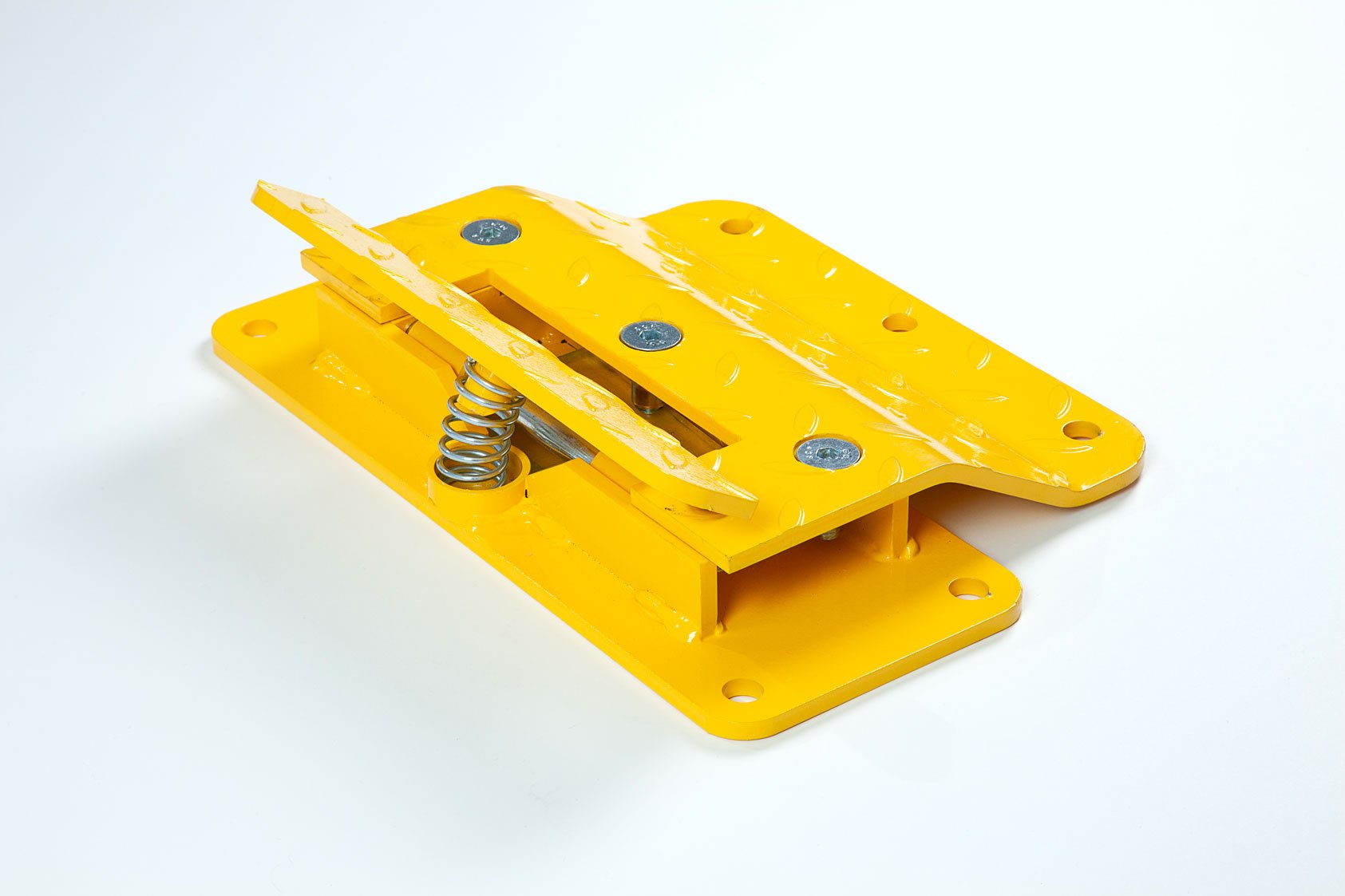

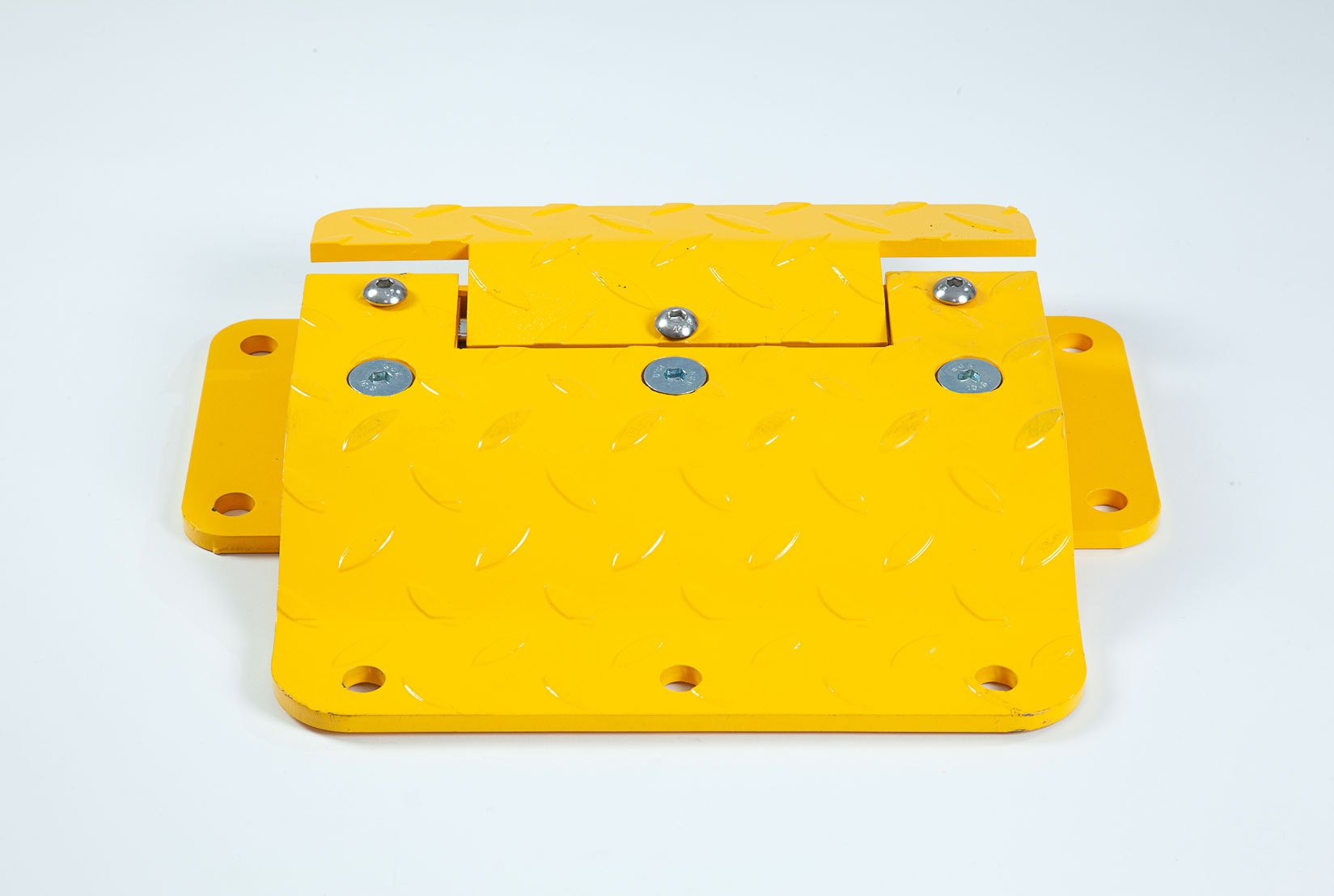

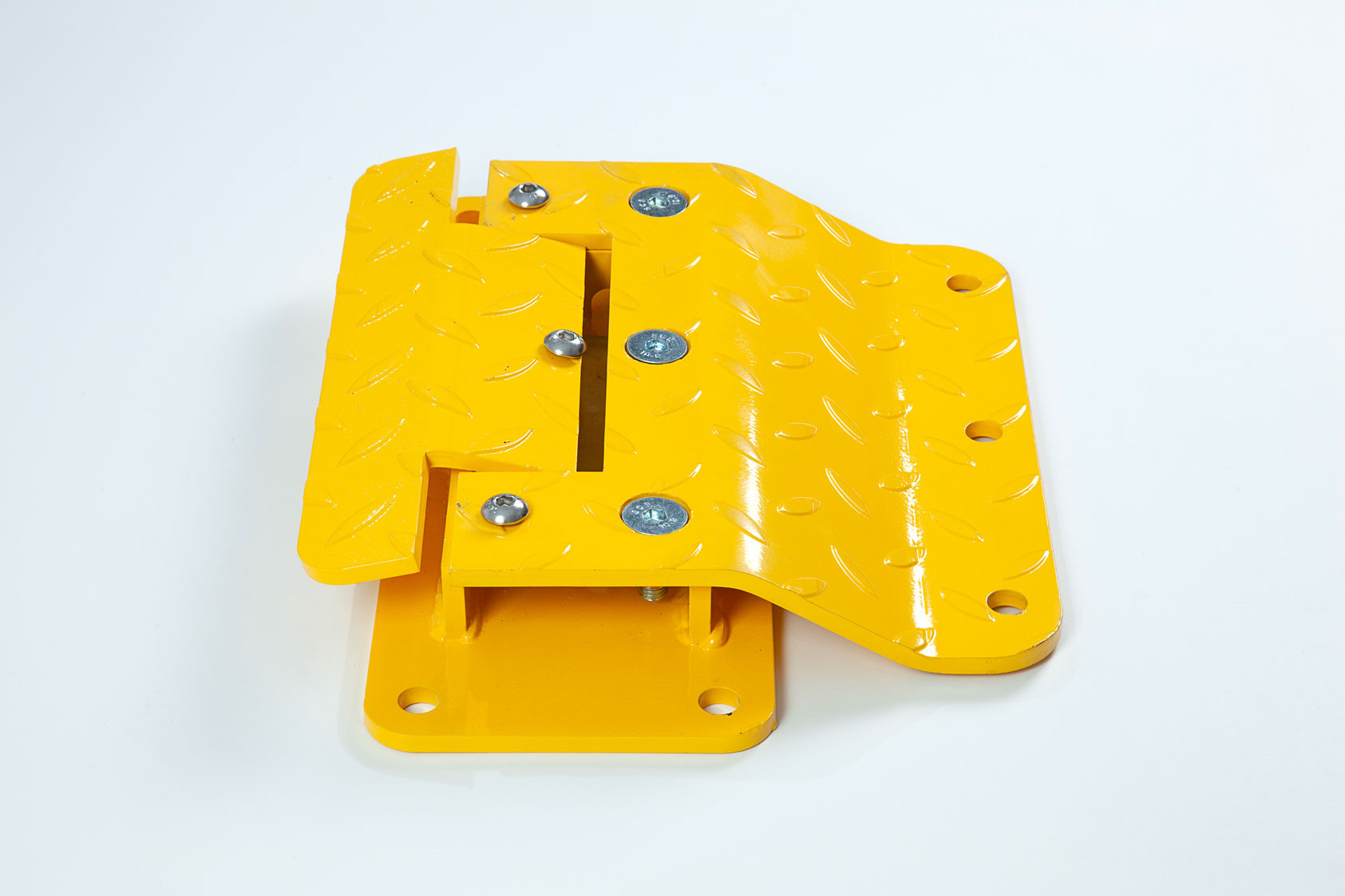

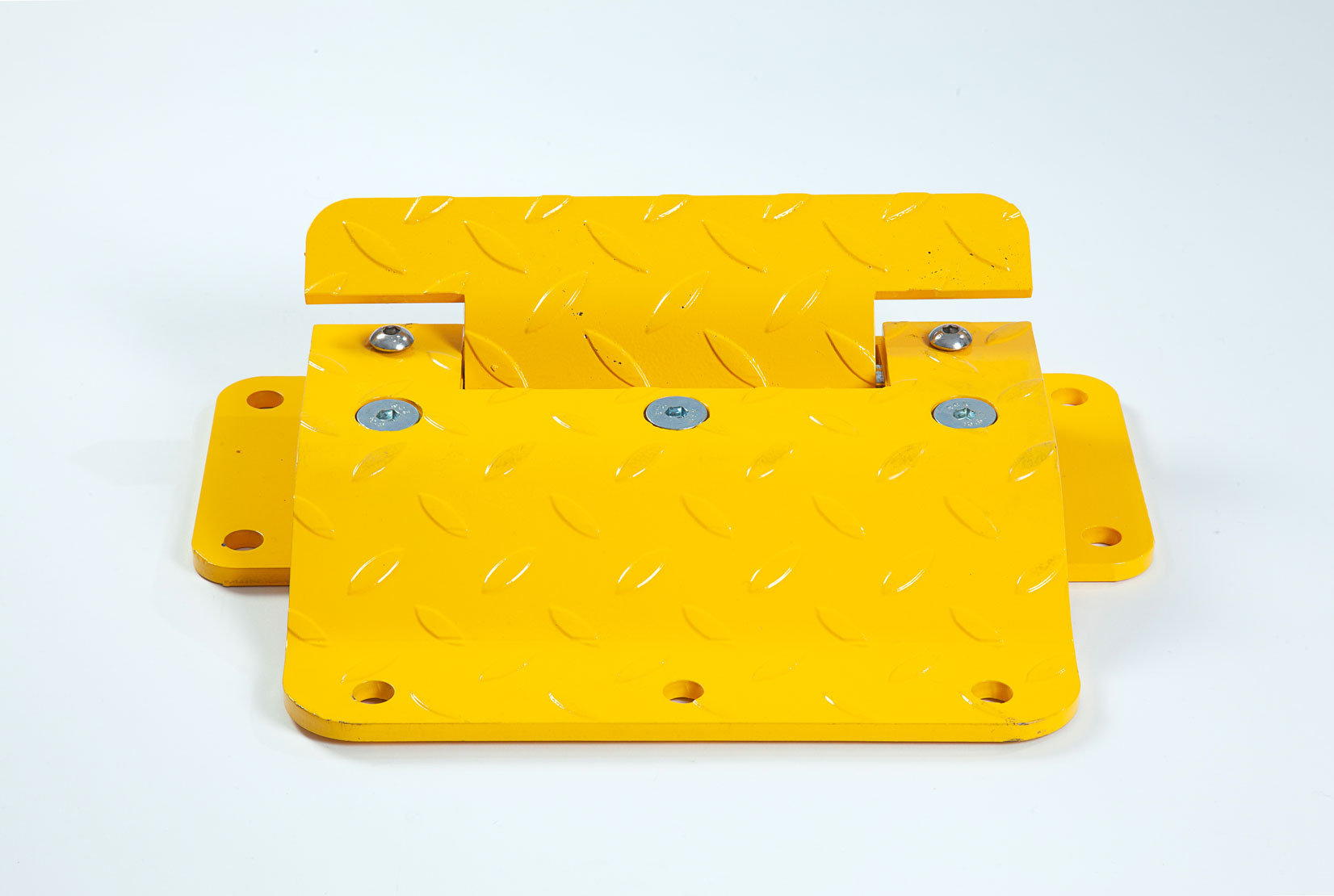

Flow Plates for Small Vehicles

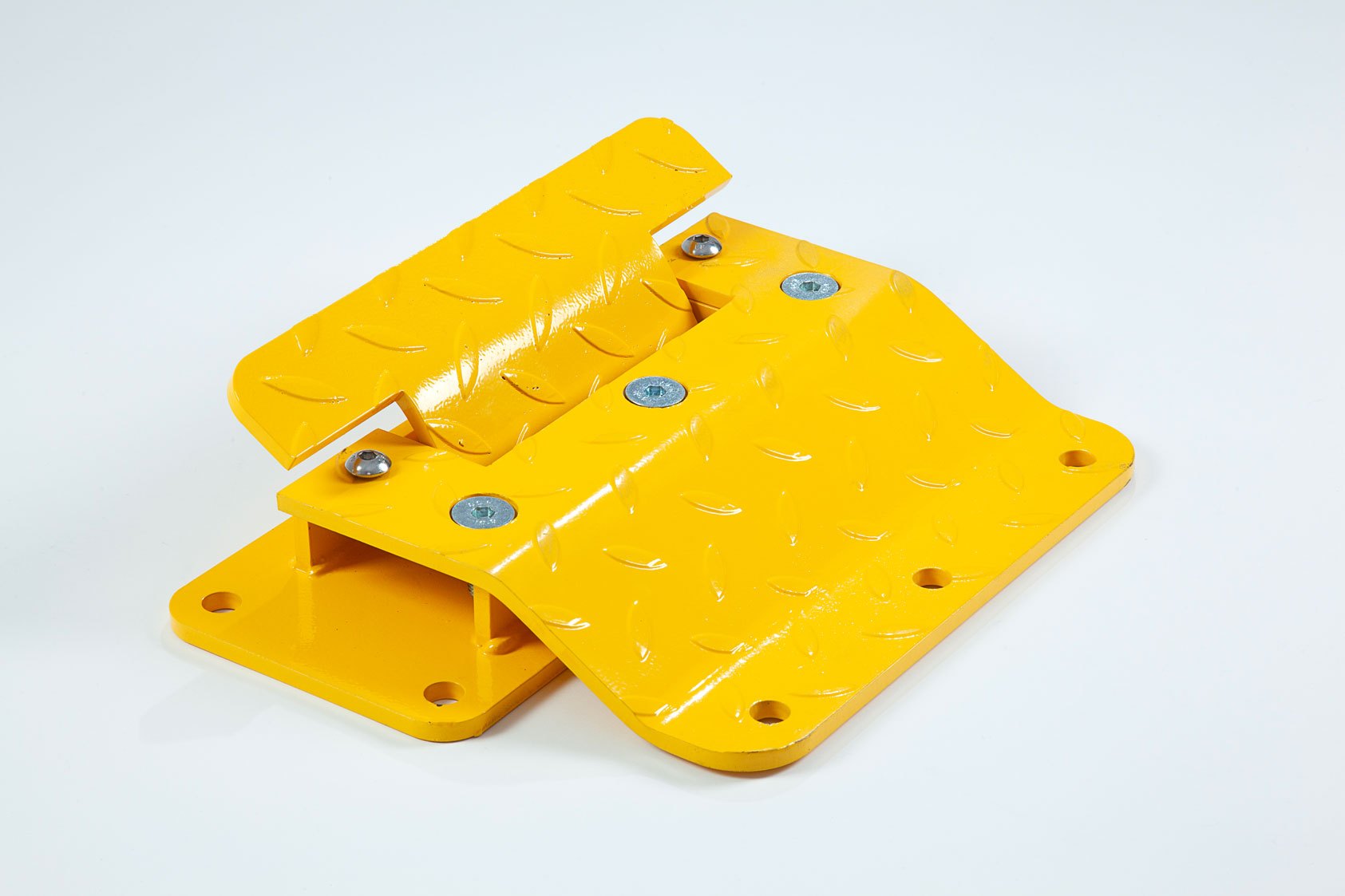

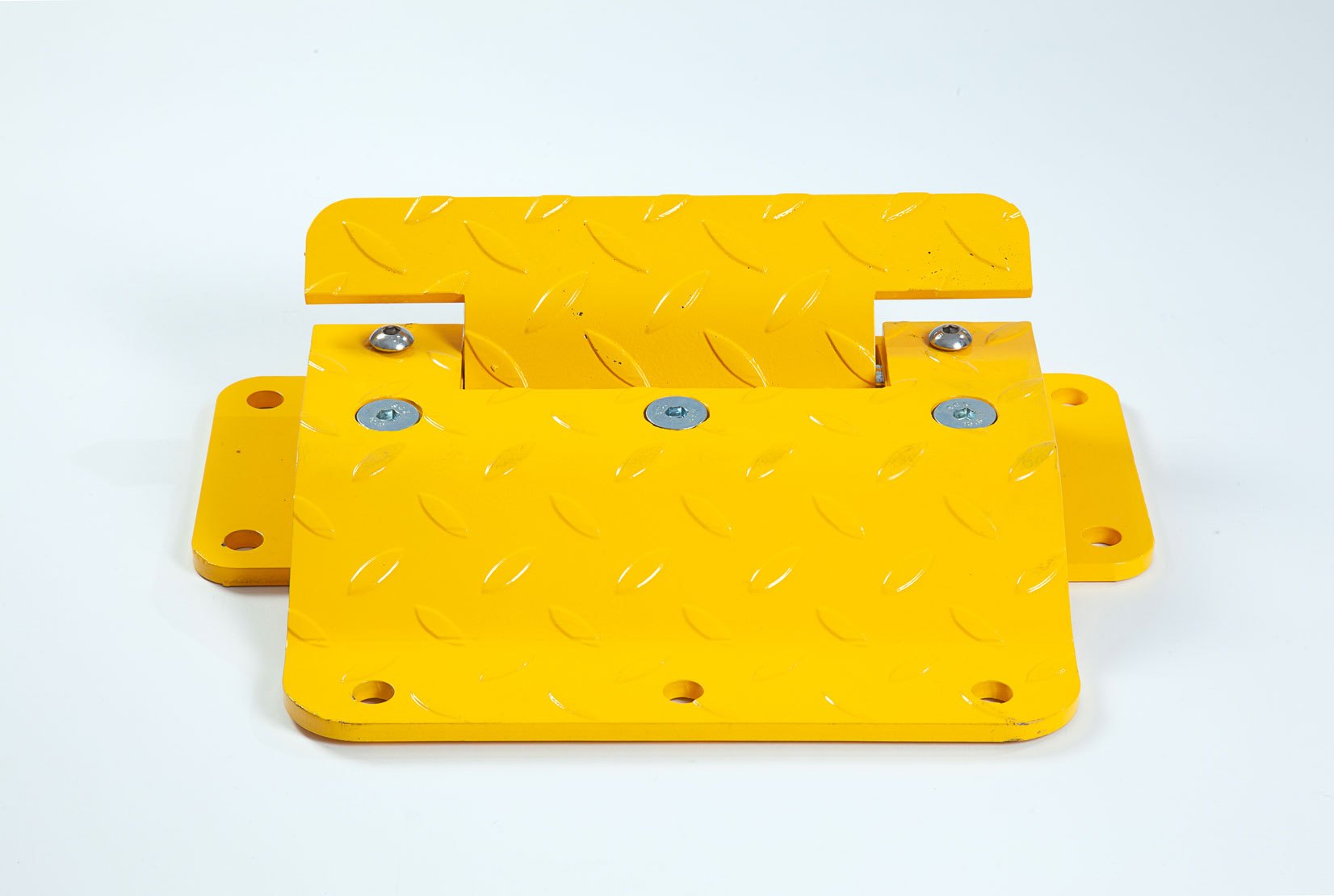

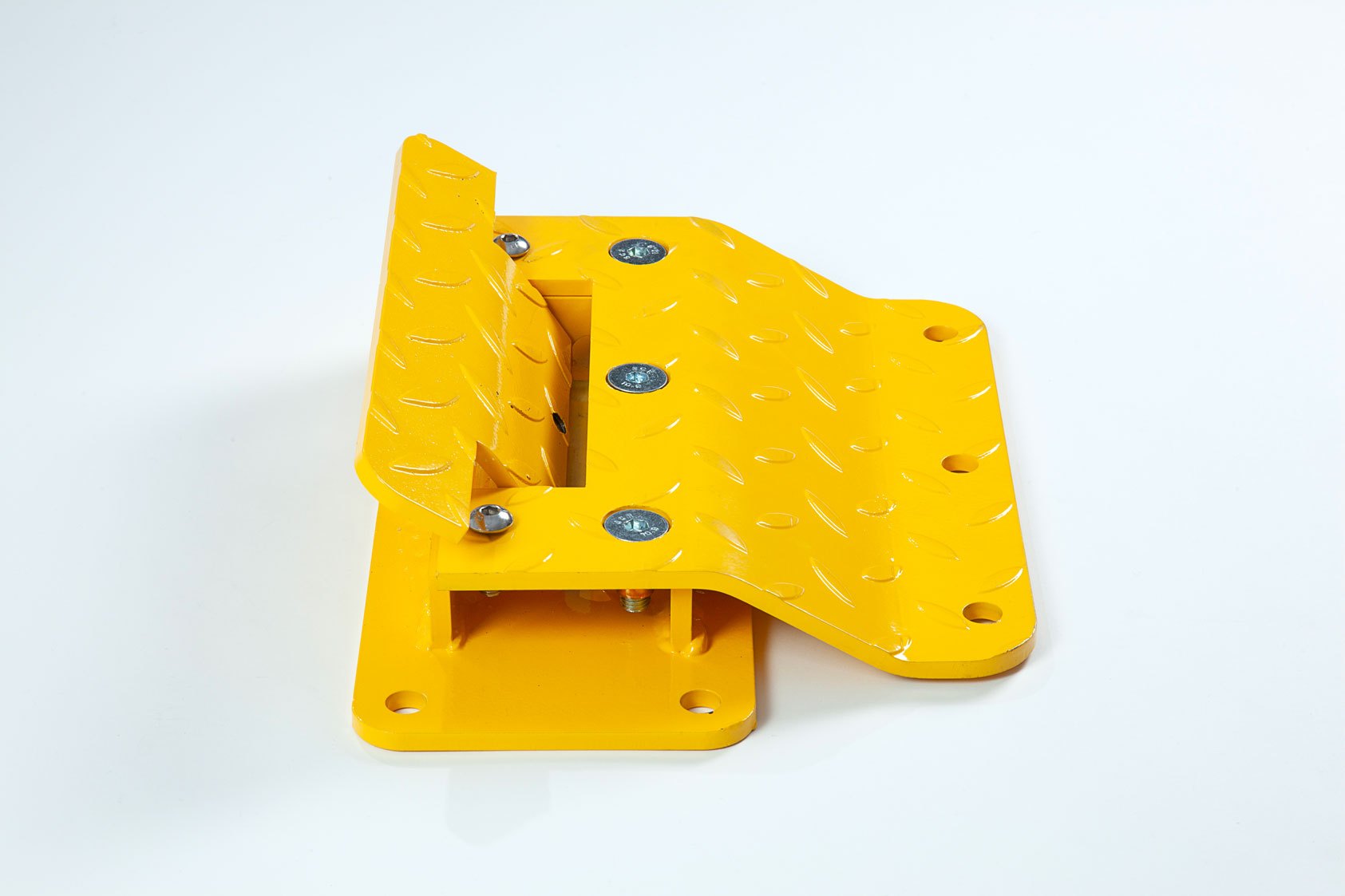

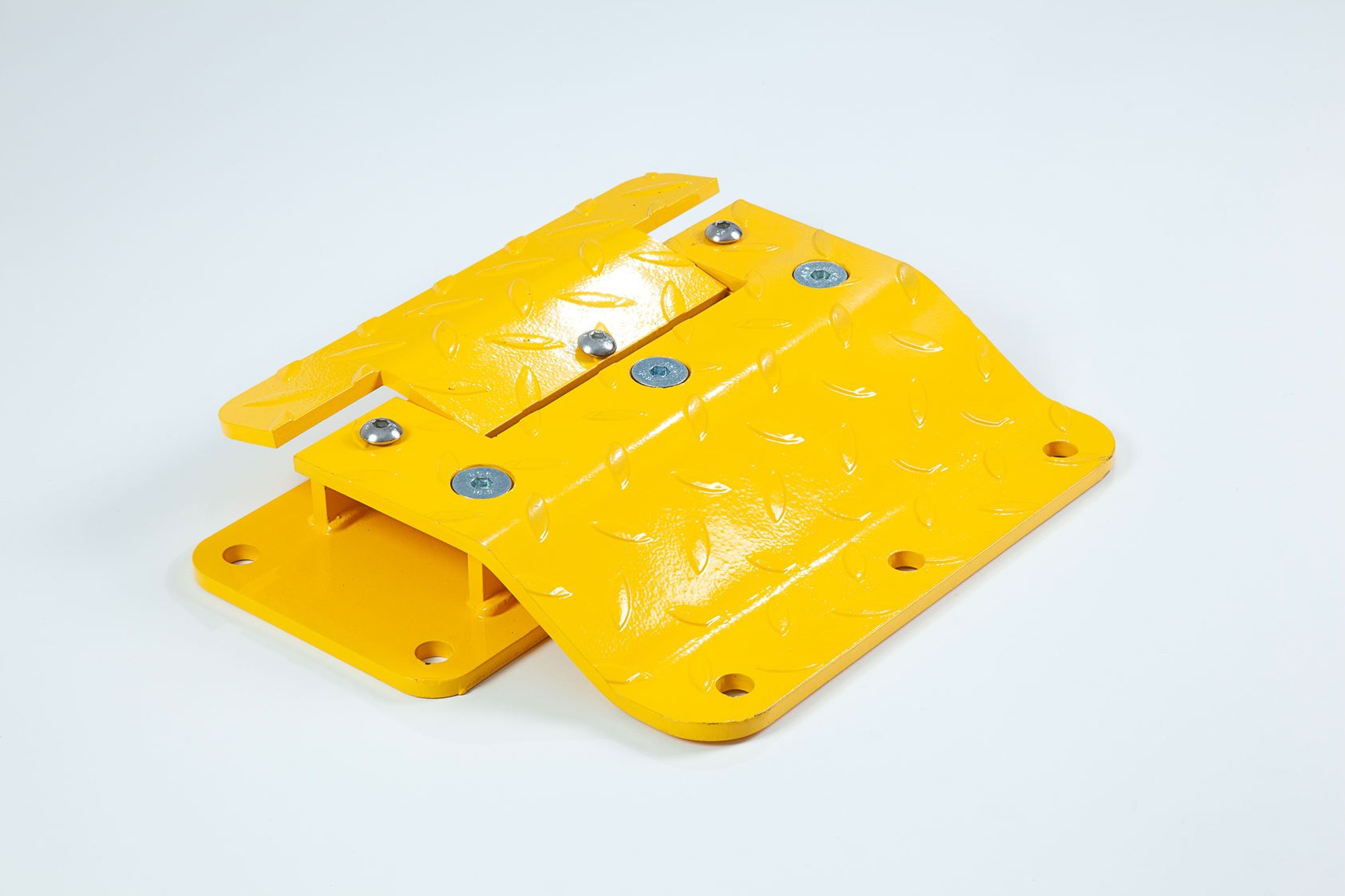

Our standard flow plate is an ideal solution to control the traffic flow of cars and light commercial vehicles in smaller car parks. The durable product has a chequered plate designed and is brightly coloured to increase visibility.

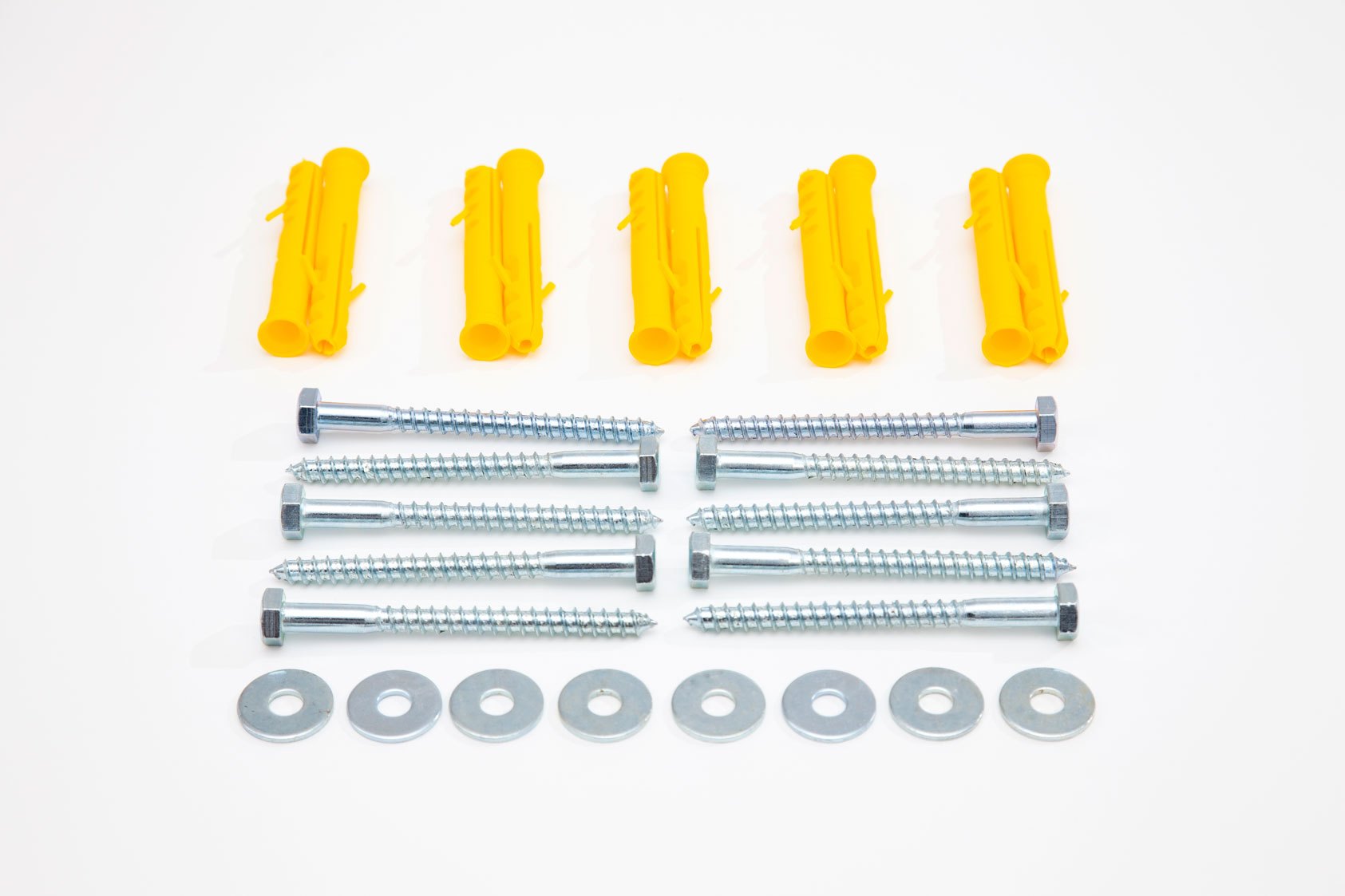

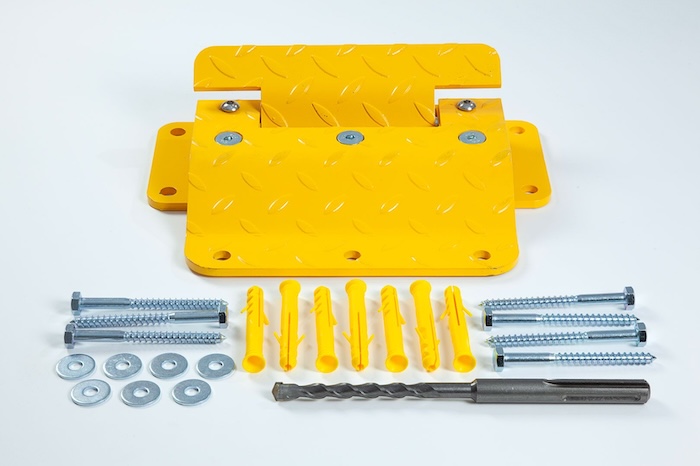

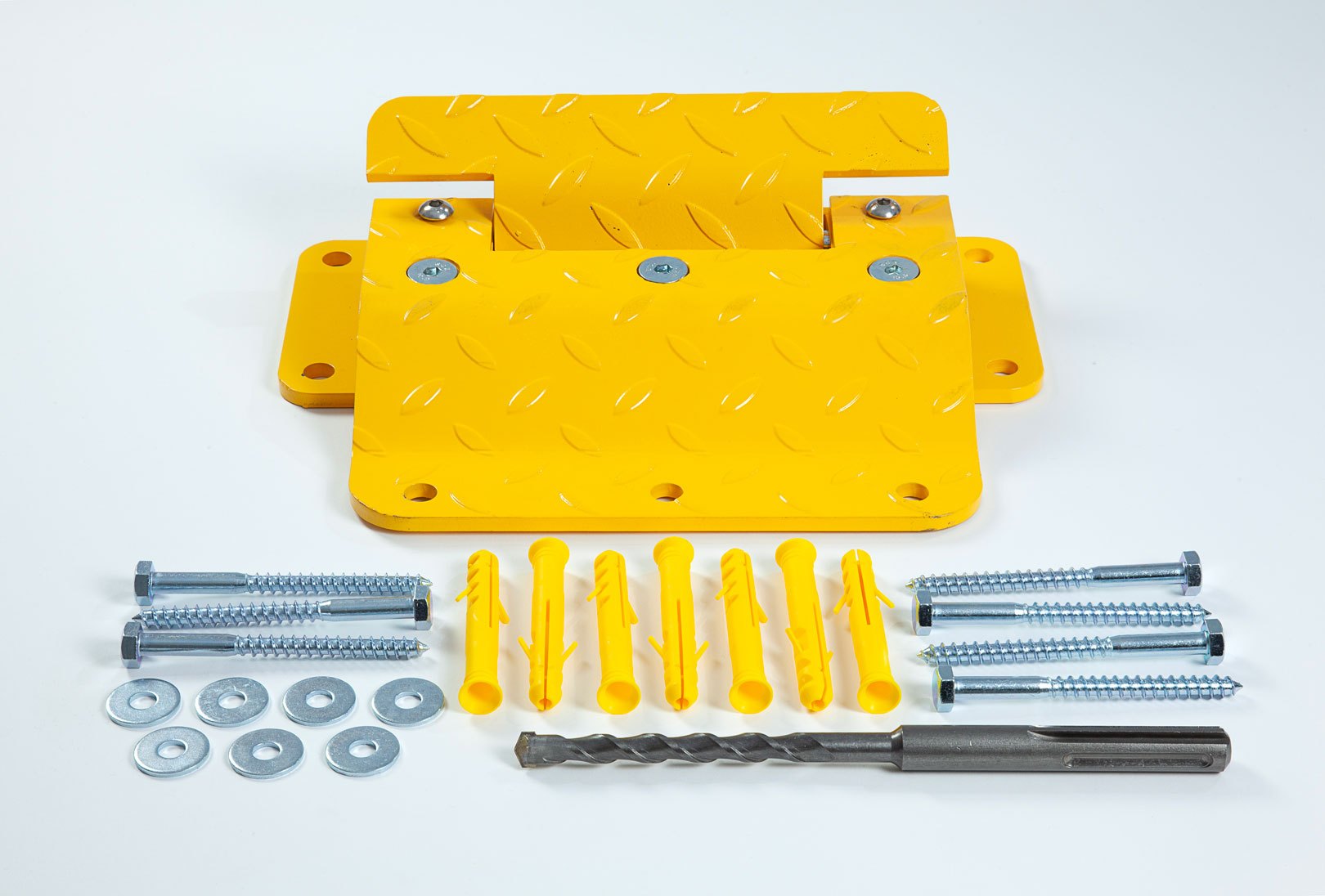

Universal Fixings for tarmac and concrete and a drill bit are supplied free of charge.

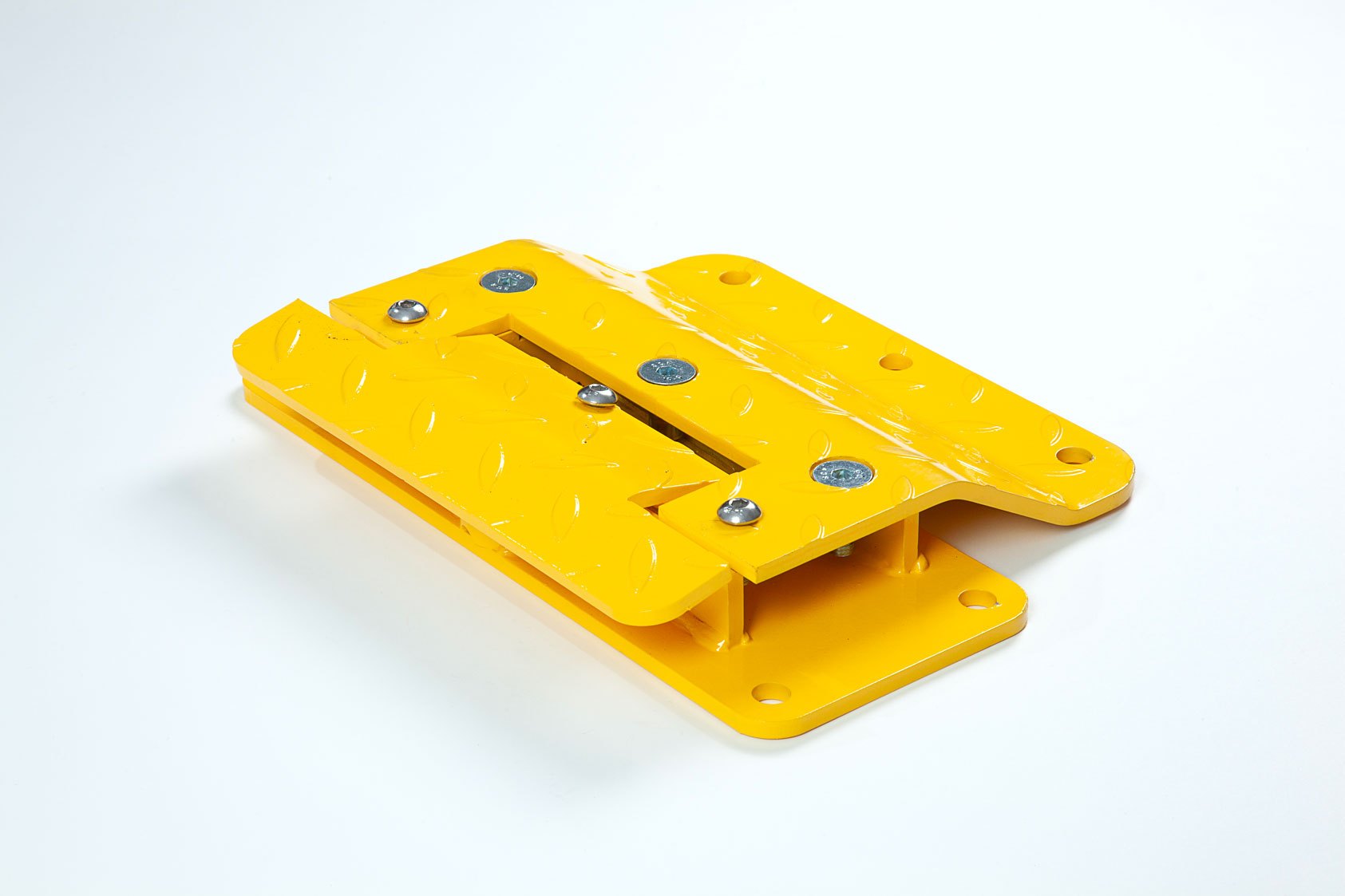

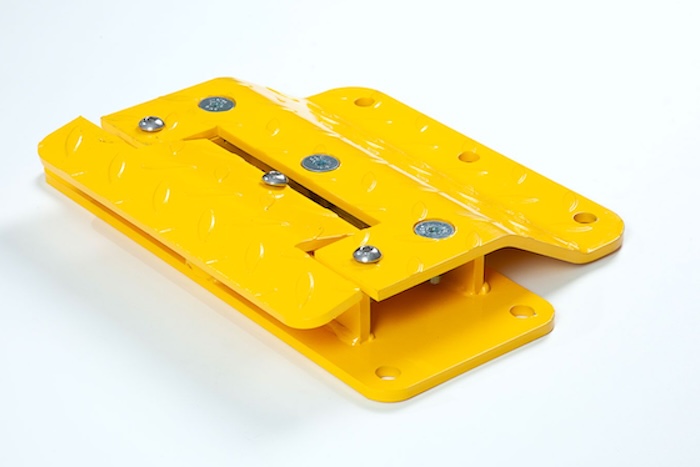

The flow plates are also supplied with a locking bolt so the ramp can be temporarily held down to allow traffic to flow in both directions.

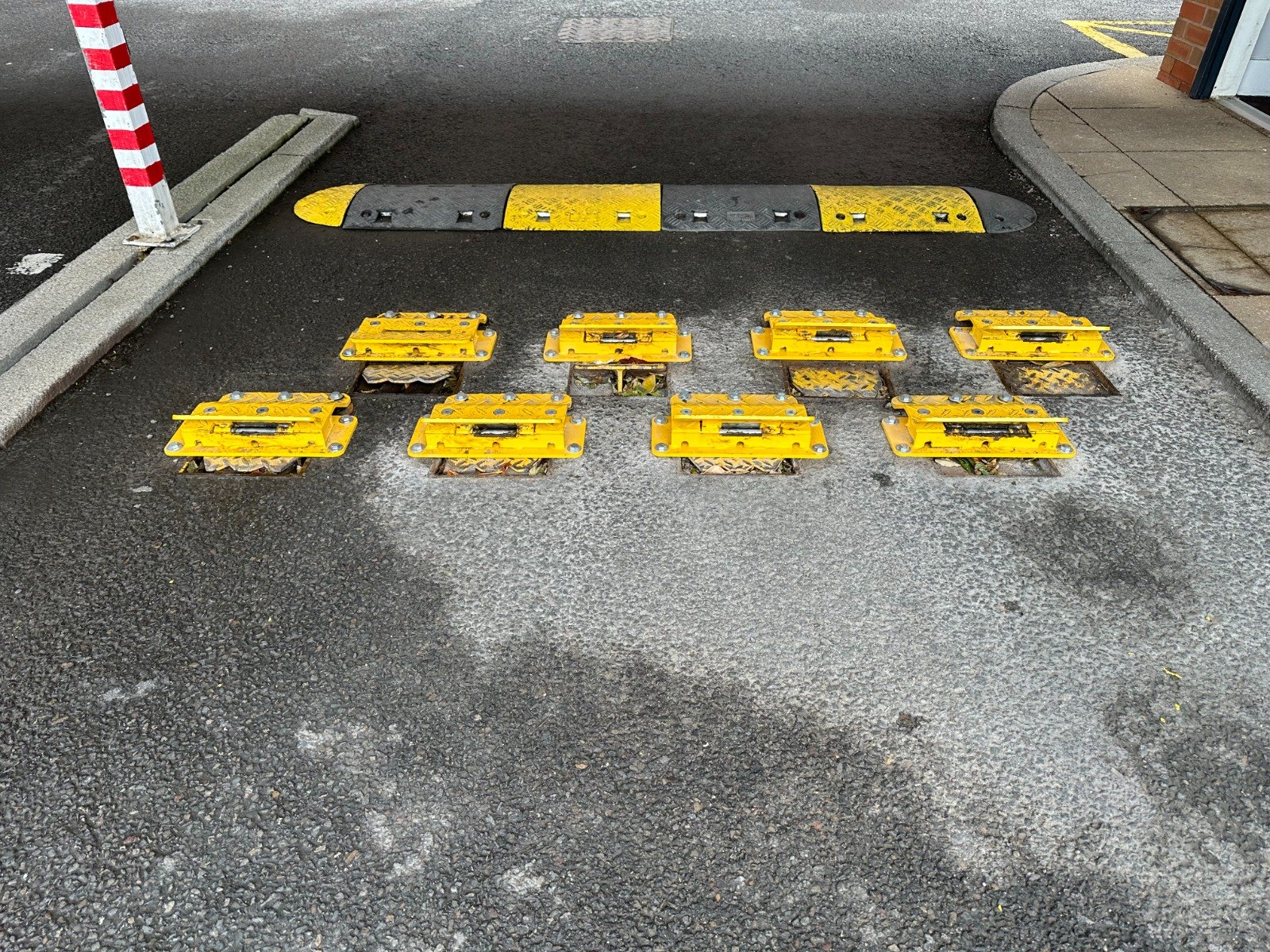

Please note, these should be used in conjunction with Speed Bumps and Warning Signage

  • Bolt Down
  • Bulk Prices
  • Easy to Fit
  • Fixings Included
  • Free Drill Bit
  • High Visability
  • One Year Warranty
Description

Main features:

  • Suitable for cars and light commercial vehicles only
  • Maximum speed 8 km/h or 5mph
  • Promotes one-way traffic flow, for example in private car parks
  • Surface fixed, making it easy to install or relocate. Each plate requires 7 fixings, fixings for tarmac and concrete and a drill bit are provided free of charge
  • Yellow for high visibility
  • The height of the flow plate is 88mm, when the locking bolt is used the height is 40mm

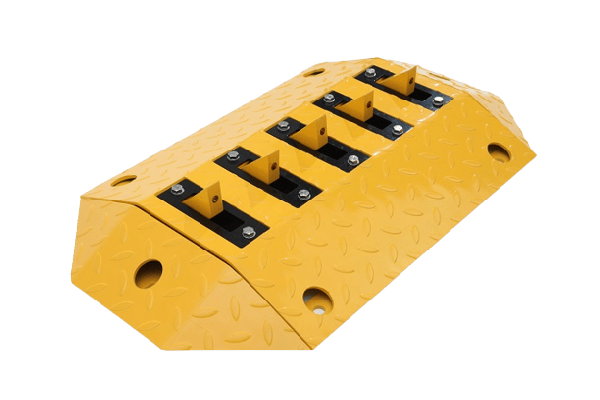

  • Maximum 1 ton per axle (for heavier vehicles see HGV flow plates)
  • Suitable for use in multi-story buildings, as will not penetrate the membrane
  • Should be used in conjunction with Speed Bumps and Warning Signage

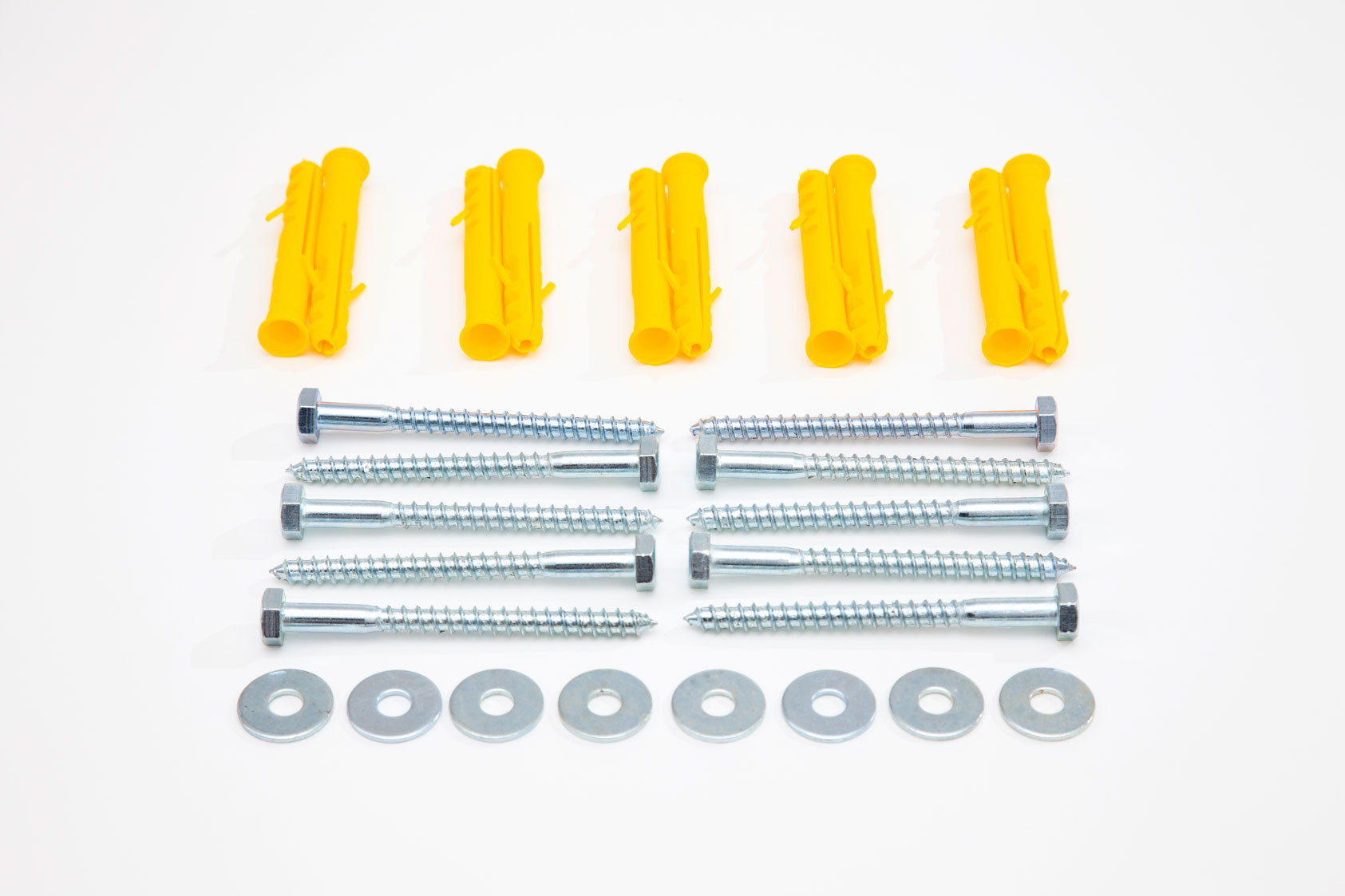

  • Includes fixings for tarmac and concrete and a drill bit

This flow plate is designed to be used at speeds of up to 5mph to encourage the traffic to flow in one direction. The plate is supplied with fixings to allow this to easily be bolted into concrete and/or tarmac. The plate should not be used in areas with pedestrian traffic and should be used in conjunction with speed bumps or other traffic calming products.

It is important that flow plates are driven over in a straight line, cars should not approach or drive over the flow plates at an angle.

This product is only suitable for cars and light commercial vehicles up to a maximum of 1 ton per axel. TRP Standard flow plates are bolted to the surface using 7 fixing bolts which makes this a good solution for multi-story car parks and areas where excavation is not possible.

Flow plates are not recommended to be used in pedestrian areas. For pedestrian and vehicle traffic we would instead recommend viewing our speed bump kits.

All pictures shown are for illustration purposes only. The actual product may vary due to product enhancement.


Details
SKU TRP-MSH20-Small
Folded Height (mm) 40
Height of Ramp (mm) 88
Length (mm) 255
Weight per Ramp (kg) 12
Width (mm) 285 (Plate) / 365 (Base)
One Year Warranty Yes
Bolt Down Yes
Bulk Prices Available Yes
Easy to Fit Yes
Fixings Included Yes
Free Drill Bit Yes
High Visability Yes
