Aluminium Loading Ramps (3000x460x8500kg)

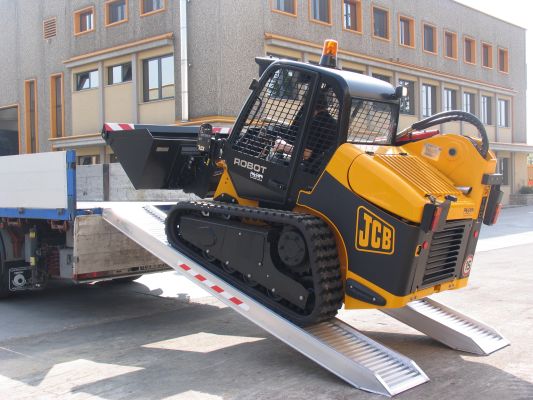

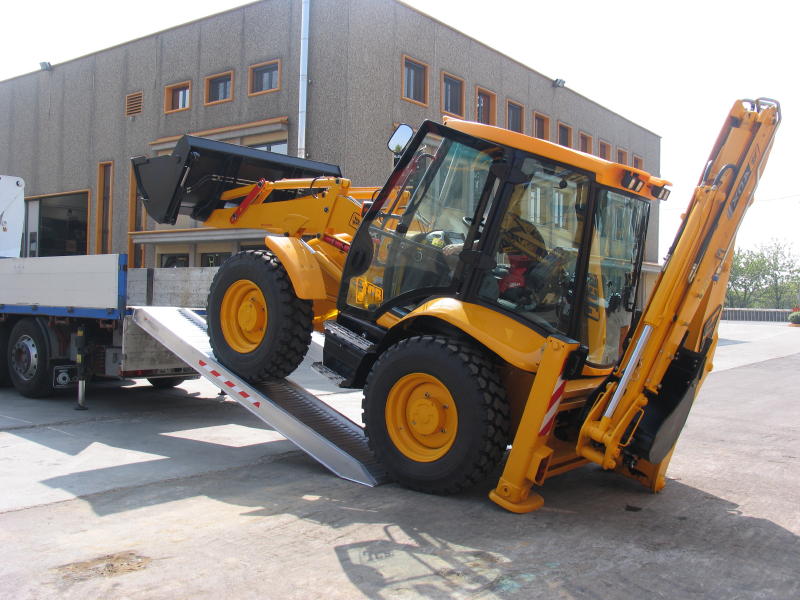

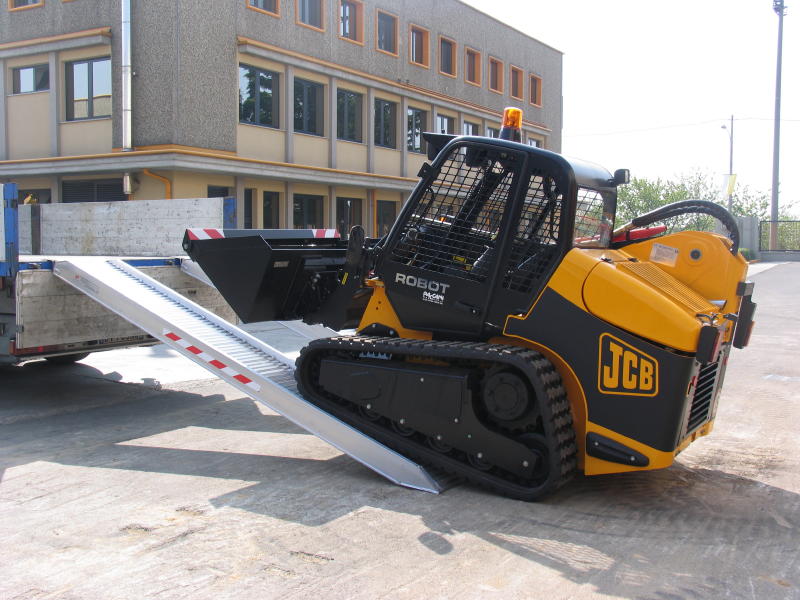

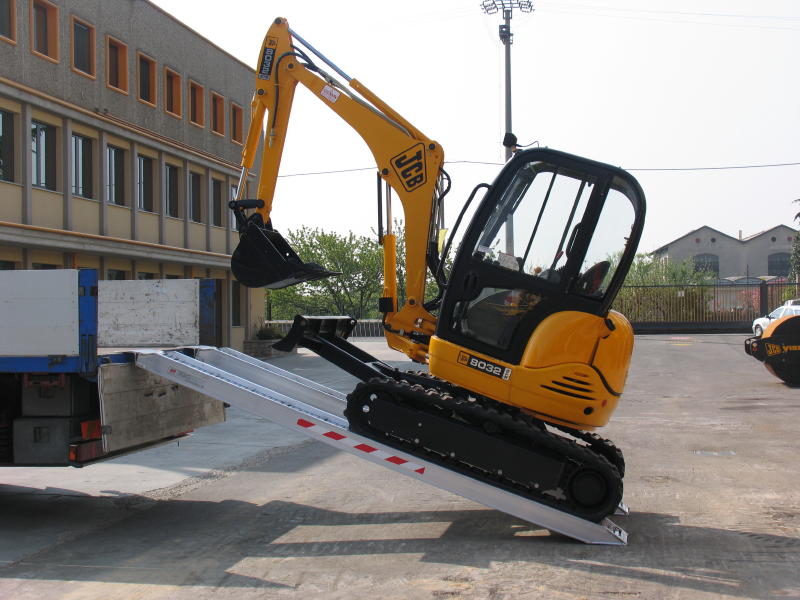

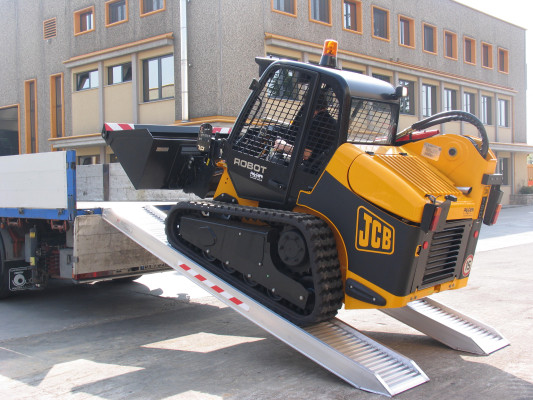

460mm wide x 3000mm long, with a 150mm profile thickness. Featuring a maximum capacity of 8,500kg, this ramp is ideal for use as a plant ramp, digger ramp, or telehandler ramp. Please note the minimum track width is 300mm.

Custom built sizes are available on request. Price and capacity stated is for the PAIR.

Plant Ramps FAQ's

Length (mm)	3000
Width (mm)	460
Max. Load Height (mm)	900
Weight Per Ramp (kg)	41
Weight Per Pair (kg)	82
Capacity (kg)	8500

Connection Options
Customisable
Easy to Fit
European Made
Not for Solid Wheels
One Year Warranty

4-10 business days delivery*. Items are shipped from the UK to Ireland on DAP Incoterms. This means we do not charge Irish VAT but Irish import VAT of 23%, import duty (on some products) and customs charges will be due. These fees will need to be paid to the courier before or after you receive the goods. Learn more.

€1,480.00

SKU

TRP150/30LTRP

In Stock - Limited Availability

Description

Some of our best selling medium to heavy duty plant ramp, the TRP150 Series core profile thickness is 150mm. The TRP150 Series has a width of 460mm. They feature a capacity of up to 8500kg and are ideal for use as plant ramps, for digger ramps and for tele-handlers.

On the TRP150T series the minimum width of tracks/wheels is 300mm. These Ramps are not designed for use over a 30% gradient

These ramps are available both with and without edges
Four different connection options available, however the default connection is the rest on connection
Custom load heights available
Not suitable for solid wheels found on road surfacing machines - for this type of machinery please see the industrial ramps for steel tracks
Please note, the stated maximum weight capacities are only valid for vehicles where the weight is equally distributed – for vehicles where this is not the case, please contact us directly for assistance.
Quotes for bespoke ramps can be supplied on request
All pictures shown are for illustration purpose only. Actual product may vary due to product enhancement
Fully TÜV certified

TUV Certification Image

Usage guidelines and safety information for our full vehicle ramp range can be found here.

Details

SKU	TRP150/30LTRP
Default Connection	Rest On Connection
Capacity (kg)	8500
Height of Ramps Profile (mm)	150
Length (mm)	3000
Max Load Height	900
Min. Load Height (mm)	750
Weight per Ramp (kg)	41
Weight Per Pair (kg)	82
Width (mm)	460
Minimum Track Width (mm)	300
Maximum Track Width (mm)	460
One Year Warranty	Yes
Connection Options Available	Yes
Customisable	Yes
Easy to Fit	Yes
European Made	Yes
Not Solid Wheels	Yes
Capacity Wheelbase 1000mm (kg)	5,150
Capacity Wheelbase 1500mm (kg)	6,870
Capacity Wheelbase 2000mm (kg)	8,500

Print/Save Datasheet

Ramp Capacity, Length & Load Height

This guide should help you gauge how long a ramp you require, so if you're in any doubt read the details below. If you still have questions after reading, feel free to give us a call. The crucial thing to know is your load height.

Load Height: this is the vertical measurement from the ground to where you rest the ramp onto.

Guide to the maximum load height is shown in the product description/table, please note the minimum Load Height will be 5% below the maximum height stated on the ramp, to calculate use (maximum load height - 5% = minimum load height).

For vehicle ramps EU guidelines recommend that no ramps with a gradient greater than 30% or 1:3.3 should be used. Essentially the load height x 3.3, gives you your ramp length. Furthermore no TUV Certified Ramp is designed to exceed this gradient. Going over this gradient is can cause accident, injury or death and may invalidate the warranty.

Please check the wheelbase measurement of the machine you are loading is suitable for the capacity the ramp can take based on the wheelbase measurement advised. To check your wheelbase, look at the vehicle from side view, the distance between the centre of front wheel and rear wheel (rim centre) is your wheelbase. For machines with an unbalanced weight distribution such as, scissors lifts, paving machinery, steel tracked machinery and machines with low ground clearance we would advise you contact us first, so we can check and advise on the most suitable solution.

For loading cars and other vehicles with either a) Low ground clearance b) Front and/or Rear overhang a gentler gradient is recommended (this will vary depending upon the vehicle). Please also note that most forklifts and pallet trucks are not built to be used on slopes. Please check the manual for the gradient information.

Further information can be seen in this blog article here
