Aluminium Loading Ramps (3500x460x6870kg)

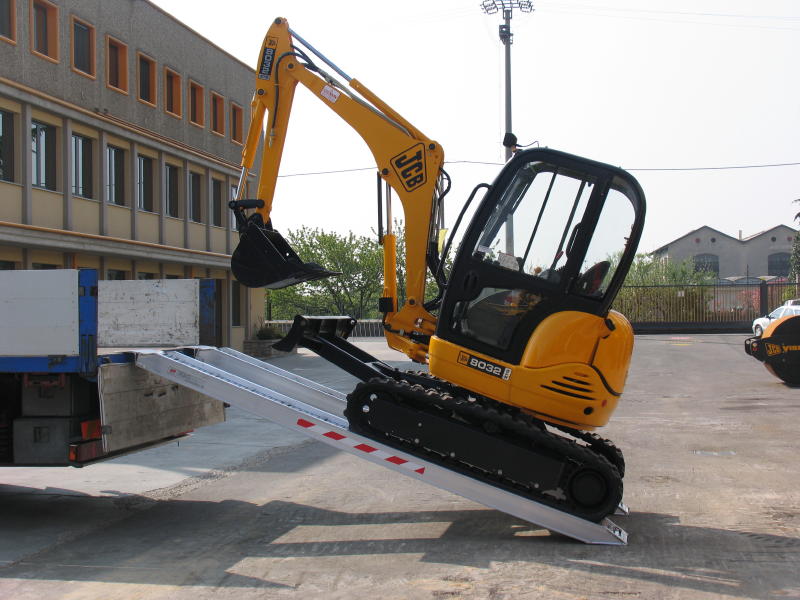

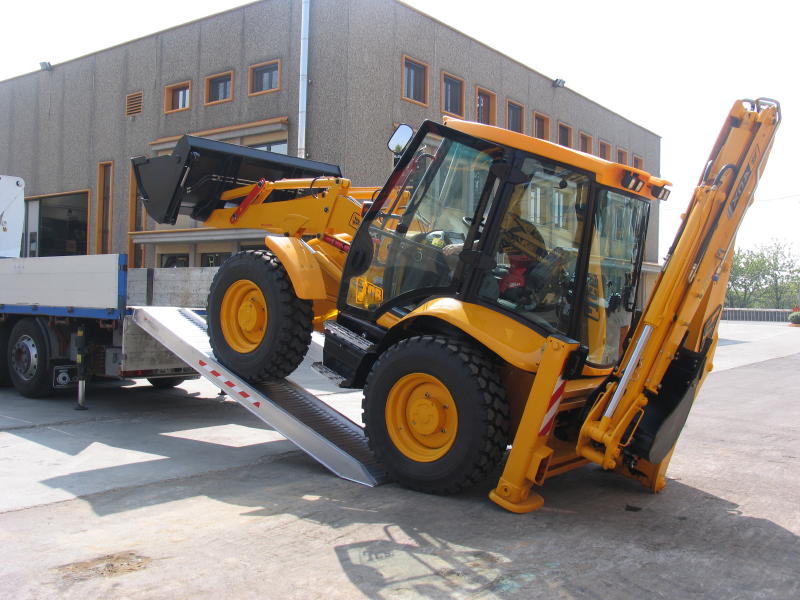

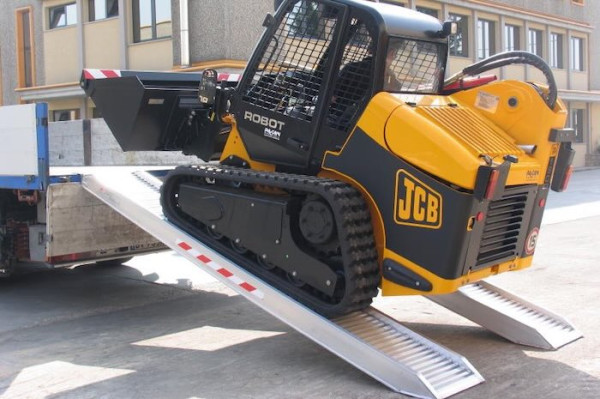

460mm wide x 3500mm long, with a 150mm profile thickness. Featuring a maximum capacity of 6870kg, this ramp is ideal for use as a plant ramp, digger ramp, or telehandler ramp. Please note the minimum track width is 300mm. Custom built sizes are available on request. Price and capacity stated is for the PAIR.

Plant Ramps FAQ's

Length (mm)3500
Width (mm)460
Max. Load Height (mm)1050
Weight Per Ramp (kg)50
Weight Per Pair (kg)100
Capacity (kg)6870

Got a question?

Product: Aluminium Loading Ramps (3500x460x6870kg)
SKU: TRP150/35LTRP

  • Connection Options
  • Customisable
  • Easy to Fit
  • European Made
  • Not for Solid Wheels
  • One Year Warranty
€1,389.90 €1,130.00
In Stock
TRP150/35LTRP
Talk to The Ramp People's sales team

Some of our best selling medium to heavy duty plant ramp, the TRP150T Series core profile thickness is 150mm and has a central reinforcing bar. The TRP150T Series has a width of 460mm. They feature a capacity of up to 6870kg and are ideal for use as plant ramps, for digger ramps and for tele-handlers.

On the TRP150T series the minimum width of tracks/wheels is 300mm. These Ramps are not designed for use over a 30% gradient

  • These ramps are available both with and without edges
  • Four different connection options available, however the default connection is the rest on connection
  • Custom load heights available
  • Not suitable for solid wheels found on road surfacing machines - for this type of machinery please see the industrial ramps for steel tracks
  • Fully TÜV certified
  • Quotes for bespoke ramps can be supplied on request

TUV Certification Image

Useage Guidelines and Safety Information for these ramps can be found here

SKU TRP150/35LTRP
Default Connection Rest On Connection
Capacity (kg) 6870
Height of ramps profile (mm) 150
Length (mm) 3500
Weight per ramp (kg) 50
Weight Per Pair (kg) 100
Width (mm) 460
Minimum track width (mm) 350
One Year Warranty Yes
Connection Options Available Yes
Customisable Yes
Easy to Fit Yes
European Made Yes
Not Solid Wheels Yes
Capacity Wheelbase 1000mm (kg) 4,120
Capacity Wheelbase 1500mm (kg) 5,155
Capacity Wheelbase 2000mm (kg) 6,870
