Aluminium Loading Ramps (3000x510x12650kg)

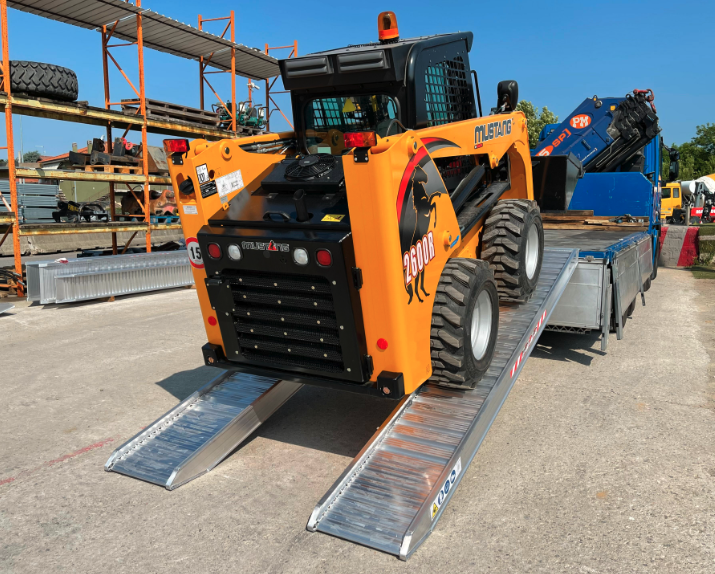

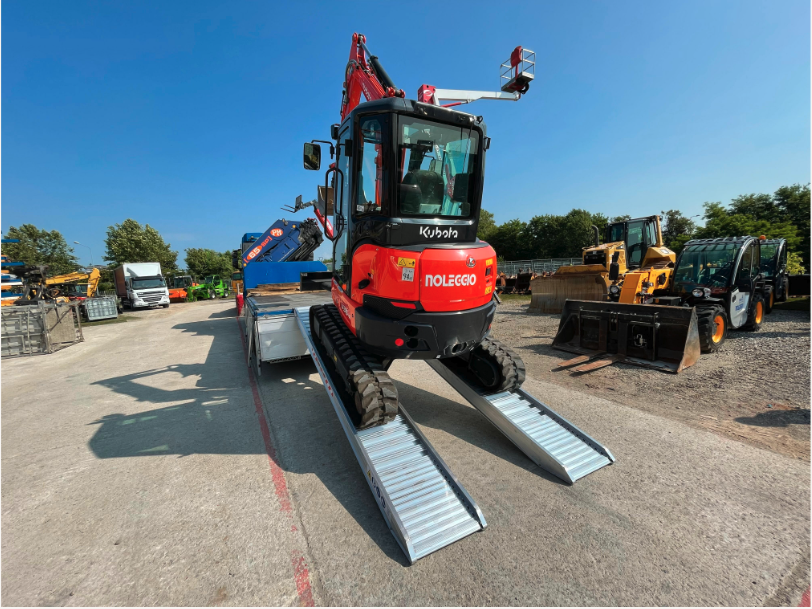

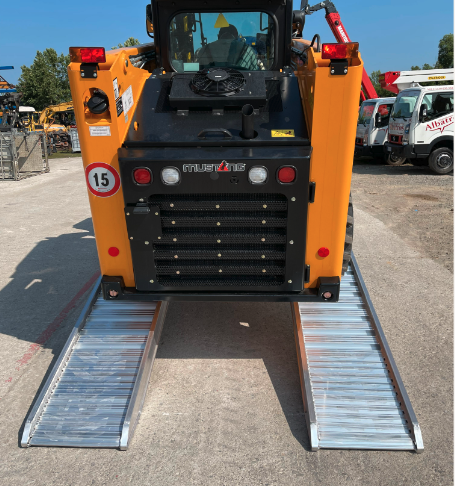

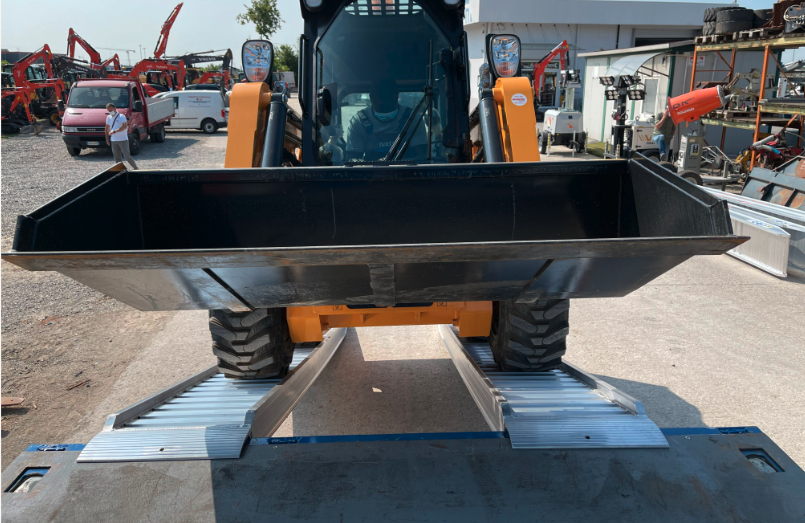

510mm wide x 3000mm long, with a 160mm profile thickness. Featuring a maximum capacity of 12,650kg, this ramp is ideal for use with rubber tracked excavators, as a plant ramp, digger ramp and for telehandlers. Please note the minimum track width is 400mm.

Custom built sizes are available on request. Price and capacity stated is for the PAIR.

Plant Ramps FAQ's

Length (mm)3000
Width (mm)510
Max. Load Height (mm)900
Weight Per Ramp (kg)46,5
Weight Per Pair (kg)93
Capacity (kg)12650
Product Inquiry
  • Connection Options
  • Customisable
  • Easy to Fit
  • European Made
  • Not for Solid Wheels
  • One Year Warranty
€1,343.10 €1,110.00
Built to Order
Talk to The Ramp People's sales team

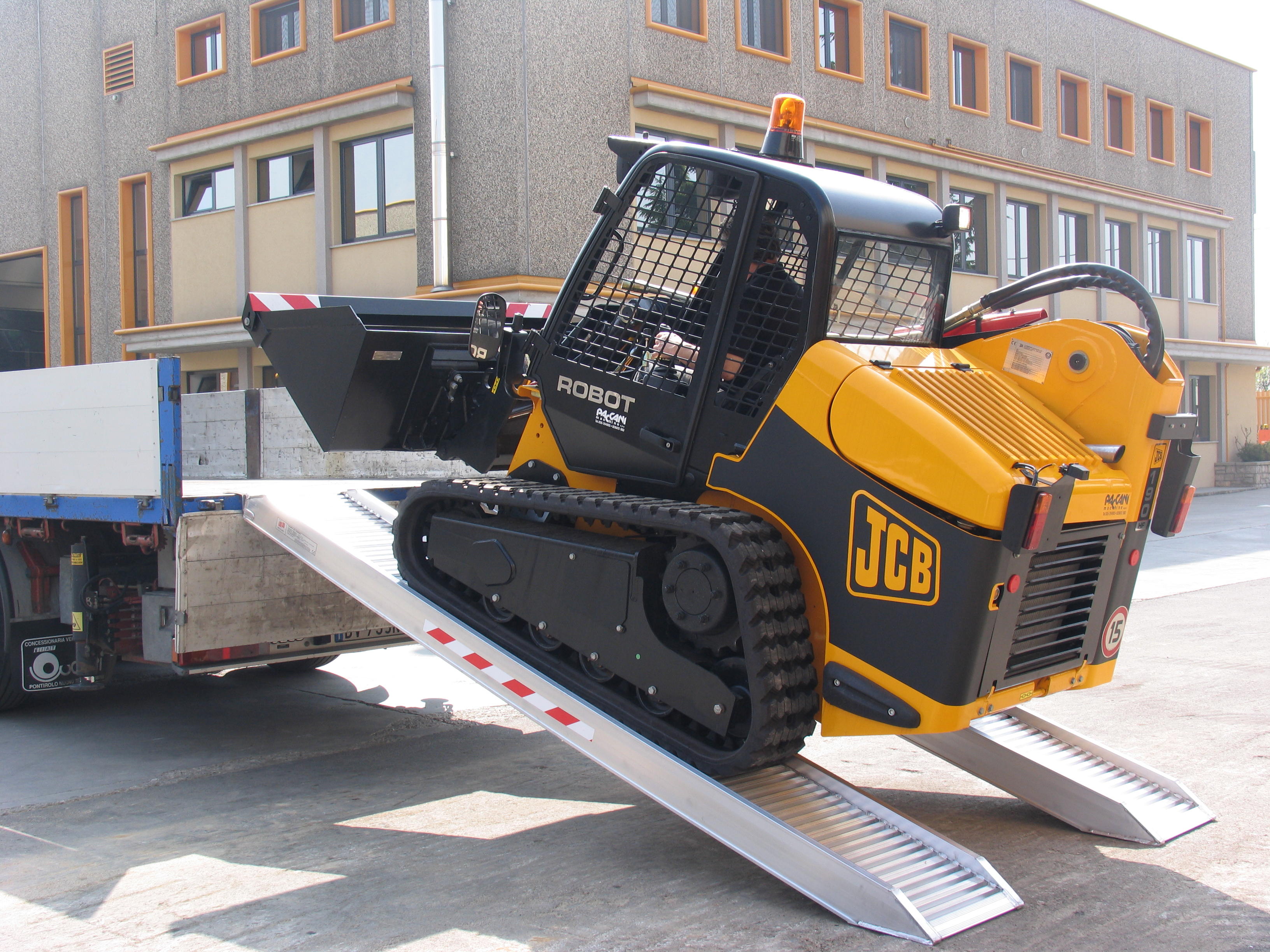

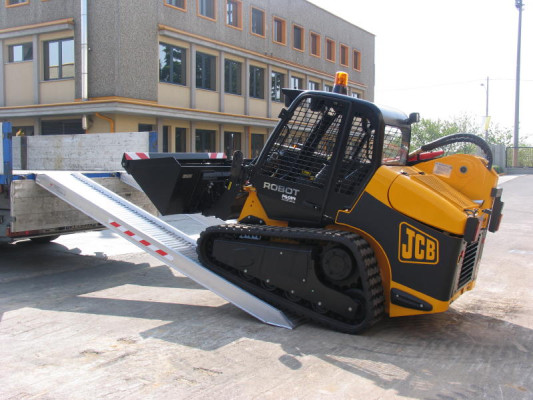

The TRP160/30LTRP Series core profile thickness is 160mm and has a width of 510mm. They feature a capacity of up to 12.650kg and are ideally suited for use with rubber tracked excavators, as plant ramps, digger ramps and for tele-handlers.

On the TRP160/30LTRP series the minimum width of tracks/wheels is 400mm.

  • These ramps are available both with and without edges
  • Four different connection options available, however the default connection is the rest on connection
  • Custom load heights available
  • Not suitable for solid wheels found on road surfacing machines - for this type of machinery please see the industrial ramps for steel tracks
  • Fully TÜV certified
  • Quotes for bespoke ramps can be supplied on request
  • All pictures shown are for illustration purpose only. Actual product may vary due to product enhancement

Usage Guidelines and Safety Information for these ramps can be found here.

Default Connection Rest On Connection
Capacity (kg) 12650
Height of Ramps Profile (mm) 160
Length (mm) 3000
Min Load Height (mm) 750
Weight per Ramp (kg) 46,5
Weight Per Pair (kg) 93
Width (mm) 510
Minimum Track Width (mm) 400
One Year Warranty Yes
Connection Options Available Yes
Customisable Yes
Easy to Fit Yes
European Made Yes
Not Solid Wheels Yes
Capacity Wheelbase 1000mm (kg) 6,325
Capacity Wheelbase 1500mm (kg) 8,435
Capacity Wheelbase 2000mm (kg) 12,650
