4-10 business days delivery*. Items are shipped from the UK to Ireland on DAP Incoterms. This means we do not charge Irish VAT but Irish import VAT of 23%, import duty (on some products) and customs charges will be due. These fees will need to be paid to the courier before or after you receive the goods. Learn more.

From €81.00
SKU
TRP699Conf
In Stock
Only %1 left

Loading Ramp with Double support Bar (2200mmx285mm)

Lightweight aluminium folding loading ramps with cut-out grip system and double support bar to increase durability - available with and without legs. The support bar legs can be adjusted from 340mm up to 425mm.

Suitable for ride-on lawn mowers, ATV/quad bikes and other wheeled garden machinery. Slightly curved for improved ground clearance. Each ramp has a capacity of 340kg without legs and 680kg with legs. This gives a 680kg capacity for the pair without legs or 1360 for the pair with legs.

Please note, these ramps are unsuitable for single axle or tracked machinery or vehicles. In addition, these are not suitable for caster wheels or solid wheels. These ramps are not suitable for industrial use or professional use.

  • Easy to Fit
  • One Year Warranty
Description

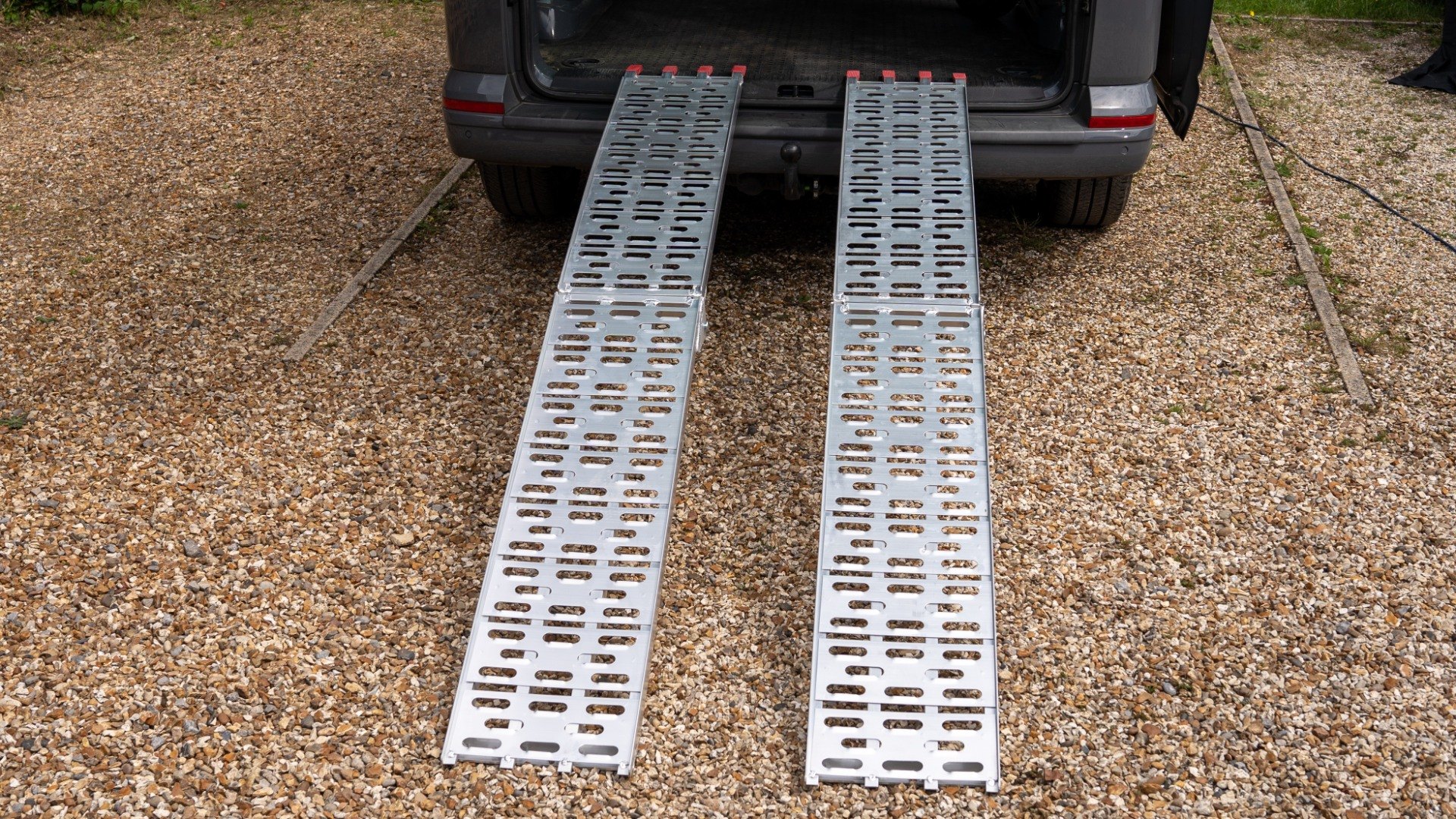

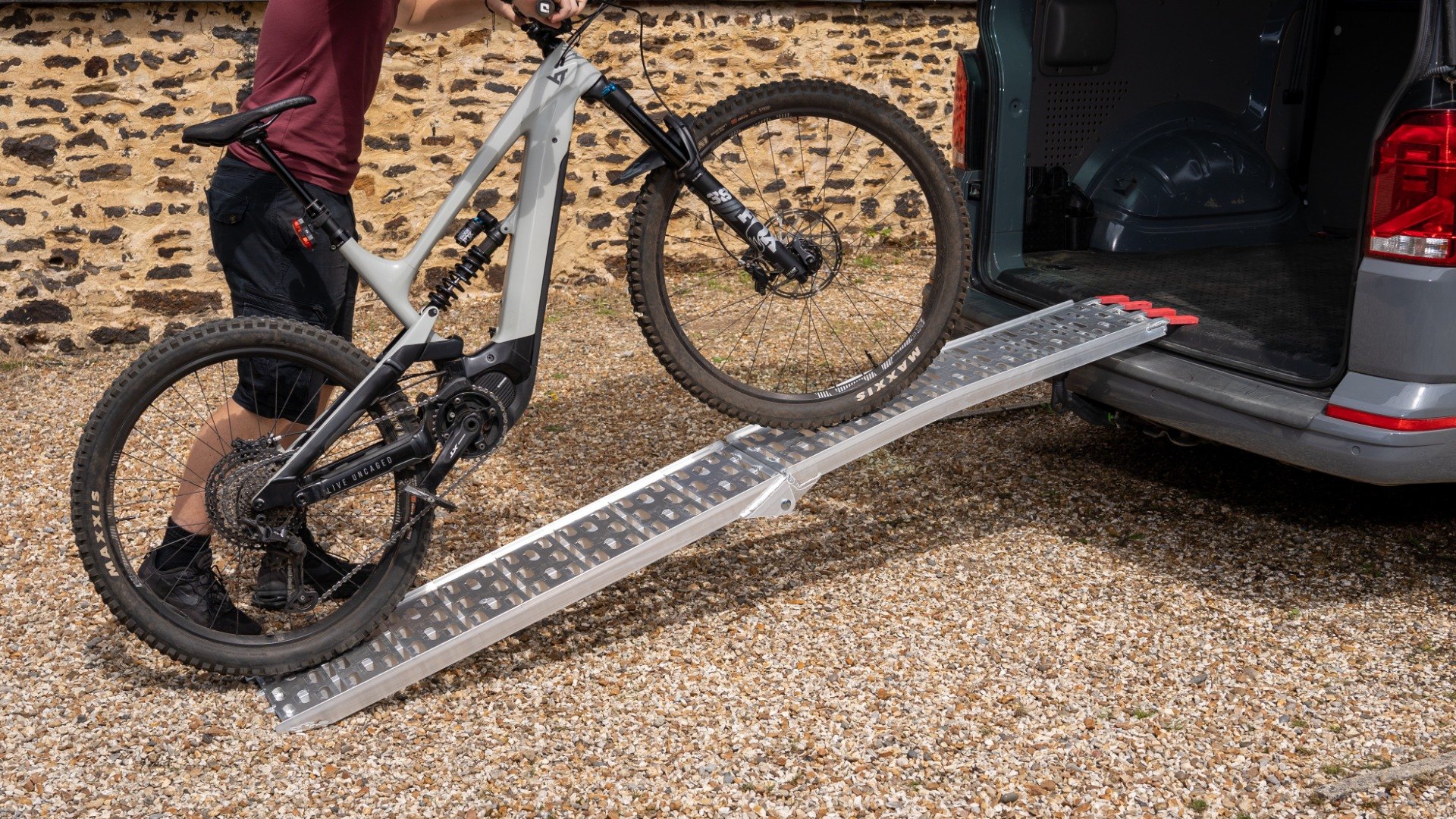

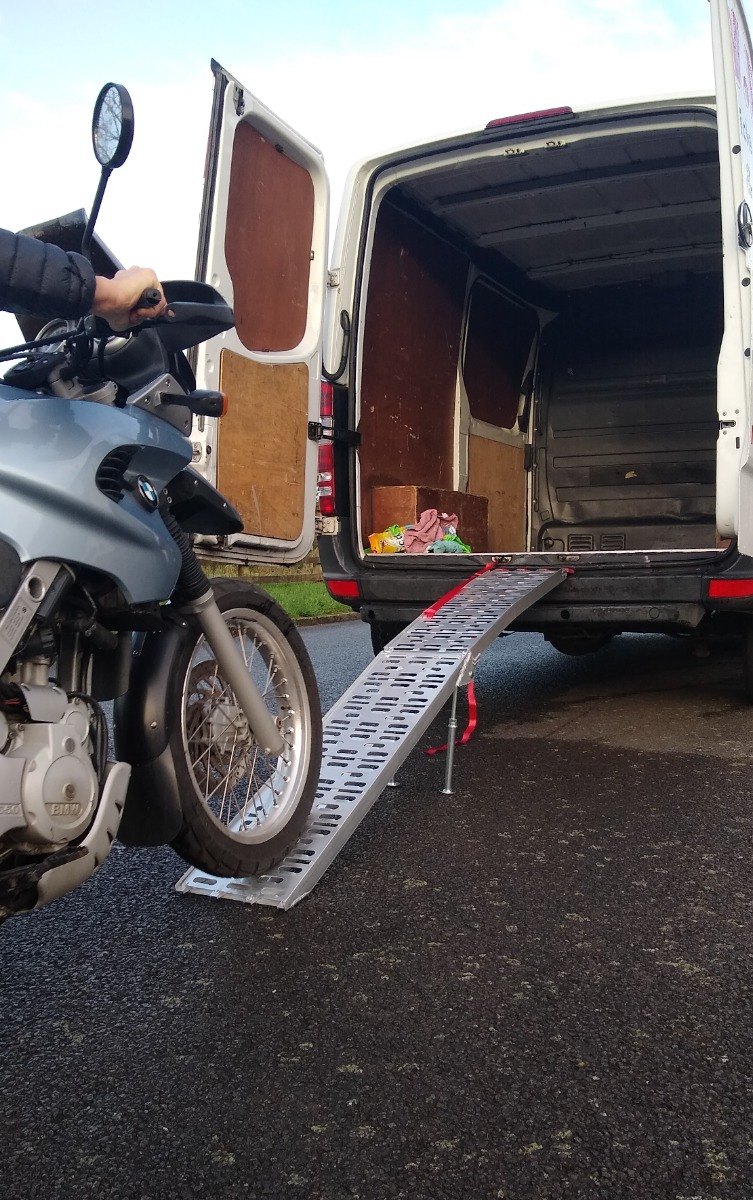

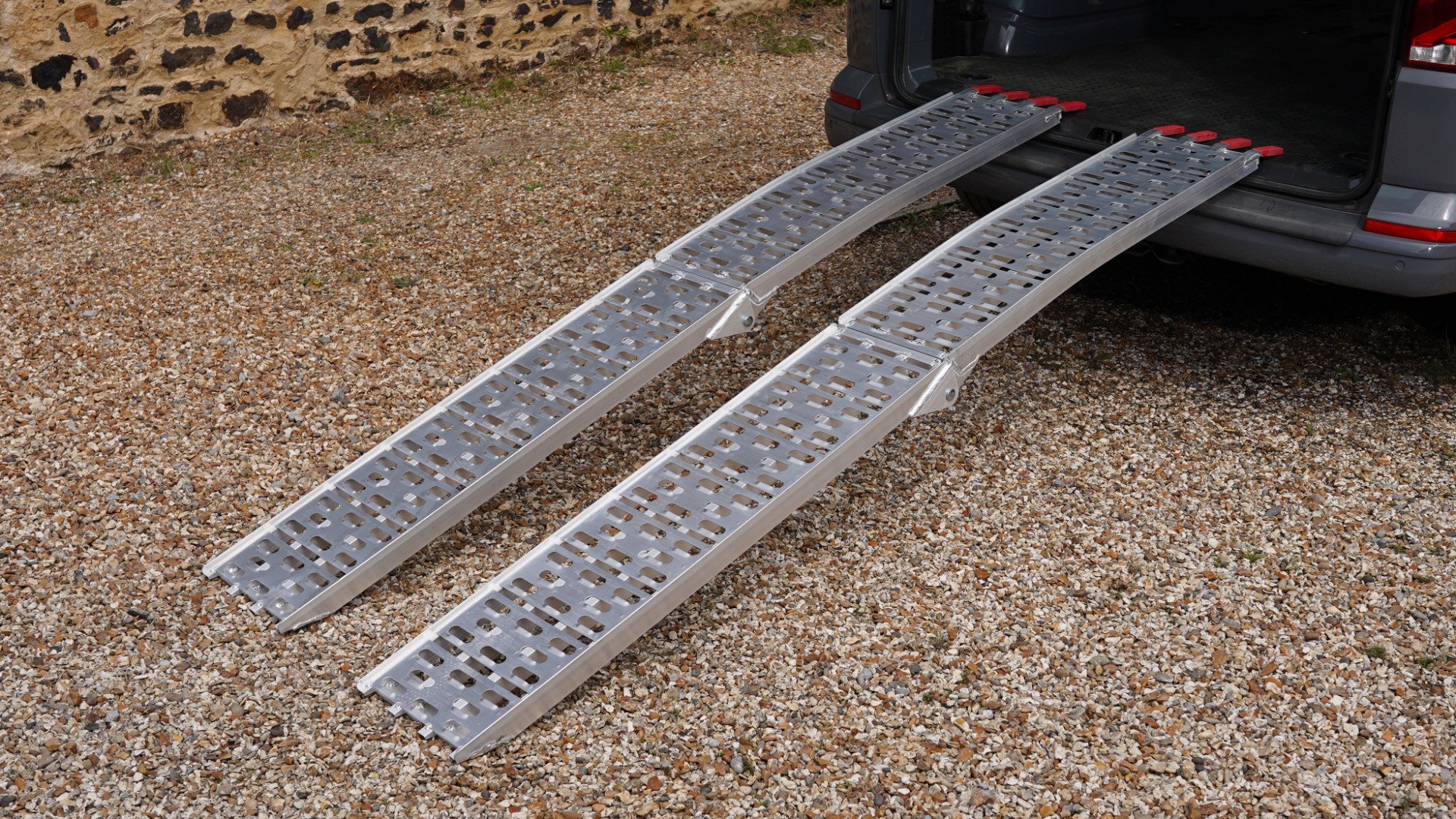

  • Use as a single ramp to load motorbikes and mopeds or use as a pair to load quad bikes, ATV's and ride-on-mowers
  • Each ramp is 2200mm long x 285mm wide
  • Designed for loading at heights between 520mm - 666mm
  • Lightweight at only 8.5kg - 8.8kg depending on your chosen style
  • Double support bar which adds greater strength and durability

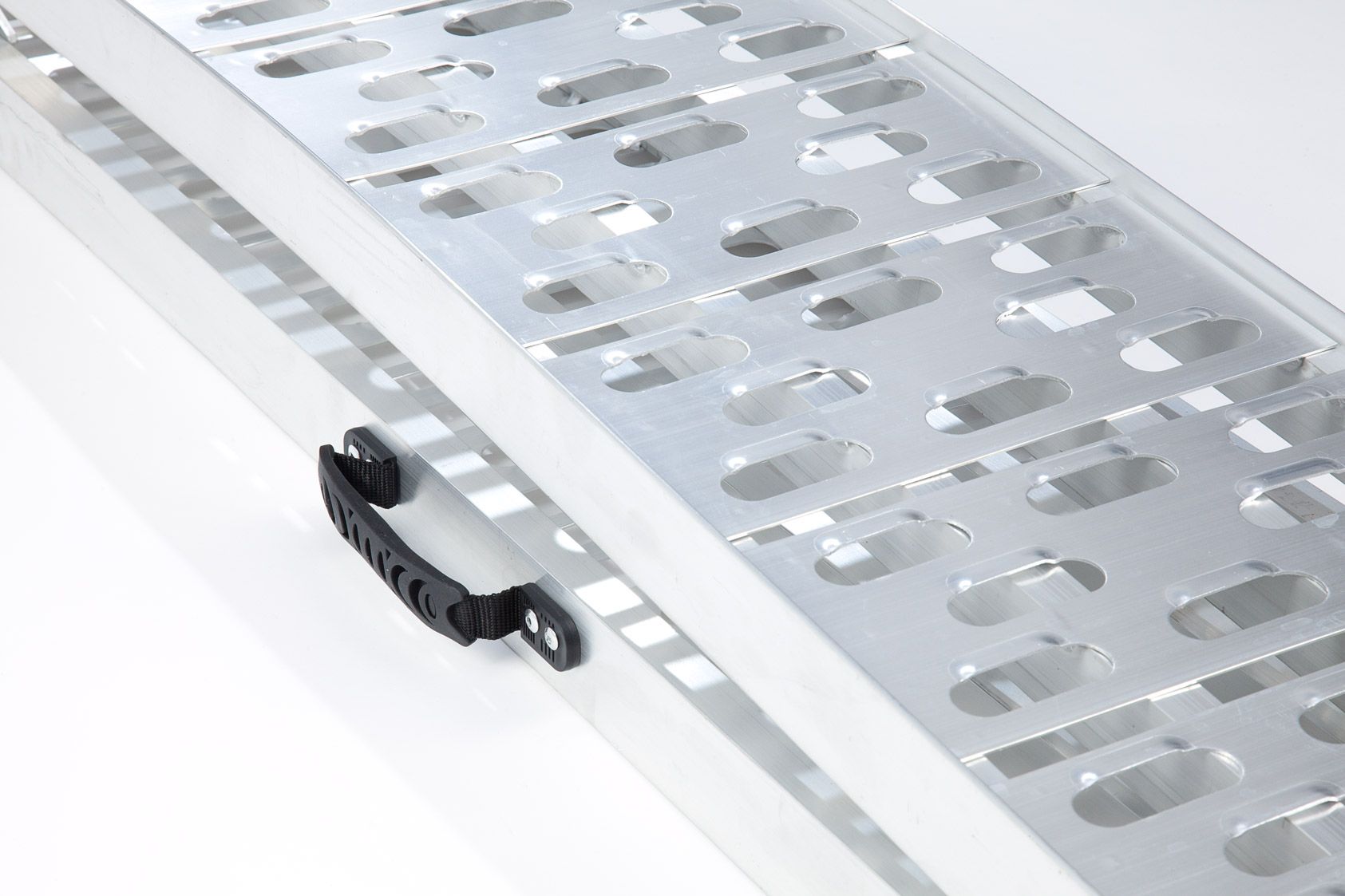

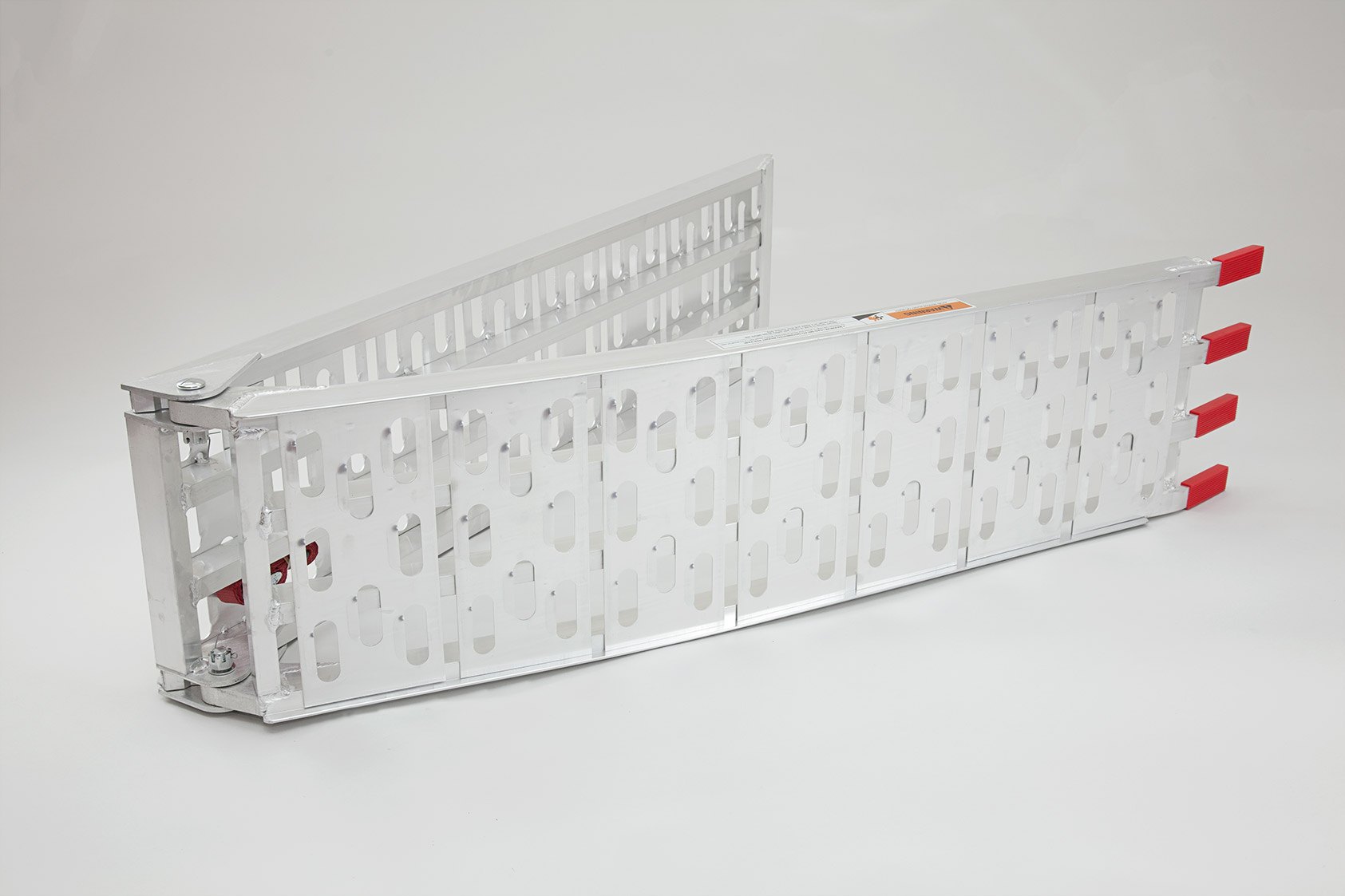

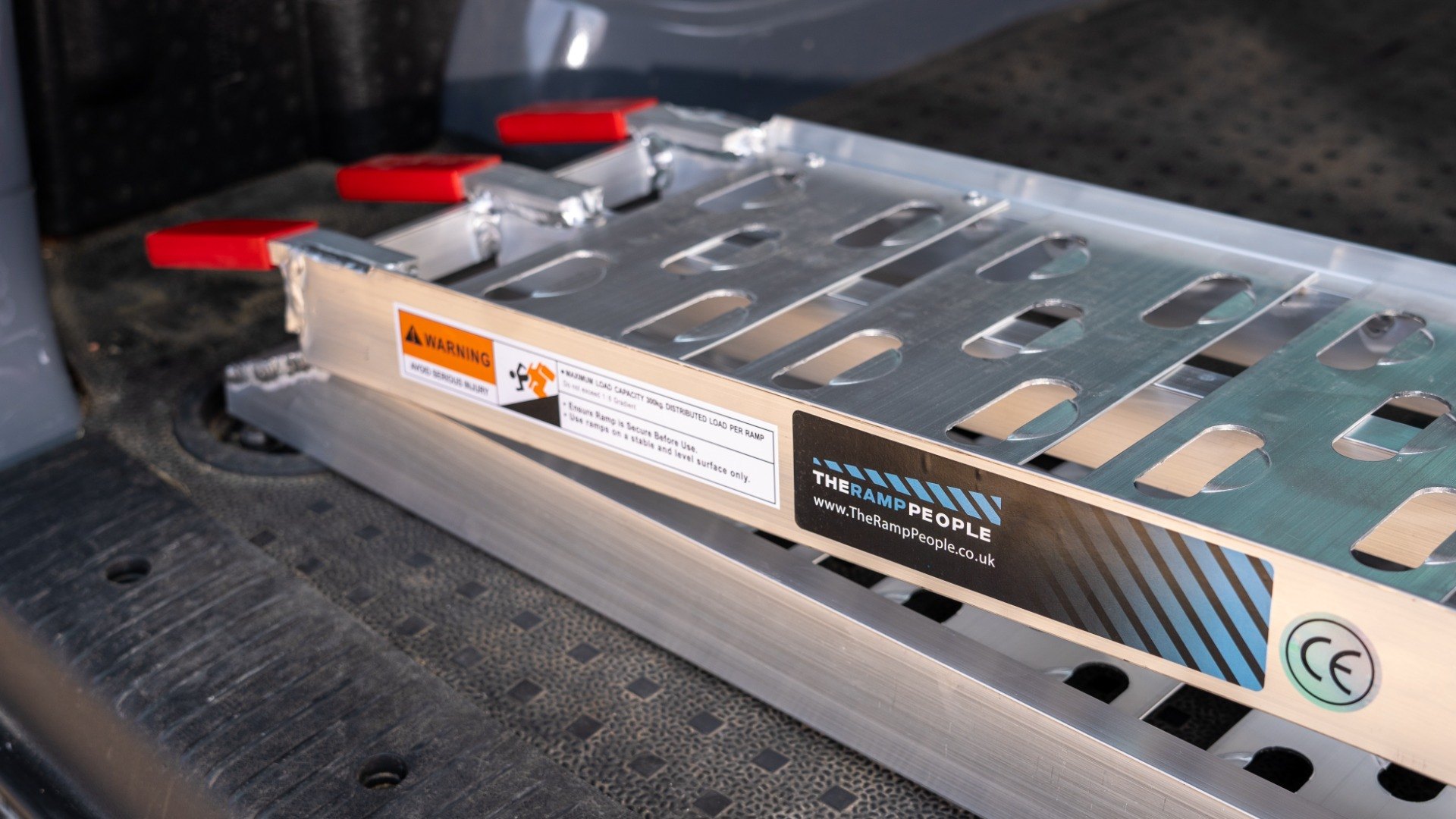

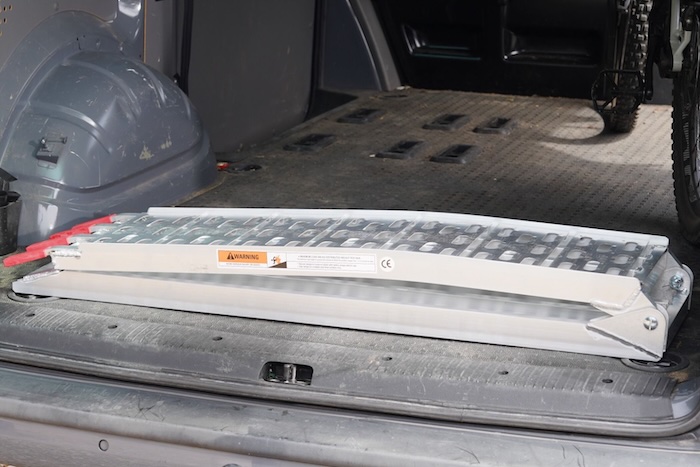

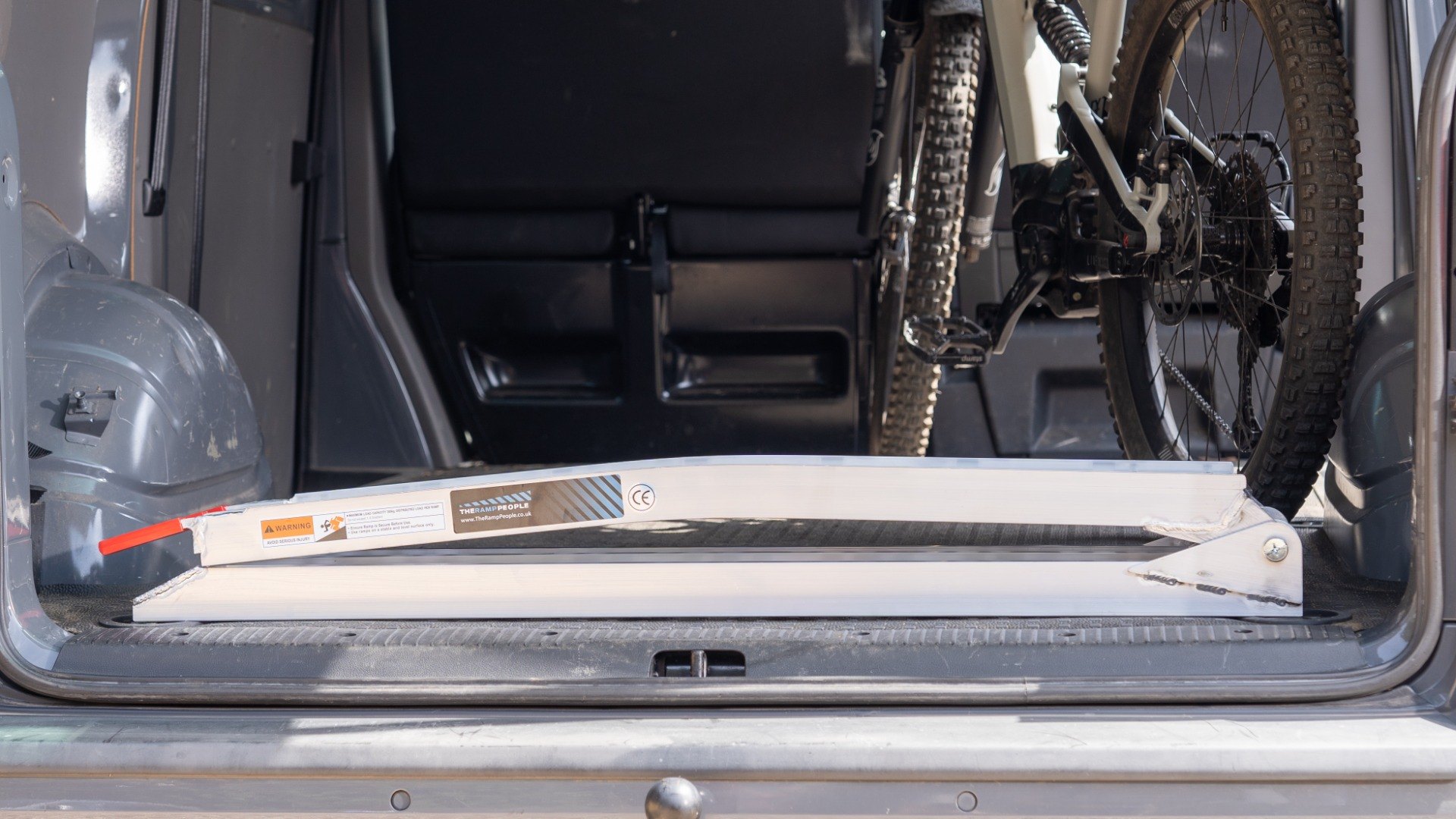

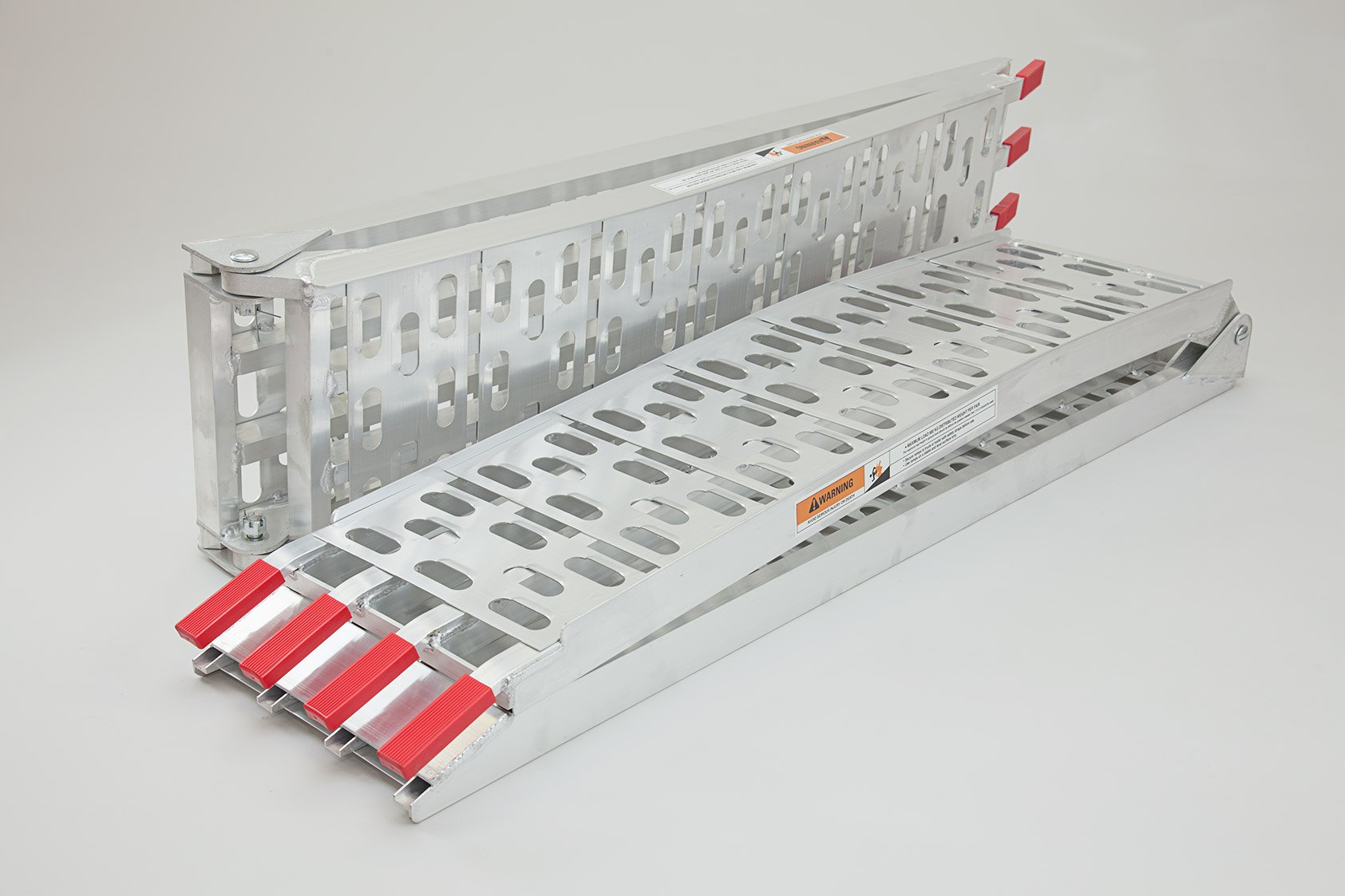

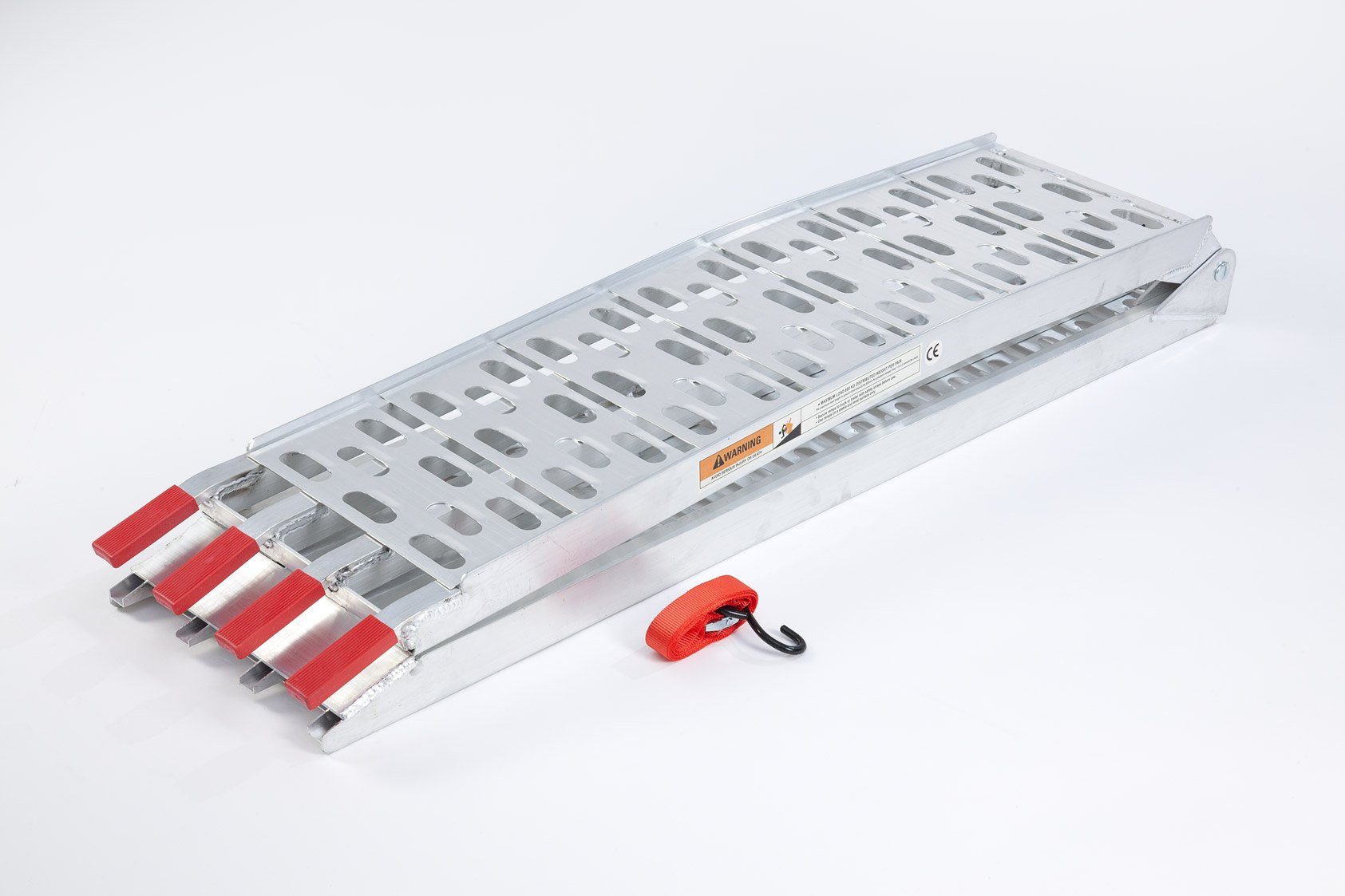

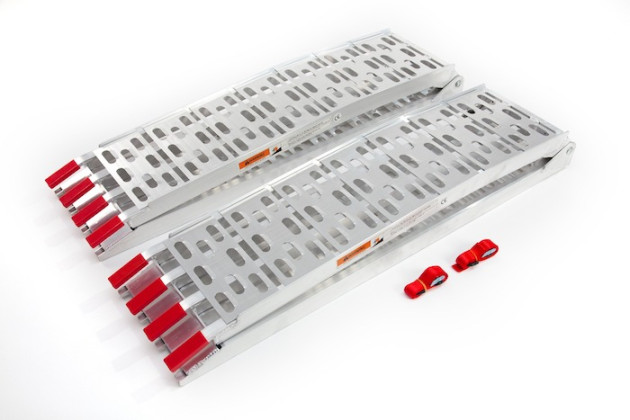

  • Portable aluminium loading ramp, folds to half its length (1100mm)

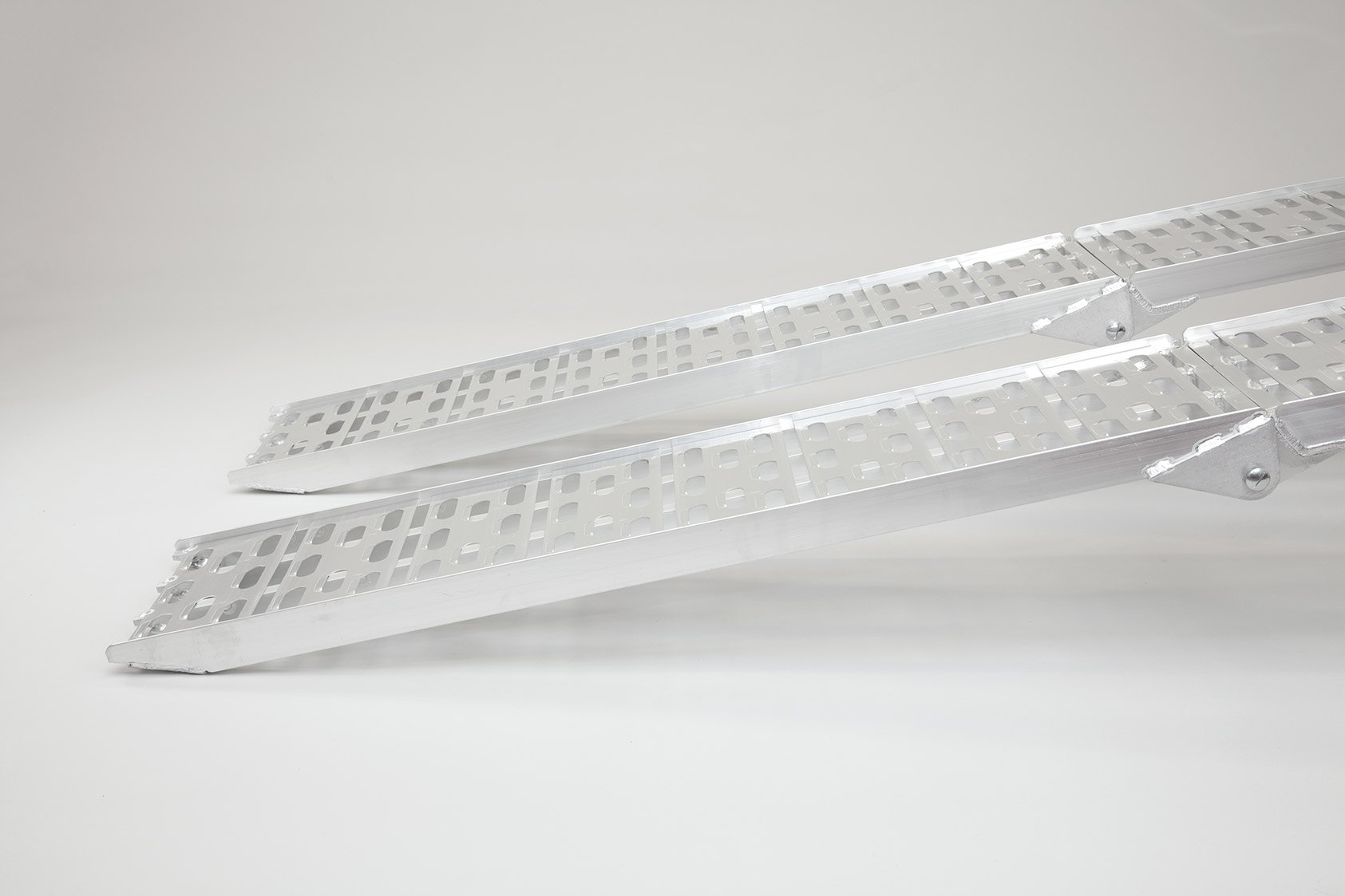

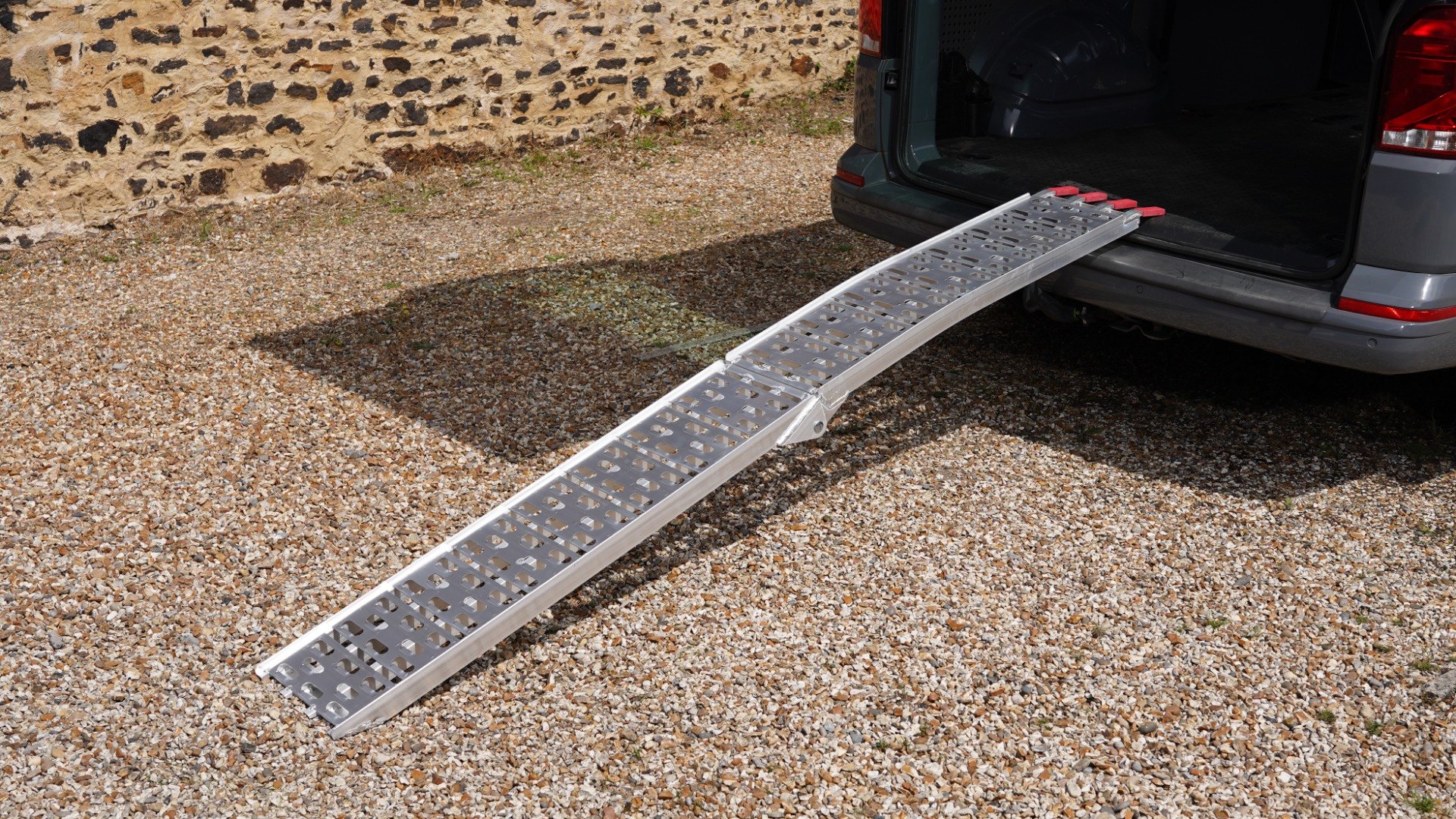

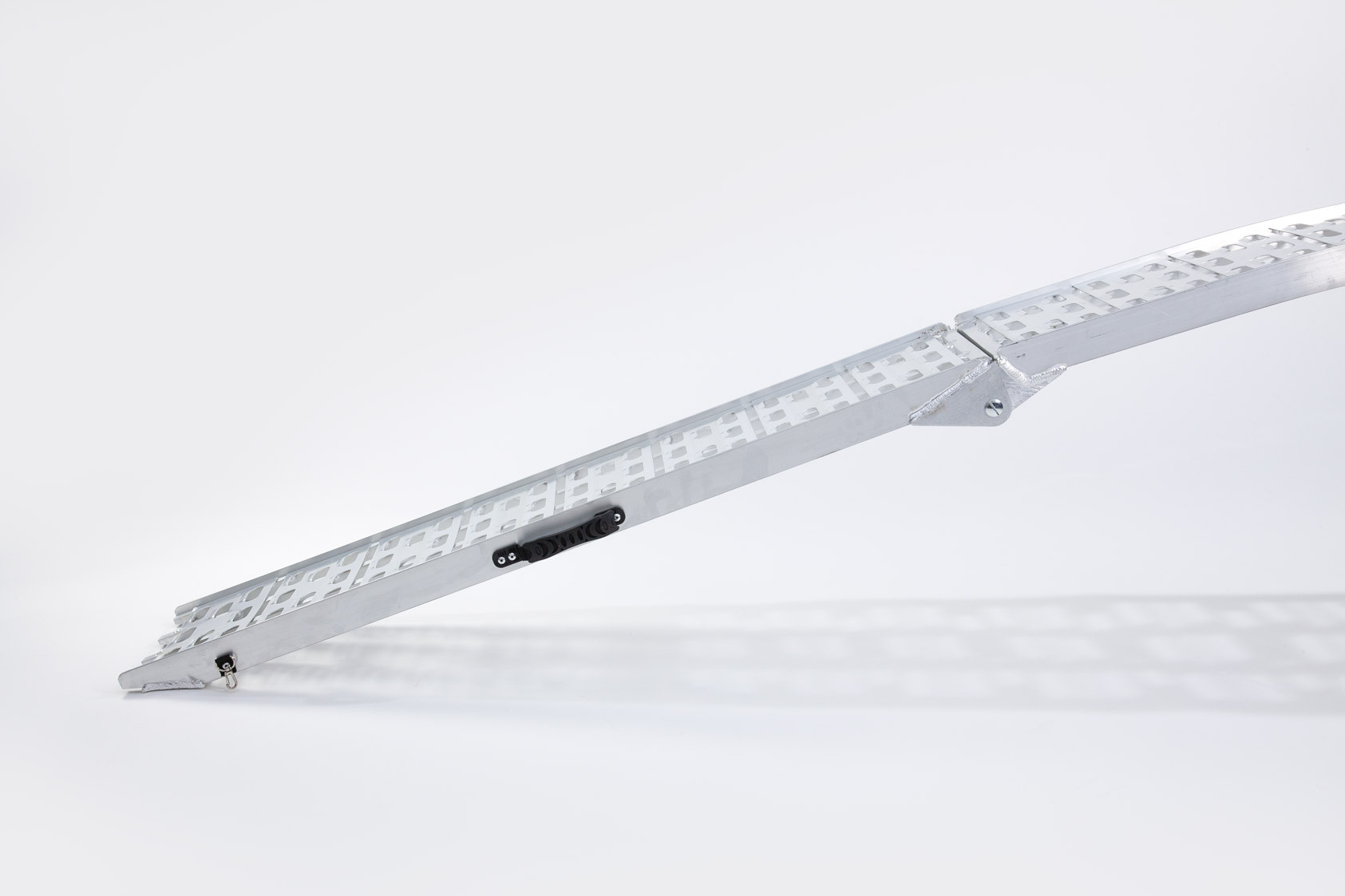

  • Slightly curved for improved ground clearance

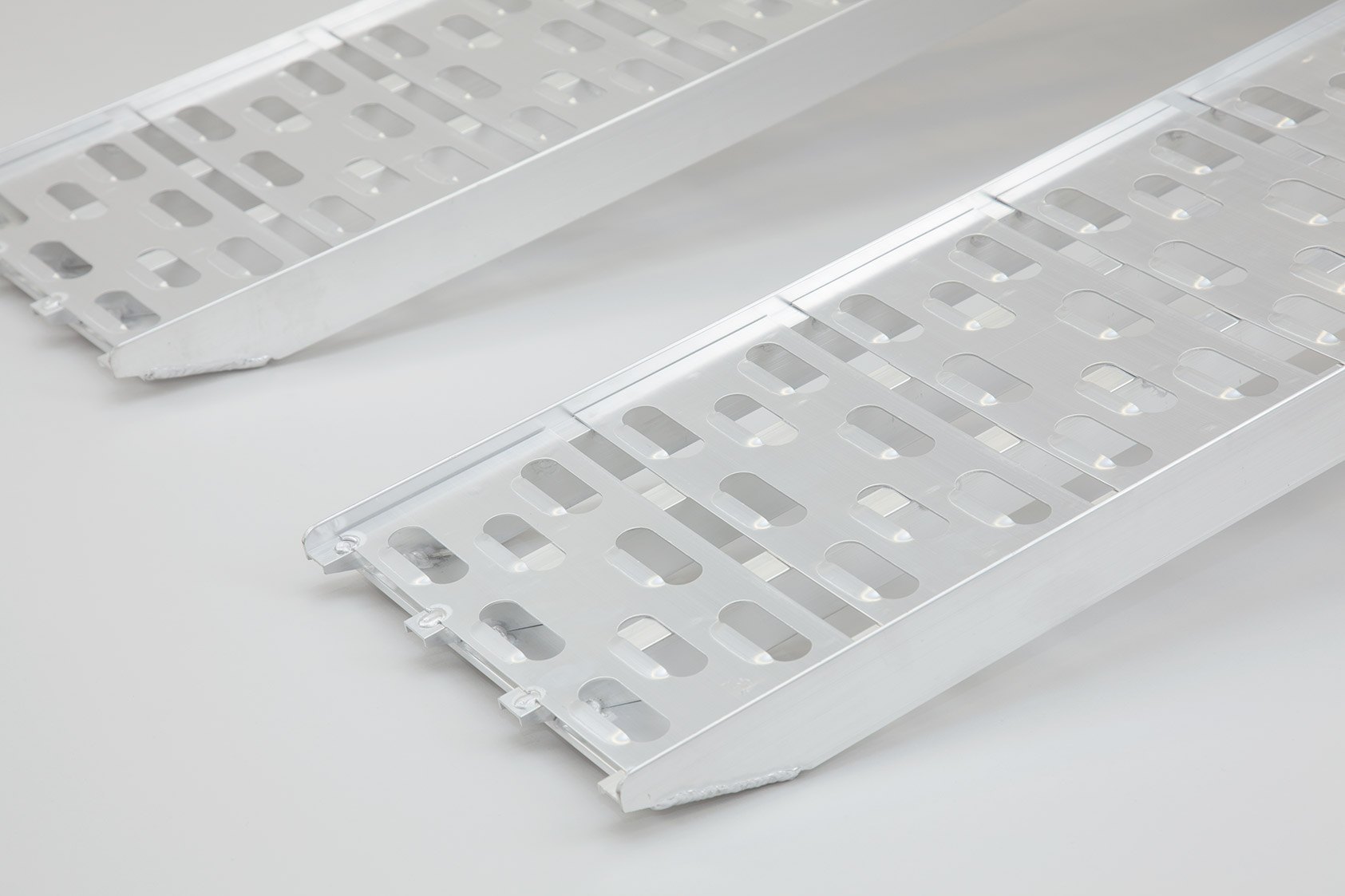

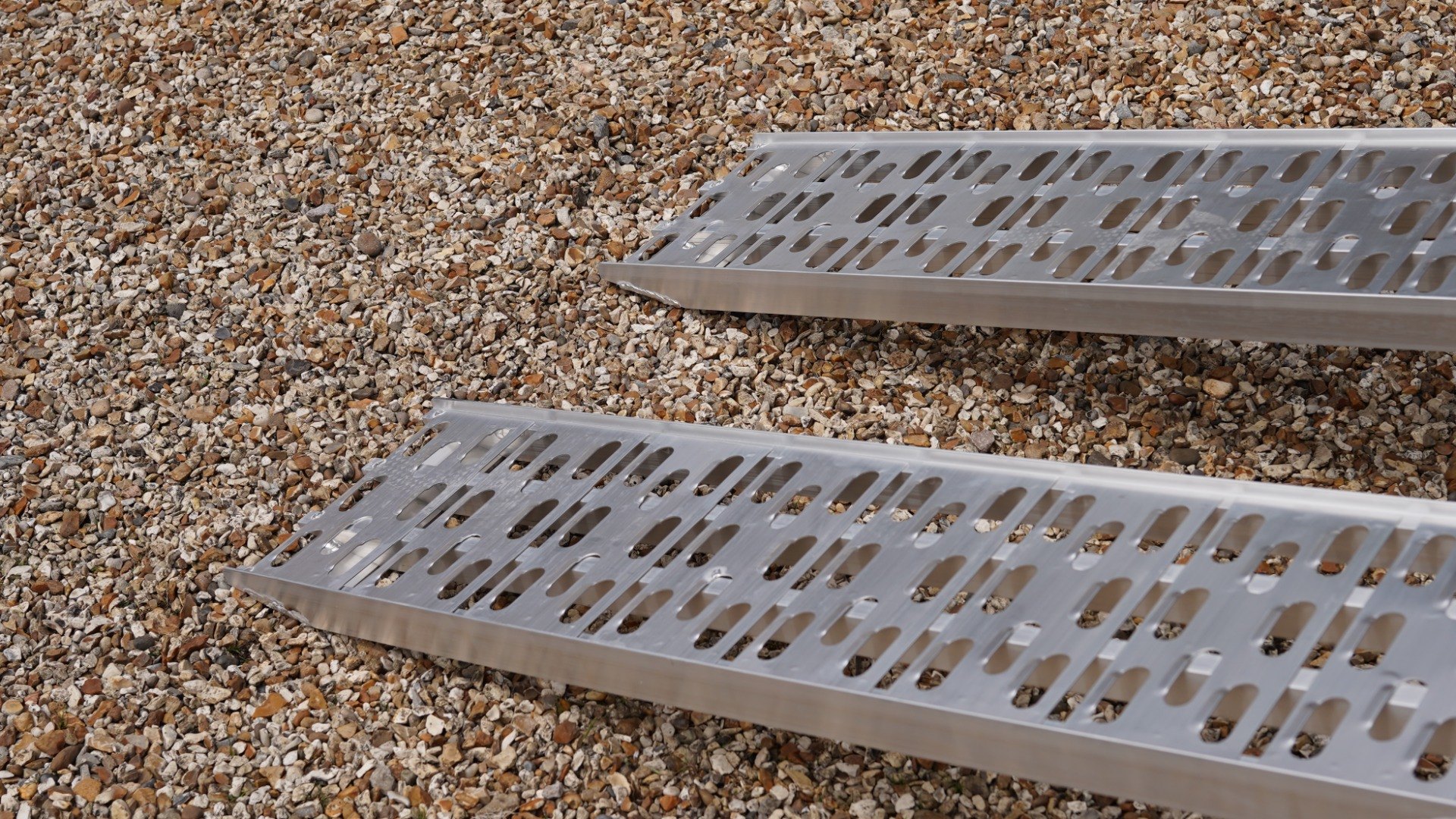

  • Angled foot for smooth access onto the ramp

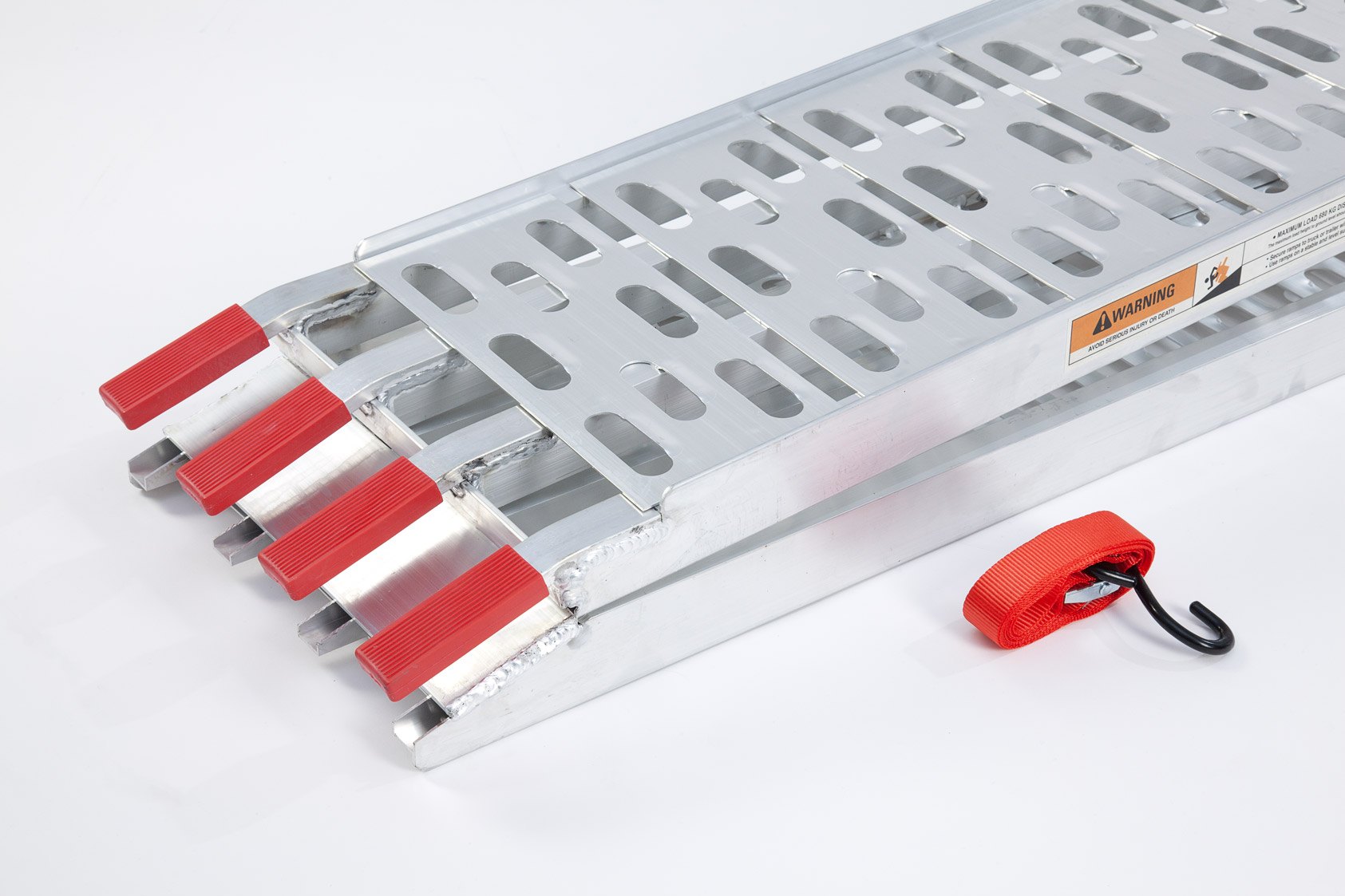

  • Provided with safety straps to allow the ramp to be secured to the vehicle during loading

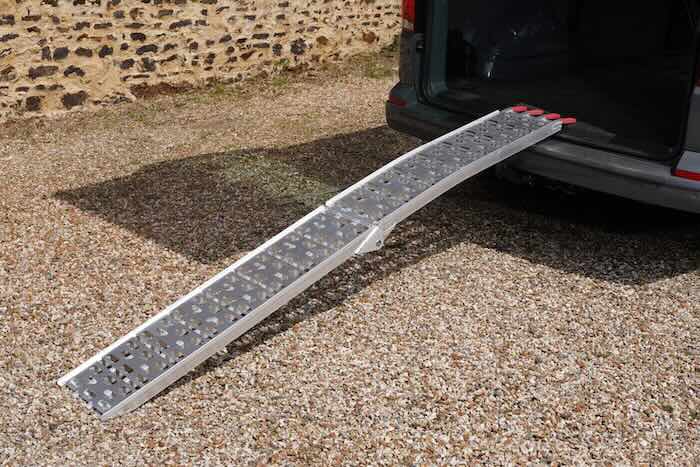

  • No installation required simply rest the loading ramp onto the vehicle and start loading

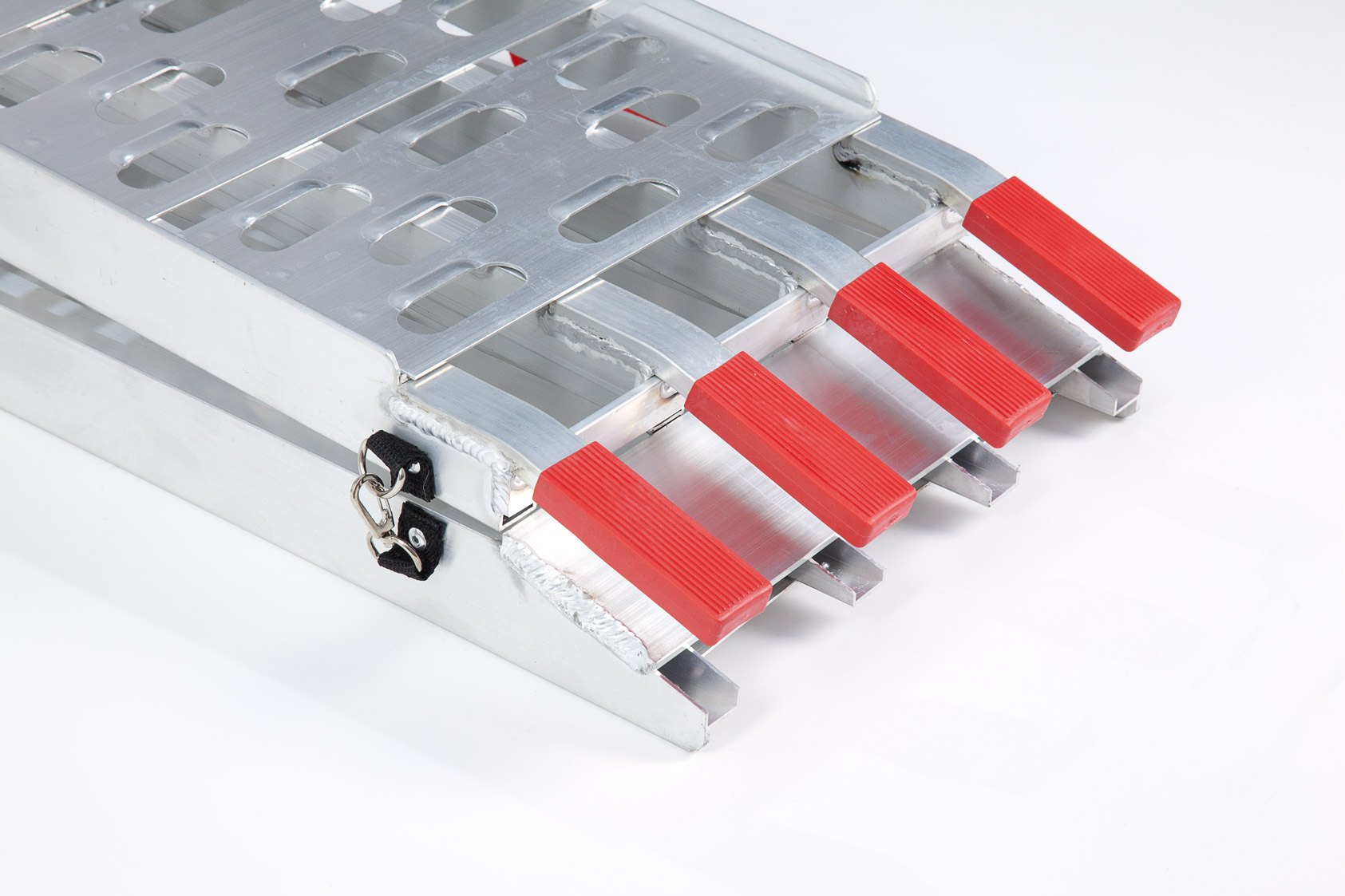

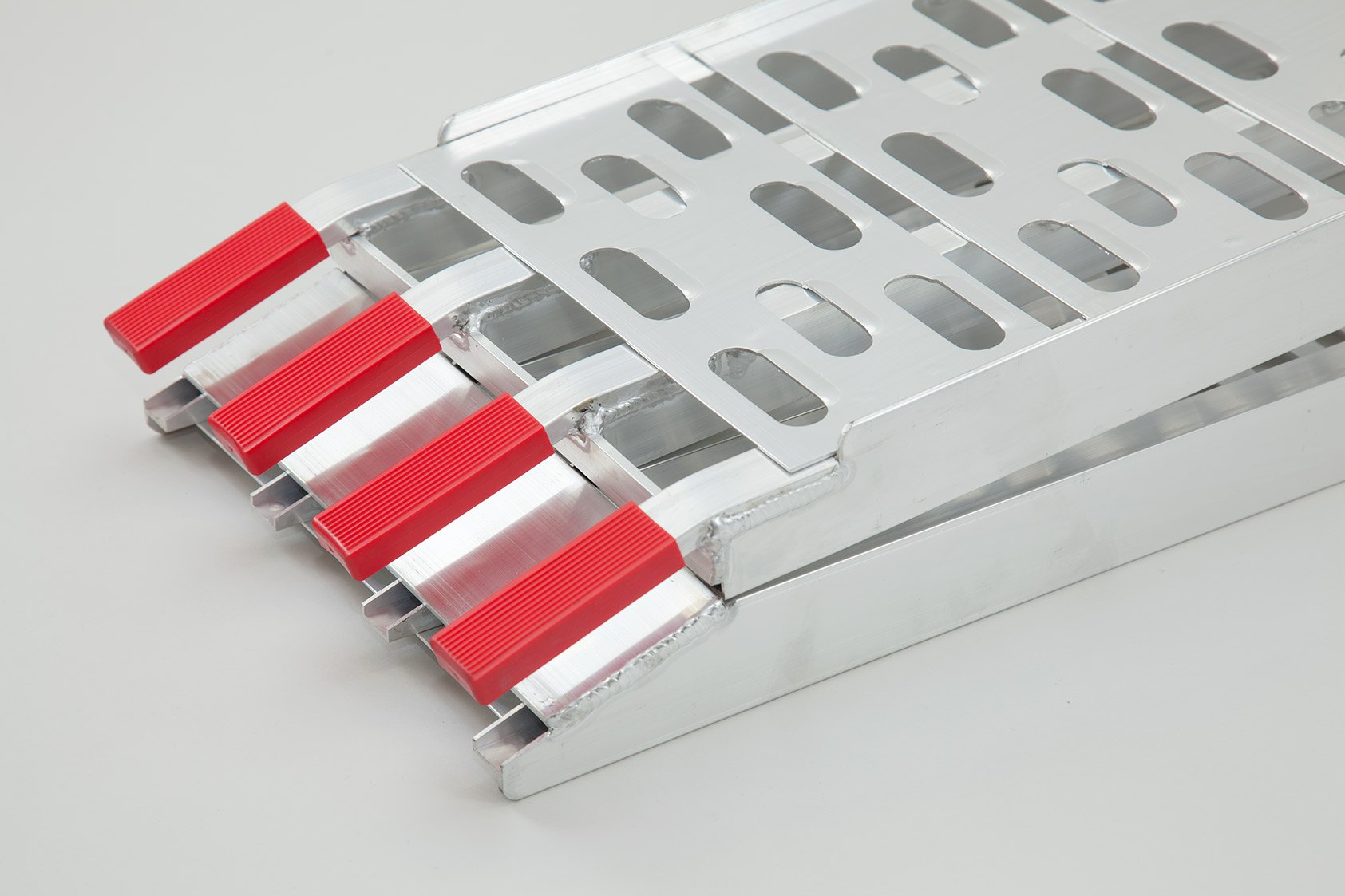

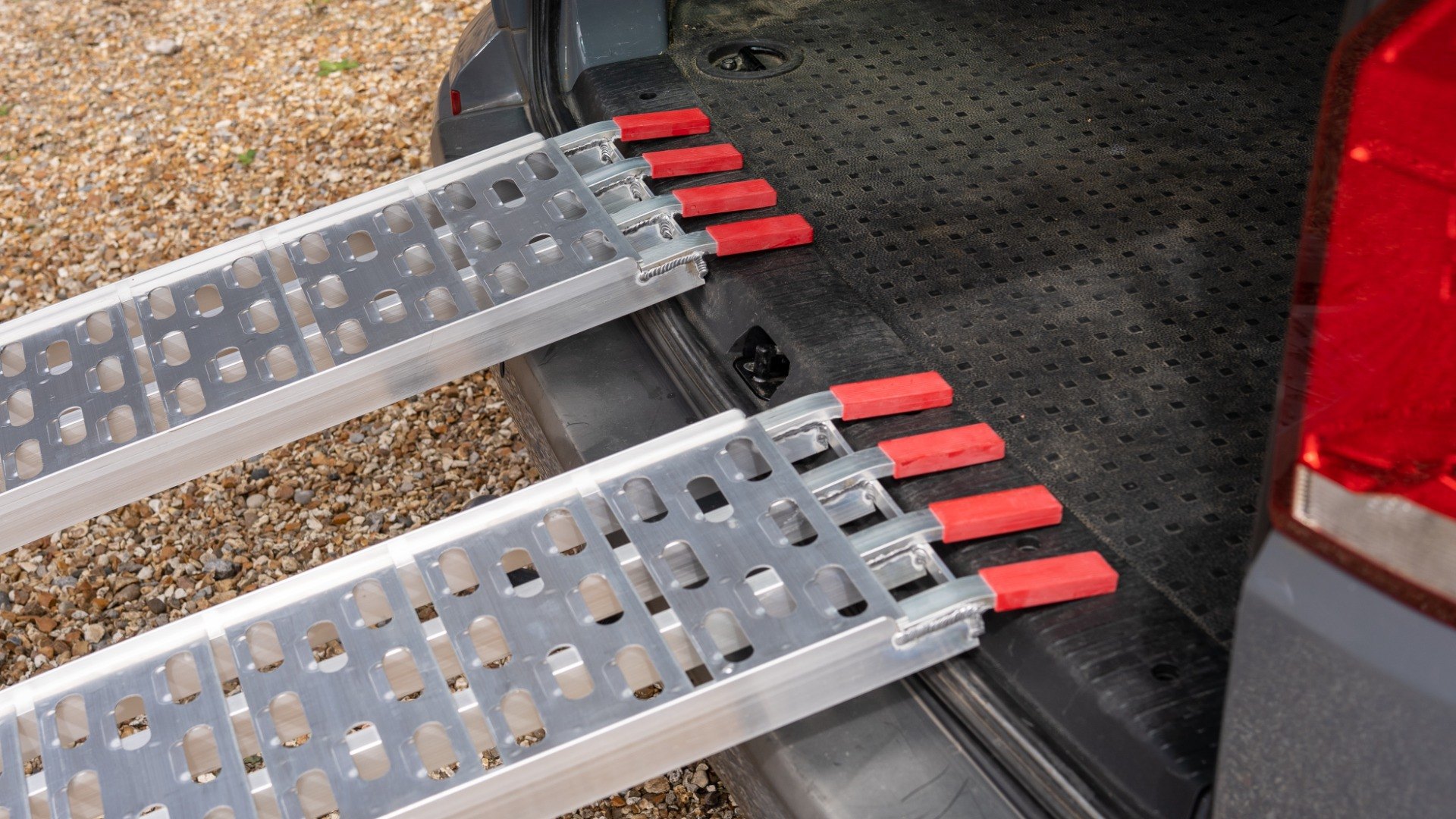

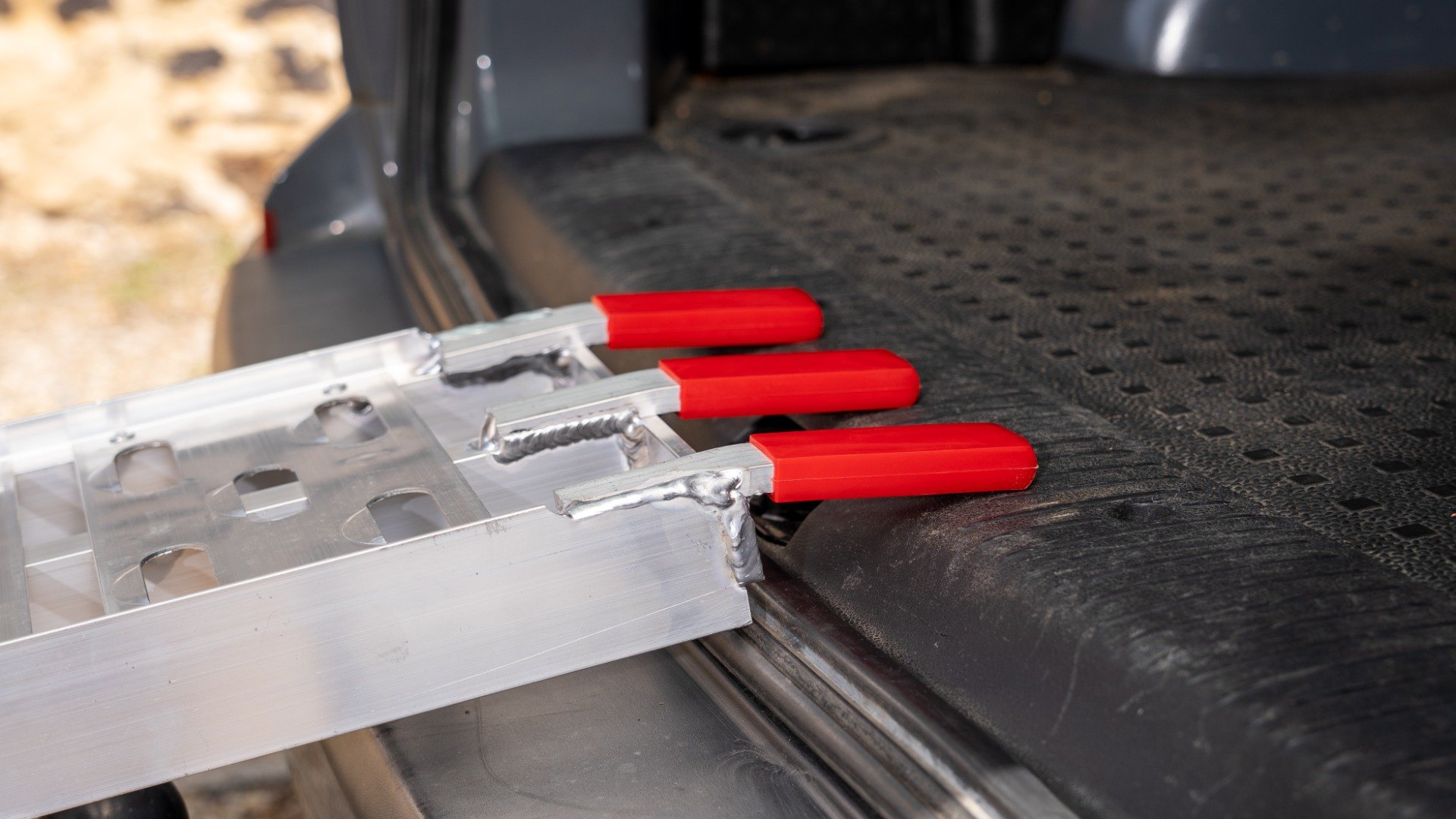

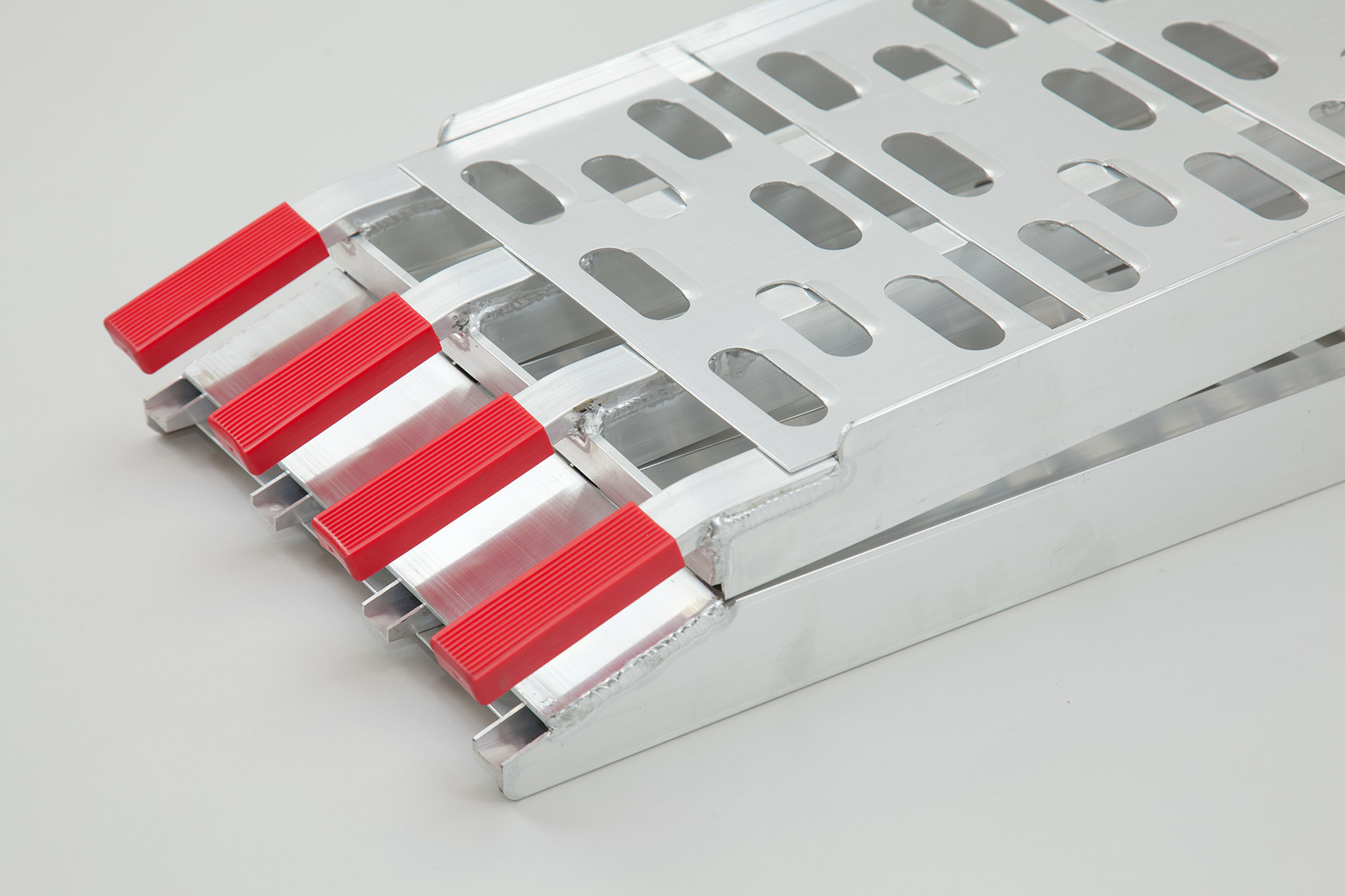

  • Coated rest on connection to reduce the risk of damage to the vehicle during loading

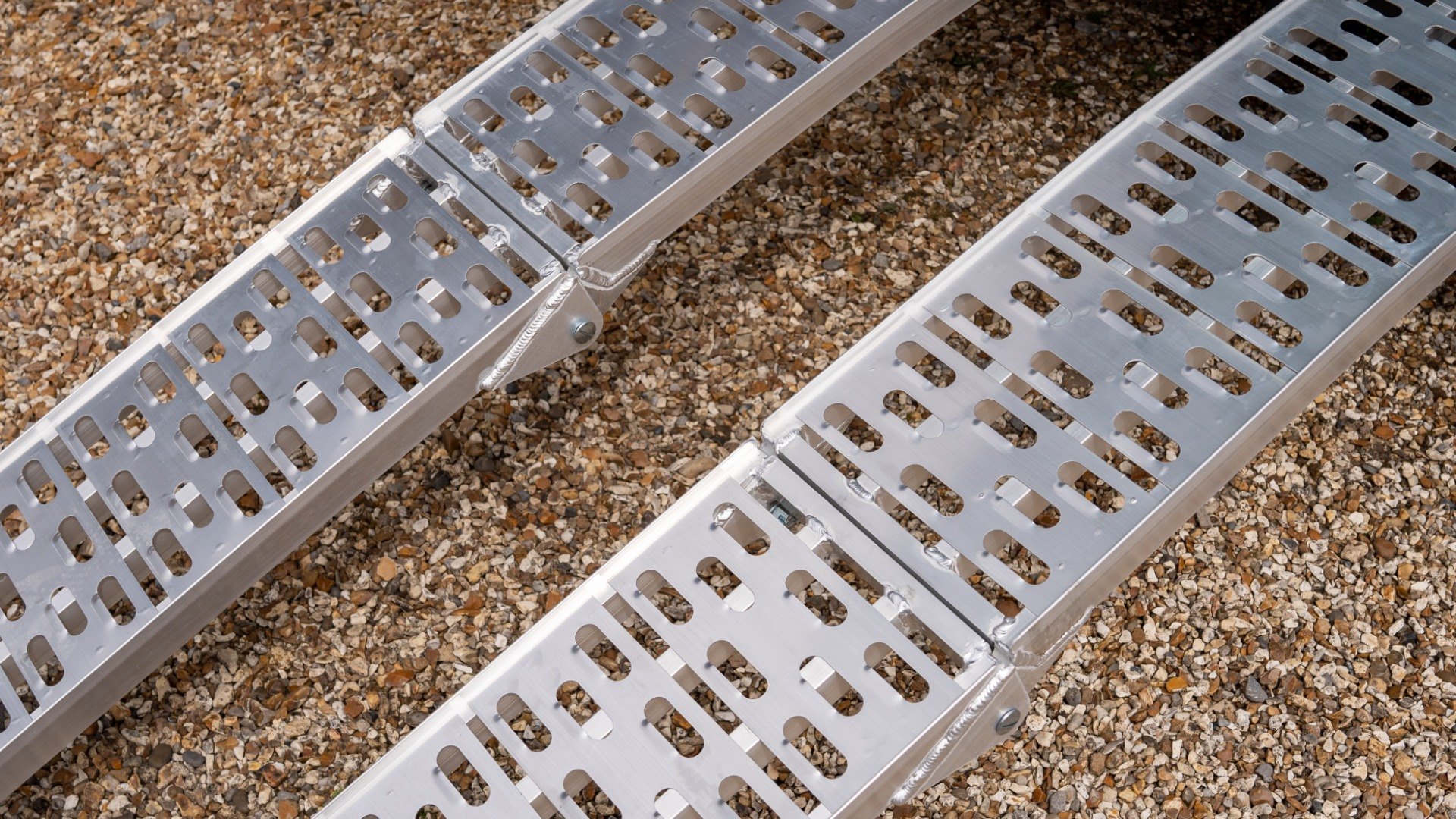

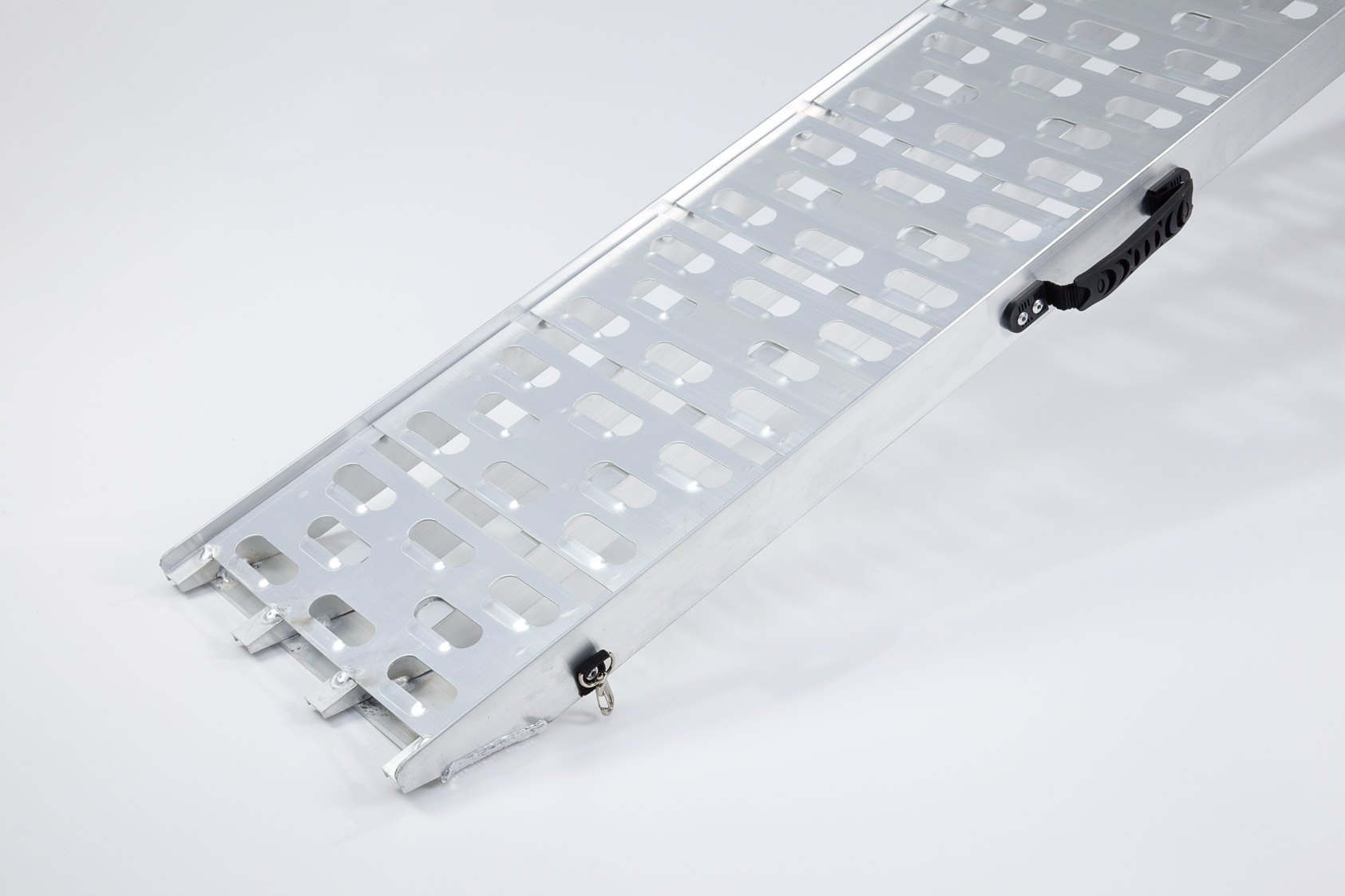

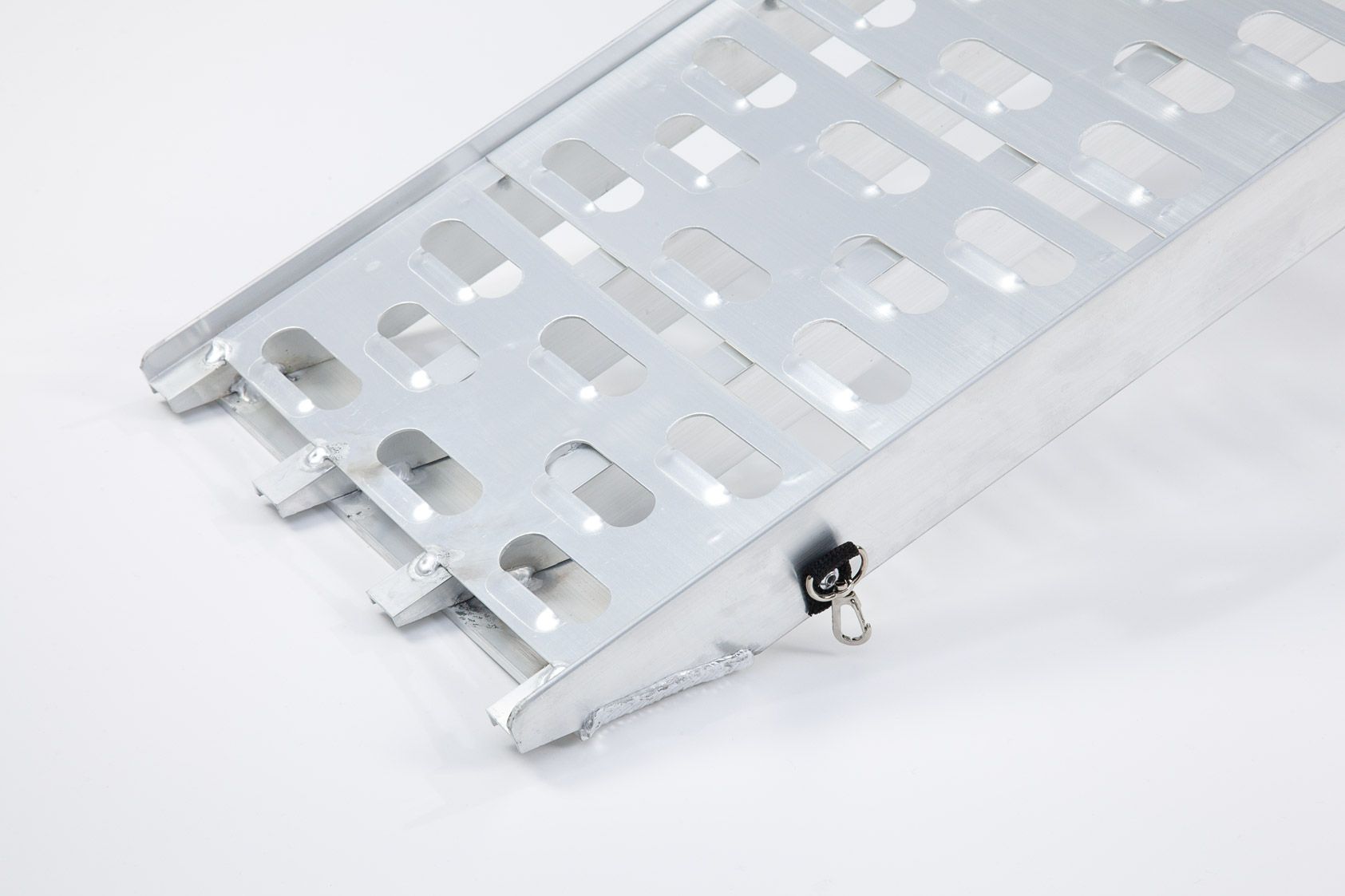

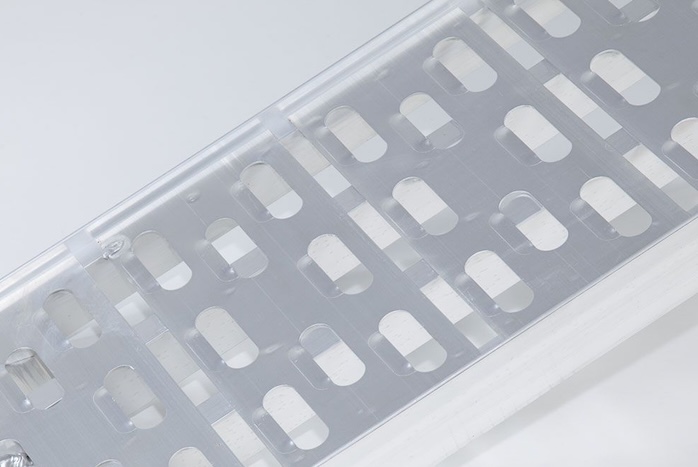

  • Anti-slip cut-out aluminium surface to provide traction during loading and allow dirt to drop through the grooves on the ramp
  • Manufactured from lightweight aircraft grade aluminium (type 6005A)

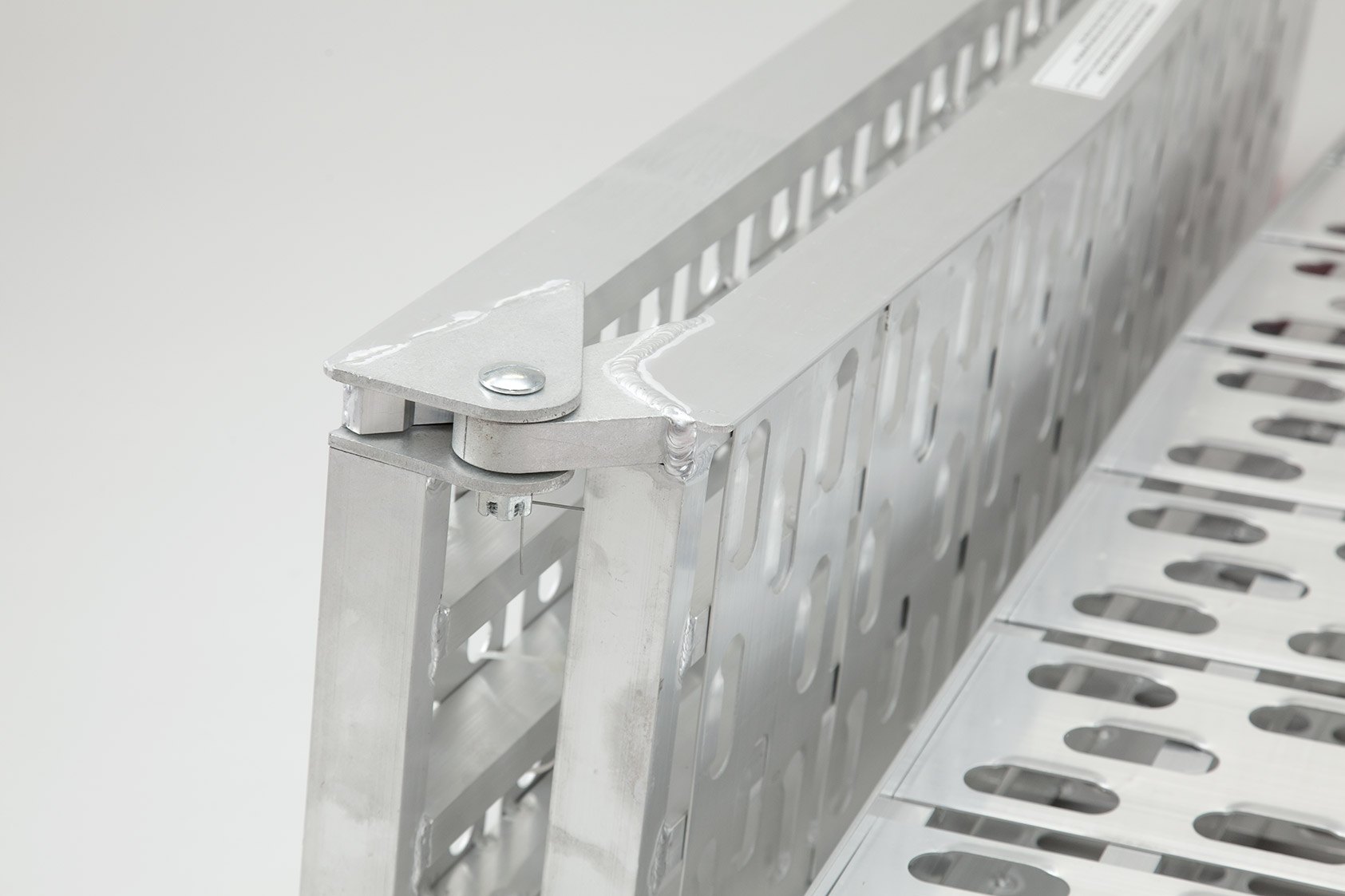

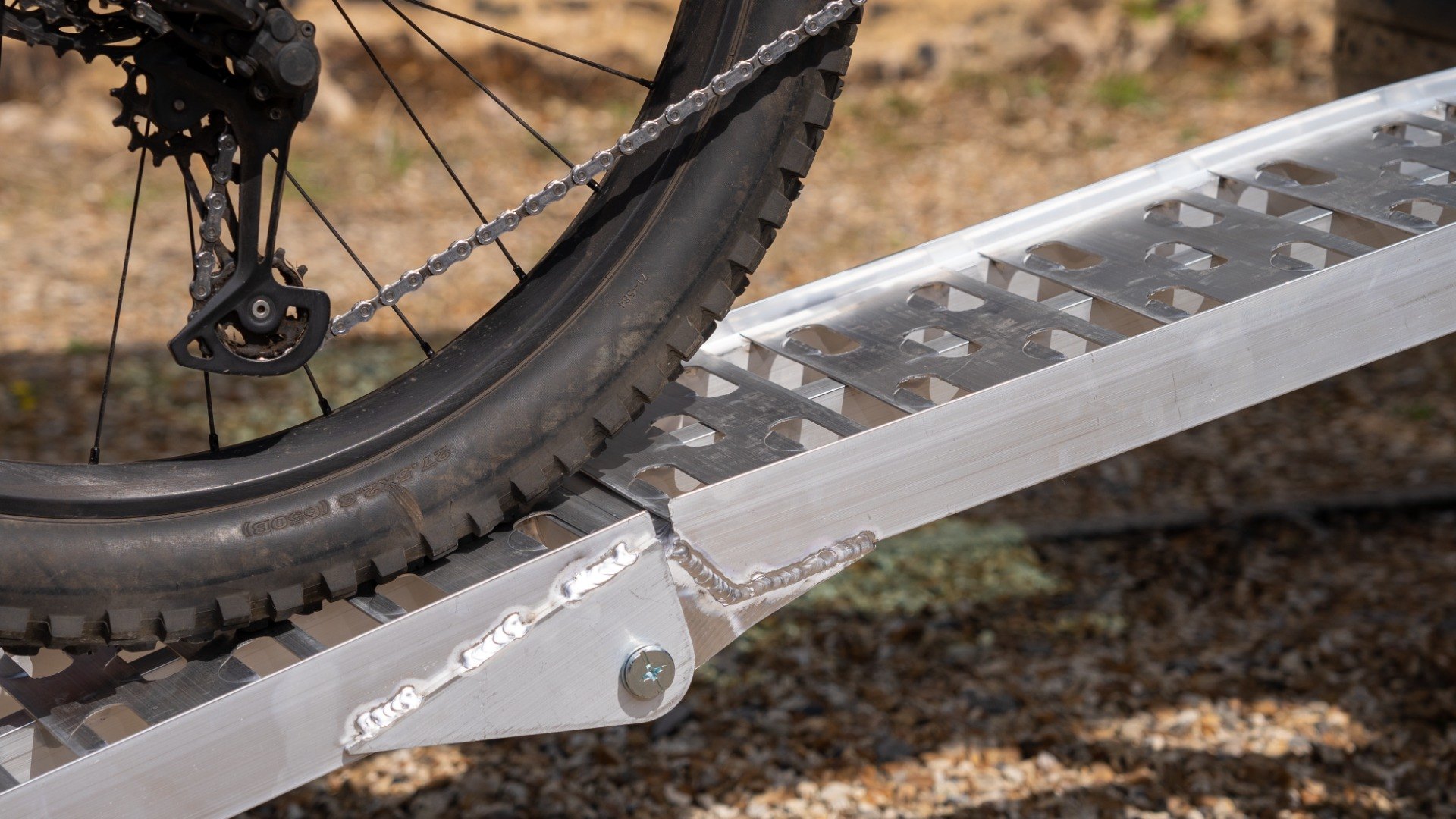

  • Robot welded for solid, strong and durable construction
  • The aluminium loading ramp without legs has a capacity of 340kg, capacity of across the pair is 680kg
  • Aluminium loading ramp ramp with legs has a capacity of 680kg, capacity of across the pair is 1360kg

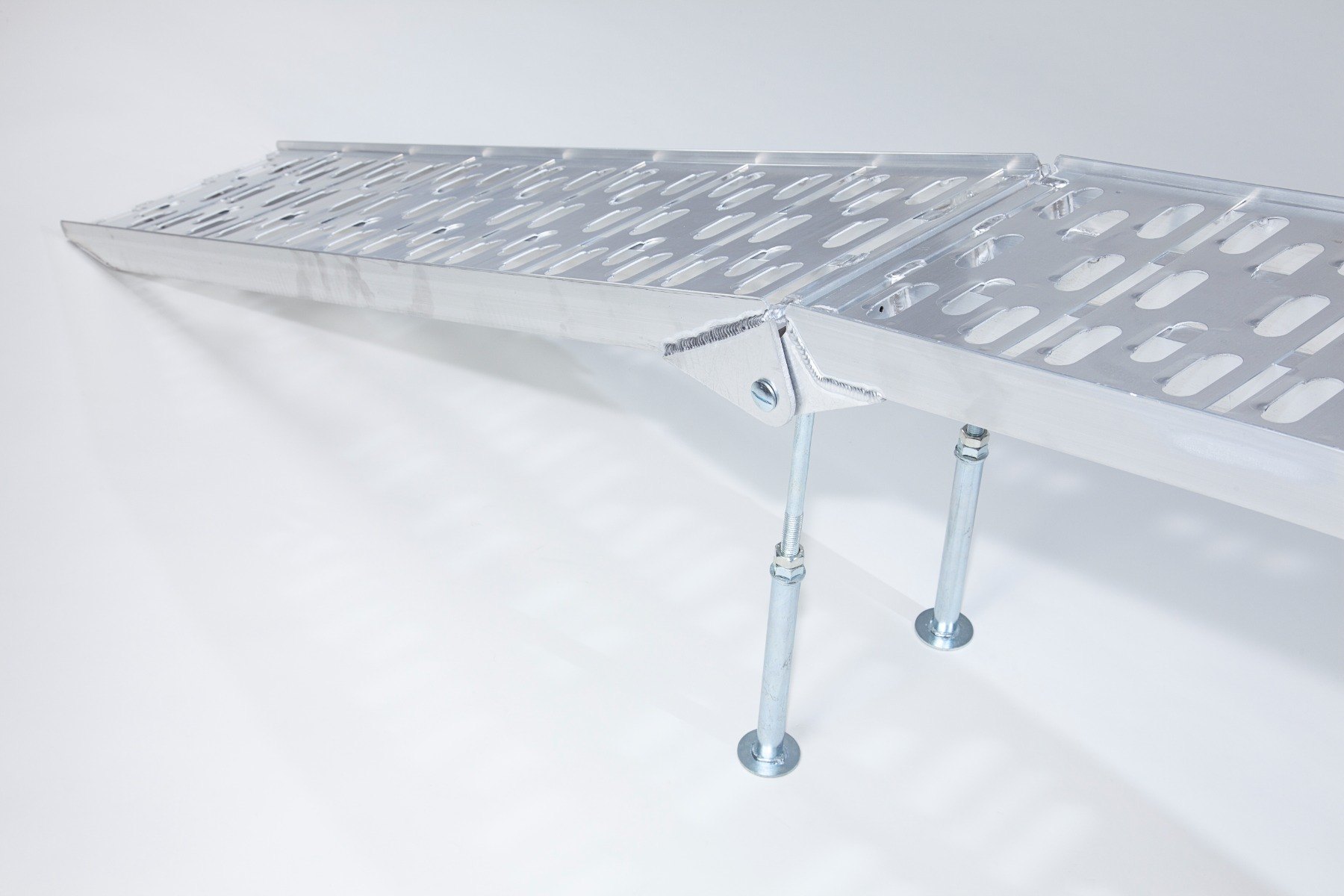

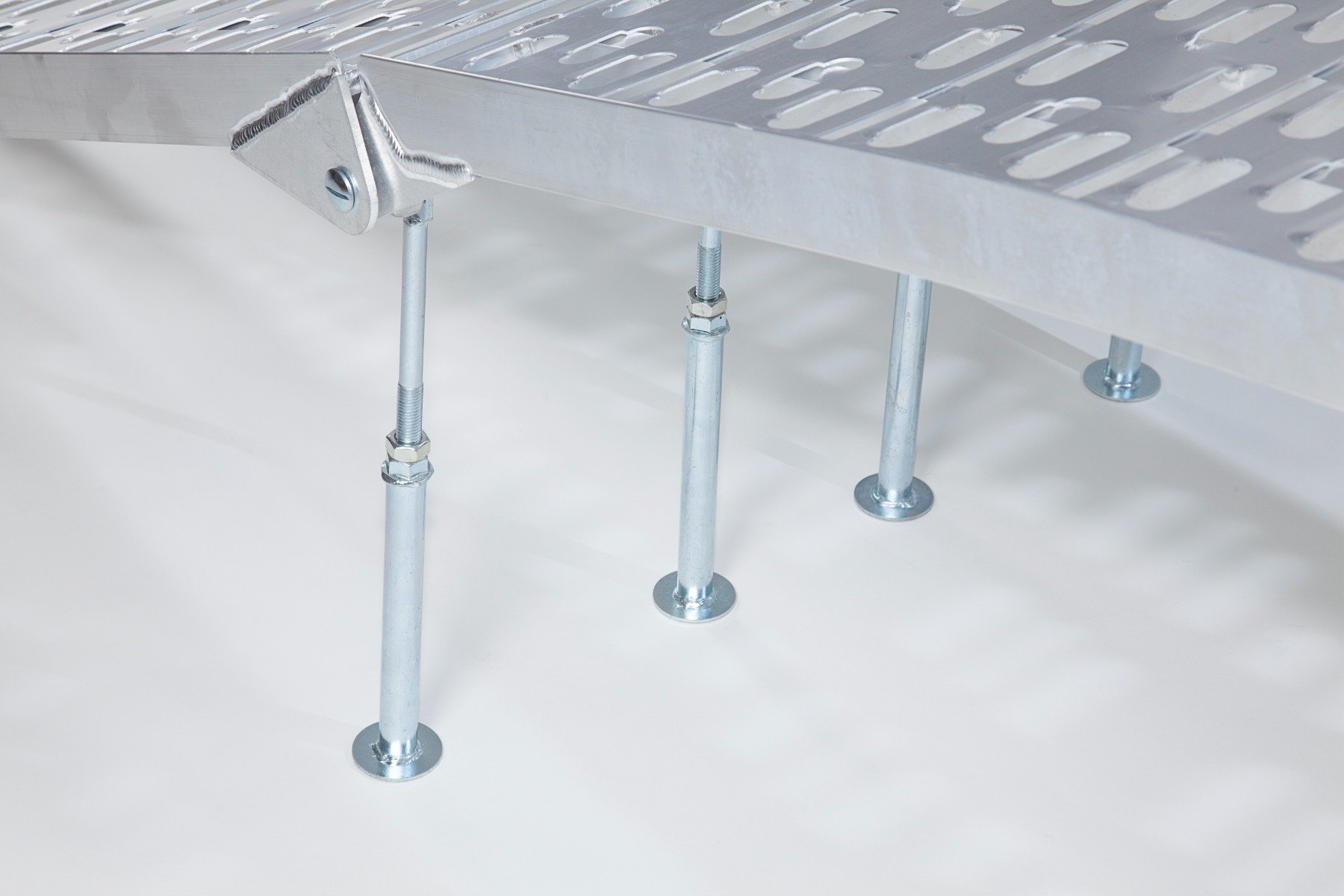

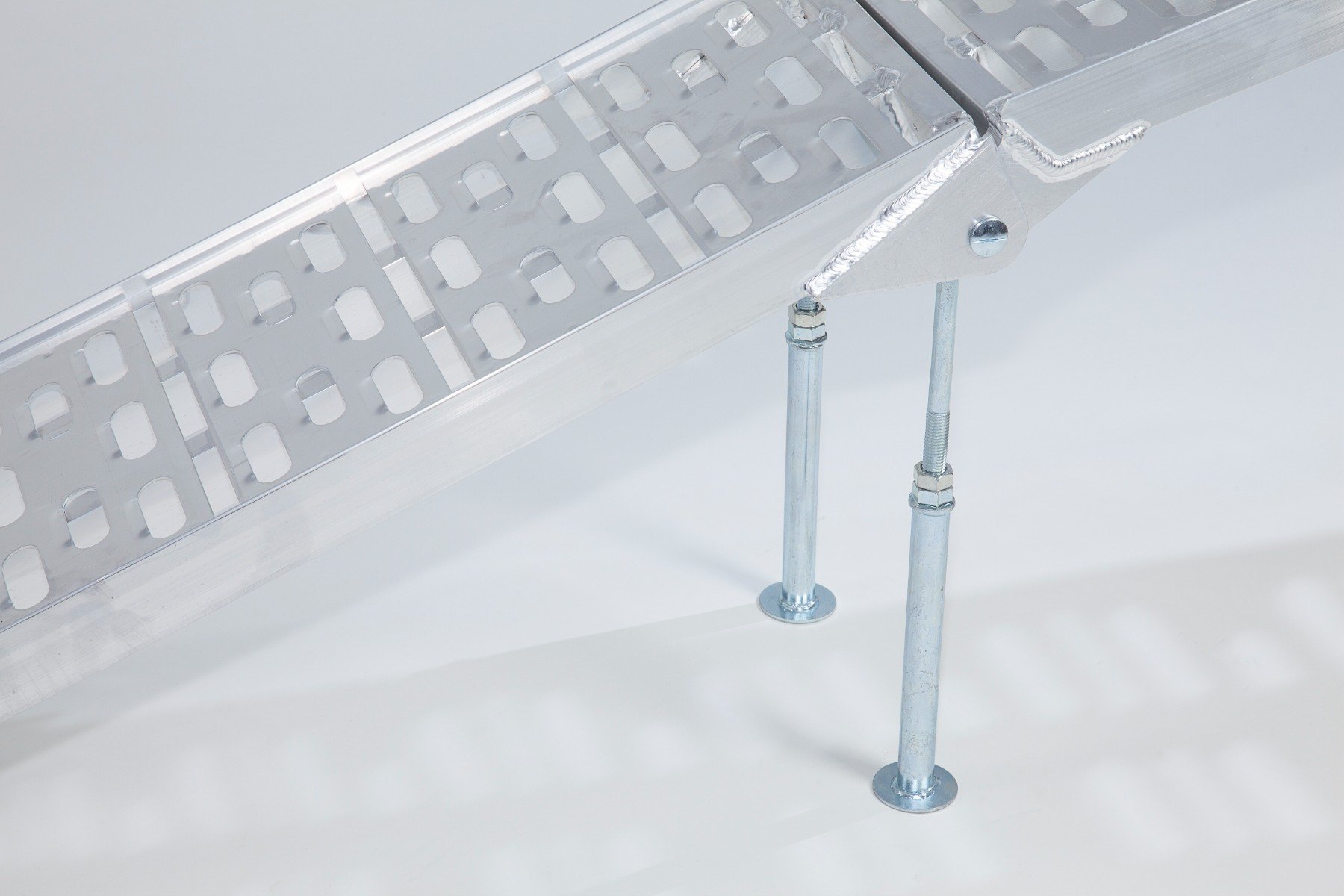

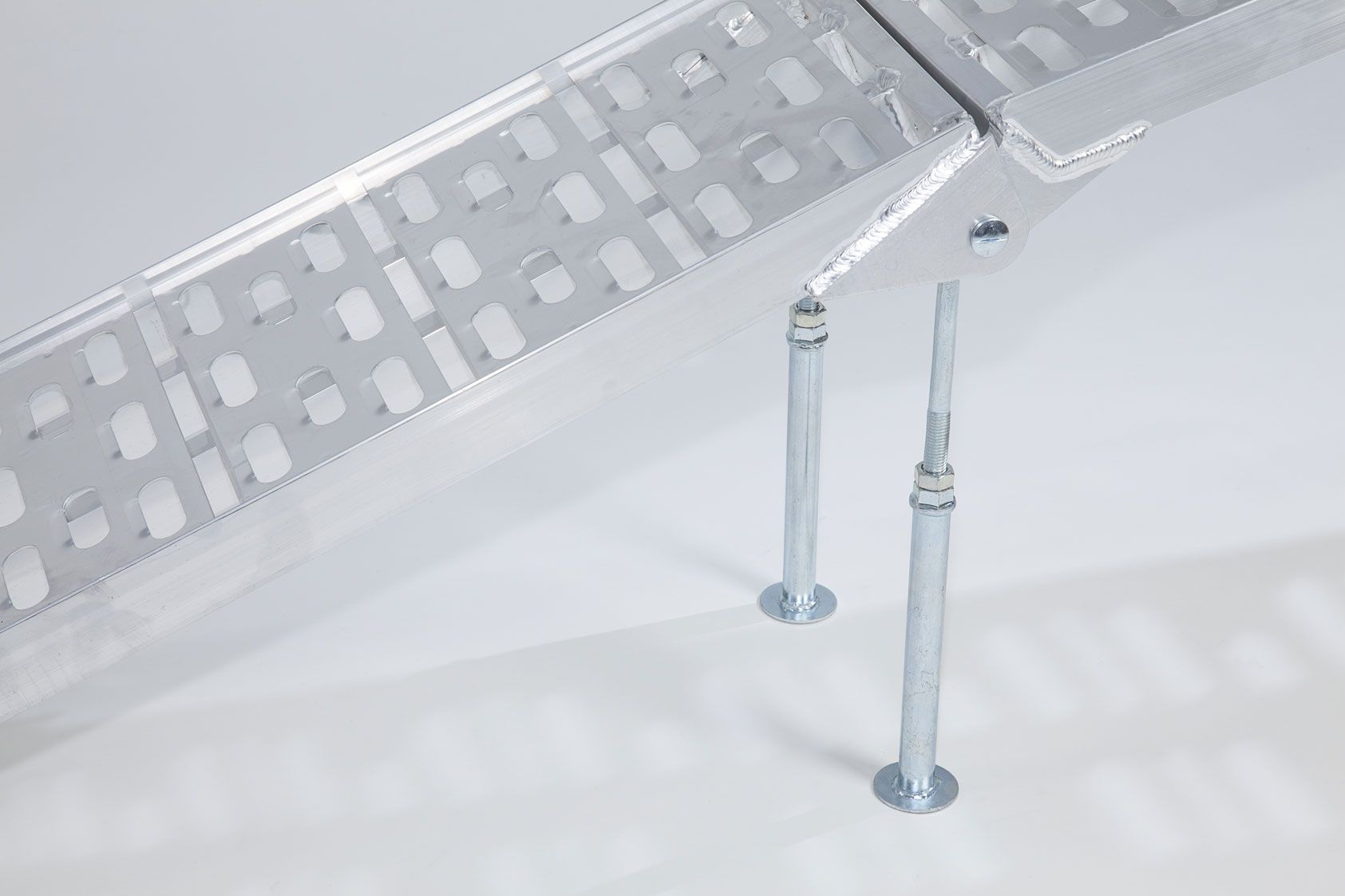

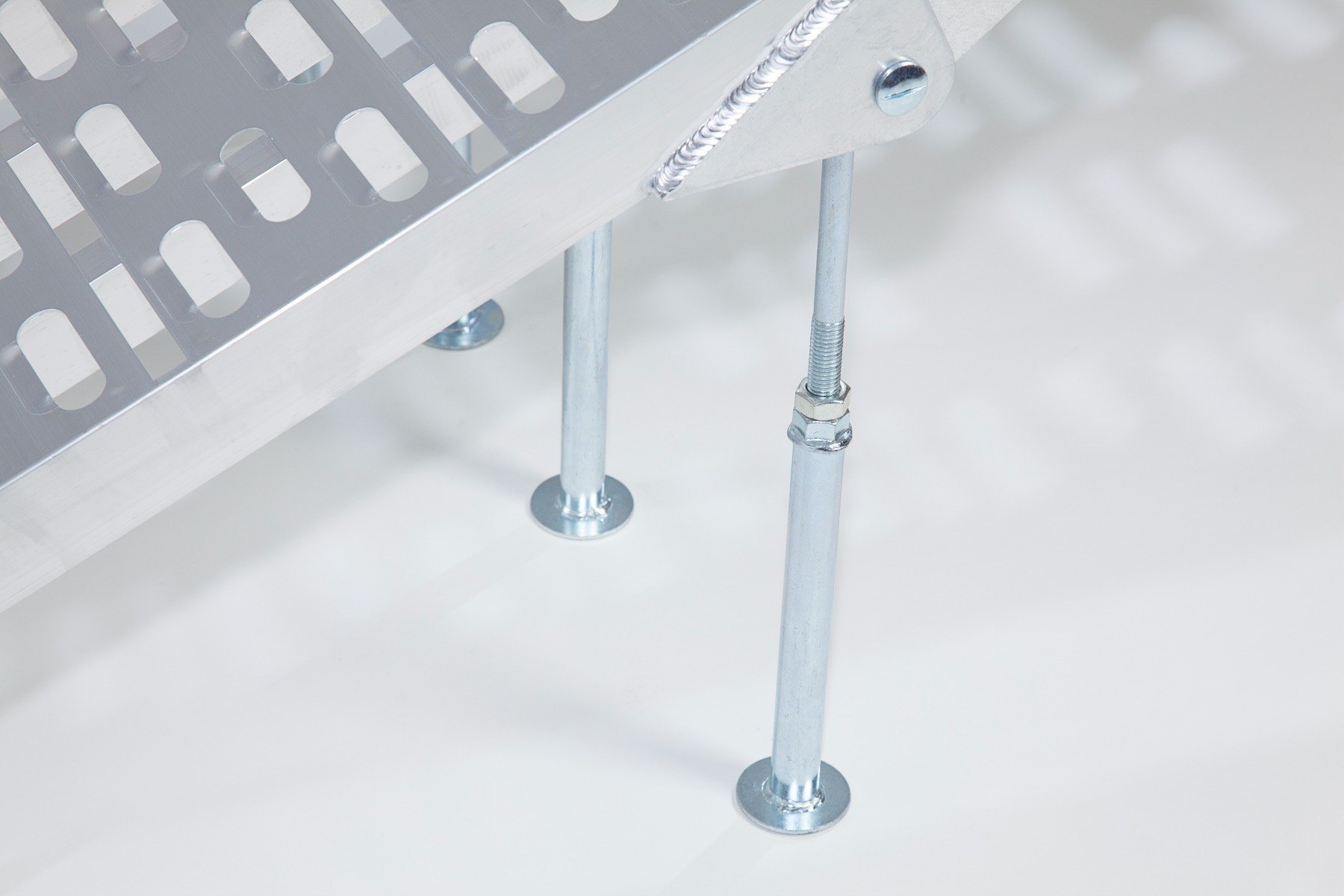

  • The adjustable support bar legs can be adjusted from 340mm up to 425mm

Where the ramp is purchased with legs, the legs must always be using during loading and unloading

A handy user guide for these ramps can be found here.

Please note, these ramps are unsuitable for single axle or tracked machinery or vehicles, also not suitable for caster wheels or solid wheels. Minimum tyre width 10cm. These ramps are not designed for commercial or professional use. For professional use please view our professional loading ramps

Loading Ramps with Double Support Bar

Single Ramp with Legs - TRP700-L

  • Length 2200mm
  • Weight 8.8kg
  • Capacity 680kg
  • Width 285mm
  • Max. load height 666mm

Single Ramp Without Legs - TRP699

  • Length 2200mm
  • Weight 8.5kg
  • Capacity 340kg
  • Width 285mm
  • Max. load height 666mm

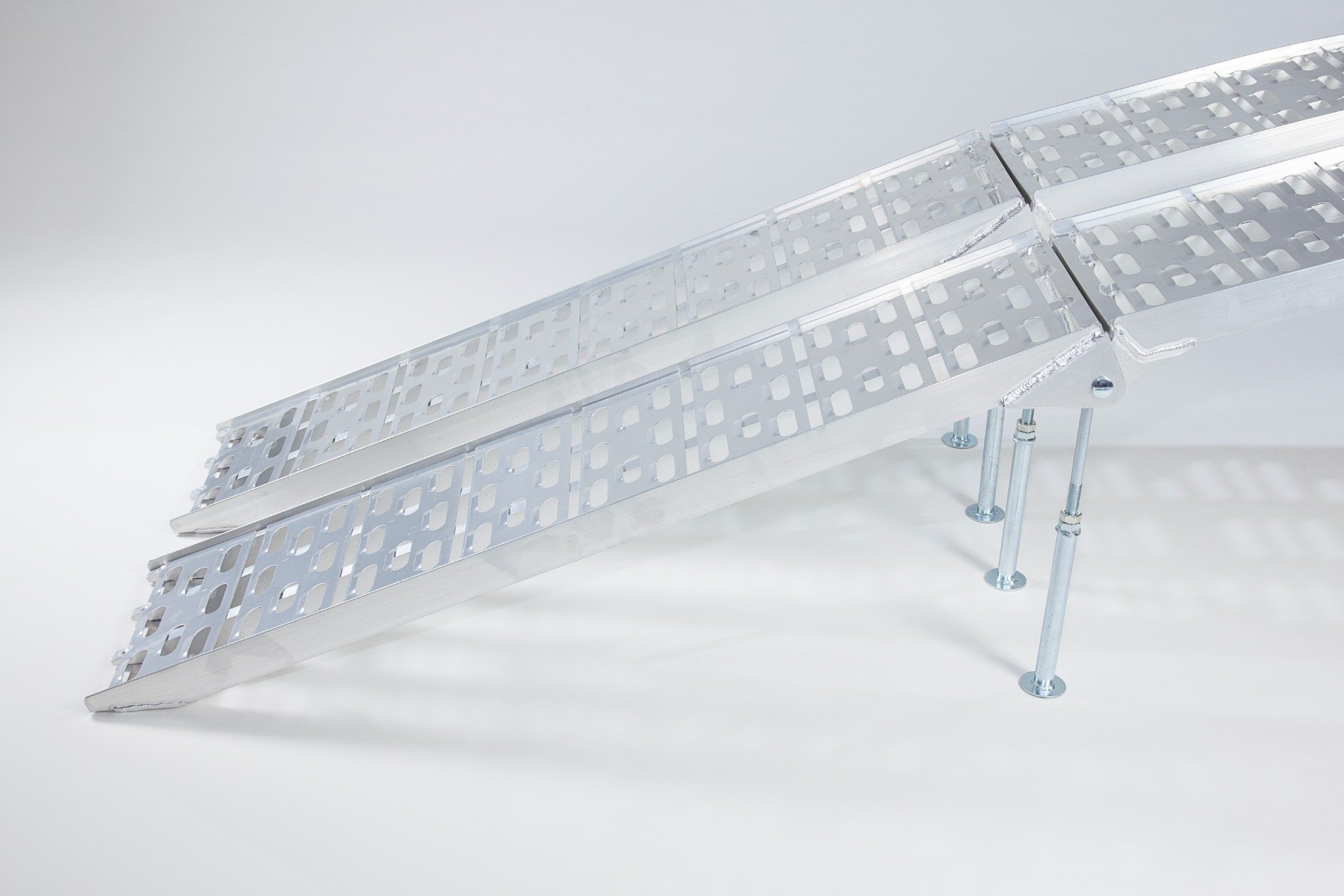

Pair of Ramps with Legs

  • Length 2200mm
  • Weight per ramp 8.8kg
  • Weight per pair 17.6kg
  • Capacity across the pair 1360kg
  • Width per ramp 285mm
  • Max. load height 666mm

Pair of Ramps Without Legs

  • Length 2200mm
  • Weight 8.5kg
  • Weight per pair 17kg
  • Capacity across the pair 680kg
  • Width per ramp 285mm
  • Max. load height 666mm

Details
SKU TRP699Conf
Capacity (kg) 340-1360
Folded Length (mm) 1100
Height (mm) 50
Length (mm) 2200
Max Load Height (mm) 666
Min. Load Height (mm) 200 - 520
Weight (kg) 17
Weight per Ramp (kg) 8.5
Width (mm) 285
One Year Warranty Yes
Easy to Fit Yes
