Twisty Folding Van Ramp with Mesh Surface (800mm wide and 300kg capacity)

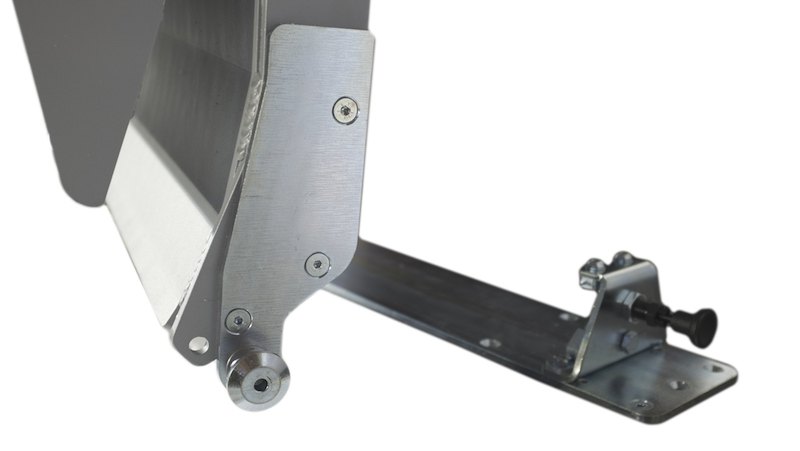

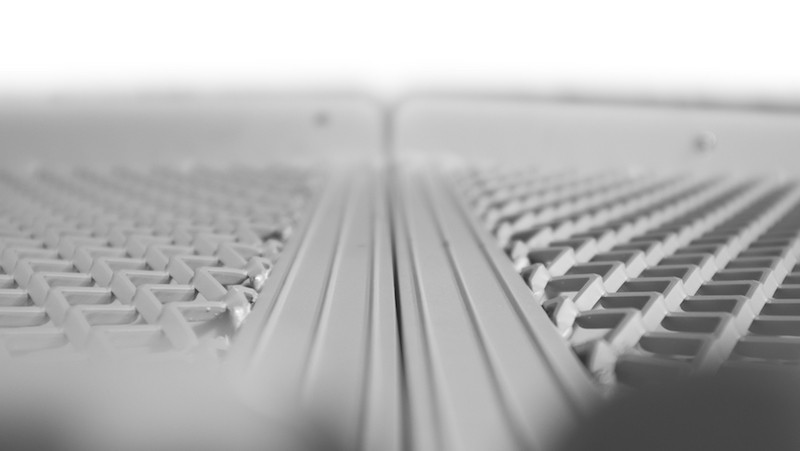

The Twisty Van Ramp Range feature a hinge system that allows the ramp to be twisted out of the way when not being used. Our mesh surface folding van ramps with twisty fitting are very useful for wheelchair access and these have widespread use in the health-care and nursing home industries. Available in the lengths 2000mm, 2250mm, 2500mm and 3000mm.

Fixed Folding Van Ramps FAQ's

Length (mm)2000-3000
Width (mm)800
Max. Load Height (mm)450-750
Weight (kg)36-59
Capacity (kg)300

Got a question?

Product: Twisty Folding Van Ramp with Mesh Surface (800mm wide and 300kg capacity)
SKU: TRP-TwistyMesh

  • Bolt Down
  • Easy to Fit
  • European Made
  • Fixings Included
  • One Year Warranty
€1,512.90 €1,230.00
Built to Order
Talk to The Ramp People's sales team

An easy guide for the correct measurements can be found here.

All our ramps are easy to install; see our Folding Van Ramp Assembling Guide for details.

If you're unsure which ramp will fit into your vehicle; see our handy Vehicle Compatibility Checklist.

Features include:

  • 300kg Capacity Available

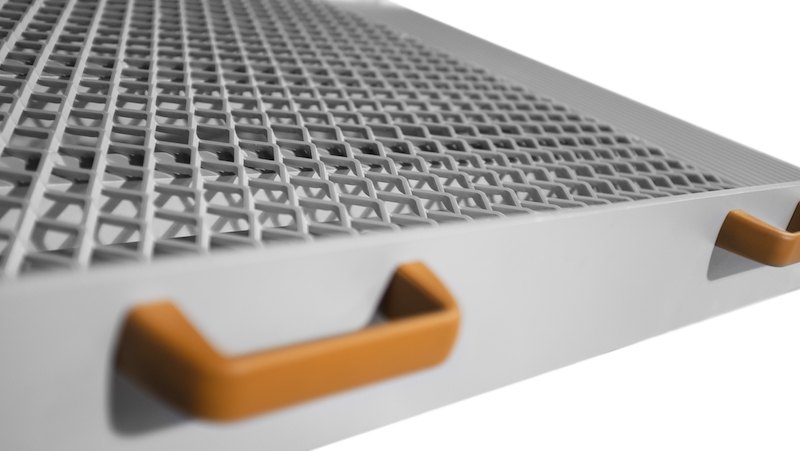

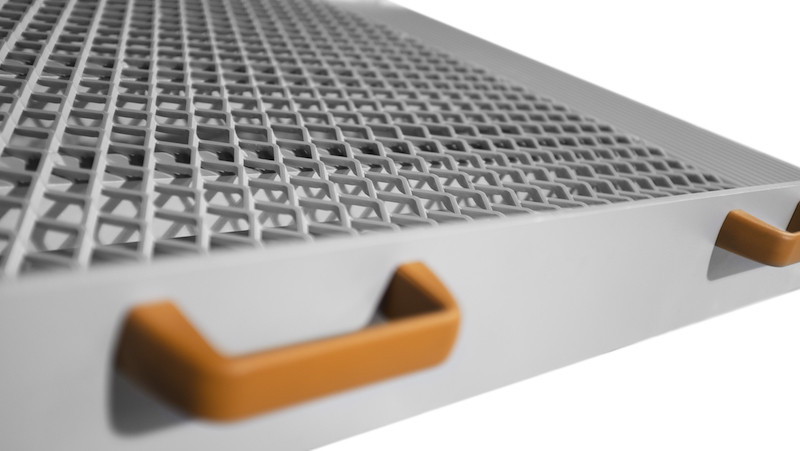

  • Excellent grip from mesh anti-slip surface
  • Easy to install: fully fitted with only two clips
  • Includes fixing kit and brackets
  • Lightweight, strong and durable
  • Robot welded for solid, strong and durable construction
  • Easily installed on several vehicles of the same size
  • Lateral safety edges to prevent accidentally wheeling off
  • Bypasses most bumpers, crash bars, steps and tow bars
  • Can be used to connect two vehicles
  • Can function as a table or workbench
  • Customised lengths, widths and capacities available. Please contact us for more information
  • All pictures shown are for illustration purpose only. Actual product may vary due to product enhancement

Twisty Folding Van Ramps with Mesh Surface

TRP-2000NP 2000mm

  • Length (mm): 2000

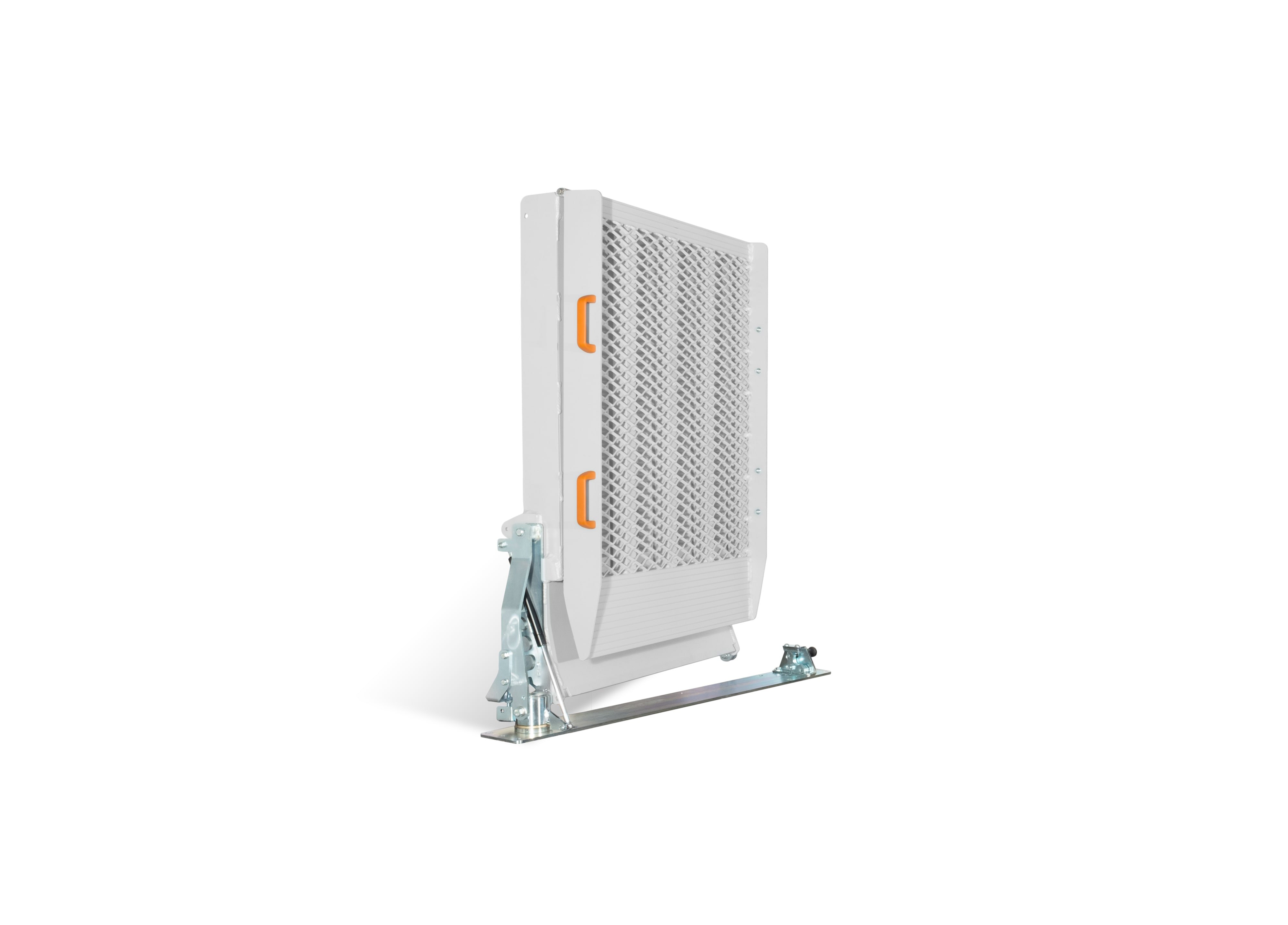

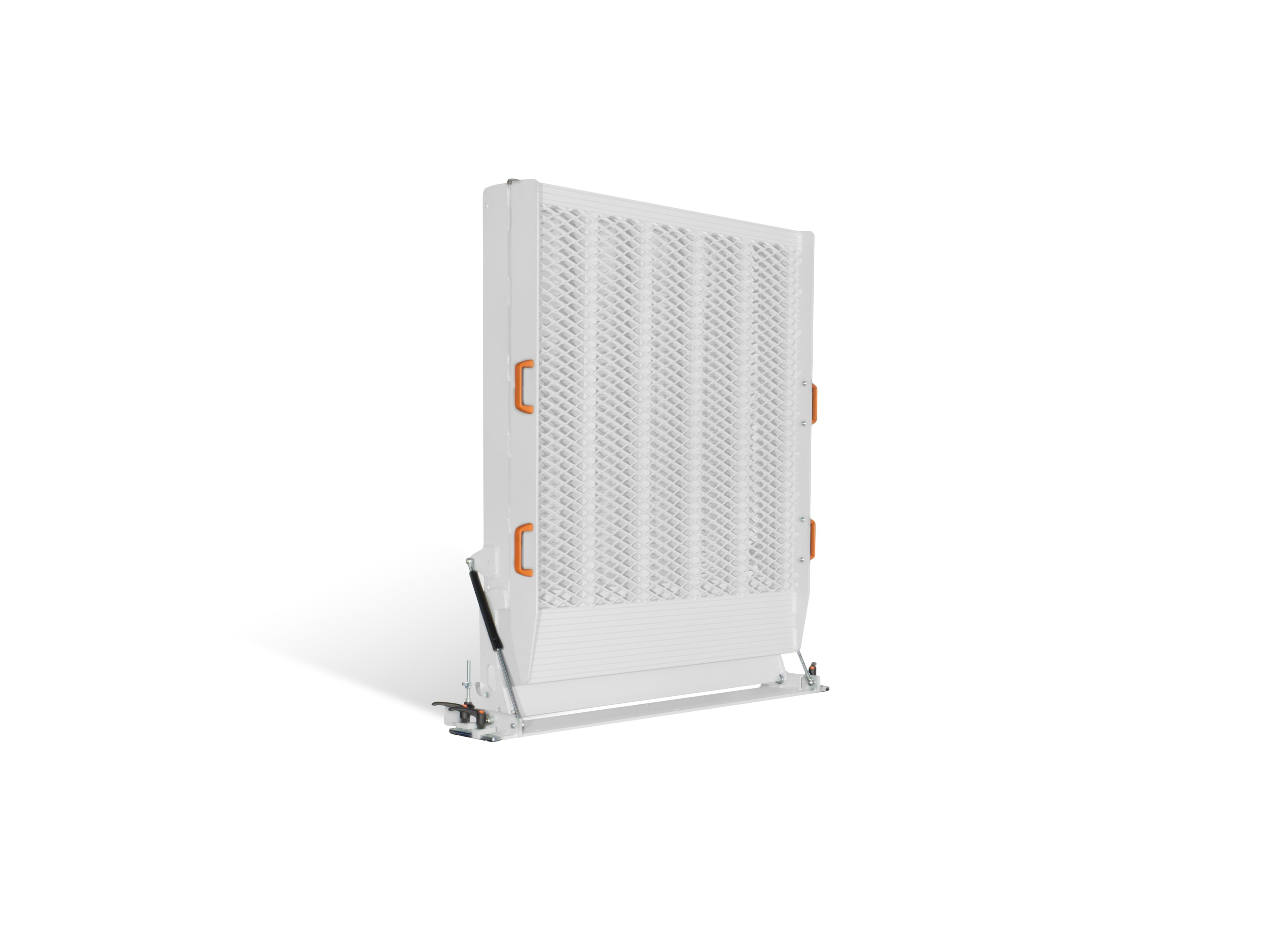

  • Folded Height (mm): 1090
  • Max Load Height (mm): 450
  • External Width (mm): 800
  • Weight per ramp (kg): 36
  • Capacity (kg): 300

TRP-2250NP 2250mm

  • Length (mm): 2250
  • Folded Height (mm): 1250
  • Max Load Height (mm): 550
  • External Width (mm): 800
  • Weight per ramp (kg): 52
  • Capacity (kg): 300

TRP-2500NP 2500mm

  • Length (mm): 2500
  • Folded Height (mm): 1415
  • Max Load Height (mm): 600
  • External Width (mm): 800
  • Weight per ramp (kg): 59
  • Capacity (kg): 300

TRP-3000NP 3000mm

  • Length (mm): 3000
  • Folded Height (mm): 1650
  • Max Load Height (mm): 750
  • External Width (mm): 800
  • Weight per ramp (kg): 59
  • Capacity (kg): 300
SKU TRP-TwistyMesh
Capacity (kg) 300
Folded Height (mm) 1090-1650
Length (mm) 2000-3000
No. Folds 1

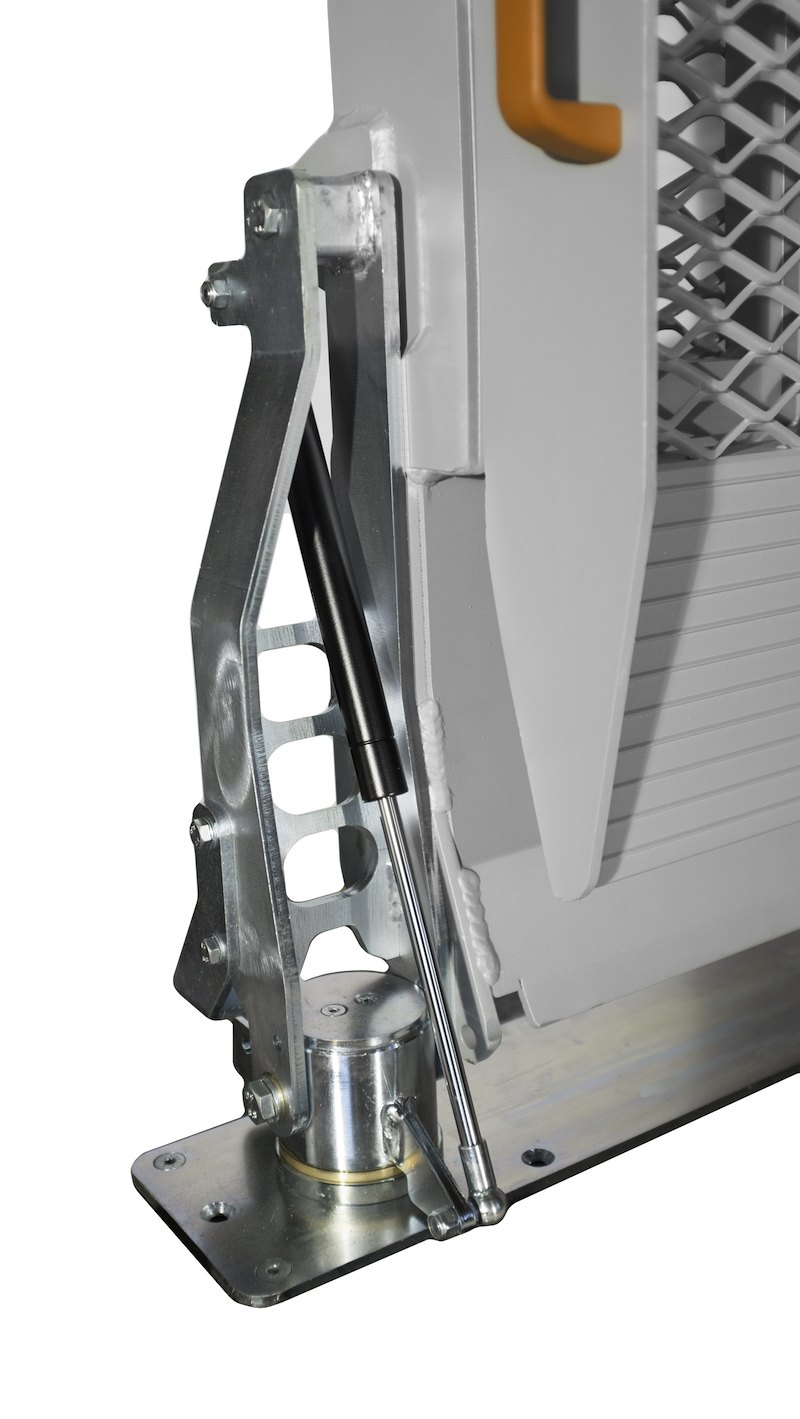

Pivot Fitting Yes
Surface Mesh Surface
Weight (kg) 36-59
Width (mm) 800
One Year Warranty Yes
Bolt Down Yes
Easy to Fit Yes
European Made Yes
Footprint Total Depth (mm) 160
Footprint Width (mm) 1110
