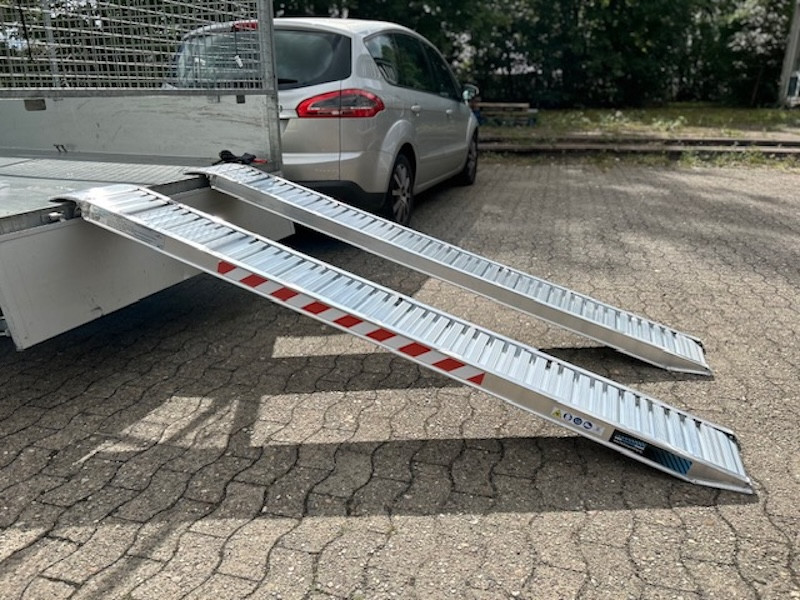

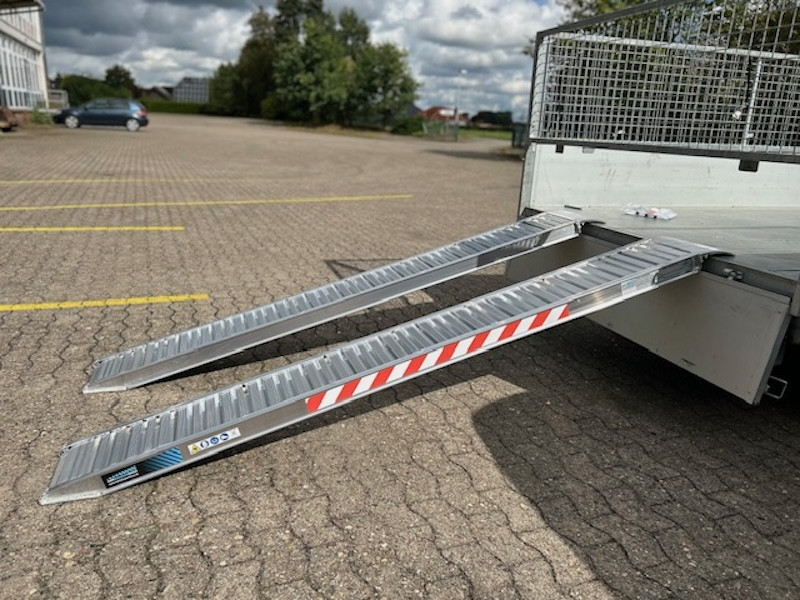

Aluminium Loading Ramps (3000x300x2330kg)

300mm wide x 3000mm long, with a 75mm profile thickness. Featuring a maximum capacity of 2330kg, this ramp is ideal on car transporters and trailers. Please note the minimum track width is 150mm.

Price and capacity stated is for the PAIR.

  • Connection Options
  • Customisable
  • Easy to Fit
  • European Made
  • Not for Solid Wheels
  • One Year Warranty
Description

The TRP76 Series has a core profile thickness of 75mm and a width of 300mm. On the TRP76 Series the minimum width of tracks/wheels is 150mm.

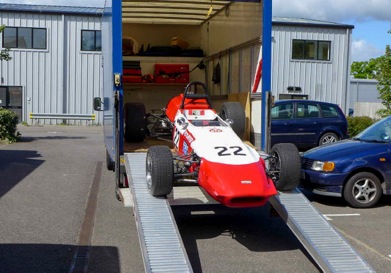

They feature a capacity of up to 2330kg and are ideal for use on car transporters and trailers.

Designed for a maximum gradient of 30%

  • These ramps are available both with and without edges, the default is however without edges
  • Four different connection options available, however the default connection is the rest on connection with a pin which is a popular choice for flatbed vehicles and tipper trucks. For beaver tail trailers, a hook connection is normally recommended

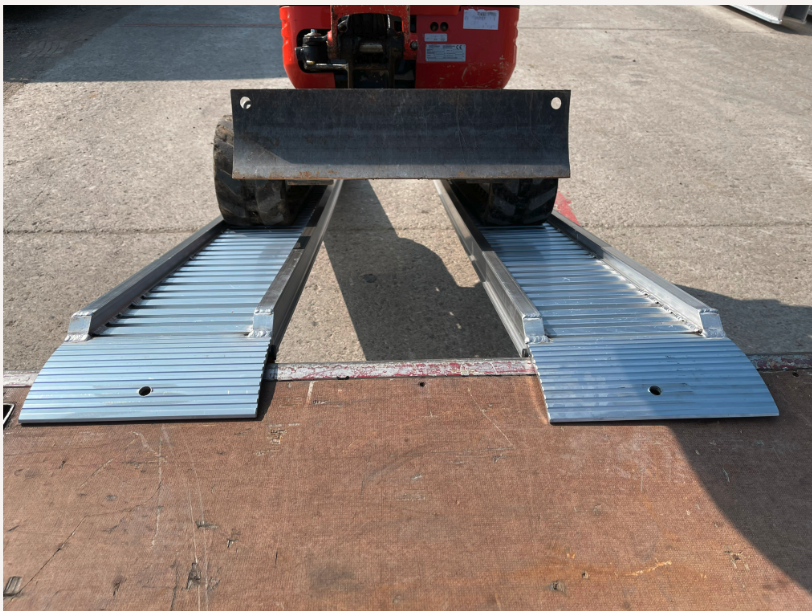

  • Foot of the alloy ramp is cut for the load height to ensure smooth entry onto the ramp

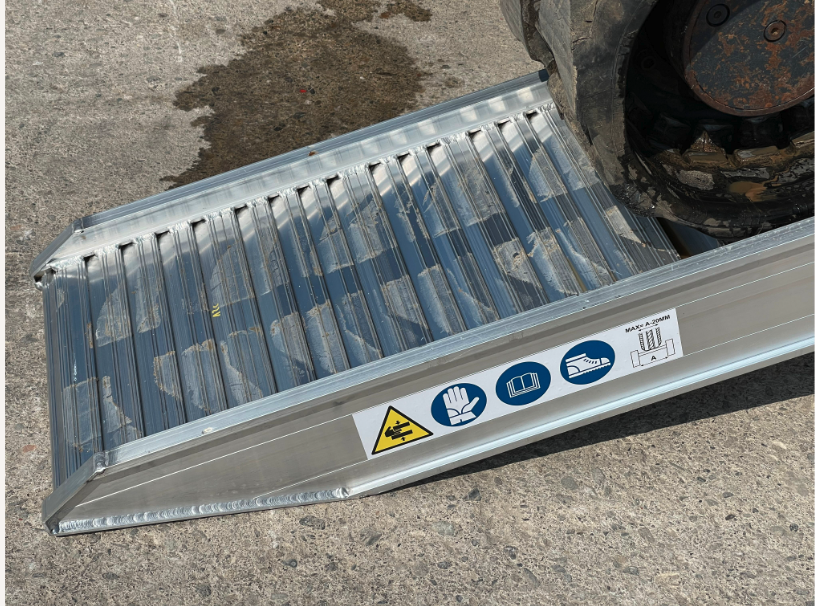

  • Non-slip alloy ramp surface

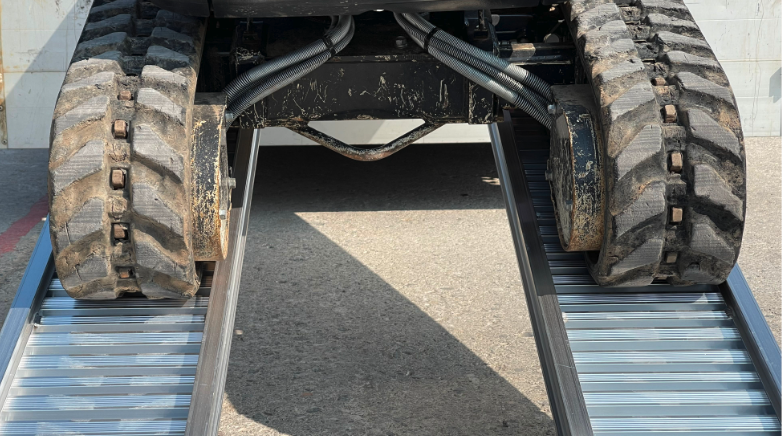

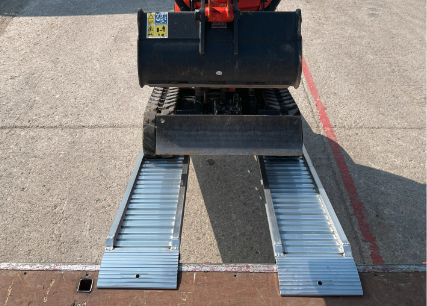

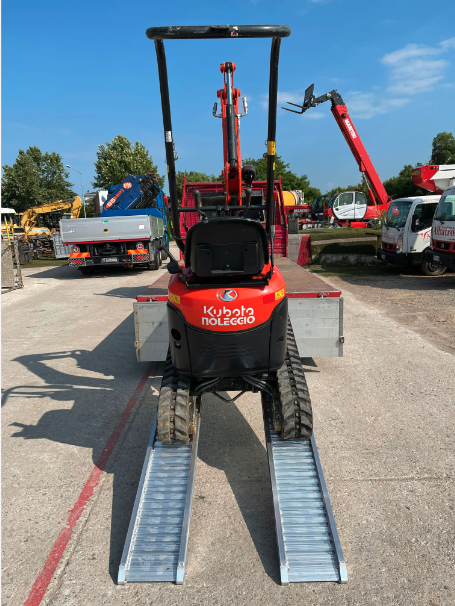

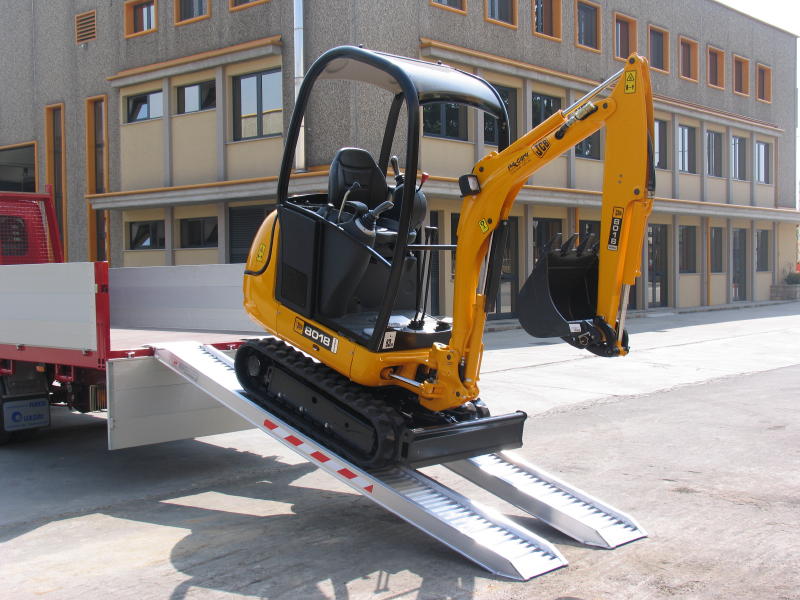

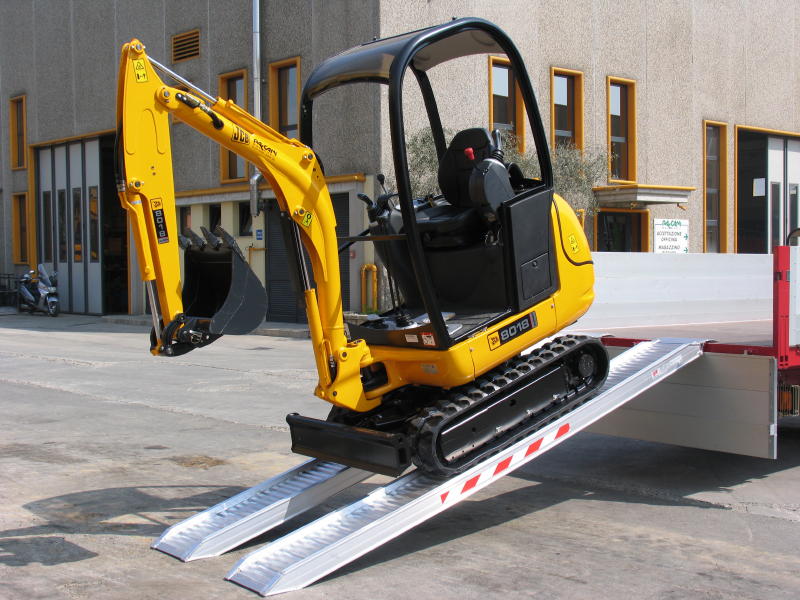

  • Designed for loading tracked plant machinery and vehicles including diggers, tractors, excavators and ride-on mowers. Suitable for professional use, popular within the construction and landscaping industries.
  • Customisations available including custom load heights, custom sizes and nylon handles
  • Made in Europe
  • Custom load heights available
  • Quotes for bespoke ramps can be supplied on request
  • Not suitable for solid wheels found on road surfacing machines - for this type of machinery please see the industrial ramps for steel tracks
  • Please note, the stated maximum weight capacities are only valid for vehicles where the weight is equally distributed – for vehicles where this is not the case, please contact us directly for assistance.
  • Fully TÜV certified

TUV Certification Image

Usage guidelines and safety information for our full vehicle ramp range can be found here.


Details
SKUTRP76/30
Default ConnectionRest On Connection
Capacity (kg)2330
Height of Ramps Profile (mm)75
Length (mm)3000
Max Load Height (mm)900
Min. Load Height (mm)750
Weight per Ramp (kg)19.5
Weight Per Pair (kg) 39
Width (mm)300
Minimum Track Width (mm)150
Maximum Track Width (mm)220
One Year WarrantyYes
Connection Options AvailableYes
CustomisableYes
Easy to FitYes
European MadeYes
Not Solid WheelsYes
Capacity Wheelbase 1000mm (kg)1750
Capacity Wheelbase 1250mm (kg)2000
Capacity Wheelbase 1500mm (kg)2330
