Car Loading Ramps (3000x615x2025kg)

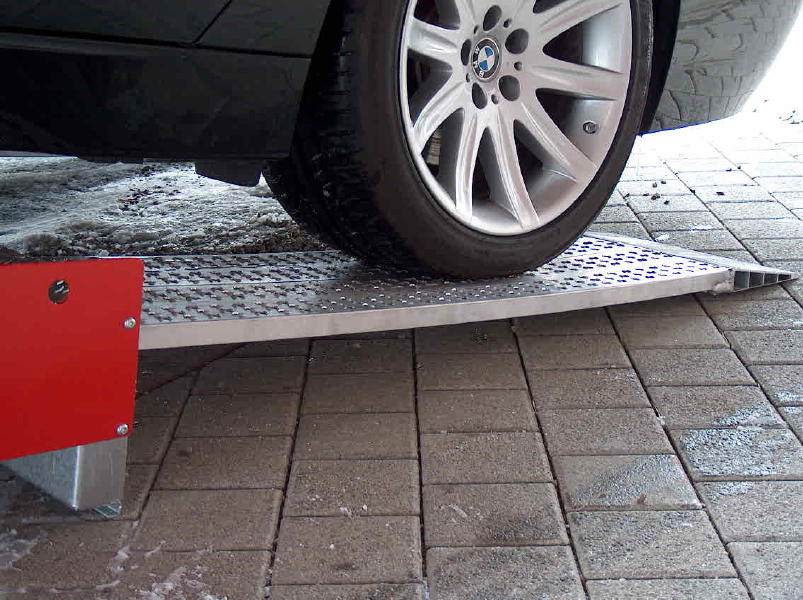

615mm wide x 3000mm long, with a 40mm profile thickness. Featuring a maximum capacity of 2025kg, the TRP40 Series Car Ramp is a super thin and lightweight aluminium ramp ideally suited for customers with a low load height. Perfect for loading cars with low ground clearance onto low steps or up kerbs/steep driveways. Price and capacity stated is for the PAIR.

Car Ramps FAQ's

Length (mm)3000
Width (mm)615
Max. Load Height (mm)450
Weight Per Ramp (kg)38
Weight Per Pair (kg)76
Capacity (kg)2025

Got a question?

Product: Car Loading Ramps (3000x615x2025kg)
SKU: TRP40615/30

  • Connection Options
  • Customisable
  • Easy to Fit
  • European Made
  • Not for Solid Wheels
  • One Year Warranty
€1,051.65 €855.00
Built to Order
TRP40615/30
Talk to The Ramp People's sales team

At only 40mm thick the TRP40 Series is a super thin and lightweight aluminium ramp ideally suited for customers with a low load height. Perfect for loading cars with low ground clearance onto low steps or up kerbs/steep driveways.

  • These ramps are available only without edges
  • Four different connection options available, however the default connection is the rest on connection
  • Custom load heights available
  • Quotes for bespoke ramps can be supplied on request
  • Not suitable for solid wheels found on road surfacing machines - for this type of machinery please see the industrial ramps for steel tracks
  • Fully TÜV certified

For assistance in specifying or current pricing please call the team or email info@theramppeople.co.uk

TUV Certification Image

Useage Guidelines and Safety Information for these ramps can be found here

SKU TRP40615/30

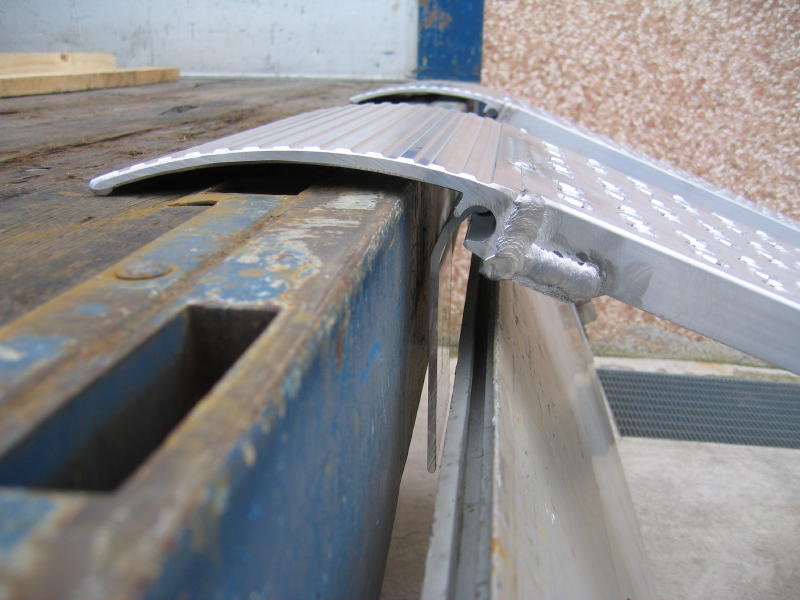

Default Connection Rest On Connection
Capacity (kg) 2025
Height of Ramps Profile (mm) 55
Length (mm) 3000
Weight per Ramp (kg) 38
Weight Per Pair (kg) 76
Width (mm) 615
One Year Warranty Yes
Connection Options Available Yes
Customisable Yes
Easy to Fit Yes
European Made Yes
Not Solid Wheels Yes
Capacity Wheelbase 500mm (kg) 1706
Capacity Wheelbase 750mm (kg) 1894
Capacity Wheelbase 1000mm (kg) 2132
External Width (mm) 615
