Car Loading Ramps (3500x615x1535kg)

615mm wide x 3500mm long, with a 40mm profile thickness. Featuring a maximum capacity of 1535kg, the TRP40 Series Car Ramp is a super thin and lightweight aluminium ramp ideally suited for customers with a low load height. Perfect for loading cars with low ground clearance onto low steps or up kerbs/steep driveways. Price and capacity stated is for the PAIR.

Car Ramps FAQ's

Length (mm)	3500
Width (mm)	615
Max. Load Height (mm)	625
Weight Per Ramp (kg)	44
Weight Per Pair (kg)	88
Capacity (kg)	1535

Connection Options
Customisable
Easy to Fit
European Made
Not for Solid Wheels
One Year Warranty

4-10 business days delivery*. Items are shipped from the UK to Ireland on DAP Incoterms. This means we do not charge Irish VAT but Irish import VAT of 23%, import duty (on some products) and customs charges will be due. These fees will need to be paid to the courier before or after you receive the goods. Learn more.

€1,380.00

SKU

TRP40615/35

Built to Order

Description

At only 40mm thick the TRP40 Series is a super thin and lightweight aluminium ramp ideally suited for customers with a low load height. Perfect for loading cars with low ground clearance onto low steps or up kerbs/steep driveways.

These ramps are only available without edges

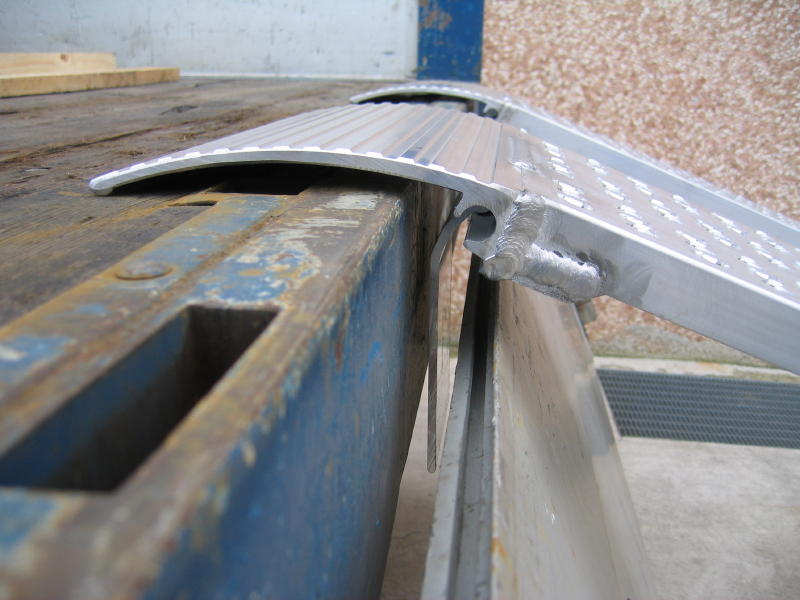

Four different connection options available, however the default connection is the rest on connection
Custom load heights available
All pictures shown are for illustration purpose only. Actual product may vary due to product enhancement
Quotes for bespoke ramps can be supplied on request
Not suitable for solid wheels found on road surfacing machines - for this type of machinery please see the industrial ramps for steel tracks
Fully TÜV certified

For assistance in specifying or current pricing please call the team or email info@theramppeople.co.uk

TUV Certification Image

Usage guidelines and safety information for our full vehicle ramp range can be found here.

Details

SKU	TRP40615/35
Default Connection	Rest On Connection
Capacity (kg)	1535
Height of Ramps Profile (mm)	55
Length (mm)	3500
Max Load Height	625
Weight per Ramp (kg)	44
Weight Per Pair (kg)	88
Width (mm)	615
One Year Warranty	Yes
Connection Options Available	Yes
Customisable	Yes
Easy to Fit	Yes
European Made	Yes
Not Solid Wheels	Yes
Capacity Wheelbase 500mm (kg)	1422
Capacity Wheelbase 750mm (kg)	1550
Capacity Wheelbase 1000mm (kg)	1706
External Width (mm)	615

Print/Save Datasheet

Ramp Capacity, Length & Load Height

This guide should help you gauge how long a ramp you require, so if you're in any doubt read the details below. If you still have questions after reading, feel free to give us a call. The crucial thing to know is your load height.

Load Height: this is the vertical measurement from the ground to where you rest the ramp onto.

Guide to the maximum load height is shown in the product description/table, please note the minimum Load Height will be 5% below the maximum height stated on the ramp, to calculate use (maximum load height - 5% = minimum load height).

For vehicle ramps EU guidelines recommend that no ramps with a gradient greater than 30% or 1:3.3 should be used. Essentially the load height x 3.3, gives you your ramp length. Furthermore no TUV Certified Ramp is designed to exceed this gradient. Going over this gradient is can cause accident, injury or death and may invalidate the warranty.

Please check the wheelbase measurement of the machine you are loading is suitable for the capacity the ramp can take based on the wheelbase measurement advised. To check your wheelbase, look at the vehicle from side view, the distance between the centre of front wheel and rear wheel (rim centre) is your wheelbase. For machines with an unbalanced weight distribution such as, scissors lifts, paving machinery, steel tracked machinery and machines with low ground clearance we would advise you contact us first, so we can check and advise on the most suitable solution.

For loading cars and other vehicles with either a) Low ground clearance b) Front and/or Rear overhang a gentler gradient is recommended (this will vary depending upon the vehicle). Please also note that most forklifts and pallet trucks are not built to be used on slopes. Please check the manual for the gradient information.

Further information can be seen in this blog article here
