Aluminium Loading Ramps (5000x580x10000kg)

580mm wide x 5000mm long, with a 230mm profile thickness. Featuring a maximum capacity of 10000kg, this is one of our heaviest duty ramps and is ideal for use as an industrial plant ramp or heavy duty commercial ramp. Please note the minimum track width is 300mm.

Custom built sizes are available on request. Price and capacity stated is for the PAIR.

Plant Ramps FAQ's

Length (mm)	5000
Width (mm)	580
Max. Load Height (mm)	1500
Weight Per Ramp (kg)	109.5
Weight Per Pair (kg)	219
Capacity (kg)	10000

Connection Options
Customisable
Easy to Fit
European Made
Not for Solid Wheels
One Year Warranty

4-10 business days delivery*. Items are shipped from the UK to Ireland on DAP Incoterms. This means we do not charge Irish VAT but Irish import VAT of 23%, import duty (on some products) and customs charges will be due. These fees will need to be paid to the courier before or after you receive the goods. Learn more.

€3,675.00

SKU

TRP231/50

Built to Order

Description

One of our two heaviest duty ramps from our standard range. The TRP231 Series core profile thickness is 230mm.

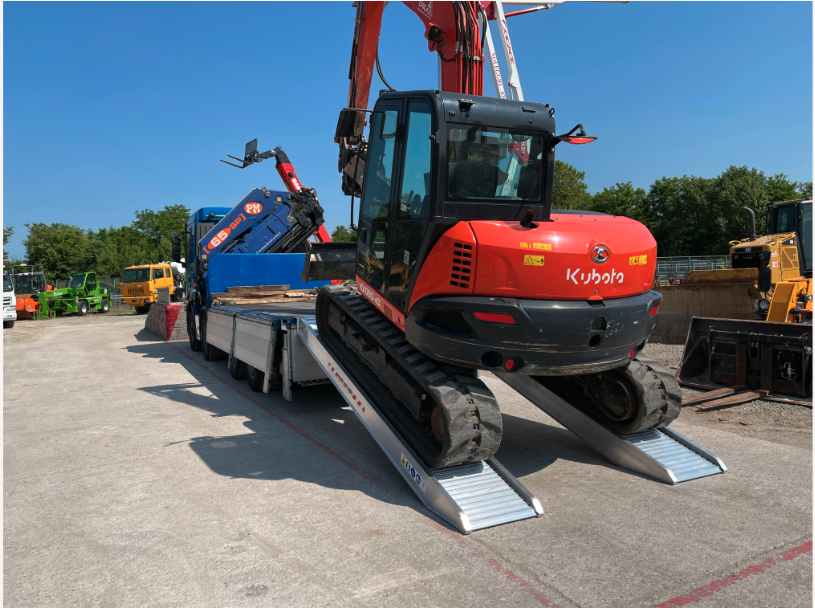

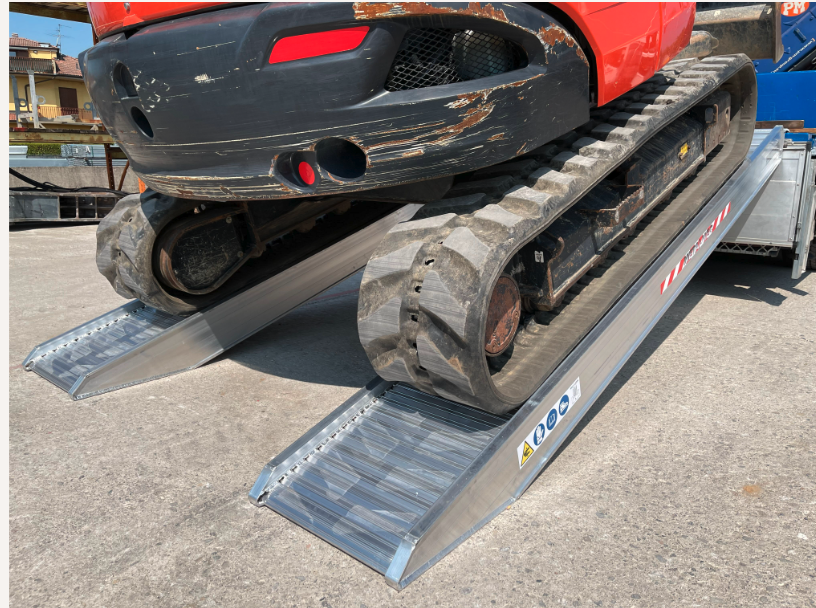

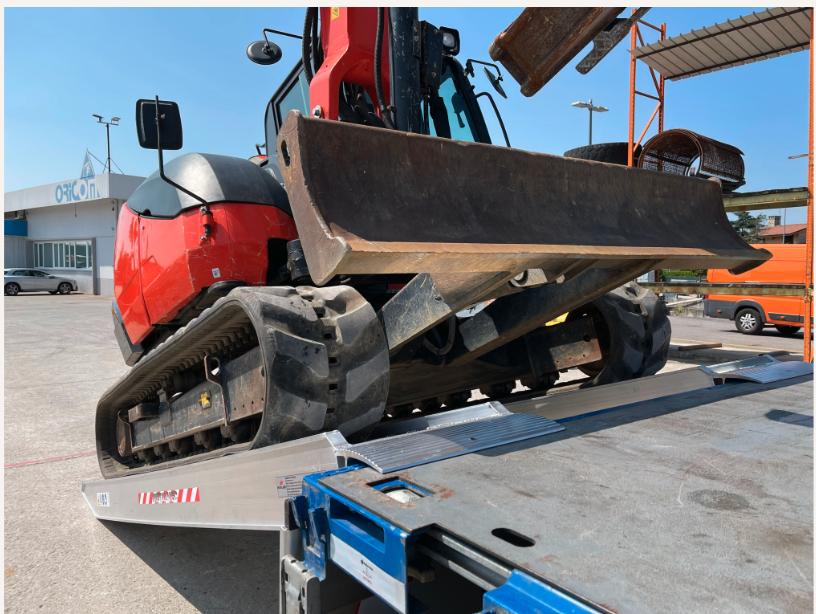

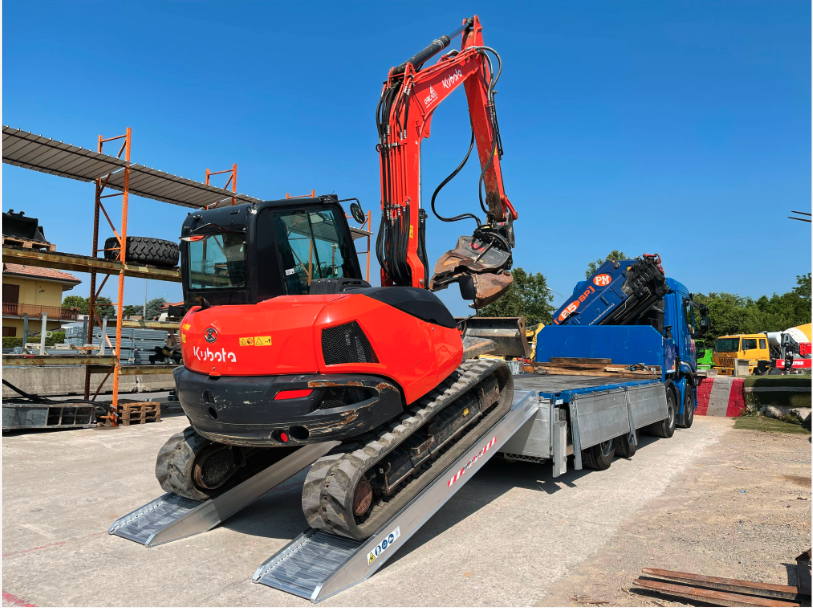

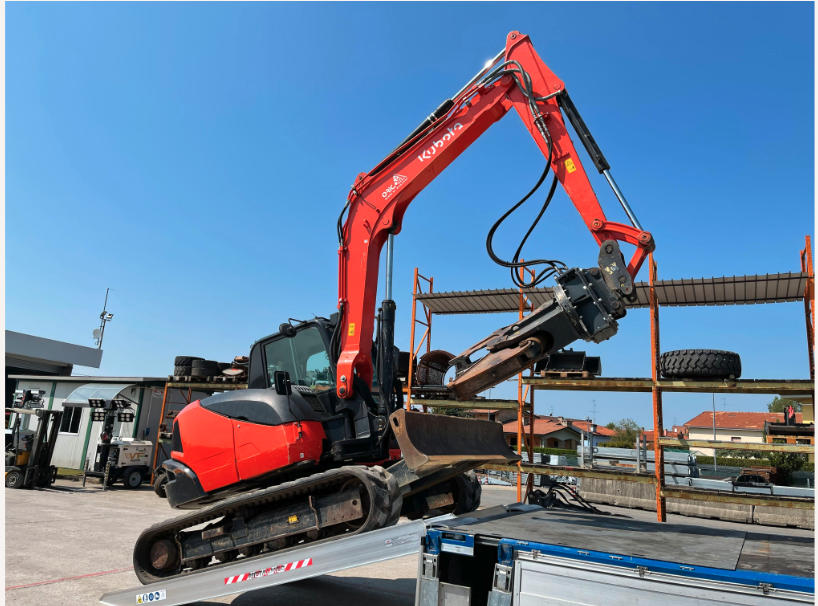

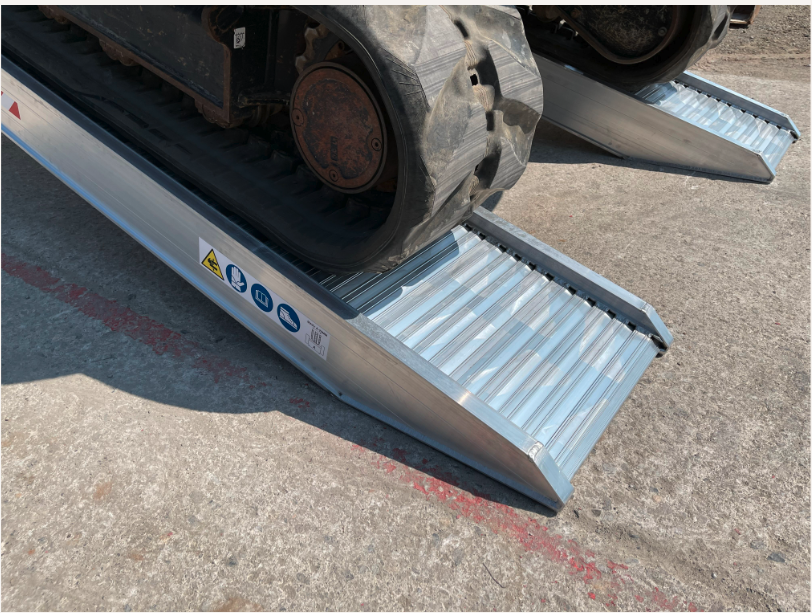

At 580mm these ramps are over half a metre wide, feature a capacity of up to 10000kg and are ideal for use as industrial plant ramps and as heavy duty commercial ramps.

On the TRP231 series the minimum width of tracks/wheels is 300mm.

These ramps are available both with and without edges. The default is however without edges

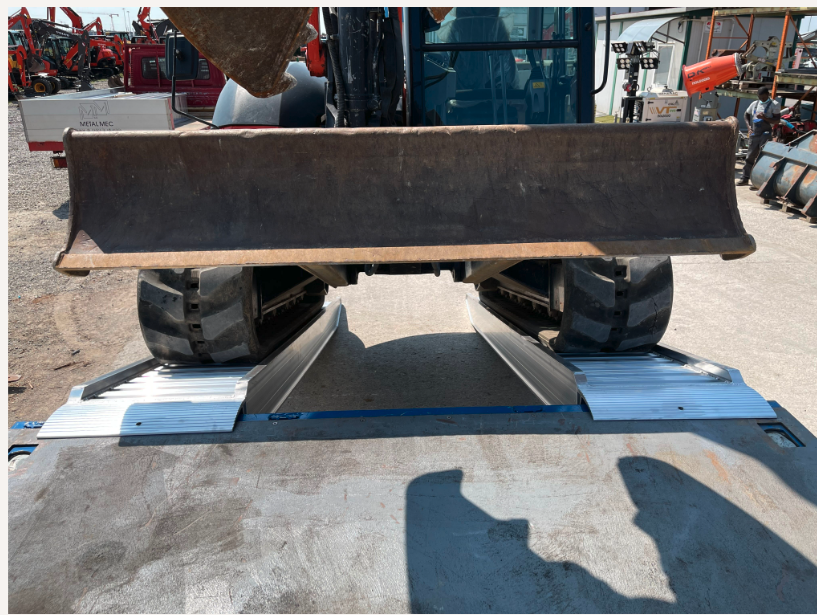

Four different connection options available, however the default connection is the rest on connection
Custom load heights available
All pictures shown are for illustration purpose only. Actual product may vary due to product enhancement
Quotes for bespoke ramps can be supplied on request
Not suitable for solid wheels found on road surfacing machines - for this type of machinery please see the industrial ramps for steel tracks
Please note, the stated maximum weight capacities are only valid for vehicles where the weight is equally distributed – for vehicles where this is not the case, please contact us directly for assistance.
Fully TÜV certified

TUV Certification Image

Usage guidelines and safety information for our full vehicle ramp range can be found here.

Details

SKU	TRP231/50
Default Connection	Rest On Connection
Capacity (kg)	10000
Height of Ramps Profile (mm)	230
Length (mm)	5000
Max Load Height	1500
Min. Load Height (mm)	1350
Weight per Ramp (kg)	109.5
Weight Per Pair (kg)	219
Width (mm)	580
Minimum Track Width (mm)	300
Maximum Track Width (mm)	480
One Year Warranty	Yes
Connection Options Available	Yes
Customisable	Yes
Easy to Fit	Yes
European Made	Yes
Not Solid Wheels	Yes
Capacity Wheelbase 1000mm (kg)	7500
Capacity Wheelbase 1500mm (kg)	8570
Capacity Wheelbase 2000mm (kg)	10000

Print/Save Datasheet

Ramp Capacity, Length & Load Height

This guide should help you gauge how long a ramp you require, so if you're in any doubt read the details below. If you still have questions after reading, feel free to give us a call. The crucial thing to know is your load height.

Load Height: this is the vertical measurement from the ground to where you rest the ramp onto.

Guide to the maximum load height is shown in the product description/table, please note the minimum Load Height will be 5% below the maximum height stated on the ramp, to calculate use (maximum load height - 5% = minimum load height).

For vehicle ramps EU guidelines recommend that no ramps with a gradient greater than 30% or 1:3.3 should be used. Essentially the load height x 3.3, gives you your ramp length. Furthermore no TUV Certified Ramp is designed to exceed this gradient. Going over this gradient is can cause accident, injury or death and may invalidate the warranty.

Please check the wheelbase measurement of the machine you are loading is suitable for the capacity the ramp can take based on the wheelbase measurement advised. To check your wheelbase, look at the vehicle from side view, the distance between the centre of front wheel and rear wheel (rim centre) is your wheelbase. For machines with an unbalanced weight distribution such as, scissors lifts, paving machinery, steel tracked machinery and machines with low ground clearance we would advise you contact us first, so we can check and advise on the most suitable solution.

For loading cars and other vehicles with either a) Low ground clearance b) Front and/or Rear overhang a gentler gradient is recommended (this will vary depending upon the vehicle). Please also note that most forklifts and pallet trucks are not built to be used on slopes. Please check the manual for the gradient information.

Further information can be seen in this blog article here
