Aluminium Loading Ramps (4000x600x14000kg)

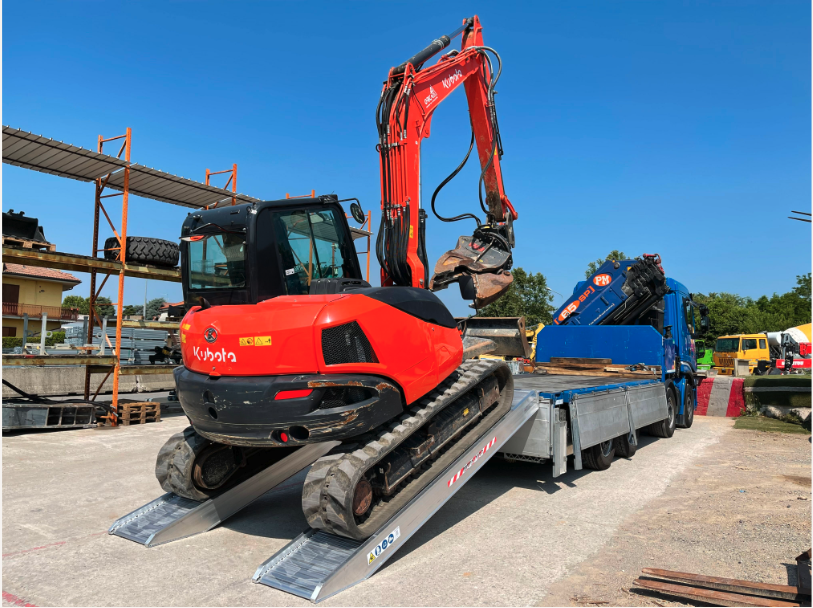

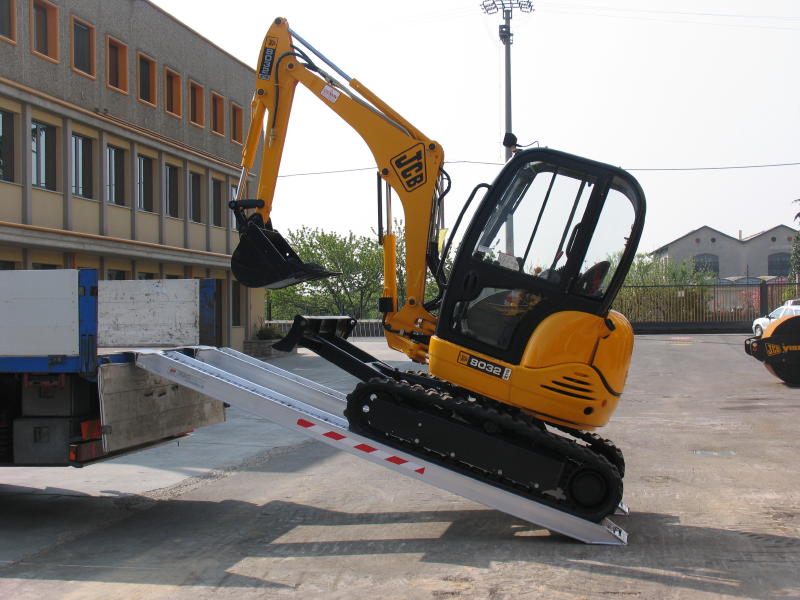

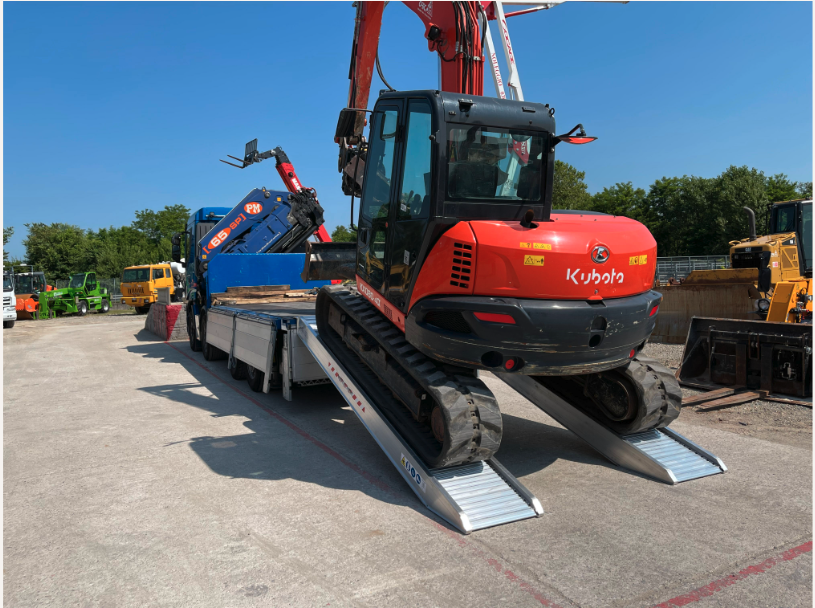

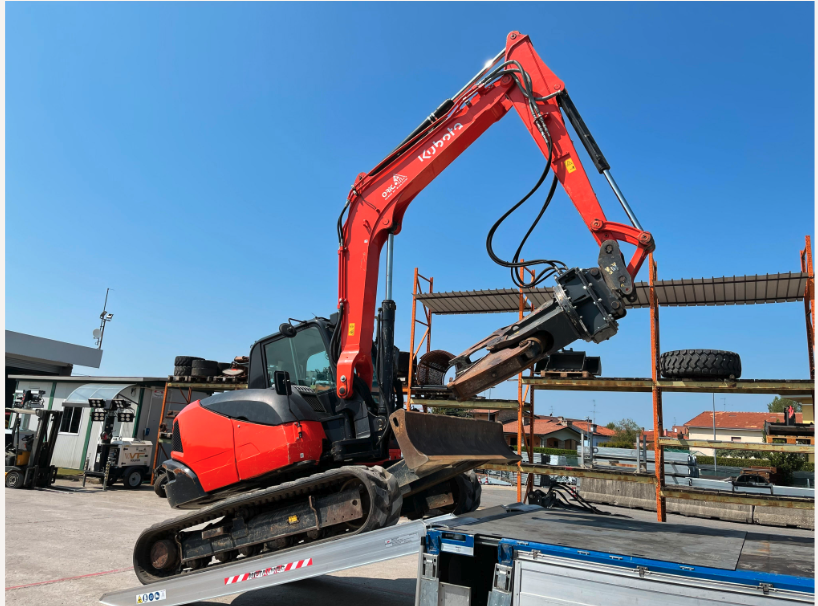

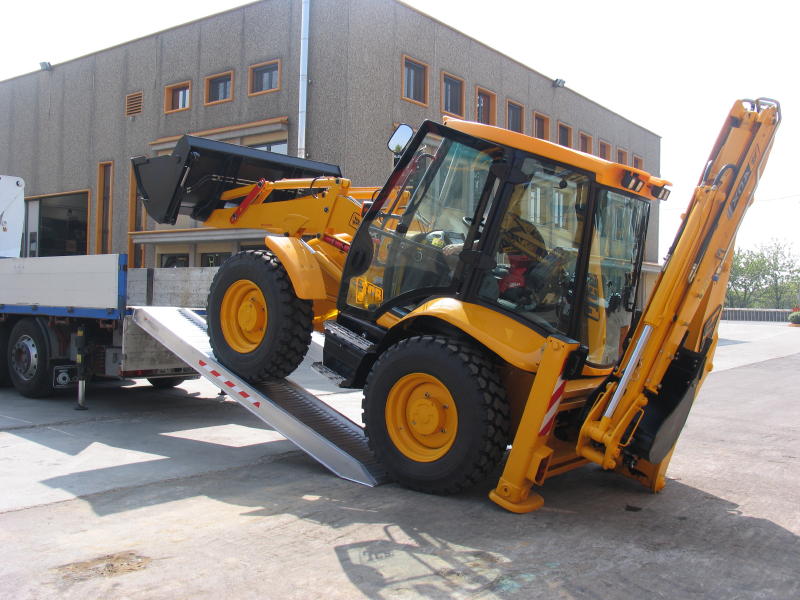

600mm wide x 4000mm long, with a 230mm profile thickness. Featuring a maximum capacity of 14000kg, this is one of our heaviest duty ramps and is ideal for use as an industrial plant ramp or heavy duty commercial ramp. Please note the minimum track width is 450mm. Custom built sizes are available on request. Price and capacity stated is for the PAIR.

Plant Ramps FAQ's

Length (mm)4000
Width (mm)600
Max. Load Height (mm)1200
Weight Per Ramp (kg)95.5
Weight Per Pair (kg)191
Capacity (kg)14000
Product Inquiry
  • Connection Options
  • Customisable
  • Easy to Fit
  • European Made
  • Not for Solid Wheels
  • One Year Warranty
€2,692.25 €2,225.00
Built to Order
Talk to The Ramp People's sales team

One of our two heaviest duty ramps from our standard range. The TRP230/40TRP Series core profile thickness is 230mm.
At 550mm these ramps are over half a metre wide feature a capacity of up to 15010kg and are ideal for use as industrial plant ramps and as heavy duty commercial ramps.

On the TRP230/40TRP series the minimum width of tracks/wheels is 450mm.

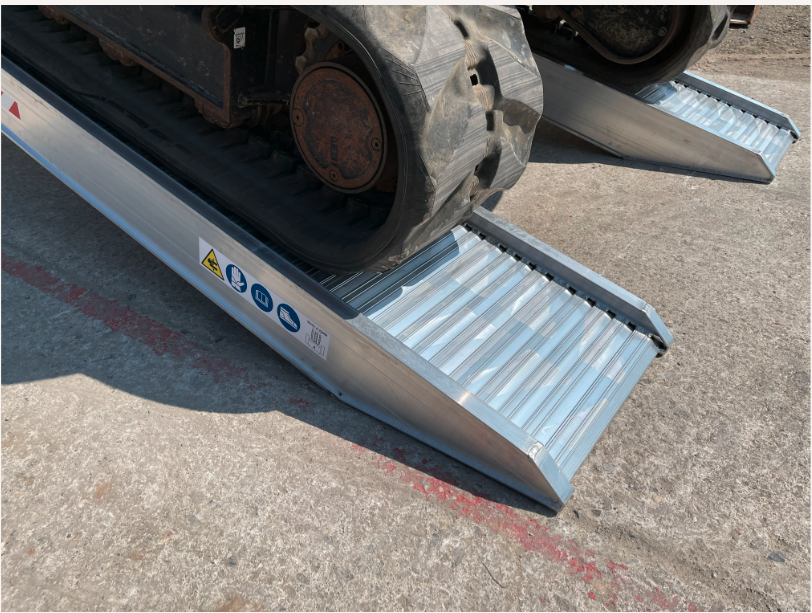

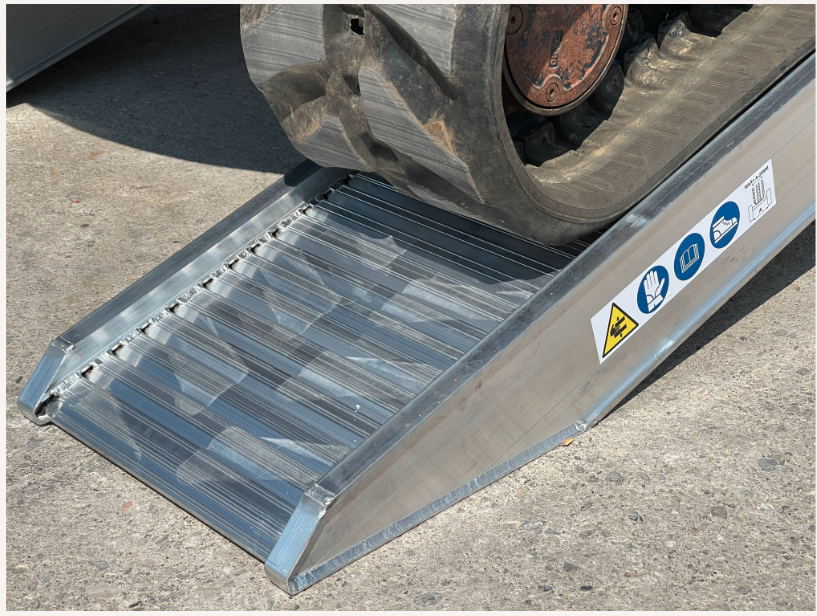

  • These ramps are available both with and without edges. The default is however without edges

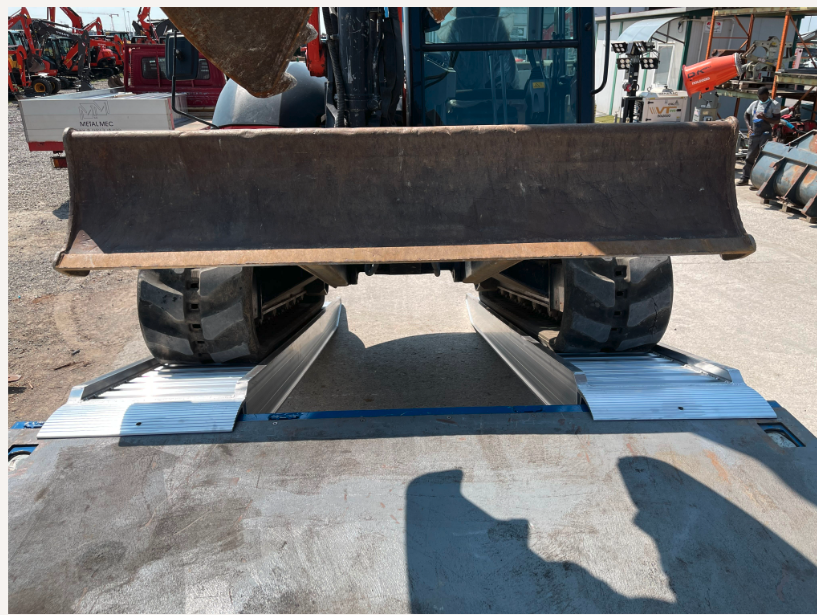

  • Four different connection options available, however the default connection is the rest on connection
  • Custom load heights available
  • All pictures shown are for illustration purpose only. Actual product may vary due to product enhancement
  • Not suitable for solid wheels found on road surfacing machines - for this type of machinery please see the industrial ramps for steel tracks
  • Quotes for bespoke ramps can be supplied on request
  • Fully TÜV certified

TUV Certification Image

Usage Guidelines and Safety Information for these ramps can be found here

SKU TRP230/40
Default Connection Rest On Connection
Capacity (kg) 14000
Height of Ramps Profile (mm) 230
Length (mm) 4000
Min Load Height (mm) 1050
Weight per Ramp (kg) 95.5
Weight Per Pair (kg) 191
Width (mm) 600
Minimum Track Width (mm) 450
One Year Warranty Yes
Connection Options Available Yes
Customisable Yes
Easy to Fit Yes
European Made Yes
Not Solid Wheels Yes
Capacity Wheelbase 1500mm (kg) 12000
Capacity Wheelbase 1750mm (kg) 13340
Capacity Wheelbase 2000mm (kg) 14000
