Aluminium Loading Ramps (3000x550x18000kg)

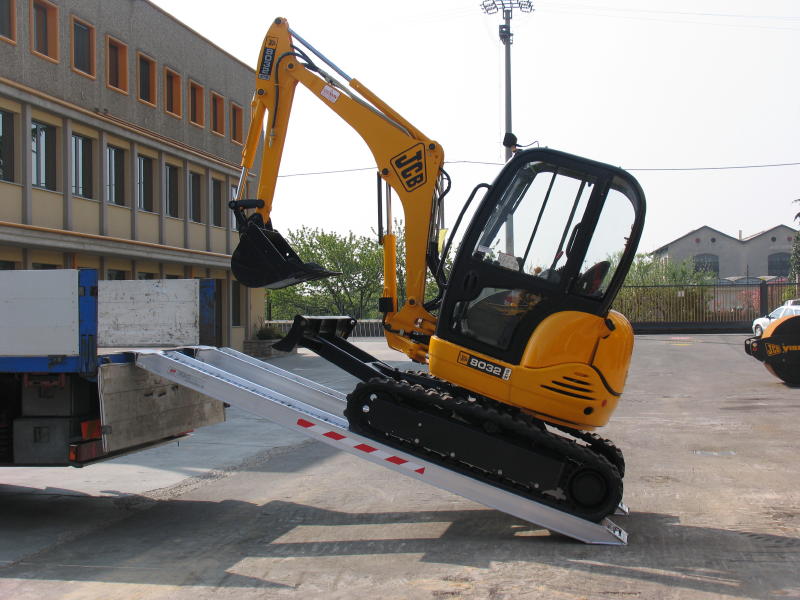

550mm wide x 3000mm long, with a 200mm profile thickness. Featuring a maximum capacity of 18,000kg, this is one of our heaviest duty ramps and is ideal for use as an industrial plant ramp or heavy duty commercial ramp. Please note the minimum track width is 450mm. Custom built sizes are available on request. Price and capacity stated is for the PAIR.

Plant Ramps FAQ's

Length (mm)3000
Width (mm)550
Max. Load Height (mm)900
Weight Per Ramp (kg)68.5
Weight Per Pair (kg)137
Capacity (kg)18000

Got a question?

Product: Aluminium Loading Ramps (3000x550x18000kg)
SKU: TRP200/30TRP

  • Connection Options
  • Customisable
  • Easy to Fit
  • European Made
  • Not for Solid Wheels
  • One Year Warranty
€2,017.20 €1,640.00
Built to Order
TRP200/30TRP
Talk to The Ramp People's sales team

One of our two heaviest duty ramps from our standard range. The TRP200/30TRP Series core profile thickness is 200mm.

At 550mm these ramps are over half a metre wide and feature a capacity of up to 18,000kg and are ideal for use as industrial plant ramps and as heavy duty as commercial ramps.

On the TRP200T series the minimum width of tracks/wheels is 450mm.

  • These ramps are available both with and without edges
  • Four different connection options available, however the default connection is the Rest on Connection.
  • Custom load heights available
  • Not suitable for solid wheels found on road surfacing machines - for this type of machinery please see the industrial ramps for steel tracks.
  • All pictures shown are for illustration purpose only. Actual product may vary due to product enhancement
  • Quotes for bespoke ramps can be supplied on request
  • Fully TÜV certified

TUV Certification Image

Useage Guidelines and Safety Information for these ramps can be found here

SKU TRP200/30TRP
Default Connection Rest On Connection
Capacity (kg) 18000
Height of Ramps Profile (mm) 200
Length (mm) 3000
Weight per Ramp (kg) 68.5
Weight Per Pair (kg) 137
Width (mm) 550
Minimum Track Width (mm) 400
One Year Warranty Yes
Connection Options Available Yes
Customisable Yes
Easy to Fit Yes
European Made Yes
Not Solid Wheels Yes
Capacity Wheelbase 1000mm (kg) 10,630
Capacity Wheelbase 1500mm (kg) 14,000
Capacity Wheelbase 2000mm (kg) 18,000
