Aluminium Loading Ramps (5000x480x2375kg)

480mm wide x 5000mm long with a 140mm profile thickness. Featuring a maximum capacity of 2375kg, this ramp is ideal for use as a plant ramp, digger ramp or tele-handler ramp. Please note the minimum track width is 350mm. Custom built sizes are available on request. Price and capacity stated is for the PAIR.

Plant Ramps FAQ's

Length (mm)5000
Width (mm)480
Max. Load Height (mm)1500
Weight Per Ramp (kg)61
Weight Per Pair (kg)122
Capacity (kg)2375

Got a question?

Product: Aluminium Loading Ramps (5000x480x2375kg)
SKU: TRP140/50L

  • Connection Options
  • Customisable
  • Easy to Fit
  • European Made
  • Not for Solid Wheels
  • One Year Warranty
€2,097.15 €1,705.00
Built to Order
TRP140/50L
Talk to The Ramp People's sales team

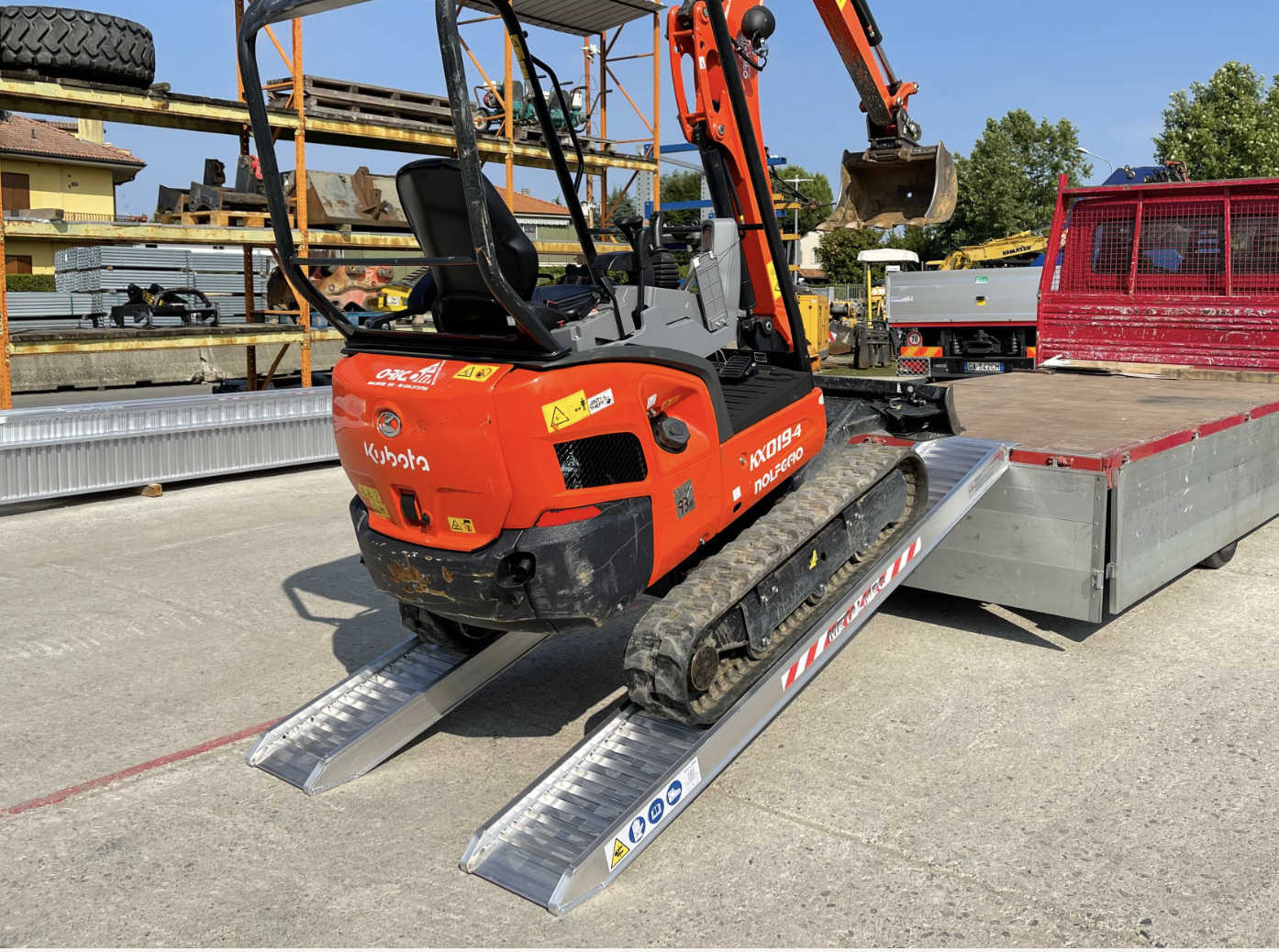

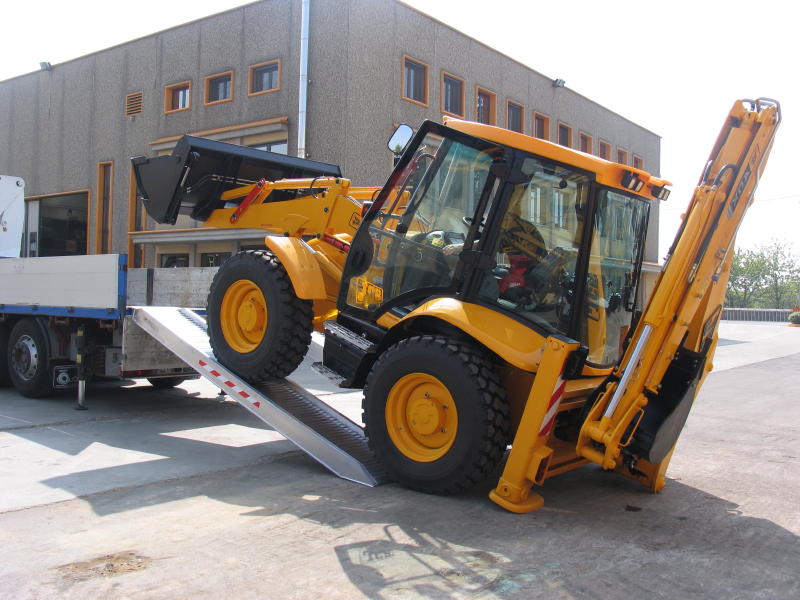

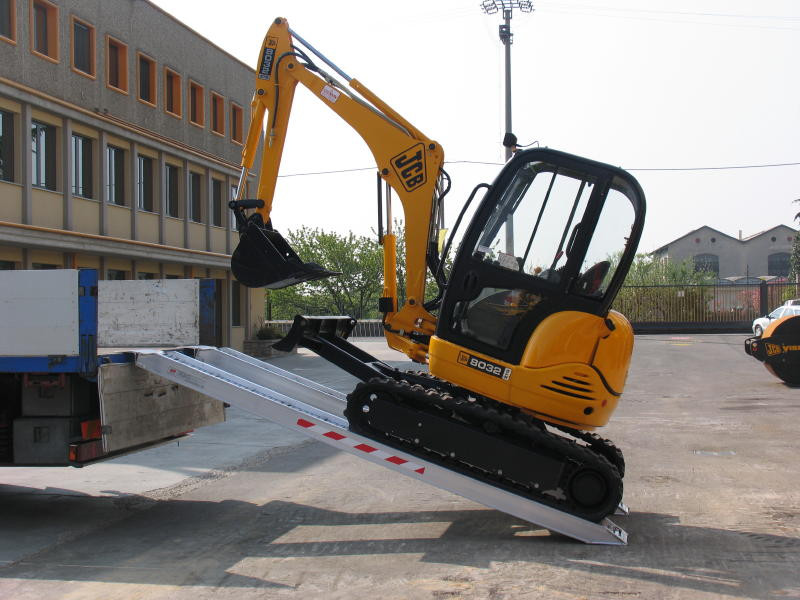

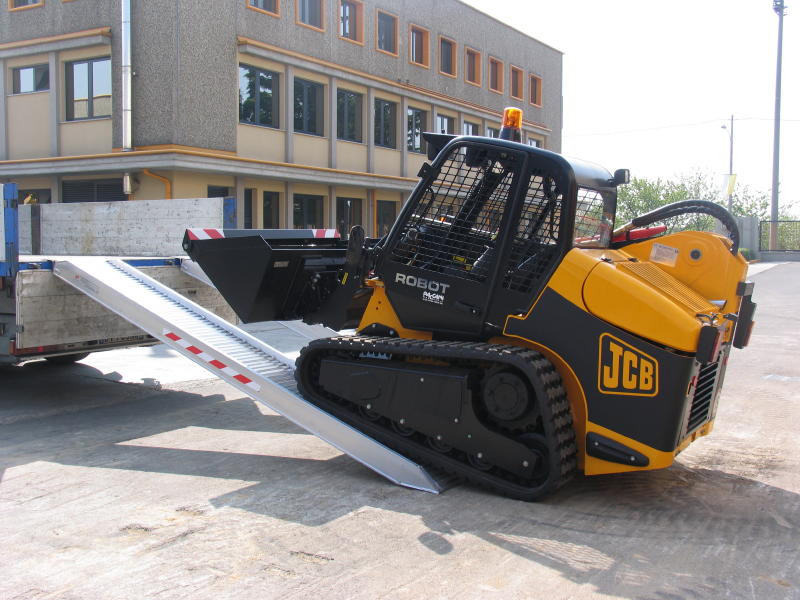

Some of our best selling medium to heavy duty plant ramp, the TRP140L Series has a core profile thickness of 140mm. The TRP140L Series has a width of 480mm, feature a capacity of up to 2375kg and are ideal for use as plant ramps, as digger ramps and for tele-handlers.

On the TRP140L series the minimum width of tracks/wheels is 350mm. These ramps are not designed for use over a 30% gradient

  • These ramps are available both with and without edges. The default is however without edges
  • Four different connection options available, however the default connection is the rest on connection
  • Custom load heights available
  • All pictures shown are for illustration purpose only. Actual product may vary due to product enhancement
  • Not suitable for solid wheels found on road surfacing machines - for this type of machinery please see the industrial ramps for steel tracks
  • Fully TÜV certified
  • Quotes for bespoke ramps can be supplied on request

TUV Certification Image

Usage Guidelines and Safety Information for these ramps can be found here

SKU TRP140/50L
Default Connection Rest On Connection
Capacity (kg) 2375
Height of Ramps Profile (mm) 140
Length (mm) 5000
Weight per Ramp (kg) 61
Weight Per Pair (kg) 122
Width (mm) 480
Minimum Track Width (mm) 350
One Year Warranty Yes
Connection Options Available Yes
Customisable Yes
Easy to Fit Yes
European Made Yes
Not Solid Wheels Yes
Capacity Wheelbase 1000mm (kg) 2375
Capacity Wheelbase 1250mm (kg) 2560
Capacity Wheelbase 1500mm (kg) 2770
Mat Type Options GSII Nitrile FR
