Aluminium Loading Ramps (5000x400x2770kg)

400mm wide x 5000mm long, with a 140mm profile thickness. Featuring a maximum capacity of 2375kg, this ramp is ideal for use as a plant ramp, digger ramp, or tele-handler ramp. Please note the minimum track width is 200mm and max 320mm. Custom built sizes are available on request. Price and capacity stated is for the PAIR.

Plant Ramps FAQ's

Length (mm)5000
Width (mm)400
Max. Load Height (mm)1500
Weight Per Ramp (kg)52.5
Weight Per Pair (kg)105
Capacity (kg)2770
  • Connection Options
  • Customisable
  • Easy to Fit
  • European Made
  • Not for Solid Wheels
  • One Year Warranty

We offer Fast Delivery throughout Ireland for all products on DAP Incoterms. This means we do not charge VAT but Irish import VAT of 21% and Import duty on some products may be payable to the courier before you receive the goods. Learn more.

€1,920.00
SKU
TRP140/50
Built to Order
Delivery to Ireland for all products on DAP Incoterms
Description

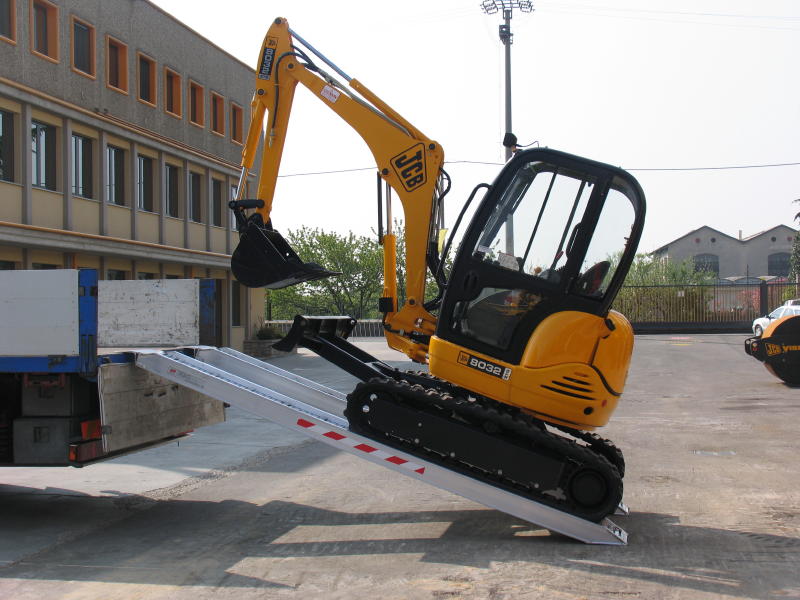

Some of our best selling medium to heavy duty plant ramp, the TRP140 Series has a core profile thickness of 140mm. The TRP140 Series has a width of 400mm, feature a capacity of up to 2770kg and are ideal for use as plant ramps, for digger ramps and for tele-handlers.

On the TRP140 series the minimum width of tracks/wheels is 200mm. These ramps are not designed for use over a 30% gradient

  • These ramps are available both with and without edges. The default is however without edges
  • Four different connection options available, however the default connection is the rest on connection
  • Custom load heights available
  • All pictures shown are for illustration purpose only. Actual product may vary due to product enhancement
  • Not suitable for solid wheels found on road surfacing machines - for this type of machinery please see the industrial ramps for steel tracks
  • Fully TÜV certifed
  • Quotes for bespoke ramps can be supplied on request

TUV Certification Image

Usage Guidelines and Safety Information for these ramps can be found here

Details
SKU TRP140/50
Default Connection Rest On Connection
Capacity (kg) 2770
Height of Ramps Profile (mm) 140
Length (mm) 5000
Max Load Height (mm) 1500
Min. Load Height (mm) 1350
Weight per Ramp (kg) 52.5
Weight Per Pair (kg) 105
Width (mm) 400
Minimum Track Width (mm) 200
Maximum Track Width (mm) 320
One Year Warranty Yes
Connection Options Available Yes
Customisable Yes
Easy to Fit Yes
European Made Yes
Not Solid Wheels Yes
Capacity Wheelbase 1000mm (kg) 2080
Capacity Wheelbase 1500mm (kg) 2375
Capacity Wheelbase 2000mm (kg) 2770
