4-10 business days delivery*. Items are shipped from the UK to Ireland on DAP Incoterms. This means we do not charge Irish VAT but Irish import VAT of 23%, import duty (on some products) and customs charges will be due. These fees will need to be paid to the courier before or after you receive the goods. Learn more.

€1,950.00
SKU
TRP140/45L
Built to Order

Extra Wide Aluminium Loading Ramps (4500x480x3325kg)

460mm wide x 4500mm long with a 140mm profile thickness. Featuring a maximum capacity of 2770kg, this ramp is ideal for use as a plant ramp, digger ramp or tele-handler ramp. Please note the minimum track width is 200mm and max 380mm.

Custom built sizes are available on request. Price and capacity stated is for the PAIR.

  • Connection Options
  • Customisable
  • Easy to Fit
  • European Made
  • Not for Solid Wheels
  • One Year Warranty
Description

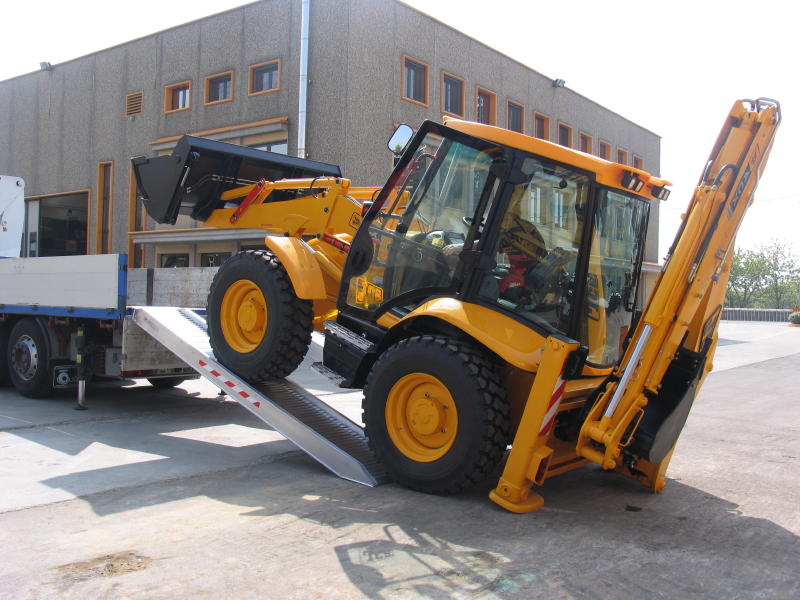

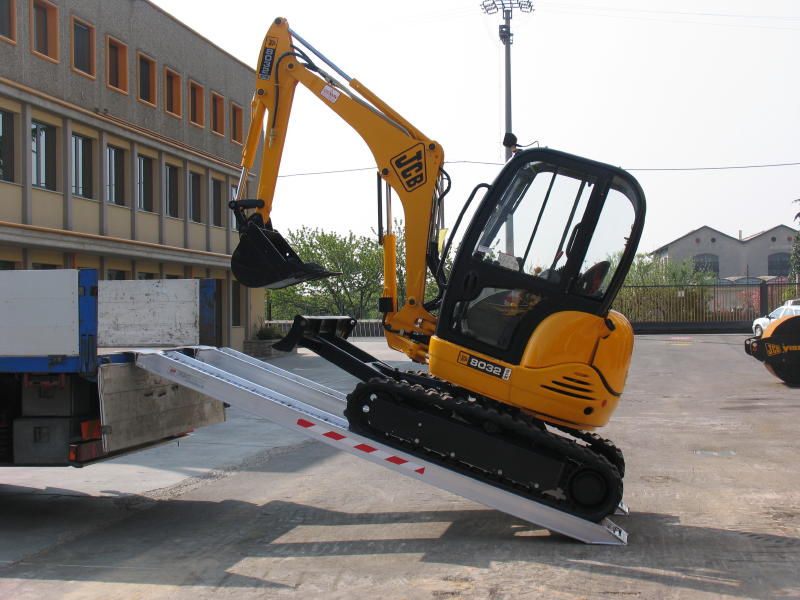

Some of our best selling medium to heavy duty plant ramp, the TRP140L Series has a core profile thickness of 140mm. The TRP140L Series has a width of 460mm, feature a capacity of up to 3325kg and are ideal for use as plant ramps, for digger ramps and for tele-handlers.

On the TRP140L series the minimum width of tracks/wheels is 200mm. These ramps are not designed for use over a 30% gradient

  • These ramps are available both with and without edges. The default is however without edges
  • Four different connection options available, however the default connection is the rest on connection
  • Custom load heights available
  • All pictures shown are for illustration purpose only. Actual product may vary due to product enhancement
  • Not suitable for solid wheels found on road surfacing machines - for this type of machinery please see the industrial ramps for steel tracks
  • Quotes for bespoke ramps can be supplied on request
  • Please note, the stated maximum weight capacities are only valid for vehicles where the weight is equally distributed – for vehicles where this is not the case, please contact us directly for assistance.
  • Fully TÜV certified

TUV Certification Image

Usage guidelines and safety information for our full vehicle ramp range can be found here.


Details
SKUTRP140/45L
Default ConnectionRest On Connection
Capacity (kg)3325
Height of Ramps Profile (mm)140
Length (mm)4500
Max Load Height (mm)1350
Min. Load Height (mm)1200
Weight per Ramp (kg)48
Weight Per Pair (kg) 96
Width (mm)480
Minimum Track Width (mm)200
Maximum Track Width (mm)380
One Year WarrantyYes
Connection Options AvailableYes
CustomisableYes
Easy to FitYes
European MadeYes
Not Solid WheelsYes
Capacity Wheelbase 1000mm (kg)2375
Capacity Wheelbase 1500mm (kg)2770
Capacity Wheelbase 2000mm (kg)3325
