Aluminium Loading Ramps (3000x360x4500kg)

360mm wide x 3000mm long with a 125mm profile thickness. Featuring a maximum capacity of 4500kg, this ramp is ideal for use as a plant ramp or mini digger ramp. Please note the minimum track width is 200mm. Custom built sizes are available on request. Price and capacity stated is for the PAIR.

Plant Ramps FAQ's

Length (mm)3000
Width (mm)360
Max. Load Height (mm)900
Weight Per Ramp (kg)29
Weight Per Pair (kg)58
Capacity (kg)4500

Got a question?

Product: Aluminium Loading Ramps (3000x360x4500kg)
SKU: TRP125/30

  • Connection Options
  • Customisable
  • Easy to Fit
  • European Made
  • Not for Solid Wheels
  • One Year Warranty
€947.10 €770.00
Built to Order
TRP125/30
Talk to The Ramp People's sales team

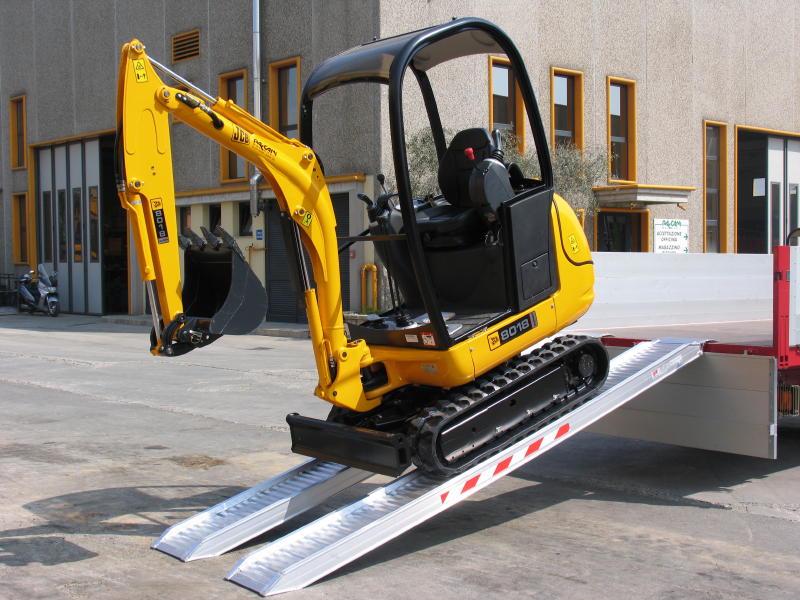

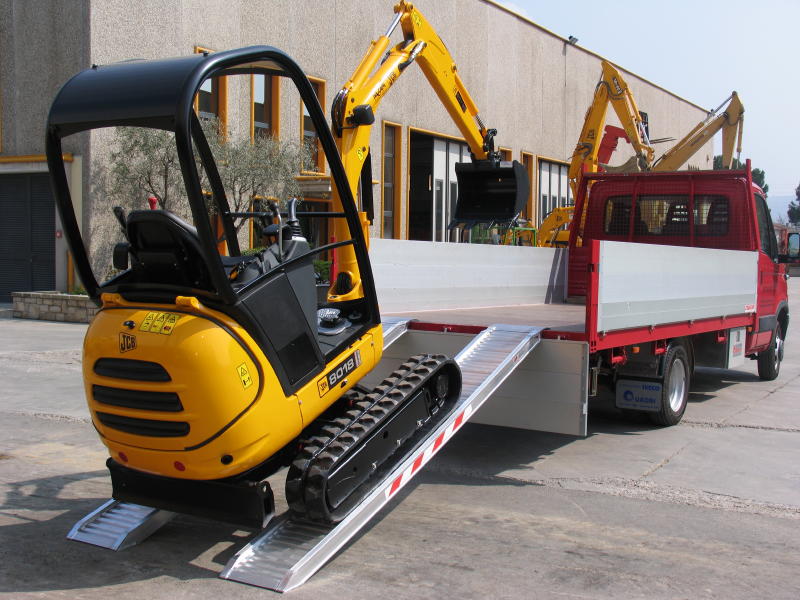

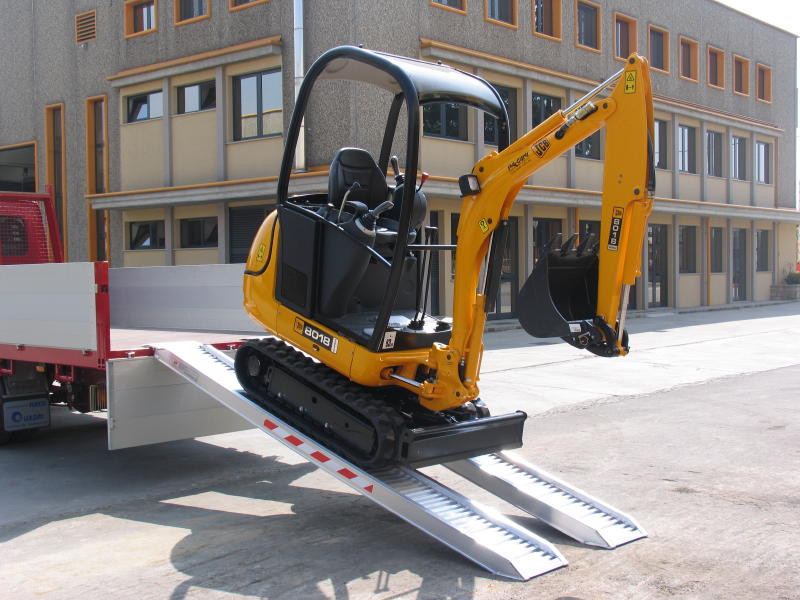

One of our best selling plant ramps, the TRP125 has a core profile thickness of 125mm. Their width is 360mm. They feature a capacity of up to 4500kg and are ideal for use as plant ramps and mini digger ramps.

On the TRP125 Series the minimum width of tracks/wheels is 200mm and these ramps are not designed for use over 30% gradient

  • These ramps are available both with and without edges. The default is however without edges
  • Four different connection options available, however the default connection is the rest on connection
  • Custom load heights available
  • Quotes for bespoke ramps can be supplied on request
  • Not suitable for solid wheels found on road surfacing machines - for this type of machinery please see the industrial ramps for steel tracks
  • Fully TÜV certified

TUV Certification Image

Usage Guidelines and Safety Information for these ramps can be found here

SKU TRP125/30
Default Connection Rest On Connection
Capacity (kg) 4500
Height of ramps profile (mm) 125
Length (mm) 3000
Weight per ramp (kg) 29
Weight Per Pair (kg) 58
Width (mm) 360
Minimum track width (mm) 200
One Year Warranty Yes
Connection Options Available Yes
Customisable Yes
Easy to Fit Yes
European Made Yes
Not Solid Wheels Yes
Capacity Wheelbase 1000mm (kg) 3435
Capacity Wheelbase 1250mm (kg) 3925
Capacity Wheelbase 1500mm (kg) 4500
