Aluminium Loading Ramps (3000x400x6000kg)

400mm wide x 3000mm long with a 125mm profile thickness. Featuring a maximum capacity of 6000kg, this ramp is ideal for use as a plant ramp or mini digger ramp. Please note the minimum track width is 300mm.

Custom built sizes are available on request. Price and capacity stated is for the PAIR.

Plant Ramps FAQ's

Length (mm)3000
Width (mm)400
Max. Load Height (mm)900
Weight Per Ramp (kg)22,5
Weight Per Pair (kg)55
Capacity (kg)6000
  • Connection Options
  • Customisable
  • Easy to Fit
  • European Made
  • Not for Solid Wheels
  • One Year Warranty

We offer Fast Delivery throughout Ireland for all products on DAP Incoterms. This means we do not charge VAT but Irish import VAT of 21% and Import duty on some products may be payable to the courier before you receive the goods. Learn more.

€850.00
SKU
TRP126/30L
Built to Order
Delivery to Ireland for all products on DAP Incoterms
Description

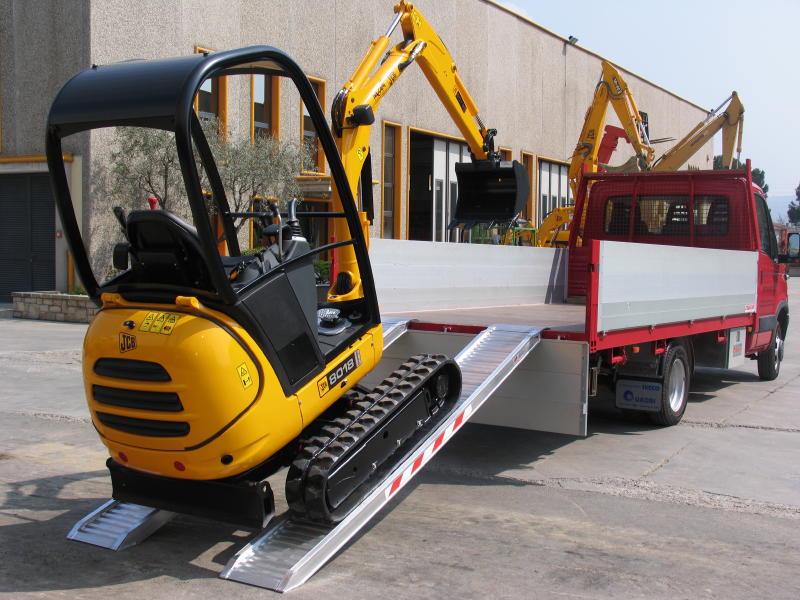

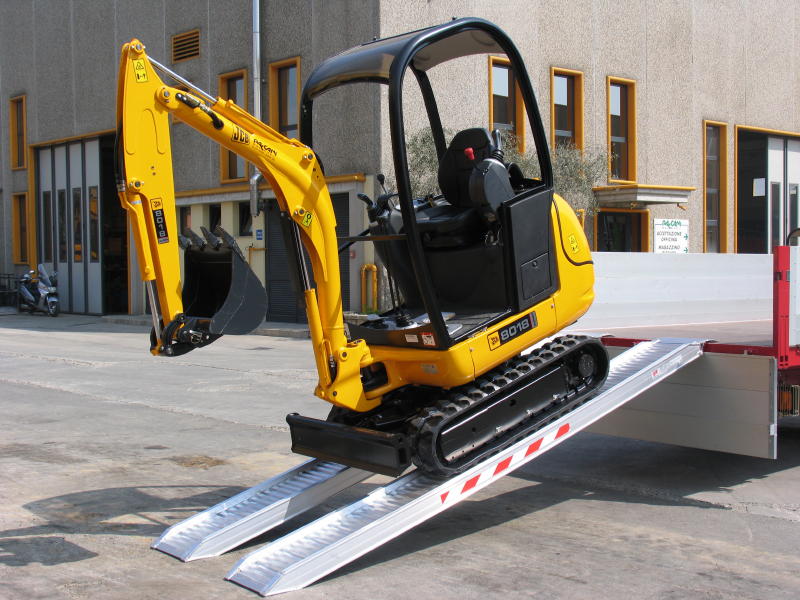

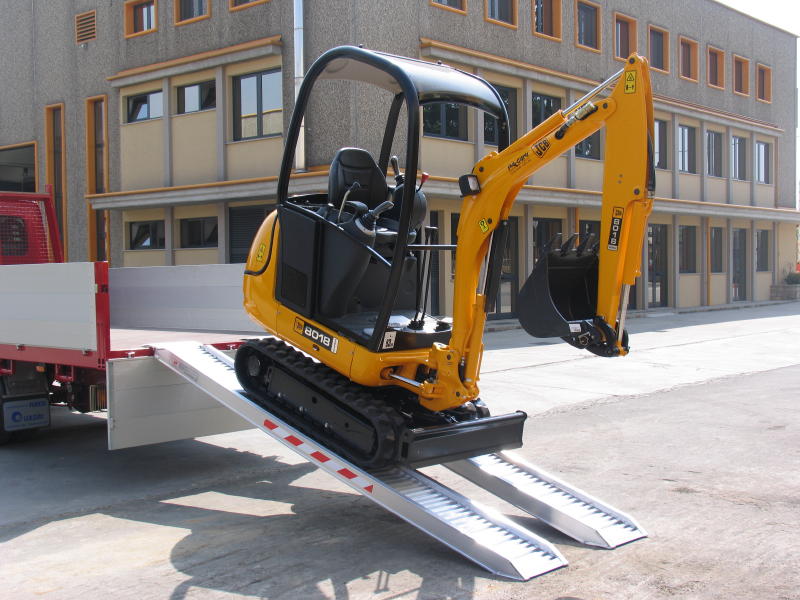

Some of our best selling plant ramps, the TRP126L has a core profile thickness of 125mm. Their width is 400mm. They feature a capacity of up to 6000kg and are ideal for use as plant ramps and mini digger ramps.

On the TRP126L Series the minimum width of tracks/wheels is 200mm and these ramps are not designed for use over 30% gradient.

  • These ramps are available both with and without edges. The default is however without edges
  • Four different connection options available, however the default connection is the rest on connection
  • Custom load heights available
  • All pictures shown are for illustration purpose only. Actual product may vary due to product enhancement
  • Quotes for bespoke ramps can be supplied on request
  • Not suitable for solid wheels found on road surfacing machines - for this type of machinery please see the industrial ramps for steel tracks
  • Fully TÜV certified

TUV Certification Image

Usage Guidelines and Safety Information for these ramps can be found here

Details
SKU TRP126/30L
Default Connection Rest On Connection
Capacity (kg) 6000
Height of Ramps Profile (mm) 125
Length (mm) 3000
Max Load Height (mm) 900
Min. Load Height (mm) 750
Weight per Ramp (kg) 22,5
Weight Per Pair (kg) 55
Width (mm) 400
Minimum Track Width (mm) 200
Maximum Track Width (mm) 320
One Year Warranty Yes
Connection Options Available Yes
Customisable Yes
Easy to Fit Yes
European Made Yes
Not Solid Wheels Yes
Capacity Wheelbase 1000mm (kg) 3435
Capacity Wheelbase 1500mm (kg) 4580
Capacity Wheelbase 2000mm (kg) 6000
