From €1,130.00
Built to Order
Only %1 left

Pedestrian Walkway Bridge

Temporary, portable aluminium pedestrian walkways / trench bridges are designed to allow pedestrians to safely cross areas hazardous areas, such as trenches and excavations. The pedestrian walkway/footbridges are provided with a non-slip surface and handrails to ensure safety. Available in lengths up to 6m. 400kg capacity.

  • Customisable
  • Easy to Fit
  • European Made
  • One Year Warranty
  • Leave Outside

TRP Temporary Pedestrian Walkway Bridge features include:

  • Rest on connections - simply put ramp in place and start using it
  • Foldable edges to reduce ramp size during transportation
  • 200mm high footstops
  • Maximum loading capacity of 400kgs/m2
  • Ergonomic handrails: 1018mm high
  • Internal bridge width :1000mm
  • Anti-slip surface, R12 slip resistance
  • Portable
  • Handrails can be folded or removed during transport
  • Suitable for commercial use, for example, to be used at events or as a trench cover with handrails during construction works
  • TUV certified
  • Made in Europe
  • Quotes for bespoke ramps can be supplied on request

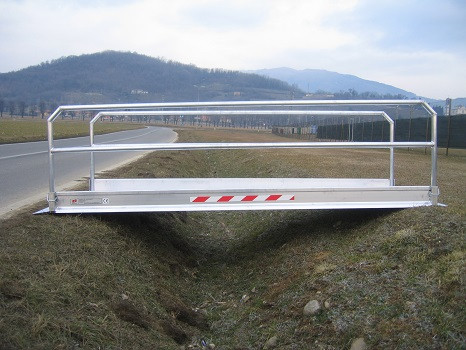

  • For vehicle traffic, please view our vehicle gangways which offer capacities up to 4500kg
  • All pictures shown are for illustration purpose only. Actual product may vary due to product enhancement

For safety remember:

  • Do not exceed a maximum gradient of 5%
  • There must be a minimum rest of 330mm on both sides of the walkway

TUV Certification Image

Usage Guidelines and Safety Information for these ramps can be found here

Capacity (kg) 400
Internal Width (mm) 1000
Length (mm) 1260 - 6055
Total Width (mm) 1120
Weight (kg) 34 - 136
One Year Warranty Yes
Customisable Yes
Easy to Fit Yes
European Made Yes
Leave Outside Yes
