Multi-Fold Wheelchair Ramp for Cars 4ft - 10ft

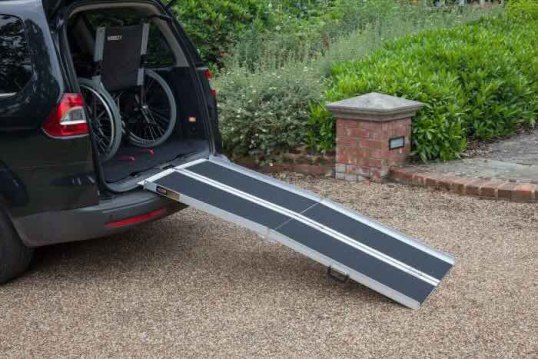

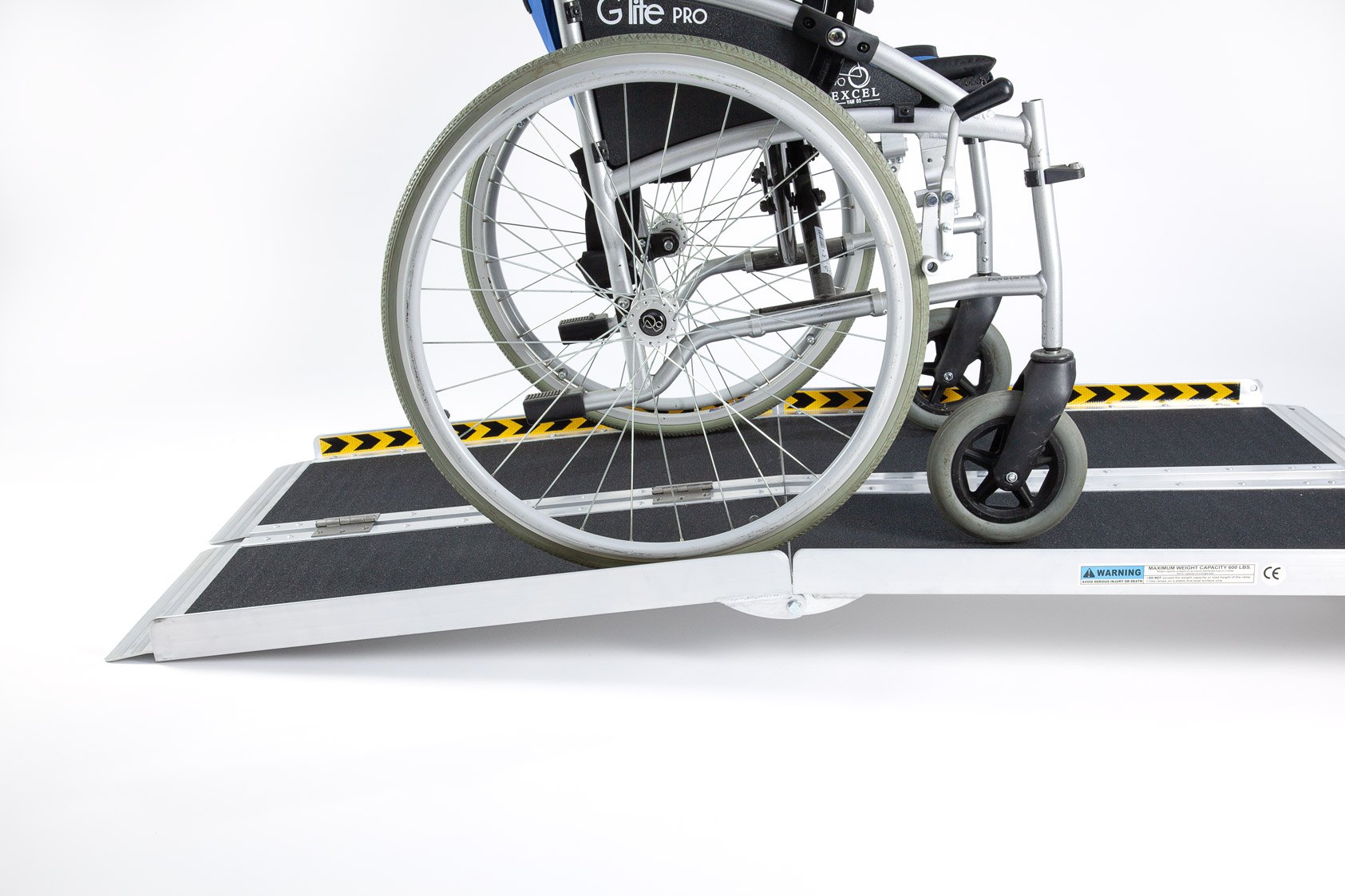

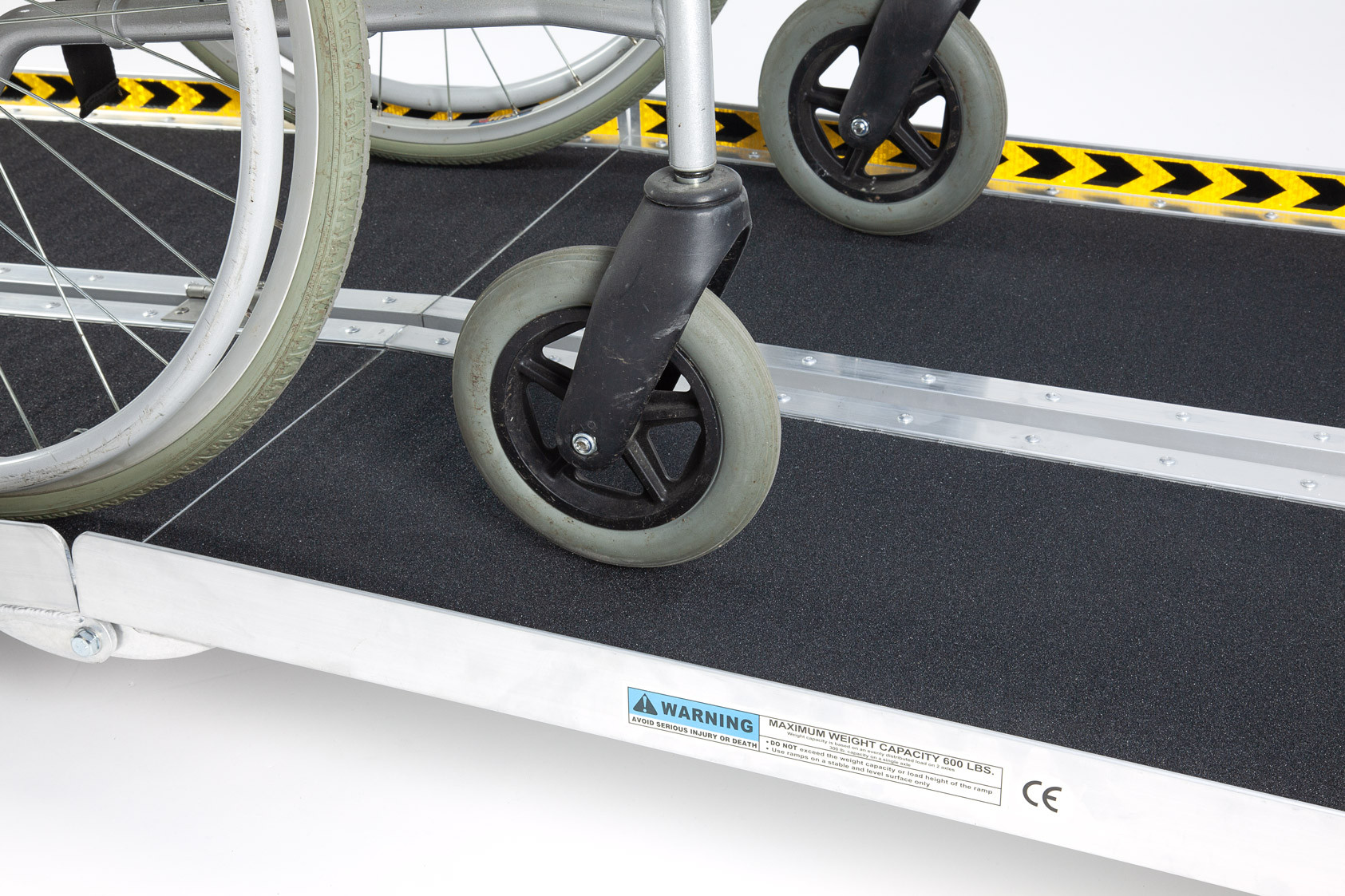

This solid and durable aluminium wheelchair ramp with black non-slip grip surface easily allows you to load your manual wheelchair, electric wheelchair or mobility scooter into the car. This dual-purpose ramp can also be used to overcome steps and kerbs. Choose from 4ft, 5ft, 6ft, 8ft and 10ft lengths. Please note, from 8ft upwards the ramps split in 2 - these are SPLIT ramps which make the ramps much easier to put in place and use.

Please note the recommended load height for loading unoccupied wheelchairs and scooters is based on a 1:33 gradient. Please check your scooter's manual to ensure this gradient is suitable.

4ft
Length (ft) 4
Length (mm) 1219
Internal Width (mm) 720
Total Width (mm) 730
Max Load Height (mm) 203 (occupied) 365 (unoccupied)
Weight (kg) 10.3
Capacity (kg) 270
5ft
Length (ft) 5
Length (mm) 1524
Internal Width (mm) 720
Total Width (mm) 730
Max Load Height (mm) 250 (occupied) 365 (unoccupied)
Weight (kg) 12.6
Capacity (kg) 270
6ft
Length (ft) 6
Length (mm) 1830
Internal Width (mm) 720
Total Width (mm) 730
Max Load Height (mm) 305 (occupied) 540 (unoccupied)
Weight (kg) 16.7
Capacity (kg) 270
8ft
Length (ft) 8
Length (mm) 2440
Internal Width (mm) 720
Total Width (mm) 730
Max Load Height (mm) 405 (occupied) 720 (unoccupied)
Weight (kg) 21.5
Capacity (kg) 270
10ft
Length (ft) 10
Length (mm) 3048
Internal Width (mm) 720
Total Width (mm) 730
Max Load Height (mm) 505 (occupied) 910 (unoccupied)
Weight (kg) 27.5
Capacity (kg) 270

Ramp Length & Load Height

It is crucial for you to know your load height to identify which ramp length you require. The load height is the vertical measurement from the ground to where you rest the ramp onto.

Once you have the load height you can use our simple ramp length calculator to identify which ramp length you require, alternatively please contact our team.

Manual Wheelchairs:
Minimum recommended gradient: 1:6
Example: for a 1ft load height you'll need a 6ft long ramp.

Mobility Scooters:
Minimum recommended gradient: 1:8 (Ramp needs to be longer due to the low ground clearance)
Example: for a 1ft load height you'll need an 8ft long ramp.

Certain goods and services for disabled people are zero-rated for VAT, including mobility aids, as long as the customer is eligible and the goods are for domestic or personal use. All of our wheelchair ramps classify as mobility aids and therefore those eligible can purchase these VAT exempt.

Who is eligible?

VAT relief is available for individuals with chronic illnesses and or disabilities. The wheelchair ramp must be for exclusive use by the disabled individual. VAT relief is also available to registered UK charities.

Who is not eligible?

Businesses are not eligible for VAT relief. VAT relief is also not available where the ramp is being purchased for a group of people to use, except for charities. In addition, those with temporary incapacities, such as broken bones, are required to pay the VAT.

How do I claim my VAT back?

At the checkout stage, prior to entering payment details, there is a VAT exemption box. Simply enter the full name of the person the ramp is for and their disability, or the charity name and number, and tick to confirm it is correct. The VAT will then automatically be removed from your purchase.

If you are in any doubt as to whether you are eligible to receive goods or services zero-rated for VAT, please contact our team, consult Notice 701/7 VAT Relief for Disabled People or contact the National Advice Service on 0845 010 9000.

Folding Wheelchair Ramps FAQ's

  • Easy to Fit
  • Electric Wheelchair
  • Manual Wheelchair
  • Mobility Scooter
  • One Year Warranty
Description

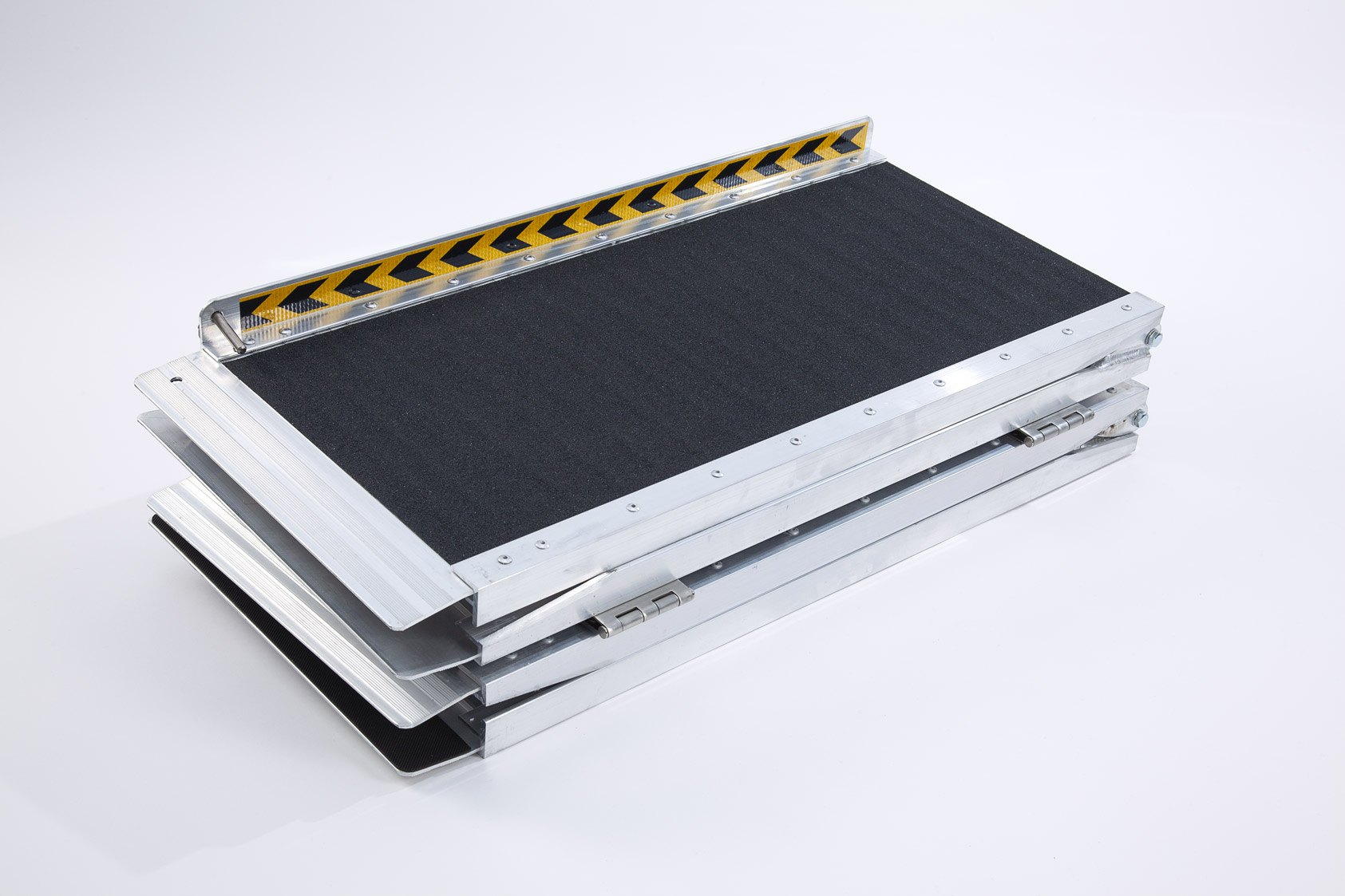

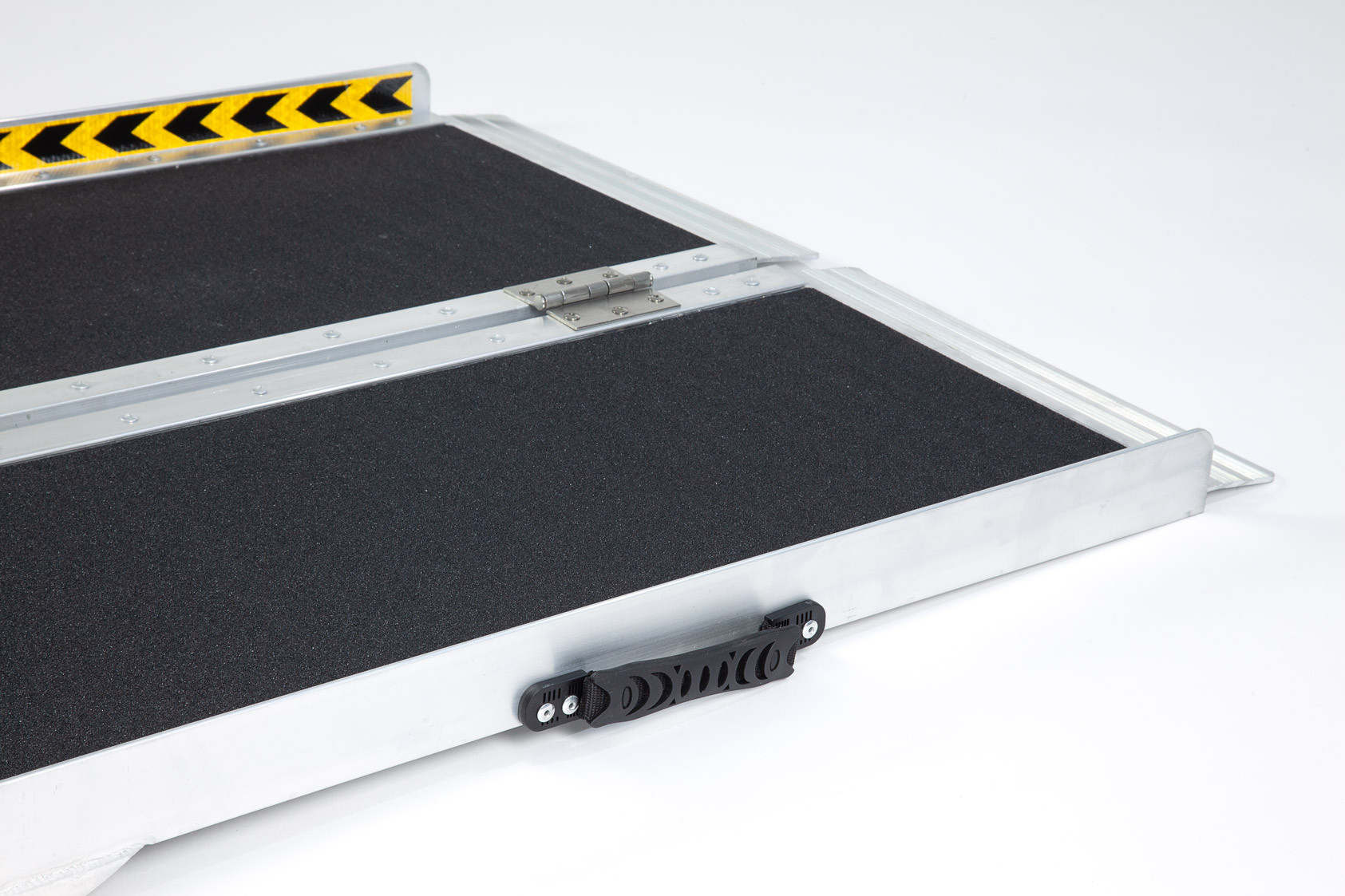

  • Folding ramp design for compact storage

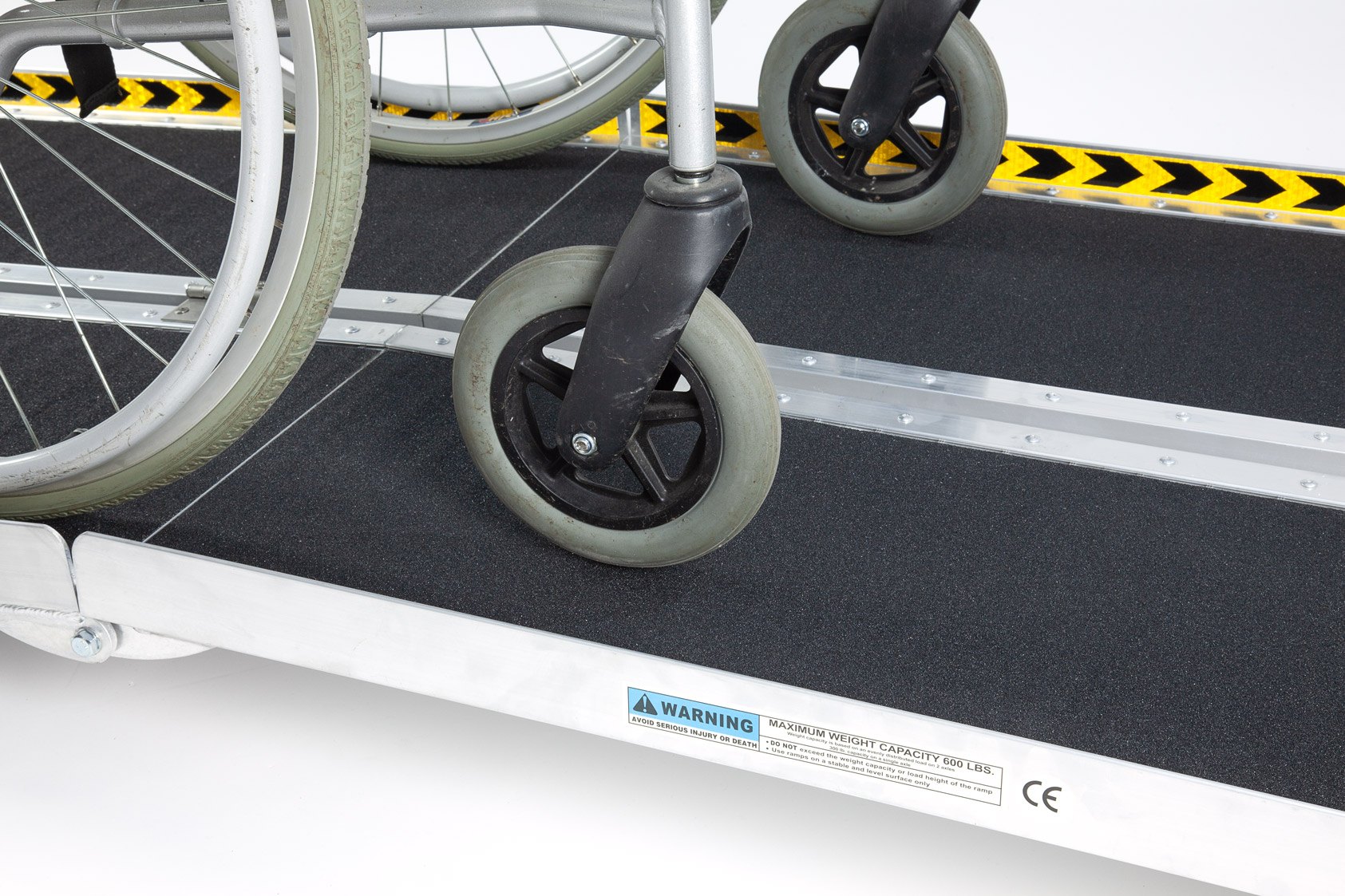

  • Grip tape running surface for extra grip even in wet

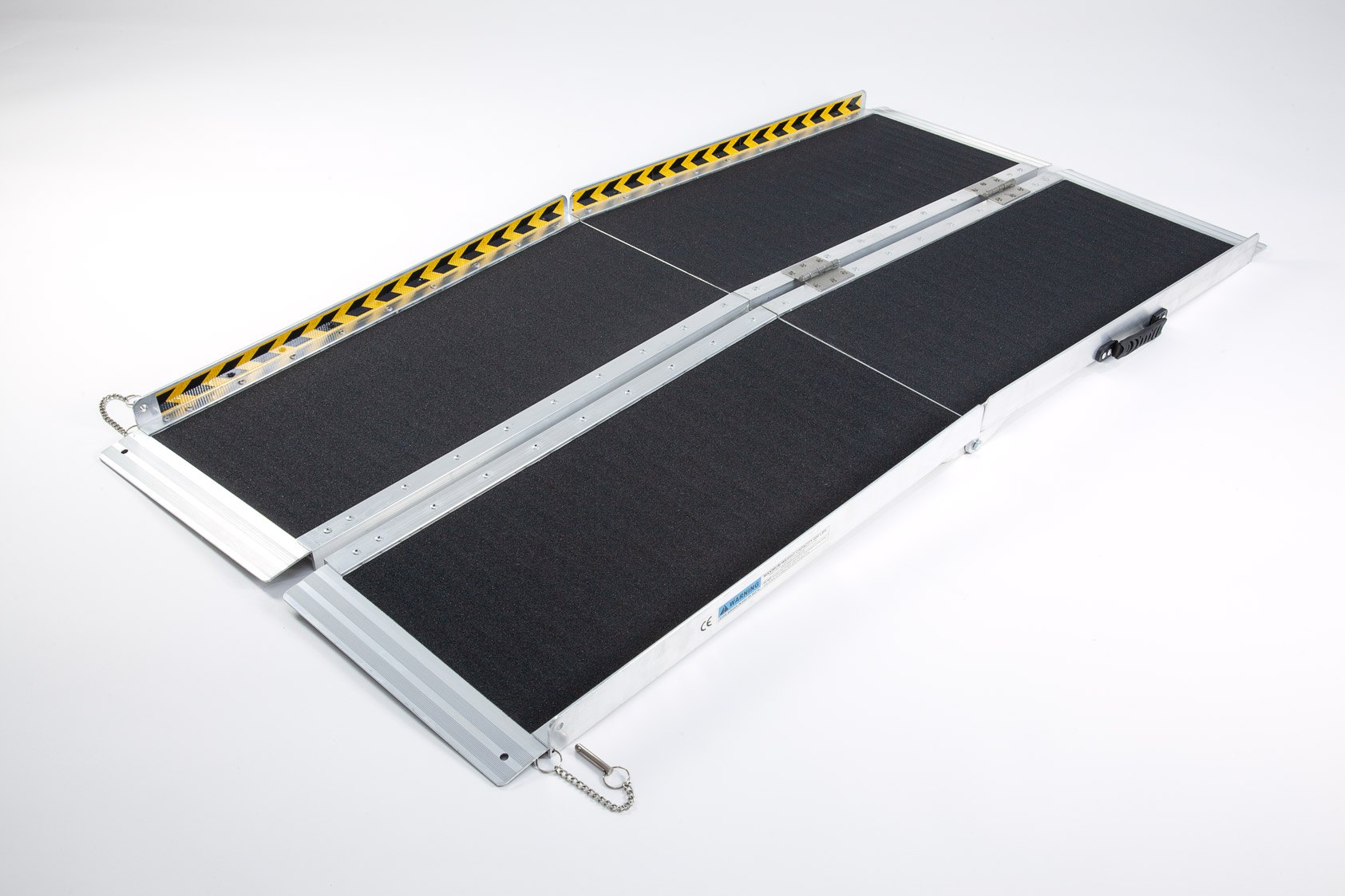

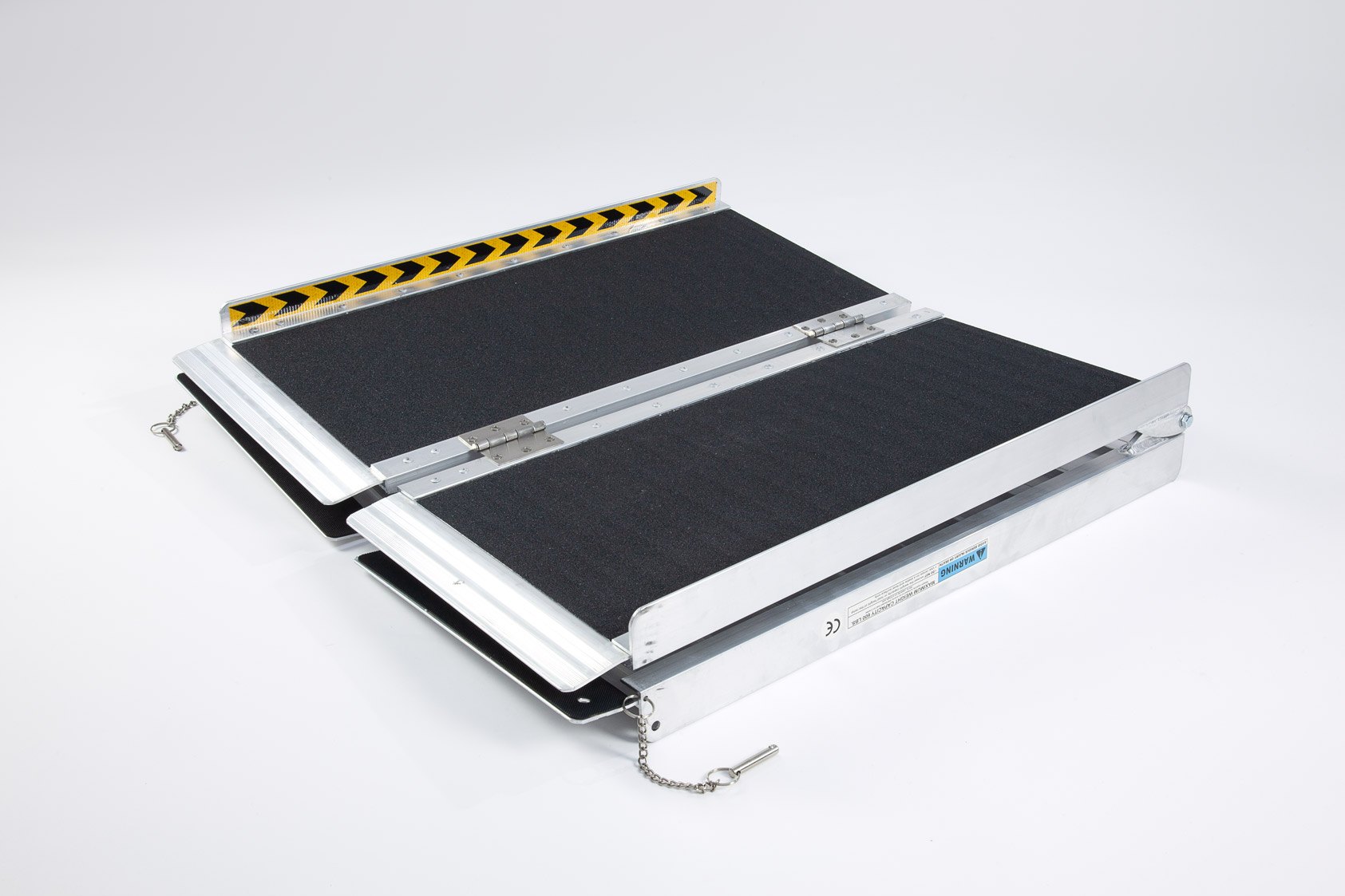

  • Halves its length and its width
  • 275kg capacity, Open Width 730mm, internal width 720mm
  • From 8ft upwards the ramps split in 2, these are SPLIT ramps

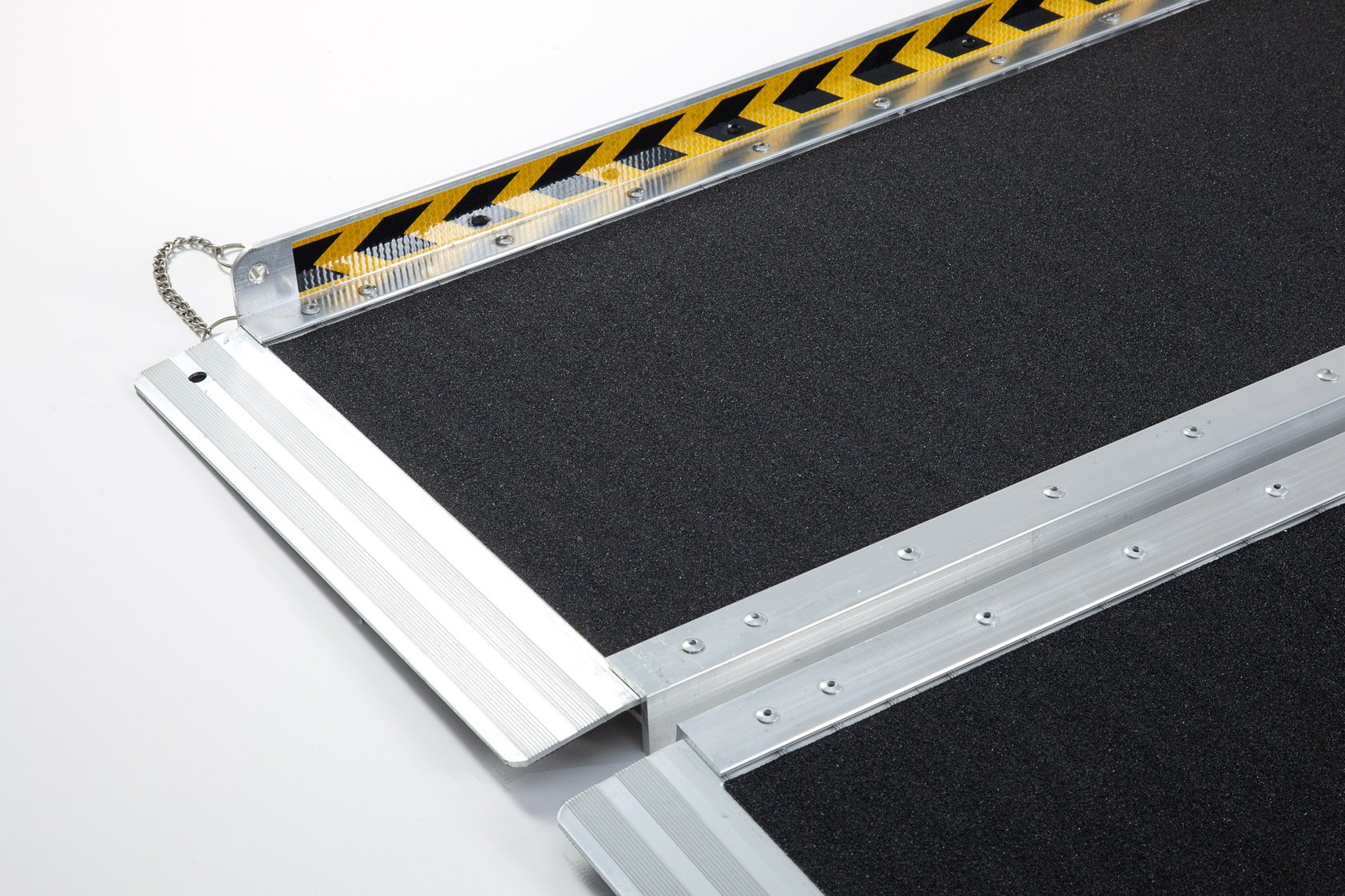

  • Rest on connection - to fit just rest on and start loading
  • Maximum gradient = 1 in 6 although 1 in 8 is recommended
  • Lightweight for easy handling
  • Edges on each side of the ramp to prevent accidentally wheeling off
  • The non-slip surface on all of our wheelchair ramps is glued onto the metal ramp. Therefore these ramps are not suitable to be kept outside and exposed to weather
  • All pictures shown are for illustration purpose only. Actual product may vary due to product enhancement

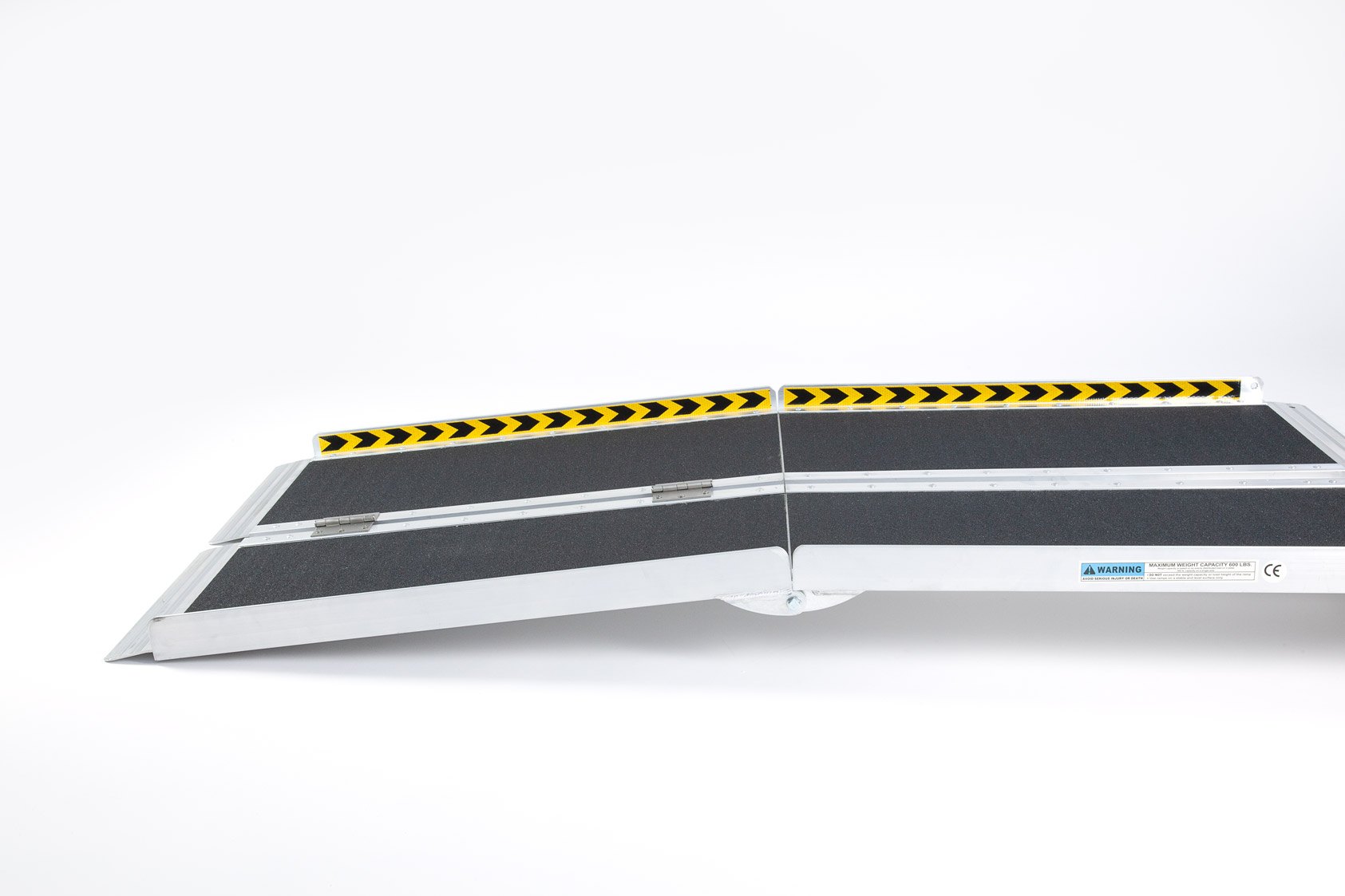

  • Curved for additional ground clearance
  • Please note the 10ft ramp is quite heavy, please check it is suitable for your needs prior to ordering
  •  These ramps are only suitable for use as mobility aids

Multi-fold Wheelchair Ramp Range

4ft / 121cm

  • Length 4ft(1219mm)
  • Foldable length 2ft and height 1.1ft
  • Weight 10.3kg
  • Capacity 270kg
  • Open width 730mm
  • Internal width 720mm
  • Max. load height for unoccupied wheelchairs 365mm
  • Max. load height occupied wheelchairs 203mm

5ft / 152cm

  • Length 5ft(1524mm)
  • Foldable length 2.5ft and height 1.1ft
  • Weight 12.6kg
  • Capacity 270kg
  • Open width 730mm
  • Internal width 720mm
  • Max. load height for unoccupied wheelchairs 450mm
  • Max. load height occupied wheelchairs 250mm

6ft / 183cm

  • Length 6ft(1830mm)
  • Foldable length 3ft and height 1.1ft
  • Weight per ramp half 8,35kg
  • Weight 16.7kg
  • Capacity 270kg
  • Open width 730mm
  • Internal width 720mm
  • Max. load height for unoccupied wheelchairs 540mm
  • Max. load height occupied wheelchairs 305mm

8ft / 243cm

  • Length 8ft(2438mm)
  • Foldable length 4ft and height 1.1ft
  • Weight per ramp half 10,75kg
  • Total Weight 21.5kg
  • Capacity 270kg
  • Open width 730mm
  • Internal width 720mm
  • Max. load height for unoccupied wheelchairs 720mm
  • Max. load height occupied wheelchairs 405mm

10ft / 304cm

  • Length 10ft(3048mm)
  • Foldable length 5ft and height 1.1ft
  • Weight per ramp half 13.75kg
  • Total Weight 27.5kg
  • Capacity 270kg
  • Open width 730mm
  • Internal width 720mm
  • Max. load height for unoccupied wheelchairs 910mm
  • Max. load height occupied wheelchairs 505mm

Please note the 10ft ramp is quite heavy, please check it is suitable for your needs prior to ordering


Details
SKU TRP506-multifold-1
Capacity (kg) 270
Height of Raised Side (mm) 50
Length (ft) 4 - 10.00
Max Load Height (mm) 505
Open Width (mm) 730
Total Width (mm) 730
Weight (kg) 10.3 - 27.5
One Year Warranty Yes
Easy to Fit Yes
Electric Wheelchair Yes
Manual Wheelchair Yes
Mobility Scooter Friendly Yes
