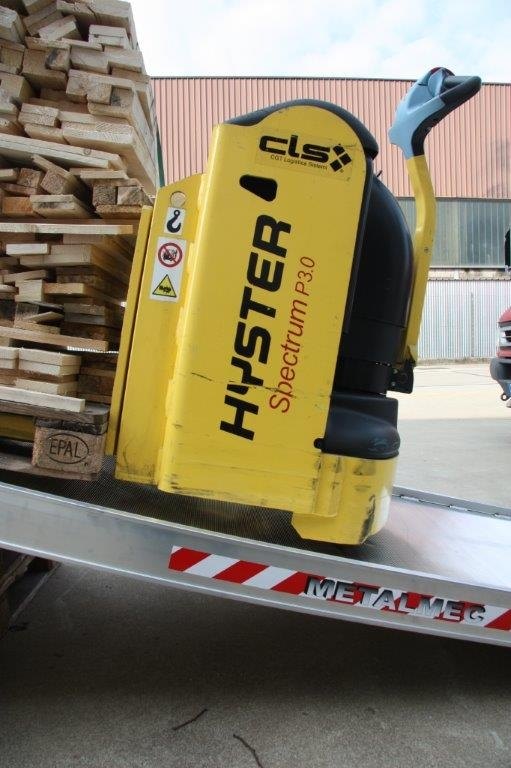

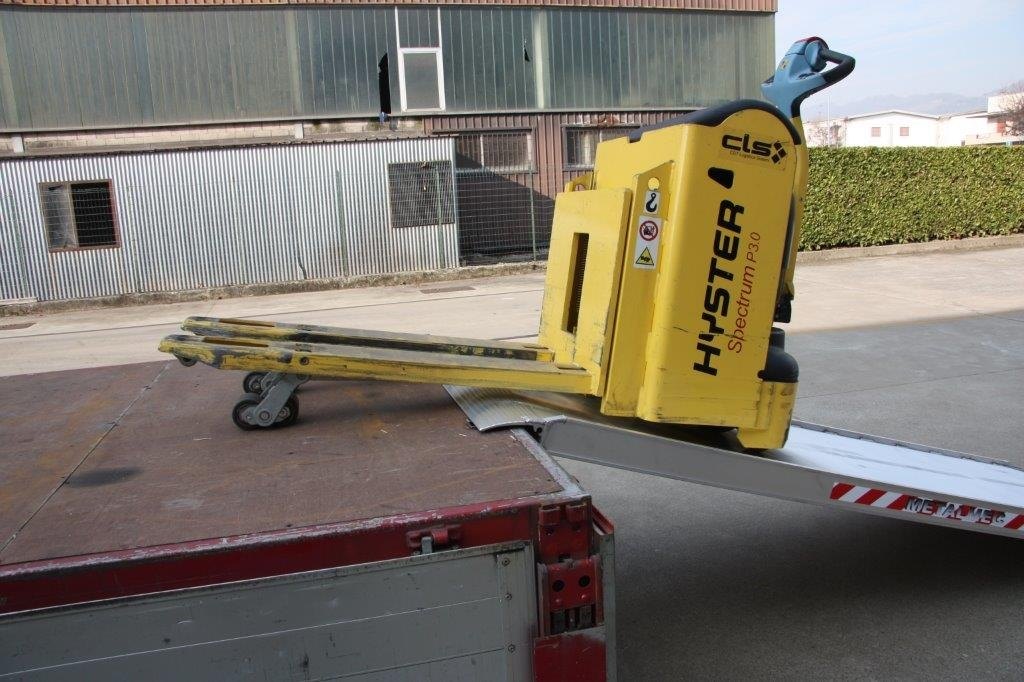

Pallet truck coming off of truck ramp

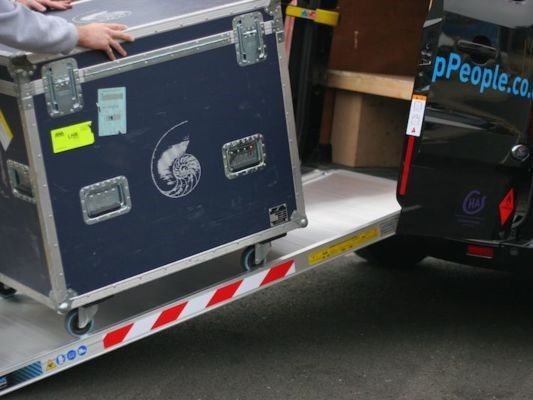

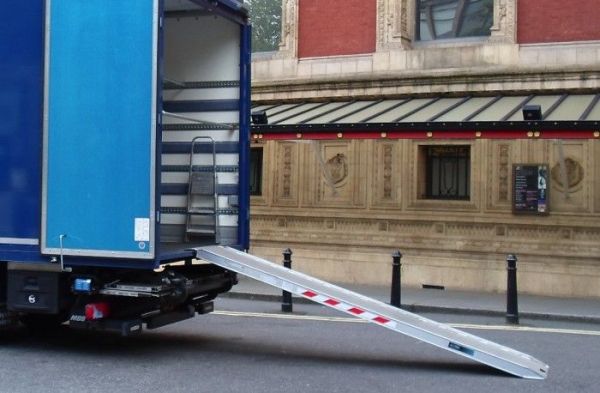

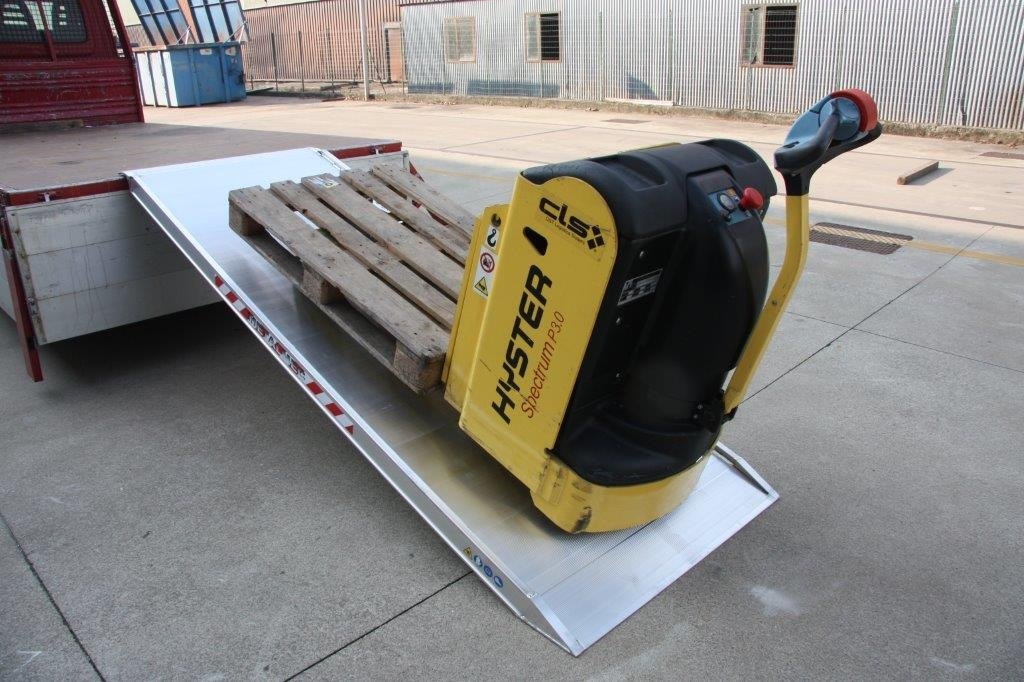

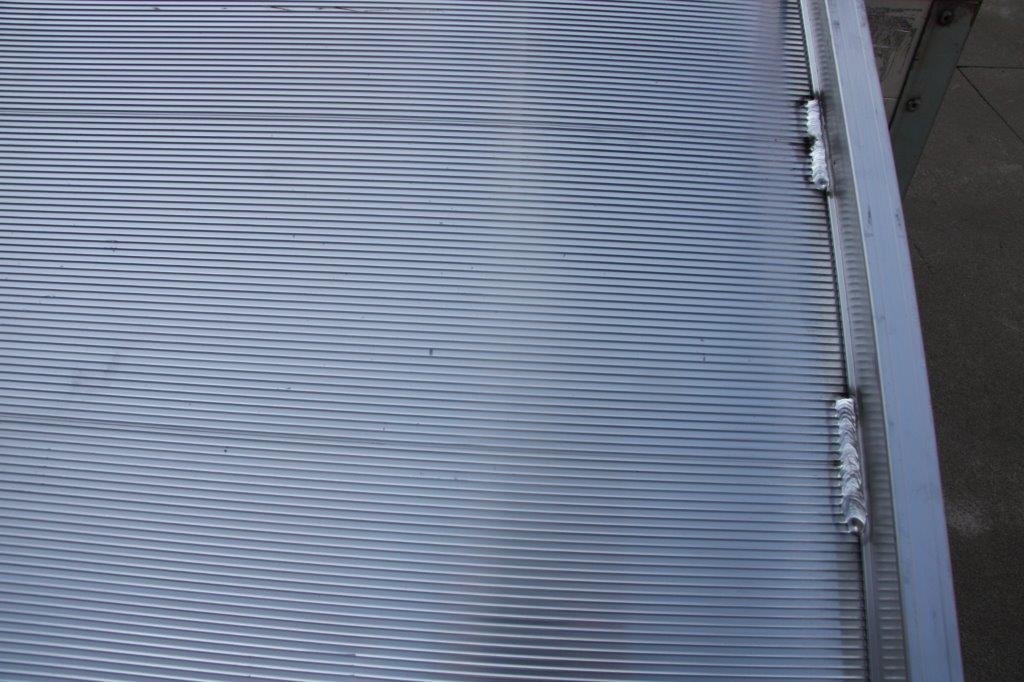

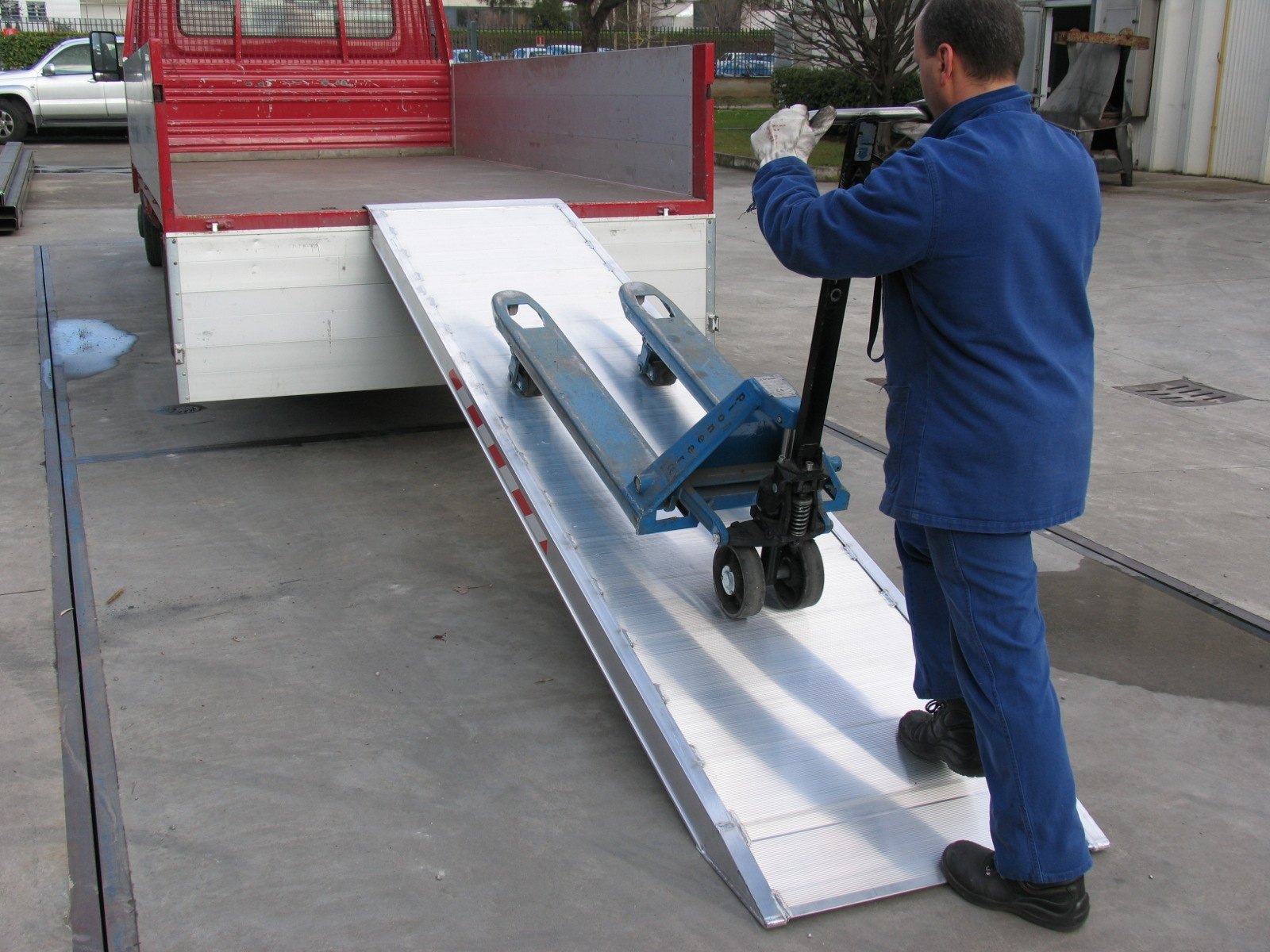

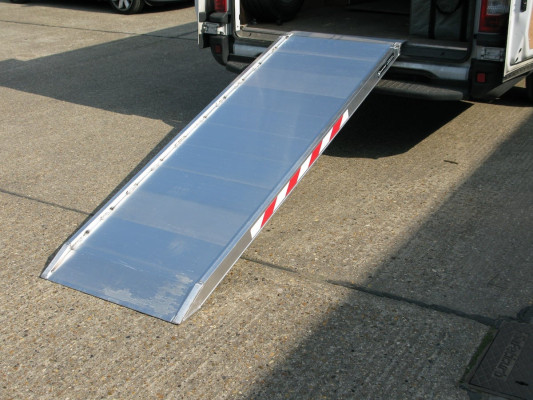

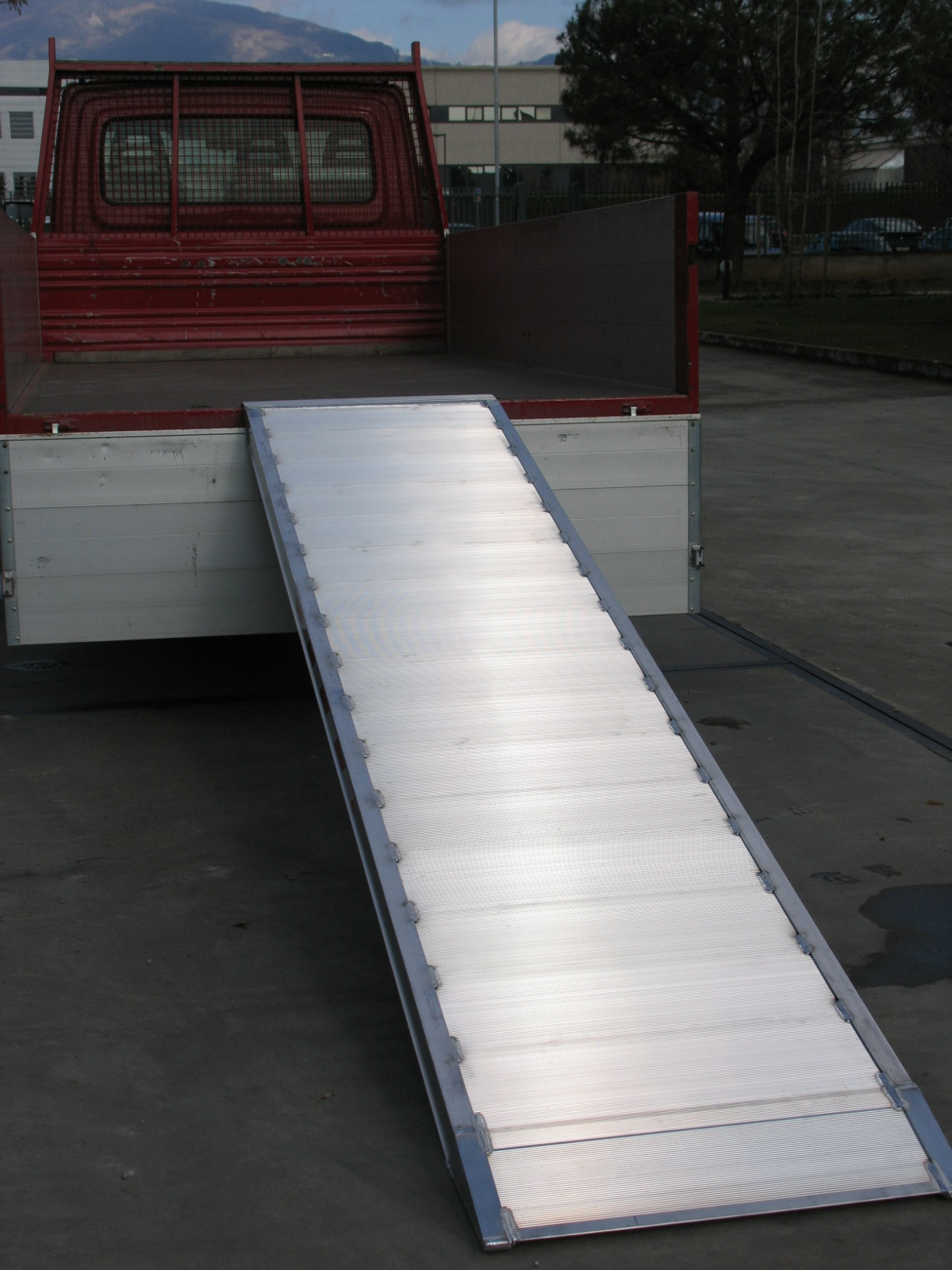

Pallet truck on heavy duty truck ramp Pallet truck loading on truck ramp Truck ramp resting on van Truck ramp grip surface Truck ramp resting on tipper truck Heavy Duty Truck Ramp 1000mm wide x 2000kg Capacity Man loading pallet truck on truck ramp Pallet truck rest on connection Pallet truck coming off of truck ramp

4-10 business days delivery*. Items are shipped from the UK to Ireland on DAP Incoterms. This means we do not charge Irish VAT but Irish import VAT of 23%, import duty (on some products) and customs charges will be due. These fees will need to be paid to the courier before or after you receive the goods. Learn more.

Products are shipped from our UK Warehouse to Ireland on DDP Incoterms. The price displayed is the total price, with the shipping fee calculated at the checkout. There is no additional import, duty or customs charges. Learn more.

As low as €1,630.00
Built to Order

Heavy Duty Truck Ramp 1000mm wide x 2000kg Capacity

SKU
TRP-Truck2000

Single Piece Aluminium Loading Ramp with a capacity from 2000kg and 1000mm wide, available in lengths 3000mm, 3600mm, 4000mm and 4400mm.

  • Connection Options
  • Customisable
  • Easy to Fit
  • European Made
  • Two Year Warranty
Description

TRP Heavy Duty Truck Ramp Features include:

  • Rest on connection: to fit just rest on your truck and start loading (hook connection also available)
  • Extended connection terminal bridges most bumpers, crash bars and tow bars
  • Optimised ramp weight ensures the ramp stays connected to the truck
  • No vehicle or truck modification required
  • Robot welded for solid, strong and durable construction
  • Lightweight aluminium (type 6005A) for easy handling
  • Fully TUV Certified to 2000kg capacity as standard
  • Tested to 200% loading capacity

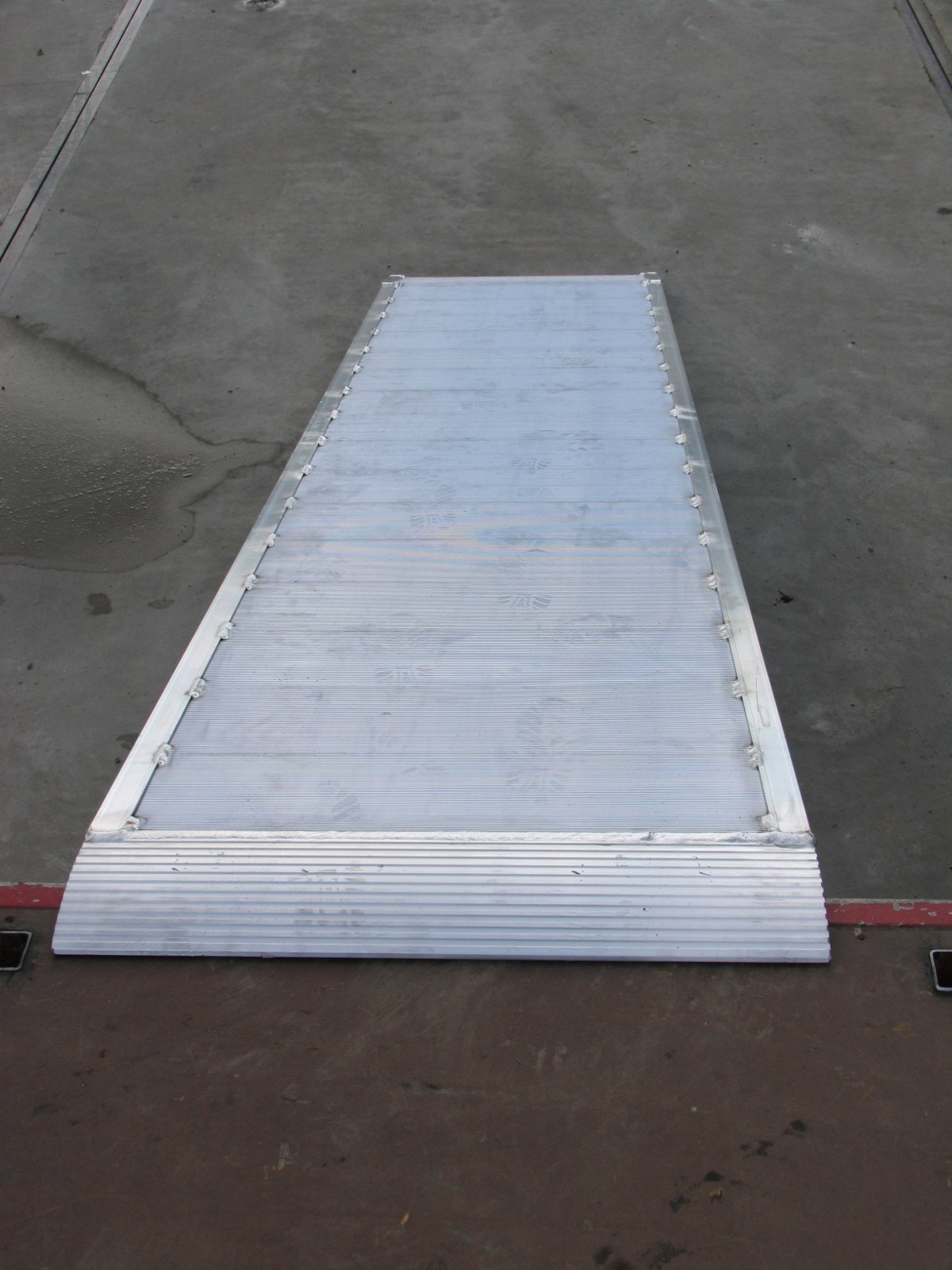

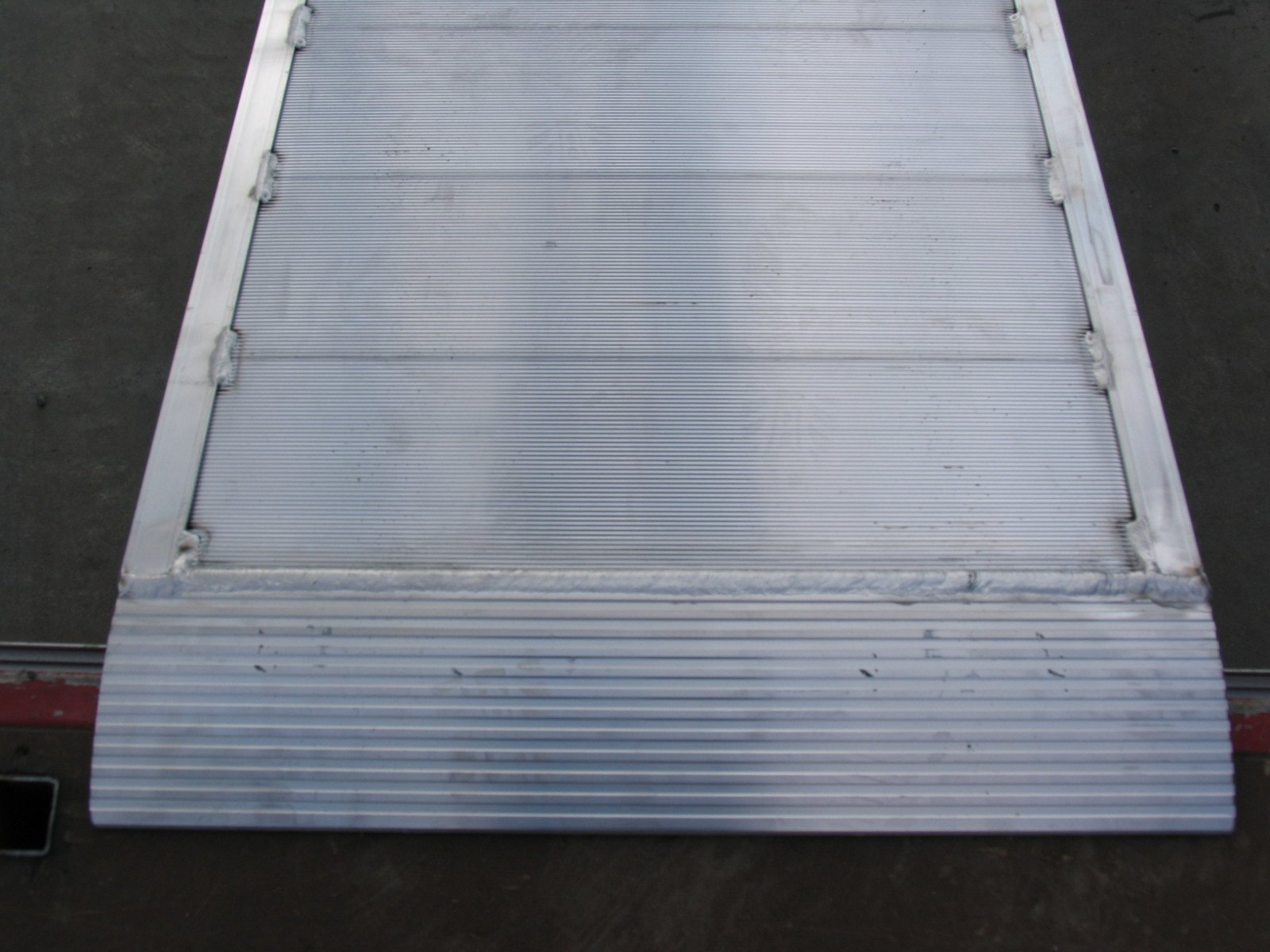

  • Angled foot which allows for smooth access onto the truck ramp when using casters or wheels
  • Edges on each side of the ramp to prevent accidentally wheeling off (ramps without edges also available)
  • Lengths from 1800mm to 5000mm available
  • Four different connection options available, however the default connection is the rest on connection
  • Bespoke truck ramps built to any length or width
  • All pictures shown are for illustration purpose only. Actual product may vary due to product enhancement

Heavy Duty Truck Ramp 1000mm wide x 2000kg Capacity

3000mm

  • Length (mm): 2985
  • Height of Raised Edges (mm): 31
  • Max Load Height (mm): 900
  • Min Load Height (mm): 750
  • External Width (mm): 1000
  • Internal Width (mm): 940
  • Weight per ramp (kg): 60
  • Capacity (kg): 2000
  • Ramp Profile Height (mm):140

3600mm

  • Length (mm): 3577
  • Height of Raised Edges (mm): 42
  • Max Load Height (mm): 1050
  • Min Load Height (mm): 900
  • External Width (mm): 1000
  • Internal Width (mm): 940
  • Weight per ramp (kg): 74
  • Capacity (kg): 2000
  • Ramp Profile Height (mm):150

4000mm

  • Length (mm): 3977
  • Height of Raised Edges (mm): 43
  • Max Load Height (mm): 1200
  • Min Load Height (mm): 1050
  • External Width (mm): 1000
  • Internal Width (mm): 940
  • Weight per ramp (kg): 86
  • Capacity (kg): 2000
  • Ramp Profile Height (mm):160

4400mm

  • Length (mm): 4377
  • Height of Raised Edges (mm): 43
  • Max Load Height (mm): 1300
  • Min Load Height (mm): 1150
  • External Width (mm): 1000
  • Internal Width (mm): 940
  • Weight per ramp (kg): 97
  • Capacity (kg): 2000
  • Ramp Profile Height (mm):170

TUV Certification Image

Usage guidelines and safety information for our full vehicle ramp range can be found here.

Details
SKUTRP-Truck2000
Default ConnectionRest On Connection
Capacity (kg)2000
Internal Width (mm)940
Length (mm)3000 - 4400
Max Load Height (mm)900 - 1300
Weight (kg)60-97
Width (mm)1000
Two Year WarrantyYes
Connection Options AvailableYes
CustomisableYes
Easy to FitYes
European MadeYes
