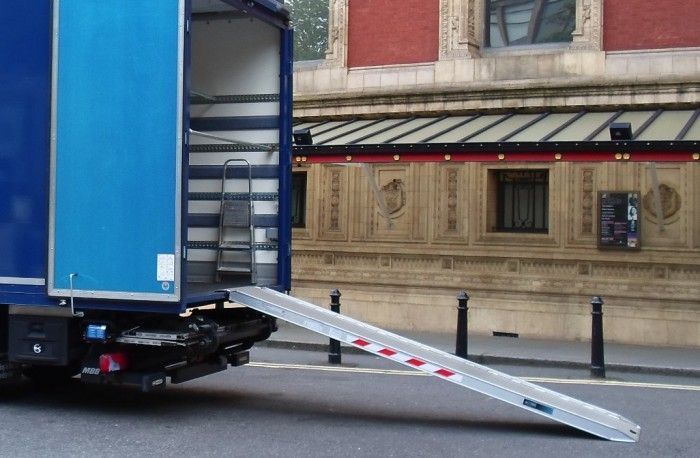

Heavy Duty Truck Ramp 1000mm wide
Single Piece Aluminium Loading Ramp 1000mm wide, available in lengths 2600mm, 3000mm, 3600mm, 4000mm, 4400mm and 5000mm. The ramp is available with a capacity of 1000kg or 2000kg.
Once the capacity and length option is selected the price and stock availability will be displayed
TRP Truck Ramp Features include:

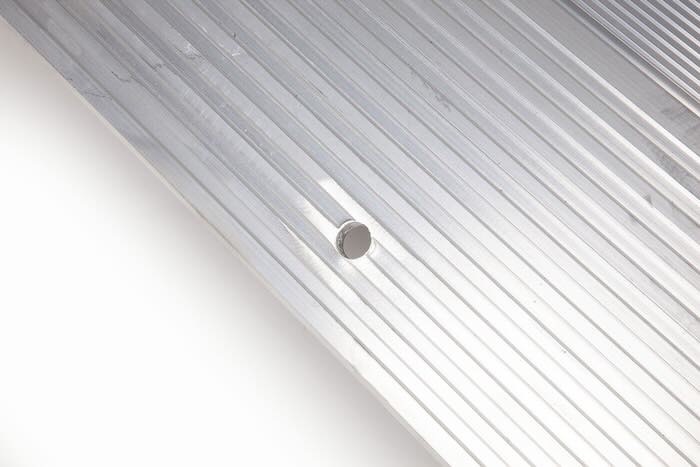

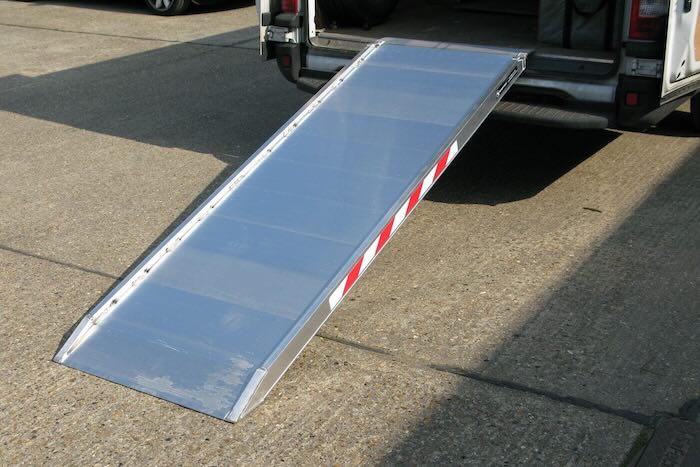

- Rest on connection: to fit just rest on your truck and start loading (hook connection also available)
- Extended connection terminal bridges most bumpers, crash bars and tow bars
- Optimised ramp weight ensures the ramp stays connected to the truck
- No vehicle or truck modification required
- Robot welded for solid, strong and durable construction
- Lightweight aluminium (type 6005A) for easy handling
- Fully TUV Certified to 1000kg capacity / 2000kg capacity as standard
- Tested to 200% loading capacity

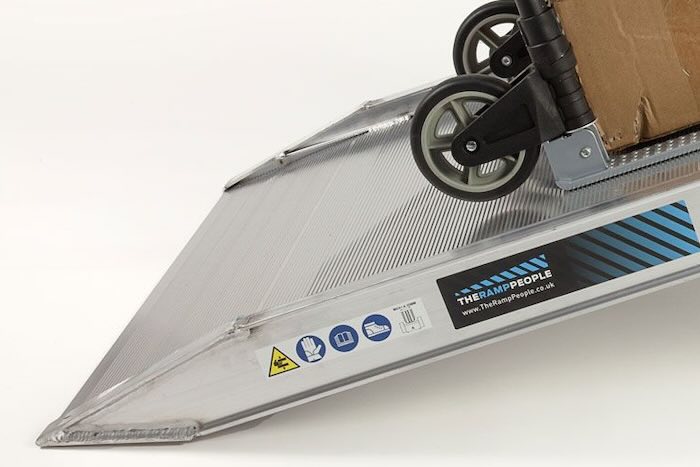

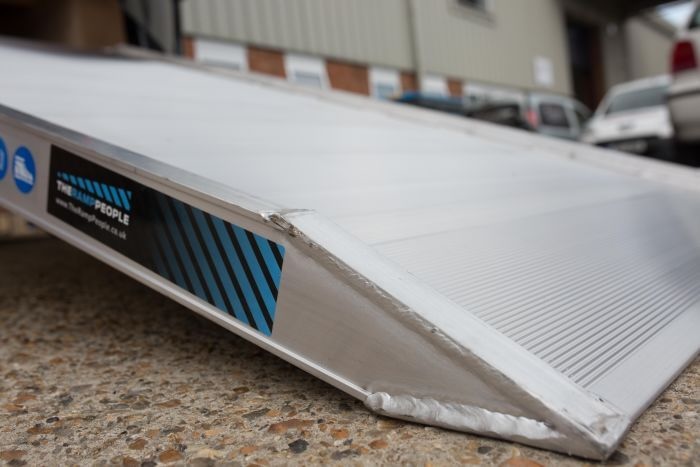

- Angled foot which allows for smooth access onto the truck ramp when using casters or wheels

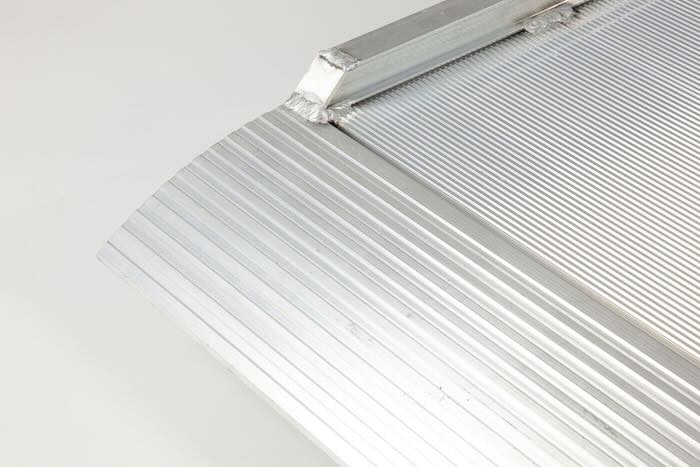

- Edges on each side of the ramp to prevent accidentally wheeling off (ramps without edges also available)
- Lengths from 2600mm to 5000mm available
- Four different connection options available, however the default connection is the rest on connection
- Bespoke truck ramps built to any length or width
- Made in Europe
- All pictures shown are for illustration purpose only. Actual product may vary due to product enhancement
Heavy Duty Truck Ramp 1000mm wide x 1000kg Capacity
2600mm
- Length (mm): 2600
- Height of Raised Edges (mm): 29
- Max Load Height (mm): 780
- Min Load Height (mm): 630
- External Width (mm): 1000
- Internal Width (mm): 940
- Weight per ramp (kg): 40
- Capacity (kg): 1000
- Ramp Profile Height (mm):85
3000mm
- Length (mm): 3000
- Height of Raised Edges (mm): 29
- Max Load Height (mm): 900
- Min Load Height (mm): 750
- External Width (mm): 1000
- Internal Width (mm): 940
- Weight per ramp (kg): 46
- Capacity (kg): 1000
- Ramp Profile Height (mm): 100
3600mm
- Length (mm): 3600
- Height of Raised Edges (mm): 29
- Max Load Height (mm): 1050
- Min Load Height (mm): 900
- External Width (mm): 1000
- Internal Width (mm): 940
- Weight per ramp (kg): 56
- Capacity (kg): 1000
- Ramp Profile Height (mm):115
4000mm
- Length (mm): 4000
- Height of Raised Edges (mm): 30
- Max Load Height (mm): 1200
- Min Load Height (mm): 1050
- External Width (mm): 1000
- Internal Width (mm): 940
- Weight per ramp (kg): 66
- Capacity (kg): 1000
- Ramp Profile Height (mm):125
4400mm
- Length (mm): 4400
- Height of Raised Edges (mm): 30
- Max Load Height (mm): 1300
- Min Load Height (mm): 1150
- External Width (mm): 1000
- Internal Width (mm): 940
- Weight per ramp (kg): 72
- Capacity (kg): 1000
- Ramp Profile Height (mm): 125
5000mm
- Length (mm): 5000
- Height of Raised Edges (mm): 30
- Max Load Height (mm): 1500
- Min Load Height (mm): 1350
- External Width (mm): 1000
- Internal Width (mm): 940
- Weight per ramp (kg): 85
- Capacity (kg): 1000
- Ramp Profile Height (mm):140
Heavy Duty Truck Ramp 1000mm wide x 2000kg Capacity
2600mm
- Length (mm): 2600
- Height of Raised Edges (mm): 30
- Max Load Height (mm): 780
- Min Load Height (mm): 630
- External Width (mm): 1000
- Internal Width (mm): 940
- Weight per ramp (kg): 51
- Capacity (kg): 2000
- Ramp Profile Height (mm): 125
3000mm
- Length (mm): 3000
- Height of Raised Edges (mm): 31
- Max Load Height (mm): 900
- Min Load Height (mm): 750
- External Width (mm): 1000
- Internal Width (mm): 940
- Weight per ramp (kg): 60
- Capacity (kg): 2000
- Ramp Profile Height (mm):140
3600mm
- Length (mm): 3577
- Height of Raised Edges (mm): 42
- Max Load Height (mm): 1050
- Min Load Height (mm): 900
- External Width (mm): 1000
- Internal Width (mm): 940
- Weight per ramp (kg): 74
- Capacity (kg): 2000
- Ramp Profile Height (mm):150
4000mm
- Length (mm): 3977
- Height of Raised Edges (mm): 43
- Max Load Height (mm): 1200
- Min Load Height (mm): 1050
- External Width (mm): 1000
- Internal Width (mm): 940
- Weight per ramp (kg): 86
- Capacity (kg): 2000
- Ramp Profile Height (mm):160
4400mm
- Length (mm): 4377
- Height of Raised Edges (mm): 43
- Max Load Height (mm): 1300
- Min Load Height (mm): 1150
- External Width (mm): 1000
- Internal Width (mm): 940
- Weight per ramp (kg): 97
- Capacity (kg): 2000
- Ramp Profile Height (mm):170
Usage guidelines and safety information for our full vehicle ramp range can be found here.
SKU | TRP-Truck1000 |
---|---|
Default Connection | Rest On Connection |
Capacity (kg) | 1000 - 2000 |
Length (mm) | 2600 - 5000 |
Max Load Height (mm) | 780 - 1500 |
Weight (kg) | 40 - 97 |
Width (mm) | 1000 |
One Year Warranty | Yes |
Connection Options Available | Yes |
Customisable | Yes |
Easy to Fit | Yes |
European Made | Yes |
