Cable Protector TRP-BPCP4M (3 Channels)

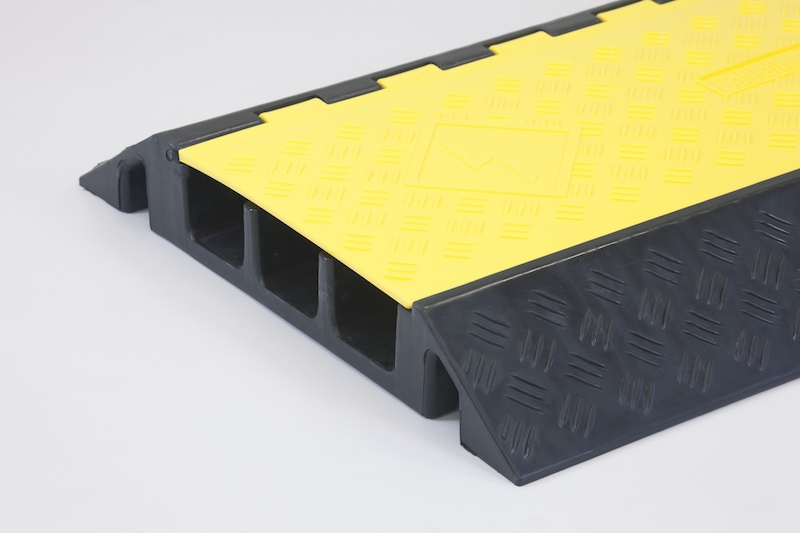

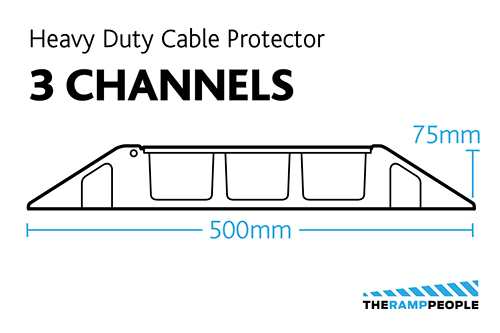

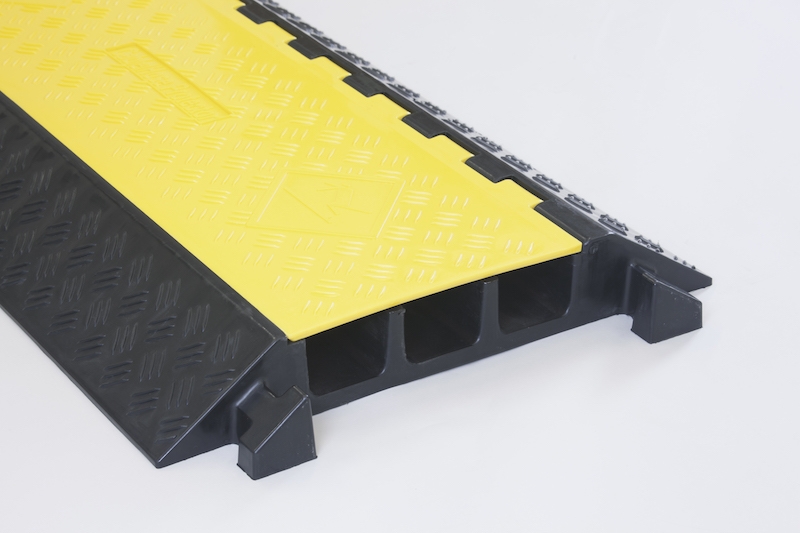

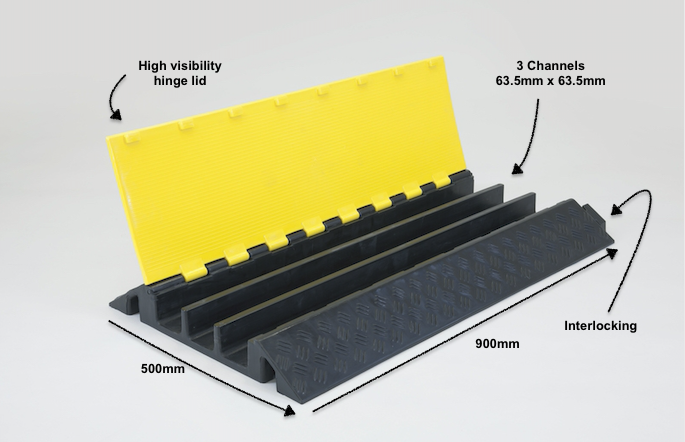

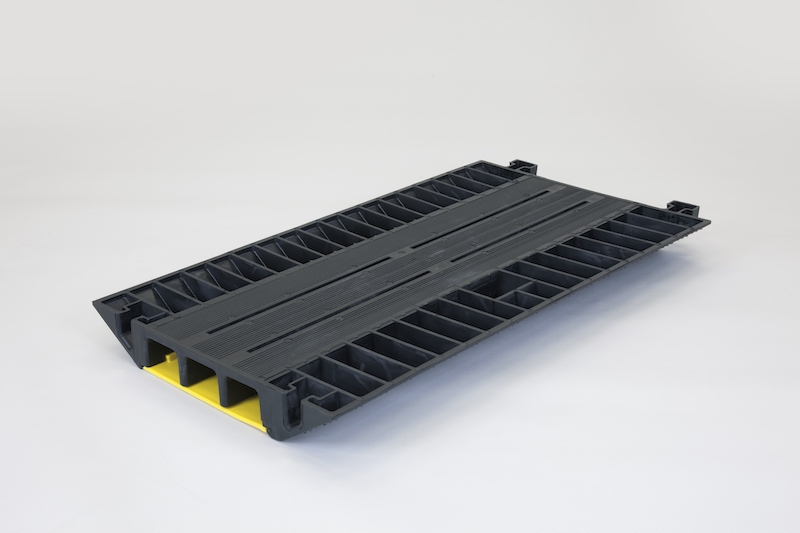

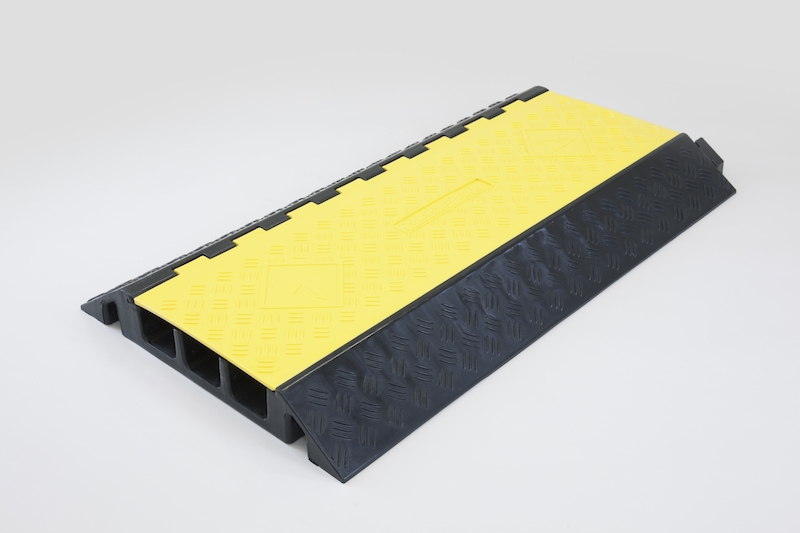

Straight 3 Channel cable protector section. 75mm High - 900mm Long - 500mm Wide. Made from thermo-plastic polyurethane. This has a 12000kg capacity and comes in contrasting black and yellow.
Length (mm) | 880 |
---|---|
Width (mm) | 500 |
Height (mm) | 75 |
Weight (kg) | 11 |
Capacity (kg) | 12,000 |
4-10 business days delivery*. Items are shipped from the UK to Ireland on DAP Incoterms. This means we do not charge Irish VAT but Irish import VAT of 23%, import duty (on some products) and customs charges will be due. These fees will need to be paid to the courier before or after you receive the goods. Learn more.
The Ramp People's interlocking 3 channel heavy duty cable protector speed bumps.

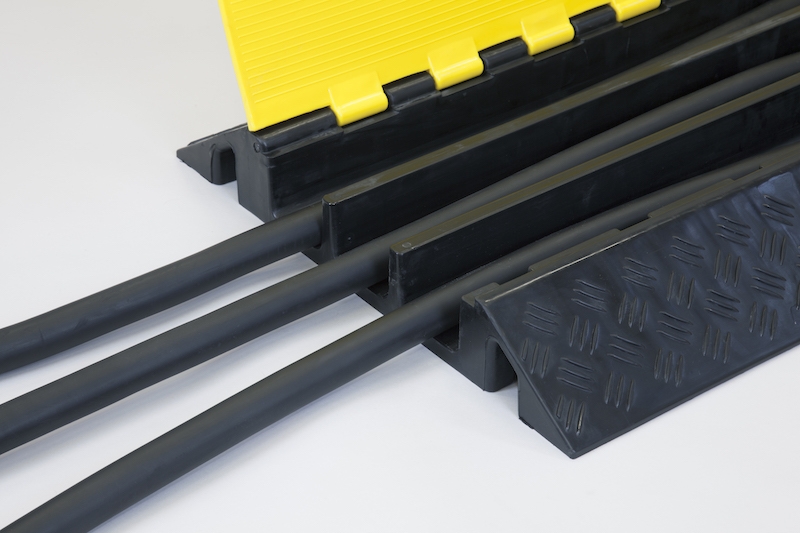

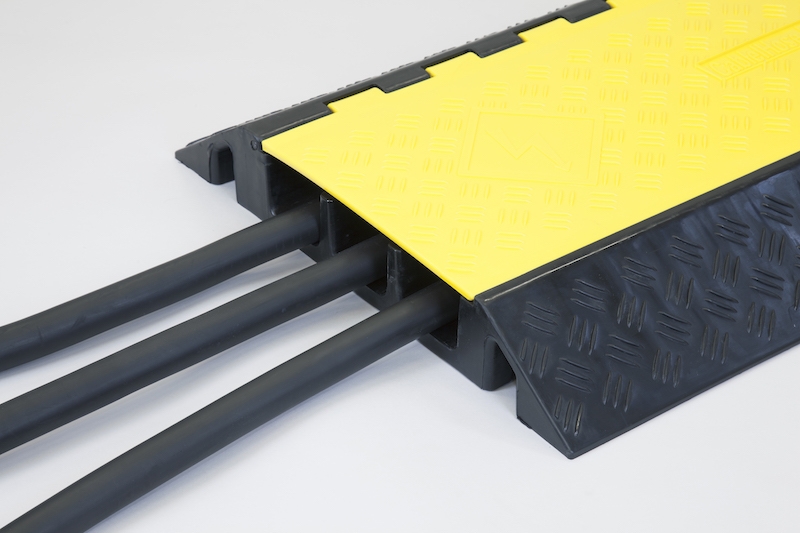

- Featuring 3 channels (64mm x 54mm)

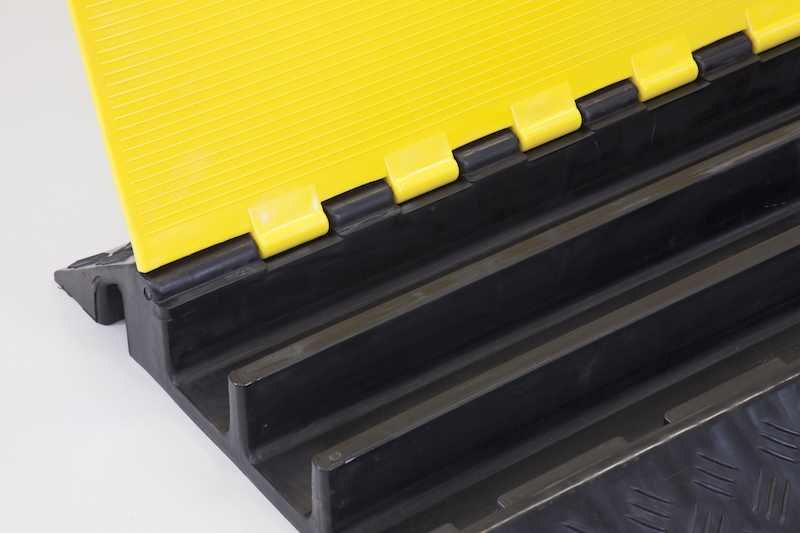

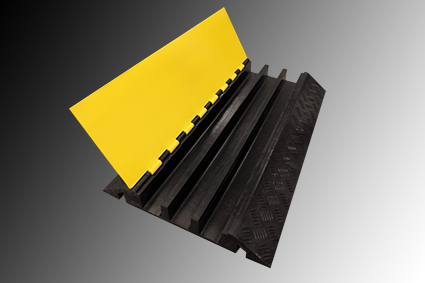

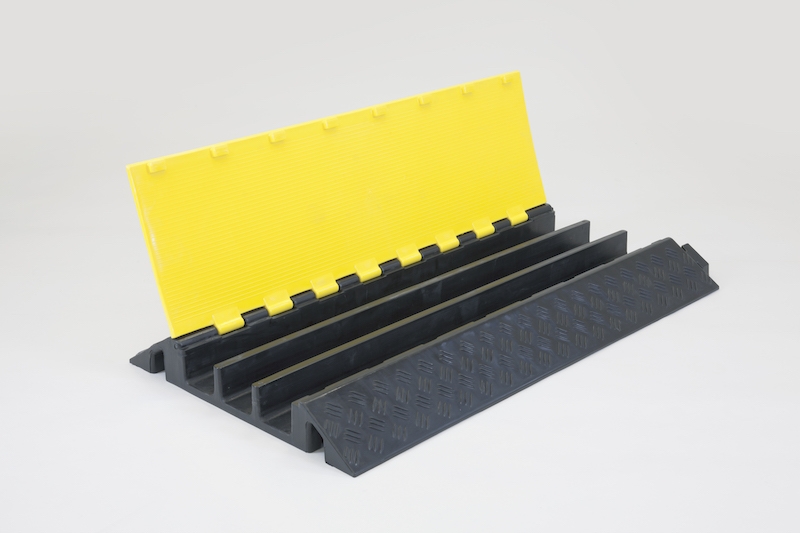

- Hinged lid

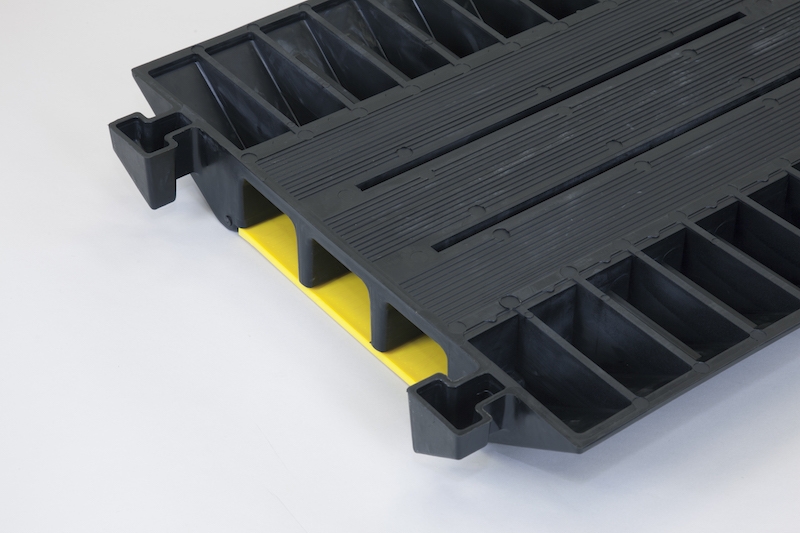

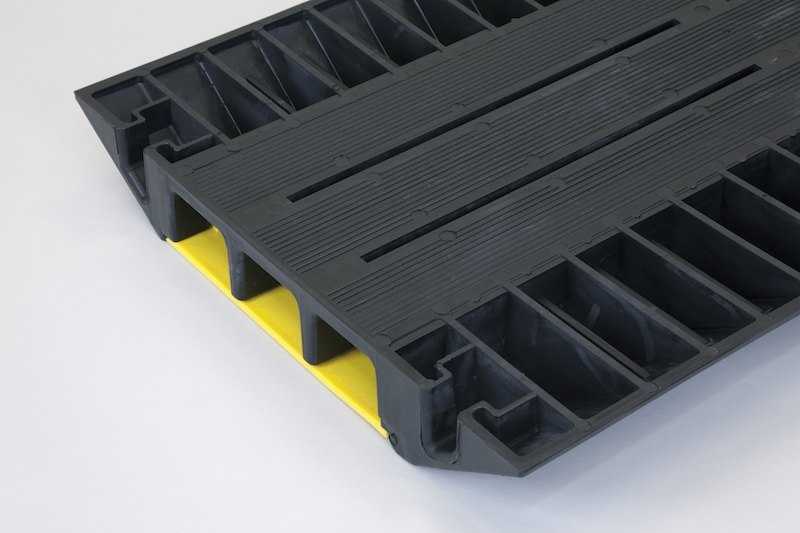

- Dog bone connectors to allow the cable protectors to easily be connected together
- 12000kg capacity per axle
- Chequered anti-slip surface
- Contrasting black and yellow body
- Suitable for indoor and outdoor use
- Made from thermo-plastic polyurethane
- These are designed to be crossed at a max speed of 8km/h (5mph) and the maximum weight should not exceed 6000kg per tyre
- We recommend using speed bump signs to slow down traffic and alert road users to the cable protectors
- If wheelchairs will be passing over the cable protectors, we recommend purchasing our rubber wheelchair ramp for cable protectors which are compatible with these 3 channel cable protectors
Please note, when specifying the required cable protector, we recommend selecting the lowest possible height to ensure maximum clearance for the greatest number of vehicles.
SKU | TRP-BPCP4M |
---|---|
Capacity (kg) | 12,000 |
Height (mm) | 75 |
Length (mm) | 880 |
Weight (kg) | 11 |
Width (mm) | 500 |
One Year Warranty | Yes |
Bulk Prices Available | Yes |
Easy to Fit | Yes |
High Visability | Yes |
Leave Outside | Yes |
Cable Protector Color | Black/Yellow |
Channel Width (mm) | 64 |
Channel Size (mm) | 64 x 54 |
Channel Height (mm) | 54 |
Max Cable/ Hose Diameter (mm) | 66.4 |
No. Channels | 3 |
Capacity per Axle (kg) | 12000 |
Capacity per Tyre (kg) | 6000 |
Operating Temperature (deg. F) | -40 °F bis 55 °F |
Durometer A | A93 |
Elongation At Break | 500% |
Tensile Strength | 12 MPa |
Speedlimit (mph) | 5 |
