Checkers Guard Dog - 3 Channel Cable Protector Orange/Black

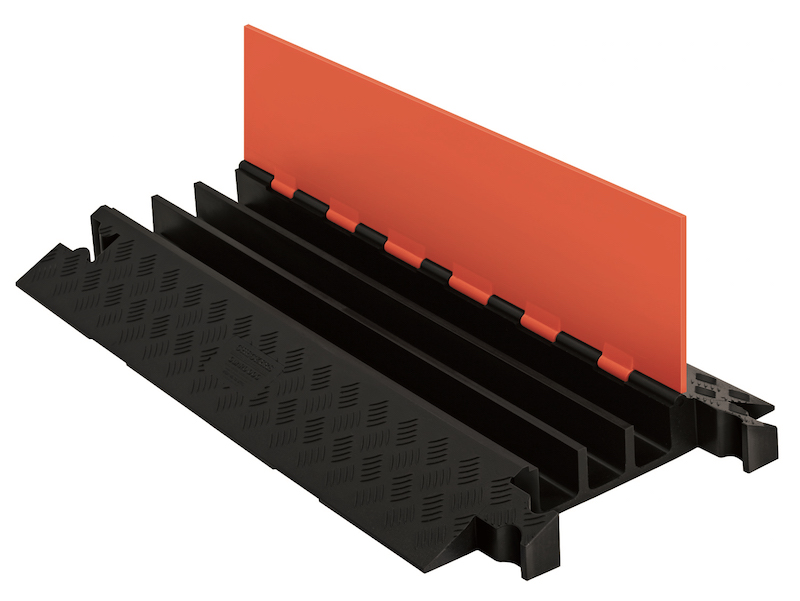

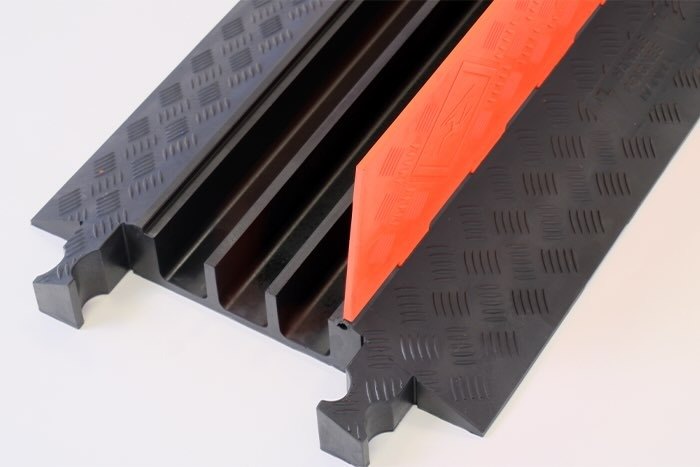

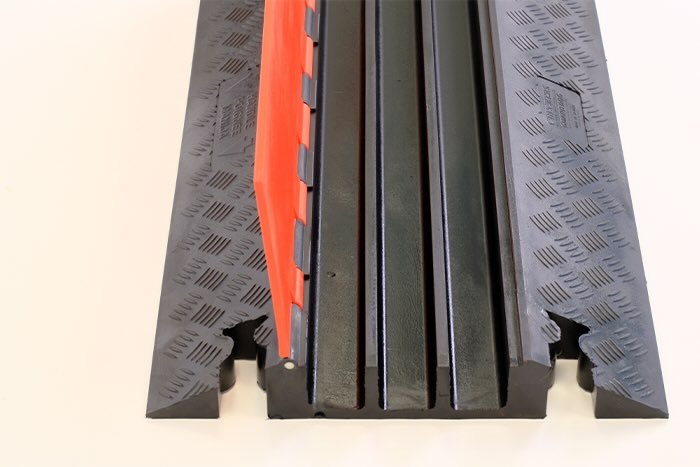

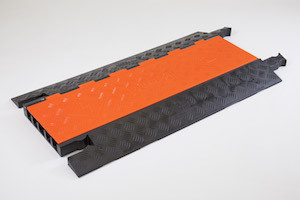

Guard Dog 3-Channel Cable Protector with hinged lid.
Length (mm) | 914 |
---|---|
Width (mm) | 510 |
Height (mm) | 76.5 |
Weight (kg) | 13.6 |
Capacity (kg) | 12,892 |
4-10 business days delivery*. Items are shipped from the UK to Ireland on DAP Incoterms. This means we do not charge Irish VAT but Irish import VAT of 23%, import duty (on some products) and customs charges will be due. These fees will need to be paid to the courier before or after you receive the goods. Learn more.

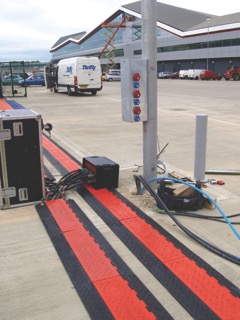

Guard Dog 3-Channel Cable Protector with hinged lid provides a safe crossing for vehicle and pedestrian traffic while protecting valuable electrical cables and hose lines from damage. Modular interlocking design is ideal for use in amusement parks, entertainment venues, sporting events, and most public, commercial, industrial, construction, and utility applications.
- Protects cables and hoses up to 2.25" outside diameter.

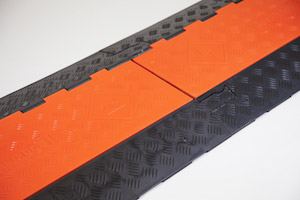

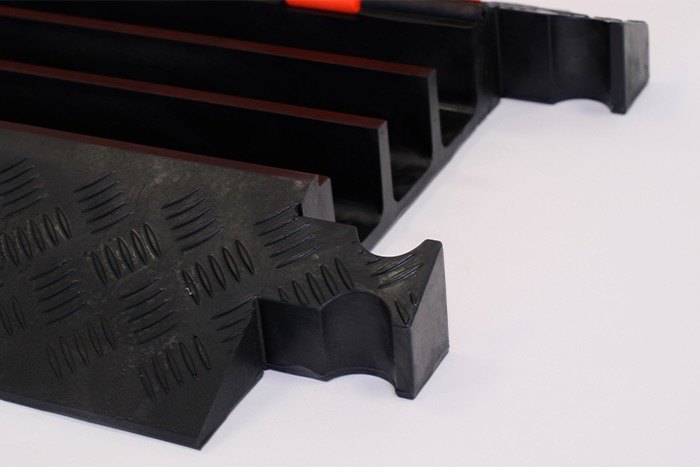

- Dog-bone connector to extend to any desired length

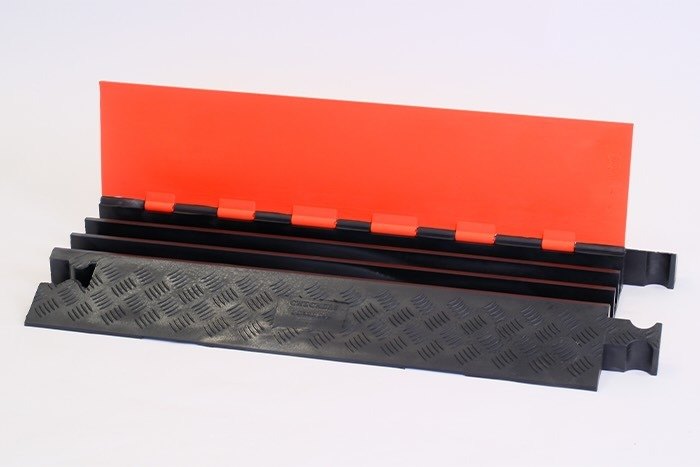

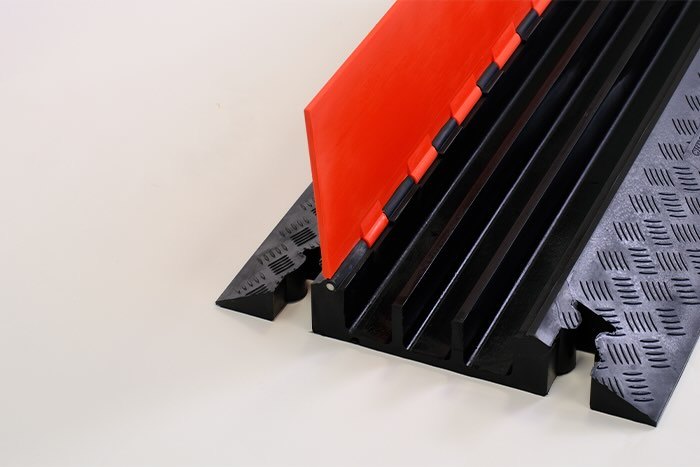

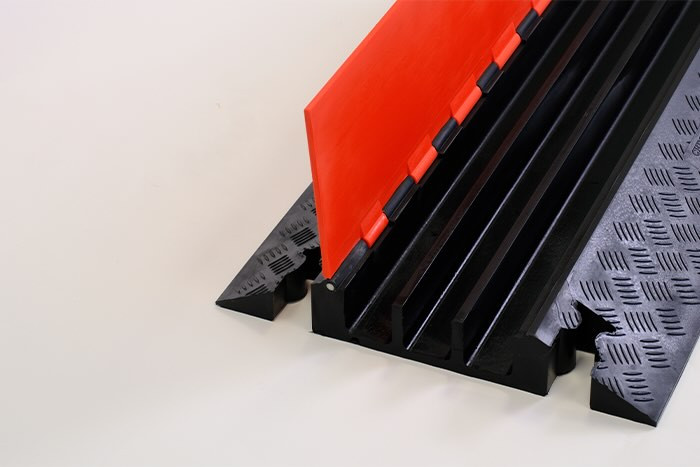

- Reinforced hinged lid for easy cable placement
- All-weather polyurethane construction
- Patented 5-bar tread surface for maximum traction
- Modular interlocking design for easy Setup
- All pictures shown are for illustration purpose only. Actual product may vary due to product enhancement
SKU | TRP-GD3X225-O/B |
---|---|
Capacity (kg) | 12,892 |
Height (mm) | 76.5 |
Length (mm) | 914 |
Weight (kg) | 13.6 |
Width (mm) | 510 |
One Year Warranty | Yes |
Easy to Fit | Yes |
Leave Outside | Yes |
Cable Protector Color | Orange/Black |
Channel Width (mm) | 57.2 |
Channel Size (mm) | 57.2 |
Channel Height (mm) | 57.2 |
Max Cable/ Hose Diameter (mm) | 57.1 |
No. Channels | 3 |
Capacity per Axle (kg) | 12,892 |
Capacity per Tyre (kg) | 6,446 |
Operating Temperature (deg. F) | 70 |
Speedlimit (mph) | 5 |
