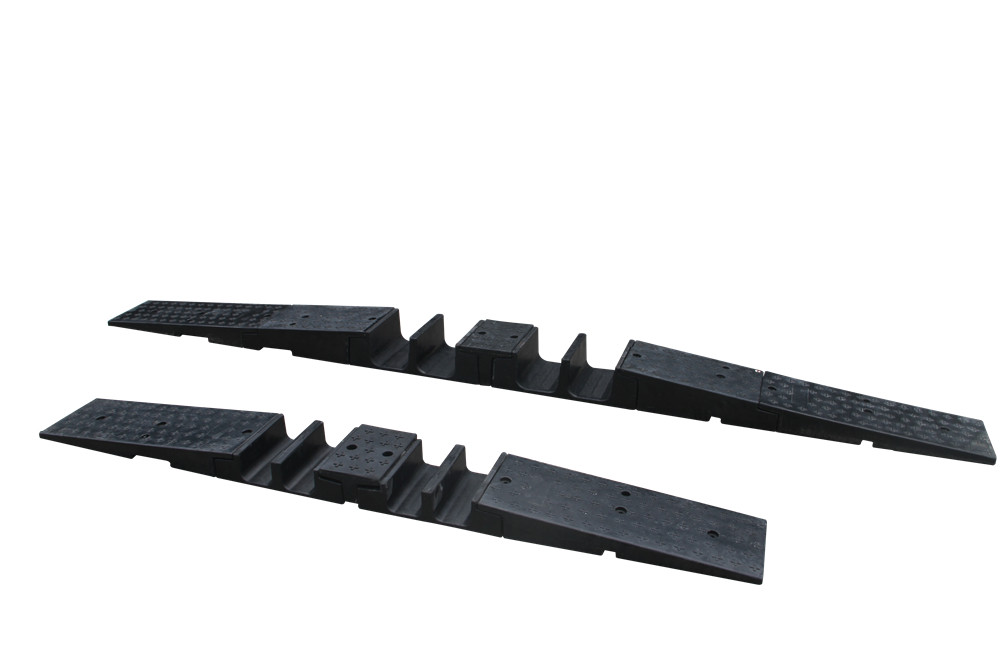

Modular Hose Bridge Ramps
Introducing our modular hose and cable protector ramp system, the ultimate solution for safeguarding your valuable cables and hoses.
Versatile and easy installation with no tools needed, just set the components together effortlessly and you're ready to go.
Components available are 10cm and 15cm high. You can mix and match components to create a cable protector that fits your exact requirements.
Which height to select? This will depend on the diameter of cables/hose that will be used with the ramp kit. The 100mm high modular ramp system tunnel sections have a 107mm x 80mm channel size and can take hoses or cables with a maximum diameter of 80mm. The 150mm high tunnel sections have 2 tunnels with a 126mm x 162mm channel size each and can take hoses or cables with a maximum diameter of 130mm.
How to order? Once you have confirmed the height needed, simply type the number of items required. For example, if you have only small vehicles crossing over and are looking for a kit to protect 4 hoses, you will need to select 2 units of the pair of ramps (4 ramps in total), 4 units of the tunnel sections and 2 units of the connectors. This will give you 2 kits which are 275mm wide each.
If you need further assistance to select the correct quantity, please see our full description below or contact us and we will be happy to assist you.
Modular hose protector ramp & cable protector key features include:
- Customisable design, select the hose ramp to meet your requirements
- Durable rubber, suitable for use in all weather conditions
- Suitable for indoor and outdoor use
- Anti-slip chequered surface
- Heavy duty, suitable for pedestrian and vehicle traffic with a capacity up to 10,000kg
- Easy to install, interlocking modular pieces
- Smooth gradient to reduce trip hazards
Modular Hose Bridge Ramps Part Specifications

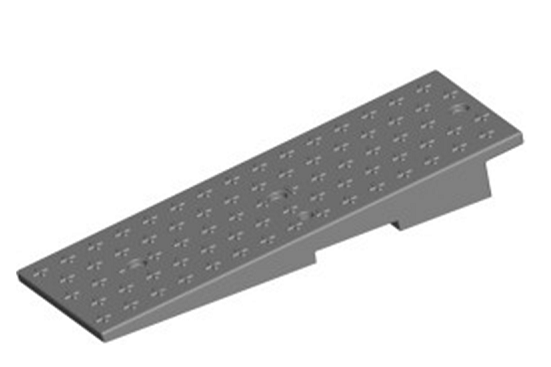

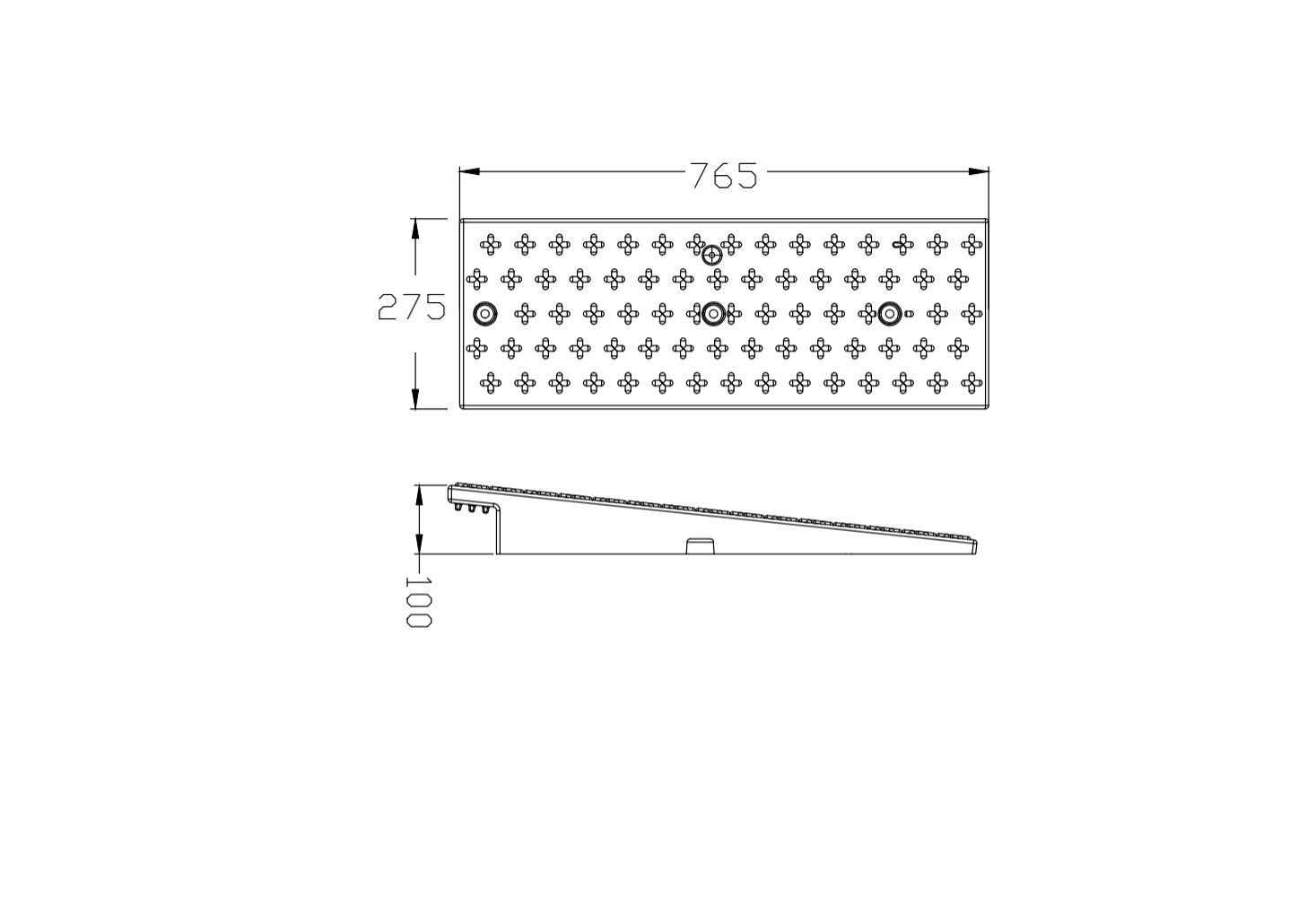

100mm high ramp section TRP-DH-CUP-ramp-100
- Dimensions (mm) - 275 (W) x 765 (L) x 100mm (H)
- Weight (kg) - 10.5

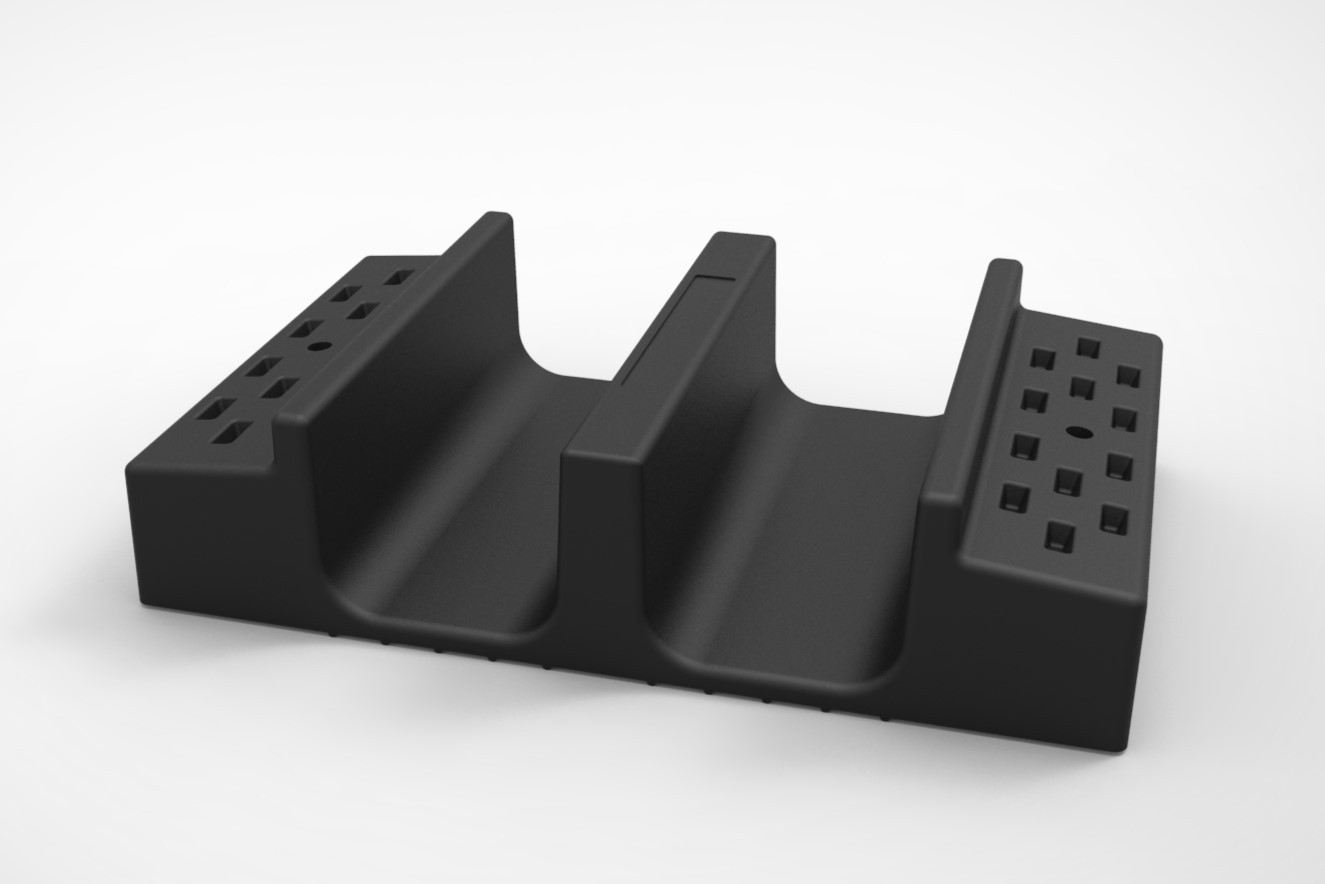

Rubber Hose Ramp Middle Section - Tunnel - Channel Section 100mm high TRP-DH-AHR-3
- Dimensions (mm) - 275 (W) x 424 (L) x 100 (H)
- Channel size (mm) -107 (W) x 80 (H)
- Weight (kg) - 6.5

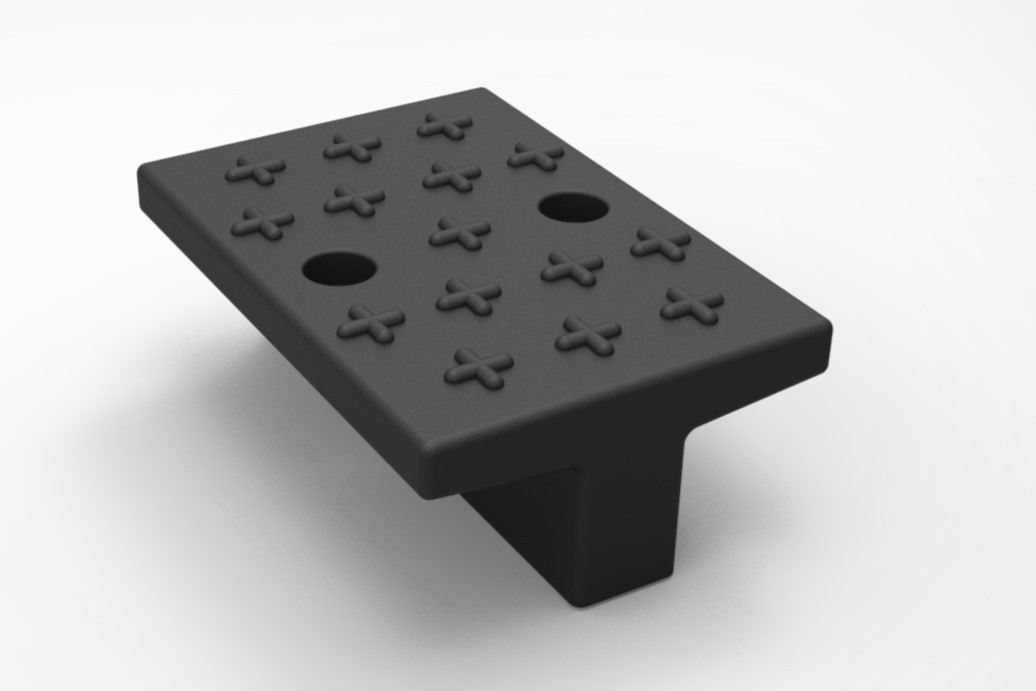

Rubber Hose Bridge Extend Section - 100mm high Connector TRP-DH-AHR-2
- Dimensions (mm)- 275 (W) x 220 (L) x 100 (H)
- Weight (kg) - 3.6

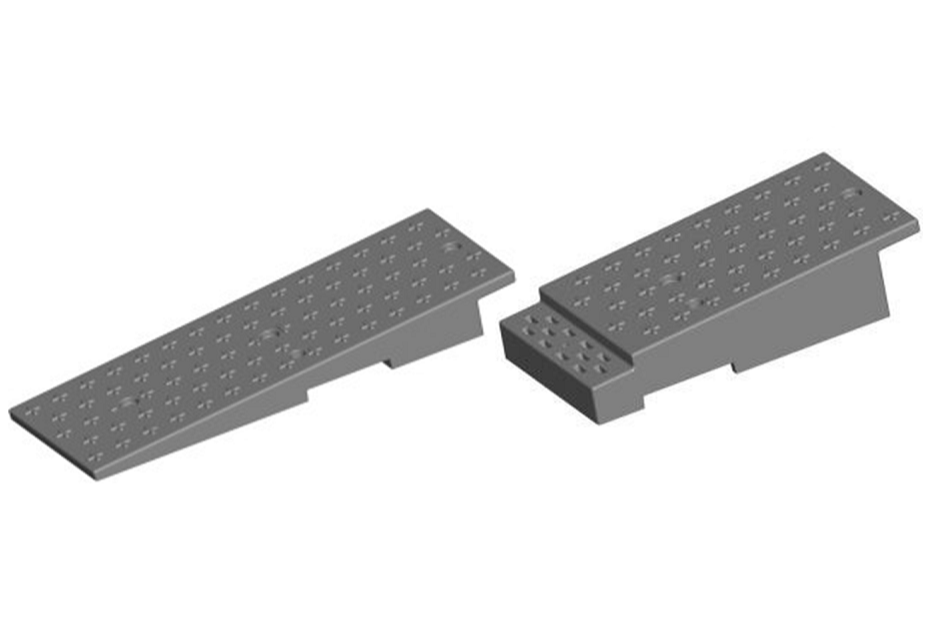

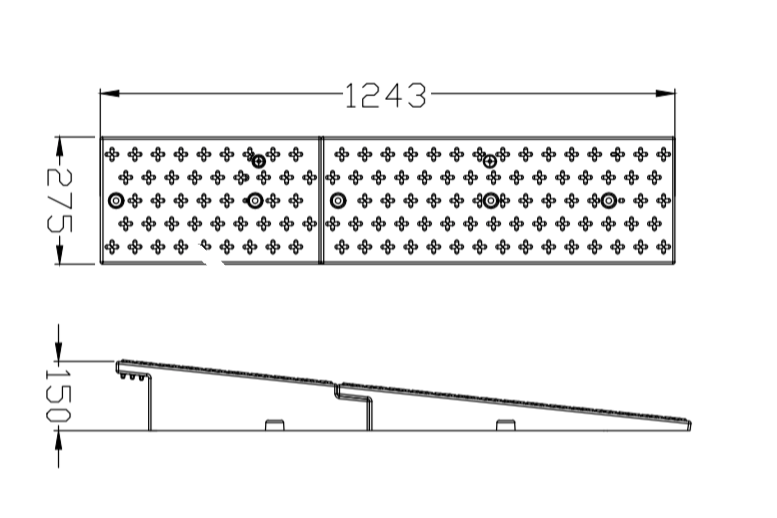

150mm high ramp section TRP-DH-CUP-ramp-150
- Dimensions (mm) - 1750 (W) x 2200 (L) x 150 (H)
- Weight (kg) - 23.5

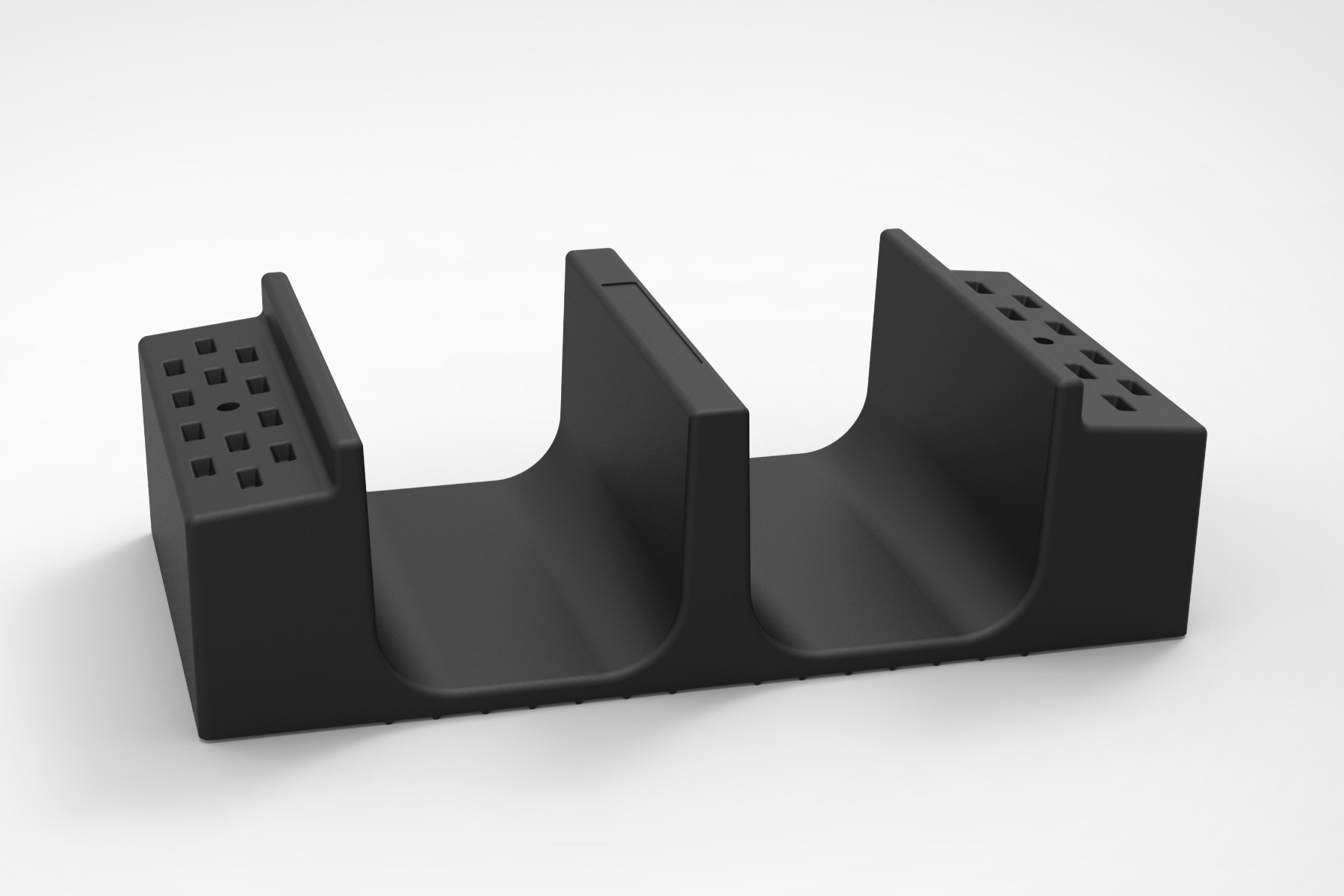

Rubber Hose Ramp Middle Section - Tunnel - Channel Section 150mm high TRP-DH-AHR-6
- Dimensions (mm)- 275 (W) x 524 (L) x 150 (H)
- Channel size (mm) -162 (W) x 126 (H)
- Weight (kg) - 11
Rubber Hose Bridge Extend Section - 150mm high Connector TRP-DH-AHR-5
- Dimensions (mm) - 275 (W) x 220 (L) x 150 (H)
- Weight (kg) - 4.5
| SKU | TRP-AHR-CUP-Hose |
|---|---|
| Capacity (kg) | 10000 |
| Height (mm) | 100-150 |
| Width (mm) | 275 |
