2 channel Hose protector
2 channel Hose protector 2 channel hose protector with yellow safety stripes Rubber hose protector Hose protector ramp measurements Dog bone connectors Rubber dog bone connectors 2 channel hose bridge Side profile of the hose bridge Hose protector

4-10 business days delivery*. Items are shipped from the UK to Ireland on DAP Incoterms. This means we do not charge Irish VAT but Irish import VAT of 23%, import duty (on some products) and customs charges will be due. These fees will need to be paid to the courier before or after you receive the goods. Learn more.

Products are shipped from our UK Warehouse to Ireland on DDP Incoterms. The price displayed is the total price, with the shipping fee calculated at the checkout. There is no additional import, duty or customs charges. Learn more.

€75.00
54 In stock at our warehouse

Saturday Delivery ‐ AVAILABLE

Hose Protectors - 2 Channels Size 90mm x 105mm

SKU
TRP-HR-4

Hoses with a diameter up to 10cm are protected from heavy vehicle traffic with The Ramp People's 2-channel hose bridge ramp. At each end of the hose protection ramp is a 30cm x 12.5cm carrying handle. A quick placement of the bridge over hoses is made possible by the handles. Includes 2 modular connectors for connecting multiple ramps or mounting permanently.

  • Bulk Prices
  • Easy to Fit
  • High Visability
  • One Year Warranty
  • Leave Outside
Description

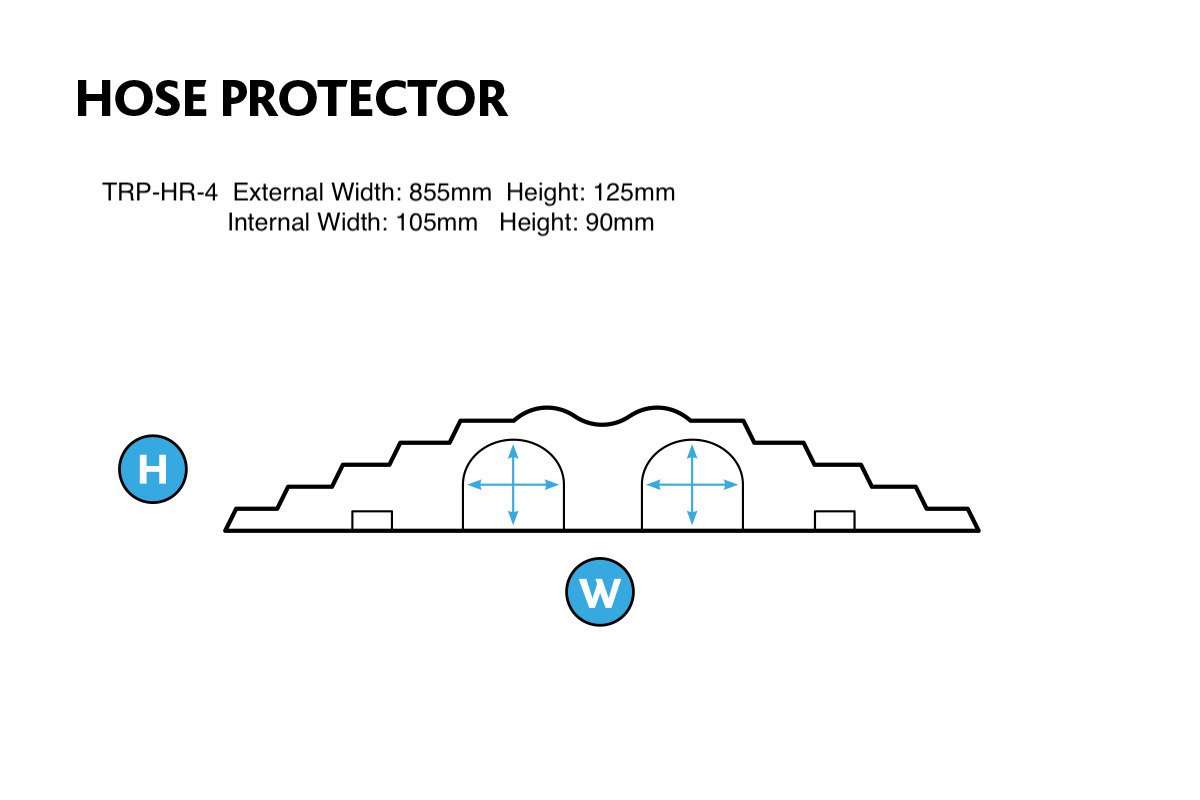

Rubber Hose Bridge Protectors with the dimensions: 855mm long x 300mm width x 125mm high.

  • Dual master stream channels for 3-3/4D hose
  • 12,000kg capacity, suitable for HGV's
  • Channel size: 90mm x 105mm
  • Safety yellow reflective strips
  • Glass bead reflectors
  • Maximum speed 5mph
  • Made from rubber
  • For longer reliability position the ramp at a 30 angle to the flow of traffic for vehicles to cross one wheel at a time
  • Ramp connectors to connect multiple units together
  • Industrial strength thermoplastic rubber bridge design
  • Includes bone connectors to easily connect the units

Please note, when specifying the required hose protector, we recommend selecting the lowest possible height to ensure maximum clearance for the greatest number of vehicles.

Description

Protect larger cables and hoses from vehicle traffic with the heavy-duty hose ramps. With a 12,000kg capacity, the hose protectors are perfect for use in industrial areas. Easy to use, simply rest in place and start using. Provided with two large channels, the hose ramps are perfect for large industrial hoses including discharge hoses, suction hoses, extraction hoses, fire hoses and electrical cables.

When choosing a cable or hose protector, we recommend selecting the lowest possible height to ensure maximum clearance for the greatest number of vehicles.

Key Features

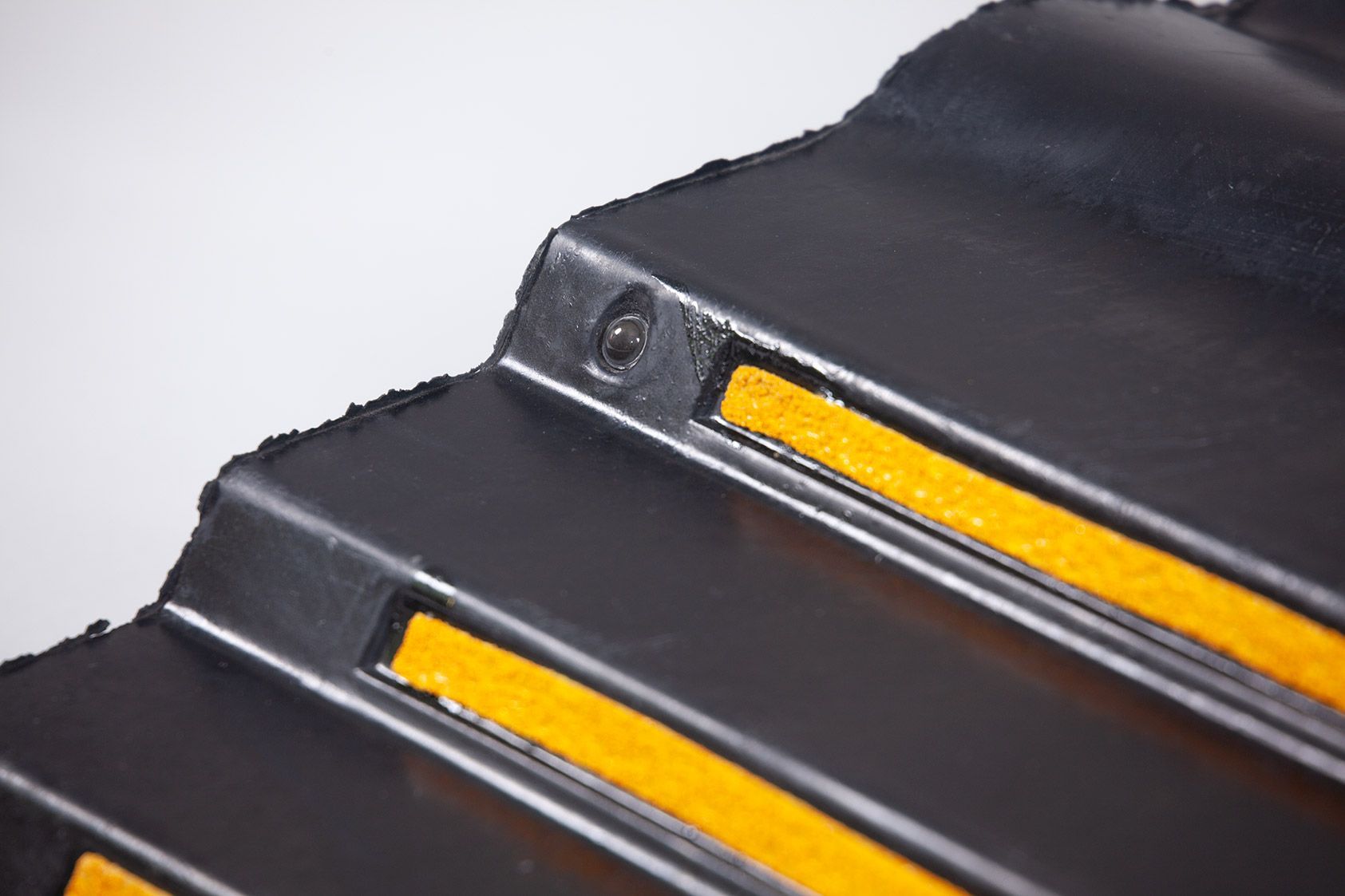

Reflective

Safety yellow reflective strips for high visibility including at night.

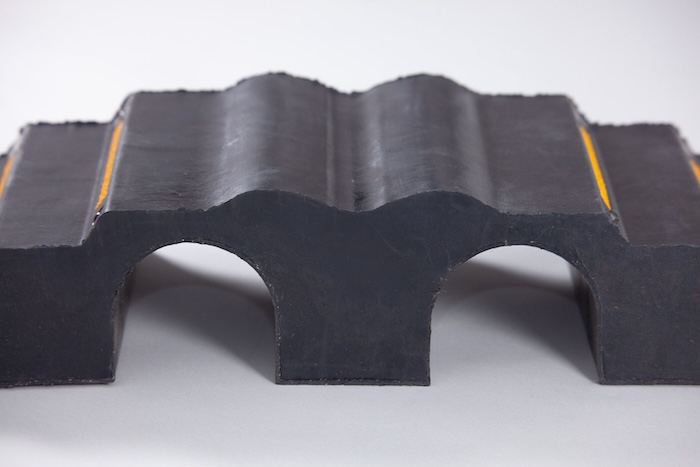

Two channels

Two large channels (10cm x 9cm), perfect for large cables and hoses.

Easy to use

Rest in place and start using - no installation is required.

Securely connect units

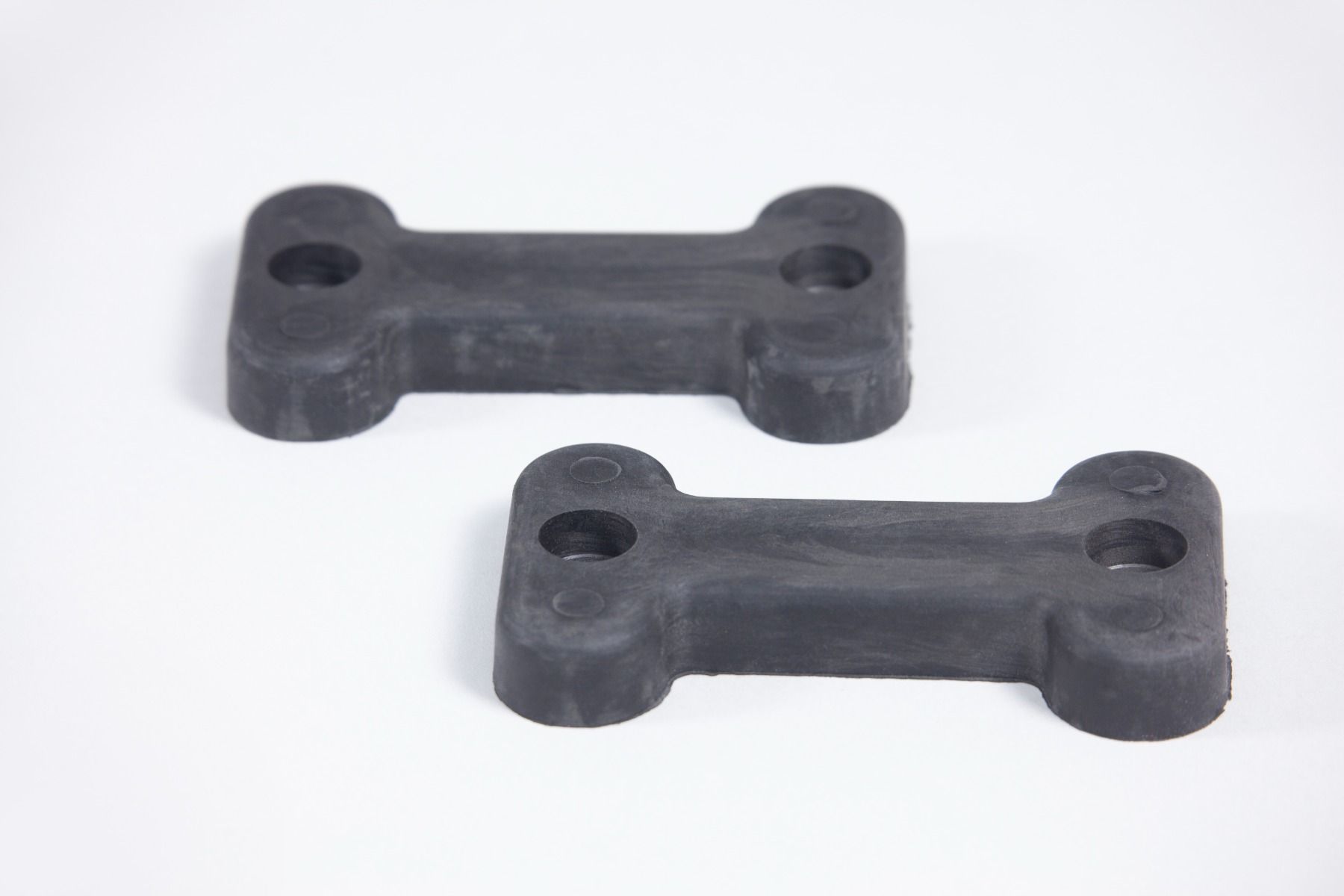

2 dog bone connectors per unit to securely connect the hose ramps together.

Show more +

Product Highlights

Heavy duty design

Manufactured from rubber, the heavy-duty hose bridge protectors offer a 12,000kg capacity - ideal for vehicles including HGVs.

Reduce vehicles to speeds of 5mph and allow them to safely pass over the cables and hoses.

The flexible hose protectors can be used indoors or outdoor including on concrete and tarmac surfaces.

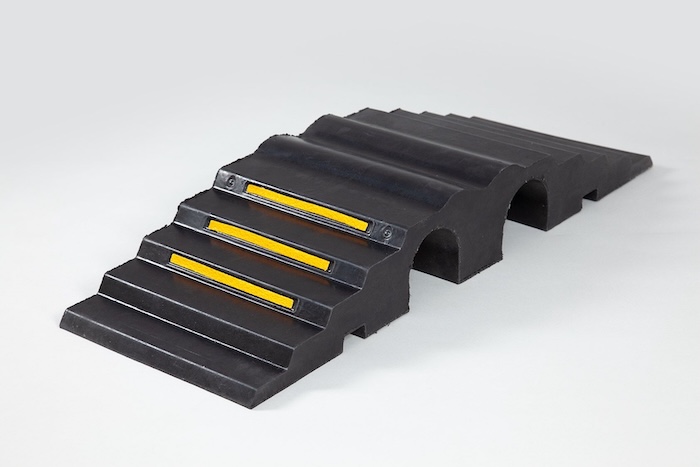

Rubber hose protectorRubber hose protector

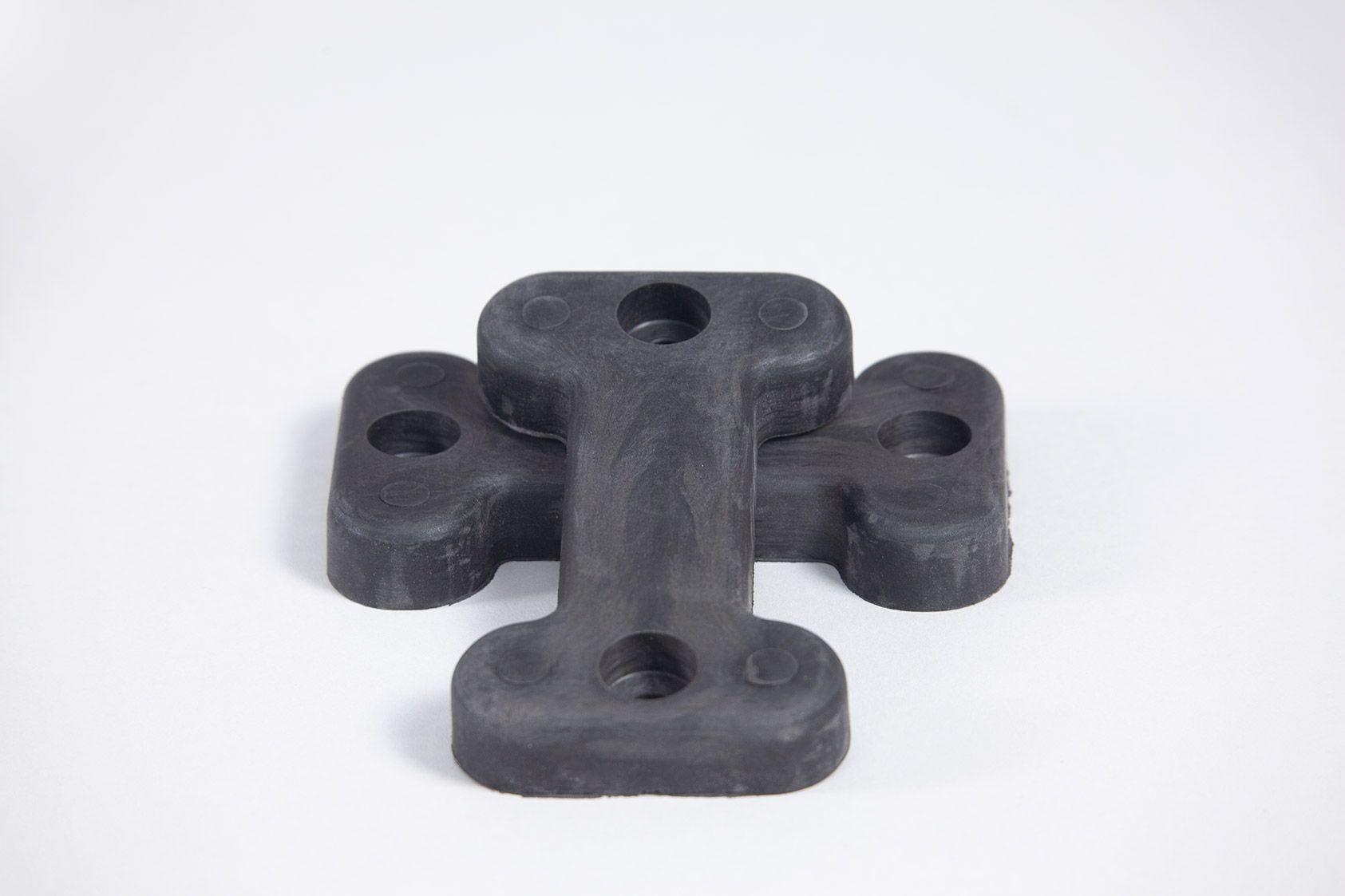

Interlocking hose protectorInterlocking hose protector
Interlocking design

Cover your required cable length by placing multiple units side by side.

Each hose ramp is supplied with two dog bone connectors, allowing the units to be securely joined together. This ensures the ramps stay firmly in place during use, preventing unwanted movement and maintaining a safe, continuous cable management solution.

Portable cable protection

Each hose ramp weighs 19kg, making it easy to lift, move, and store as needed. This lightweight design is ideal for users who need to relocate hose protectors between different work sites or for those requiring a temporary solution during short-term projects.

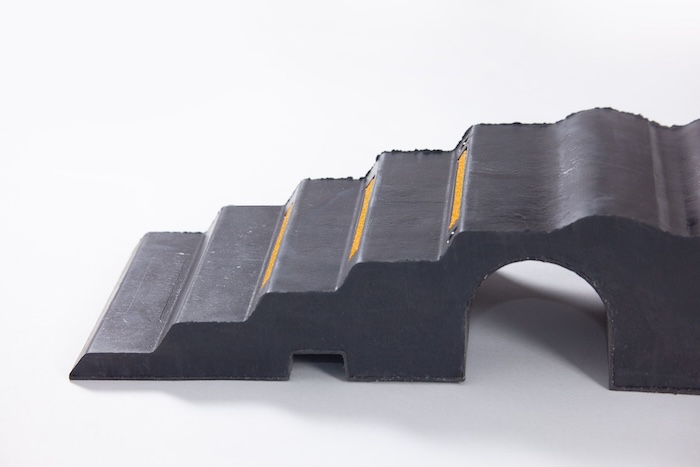

2 channel cable protector2 channel cable protector

Why Choose The Ramp People?

With over 20 years of experience, The Ramp People offers an extensive range of cable protectors and traffic calming solutions.

As a trusted supplier, we supply to businesses and customers throughout the UK and Ireland. Renowned for excellent customer service and support, we have amassed over 9,000 5* TrustPilot reviews. Focused on quality, we are an ISO 9001 certified organisation.

The cable protectors are provided with a comprehensive one-year warranty.

Safety and peace of mind

This is a FULL-WIDTH row. Lorem ipsum dolor sit amet, consectetur adipiscing elit. Etiam non pulvinar neque, blandit lobortis leo. Suspendisse ac consectetur magna. Integer vel diam aliquam, laoreet tortor a, commodo diam. Nulla vulputate scelerisque sagittis.

Sed molestie, lectus semper mollis eleifend, ante dui eleifend dui, nec vehicula risus mauris in turpis. Nullam euismod neque vel lectus sodales, nec placerat diam interdum.

Details
SKUTRP-HR-4
Capacity (kg)12000
Height (mm)125
Internal Width (mm)Channel Size 105 x 90
Length (mm)300
Weight (kg)19
Width (mm)855
One Year WarrantyYes
Bulk Prices AvailableYes
Easy to FitYes
High VisabilityYes
Leave OutsideYes
Channel Width (mm)105
Channel Size (mm)90 x 105
Channel Height (mm)90
No. Channels2
Colour OptionBlack
Product Questions
Do The Ramp People offer discounts for those ordering in bulk?
Yes, we can offer discounts for bulk orders. Please contact our team with your specific requirements for a customised quote.
Are The Ramp People's Hose Protectors suitable for HGV vehicles to pass over?
With a 20,000kg capacity the Hose Protectors are suitable for most HGVs travelling at a maximum speed of 5mph.
Do The Ramp People offer any solutions for larger hoses?
Yes, we would suggest viewing the Modular Hose Bridge Ramps or Adam Hall Defender Ultra L.
How do The Ramp People's Hose Protectors connect together?
Bone connectors are provided to connect the Hose Protectors together. Please scroll through the images for further information.
Can The Ramp People's Hose Protectors be secured to the ground?
These hose protectors are designed as portable hose ramps so are not provided with fixing points to secure them to the ground. The weight of the hose ramps keep them securely in place.
