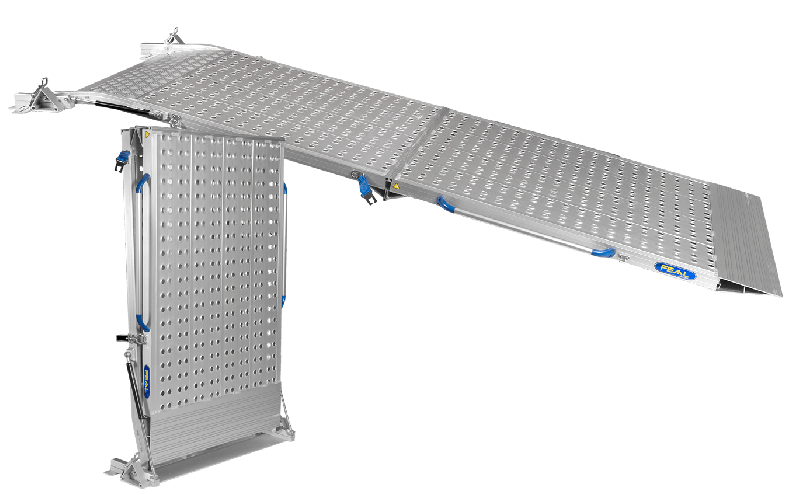

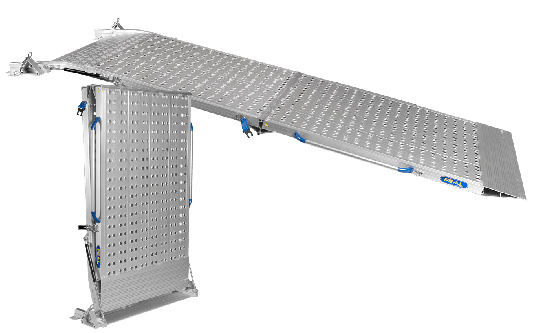

Heavy Duty 2 Part Folding van ramp 1100mm wide

Heavy Duty 2 Part Folding van ramp 1100mm wide with perforated ramps made from durable material that can easily be installed in the back of your vehicle. Available in a variety of lengths and to fit a wide range of vehicles.

  • Bolt Down
  • Easy to Fit
  • European Made
  • One Year Warranty
  • Three Year Warranty

Standard Installation

Mounting Swivel base

Description

Please note; the yellow and black mounting plate in the "Mounting Swivel Base" video is not included. This is for demonstration purposes only.

If you're unsure which ramp will fit into your vehicle; see our Vehicle information checklist. Please add the information and send this to us and we will confirm a suitable option.

Features include:

  • 650kg and 800kg capacity available
  • Excellent grip from perforated anti-slip surface
  • Easy to install: fully fitted with only two clips
  • Includes fixing kit and brackets
  • Installation time of less than 30 minutes
  • Lightweight, strong and durable
  • Robot welded for solid, strong and durable construction
  • Easily installed on several vehicles of the same size
  • Lateral safety edges to prevent accidentally wheeling off
  • Bypasses most bumpers, crash bars, steps and tow bars
  • Can be used to connect two vehicles
  • Can function as a table or workbench
  • Customised Lengths, Widths and Capacities available. Please contact us for more information
  • All pictures shown are for illustration purpose only. Actual product may vary due to product enhancement

Heavy Duty 2 Part Folding van ramp 480mm wide with perforated Surface

1990mm TRP-LR110-19

  • Length (mm): 1900
  • Folded Height (mm): 1070
  • Max Load Height (mm): 450*
  • Internal Width (mm): 1100
  • Weight per ramp (kg): 39
  • Capacity (kg): 800

2140mm TRP-LR110-21

  • Length (mm):2140
  • Folded Height (mm): 1190
  • Max Load Height (mm): 500*
  • Internal Width (mm): 1100
  • Weight per ramp (kg): 44
  • Capacity (kg): 800

2380mm TRP-LR110-23

  • Length (mm): 2380
  • Folded Height (mm): 1310
  • Max Load Height (mm): 550*
  • Internal Width (mm): 1100
  • Weight per ramp (kg): 49
  • Capacity (kg): 650

2820mm TRP-LR110-27

  • Length (mm): 2820
  • Folded Height (mm): 1490
  • Max Load Height (mm): 700*
  • Internal Width (mm): 1100
  • Weight per ramp (kg): 55
  • Capacity (kg): 650

* Max. load height may vary depending on the vehicle


Details
SKU TRP-LR110
Capacity (kg) 650/800
Folded Height (mm) 1070 - 1490
Internal Width (mm) 1100
Length (mm) 1900 - 2820
Surface en Maille
Total Width (mm) 1318
Weight per Ramp (kg) 39- 55
One Year Warranty Yes
Three Year Warranty Yes
Bolt Down Yes
Easy to Fit Yes
European Made Yes
