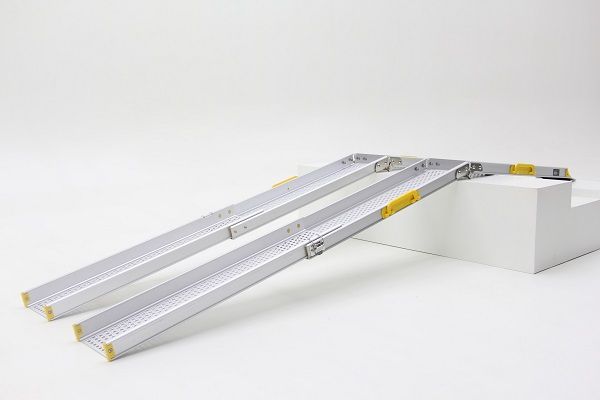

Dual Purpose Folding Telescopic Channel & Bridge Ramps Combi 7ft - 10ft Long

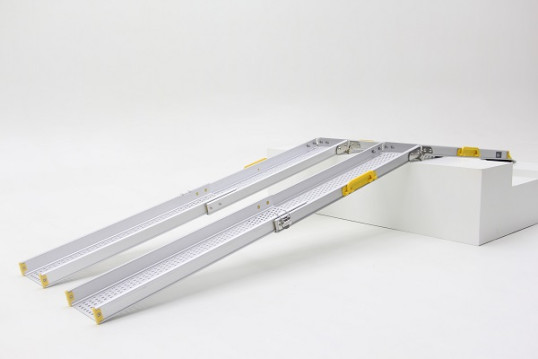

The Ramp People's Economy Folding &Telescopic channel ramps provide unlimited adjustability and are easy to store. The ramps can be used as standard channel ramps by simply resting these on the step. In addition, these ramps incorporate a folding feature to allow these to be used to bridge thresholds.
Wheelchair ramp bags available separately here for lengths up to 6ft.
Please note, these ramps are NOT suitable for electric wheelchairs or scooters due to their low ground clearance.
Price and capacity stated is for the pair.
Please note that those channel ramps are ONLY suitable for manual wheelchairs. For electric wheelchairs and scooters, please view our folding wheelchair ramps.
- Maximum gradient = 1 in 6 although 1 in 8 is recommended
- Available with or without carry bag.
- Quick and easy to set up
- Lightweight, aerospace design
- Suitable for bridging thresholds with unequal levels on each side
- Provided with carry handles and clips shut for easy storage
- Durable non-slip surface
- Rest on connection, to fit just rest on and start loading
- 45mm high walls, edges on each side of the ramp to prevent accidentally wheeling off
- Clip to use the ramps at shorter lengths where required
- Not suitable to be kept outside
- For alternative lengths view our combination channel ramps
- All pictures shown are for illustration purpose only. Actual product may vary due to product enhancement
Dual Purpose Folding Telescopic Channel Ramps Range
7ft / 210cm
- Extended Length: 7ft/2100mm
- Folded Length (mm): 810
- Capacity (kg): 275kg
- Total width (mm): 210
- Internal width (mm): 162mm
- Max. load height (mm): 355mm
- Weight: 13kg
- Weight per ramp: 6.5kg
- Main ramp length: 1300mm/4.3ft
- Threshold ramp length: 800mm/2.6ft
8ft / 240cm
- Extended Length: 8ft/2400mm
- Folded Length (mm): 900
- Capacity (kg): 275kg
- Total width (mm): 210
- Internal width (mm): 162mm
- Max. load height (mm): 405mm
- Weight: 15kg
- Weight per ramp: 7.5kg
- Main ramp length: 1500mm/5ft
- Threshold ramp length: 900mm/3ft
10ft / 300cm
- Extended Length: 10ft/3000mm
- Folded Length (mm): 1100
- Capacity (kg): 275kg
- Total width (mm): 210
- Internal width (mm): 162mm
- Max. load height (mm): 505mm
- Weight: 19kg
- Weight per ramp: 9.5kg
- Main ramp length: 1900mm/6.3ft
- Threshold length ramp: 1100mm/3.6ft
SKU | TRP307-Channel |
---|---|
Capacity (kg) | 275 |
Height (mm) | 45 |
Length (ft) | 7-10 |
Length (mm) | 2133 - 3048 |
Max Load Height (mm) | 355 - 505 |
Weight (kg) | 13-19 |
Weight per Ramp (kg) | 6.5-9.5 |
Width (mm) | 210 |
One Year Warranty | Yes |
Easy to Fit | Yes |
Manual Wheelchair | Yes |
Not Mobility Scooter Friendly | Yes |
