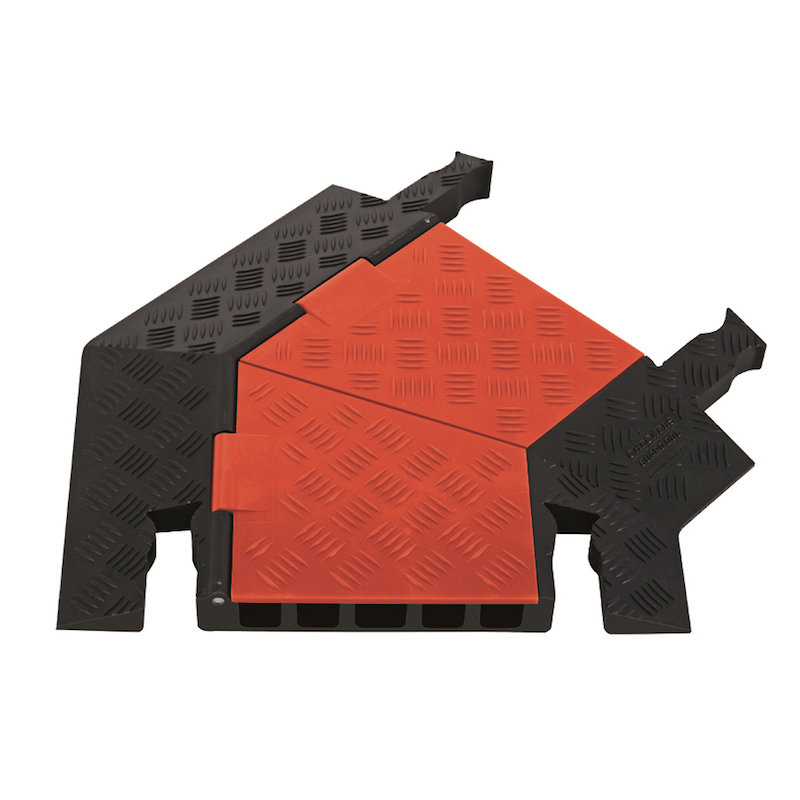

Checkers Guard Dog - 5 Channel Cable Protector 45 degree Corner Sections - Right, O/B

SKU
TRP-GDT5X125-R

If you need to create a 45-degree turn in your cable protector system, use the 5-Channel General Purpose Guard Dog Right Turn. Offering the same level of durability as a standard 5-channel cable protector, the Right Turn protector is designed with the same hinged lid and all-weather polyurethane construction. With a modular, interlocking design, it's perfect for a wide variety of environments, including amusement parks, entertainment venues, sporting events, and most commercial and industrial applications.

Compatible with Dog Bone Connectors and designed with a 5-bar tread surface for maximum traction, this protector can, like other models of its kind, work with cables and hoses of up to 1.325" in diameter. You can even join this protector with a left turn protector to create a jog.

  • Easy to Fit
  • One Year Warranty
  • Leave Outside
Description

Guard Dog 5-Channel Cable Protector with hinged lid provides a safe crossing for vehicle and pedestrian traffic while protecting valuable electrical cables and hose lines from damage. Modular interlocking design is ideal for use in amusement parks, entertainment venues, sporting events, and most public, commercial, industrial, construction, and utility applications.

  • Suitable for the Guard Dog 5-Channel Cable Protector
  • Creates a 45 degree right turn
  • Protects cables and hoses up to 1.325" outside dia.
  • Dog Bone® connectors
  • Reinforced hinged lid for easy cable placement
  • All-weather polyurethane construction
  • Patented 5-bar tread surface for maximum traction
  • Join left and right turns to create a jog
  • All pictures shown are for illustration purpose only. Actual product may vary due to product enhancement
Specifications
Units:
SKUTRP-GDT5X125-R TRP-GDT5X125-R
Capacity (kg)9,526 20,1160
Height (mm)48 1.89
Length (mm)622 24.49
Weight (kg)5 11.02
Width (mm)502 19.76
One Year WarrantyYes 1
Easy to FitYes 1
Leave OutsideYes 1
Cable Protector ColorOrange/Black Orange/Black
Channel Width (mm)34 1.34
Channel Size (mm)34 x 33.7 1.34 x 1.33
Channel Height (mm)33.7 1.33
No. Channels5 5
Capacity per Axle (kg)9526 9526
Capacity per Tyre (kg)4762 4762
Operating Temperature (deg. F)70 70
Speedlimit (mph)10 10
Colour OptionBlack 710
