Aluminium Modular Ramp Kit with Platform and Handrails - 900mm x 1250mm ramp section
Modular Ramp System, 1250mm long ramp section, 900mm ramp usable width, with double height handrails and mesh anti-slip surface.
Advised gradient will be 1:15, although the ramp system can be set on a maximum gradient of 1:10
Handrails included, please see other images in the product. Upon purchase, please confirm left or right turn after door.

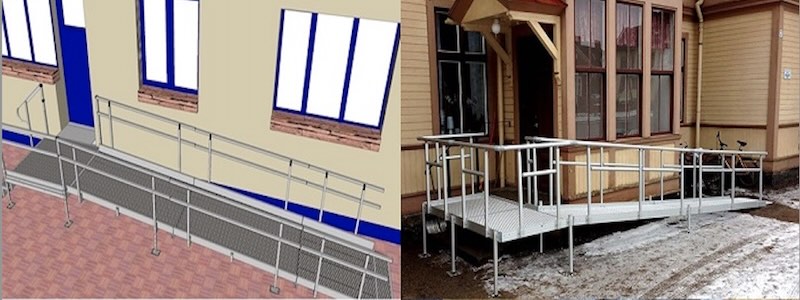

Modular Wheelchair Ramp Systems - Legal Compliance
These systems are designed to be both portable and semi-permanent/temporary - therefore they do not need to comply with building regulations (Part M or Part K) - if you require your system to be compliant please get in contact as this something we can provide but the specification would need to be altered.
Modular Ramp Kit, 1250mm long, 900mm wide, with double height handrails and mesh anti-slip surface.

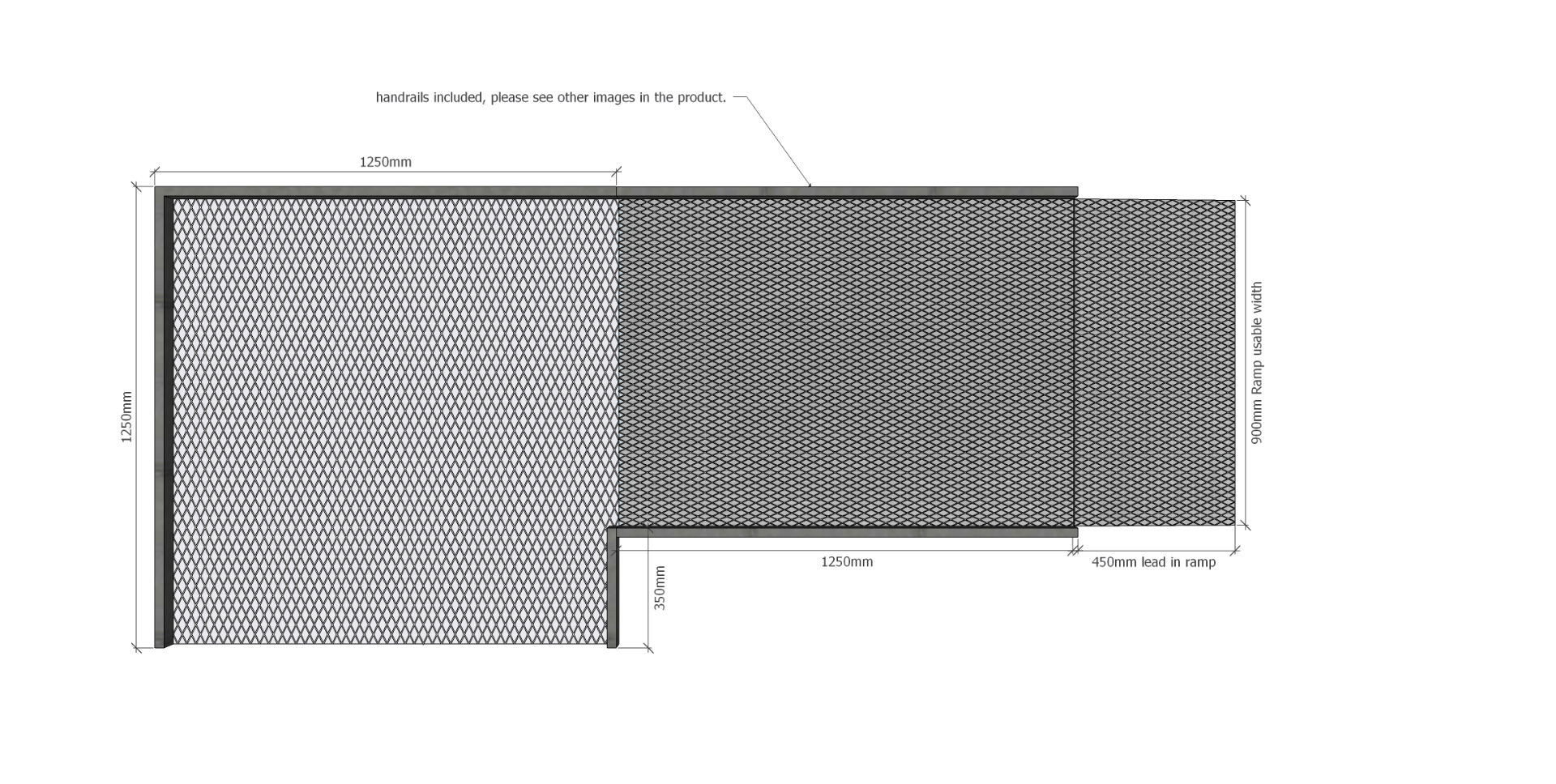

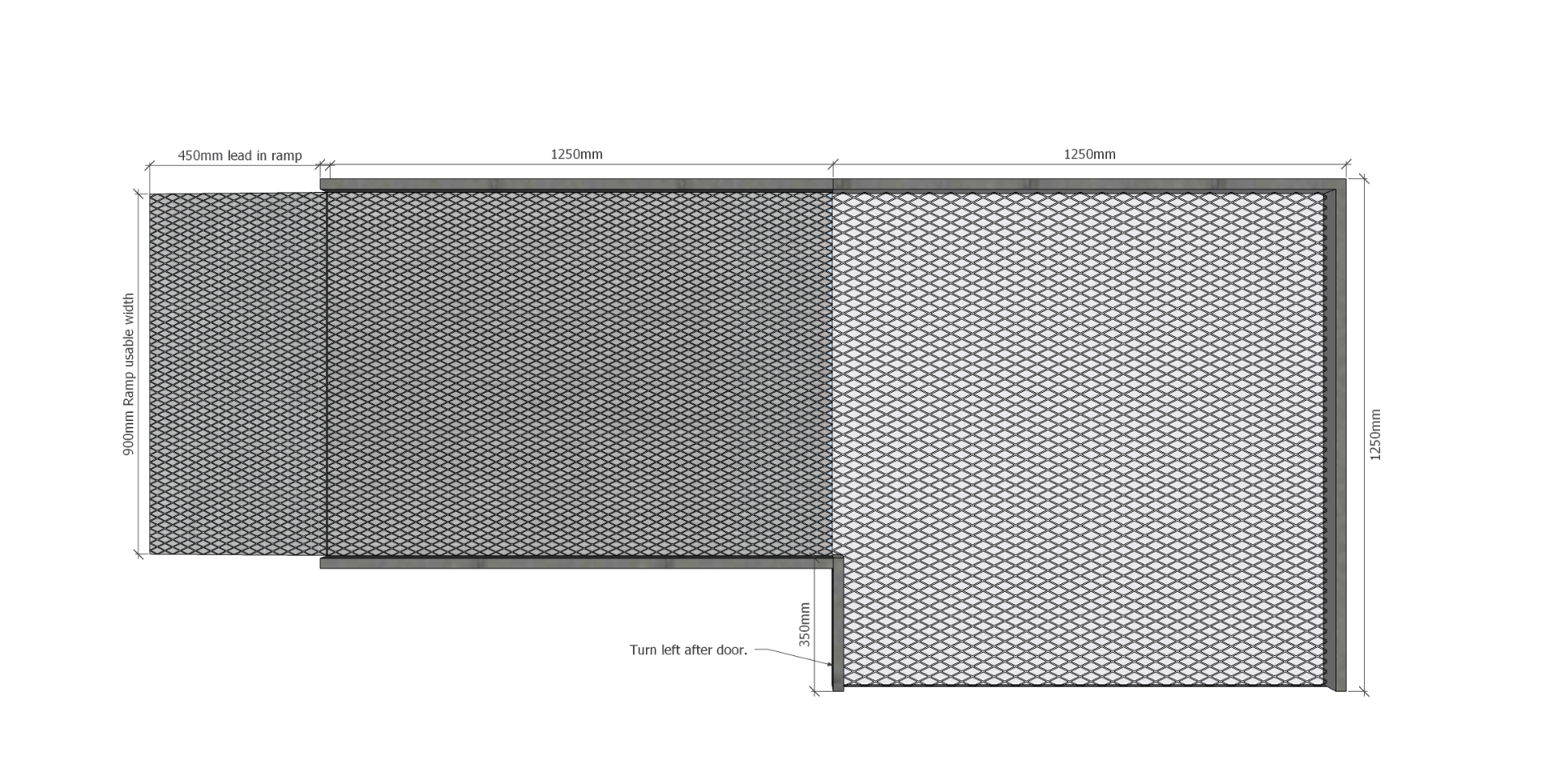

Kit includes:
- Lead In Ramp: 900mm wide x 450mm long
- Ramp Section: 1250mm long x 900mm wide
- Platform : 1250mm x 1250mm
- Handrails: double horizontal handrails included
- Connection to step/threshold: 900mm wide x 200mm long; can be ordered cut to size if required. The necessary door measurements can be found here.
Not available for Northern Ireland.
All instructions and a video for assembling the system can be found here.
SKU | TRP-FMS90-1250H |
---|---|
Capacity (kg) | 400 |
Internal Width (mm) | 900 |
Length (mm) | 1250 |
Three Year Warranty | Yes |
Customisable | Yes |
Easy to Fit | Yes |
Electric Wheelchair | Yes |
European Made | Yes |
Fixings Included | Yes |
Manual Wheelchair | Yes |
Mobility Scooter Friendly | Yes |
Leave Outside | Yes |
