Door Measurements for Modular Wheelchair Ramps

An easy guide how to measure the right parts of the door for our modular systems. Please follow the video and the images below.

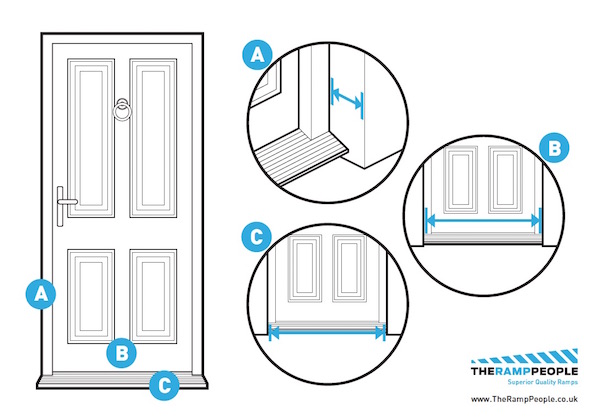

A: depth of door (wall to door frame)
B: width of door opening (frame to frame)
C: width of door opening (wall to wall)

Plate connectors

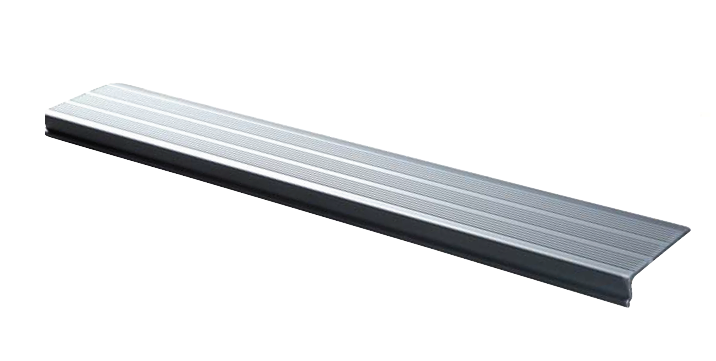

RA - Straight connection for platform to door/step

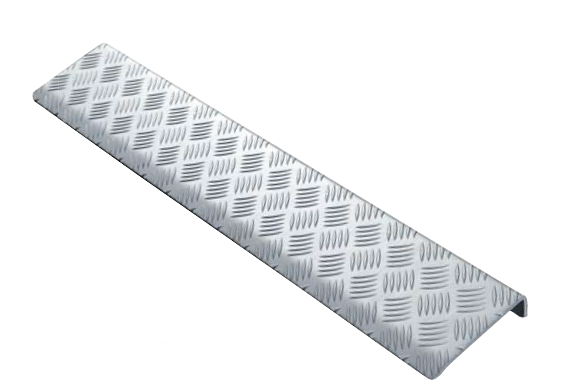

ÖL - Slightly curved connection for ramp section to door/step

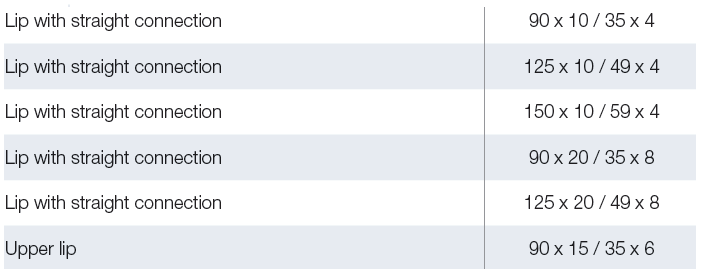

Standard dimensions available:
