Viper Premium Heavy Duty Van Ramp 1000mm wide x 2000kg Capacity

Single Piece Aluminium Loading Ramp with a capacity from 2000kg and 1000mm wide, available in lengths 1800mm, 2000mm, 2400mm and 2600mm.

Truck and Van Ramps FAQ's

Length (mm)1800-2600
Width (mm)1000
Max. Load Height (mm)780
Weight (kg)37-54
Capacity (kg)2000

Got a question?

Product: Viper Premium Heavy Duty Van Ramp 1000mm wide x 2000kg Capacity
SKU: TRP-Viper2000

  • Connection Options
  • Customisable
  • Easy to Fit
  • European Made
  • Not for Solid Wheels
  • One Year Warranty
€1,057.80 €860.00
In Stock
TRP-Viper2000
Talk to The Ramp People's sales team

TRP Viper Premium Heavy Duty Van Ramp Features include:

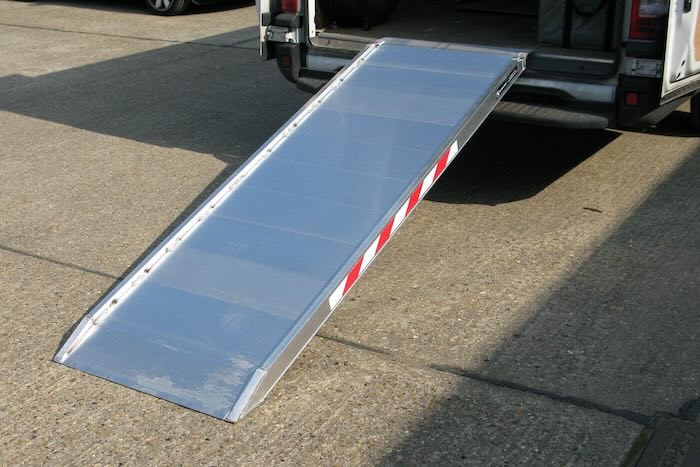

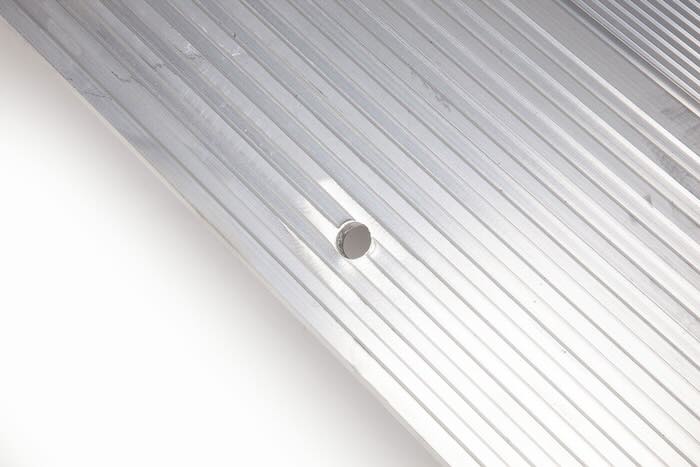

  • Rest on connection: to fit just rest on your van and start loading (hook connection also available)
  • Extended connection terminal bridges most bumpers, crash bars and tow bars
  • Optimised ramp weight ensures the ramp stays connected to the van
  • No vehicle modification required

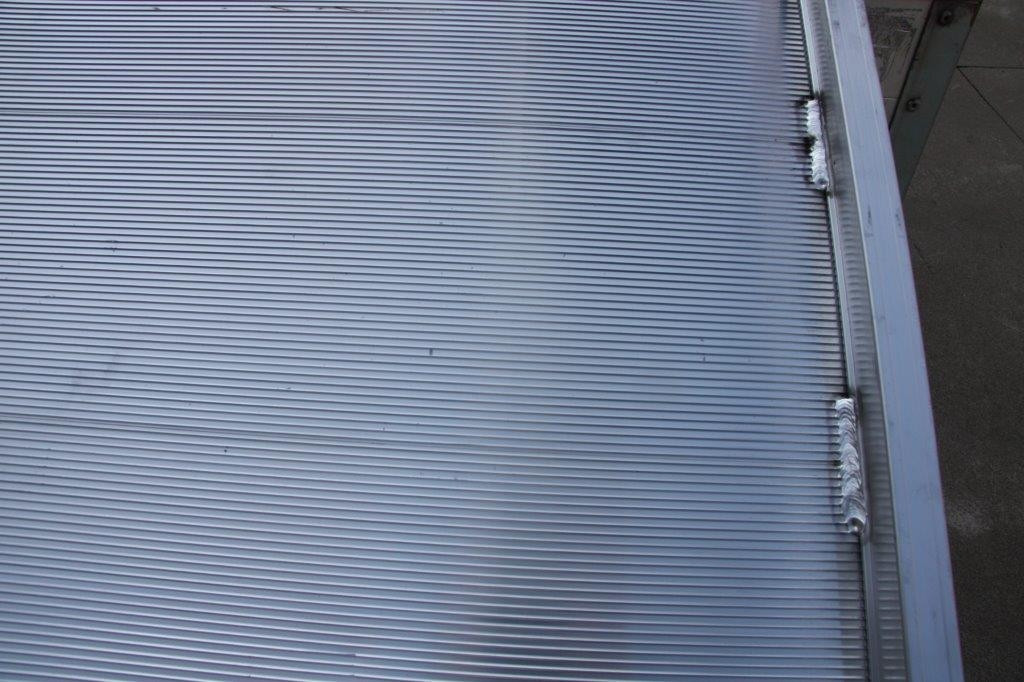

  • Robot Welded for solid, strong and durable construction
  • Lightweight aluminium (type 6005A) for easy handling and compliance with Health & Safety Guidelines
  • Fully TUV Certified to 2000kg capacity as standard
  • Tested to 200% loading capacity

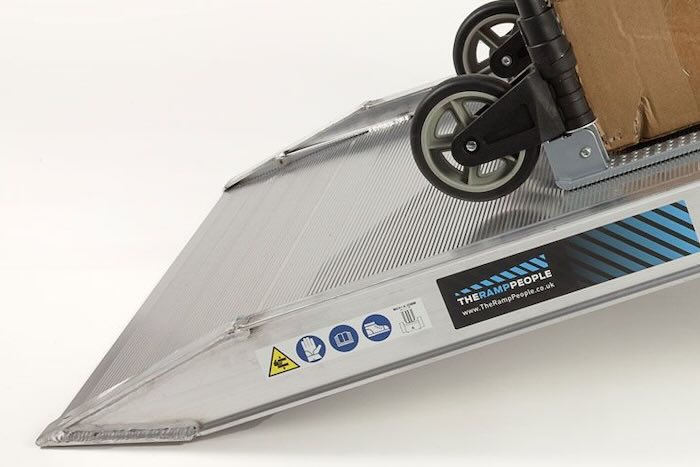

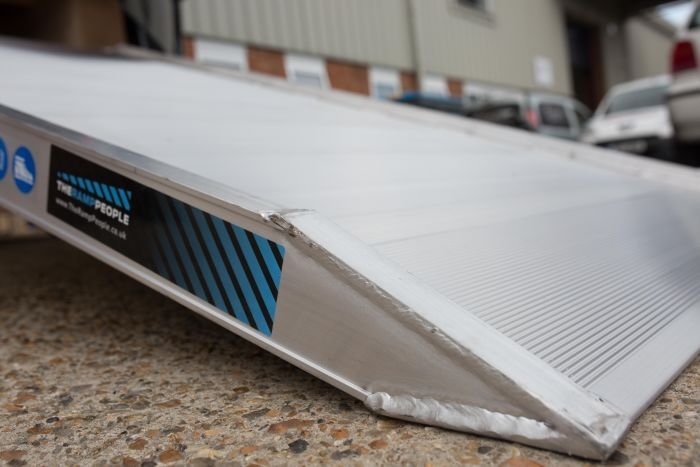

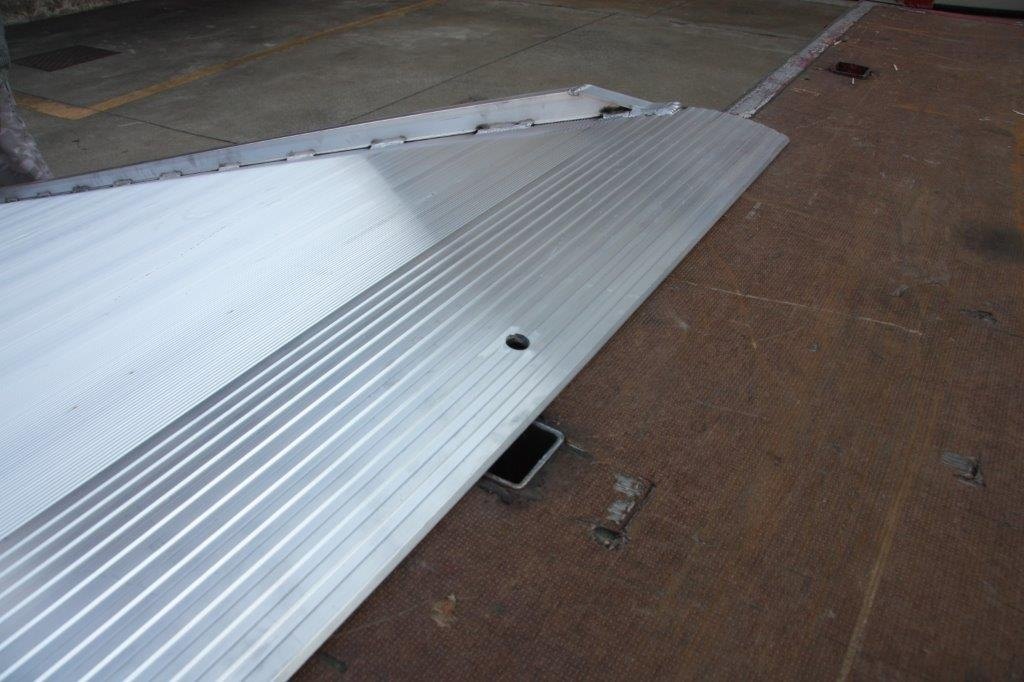

  • Angled foot which allows for smooth access onto the van ramp when using casters or wheels

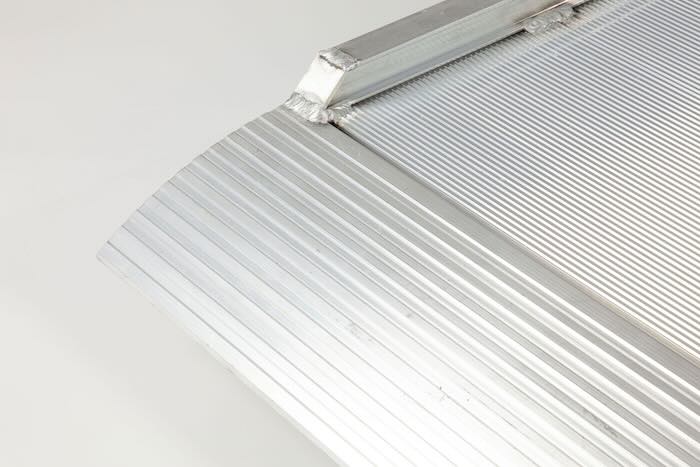

  • Edges on each side of the ramp to prevent accidentally wheeling off (ramps without edges also available)
  • Lengths from 1800mm to 5000mm available
  • Bespoke van ramps built to any length or width
  • Price Match Guarantee: we will beat any similarly specified van ramp quotation

Viper Premium Heavy Duty Van Ramp 1000mm wide x 2000kg Capacity

1800mm

  • Length (mm): 1785
  • Height of Raised Edges (mm): 23
  • Max Load Height (mm): 540
  • External Width (mm): 1000
  • Internal Width (mm): 940
  • Weight per ramp (kg): 37
  • Capacity (kg): 2000
  • Ramp Profile Height (mm):115

2000mm

  • Length (mm): 1985
  • Height of Raised Edges (mm): 23
  • Max Load Height (mm): 600
  • External Width (mm): 1000
  • Internal Width (mm): 940
  • Weight per ramp (kg): 40
  • Capacity (kg): 2000
  • Ramp Profile Height (mm):115

2400mm

  • Length (mm): 2385
  • Height of Raised Edges (mm): 23
  • Max Load Height (mm): 720
  • External Width (mm): 1000
  • Internal Width (mm): 940
  • Weight per ramp (kg): 50
  • Capacity (kg): 2000
  • Ramp Profile Height (mm):125

2600mm

  • Length (mm): 2585
  • Height of Raised Edges (mm): 23
  • Max Load Height (mm): 780
  • External Width (mm): 1000
  • Internal Width (mm): 940
  • Weight per ramp (kg): 54
  • Capacity (kg): 2000
  • Ramp Profile Height (mm):125

TUV Certification Image

Usage Guidelines and Safety Information for these ramps can be found here

SKU TRP-Viper2000

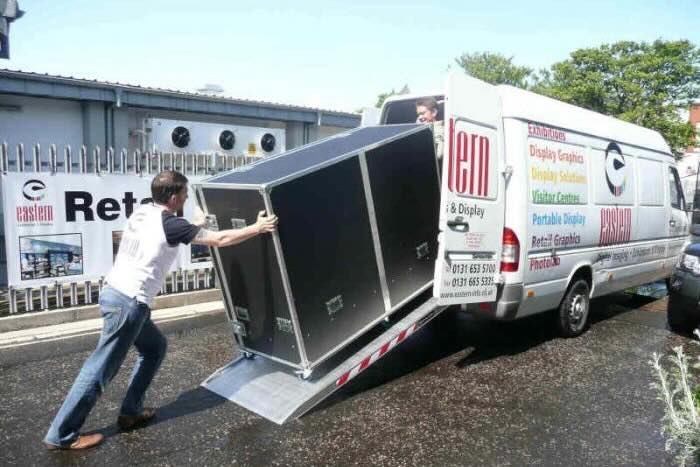

Suitable for Flight Cases YES
Default Connection Rest On Connection
Capacity (kg) 2000
Height of Ramps Profile (mm) 115-150
Internal Track Width (mm) 940
Length (mm) 1800-2600
Maximum Length (mm) 5000
Min Load Height (mm) 450
Weight (kg) 37-54
Width (mm) 1000
One Year Warranty Yes
Connection Options Available Yes
Customisable Yes
Easy to Fit Yes
European Made Yes
Not Solid Wheels Yes
